Page 2 of 349
Locks and Security 110
Keys 110
Locks 115
Anti-theft system 127
Seating and Safety Restraints 133
Seating 133
Personal Safety System™ 145
Safety belt system 148
Airbags 159
Child restraints 176
Tires, Wheels and Loading 194
Tire information 194
Tire inflation 196
Tire Pressure Monitoring System (TPMS) 209
Vehicle loading 213
Trailer towing 219
Recreational towing 220
Driving 221
Starting 221
Brakes 226
AdvanceTrac229
Transmission operation 235
Reverse sensing system 237
Rear-view camera system 239
Roadside Emergencies 249
Getting roadside assistance 249
Hazard flasher switch 250
Fuel pump shut-off 251
Fuses and relays 251
Changing tires 259
Wheel lug nut torque 265
Jump starting 266
Wrecker towing 269
Table of Contents
2
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 92 of 349
CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
1. Cup holders with ambient lighting
(if equipped). Slide the door open
to access the cup holders.
2. Utility compartment with aux jack
and USB port, a power point, and
removable coin holder inside and a
secondary storage bin (on hinges
inside utility compartment).
Note:Slide the arm rest to the
rearward position to open the utility
compartment
3. Sliding arm rest.
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
AUXILIARY POWER POINT (12V DC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•On the instrument panel
•In the center console utility compartment
Do not use the power point for operating the cigarette lighter element (if
equipped).
Note:Do not plug optional electrical accessories into the cigarette lighter
socket (if equipped). Improper use of the lighter can cause damage not
covered by your warranty, and can result in fire or serious injury.
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12V DC/180W. If the power point is not
working, a fuse may have blown. Refer toFuses and relaysin the
Roadside Emergencieschapter for information on checking and
replacing fuses.
Driver Controls
92
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 234 of 349

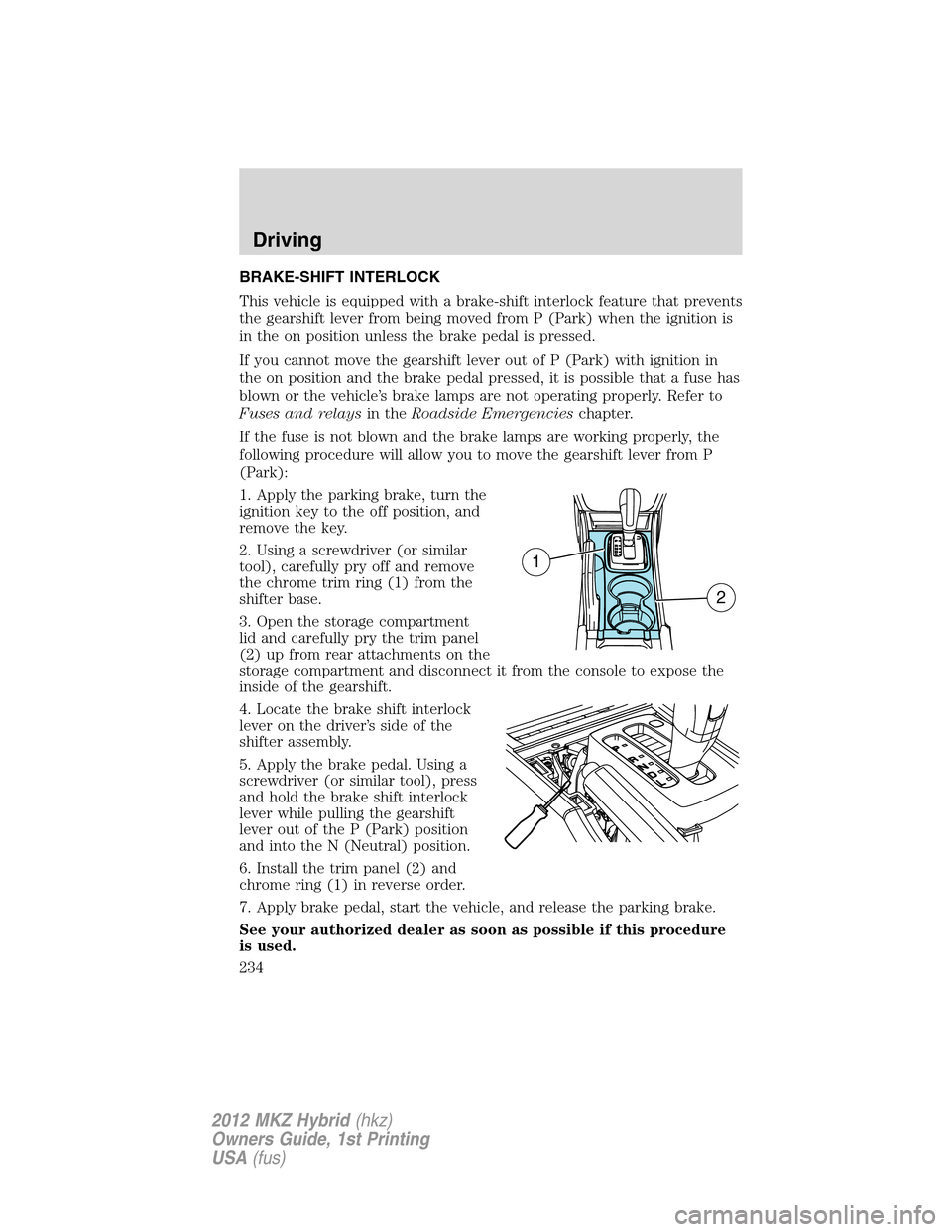

BRAKE-SHIFT INTERLOCK
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless the brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brake lamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown and the brake lamps are working properly, the
following procedure will allow you to move the gearshift lever from P
(Park):
1. Apply the parking brake, turn the
ignition key to the off position, and
remove the key.
2. Using a screwdriver (or similar
tool), carefully pry off and remove
the chrome trim ring (1) from the
shifter base.
3. Open the storage compartment
lid and carefully pry the trim panel
(2) up from rear attachments on the
storage compartment and disconnect it from the console to expose the
inside of the gearshift.
4. Locate the brake shift interlock
lever on the driver’s side of the
shifter assembly.
5. Apply the brake pedal. Using a
screwdriver (or similar tool), press
and hold the brake shift interlock
lever while pulling the gearshift
lever out of the P (Park) position
and into the N (Neutral) position.
6. Install the trim panel (2) and
chrome ring (1) in reverse order.
7. Apply brake pedal, start the vehicle, and release the parking brake.
See your authorized dealer as soon as possible if this procedure
is used.
1
2
Driving
234
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 251 of 349
FUEL PUMP SHUT-OFF
In the event of a moderate to severe collision, this vehicle is equipped
with a fuel pump shut-off feature that stops the flow of fuel to the
engine. Not every impact will cause a shut-off.
Should your vehicle shut off after a collision due to this feature, you may
restart your vehicle by doing the following:
1. Turn the ignition switch to the off position.
2. Turn the ignition switch to the on position.
In some instances the vehicle may not restart the first time you try to
restart and may take one additional attempt.
WARNING:Failure to inspect and if necessary repair fuel leaks
after a collision may increase the risk of fire and serious injury.
Ford Motor Company recommends that the fuel system be inspected
by an authorized dealer after any collision.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
Roadside Emergencies
251
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 253 of 349

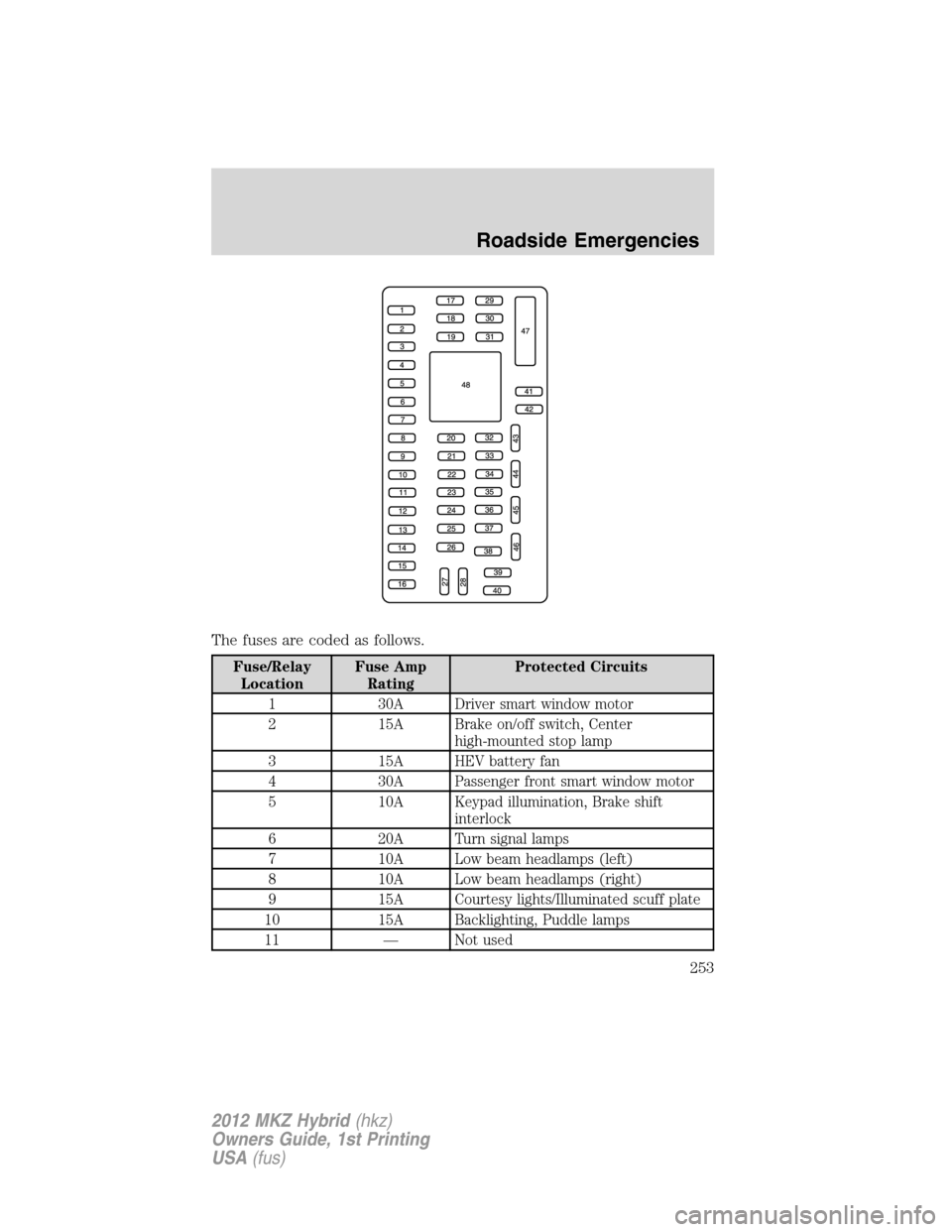

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A Driver smart window motor
2 15A Brake on/off switch, Center
high-mounted stop lamp
3 15A HEV battery fan
4 30A Passenger front smart window motor
5 10A Keypad illumination, Brake shift
interlock
6 20A Turn signal lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Courtesy lights/Illuminated scuff plate
10 15A Backlighting, Puddle lamps
11 — Not used
Roadside Emergencies
253
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 254 of 349
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
12 7.5A Memory modules, Memory seat/mirrors
switches
13 5A SYNCmodule
14 10A Electronic finish panel (EFP) radio
and climate control buttons module,
Navigation display, Center information
display, GPS module, Ambient lighting
15 10A Climate control
16 15A Not used (spare)
17 20A Door locks, Trunk release
18 20A Heated seat module
19 25A Not used (spare)
20 15A On-Board Diagnostic connector
21 15A Fog lamps
22 15A Front sidemarker lamps, Park lamps,
License plate lamp
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/power saver relay
26 10A Instrument cluster battery power
27 20A Ignition switch
28 5A Radio crank sense circuit
29 5A Instrument cluster ignition power
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Restraint control module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Rear park assist, Blind spot
information system, Rearview camera
36 5A Passive anti-theft sensor (PATS)
transceiver
Roadside Emergencies
254
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 255 of 349
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
37 10A Humidity sensor fan
38 20A Subwoofer amplifier
39 20A Radio
40 20A Not used (spare)
41 15A Automatic dimming mirror, Moon roof,
Compass, Front windows
42 10A Electronic stability control, Adaptive
headlamps
43 10A Rain sensor
44 10A Fuel diode/Powertrain control module
45 5A Heated backlight and blower relay coil,
Wiper washer
46 7.5A Occupant classification sensor (OCS)
module, Passenger airbag off lamp
47 30A Circuit
BreakerRear windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
255
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 256 of 349

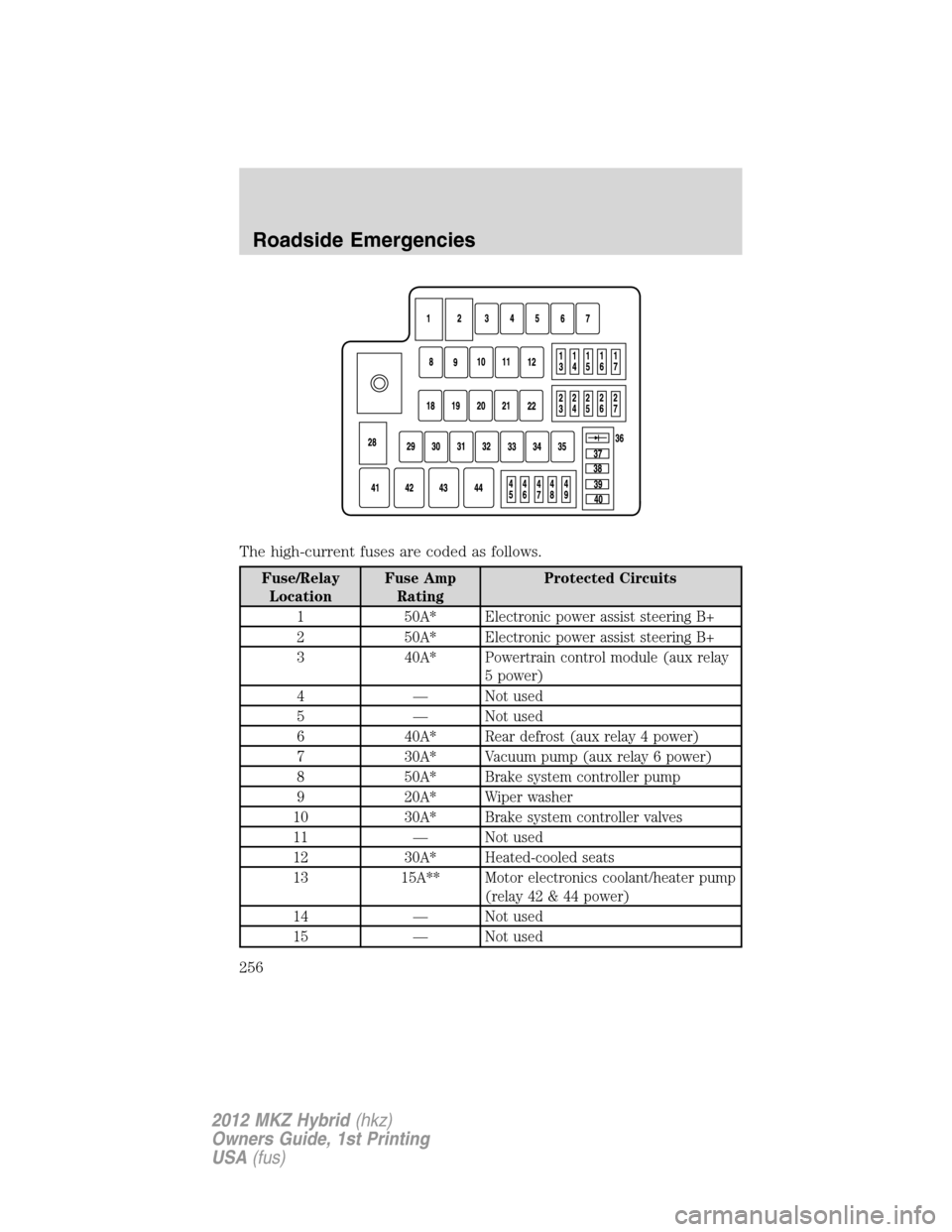

The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 50A* Electronic power assist steering B+
2 50A* Electronic power assist steering B+
3 40A* Powertrain control module (aux relay
5 power)
4 — Not used
5 — Not used
6 40A* Rear defrost (aux relay 4 power)
7 30A* Vacuum pump (aux relay 6 power)
8 50A* Brake system controller pump
9 20A* Wiper washer
10 30A* Brake system controller valves
11 — Not used
12 30A* Heated-cooled seats
13 15A** Motor electronics coolant/heater pump
(relay 42 & 44 power)
14 — Not used
15 — Not used
Roadside Emergencies
256
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 257 of 349

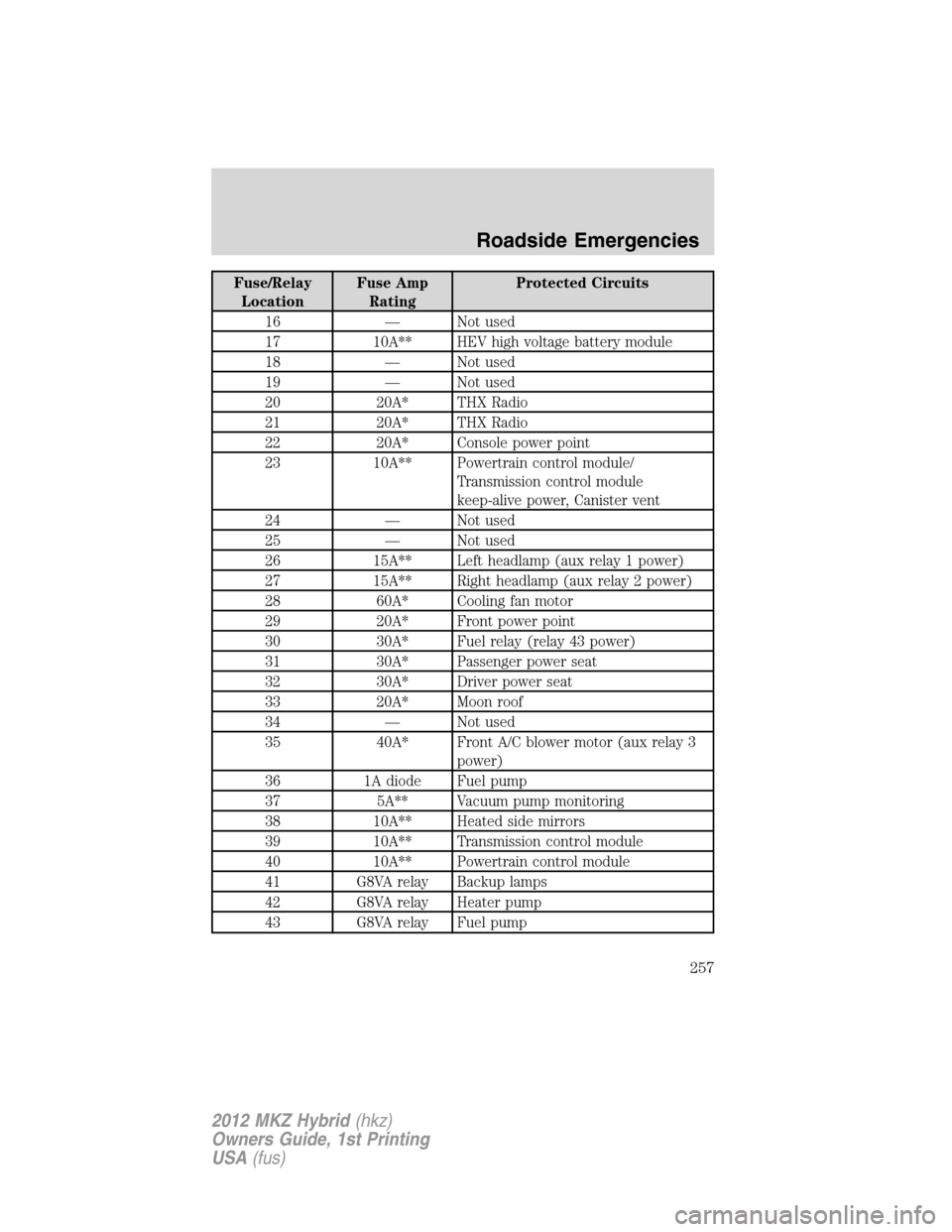

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
16 — Not used
17 10A** HEV high voltage battery module
18 — Not used
19 — Not used
20 20A* THX Radio
21 20A* THX Radio
22 20A* Console power point
23 10A** Powertrain control module/
Transmission control module
keep-alive power, Canister vent
24 — Not used
25 — Not used
26 15A** Left headlamp (aux relay 1 power)
27 15A** Right headlamp (aux relay 2 power)
28 60A* Cooling fan motor
29 20A* Front power point
30 30A* Fuel relay (relay 43 power)
31 30A* Passenger power seat
32 30A* Driver power seat
33 20A* Moon roof
34 — Not used
35 40A* Front A/C blower motor (aux relay 3
power)
36 1A diode Fuel pump
37 5A** Vacuum pump monitoring
38 10A** Heated side mirrors
39 10A** Transmission control module
40 10A** Powertrain control module
41 G8VA relay Backup lamps
42 G8VA relay Heater pump
43 G8VA relay Fuel pump
Roadside Emergencies
257
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 258 of 349
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
44 G8VA relay Motor electronics coolant pump
45 15A** Injectors
46 15A** Coil on plugs
47 10A** Powertrain control module (general):
Heater pump, Motor electronics
coolant pump relay coils, DC/DC
converter, Back-up lamps, Brake
controller
48 20A** HEV high voltage battery module,
Fuel pump relay
4915A** Powertrain control module (emissions
related)
* Cartridge Fuses ** Mini Fuses
Auxiliary relay box
The auxiliary relay box is located in front of the radiator in the engine
compartment.
The components are coded as follows:
Relay Location Relay Type Function
1 High current
microLeft headlamp
2 High current
microRight headlamp
Roadside Emergencies
258
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
