Page 32 of 349
If you calculate your average fuel economy by dividing distance traveled
by amount of fuel used, your figure may be different than displayed for
the following reasons:
•Your vehicle was not perfectly level during fill-up
•Differences in the automatic shut-off points on the fuel pumps at
service stations
•Variations in top-off procedure from one fill-up to another
•Rounding of the displayed values to the nearest 0.1 gallon (liter)
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET button to reset the function after
setting the speed control to get accurate highway fuel economy readings.
For more information refer toEssentials of good fuel economyin the
Maintenance and Specificationschapter.
Distance to empty (DTE):Distance to Empty is displayed in the lower
right for miles or on the top right for kilometers of your vehicle’s
instrument cluster along with the efficiency, history graph or no display
(shown previously with history graph). This function will give you an
estimate of how far you can drive with the fuel remaining in your tank
under normal driving conditions. Distance to empty will vary according
to your driving habits.
DTE is calculated using a running average fuel economy, which is based
on your recent driving history of 500 miles (800 km). This value is not
the same as the average fuel economy display. The running average fuel
economy is re-initialized to a factory default value if the battery is
disconnected.
Turn your vehicle off when refueling to correctly detect the amount fuel
being added and allow this feature to work correctly.
Refer toMessage centerin this chapter for more information on the
distance to empty display mode.
Instrument Cluster
32
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 37 of 349
Average fuel economy
Press INFO to display your average
fuel economy in miles/gallon or
liters/100 km.
If you calculate your average fuel
economy by dividing miles traveled
by gallons of fuel used (liters of fuel
used by 100 kilometers traveled),
your figure may be different than displayed for the following reasons:
•Your vehicle was not perfectly level during fill-up.
•Differences in the automatic shut-off points on the fuel pumps at
service stations.
•Variations in top-off procedure from one fill-up to another.
•Rounding of the displayed values to the nearest 0.1 gallon (liter).
To determine your average highway fuel economy, do the following:
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press RESET in order to reset the function after
setting the speed control to get accurate highway fuel economy readings.
For more information refer toEssentials of good fuel economyin the
Maintenance and Specificationschapter.
MyKeymiles
Select this function from the INFO menu to display tracked MyKey
mileage (km). For more information refer toMyKeyin theLocks and
Securitychapter.
Blank display
Press INFO to select this function from the INFO menu to turn the
display area off.
Setup menu
The setup menu can fully display on both the right and left sides of your
instrument cluster. The left side contains the menu function while the
right side contains help information that changes based on the current
menu selection. The right side is intended to be visible only when the
vehicle is stopped. The menu on the left side can be accessed at any
time by pressing the SETUP button.
Instrument Cluster
37
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 42 of 349
Oil life
An oil change is required whenever indicated by the message center.
To reset the oil monitoring system to 100% (or another value) after each
oil change perform the following:
While Oil Life is highlighted, press RESET to select it and move right to
display the following:
•Set to 100%•Set to 50%
•Set to 90%•Set to 40%
•Set to 80%•Set to 30%
•Set to 70%•Set to 20%
•Set to 60%•Set to 10%
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.
See theMaintenance and Specificationschapter regarding engine oil
and change intervals.
Rear park aid (if equipped)
This feature sounds a warning tone to warn the driver of obstacles near
the rear bumper, and functions only when R (Reverse) gear is selected.
While Rear Park Aid is highlighted, press RESET to select it and move
right to display the following:
•On
•Off
Press SETUP to scroll through the list and highlight one of the choices.
Press RESET to pick the highlighted item.
MyKey
The MyKey feature allows you to program a restricted driving mode to
promote good driving habits. Refer toMyKeyin theLocks and Security
chapter.
Press SETUP to reach MyKey.
While MyKeyis highlighted, press RESET to cycle the message center
through each of the systems being monitored:
Instrument Cluster
42
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 295 of 349
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
Low and high voltage battery – storage
Your vehicle must be started and run for a minimum of 10 minutes once
a month in order to maintain the high voltage battery charge. This will
maintain the high voltage battery but it is not enough to maintain the
low voltage (underhood) battery and additional low voltage (underhood)
battery charging may be required after 60 days.
If your vehicle is to be stored for 30 days or longer, the low voltage
(underhood) battery negative terminal must be disconnected. Failure to
do this could damage your vehicle’s batteries.
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
295
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 304 of 349
fill inlet lamp or CHECK FUEL FILL INLET message may not reset
immediately. It may take several driving cycles for the check fuel fill inlet
lamp or CHECK FUEL FILL INLET message to turn off. A driving cycle
consists of an engine start-up (after four or more hours with the engine
off) followed by city/highway driving. Continuing to drive with the check
fuel fill inlet lamp or CHECK FUEL FILL INLET message on may cause
the service engine soon lamp to turn on as well.
WARNING:The fuel system may be under pressure. If you hear
a hissing sound near the fuel filler door (Easy Fuel“no cap”
fuel system), do not refuel until the sound stops. Otherwise, fuel may
spray out, which could cause serious personal injury.
Choosing the right fuel
Use only UNLEADED fuel or UNLEADED fuel blended with a maximum
of 10% ethanol. Do not use fuel ethanol (E85), diesel, methanol, leaded
fuel or any other fuel. The use of leaded fuel is prohibited by law and
could damage your vehicle.
Your vehicle was not designed to use fuel or fuel additives with metallic
compounds, including manganese-based additives.
Note:Use of any fuel other than those recommended may cause
powertrain damage, a loss of vehicle performance, and repairs may not
be covered under warranty.
Octane recommendations
“Regular” unleaded gasoline with a
pump (R+M)/2 octane rating of 87 is
recommended. Some stations offer
fuels posted as “Regular” with an
octane rating below 87, particularly
in high altitude areas. Fuels with octane levels below 87 are not
recommended.
Do not be concerned if your engine sometimes knocks lightly. However, if
it knocks heavily under most driving conditions while you are using fuel
with the recommended octane rating, see your authorized dealer to
prevent any engine damage.
87(R+M)/2 METHOD
Maintenance and Specifications
304
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 314 of 349
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add a quality gas stabilizer
product to the vehicle fuel system whenever actual or expected storage
periods exceed 30 days. Follow the instructions on the additive label.
The vehicle should then be operated at idle speed to circulate the
additive throughout the fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Low voltage (underhood) battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, disconnect the negative terminal of the low voltage
(underhood) battery to prevent its charge from becoming depleted.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
Maintenance and Specifications
314
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 327 of 349
GENERAL MAINTENANCE INFORMATION
Why maintain your vehicle?
This guide describes the scheduled maintenance required for your
vehicle. Carefully following this schedule helps protect against major
repair expenses resulting from neglect or inadequate maintenance and
may also help to increase the value of your vehicle when you sell or
trade it.
It is your responsibility to see that all scheduled maintenance is
performed and that the materials used meet Ford engineering
specifications as identified in theMaintenance and Specifications
chapter. Failure to perform scheduled maintenance specific in this guide
will invalidate warranty coverage on parts affected by the lack of
maintenance. Be sure receipts for completed maintenance are kept with
the vehicle and confirmation of the work performed is always recorded in
this guide.
Your dealer has factory-trained technicians who can perform the required
maintenance using genuine Ford parts. They are committed to meeting
your service needs and to assuring your continuing satisfaction.
Protecting your investment
Maintenance is an investment that will pay dividends in the form of
improved reliability, durability and resale value. To ensure the proper
performance of your vehicle and its emission control systems, it is
imperative that scheduled maintenance be completed at the designated
intervals.
Your vehicle is equipped with a message center which displays a message
at the proper oil change service interval; the interval is one year or
10,000 miles (16,000 km) under normal driving conditions. When
ENGINE OIL CHANGE DUE NEXT SERVICE or OIL CHANGE
REQUIRED appears in the message center display, it’s time for an oil
change; the oil change must be done within two weeks or 500 miles
(800 km) of the ENGINE OIL CHANGE DUE NEXT SERVICE or OIL
CHANGE REQUIRED message appearing. The oil minder system must be
reset after each oil change; refer to theInstrument Clusterchapter.
If your message center is prematurely reset or becomes inoperative, you
should perform the oil change interval at six months or 5,000 miles
(8,000 km) from your last oil change.
Scheduled Maintenance
327
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 333 of 349
NORMAL SCHEDULED MAINTENANCE AND LOG
Your vehicle is equipped with a oil minder system that indicates when
the engine oil should be changed under normal operating conditions.
This means you won’t have to remember to change the oil on a
mileage-based schedule; the vehicle lets you know when an oil change is
due by displaying ENGINE OIL CHANGE DUE NEXT SERVICE or OIL
CHANGE REQUIRED in the message center.
Normal Scheduled Maintenance
Every 10,000 miles
(16,000 km) or
12 monthsChange engine oil and filter
Rotate tires, inspect tire wear and measure tread
depth
Perform multi-point inspection (recommended)
Inspect automatic transmission fluid level (if
equipped with dipstick); consult dealer for
requirements
Inspect brake pads, shoes, rotors, drums, brake
linings, hoses and parking brake
Inspect cabin air filter (if equipped)
Inspect engine cooling system strength and hoses
(non-hybrid vehicles)
Inspect engine cooling system and
motor/electronics cooling system strength and
hoses (hybrid vehicles)
Inspect exhaust system and heat shields
Inspect half-shaft boots (if equipped)
Inspect rear axle and U-joints; lubricate if
equipped with grease fittings (AWD vehicles)
Inspect steering linkage, ball joints, suspension,
tie-rod ends, driveshaft and U-joints; lubricate if
equipped with grease fittings
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Reset your oil minder system after each engine oil and filter change;
refer to theInstrument Clusterchapter
Do not exceed one year or 10,000 miles (16,000 km) between
service intervals
Scheduled Maintenance
333
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 338 of 349
SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
message center and perform services listed in
Normal Scheduled Maintenance chart
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
As required Change engine oil and filter as indicated by
message center and perform services listed in
Normal Scheduled Maintenance chart (except
Fiesta)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter (except Fusion Hybrid
and MKZ Hybrid)
1
Every 300 hours of
engine operation2Change engine oil and filter (Fiesta)
Every 60,000 miles
(96,000 km)Replace spark plugs
1Fusion Hybrid and MKZ Hybrid vehicles have an engine air filter that
does not normally require replacement. Refer toAir filterin the
Maintenance and Specificationschapter for more information.
2Engine hour meter installation is recommended for these conditions
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Scheduled Maintenance
338
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
Page 339 of 349

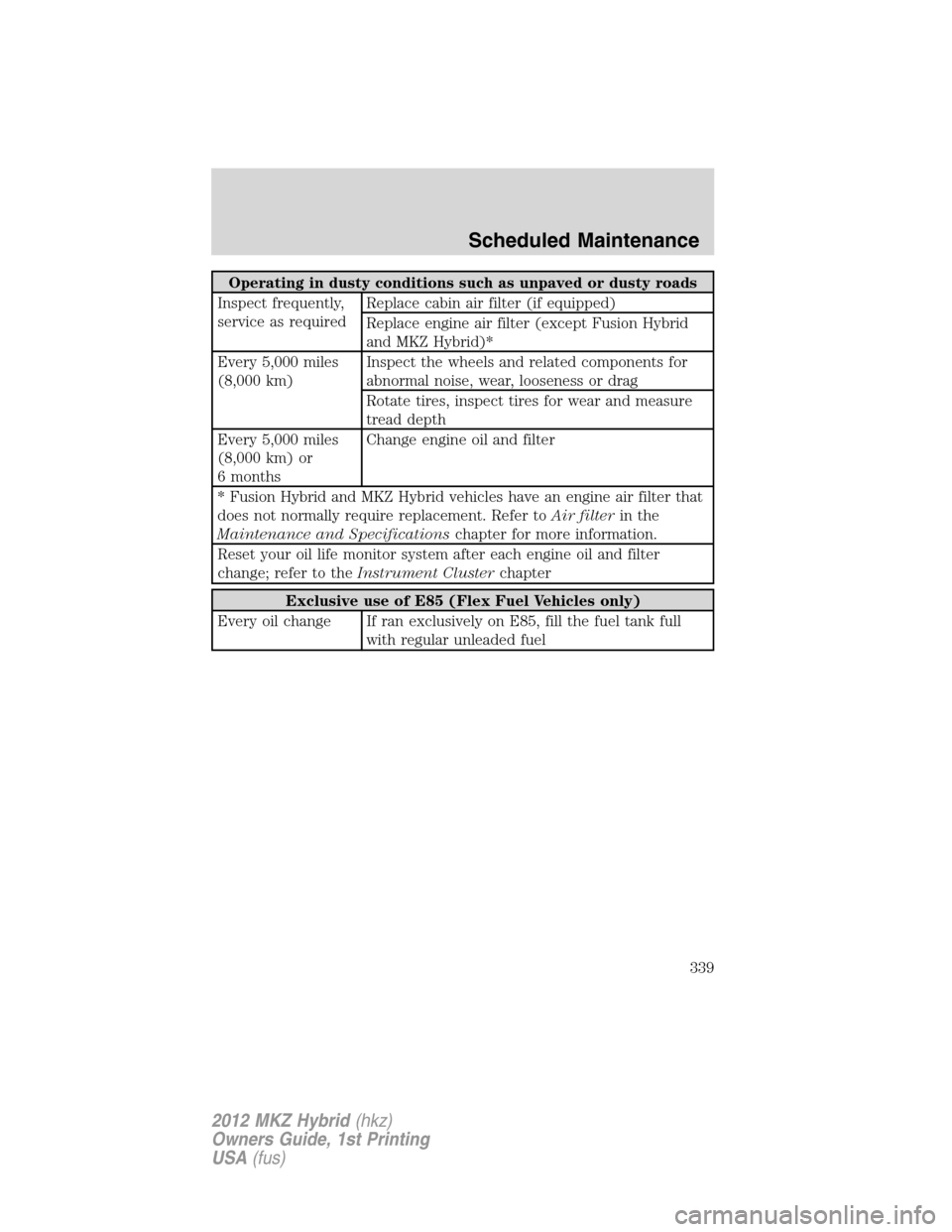

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter (except Fusion Hybrid
and MKZ Hybrid)*
Every 5,000 miles
(8,000 km)Inspect the wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires, inspect tires for wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
* Fusion Hybrid and MKZ Hybrid vehicles have an engine air filter that
does not normally require replacement. Refer toAir filterin the
Maintenance and Specificationschapter for more information.
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change If ran exclusively on E85, fill the fuel tank full
with regular unleaded fuel
Scheduled Maintenance
339
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
