Removing vehicle from storage
When your vehicle is ready to come out of storage, do the following:
•Wash your vehicle to remove any dirt or grease film build-up on
window surfaces.
•Check windshield wipers for any deterioration.
•Check under the hood for any foreign material that may have collected
during storage (mice/squirrel nests).
•Check the exhaust for any foreign material that may have collected
during storage.
•Check tire pressures and set tire inflation per the Tire Label.
•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build-up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
MOTORCRAFT PART NUMBERS
Component 2.5L iVCT engine
Oil filter FL-910S
Spark plugs
1
Cabin air filter FP-67
Low voltage (underhood) battery BXT-67-R
Windshield wiper bladeWW-1801-PF (driver side)
WW-1901-PF (passenger side)
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationchapter for the appropriate
intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
315
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

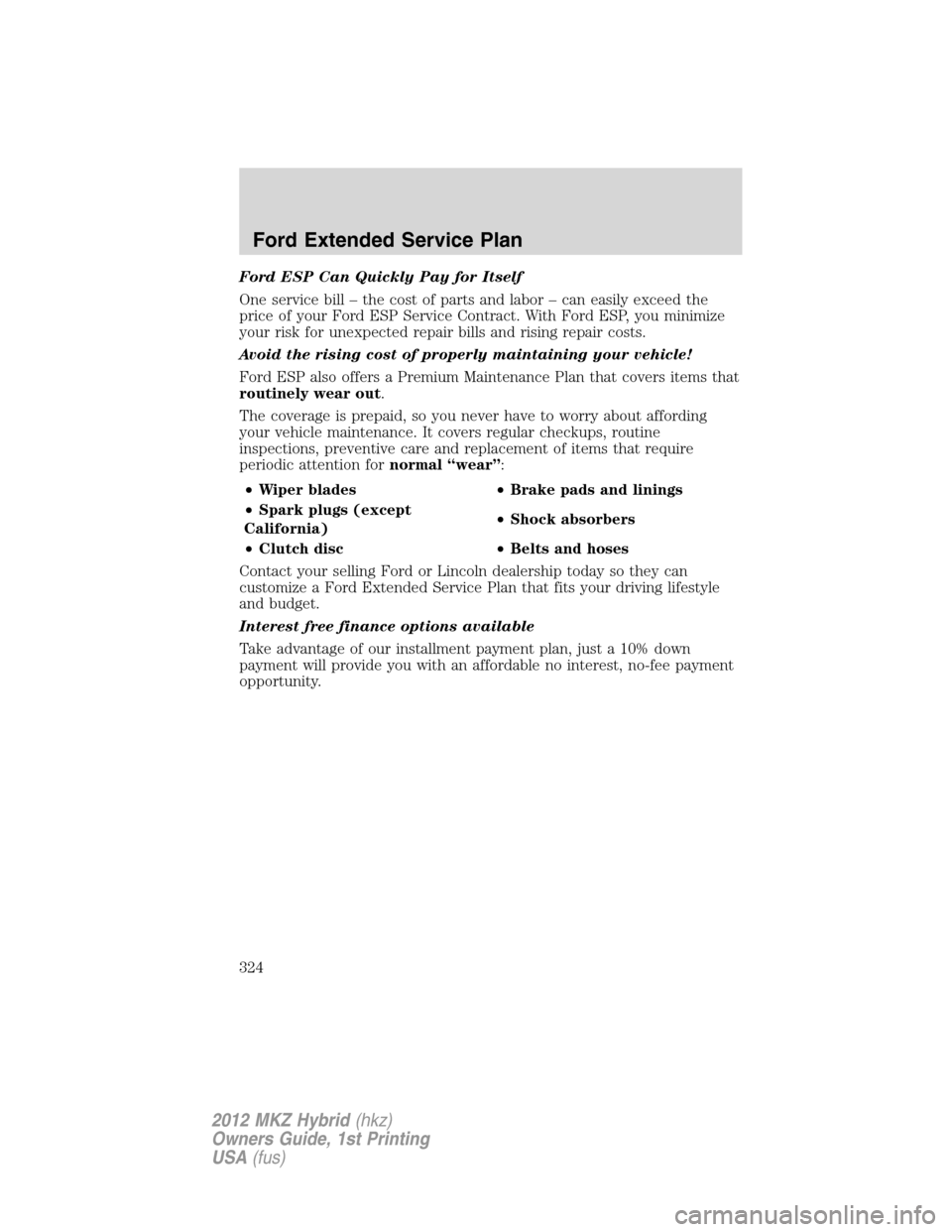

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford or Lincoln dealership today so they can
customize a Ford Extended Service Plan that fits your driving lifestyle
and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
324
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

Additional maintenance items
1
Miles (x 1,000) 20 30 40 60 80 90 100 120 140 150
Kilometers (x 1,000) 32 48 64 96 128 144 160 192 225 240
Replace cabin air filter (if equipped)• ••• •••
Replace climate-controlled seat filter (if equipped)•• • • •
Replace engine air filter (except Fusion Hybrid and MKZ Hybrid)
2
•• • • •
Change engine coolant
3
•
Change motor/electronics coolant (hybrid vehicles only)
3
•
Replace spark plugs•
Inspect accessory drive belt(s)••
Change rear axle fluid (AWD vehicles)•
Change transmission fluid (Fiesta)•
Replace accessory drive belt(s) if not replaced within the last
100,000 miles (160,000 km)•
Replace timing belt if not replaced within the last 150,000 miles
(240,000 km) or 10 years (Fiesta);failure to replace belt can cause
internal engine damage•
1Additional maintenance items can be performed within 3,000 miles (4,800 km) of the last oil change. Do not exceed
the designated distance for the interval.2Fusion Hybrid and MKZ Hybrid vehicles have an engine air filter that does not normally require replacement. Refer to
Air filterin theMaintenance and Specificationschapter for more information.3Initial replacement at 6 years or 100,000 miles (160,000 km), then every 3 years or 50,000 miles (80,000 km)
Scheduled Maintenance
334
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

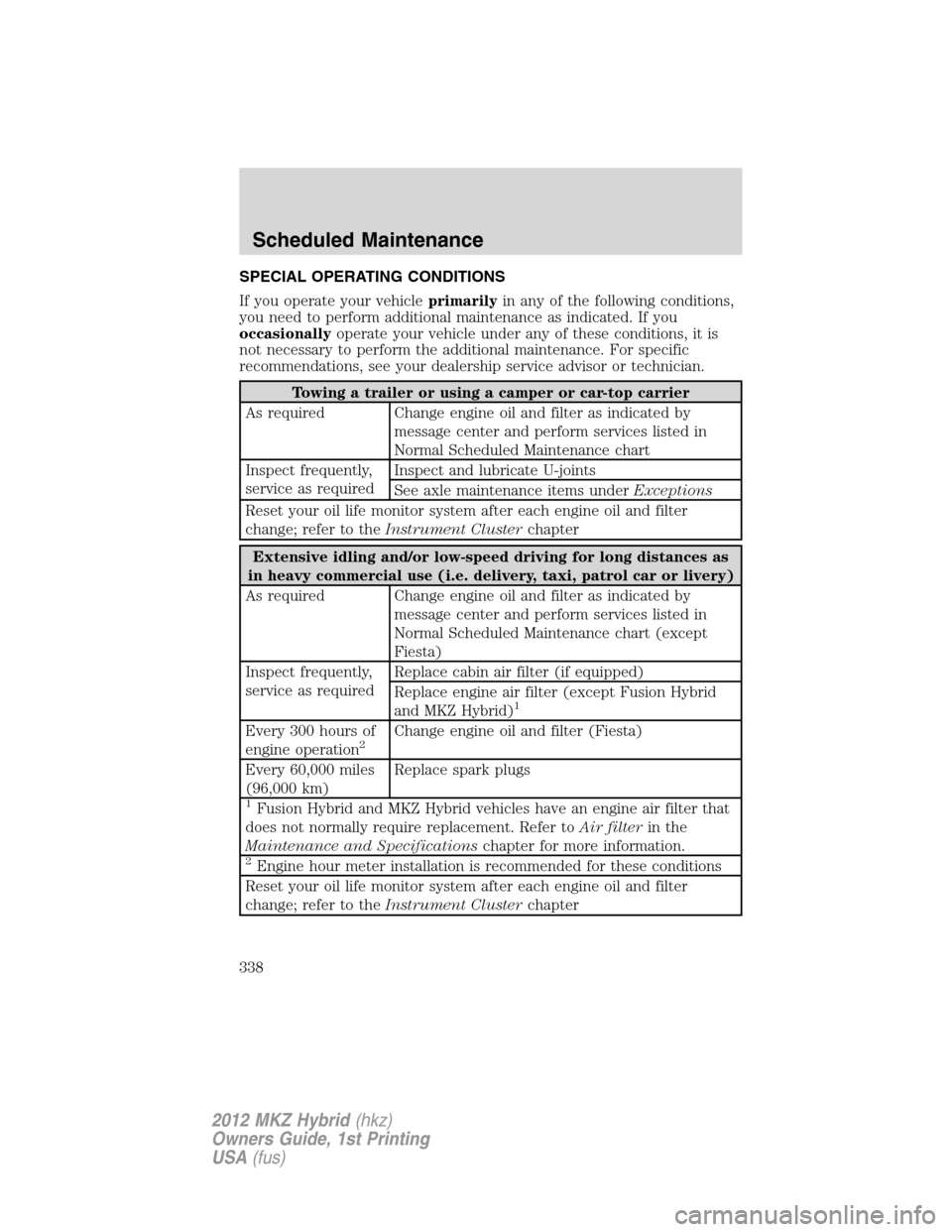

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
message center and perform services listed in
Normal Scheduled Maintenance chart
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
As required Change engine oil and filter as indicated by
message center and perform services listed in
Normal Scheduled Maintenance chart (except
Fiesta)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter (except Fusion Hybrid
and MKZ Hybrid)
1
Every 300 hours of
engine operation2Change engine oil and filter (Fiesta)
Every 60,000 miles
(96,000 km)Replace spark plugs
1Fusion Hybrid and MKZ Hybrid vehicles have an engine air filter that
does not normally require replacement. Refer toAir filterin the
Maintenance and Specificationschapter for more information.
2Engine hour meter installation is recommended for these conditions
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Scheduled Maintenance
338
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)

Power point .................................92
Power steering ..................232–233
Power Windows ...........................93
Power windows
opening using remote
entry system .....................94, 122
R
Radio ............................................50
6-CD in dash .............................50
Rear-view camera system .........239
Recommendations for
attaching safety restraints for
children ......................................178
Relays ................................251, 258
Remote entry system ...............121
illuminated entry ....................125
locking/unlocking
doors ................................121–122
opening the trunk ...................123
opening the windows .......94, 122
panic alarm .............................122
replacement/additional
transmitters .............................124
replacing the batteries ...........124
Reverse sensing system ...........237
Roadside assistance ..................249
S
Safety belts (see Safety
restraints) ..................148–151, 153
Safety defects, reporting ..........279
Safety restraints ........148–151, 153
Belt-Minder...........................154
extension assembly ................153
for adults .........................149–151for children .............................176
Occupant Classification
Sensor ......................................146
warning light and chime ........154
Safety restraints - LATCH
anchors ......................................185
Safety seats for children ..........181
Safety Compliance
Certification Label ....................319
Satellite Radio .............................50
Satellite Radio Information ........62
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............333
Seats ..........................................133
child safety seats ....................181
climate control ..................69, 140
easy access/easyout feature ..141
front seats ...............................138
memory seat ...................123, 137
SecuriCode keyless entry
system ........................................126
SecuriLock passive anti-theft
system ........................................127
Servicing your vehicle ..............287
Setting the clock .........................51
Side air curtain .........................172
SOS Post Crash Alert ...............175
Spark plugs,
specifications .....................315, 318
Specification chart,
lubricants ...................................316
Speed control ..............................97
Starting your vehicle ........221–223
jump starting ..........................266
Index
348
2012 MKZ Hybrid(hkz)
Owners Guide, 1st Printing
USA(fus)
