1. Remove the rubber covering (A) in the
cupholder. Place the remote in the
backup slot (B) at the bottom of the
cupholder.
2. With the key in this position, press the brake pedal, then the START button to
switch the ignition on and start your
vehicle.
Fast Restart
The fast restart feature allows you to restart
the vehicle within 20 seconds of switching
it off, even if a valid key is not present. Within 20 seconds of switching the vehicle
off, press the brake pedal and press the
button. After 20 seconds have expired, you
can no longer restart the vehicle without the
key present inside your vehicle.
Once the vehicle has started, it remains
running until you press the button, even if
the system does not detect a valid key. If you
open and close a door while the vehicle is
running, the system searches for a valid key.
You cannot restart the vehicle if the system
does not detect a valid key within 20
seconds.
Automatic Shutdown
This feature automatically shuts down the
vehicle if it has been idling for an extended
period. The ignition also turns off in order to
save battery power. Before the vehicle shuts
down, a message appears in the information
display showing a timer counting down from
30 seconds. If you do not intervene within
30 seconds, the vehicle shuts down. Another
message appears in the information display
to inform you that the vehicle has shut down
in order to save fuel. Start your vehicle as
you normally do.Automatic Shutdown Override
Note:
You cannot permanently switch off the
automatic shutdown feature. When you
switch it off temporarily, it turns on at the
next ignition cycle.
You can stop the shutdown, or reset the
timer, at any point before the 30-second
countdown has expired by doing any of the
following:
• You can reset the timer by interacting
with your vehicle (such as pressing the
brake pedal or accelerator pedal).
• You can temporarily switch off the
shutdown feature any time the ignition is
on (for the current ignition cycle only).
Use the information display to do so. See
Information Displays (page 110).
• During the countdown before shutdown,
you are prompted to press OK or RESET
(depending on your type of information
display) to temporarily switch the feature
off (for the current ignition cycle only).
168
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Starting and Stopping the EngineE155835

Vehicles Sold In Canada: Getting
Roadside Assistance
Canadian clients who require roadside
assistance, call 1-800-387-9333.
Sykes Assistance Services Corporation
administers the Roadside Assistance
program. You must receive covered services
in Canada or the continental United States.
Coverage extends to vehicles that use public,
non-seasonal, annually traveled roadways.
Roadside Assistance coverage does not
extend to vehicles involved in cross-country
driving, logging, autocross and any other
form of off-road use. Well maintained roads
and surfaces help ensure safe travel for the
Supplier, and allow their representatives to
perform service as per the standard
operating procedures.
In Remote Locations
If our supplier cannot take your vehicle by
road to the nearest authorized dealership,
transportation by rail or water may be
necessary. The program covers a tow to the
dock or rail terminal and also to the
dealership at the end of the trip.
For rail or water transportation, however,
contact your authorized dealer to confirm if
you are eligible for additional coverage
before you authorize or pay for the service.
Call the Lincoln Roadside Assistance at
1-800-387-9333 for additional information.
Vehicles Sold In Canada: Using
Roadside Assistance
Canadian Roadside coverage and benefits
may differ from the United States coverage.
Please refer to your warranty information or
visit our website at www.lincolncanada.com
for information on Canadian services and
benefits.
Canadian clients who need to obtain
roadside information, call 1-800-387-9333 or
visit our website at www.lincolncanada.com.
HAZARD WARNING FLASHERS
Note:
If used when the vehicle is not running,
the battery will lose charge. There may be
insufficient power to restart your vehicle. The hazard warning button is
located on the instrument panel.
Use it when your vehicle is
creating a safety hazard for other motorists.
• Press the button to turn on the hazard
warning function, and the front and rear
direction indicators will flash.
• Press the button again to turn them off.
FUEL SHUTOFF WARNING
Failure to inspect and, if necessary,
repair fuel leaks after a collision may
increase the risk of fire and serious injury.
Ford Motor Company recommends that the
fuel system be inspected by an authorized
dealer after any collision. In the event of a moderate to severe
collision, this vehicle has a fuel pump shut-off
feature that stops the flow of fuel to the
engine. Not every impact will cause a
shut-off.
255
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Roadside Emergencies

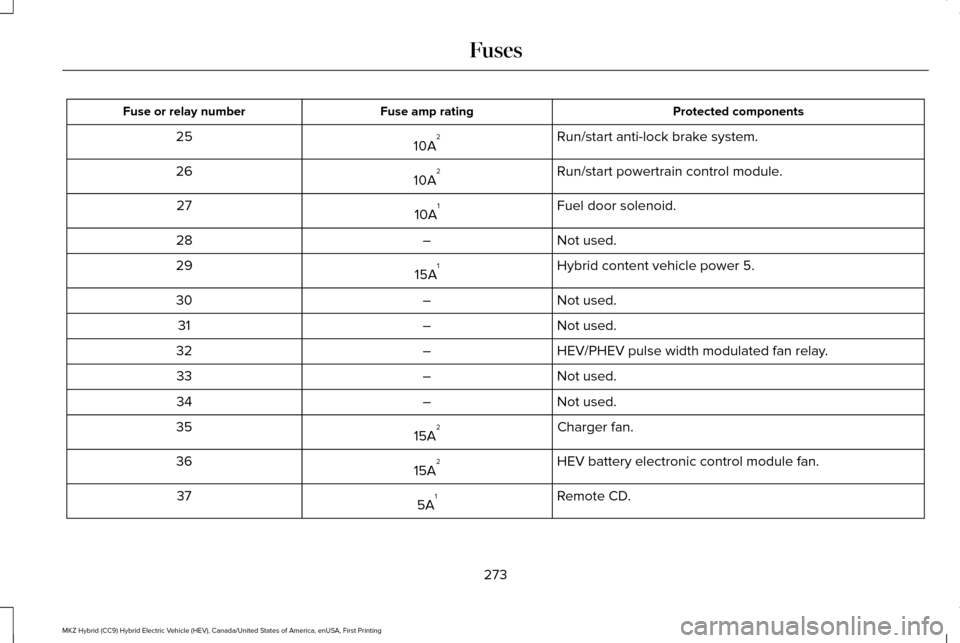

Protected components
Fuse amp rating
Fuse or relay number
Run/start anti-lock brake system.
10A 2
25
Run/start powertrain control module.
10A 2
26
Fuel door solenoid.
10A 1
27
Not used.
–
28
Hybrid content vehicle power 5.
15A 1
29
Not used.
–
30
Not used.
–
31
HEV/PHEV pulse width modulated fan relay.
–
32
Not used.
–
33
Not used.
–
34
Charger fan.
15A 2
35
HEV battery electronic control module fan.
15A 2
36
Remote CD.
5A 1
37
273
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Fuses

WARNINGS
1. Make sure that you have the correct
tire and wheel size.
2. Lubricate the tire bead and wheel
bead seat area again.
3. Stand at a minimum of 12 feet (3.66
meters) away from the wheel and tire
assembly.
4. Use both eye and ear protection.
For a mounting pressure more than 20
psi (1.38 bar) greater than the maximum
pressure, a Ford dealer or other tire
service professional should do the
mounting.
Always inflate steel carcass tires with a
remote air fill with the person inflating
standing at a minimum of 12 feet (3.66
meters) away from the wheel and tire
assembly Important: Remember to replace the
wheel valve stems when the road tires
are replaced on your vehicle
It is recommended that the two front
tires or two rear tires generally be
replaced as a pair.
The tire pressure sensors mounted in
the wheels (originally installed on your
vehicle) are not designed to be used in
aftermarket wheels.
The use of wheels or tires not
recommended by Ford Motor Company
may affect the operation of your tire
pressure monitoring system.
If the TPMS indicator is flashing, your
TPMS is malfunctioning. Your
replacement tire might be incompatible
with your TPMS, or some component of
the TPMS may be damaged. Safety Practices WARNINGS
If your vehicle is stuck in snow,
mud or sand, do not rapidly spin
the tires; spinning the tires can tear the
tire and cause an explosion. A tire can
explode in as little as three to five
seconds. Do not spin the wheels at over 35
mph (56 km/h). The tires may fail
and injure a passenger or bystander. Driving habits have a great deal to do
with your tire mileage and safety.
•
Observe posted speed limits.
• Avoid fast starts, stops and turns.
• Avoid potholes and objects on the
road.
• Do not run over curbs or hit the tire
against a curb when parking.
339
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Wheels and Tires

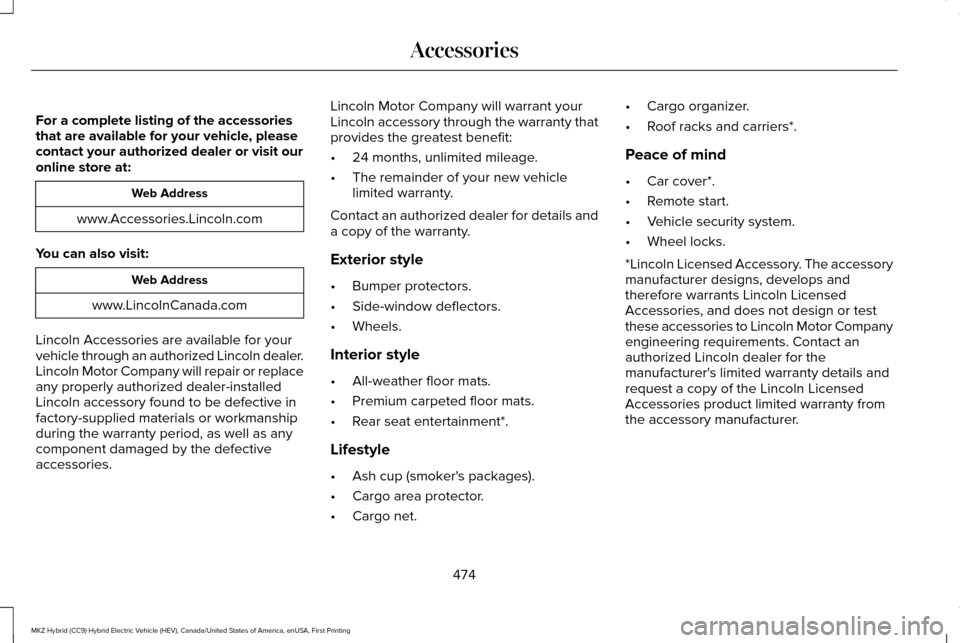

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit our
online store at:
Web Address
www.Accessories.Lincoln.com
You can also visit: Web Address
www.LincolnCanada.com
Lincoln Accessories are available for your
vehicle through an authorized Lincoln dealer.
Lincoln Motor Company will repair or replace
any properly authorized dealer-installed
Lincoln accessory found to be defective in
factory-supplied materials or workmanship
during the warranty period, as well as any
component damaged by the defective
accessories. Lincoln Motor Company will warrant your
Lincoln accessory through the warranty that
provides the greatest benefit:
•
24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details and
a copy of the warranty.
Exterior style
• Bumper protectors.
• Side-window deflectors.
• Wheels.
Interior style
• All-weather floor mats.
• Premium carpeted floor mats.
• Rear seat entertainment*.
Lifestyle
• Ash cup (smoker's packages).
• Cargo area protector.
• Cargo net. •
Cargo organizer.
• Roof racks and carriers*.
Peace of mind
• Car cover*.
• Remote start.
• Vehicle security system.
• Wheel locks.
*Lincoln Licensed Accessory. The accessory
manufacturer designs, develops and
therefore warrants Lincoln Licensed
Accessories, and does not design or test
these accessories to Lincoln Motor Company
engineering requirements. Contact an
authorized Lincoln dealer for the
manufacturer's limited warranty details and
request a copy of the Lincoln Licensed
Accessories product limited warranty from
the accessory manufacturer.
474
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Accessories

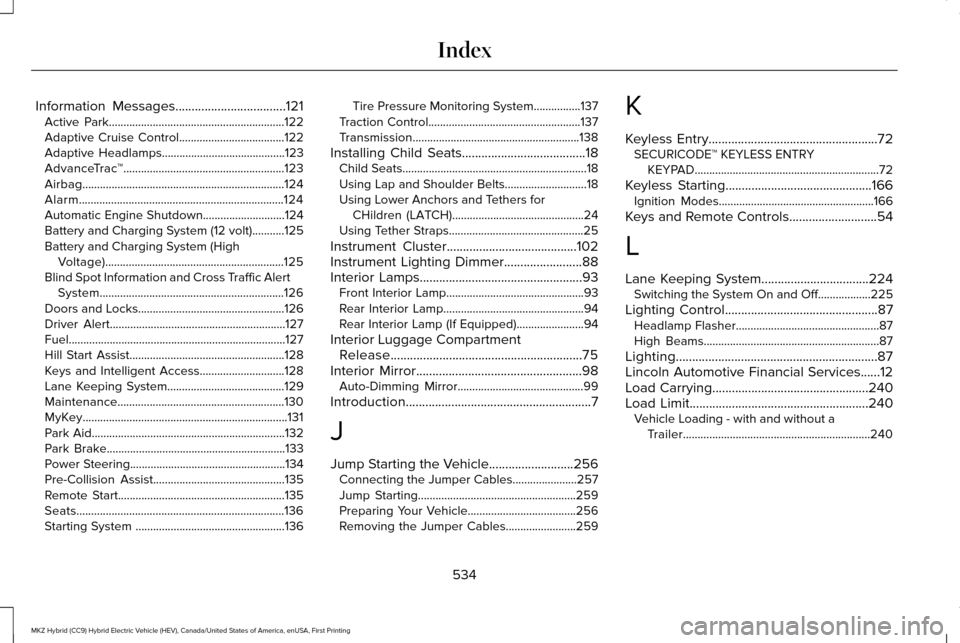

Information Messages..................................121
Active Park............................................................122
Adaptive Cruise Control....................................122
Adaptive Headlamps..........................................123
AdvanceTrac ™.......................................................123
Airbag.....................................................................124
Alarm......................................................................124
Automatic Engine Shutdown............................124
Battery and Charging System (12 volt)...........125
Battery and Charging System (High Voltage).............................................................125
Blind Spot Information and Cross Traffic Alert System...............................................................126
Doors and Locks..................................................126
Driver Alert............................................................127
Fuel........................................................................\
..127
Hill Start Assist.....................................................128
Keys and Intelligent Access.............................128
Lane Keeping System........................................129
Maintenance.........................................................130
MyKey......................................................................131
Park Aid..................................................................132
Park Brake.............................................................133
Power Steering.....................................................134
Pre-Collision Assist.............................................135
Remote Start.........................................................135
Seats.......................................................................136
Starting System ...................................................136 Tire Pressure Monitoring System................137
Traction Control....................................................137
Transmission.........................................................138
Installing Child Seats......................................18 Child Seats...............................................................18
Using Lap and Shoulder Belts............................18
Using Lower Anchors and Tethers for
CHildren (LATCH).............................................24
Using Tether Straps..............................................25
Instrument Cluster
........................................102
Instrument Lighting Dimmer........................88
Interior Lamps
..................................................93
Front Interior Lamp...............................................93
Rear Interior Lamp................................................94
Rear Interior Lamp (If Equipped).......................94
Interior Luggage Compartment Release
...........................................................75
Interior Mirror...................................................98
Auto-Dimming Mirror...........................................99
Introduction
.........................................................7
J
Jump Starting the Vehicle
..........................256
Connecting the Jumper Cables......................257
Jump Starting......................................................259
Preparing Your Vehicle.....................................256
Removing the Jumper Cables........................
259 K
Keyless Entry
....................................................72
SECURICODE™ KEYLESS ENTRY
KEYPAD...............................................................72
Keyless Starting
.............................................166
Ignition Modes.....................................................166
Keys and Remote Controls
...........................54
L
Lane Keeping System
.................................224
Switching the System On and Off..................225
Lighting Control
...............................................87
Headlamp Flasher.................................................87
High Beams............................................................87
Lighting
..............................................................87
Lincoln Automotive Financial Services......12
Load Carrying
................................................240
Load Limit.......................................................240 Vehicle Loading - with and without a
Trailer................................................................240
534
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Index

Phone...............................................................418
Making Calls.........................................................421
Pairing Subsequent Cell Phones...................420
Pairing Your Cell Phone for the First
Time....................................................................419
Phone Menu Options........................................422
Phone Settings....................................................426
Phone Voice Commands..................................427
Receiving Calls....................................................422
Text Messaging...................................................424
Post-Crash Alert System.............................261 Spinout Detection...............................................261
Power Door Locks See: Locking and Unlocking..............................67
Power Seats....................................................148 Multi-Contour Front Seats With Active Motion
........................................................................\
.....150
Power Lumbar......................................................150
Power Windows..............................................95
Accessory Delay...................................................96
Bounce-Back..........................................................95
One-Touch Down..................................................95
One-Touch Up.......................................................95
Window Lock.........................................................96
Pre-Collision Assist
......................................235
Using the Pre-Collision Assist System..........236
Protecting the Environment
..........................15 R
Rear Parking Aid
...........................................205
Rear Seat Armrest.........................................156
Armrest pass-through........................................156
Rear Seats
.......................................................153
Rear View Camera........................................210 Using the Rear View Camera System.............211
Rear View Camera See: Rear View Camera....................................210
Refueling ...........................................................
181
Easy Fuel™ Capless Fuel System......................181
Remote Control...............................................55 Car Finder...............................................................57
Intelligent Access Key.........................................55
Remote Start...........................................................57
Replacing the Battery..........................................56
Sounding a Panic Alarm......................................57
Remote Start...................................................144 Automatic Settings..............................................145
Repairing Minor Paint Damage...................311
Replacement Parts Recommendation........12 Collision Repairs.....................................................13
Scheduled Maintenance and Mechanical
Repairs.................................................................12
Warranty on Replacement Parts.........................
13
Replacing a Lost Key or Remote Control............................................................59 Reporting Safety Defects (Canada
Only)..............................................................268
Reporting Safety Defects (U.S. Only).......267
Roadside Assistance
...................................254
Vehicles Sold In Canada: Getting Roadside
Assistance.......................................................255
Vehicles Sold In Canada: Using Roadside Assistance.......................................................255
Vehicles Sold In the United States: Getting Roadside Assistance.....................................254
Vehicles Sold In the United States: Using Roadside Assistance.....................................254
Roadside Emergencies
...............................254
Running-In See: Breaking-In..................................................251
Running Out of Fuel......................................179 Refilling With a Portable Fuel Container........179
S
Safety Belt Height Adjustment....................38
Safety Belt Minder..........................................39 Belt-Minder™...........................................................39
Safety Belts
.......................................................33
Principle of Operation..........................................33
Safety Belt Warning Lamp and Indicator Chime..............................................................38
Conditions of operation......................................39
536
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Index

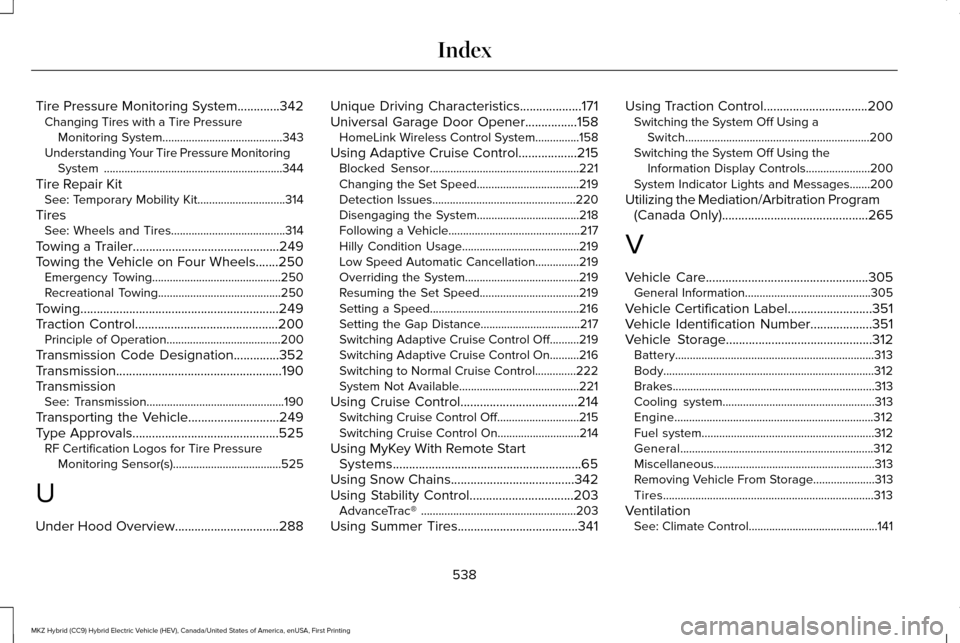

Tire Pressure Monitoring System.............342
Changing Tires with a Tire Pressure
Monitoring System.........................................343
Understanding Your Tire Pressure Monitoring System .............................................................344
Tire Repair Kit See: Temporary Mobility Kit..............................314
Tires See: Wheels and Tires.......................................314
Towing a Trailer.............................................249
Towing the Vehicle on Four Wheels
.......250
Emergency Towing............................................250
Recreational Towing..........................................250
Towing.............................................................249
Traction Control
............................................200
Principle of Operation.......................................200
Transmission Code Designation..............352
Transmission...................................................190
Transmission See: Transmission...............................................190
Transporting the Vehicle............................249
Type Approvals.............................................525 RF Certification Logos for Tire Pressure
Monitoring Sensor(s).....................................525
U
Under Hood Overview................................288 Unique Driving Characteristics...................171
Universal Garage Door Opener................158
HomeLink Wireless Control System...............
158
Using Adaptive Cruise Control..................215 Blocked Sensor...................................................221
Changing the Set Speed...................................219
Detection Issues.................................................220
Disengaging the System...................................218
Following a Vehicle.............................................217
Hilly Condition Usage........................................219
Low Speed Automatic Cancellation...............219
Overriding the System.......................................219
Resuming the Set Speed..................................
219
Setting a Speed...................................................216
Setting the Gap Distance..................................217
Switching Adaptive Cruise Control Off..........219
Switching Adaptive Cruise Control On..........216
Switching to Normal Cruise Control..............222
System Not Available.........................................221
Using Cruise Control
....................................214
Switching Cruise Control Off............................215
Switching Cruise Control On............................214
Using MyKey With Remote Start Systems..........................................................65
Using Snow Chains
......................................342
Using Stability Control................................203
AdvanceTrac® .....................................................203
Using Summer Tires
.....................................341 Using Traction Control................................200
Switching the System Off Using a
Switch...............................................................200
Switching the System Off Using the Information Display Controls......................200
System Indicator Lights and Messages.......200
Utilizing the Mediation/Arbitration Program (Canada Only).............................................265
V
Vehicle Care
..................................................305
General Information...........................................305
Vehicle Certification Label..........................351
Vehicle Identification Number...................351
Vehicle Storage
.............................................312
Battery....................................................................313
Body........................................................................\
312
Brakes.....................................................................313
Cooling system....................................................313
Engine....................................................................312
Fuel system...........................................................312
General..................................................................312
Miscellaneous.......................................................313
Removing Vehicle From Storage.....................
313
Tires........................................................................\
313
Ventilation See: Climate Control............................................141
538
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Index
