System off LINCOLN MKZ HYBRID 2017 Owners Manual

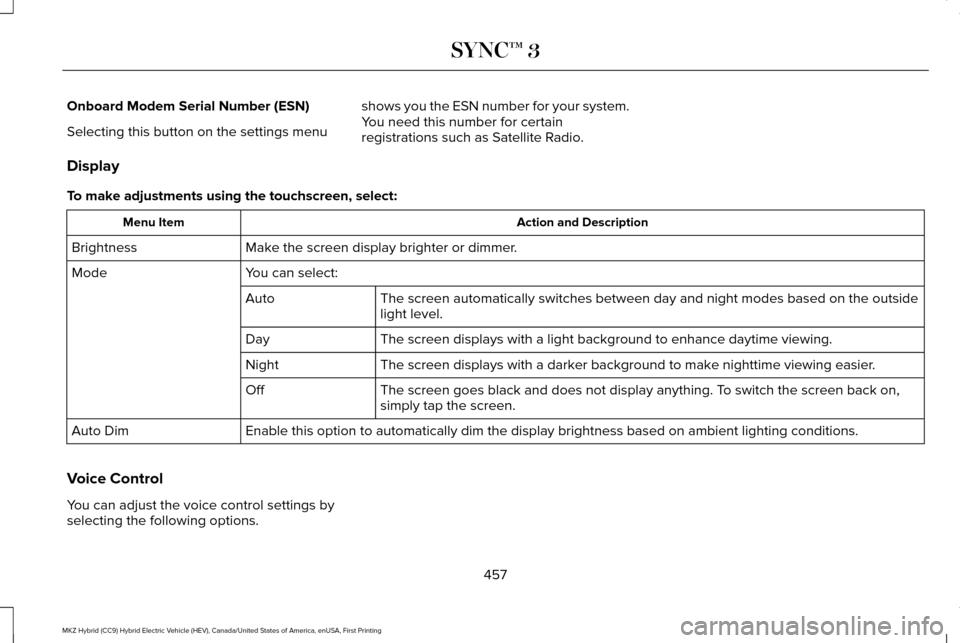

Onboard Modem Serial Number (ESN)
Selecting this button on the settings menu
shows you the ESN number for your system.
You need this number for certain
registrations such as Satellite Radio.
Display
To make adjustments using the touchscreen, select: Action and Description
Menu Item
Make the screen display brighter or dimmer.
Brightness
You can select:
Mode
The screen automatically switches between day and night modes based on t\
he outside
light level.
Auto
The screen displays with a light background to enhance daytime viewing.
Day
The screen displays with a darker background to make nighttime viewing easier.
Night
The screen goes black and does not display anything. To switch the screen back on,
simply tap the screen.
Off
Enable this option to automatically dim the display brightness based on \
ambient lighting conditions.
Auto Dim
Voice Control
You can adjust the voice control settings by
selecting the following options.
457
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing SYNC™ 3

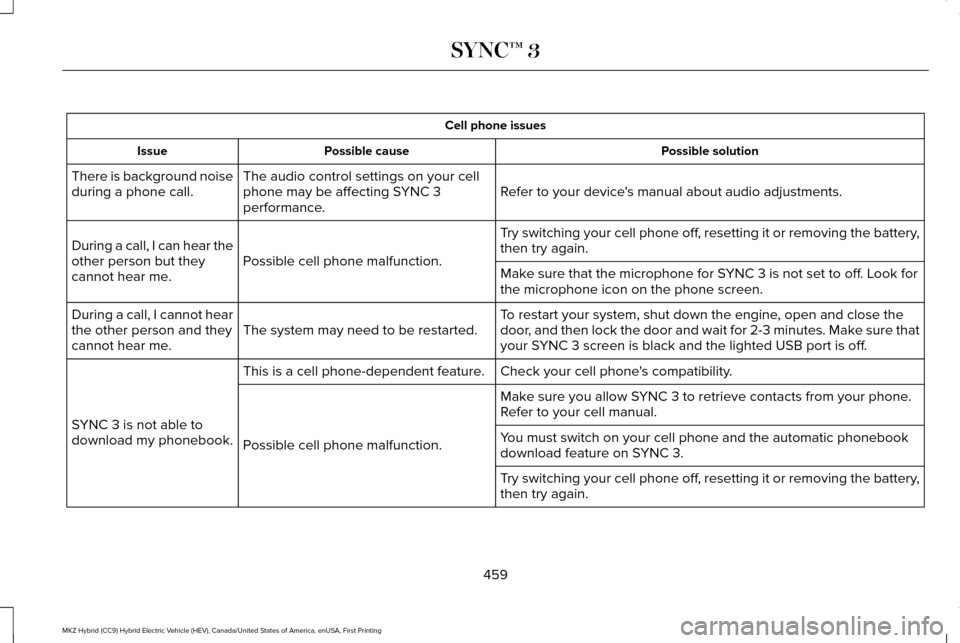

Cell phone issues
Possible solution
Possible cause
Issue
Refer to your device's manual about audio adjustments.
The audio control settings on your cell
phone may be affecting SYNC 3
performance.
There is background noise
during a phone call.
Try switching your cell phone off, resetting it or removing the battery,
then try again.
Possible cell phone malfunction.
During a call, I can hear the
other person but they
cannot hear me.
Make sure that the microphone for SYNC 3 is not set to off. Look for
the microphone icon on the phone screen.
To restart your system, shut down the engine, open and close the
door, and then lock the door and wait for 2-3 minutes. Make sure that
your SYNC 3 screen is black and the lighted USB port is off.
The system may need to be restarted.
During a call, I cannot hear
the other person and they
cannot hear me.
Check your cell phone's compatibility.
This is a cell phone-dependent feature.
SYNC 3 is not able to
download my phonebook. Make sure you allow SYNC 3 to retrieve contacts from your phone.
Refer to your cell manual.
Possible cell phone malfunction. You must switch on your cell phone and the automatic phonebook
download feature on SYNC 3.
Try switching your cell phone off, resetting it or removing the battery,
then try again.
459
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing SYNC™ 3

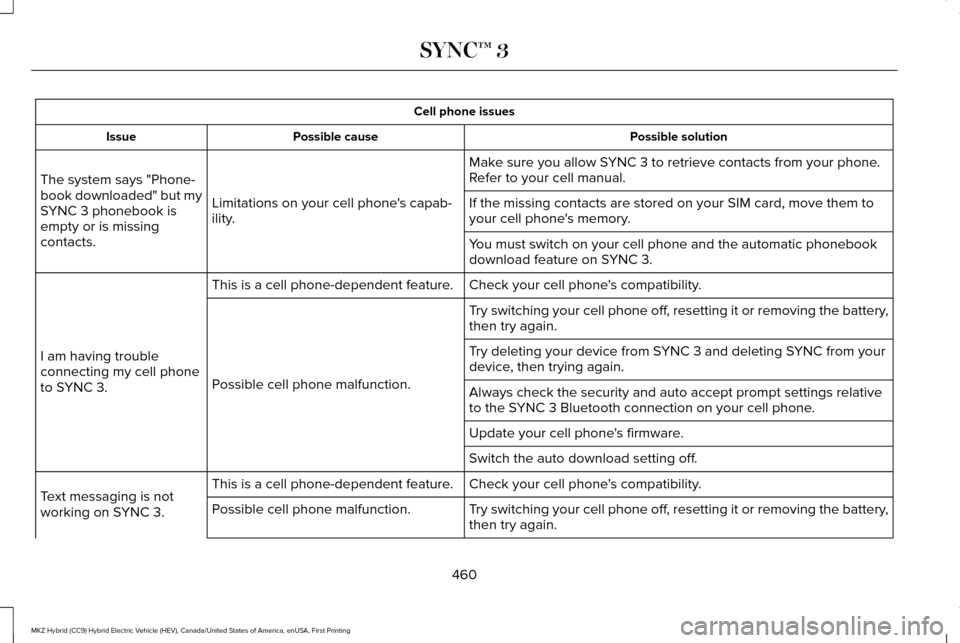

Cell phone issues
Possible solution
Possible cause
Issue
Make sure you allow SYNC 3 to retrieve contacts from your phone.
Refer to your cell manual.
Limitations on your cell phone's capab-
ility.
The system says "Phone-
book downloaded" but my
SYNC 3 phonebook is
empty or is missing
contacts. If the missing contacts are stored on your SIM card, move them to
your cell phone's memory.
You must switch on your cell phone and the automatic phonebook
download feature on SYNC 3.
Check your cell phone's compatibility.
This is a cell phone-dependent feature.
I am having trouble
connecting my cell phone
to SYNC 3. Try switching your cell phone off, resetting it or removing the battery,
then try again.
Possible cell phone malfunction. Try deleting your device from SYNC 3 and deleting SYNC from your
device, then trying again.
Always check the security and auto accept prompt settings relative
to the SYNC 3 Bluetooth connection on your cell phone.
Update your cell phone's firmware.
Switch the auto download setting off.
Check your cell phone's compatibility.
This is a cell phone-dependent feature.
Text messaging is not
working on SYNC 3. Try switching your cell phone off, resetting it or removing the battery,
then try again.
Possible cell phone malfunction.
460
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing SYNC™ 3

AppLink issues
Possible solution(s)
Possible cause(s)
Issue
and select 'Apps', then find the particular app
and choose 'Force stop'. Do not forget to
restart the app afterward, then select "Connect
Mobile Apps" on SYNC 3.
On an iPhone with iOS7+, to force close an
app, double tap the home button then swipe
up on the app to close it. Tap the home button
again, then select the app again to restart it.
After a few seconds, the app should then
appear in SYNC 3's Mobile App's Menu.
Switch Bluetooth off and then on to reset it on
your phone. If you are in your vehicle, SYNC
3 should be able to automatically re-connect
to your phone if you press the "Phone" button.
There is a Bluetooth issue on some older
versions of the Android operating system that
may cause apps that were found on your
previous vehicle drive to not be found again
if you did not switch Bluetooth off.
My Android phone is connected, my app(s)
are running, I restarted them, but I still cannot
find any apps.
468
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing SYNC™ 3

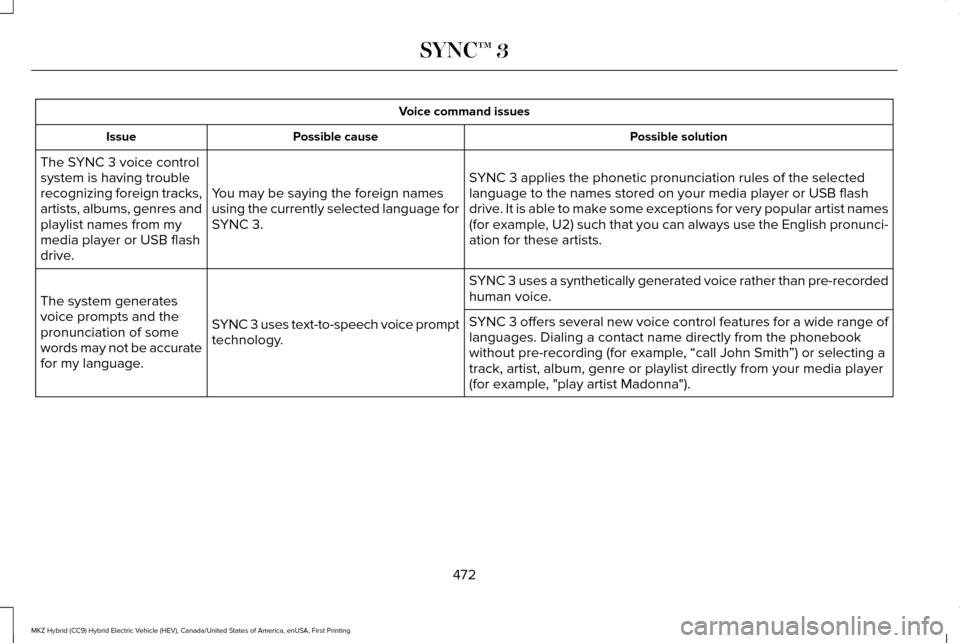

Voice command issues
Possible solution
Possible cause
Issue
SYNC 3 applies the phonetic pronunciation rules of the selected
language to the names stored on your media player or USB flash
drive. It is able to make some exceptions for very popular artist names
(for example, U2) such that you can always use the English pronunci-
ation for these artists.
You may be saying the foreign names
using the currently selected language for
SYNC 3.
The SYNC 3 voice control
system is having trouble
recognizing foreign tracks,
artists, albums, genres and
playlist names from my
media player or USB flash
drive.
SYNC 3 uses a synthetically generated voice rather than pre-recorded
human voice.
SYNC 3 uses text-to-speech voice prompt
technology.
The system generates
voice prompts and the
pronunciation of some
words may not be accurate
for my language. SYNC 3 offers several new voice control features for a wide range of
languages. Dialing a contact name directly from the phonebook
without pre-recording (for example, “call John Smith
”) or selecting a
track, artist, album, genre or playlist directly from your media player
(for example, "play artist Madonna").
472
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing SYNC™ 3

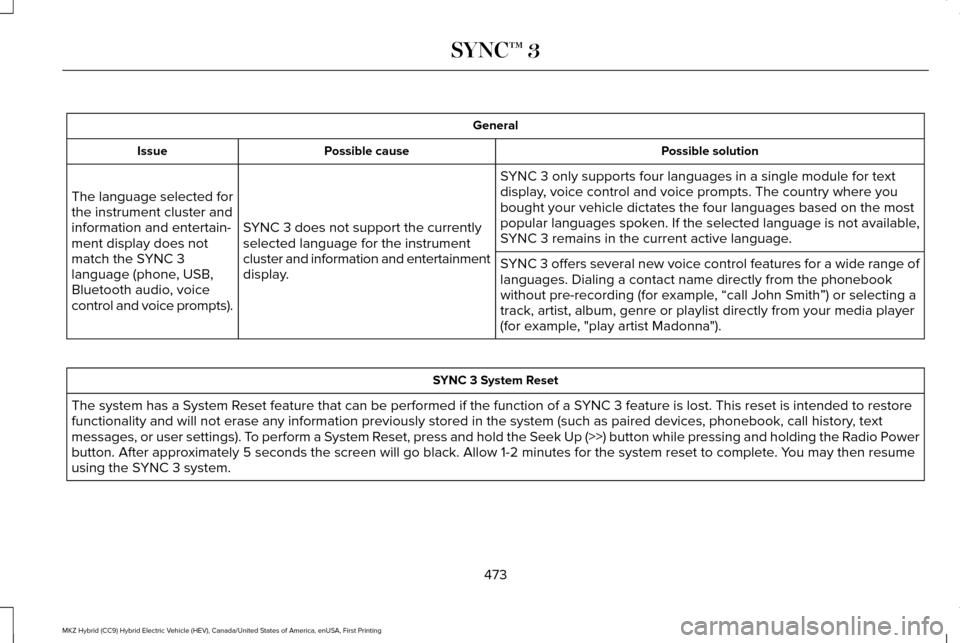

General
Possible solution
Possible cause
Issue
SYNC 3 only supports four languages in a single module for text
display, voice control and voice prompts. The country where you
bought your vehicle dictates the four languages based on the most
popular languages spoken. If the selected language is not available,
SYNC 3 remains in the current active language.
SYNC 3 does not support the currently
selected language for the instrument
cluster and information and entertainment
display.
The language selected for
the instrument cluster and
information and entertain-
ment display does not
match the SYNC 3
language (phone, USB,
Bluetooth audio, voice
control and voice prompts).
SYNC 3 offers several new voice control features for a wide range of
languages. Dialing a contact name directly from the phonebook
without pre-recording (for example, “call John Smith
”) or selecting a
track, artist, album, genre or playlist directly from your media player
(for example, "play artist Madonna"). SYNC 3 System Reset
The system has a System Reset feature that can be performed if the function of a SYNC 3 feature is lost. This reset is intended to restore
functionality and will not erase any information previously stored in th\
e system (such as paired devices, phonebook, call history , text
messages, or user settings). To perform a System Reset, press and hold the Seek Up (>>) button while pressing and holdin\
g the Radio Power
button. After approximately 5 seconds the screen will go black. Allow 1-2 minutes for the s\
ystem reset to complete. You may then resume
using the SYNC 3 system.
473
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing SYNC™ 3

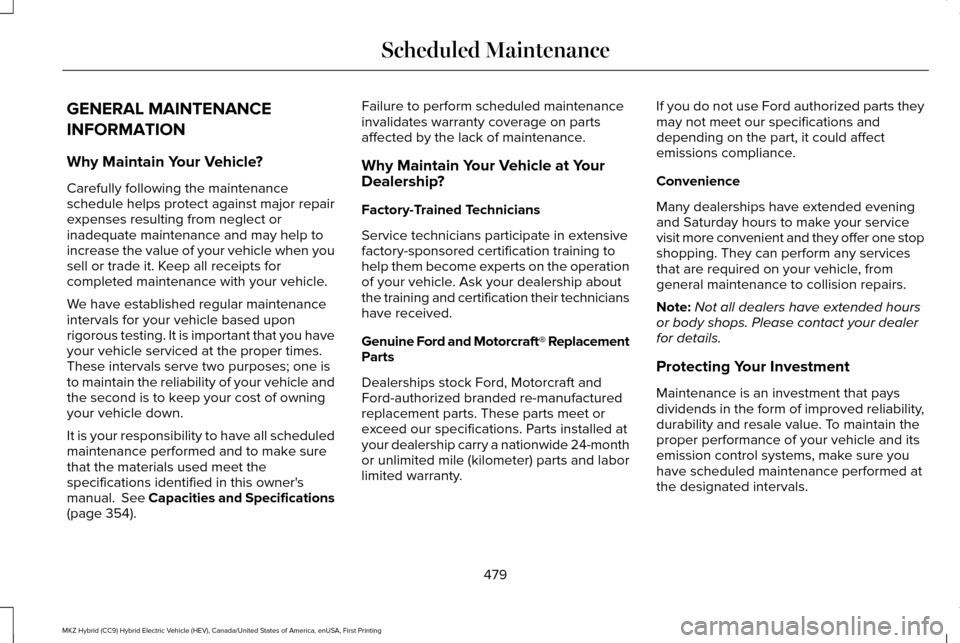

GENERAL MAINTENANCE
INFORMATION
Why Maintain Your Vehicle?
Carefully following the maintenance
schedule helps protect against major repair
expenses resulting from neglect or
inadequate maintenance and may help to
increase the value of your vehicle when you
sell or trade it. Keep all receipts for
completed maintenance with your vehicle.
We have established regular maintenance
intervals for your vehicle based upon
rigorous testing. It is important that you have
your vehicle serviced at the proper times.
These intervals serve two purposes; one is
to maintain the reliability of your vehicle and
the second is to keep your cost of owning
your vehicle down.
It is your responsibility to have all scheduled
maintenance performed and to make sure
that the materials used meet the
specifications identified in this owner's
manual. See Capacities and Specifications
(page 354).
Failure to perform scheduled maintenance
invalidates warranty coverage on parts
affected by the lack of maintenance.
Why Maintain Your Vehicle at Your
Dealership?
Factory-Trained Technicians
Service technicians participate in extensive
factory-sponsored certification training to
help them become experts on the operation
of your vehicle. Ask your dealership about
the training and certification their technicians
have received.
Genuine Ford and Motorcraft® Replacement
Parts
Dealerships stock Ford, Motorcraft and
Ford-authorized branded re-manufactured
replacement parts. These parts meet or
exceed our specifications. Parts installed at
your dealership carry a nationwide 24-month
or unlimited mile (kilometer) parts and labor
limited warranty.
If you do not use Ford authorized parts they
may not meet our specifications and
depending on the part, it could affect
emissions compliance.
Convenience
Many dealerships have extended evening
and Saturday hours to make your service
visit more convenient and they offer one stop
shopping. They can perform any services
that are required on your vehicle, from
general maintenance to collision repairs.
Note:
Not all dealers have extended hours
or body shops. Please contact your dealer
for details.
Protecting Your Investment
Maintenance is an investment that pays
dividends in the form of improved reliability,
durability and resale value. To maintain the
proper performance of your vehicle and its
emission control systems, make sure you
have scheduled maintenance performed at
the designated intervals.
479
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Scheduled Maintenance

•

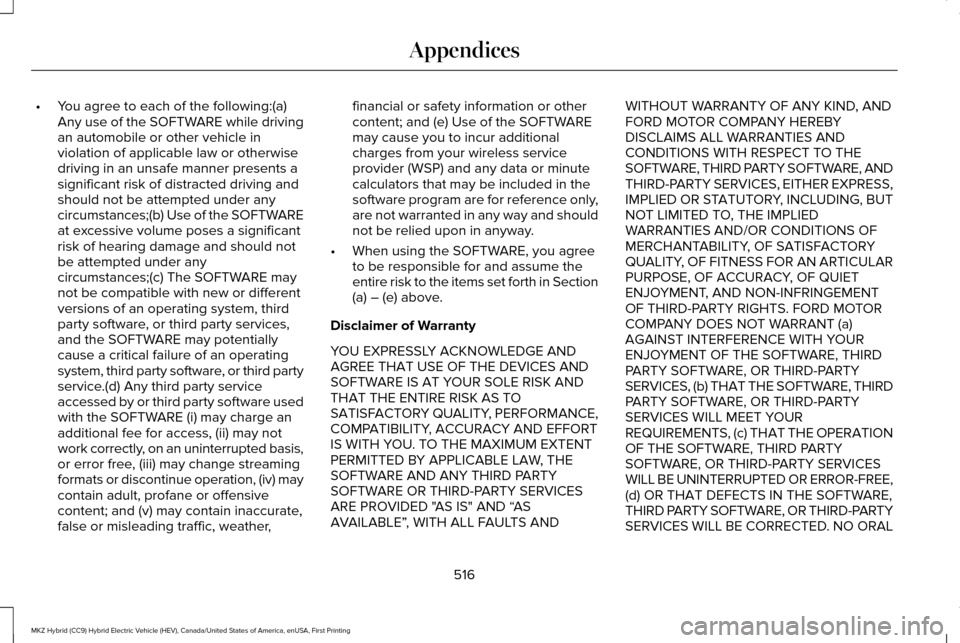

You agree to each of the following:(a)
Any use of the SOFTWARE while driving
an automobile or other vehicle in
violation of applicable law or otherwise
driving in an unsafe manner presents a
significant risk of distracted driving and
should not be attempted under any
circumstances;(b) Use of the SOFTWARE
at excessive volume poses a significant
risk of hearing damage and should not
be attempted under any
circumstances;(c) The SOFTWARE may
not be compatible with new or different
versions of an operating system, third
party software, or third party services,
and the SOFTWARE may potentially
cause a critical failure of an operating
system, third party software, or third party
service.(d) Any third party service
accessed by or third party software used
with the SOFTWARE (i) may charge an
additional fee for access, (ii) may not
work correctly, on an uninterrupted basis,
or error free, (iii) may change streaming
formats or discontinue operation, (iv) may
contain adult, profane or offensive
content; and (v) may contain inaccurate,
false or misleading traffic, weather, financial or safety information or other
content; and (e) Use of the SOFTWARE
may cause you to incur additional
charges from your wireless service
provider (WSP) and any data or minute
calculators that may be included in the
software program are for reference only,
are not warranted in any way and should
not be relied upon in anyway.
• When using the SOFTWARE, you agree
to be responsible for and assume the
entire risk to the items set forth in Section
(a) – (e) above.
Disclaimer of Warranty
YOU EXPRESSLY ACKNOWLEDGE AND
AGREE THAT USE OF THE DEVICES AND
SOFTWARE IS AT YOUR SOLE RISK AND
THAT THE ENTIRE RISK AS TO
SATISFACTORY QUALITY, PERFORMANCE,
COMPATIBILITY, ACCURACY AND EFFORT
IS WITH YOU. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, THE
SOFTWARE AND ANY THIRD PARTY
SOFTWARE OR THIRD-PARTY SERVICES
ARE PROVIDED "AS IS" AND “ AS
AVAILABLE” , WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, AND
FORD MOTOR COMPANY HEREBY
DISCLAIMS ALL WARRANTIES AND
CONDITIONS WITH RESPECT TO THE
SOFTWARE, THIRD PARTY SOFTWARE, AND
THIRD-PARTY SERVICES, EITHER EXPRESS,
IMPLIED OR STATUTORY, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES AND/OR CONDITIONS OF
MERCHANTABILITY, OF SATISFACTORY
QUALITY, OF FITNESS FOR AN ARTICULAR
PURPOSE, OF ACCURACY, OF QUIET
ENJOYMENT, AND NON-INFRINGEMENT
OF THIRD-PARTY RIGHTS. FORD MOTOR
COMPANY DOES NOT WARRANT (a)
AGAINST INTERFERENCE WITH YOUR
ENJOYMENT OF THE SOFTWARE, THIRD
PARTY SOFTWARE, OR THIRD-PARTY
SERVICES, (b) THAT THE SOFTWARE, THIRD
PARTY SOFTWARE, OR THIRD-PARTY
SERVICES WILL MEET YOUR
REQUIREMENTS, (c) THAT THE OPERATION
OF THE SOFTWARE, THIRD PARTY
SOFTWARE, OR THIRD-PARTY SERVICES
WILL BE UNINTERRUPTED OR ERROR-FREE,
(d) OR THAT DEFECTS IN THE SOFTWARE,
THIRD PARTY SOFTWARE, OR THIRD-PARTY
SERVICES WILL BE CORRECTED. NO ORAL
516
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Appendices

B
Battery
See: Changing the 12V Battery......................306
Blind Spot Information System..................237 Switching the System Off and On..................239
System Errors......................................................239
Using the System................................................237
Bonnet Lock See: Opening and Closing the Hood............296
Booster Seats...................................................27
Types of Booster Seats.......................................28
Brake Fluid Check.......................................305
Brakes..............................................................195 General Information............................................195
Breaking-In....................................................256
Bulb Specification Chart
..............................310
C
Cabin Air Filter...............................................142
California Proposition 65
...............................12
Capacities and Specifications...................358 Specifications......................................................359
Car Wash See: Cleaning the Exterior................................315
Center Console.............................................162 Rear Seat Armrest...............................................162 Changing a Bulb
............................................310
Lamp Assembly Condensation........................310
Replacing Bulbs...................................................310
Changing a Fuse..........................................293 Fuses.....................................................................293
Changing the 12V Battery..........................306
Changing the Engine Air Filter...................313
Changing the Wiper Blades
......................308
Checking MyKey System Status..................61 MyKey Distance......................................................61
Number of Admin Keys.......................................62
Number of MyKeys................................................61
Checking the Wiper Blades.......................308
Child Restraint and Seatbelt Maintenance.................................................40
Child Restraint Positioning
...........................30
Child Safety.......................................................16
General Information..............................................16
Child Safety Locks...........................................31 Left-Hand Side.......................................................32
Right-Hand Side....................................................32
Cleaning Leather Seats..............................320
Cleaning Products.........................................314
Cleaning the Alloy Wheels.........................321
Cleaning the Engine
.....................................316
Cleaning the Exterior....................................315
Exterior Chrome Parts........................................315
Exterior Plastic Parts...........................................316 Stripes or Graphics.............................................316
Underbody............................................................316
Under Hood..........................................................316
Cleaning the Instrument Panel and Instrument Cluster Lens............................319
Cleaning the Interior.....................................317 Cleaning Alcantara Microfiber Cloth
Fabric.................................................................318
Cleaning the Windows and Wiper Blades............................................................317
Clearing All MyKeys........................................61
Climate............................................................409
Climate Control..............................................138
Climate Controlled Seats............................152 Cooled Seats........................................................153
Collision, Damage or Fire Event...............264 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped With
High Voltage Batteries.................................264
Coolant Check See: Engine Coolant Check............................300
Crash Sensors and Airbag Indicator...........51
Creating a MyKey...........................................60 Programming or Changing Configurable
Settings................................................................61
Cross Traffic Alert.........................................239 False Alerts..........................................................243
Switching the System Off and On..................243
534
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Index

Supported Media Players, Formats and
Metadata Information...................................409
USB Ports.............................................................409
Environment......................................................15
EPB See: Electric Parking Brake..............................196
Event Data Recording See: Data Recording..............................................9
Export Unique Options...................................14
Exterior Mirrors
................................................93
Auto-Dimming Feature........................................95
Auto-Folding Mirrors............................................94
Blind Spot Monitor................................................96
Fold-Away Exterior Mirrors.................................94
Heated Exterior Mirrors.......................................
95
Integrated Blind Spot Mirrors............................95
Lincoln Welcome Mat..........................................95
Memory Mirrors.....................................................95
Power Exterior Mirrors.........................................93
Signal Indicator Mirrors.......................................95
F
Fastening the Seatbelts
................................34
Rear Inflatable Seatbelt.......................................36
Seatbelt Locking Modes.....................................35
Using Seatbelts During Pregnancy..................34 Flat Tire Inflation
See: Tire Sealant and Inflator Kit....................
324
Floor Mats
.......................................................257
Front Parking Aid.........................................206
Obstacle Distance Indicator............................207
Front Passenger Sensing System
..............46
Fuel and Refueling........................................175
Fuel Consumption.........................................183 Calculating Fuel Economy................................183
Filling the Tank.....................................................183
Fuel Filter.......................................................306
Fuel Quality
.....................................................176
Choosing the Right Fuel....................................176
Fuel Freshness Mode.........................................177
Fuel Shutoff...................................................260
Fuses...............................................................276
Fuse Specification Chart............................276 Passenger Compartment Fuse Panel...........287
Power Distribution Box.....................................276
G
Garage Door Opener See: Universal Garage Door Opener.............155
Gauges............................................................100 Left Information Display......................................101
Right Information Display..................................102 General Information on Radio
Frequencies...................................................53
Intelligent Access..................................................53
General Maintenance Information...........479 Multi-point Inspection........................................482
Owner Checks and Services............................
481
Protecting Your Investment..............................479
Why Maintain Your Vehicle?.............................479
Why Maintain Your Vehicle at Your Dealership?......................................................479
Getting Assistance Outside the U.S. and Canada.........................................................272
Getting the Services You Need
................268
Away From Home..............................................268
Global Opening and Closing.......................93 Closing the Windows...........................................93
Opening the Windows.........................................93
H
Hazard Warning Flashers...........................260
Headlamp Adjusting See: Adjusting the Headlamps.......................309
Headlamp Exit Delay.....................................86
Head Restraints
.............................................143
Adjusting the Head Restraint...........................144
Tilting Head Restraints ......................................145
536
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, First Printing Index
