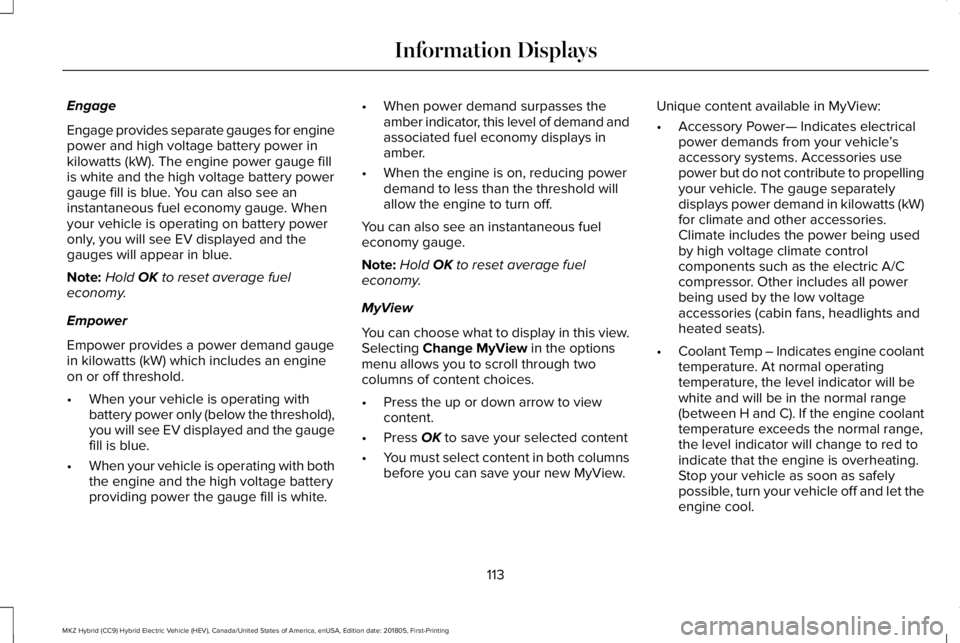

Engage
Engage provides separate gauges for enginepower and high voltage battery power inkilowatts (kW). The engine power gauge fillis white and the high voltage battery powergauge fill is blue. You can also see aninstantaneous fuel economy gauge. Whenyour vehicle is operating on battery poweronly, you will see EV displayed and thegauges will appear in blue.
Note:Hold OK to reset average fueleconomy.
Empower
Empower provides a power demand gaugein kilowatts (kW) which includes an engineon or off threshold.
•When your vehicle is operating withbattery power only (below the threshold),you will see EV displayed and the gaugefill is blue.
•When your vehicle is operating with boththe engine and the high voltage batteryproviding power the gauge fill is white.
•When power demand surpasses theamber indicator, this level of demand andassociated fuel economy displays inamber.
•When the engine is on, reducing powerdemand to less than the threshold willallow the engine to turn off.
You can also see an instantaneous fueleconomy gauge.
Note:Hold OK to reset average fueleconomy.
MyView
You can choose what to display in this view.Selecting Change MyView in the optionsmenu allows you to scroll through twocolumns of content choices.
•Press the up or down arrow to viewcontent.
•Press OK to save your selected content
•You must select content in both columnsbefore you can save your new MyView.
Unique content available in MyView:
•Accessory Power— Indicates electricalpower demands from your vehicle’saccessory systems. Accessories usepower but do not contribute to propellingyour vehicle. The gauge separatelydisplays power demand in kilowatts (kW)for climate and other accessories.Climate includes the power being usedby high voltage climate controlcomponents such as the electric A/Ccompressor. Other includes all powerbeing used by the low voltageaccessories (cabin fans, headlights andheated seats).
•Coolant Temp – Indicates engine coolanttemperature. At normal operatingtemperature, the level indicator will bewhite and will be in the normal range(between H and C). If the engine coolanttemperature exceeds the normal range,the level indicator will change to red toindicate that the engine is overheating.Stop your vehicle as soon as safelypossible, turn your vehicle off and let theengine cool.
113
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
Information Displays

DescriptionItemCallout
Includes all power usage from the low voltage accessories such as the climate controlfan, headlights and heated seats. The higher the power usage is from theseaccessories, the larger the circle around the node. This node illuminates anytime thevehicle is on since there is always some low level power in use.
2OtherE
Includes the power usage from the high-voltage climate control components suchas the electric A/C compressor. The higher the power usage is from these compon-ents, the larger the circle around this node.
2,3ClimateF
Represents your high-voltage battery. A circle illuminates around the node when thehigh-voltage battery is receiving power from regenerative braking or engine charging.The higher the power going into the high-voltage battery, the larger the circle aroundthis node.
BatteryG
Represents the fuel tank in the vehicle.FuelH
Shows flow from the fuel tank to the engine when the engine is on and using fuel(there are some cases where the engine is on, but not using any fuel). When theengine is on, but not using fuel, the engine node is active, but the fuel flow path isoff. An example of this is when your foot is off the accelerator pedal and the vehicleis traveling at a high speed.
Fuel-to-Engine FlowI
Provides you with the reason(s) the gasoline engine is on. When the gasoline engineis off, this display does not appear. Engine On due to reasons displayed by the systemare in a chart following this list.
Engine On due to:J
438
MKZ Hybrid (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201805, First-Printing
SYNC™ 3

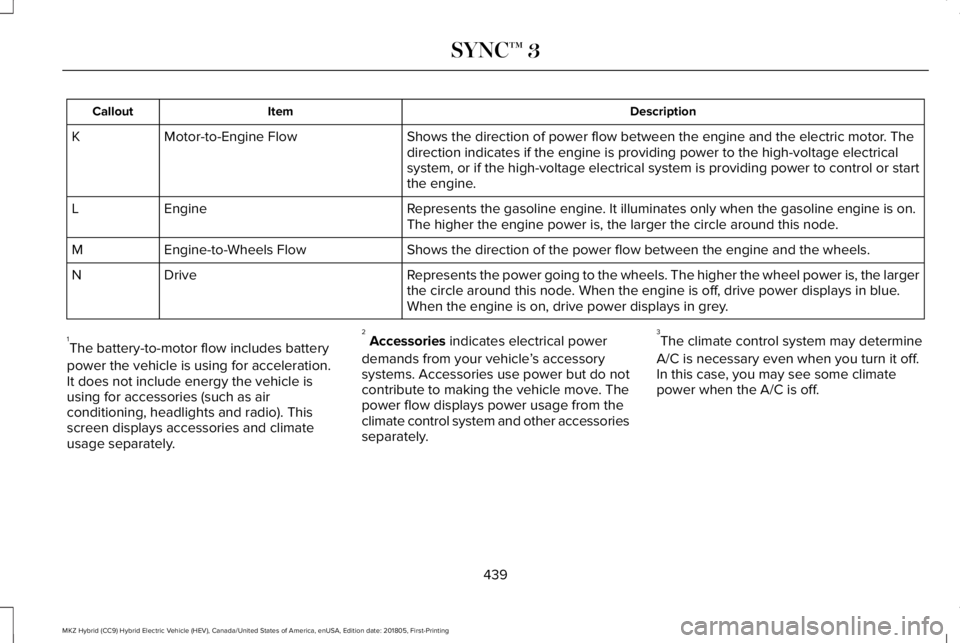

DescriptionItemCallout
Shows the direction of power flow between the engine and the electric motor. Thedirection indicates if the engine is providing power to the high-voltage electricalsystem, or if the high-voltage electrical system is providing power to control or startthe engine.
Motor-to-Engine FlowK
Represents the gasoline engine. It illuminates only when the gasoline engine is on.The higher the engine power is, the larger the circle around this node.EngineL
Shows the direction of the power flow between the engine and the wheels.Engine-to-Wheels FlowM
Represents the power going to the wheels. The higher the wheel power is, the largerthe circle around this node. When the engine is off, drive power displays in blue.When the engine is on, drive power displays in grey.
DriveN
1The battery-to-motor flow includes battery
power the vehicle is using for acceleration.It does not include energy the vehicle isusing for accessories (such as airconditioning, headlights and radio). Thisscreen displays accessories and climateusage separately.
2Accessories indicates electrical power
demands from your vehicle’s accessorysystems. Accessories use power but do notcontribute to making the vehicle move. Thepower flow displays power usage from theclimate control system and other accessoriesseparately.
3The climate control system may determine
A/C is necessary even when you turn it off.In this case, you may see some climatepower when the A/C is off.
