relay LINCOLN MKZ HYBRID 2020 Owners Manual

Protected Component
Fuse Rating
Fuse or Relay Number

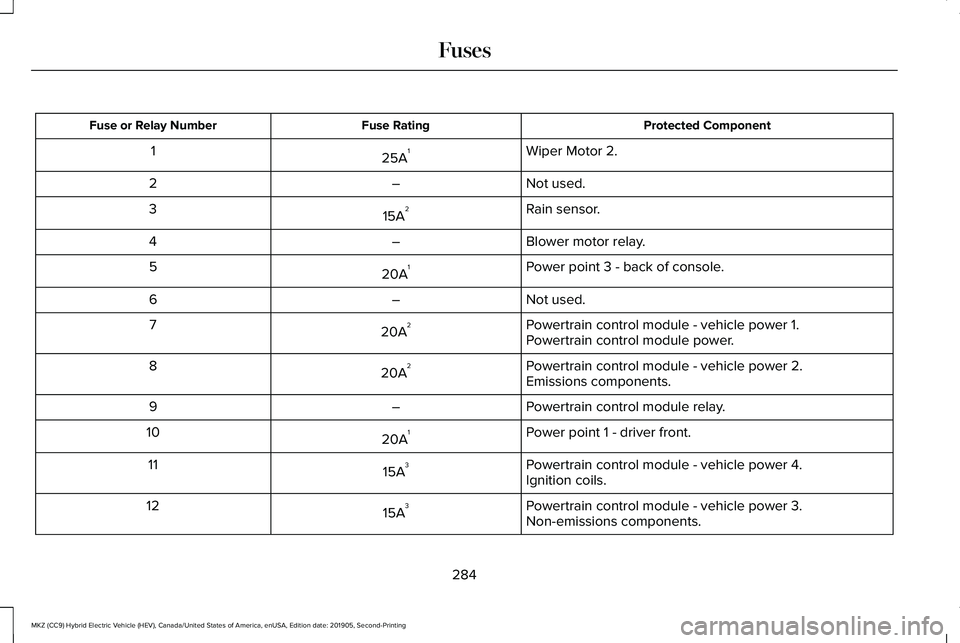

Wiper Motor 2.
25A 1
1
Not used.
–
2
Rain sensor.
15A 2
3
Blower motor relay.
–
4
Power point 3 - back of console.
20A 1
5
Not used.
–
6
Powertrain control module - vehicle power 1.
20A 2
7
Powertrain control module power.
Powertrain control module - vehicle power 2.
20A 2
8
Emissions components.
Powertrain control module relay.
–
9
Power point 1 - driver front.
20A 1
10
Powertrain control module - vehicle power 4.
15A 3
11
Ignition coils.
Powertrain control module - vehicle power 3.
15A 3
12
Non-emissions components.
284
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number

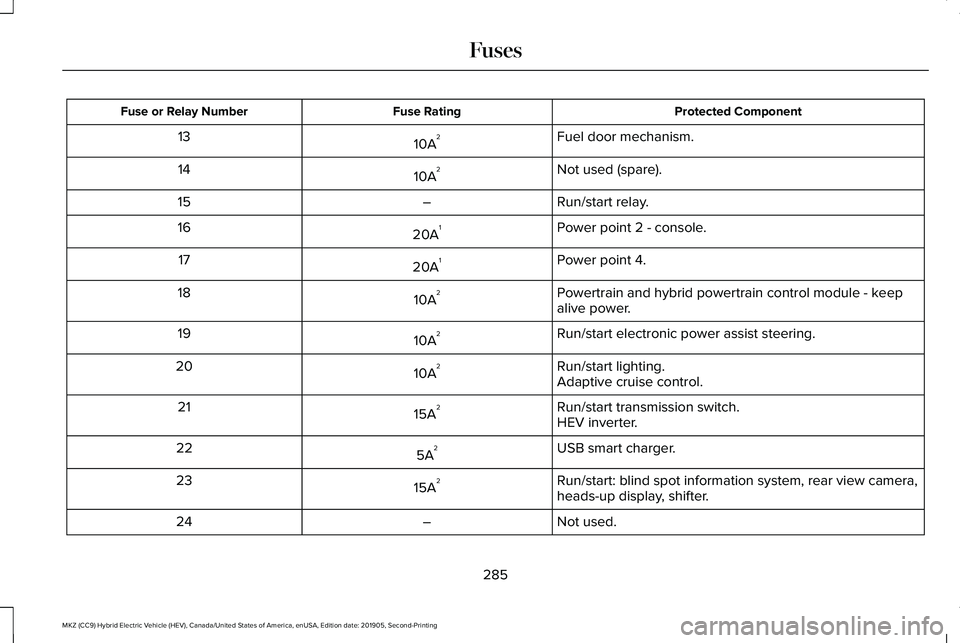

Fuel door mechanism.
10A 2
13
Not used (spare).
10A 2
14
Run/start relay.
–
15
Power point 2 - console.
20A 1
16
Power point 4.
20A 1
17
Powertrain and hybrid powertrain control module - keep
alive power.
10A 2
18
Run/start electronic power assist steering.
10A 2
19
Run/start lighting.
10A 2
20
Adaptive cruise control.
Run/start transmission switch.
15A 2
21
HEV inverter.
USB smart charger.
5A 2
22
Run/start: blind spot information system, rear view camera,
heads-up display, shifter.
15A 2
23
Not used.
–
24
285
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Run/start anti-lock brake system.
10A 3
25
Run/start powertrain control module.
10A 3
26
Heater control valve (HCV) power 5.
10A 2
27
Right hand side headlamp ballast.
20A 2
28
Left hand side headlamp ballast.
20A 2
29
Not used.
–
30
Not used.
–
31
Hybrid electric vehicle pulse width modulated fan relay.
–
32
Not used.
–
33
Not used.
–
34
Not used (spare).
15A 2
35
Hybrid electric vehicle battery electronic control module fan.
15A 3
36
Not used.
–
37
Vacuum pump #1 relay.
–
38
286
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number

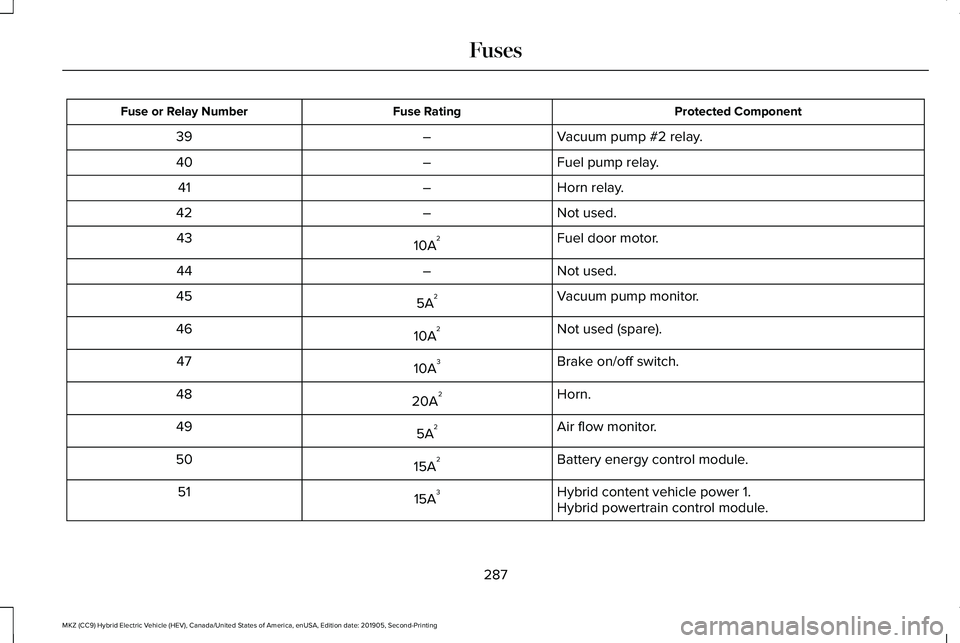

Vacuum pump #2 relay.
–
39
Fuel pump relay.
–
40
Horn relay.
–
41
Not used.
–
42
Fuel door motor.
10A 2
43
Not used.
–
44
Vacuum pump monitor.
5A 2
45
Not used (spare).
10A 2
46
Brake on/off switch.
10A 3
47
Horn.
20A 2
48
Air flow monitor.
5A 2
49
Battery energy control module.
15A 2
50
Hybrid content vehicle power 1.
15A 3
51
Hybrid powertrain control module.
287
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number

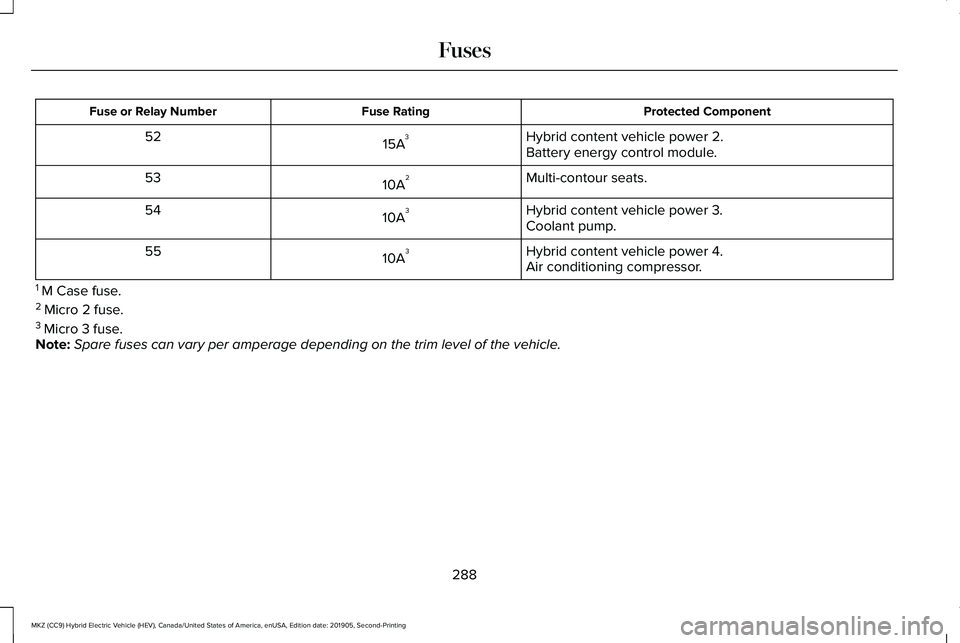

Hybrid content vehicle power 2.
15A 3
52
Battery energy control module.
Multi-contour seats.
10A 2
53
Hybrid content vehicle power 3.
10A 3
54
Coolant pump.
Hybrid content vehicle power 4.
10A 3
55
Air conditioning compressor.
1 M Case fuse.
2 Micro 2 fuse.
3 Micro 3 fuse.
Note: Spare fuses can vary per amperage depending on the trim level of the veh\
icle.
288
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Fuel pump feed.
30A 1
56
Not used.
-
57
Not used.
-
58
Vacuum pump relay.
40A 2
59
Pulse width modulated fan.
40A 1
60
Not used.
-
61
Body control module 1.
50A 2
62
Not used.
-
63
Not used.
-
64
Front heated seat.
20A 1
65
Not used (spare).
15A 2
66
Body control module 2.
50A 2
67
Heated rear window.
40A 1
68
291
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number

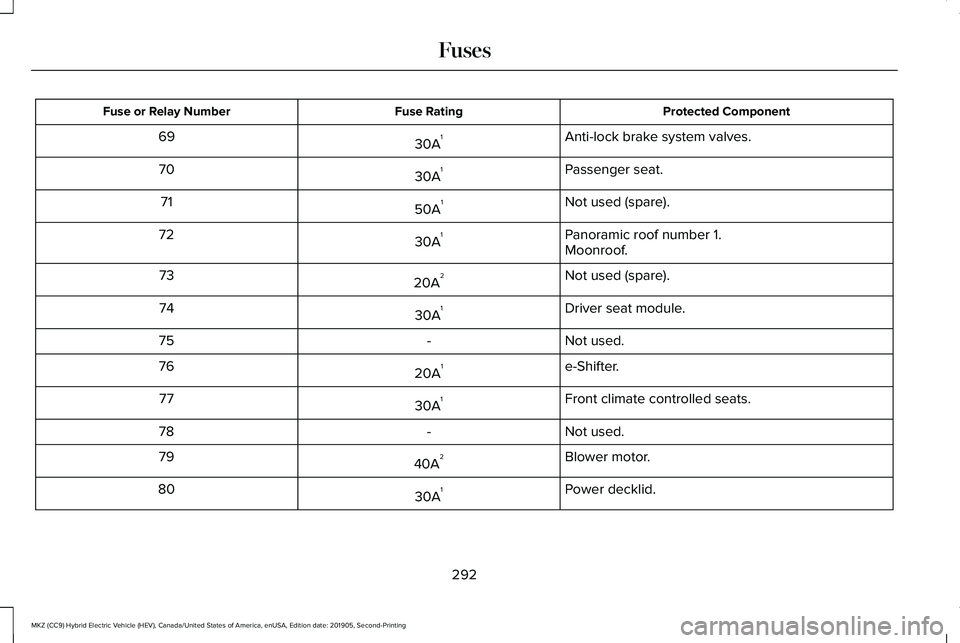

Anti-lock brake system valves.
30A 1
69
Passenger seat.
30A 1
70
Not used (spare).
50A 1
71
Panoramic roof number 1.
30A 1
72
Moonroof.
Not used (spare).
20A 2
73
Driver seat module.
30A 1
74
Not used.
-
75
e-Shifter.
20A 1
76
Front climate controlled seats.
30A 1
77
Not used.
-
78
Blower motor.
40A 2
79
Power decklid.
30A 1
80
292
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number

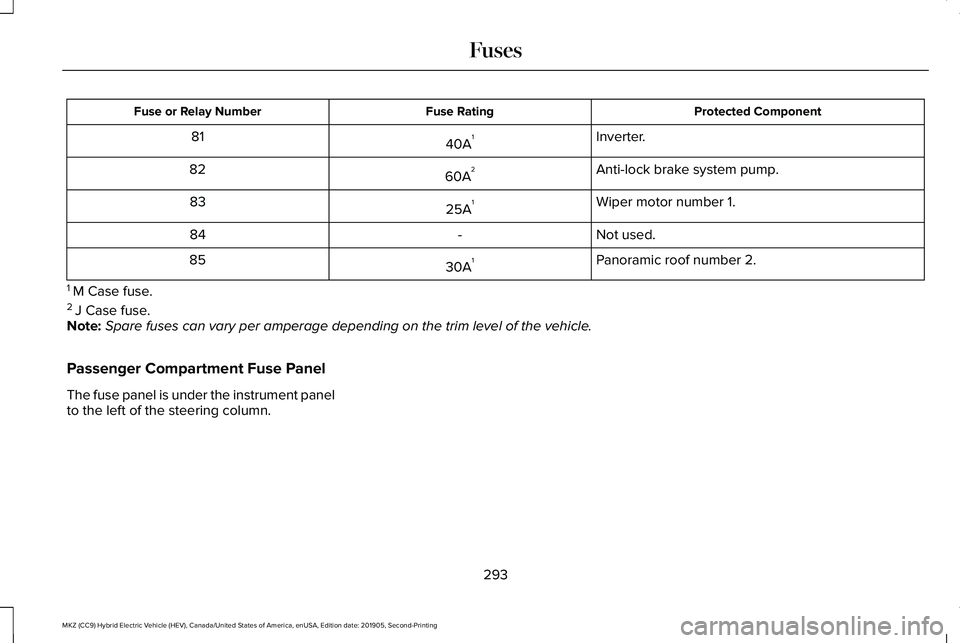

Inverter.
40A 1
81
Anti-lock brake system pump.
60A 2
82
Wiper motor number 1.
25A 1
83
Not used.
-
84
Panoramic roof number 2.
30A 1
85
1 M Case fuse.
2 J Case fuse.
Note: Spare fuses can vary per amperage depending on the trim level of the veh\
icle.

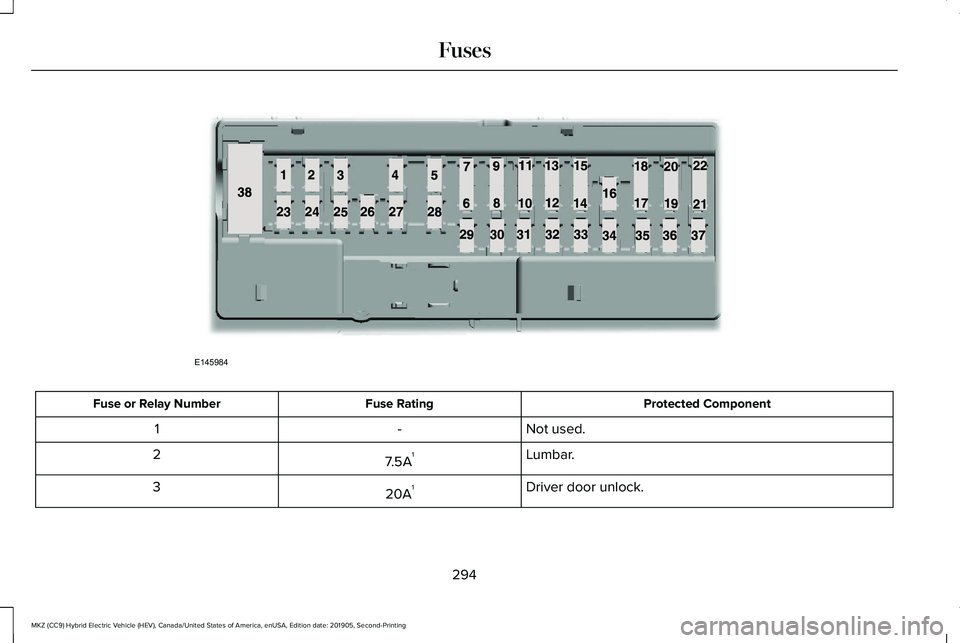

Passenger Compartment Fuse Panel
The fuse panel is under the instrument panel
to the left of the steering column.
293
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses

Protected Component
Fuse Rating
Fuse or Relay Number
Not used.
-
1
Lumbar.
7.5A 1
2
Driver door unlock.
20A 1
3
294
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing FusesE145984

Protected Component
Fuse Rating
Fuse or Relay Number

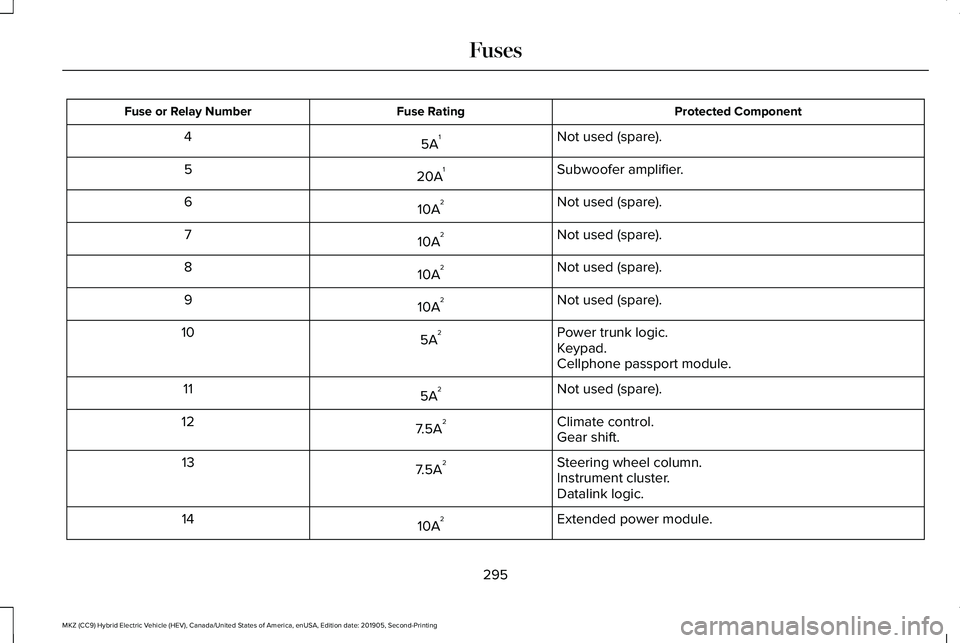

Not used (spare).
5A 1
4
Subwoofer amplifier.
20A 1
5
Not used (spare).
10A 2
6
Not used (spare).
10A 2
7
Not used (spare).
10A 2
8
Not used (spare).
10A 2
9
Power trunk logic.
5A 2
10
Keypad.
Cellphone passport module.
Not used (spare).
5A 2
11
Climate control.
7.5A 2
12
Gear shift.
Steering wheel column.
7.5A 2
13
Instrument cluster.
Datalink logic.
Extended power module.
10A 2
14
295
MKZ (CC9) Hybrid Electric Vehicle (HEV), Canada/United States of America, enUSA, Edition date: 201905, Second-Printing Fuses
