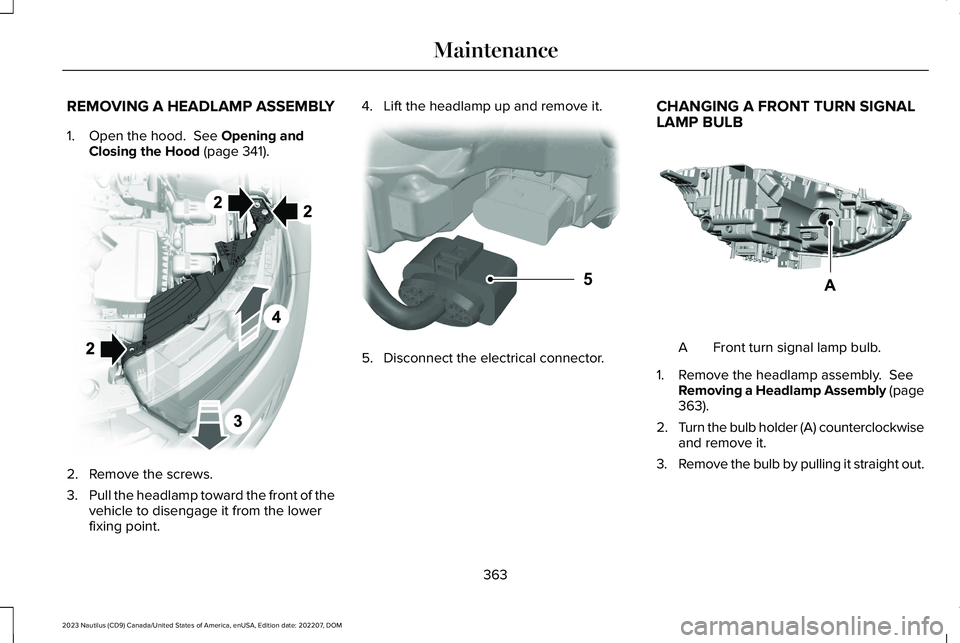

REMOVING A HEADLAMP ASSEMBLY
1.Open the hood. See Opening andClosing the Hood (page 341).
2.Remove the screws.
3.Pull the headlamp toward the front of thevehicle to disengage it from the lowerfixing point.
4.Lift the headlamp up and remove it.
5.Disconnect the electrical connector.
CHANGING A FRONT TURN SIGNALLAMP BULB
Front turn signal lamp bulb.A
1.Remove the headlamp assembly. SeeRemoving a Headlamp Assembly (page363).
2.Turn the bulb holder (A) counterclockwiseand remove it.
3.Remove the bulb by pulling it straight out.
363
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenance E194758 5E133750 E387424

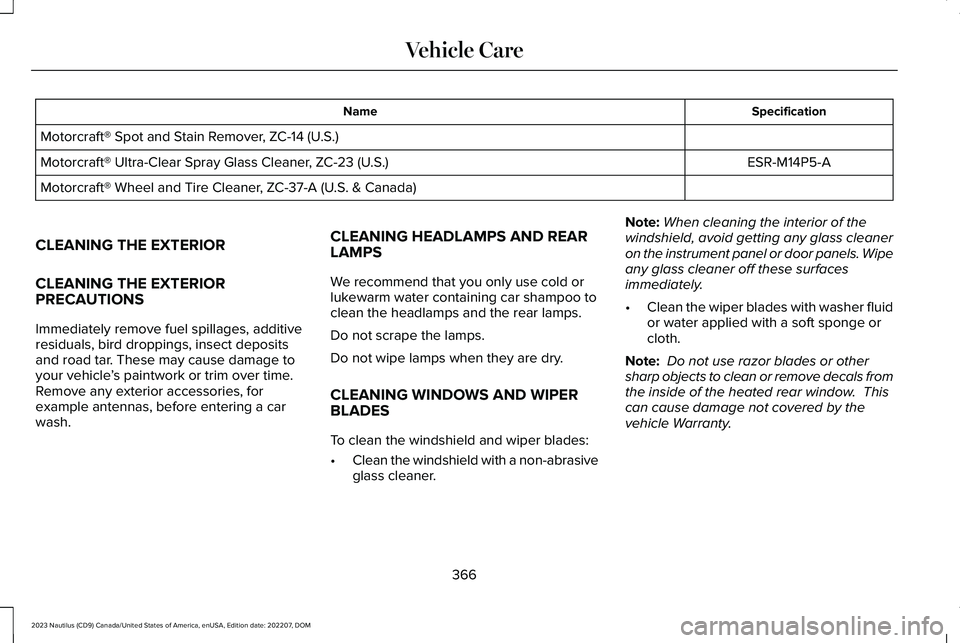

SpecificationName
Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)
ESR-M14P5-AMotorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)
Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)
CLEANING THE EXTERIOR
CLEANING THE EXTERIORPRECAUTIONS
Immediately remove fuel spillages, additiveresiduals, bird droppings, insect depositsand road tar. These may cause damage toyour vehicle’s paintwork or trim over time.Remove any exterior accessories, forexample antennas, before entering a carwash.
CLEANING HEADLAMPS AND REARLAMPS
We recommend that you only use cold orlukewarm water containing car shampoo toclean the headlamps and the rear lamps.
Do not scrape the lamps.
Do not wipe lamps when they are dry.
CLEANING WINDOWS AND WIPERBLADES
To clean the windshield and wiper blades:
•Clean the windshield with a non-abrasiveglass cleaner.
Note:When cleaning the interior of thewindshield, avoid getting any glass cleaneron the instrument panel or door panels. Wipeany glass cleaner off these surfacesimmediately.
•Clean the wiper blades with washer fluidor water applied with a soft sponge orcloth.
Note: Do not use razor blades or othersharp objects to clean or remove decals fromthe inside of the heated rear window. Thiscan cause damage not covered by thevehicle Warranty.
366
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMVehicle Care

1

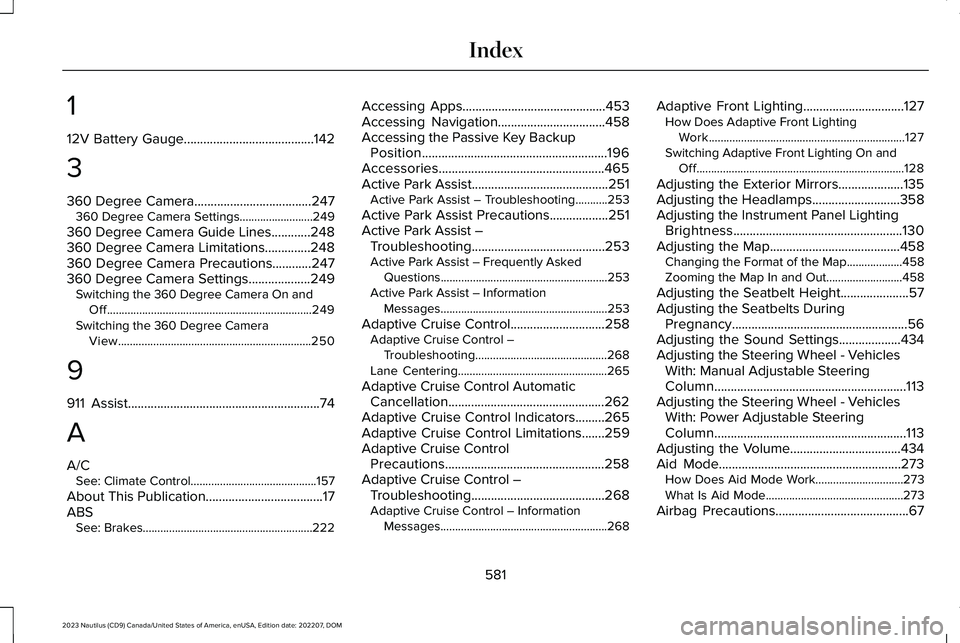

12V Battery Gauge........................................142
3
360 Degree Camera....................................247360 Degree Camera Settings.........................249
360 Degree Camera Guide Lines............248360 Degree Camera Limitations..............248360 Degree Camera Precautions............247360 Degree Camera Settings...................249Switching the 360 Degree Camera On andOff......................................................................249Switching the 360 Degree CameraView..................................................................250
9
911 Assist...........................................................74
A
A/CSee: Climate Control...........................................157
About This Publication....................................17ABSSee: Brakes..........................................................222
Accessing Apps............................................453Accessing Navigation.................................458Accessing the Passive Key BackupPosition.........................................................196Accessories...................................................465Active Park Assist..........................................251Active Park Assist – Troubleshooting...........253
Active Park Assist Precautions..................251Active Park Assist –Troubleshooting.........................................253Active Park Assist – Frequently AskedQuestions.........................................................253Active Park Assist – InformationMessages.........................................................253
Adaptive Cruise Control.............................258Adaptive Cruise Control –Troubleshooting.............................................268Lane Centering...................................................265
Adaptive Cruise Control AutomaticCancellation................................................262Adaptive Cruise Control Indicators.........265Adaptive Cruise Control Limitations.......259Adaptive Cruise ControlPrecautions.................................................258Adaptive Cruise Control –Troubleshooting.........................................268Adaptive Cruise Control – InformationMessages.........................................................268
Adaptive Front Lighting...............................127How Does Adaptive Front LightingWork...................................................................127Switching Adaptive Front Lighting On andOff.......................................................................128
Adjusting the Exterior Mirrors....................135Adjusting the Headlamps...........................358Adjusting the Instrument Panel LightingBrightness....................................................130Adjusting the Map........................................458Changing the Format of the Map...................458Zooming the Map In and Out..........................458
Adjusting the Seatbelt Height.....................57Adjusting the Seatbelts DuringPregnancy......................................................56Adjusting the Sound Settings...................434Adjusting the Steering Wheel - VehiclesWith: Manual Adjustable SteeringColumn...........................................................113Adjusting the Steering Wheel - VehiclesWith: Power Adjustable SteeringColumn...........................................................113Adjusting the Volume..................................434Aid Mode........................................................273How Does Aid Mode Work..............................273What Is Aid Mode...............................................273
Airbag Precautions.........................................67
581
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

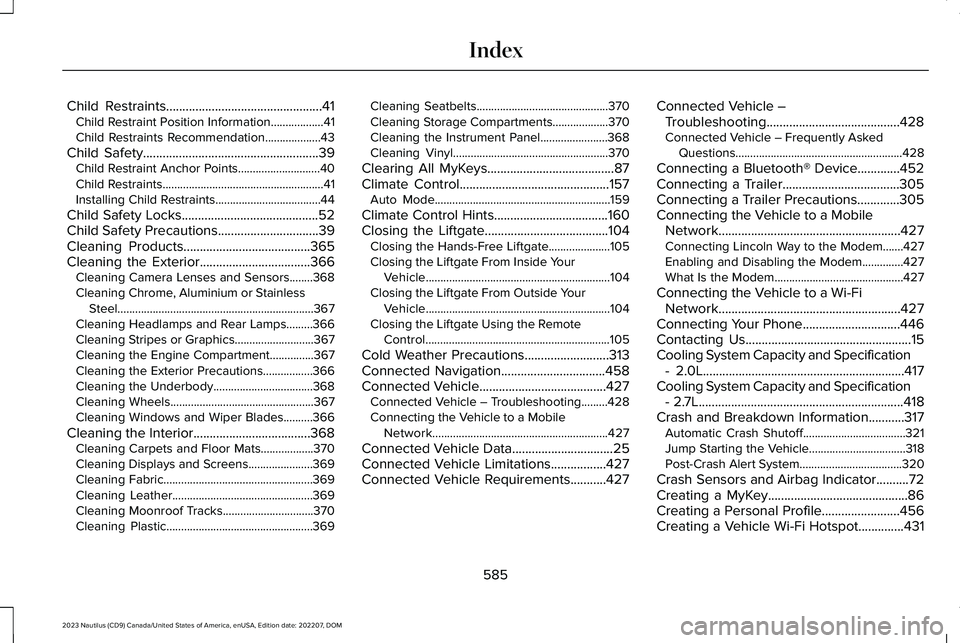

Child Restraints................................................41Child Restraint Position Information..................41Child Restraints Recommendation...................43
Child Safety......................................................39Child Restraint Anchor Points............................40Child Restraints.......................................................41Installing Child Restraints....................................44
Child Safety Locks..........................................52Child Safety Precautions...............................39Cleaning Products.......................................365Cleaning the Exterior..................................366Cleaning Camera Lenses and Sensors........368Cleaning Chrome, Aluminium or StainlessSteel...................................................................367Cleaning Headlamps and Rear Lamps.........366Cleaning Stripes or Graphics...........................367Cleaning the Engine Compartment...............367Cleaning the Exterior Precautions.................366Cleaning the Underbody..................................368Cleaning Wheels.................................................367Cleaning Windows and Wiper Blades..........366
Cleaning the Interior....................................368Cleaning Carpets and Floor Mats..................370Cleaning Displays and Screens......................369Cleaning Fabric...................................................369Cleaning Leather................................................369Cleaning Moonroof Tracks...............................370Cleaning Plastic..................................................369
Cleaning Seatbelts.............................................370Cleaning Storage Compartments...................370Cleaning the Instrument Panel.......................368Cleaning Vinyl.....................................................370
Clearing All MyKeys.......................................87Climate Control..............................................157Auto Mode............................................................159
Climate Control Hints...................................160Closing the Liftgate......................................104Closing the Hands-Free Liftgate.....................105Closing the Liftgate From Inside YourVehicle...............................................................104Closing the Liftgate From Outside YourVehicle...............................................................104Closing the Liftgate Using the RemoteControl...............................................................105
Cold Weather Precautions..........................313Connected Navigation................................458Connected Vehicle.......................................427Connected Vehicle – Troubleshooting.........428Connecting the Vehicle to a MobileNetwork............................................................427
Connected Vehicle Data...............................25Connected Vehicle Limitations.................427Connected Vehicle Requirements...........427
Connected Vehicle –Troubleshooting.........................................428Connected Vehicle – Frequently AskedQuestions.........................................................428
Connecting a Bluetooth® Device.............452Connecting a Trailer....................................305Connecting a Trailer Precautions.............305Connecting the Vehicle to a MobileNetwork........................................................427Connecting Lincoln Way to the Modem.......427Enabling and Disabling the Modem..............427What Is the Modem............................................427
Connecting the Vehicle to a Wi-FiNetwork........................................................427Connecting Your Phone..............................446Contacting Us...................................................15Cooling System Capacity and Specification- 2.0L..............................................................417Cooling System Capacity and Specification- 2.7L...............................................................418Crash and Breakdown Information...........317Automatic Crash Shutoff...................................321Jump Starting the Vehicle.................................318Post-Crash Alert System...................................320
Crash Sensors and Airbag Indicator..........72Creating a MyKey...........................................86Creating a Personal Profile........................456Creating a Vehicle Wi-Fi Hotspot..............431
585
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

Electric Parking Brake.................................225Electric Parking Brake –Troubleshooting.............................................226
Electric Parking Brake –Troubleshooting.........................................226Electric Parking Brake – InformationMessages.........................................................227Electric Parking Brake – WarningLamps...............................................................226
Electric Power Steering..............................236Electric Power Steering Precautions.............236
Electromagnetic Compatibility..................576Emergency Call Limitations..........................75Emergency Call Requirements....................74Emergency Call System Data......................26Emergency Towing......................................324Emission Law.................................................572Enabling Apps on an AndroidDevice...........................................................453Enabling Apps on an iOS Device.............453Enabling or Disabling PersonalProfiles.........................................................456Enabling Remote Start.................................154End User License Agreement...................542Engine Air Filter............................................353Changing the Engine Air Filter........................353
Engine Block Heater....................................194Engine Block Heater Precautions...................194
How Does the Engine Block HeaterWork...................................................................194Using the Engine Block Heater.......................195
Engine Coolant Temperature Gauge.......142Engine Oil Capacity and Specification -2.0L................................................................412Engine Oil Capacity and Specification -2.7L.................................................................414Engine Oil.......................................................347Adding Engine Oil..............................................348Checking the Engine Oil Level........................347Engine Oil Capacity and Specification..........349Engine Oil Dipstick Overview..........................347Resetting the Intelligent Oil LifeMonitor..............................................................348
Engine Oil Pressure Gauge........................142Engine Specifications - 2.0L......................408Engine Specifications - 2.7L......................409Entering a Parallel Parking Space...........252Entering a Perpendicular ParkingSpace............................................................252Evasive Steering Assist...............................291Evasive Steering Assist Limitations................291Switching Evasive Steering Assist On andOff......................................................................292What Is Evasive Steering Assist......................291
Event Data........................................................24Exiting a Parking Space..............................253
Extending the Remote StartDuration........................................................155Exterior Bulbs.................................................361Changing a Front Turn Signal LampBulb...................................................................363Changing a License Plate Lamp Bulb...........364Exterior Bulb Specification Chart....................361Removing a Headlamp Assembly..................363
Exterior Lamps...............................................122Exterior Lamp Indicators....................................123Exterior Lamps On Audible Warning..............124Switching the Daytime Running Lamps Onand Off...............................................................122Switching Welcome Lighting On andOff.......................................................................123Using the Front Fog Lamps..............................123Using the Turn Signal Lamps...........................122
Exterior Lighting Control.............................120Exterior Lighting............................................120Adaptive Front Lighting.....................................127Autolamps..............................................................121Automatic High Beam Control.........................124Automatic High Beam Control –Troubleshooting..............................................127Exterior Lamps.....................................................122Headlamps............................................................120Headlamps – Troubleshooting.........................121
587
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex

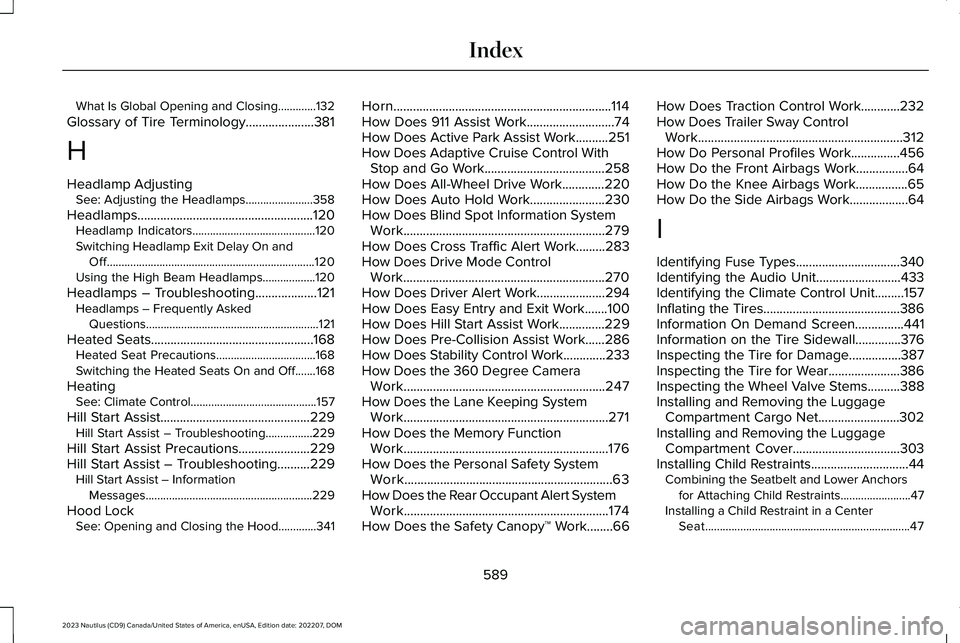

What Is Global Opening and Closing.............132
Glossary of Tire Terminology.....................381
H
Headlamp AdjustingSee: Adjusting the Headlamps.......................358
Headlamps......................................................120Headlamp Indicators..........................................120Switching Headlamp Exit Delay On andOff.......................................................................120Using the High Beam Headlamps..................120
Headlamps – Troubleshooting...................121Headlamps – Frequently AskedQuestions...........................................................121
Heated Seats..................................................168Heated Seat Precautions..................................168Switching the Heated Seats On and Off.......168
HeatingSee: Climate Control...........................................157
Hill Start Assist..............................................229Hill Start Assist – Troubleshooting................229
Hill Start Assist Precautions......................229Hill Start Assist – Troubleshooting..........229Hill Start Assist – InformationMessages.........................................................229
Hood LockSee: Opening and Closing the Hood.............341
Horn...................................................................114How Does 911 Assist Work...........................74How Does Active Park Assist Work..........251How Does Adaptive Cruise Control WithStop and Go Work.....................................258How Does All-Wheel Drive Work.............220How Does Auto Hold Work.......................230How Does Blind Spot Information SystemWork..............................................................279How Does Cross Traffic Alert Work.........283How Does Drive Mode ControlWork..............................................................270How Does Driver Alert Work.....................294How Does Easy Entry and Exit Work.......100How Does Hill Start Assist Work..............229How Does Pre-Collision Assist Work......286How Does Stability Control Work.............233How Does the 360 Degree CameraWork..............................................................247How Does the Lane Keeping SystemWork...............................................................271How Does the Memory FunctionWork...............................................................176How Does the Personal Safety SystemWork................................................................63How Does the Rear Occupant Alert SystemWork...............................................................174How Does the Safety Canopy™ Work........66
How Does Traction Control Work............232How Does Trailer Sway ControlWork...............................................................312How Do Personal Profiles Work...............456How Do the Front Airbags Work................64How Do the Knee Airbags Work................65How Do the Side Airbags Work..................64
I
Identifying Fuse Types................................340Identifying the Audio Unit..........................433Identifying the Climate Control Unit.........157Inflating the Tires..........................................386Information On Demand Screen...............441Information on the Tire Sidewall..............376Inspecting the Tire for Damage................387Inspecting the Tire for Wear......................386Inspecting the Wheel Valve Stems..........388Installing and Removing the LuggageCompartment Cargo Net.........................302Installing and Removing the LuggageCompartment Cover.................................303Installing Child Restraints..............................44Combining the Seatbelt and Lower Anchorsfor Attaching Child Restraints........................47Installing a Child Restraint in a CenterSeat......................................................................47
589
2023 Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 202207, DOMIndex
