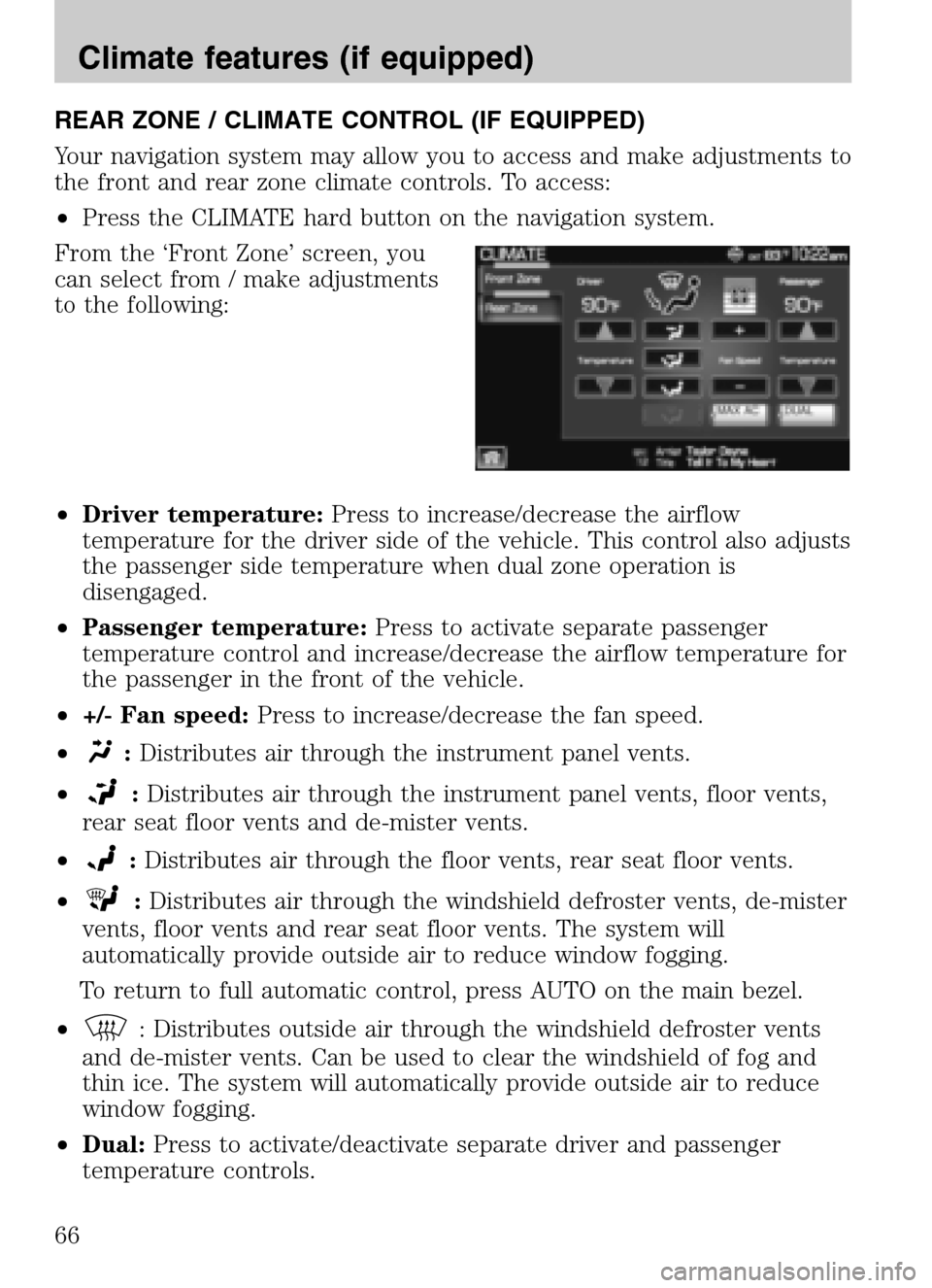

REAR ZONE / CLIMATE CONTROL (IF EQUIPPED)
Your navigation system may allow you to access and make adjustments to
the front and rear zone climate controls. To access:
• Press the CLIMATE hard button on the navigation system.
From the ‘Front Zone’ screen, you
can select from / make adjustments
to the following:
• Driver temperature: Press to increase/decrease the airflow
temperature for the driver side of the vehicle. This control also adjusts
the passenger side temperature when dual zone operation is
disengaged.
• Passenger temperature: Press to activate separate passenger
temperature control and increase/decrease the airflow temperature for
the passenger in the front of the vehicle.
• +/- Fan speed: Press to increase/decrease the fan speed.
•
: Distributes air through the instrument panel vents.
•
: Distributes air through the instrument panel vents, floor vents,
rear seat floor vents and de-mister vents.
•
: Distributes air through the floor vents, rear seat floor vents.
•
: Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will
automatically provide outside air to reduce window fogging.
To return to full automatic control, press AUTO on the main bezel.
•
: Distributes outside air through the windshield defroster vents
and de-mister vents. Can be used to clear the windshield of fog and
thin ice. The system will automatically provide outside air to reduce
window fogging.
• Dual: Press to activate/deactivate separate driver and passenger
temperature controls.
2009 Centerstack (ng1)
Supplement
USA (fus)
Climate features (if equipped)
66

•Max A/C: Distributes recirculated air through the instrument panel
vents to cool the vehicle. This re-cooling of the interior air is more
economical and efficient. Recirculated air may also help reduce
undesirable odors from entering the vehicle. Press the MAX A/C
button again for normal A/C operation.
From the ‘Rear Zone’ screen (if
equipped) you can select from /
make adjustments to the following:
• Rear Zone Power: Press to activate/deactivate the rear climate
system.
• Rear Control: Press to allow the rear passengers to control the rear
climate system using the rear mounted controls.
• Auto: Press to activate automatic mode and have the climate control
system automatically select air flow, fan speed and heating or cooling
to achieve the desired temperature.
• Temperature: Press up/down to increase/decrease the rear climate
temperature.
• +/- Fan Speed: Press to increase/decrease the rear climate airflow.
Note: The appearance of your rear zone screen may vary depending on
your vehicle. For more information on your climate control system,
please refer to the Climate Controlchapter in yourOwner’s Guide.
