Miles (x 1,000)* 82.5 90 97.5 105 112.5 120 127.5 135 142.5 150
Kilometers (x 1,000)* 132 144 156 168 180 192 204 216 228 240
Months* 66 72 78 84 90 96 102 108 114 120
Change engine oil and filter• •••••••••
Rotate tires**, inspect tire wear and measure tread
depth• •••••••••
Inspect wheels and related components for abnormal
noise, wear, looseness or drag• •••••••••
Perform multi-point inspection (recommended)• •••••••••
Inspect automatic transmission fluid level (if equipped
with dipstick); consult dealer for requirements•••••
Inspect brake pads, shoes, rotors, drums, brake linings,
hoses and parking brake•••••
Inspect engine cooling system concentration and hoses•••••
Inspect exhaust system and heat shields•••••
Inspect front axle and U-joints; lubricate if equipped
with grease fittings (4WD vehicles)•••••
Inspect half-shaft boots (if equipped)•••••
Inspect steering linkage, ball joints, suspension, tie-rod
ends, driveshaft and U-joints; lubricate if equipped with
grease fittings•••••
Torque rear U-bolts (Transit Connect)•••••
Inspect cabin air filter (if equipped)•••••
* Whichever comes first
**If equipped with dual rear wheels, rotate front wheels when specified, rear wheels only if unusual wear is noted
Scheduled Maintenance
362
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Every 15,000 miles
(24,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)
Replace climate-controlled seat filter (if equipped)
Replace engine air filter
Every 37,500 miles
(60,000 km)Inspect valve clearances; adjust as necessary
(Transit Connect CNG vehicles)
Every 60,000 miles
(96,000 km)Change automatic transmission fluid and filter on
5–speed TorqShifttransmission; consult dealer
for requirements
Replace front wheel bearing grease/grease seal if
non-sealed bearings are used (2WD vehicles)
Every 97,500 miles
(156,000 km)Replace spark plugs
Every 105,000 miles
(168,000 km)Change engine coolant
1
Change manual transmission fluid (except Escape)
Change rear axle fluid (Dana axles)
Inspect accessory drive belt(s)2
Every 150,000 miles
(240,000 km)Change automatic transmission fluid and filter
(except 5–speed TorqShifttransmission) (filter
not required on 6F35, 6F50, DPS6 and AWF-21
transmissions); consult dealer for requirements
Change front axle fluid (4WD vehicles)
Change manual transmission fluid (Escape)
Change rear axle fluid (RWD vehicles)
Change transfer case fluid (4WD vehicles)
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
Replace front wheel bearings and seals if
non-sealed bearings are used (2WD vehicles)
1Initial replacement at 105,000 miles (168,000 km) or 72 months; every
45,000 miles (72,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance
363
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

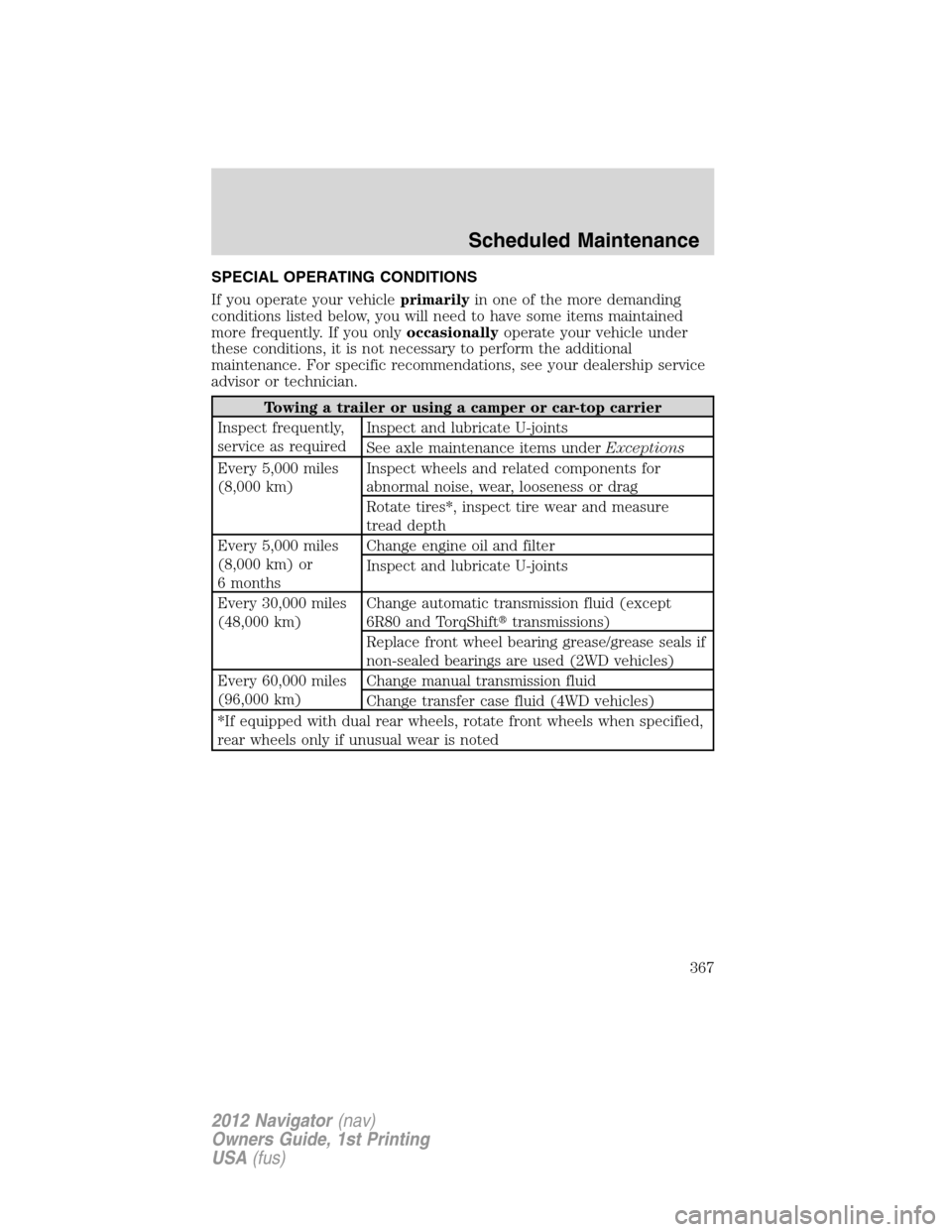

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin one of the more demanding
conditions listed below, you will need to have some items maintained
more frequently. If you onlyoccasionallyoperate your vehicle under
these conditions, it is not necessary to perform the additional
maintenance. For specific recommendations, see your dealership service
advisor or technician.
Towing a trailer or using a camper or car-top carrier
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Every 5,000 miles
(8,000 km)Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tire wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect and lubricate U-joints
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 60,000 miles
(96,000 km)Change manual transmission fluid
Change transfer case fluid (4WD vehicles)
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Scheduled Maintenance
367
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect brake system
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Lubricate control arm and steering ball joints if
equipped with grease fittings
Rotate tires*, inspect tire wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsInspect and lubricate U-joints
Every 5,000 miles
(8,000 km),
6 months or 200
engine hoursChange engine oil and filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
Replace spark plugs
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Scheduled Maintenance
368
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

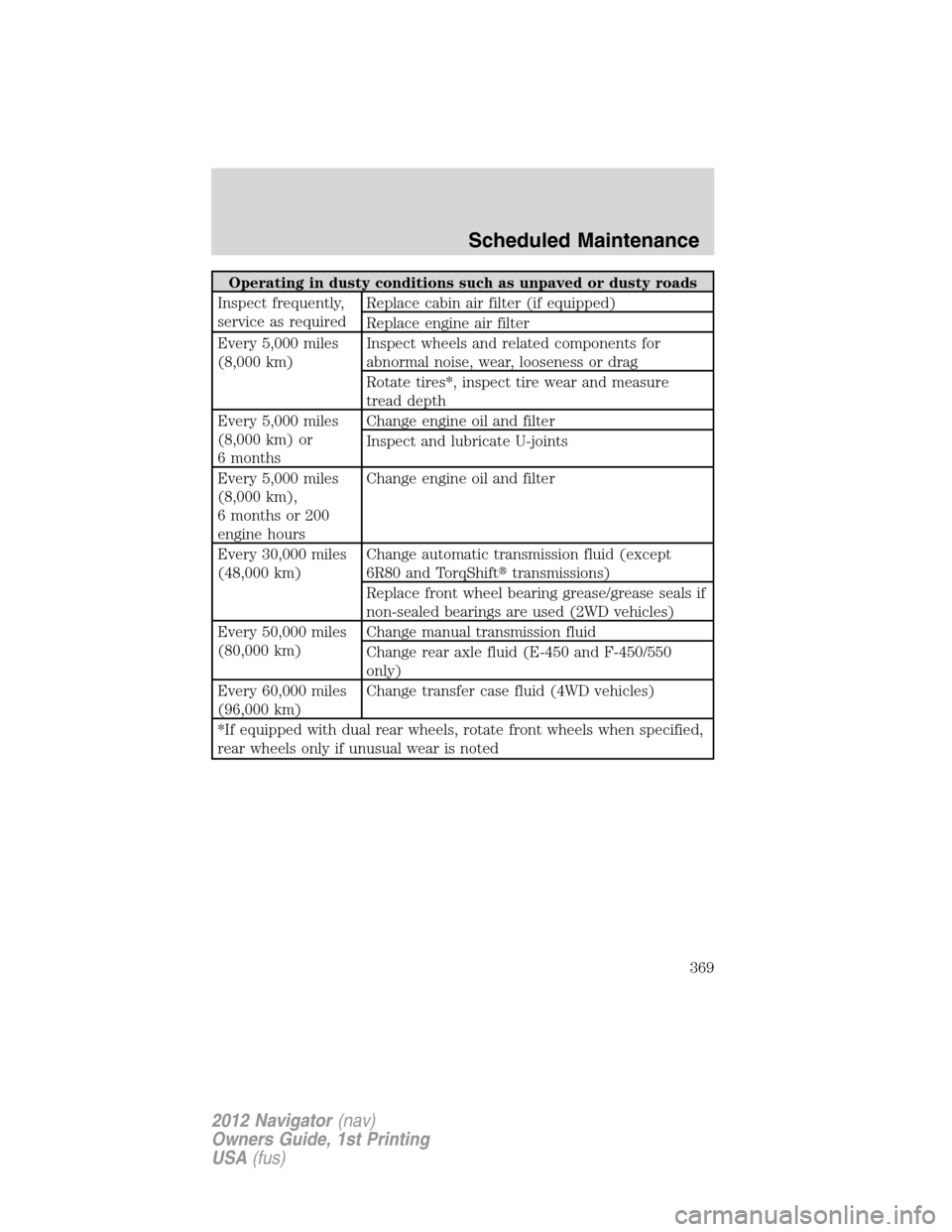

Operating in dusty conditions such as unpaved or dusty roads
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tire wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsChange engine oil and filter
Inspect and lubricate U-joints
Every 5,000 miles
(8,000 km),
6 months or 200
engine hoursChange engine oil and filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 50,000 miles
(80,000 km)Change manual transmission fluid
Change rear axle fluid (E-450 and F-450/550
only)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Scheduled Maintenance
369
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Off-road operation
Inspect frequently,
service as requiredInspect steering linkage, ball joints and U-joints;
lubricate if equipped with grease fittings
Replace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Change engine oil and filter
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Rotate tires*, inspect tire wear and measure
tread depth
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 50,000 miles
(80,000 km)Change manual transmission fluid
Change rear axle fluid (E-450 and F-450/550
only)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Exclusive use of E85 (Flex Fuel Vehicles only)
Every oil change
intervalIf ran exclusively on E85, fill the fuel tank full
with regular unleaded fuel
Scheduled Maintenance
370
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

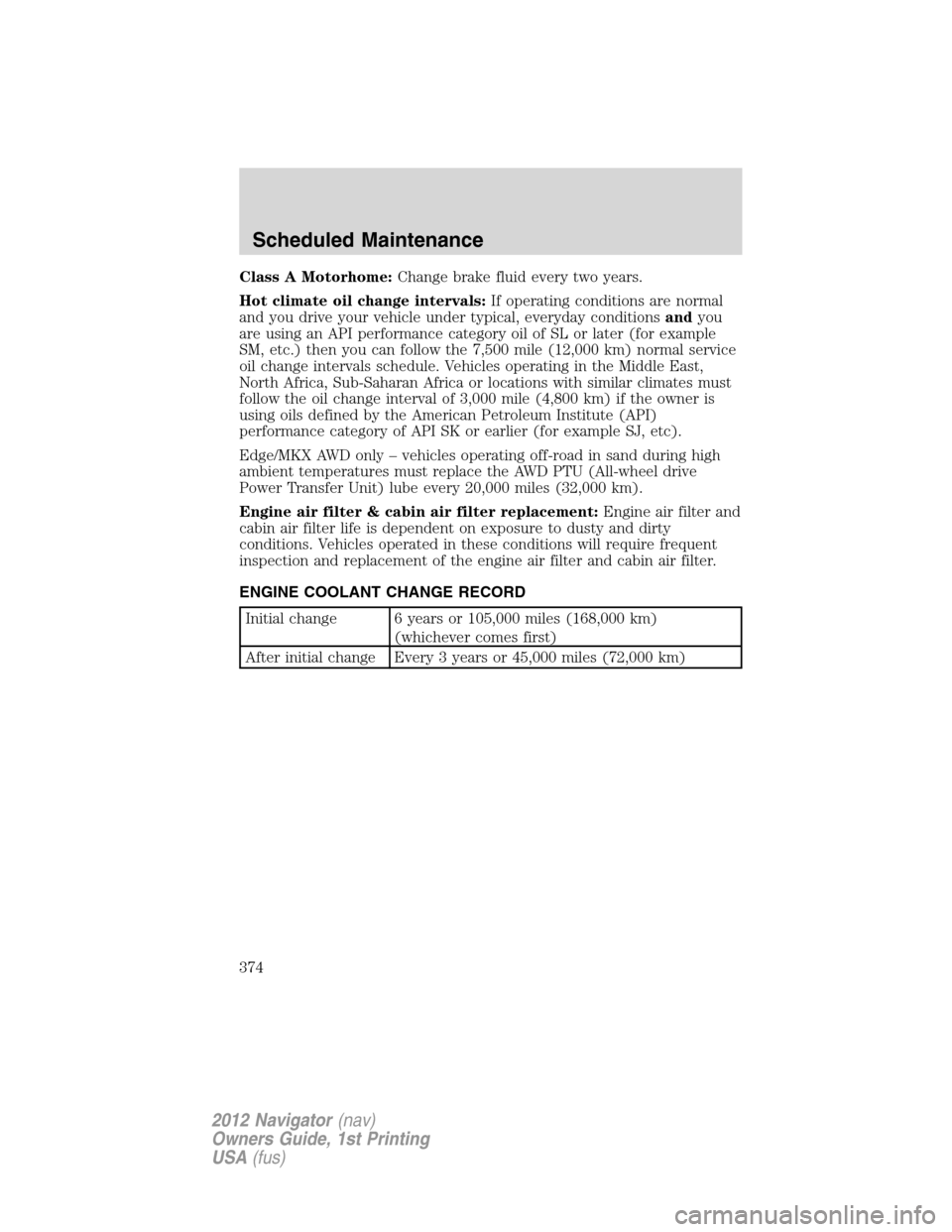

Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc).
Edge/MKX AWD only – vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 105,000 miles (168,000 km)
(whichever comes first)
After initial change Every 3 years or 45,000 miles (72,000 km)
Scheduled Maintenance
374
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

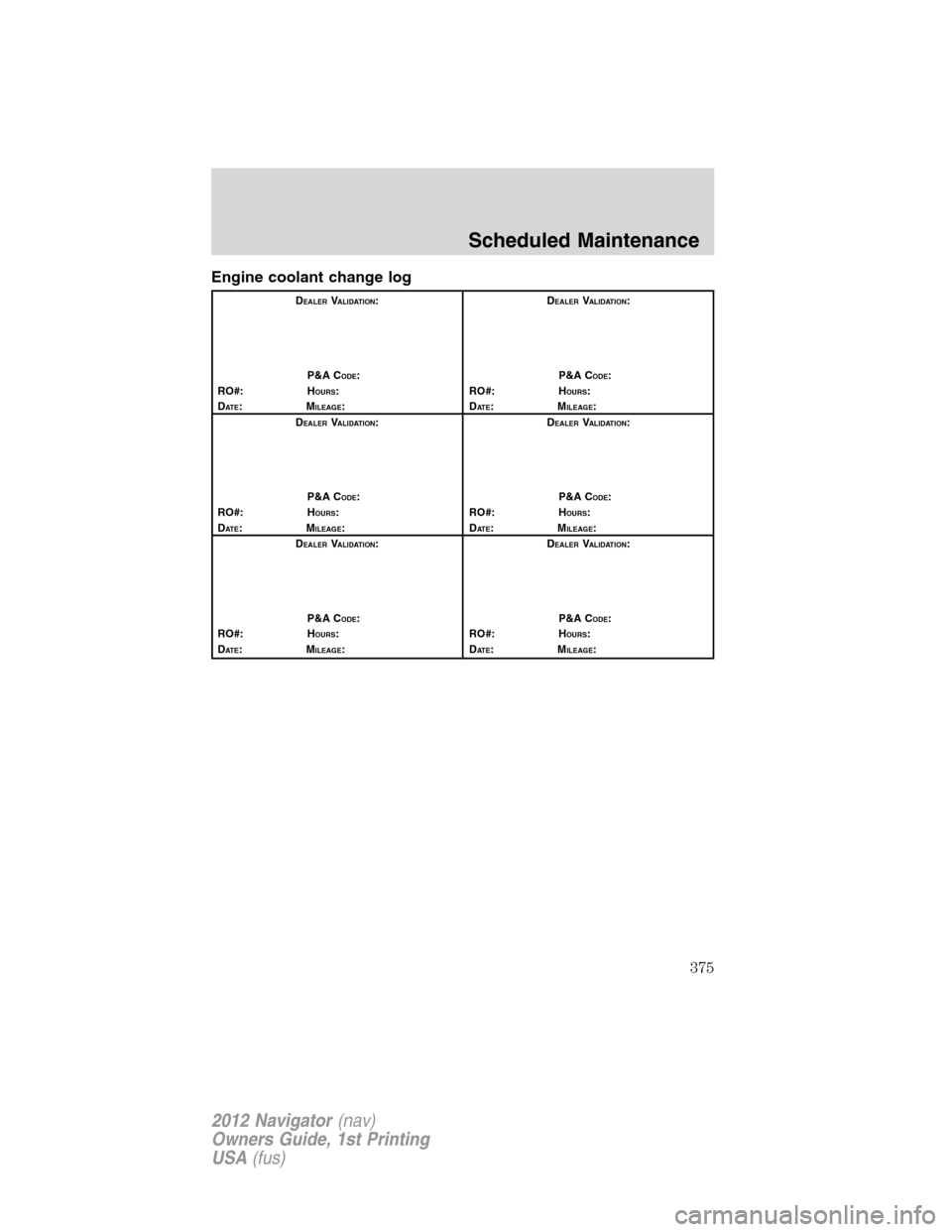

Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
375
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

A
ABS (see Brakes) .....................231
Accessory delay ..........................74
AdvanceTrac ..............................233
Airbag supplemental restraint
system ........................155, 159, 162
and child safety seats ............157
description ..............155, 159, 162
disposal ....................................165
driver airbag ............157, 160, 163
indicator light .................159, 165
operation .................157, 160, 163
passenger airbag .....157, 160, 163
side airbag ...............................159
Air cleaner filter ...............336, 341
Air suspension ...........................240
description ..............................240
Antifreeze
(see Engine coolant) ................316
Anti-lock brake system
(see Brakes) ..............................231
Anti-theft system ..............116, 120
arming the system ..................120
disarming a triggered system..121
Audio system (see Radio) .........30
Automatic transmission
driving an automatic
overdrive .................................242
fluid, adding ............................336
fluid, checking ........................336
fluid, refill capacities ..............342
fluid, specification ..................342
Auxiliary input jack (Line in) ....37
Auxiliary power point .................71
Axle
lubricant specifications ..........342
refill capacities ........................342B
Battery .......................................314
acid, treating emergencies .....314
jumping a disabled battery ....285
maintenance-free ....................314
replacement, specifications ...341
servicing ..................................314
Belt-Minder.............................151
deactivating/activating the
Belt-Minder...........................154
Blind spot mirror ......................252
Booster seats .............................181
Brakes ........................................230
anti-lock ...................................231
anti-lock brake system (ABS)
warning light ...........................231
fluid, checking and adding ....335
fluid, refill capacities ..............342
fluid, specifications .................342
lubricant specifications ..........342
parking ....................................232
shift interlock ..........................241
Bulbs ............................................60
C
Capacities for refilling fluids ....342
Car2UHome Automation
System .........................................84
Cargo cover .................................96
Cargo management system ........96
Cell phone use ..............................9
Changing a tire .........................275
Child safety seats ......................170
in front seat ............................171
in rear seat ..............................171
LATCH .....................................174
Index
376
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

recommendations ...................168
Child safety seats - booster
seats ...........................................181
Cleaning your vehicle
engine compartment ..............301
instrument panel ....................303
interior .....................................304
plastic parts ............................302
washing ....................................299
waxing .....................................300
wheels ......................................300
wiper blades ............................302
Clock ......................................33, 71
Compass, electronic
set zone adjustment .................24
Console ........................................70
overhead ..............................69–70
Controls
power seat ...............................125
steering column ........................82
Coolant
checking and adding ..............316
refill capacities ................319, 342
specifications ..........................342
Cruise control
(see Speed control) ....................80
Customer Assistance ................264
Ford Extended Service
Plan ..................................351, 354
Getting assistance outside
the U.S. and Canada ..............295
Getting roadside assistance ...264
Getting the service you
need .........................................291
Ordering additional owner’s
literature .................................297
Utilizing the
Mediation/Arbitration
Program ...................................295D
Daytime running lamps
(see Lamps) ................................56
Dipstick
automatic transmission
fluid ..........................................336
engine oil .................................311
Driving under special
conditions ..................245, 257, 260
sand .........................................258
snow and ice ...........................261
through water .................259, 263
E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................285
running out of fuel .........284, 327
Emission control system ..........332
Engine ................................345–346
cleaning ...................................301
coolant .....................................316
fail-safe cooling .......................320
idle speed control ...................314
lubrication specifications .......342
refill capacities ........................342
service points ..........................308
starting after a collision .........266
Engine block heater .................228
Engine oil ..................................311
checking and adding ..............311
dipstick ....................................311
filter, specifications ........313, 341
recommendations ...................313
refill capacities ........................342
specifications ..........................342
Event data recording ....................7
Exhaust fumes ..........................227
Index
377
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
