Usb LINCOLN NAVIGATOR 2012 Navigation Manual

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 18
Message center 19
Entertainment Systems 30
AM/FM stereo with CDX6/MP3 30
Auxiliary input jack (Line in) 37
USB port 39
Rear seat controls 39
Satellite radio information 45
Navigation system 47
SYNC47
Climate Controls 48
Dual automatic temperature control 48
Rear window defroster 54
Lights 55
Headlamps 55
Turn signal control 58
Bulb replacement 60
Driver Controls 65
Windshield wiper/washer control 65
Steering wheel adjustment 67
Power windows 73
Mirrors 75
Speed control 80
Moon roof 83
Table of Contents
1
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

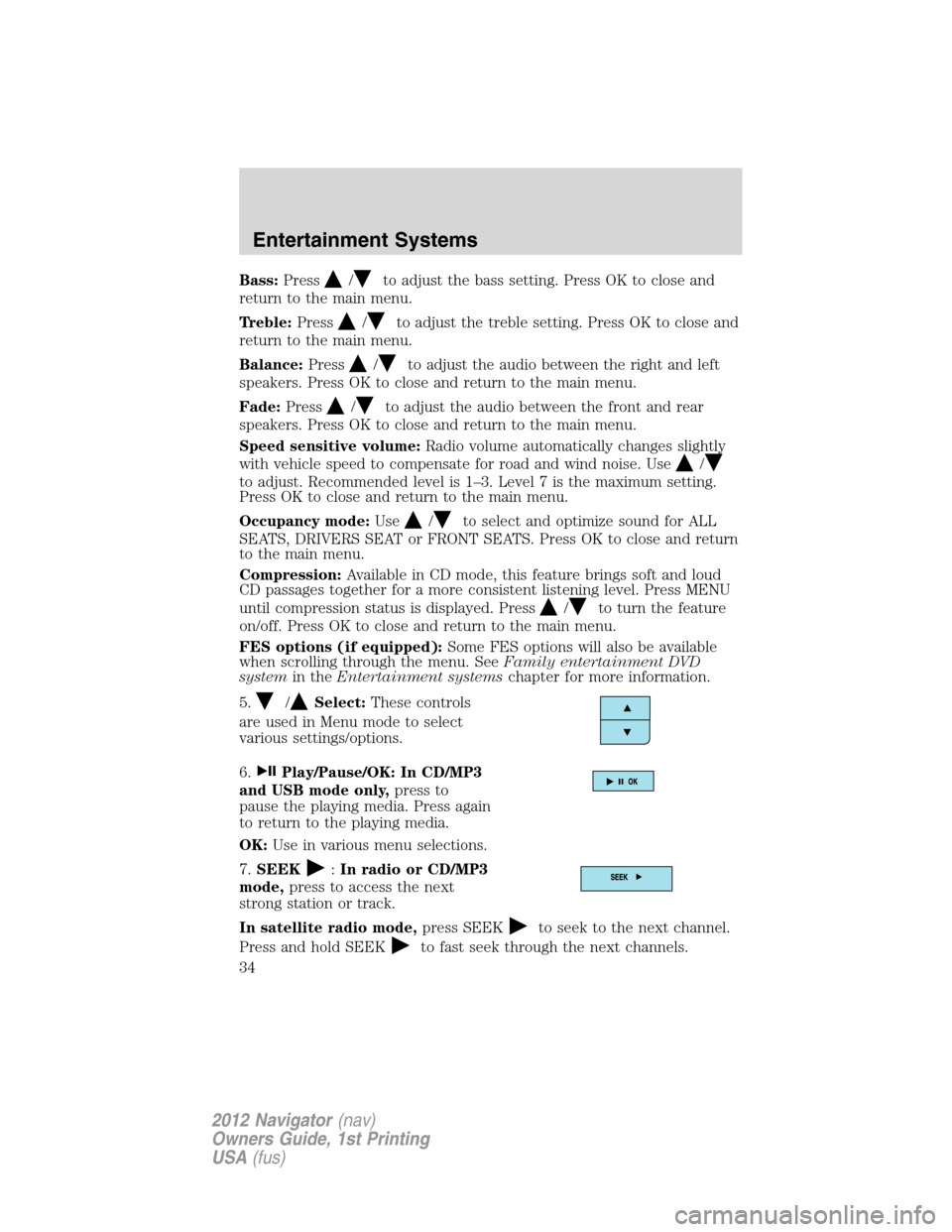

Bass:Press/to adjust the bass setting. Press OK to close and
return to the main menu.
Treble:Press
/to adjust the treble setting. Press OK to close and
return to the main menu.
Balance:Press
/to adjust the audio between the right and left
speakers. Press OK to close and return to the main menu.
Fade:Press
/to adjust the audio between the front and rear
speakers. Press OK to close and return to the main menu.
Speed sensitive volume:Radio volume automatically changes slightly
with vehicle speed to compensate for road and wind noise. Use
/
to adjust. Recommended level is 1–3. Level 7 is the maximum setting.
Press OK to close and return to the main menu.
Occupancy mode:Use
/to select and optimize sound for ALL
SEATS, DRIVERS SEAT or FRONT SEATS. Press OK to close and return
to the main menu.
Compression:Available in CD mode, this feature brings soft and loud
CD passages together for a more consistent listening level. Press MENU
until compression status is displayed. Press
/to turn the feature
on/off. Press OK to close and return to the main menu.
FES options (if equipped):Some FES options will also be available
when scrolling through the menu. SeeFamily entertainment DVD
systemin theEntertainment systemschapter for more information.
5.
/Select:These controls
are used in Menu mode to select
various settings/options.
6.
Play/Pause/OK: In CD/MP3
and USB mode only,press to
pause the playing media. Press again
to return to the playing media.
OK:Use in various menu selections.
7.SEEK
:In radio or CD/MP3
mode,press to access the next
strong station or track.
In satellite radio mode,press SEEK
to seek to the next channel.
Press and hold SEEK
to fast seek through the next channels.
Entertainment Systems
34
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

USB port
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect the use of electronic devices while
driving.
Your vehicle is equipped with a USB
port inside your center console. This
feature allows you to plug in media
playing devices, memory sticks, and
also to charge devices if they
support this feature. For further
information on this feature, refer to
Accessing and using your USB
portin theSYNCsupplement or
Navigation Systemsupplement.
Rear seat controls (if equipped)
Your vehicle is equipped with rear seat radio controls. This feature allows
front and middle seat passengers to listen to different media sources
(radio, CD, SYNC or DVD) simultaneously; however, the front and
middle-seat passengers cannot listen to two different radio stations at
the same time.
Entertainment Systems
39
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

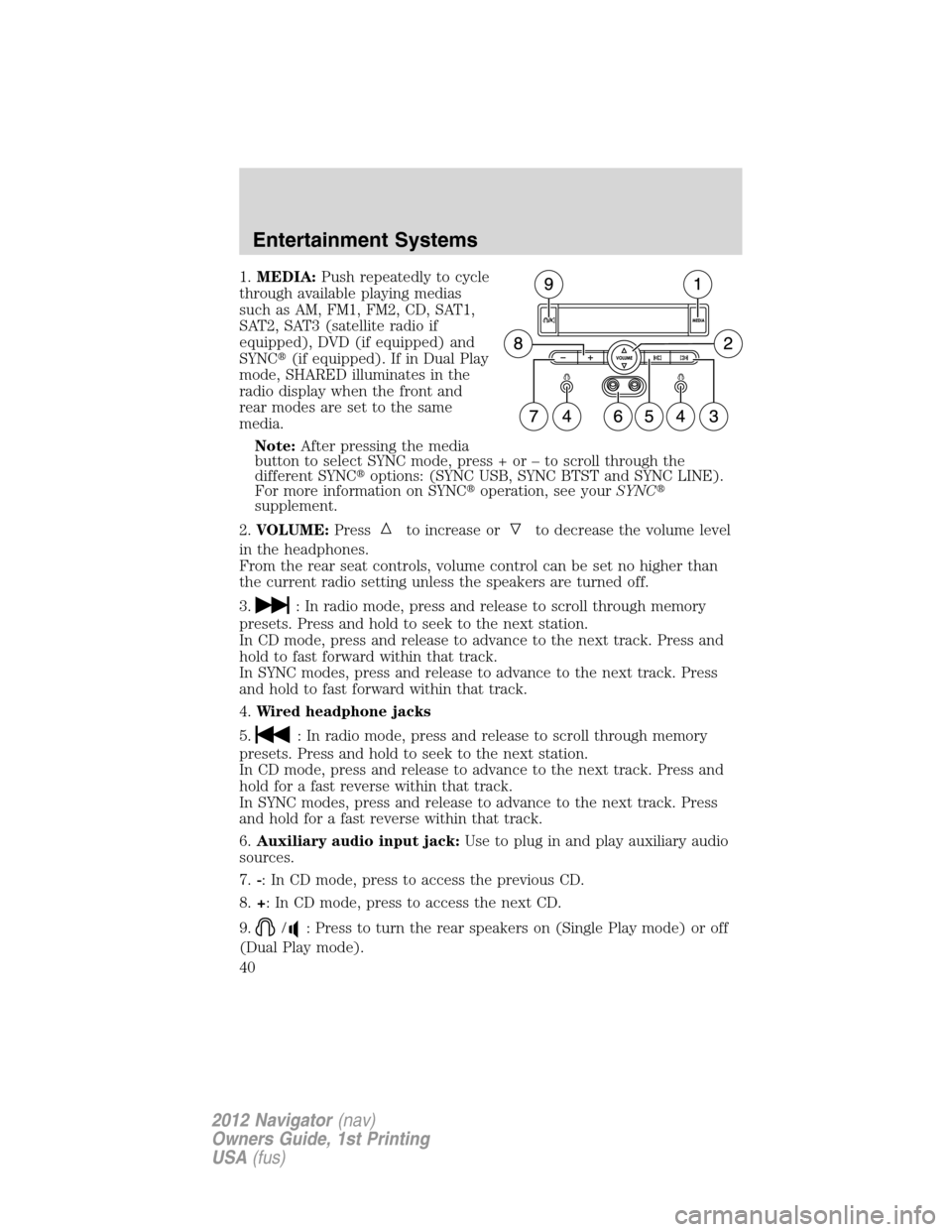

1.MEDIA:Push repeatedly to cycle
through available playing medias
such as AM, FM1, FM2, CD, SAT1,
SAT2, SAT3 (satellite radio if
equipped), DVD (if equipped) and
SYNC(if equipped). If in Dual Play
mode, SHARED illuminates in the
radio display when the front and
rear modes are set to the same
media.
Note:After pressing the media
button to select SYNC mode, press + or – to scroll through the
different SYNCoptions: (SYNC USB, SYNC BTST and SYNC LINE).
For more information on SYNCoperation, see yourSYNC
supplement.
2.VOLUME:Press
to increase orto decrease the volume level
in the headphones.
From the rear seat controls, volume control can be set no higher than
the current radio setting unless the speakers are turned off.
3.
: In radio mode, press and release to scroll through memory
presets. Press and hold to seek to the next station.
In CD mode, press and release to advance to the next track. Press and
hold to fast forward within that track.
In SYNC modes, press and release to advance to the next track. Press
and hold to fast forward within that track.
4.Wired headphone jacks
5.
: In radio mode, press and release to scroll through memory
presets. Press and hold to seek to the next station.
In CD mode, press and release to advance to the next track. Press and
hold for a fast reverse within that track.
In SYNC modes, press and release to advance to the next track. Press
and hold for a fast reverse within that track.
6.Auxiliary audio input jack:Use to plug in and play auxiliary audio
sources.
7.-: In CD mode, press to access the previous CD.
8.+: In CD mode, press to access the next CD.
9.
/: Press to turn the rear speakers on (Single Play mode) or off
(Dual Play mode).
Entertainment Systems
40
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Power quarter rear windows
Press and hold the VENT portion of
the control to open the power rear
quarter windows.
Pull and hold the VENT control to
close the power rear quarter
windows.
Note:Vehicles without a moon roof,
will only have the VENT button.
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power rear quarter windows.
They may seriously injure themselves.
WARNING:When closing the power rear quarter windows, you
should verify that it is free of obstructions and ensure that
children and/or pets are not in the proximity of the window opening.
CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
1. Cupholders
2. Utility compartment, coin holder
slots, tissue box holder, audio input
jack and USB port (if equipped)
3. Power point, rear climate
controls, rear audio controls (if
equipped), rear heated seat controls
(if equipped) and 110V AC power
point (if equipped)
4. Rear cupholders
5. Side storage
WARNING:Use only soft cups in the cupholder. Hard objects
can injure you in a collision.
1
2
4
5
3
Driver Controls
70
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Starting a flex fuel vehicle .......226
Starting your
vehicle ........................223–224, 226
jump starting ..........................285
Steering wheel
controls ......................................82
tilting .........................................67
SYNC..........................................47
T
Third-row power fold seat .......141
Tire Pressure Monitoring
System (TPMS)
Driving .....................................258
Tires, Wheels and Loading ....203
Warning Displays ................12, 25
Tires ...........................188–189, 275
alignment ................................197
care ..........................................192
changing ..........................275, 279
checking the pressure ............192
inflating ...................................190
label .........................................202
replacing ..................................194
rotating ....................................197
safety practices .......................196
sidewall information ...............198
snow tires and chains ............207
spare tire .................................275
terminology .............................189
tire grades ...............................189
treadwear ........................188, 193
Towing .......................................215
recreational towing .................222
trailer towing ..........................215
wrecker ....................................289Transmission .............................242
brake-shift interlock (BSI) ....241
fluid, checking and adding
(automatic) .............................336
fluid, refill capacities ..............342
lubricant specifications ..........342
Turn signal ..................................58
U
Universal garage door opener ....84
USB port ......................................39
V
Vehicle Identification Number
(VIN) ..........................................347
Vehicle loading ..........................208
Ventilating your vehicle ...........227
W
Warning lights (see Lights) .......12
Washer fluid ..............................309
Water, Driving through .............263
Windows
power .........................................73
rear wiper/washer .....................66
Windshield washer fluid and
wipers ..........................................65
checking and adding fluid .....309
liftgate reservoir .....................309
replacing wiper blades ...........310
Wrecker towing .........................289
Index
