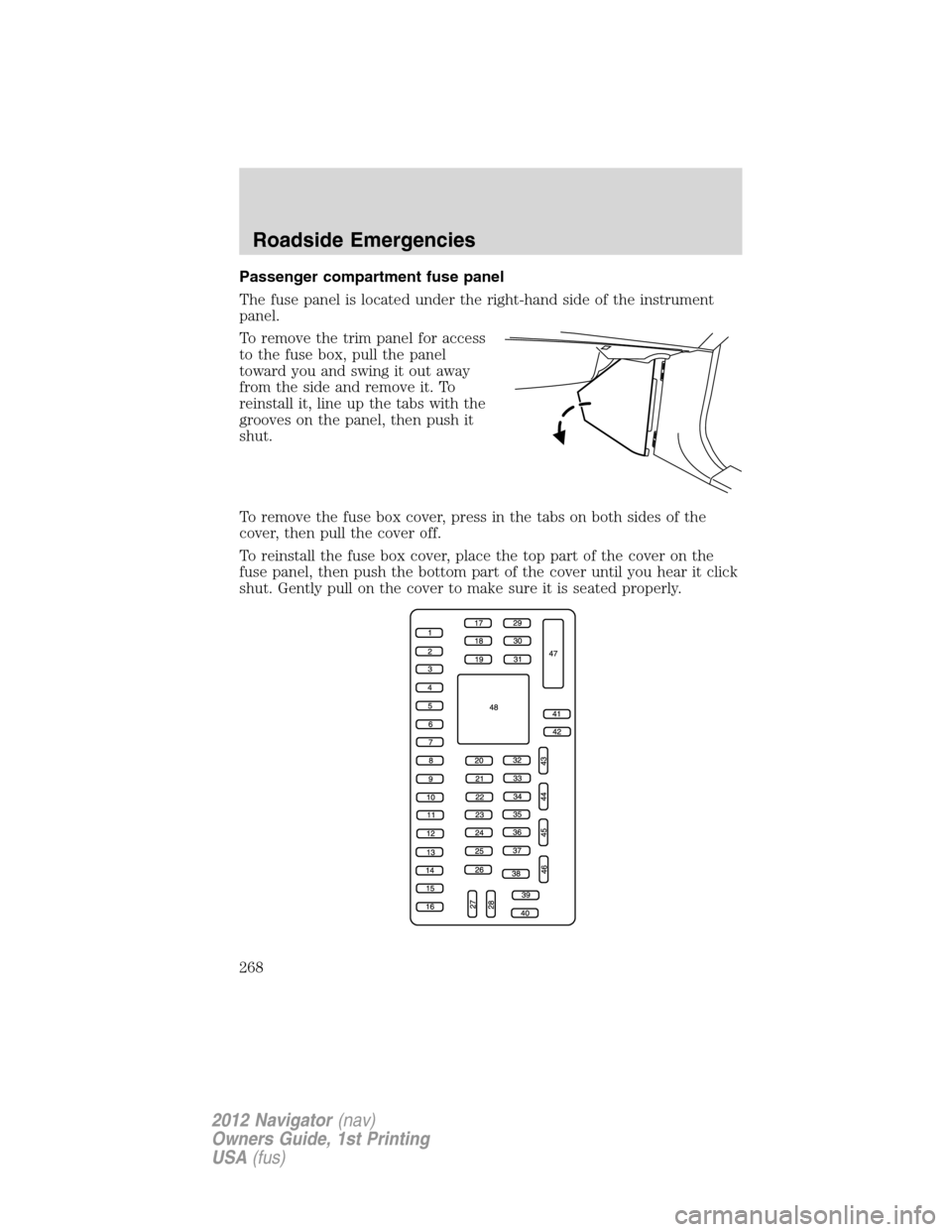

Passenger compartment fuse panel
The fuse panel is located under the right-hand side of the instrument
panel.
To remove the trim panel for access
to the fuse box, pull the panel
toward you and swing it out away
from the side and remove it. To
reinstall it, line up the tabs with the
grooves on the panel, then push it
shut.
To remove the fuse box cover, press in the tabs on both sides of the
cover, then pull the cover off.
To reinstall the fuse box cover, place the top part of the cover on the
fuse panel, then push the bottom part of the cover until you hear it click
shut. Gently pull on the cover to make sure it is seated properly.
Roadside Emergencies
268
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

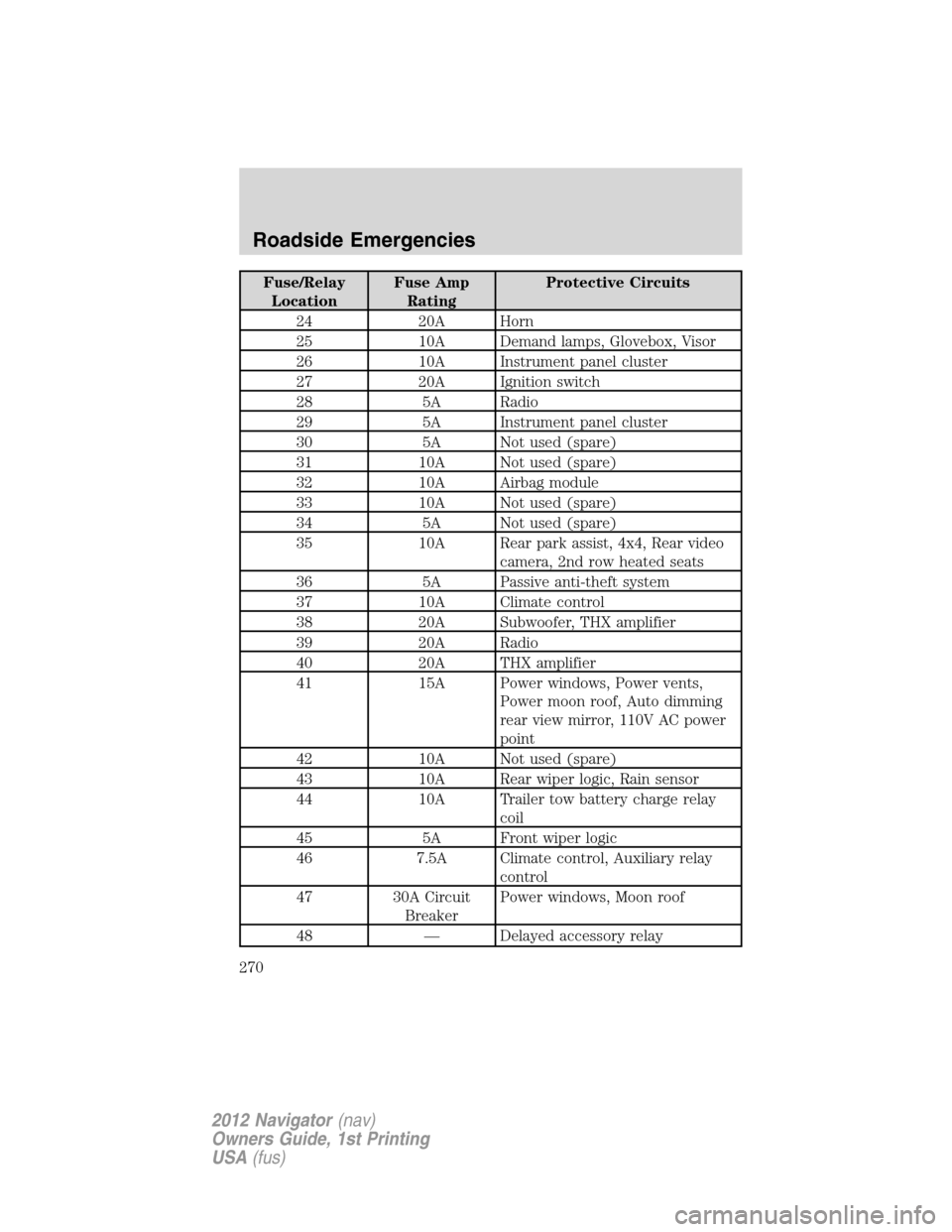

Fuse/Relay
LocationFuse Amp
RatingProtective Circuits
24 20A Horn
25 10A Demand lamps, Glovebox, Visor
26 10A Instrument panel cluster
27 20A Ignition switch
28 5A Radio
29 5A Instrument panel cluster
30 5A Not used (spare)
31 10A Not used (spare)
32 10A Airbag module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Rear park assist, 4x4, Rear video
camera, 2nd row heated seats
36 5A Passive anti-theft system
37 10A Climate control
38 20A Subwoofer, THX amplifier
39 20A Radio
40 20A THX amplifier
41 15A Power windows, Power vents,
Power moon roof, Auto dimming
rear view mirror, 110V AC power
point
42 10A Not used (spare)
43 10A Rear wiper logic, Rain sensor
44 10A Trailer tow battery charge relay
coil
45 5A Front wiper logic
46 7.5A Climate control, Auxiliary relay
control
47 30A Circuit
BreakerPower windows, Moon roof
48 — Delayed accessory relay
Roadside Emergencies
270
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

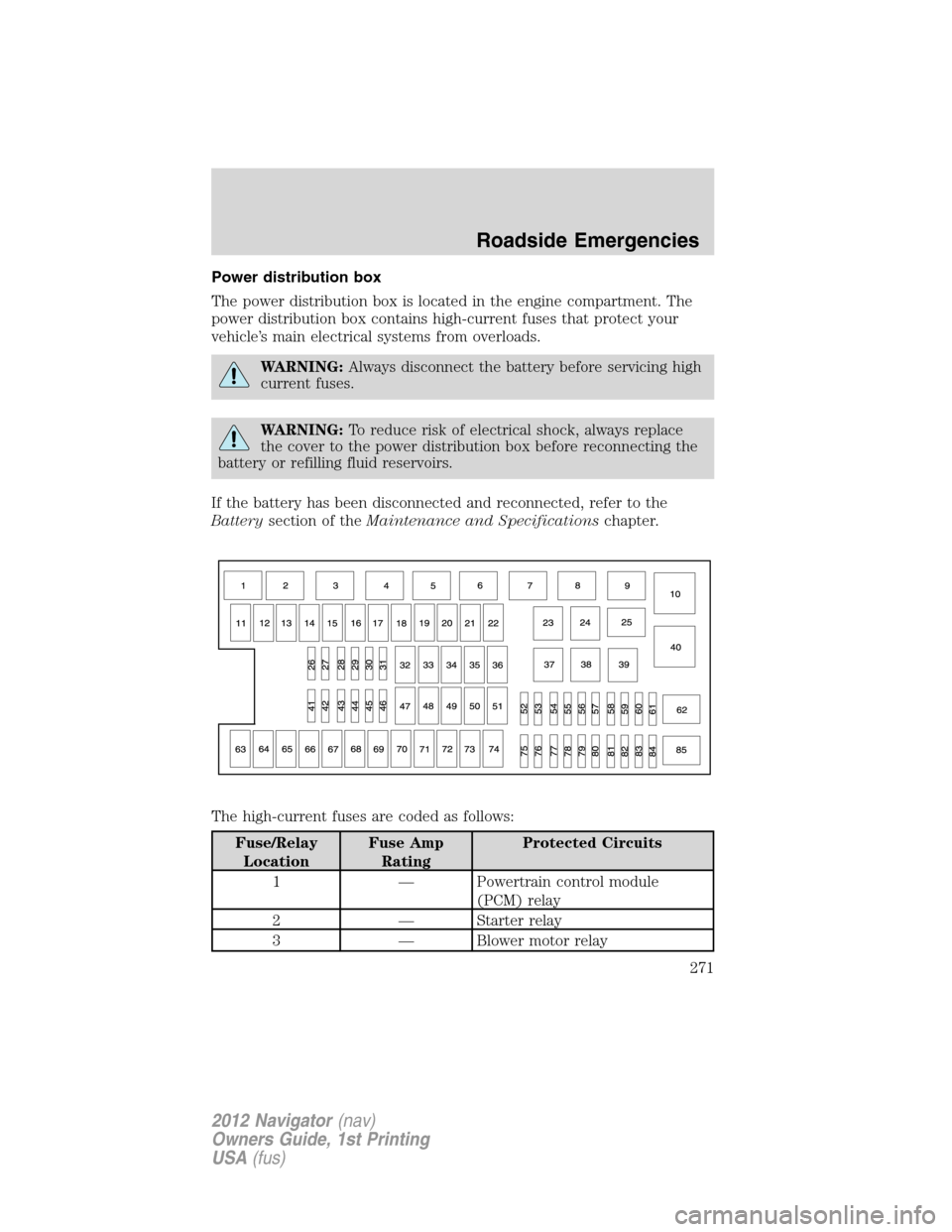

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 — Powertrain control module
(PCM) relay
2 — Starter relay
3 — Blower motor relay
Roadside Emergencies
271
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

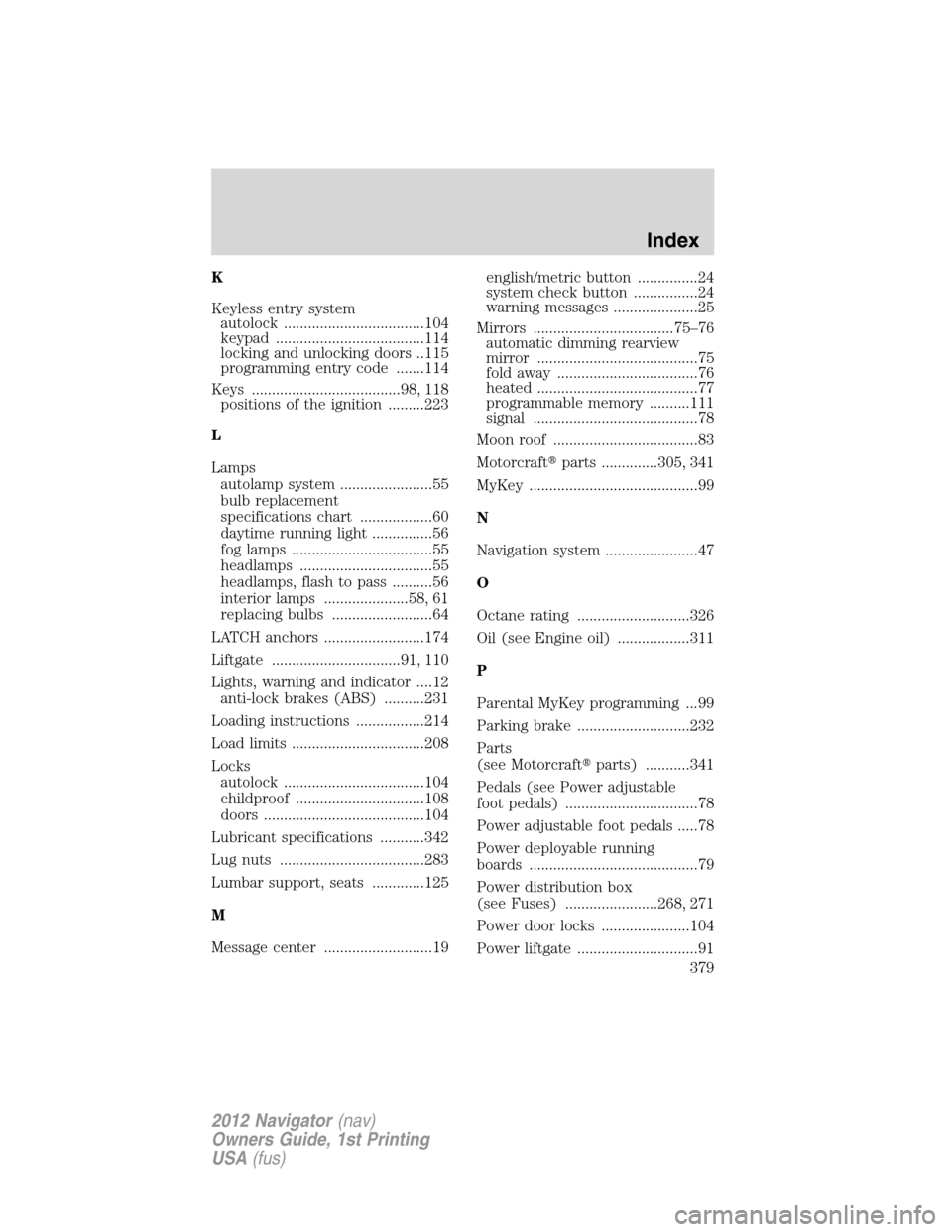

K
Keyless entry system
autolock ...................................104
keypad .....................................114
locking and unlocking doors ..115
programming entry code .......114
Keys .....................................98, 118
positions of the ignition .........223
L
Lamps
autolamp system .......................55
bulb replacement
specifications chart ..................60
daytime running light ...............56
fog lamps ...................................55
headlamps .................................55
headlamps, flash to pass ..........56
interior lamps .....................58, 61
replacing bulbs .........................64
LATCH anchors .........................174
Liftgate ................................91, 110
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........231
Loading instructions .................214
Load limits .................................208
Locks
autolock ...................................104
childproof ................................108
doors ........................................104
Lubricant specifications ...........342
Lug nuts ....................................283
Lumbar support, seats .............125
M
Message center ...........................19english/metric button ...............24
system check button ................24
warning messages .....................25
Mirrors ...................................75–76
automatic dimming rearview
mirror ........................................75
fold away ...................................76
heated ........................................77
programmable memory ..........111
signal .........................................78
Moon roof ....................................83
Motorcraftparts ..............305, 341
MyKey ..........................................99
N
Navigation system .......................47
O
Octane rating ............................326
Oil (see Engine oil) ..................311
P
Parental MyKey programming ...99
Parking brake ............................232
Parts
(see Motorcraftparts) ...........341
Pedals (see Power adjustable
foot pedals) .................................78
Power adjustable foot pedals .....78
Power deployable running
boards ..........................................79
Power distribution box
(see Fuses) .......................268, 271
Power door locks ......................104
Power liftgate ..............................91
Index
379
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
