jump start LINCOLN NAVIGATOR 2012 Navigation Manual

Locks and Security 98
Keys 98
Locks 104
Anti-theft system 116
Seating and Safety Restraints 122
Seating 122
Airbags 155
Child restraints 166
Tires, Wheels and Loading 185
Tire information 188
Tire inflation 190
Tire Pressure Monitoring System (TPMS) 203
Vehicle loading 208
Trailer towing 215
Recreational towing 222
Driving 223
Starting 223
Brakes 230
AdvanceTrac233
Air suspension 240
Transmission operation 242
Forward and reverse sensing system 246
Rear-view camera system 249
Roadside Emergencies 264
Getting roadside assistance 264
Hazard flasher control 265
Fuel pump shut-off switch 266
Fuses and relays 267
Changing tires 275
Wheel lug nut torque 283
Jump starting 285
Wrecker towing 289
Table of Contents
2
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

TRAILER TOWING
Trailer towing puts additional loads on your vehicle’s engine,
transmission, axle, brakes, tires and suspension. For your safety and to
maximize vehicle performance, be sure to use the proper equipment
while towing.
Follow these guidelines to ensure safe towing:
•Do not tow a trailer until your vehicle has been driven at least
500 miles (800 km). Additionally, during the first 500 miles (800 km)
that you tow a trailer, do not drive over 70 mph (113 km/h) and do
not make starts at full throttle.
•Consult your local motor vehicle laws for towing a trailer.
•Refer to the instructions included with towing accessories for the
proper installation and adjustment specifications.
•Thoroughly prepare your vehicle for towing. Refer toPreparing to
towin this chapter.
•Stay within your vehicle’s load limits. If exceeded, cargo should be
removed from the trailer and/or the vehicle until all weights are within
specified limits.
•Use extra caution when driving while trailer towing. Refer toDriving
while you towin this chapter.
•Service your vehicle more frequently if you tow a trailer. Refer to
Special operating conditionsin your scheduled maintenance.
Trailer towing (standard equipment):
Your vehicle is equipped with an integrated trailer hitch and a Class I
(4-pin) trailer electrical connector. The 4-pin connector supplies power
to tail lamps, stop lamps, and turn lamps.
Trailer towing (optionally equipped trailer tow package):
The optional trailer tow package includes heavy duty trailer tow wiring.
Both a Class I (4-pin) and IV (7-pin) trailer electrical connector are
provided. Under the instrument panel an electrical connector is provided
for a customer supplied aftermarket electronic brake controller. For
installing a customer supplied electronic brake controller, an electrical
jumper harness and trailer tow electrical instructions are included.
The kit containing the electrical jumper and trailer tow electrical
instructions may be purchased from any authorized dealer (part number
4L1Z-14A348-AA).
Tires, Wheels and Loading
215
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24-hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford and Lincoln eligible vehicles towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Roadside Emergencies
264
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

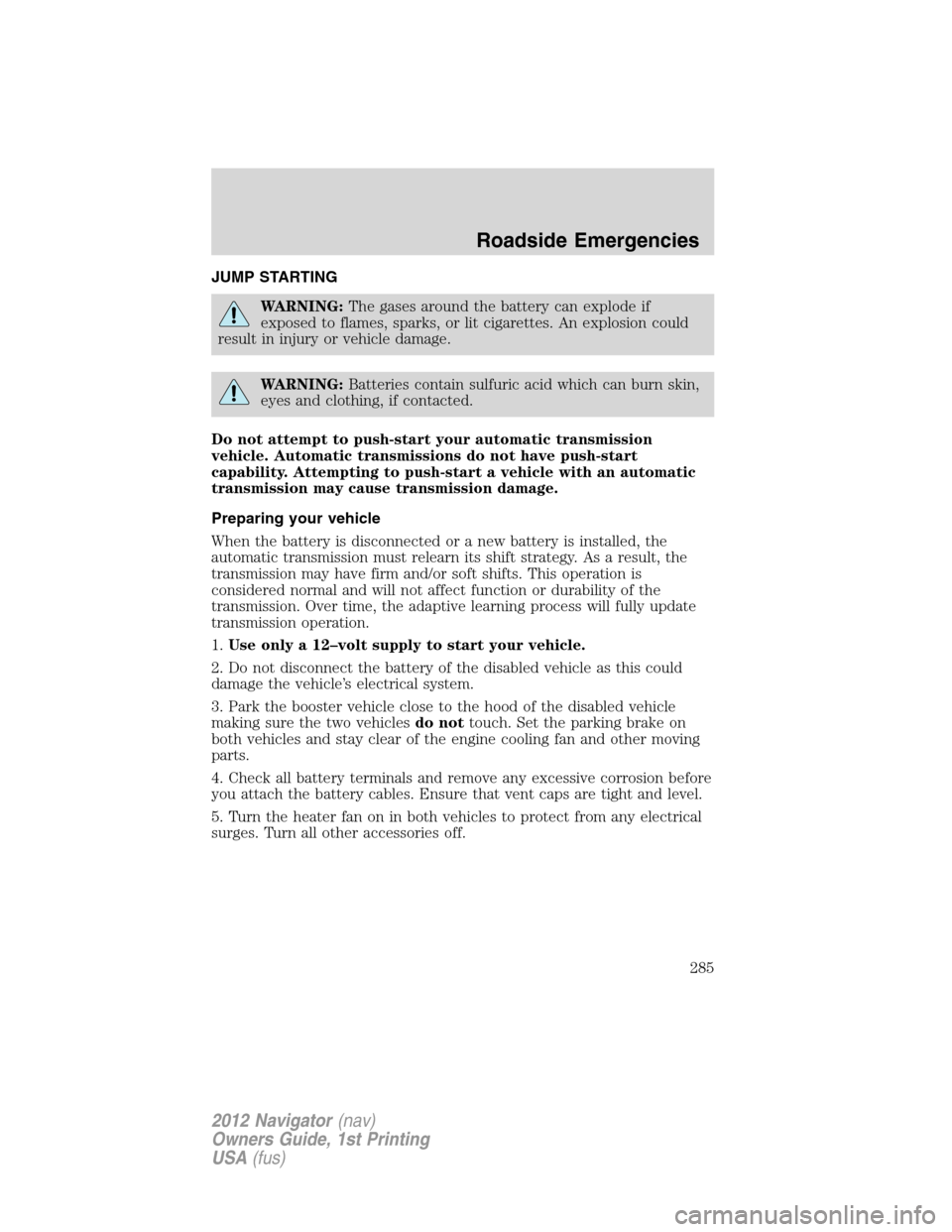

JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Roadside Emergencies
285
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Connecting the jumper cables
Note:In the illustration, the vehicle on the bottom is used to designate
the assisting (boosting) battery.
1. Connect the positive (+) jumper
cable to the positive (+) terminal of
the discharged battery.
2. Connect the other end of the
positive (+) cable to the positive
(+) terminal of the assisting battery.
3. Connect the negative (-) cable to
the negative (-) terminal of the
assisting battery.
4. Make the final connection of the
negative (-) cable to the jump
starting stud located in the engine
compartment, near the washer fluid
bottle.
Note:Do not attach the negative (-) cable to fuel lines, engine rocker
covers, the intake manifold or electrical components as grounding points.
+–
+–
2
3
14
Roadside Emergencies
286
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

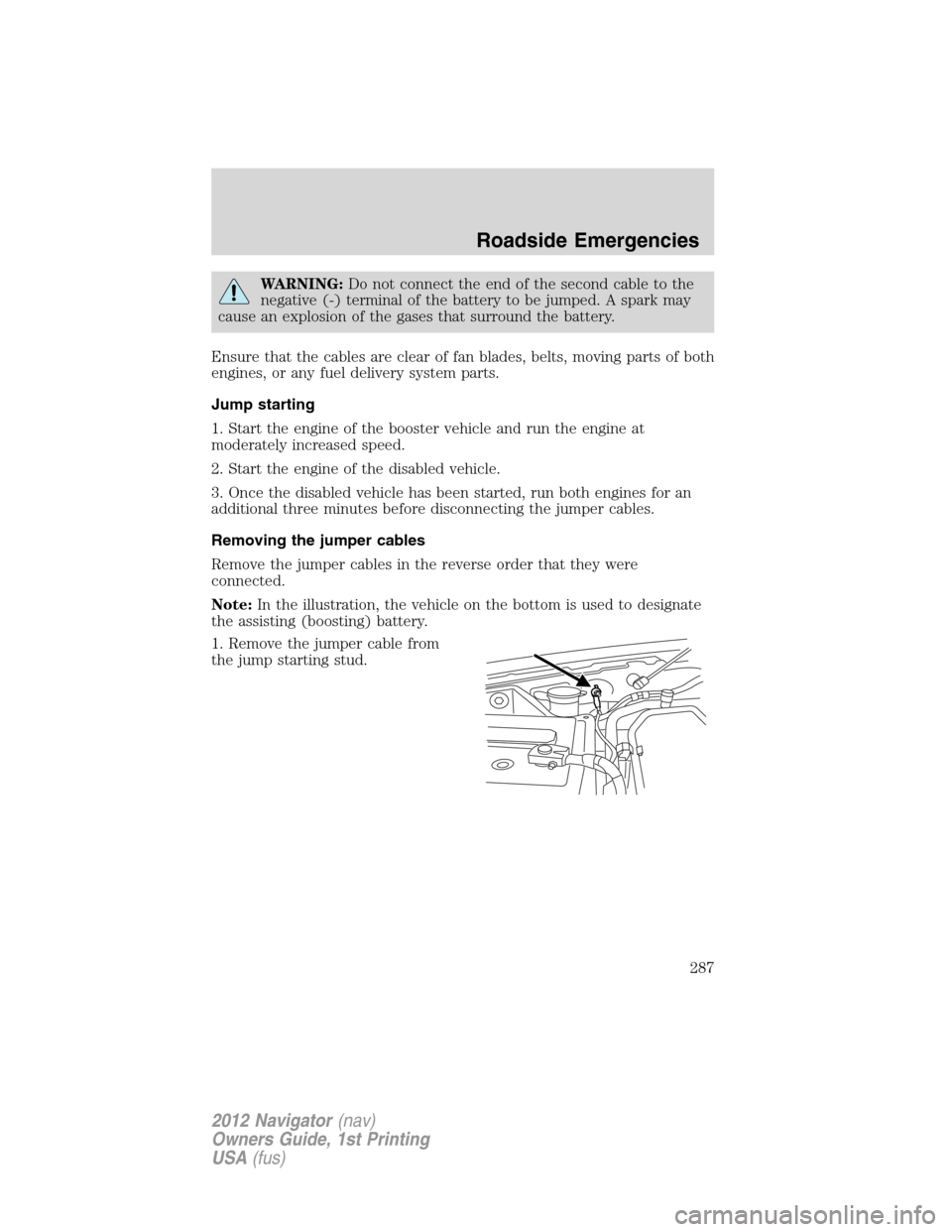

WARNING:Do not connect the end of the second cable to the
negative (-) terminal of the battery to be jumped. A spark may
cause an explosion of the gases that surround the battery.
Ensure that the cables are clear of fan blades, belts, moving parts of both
engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
Removing the jumper cables
Remove the jumper cables in the reverse order that they were
connected.
Note:In the illustration, the vehicle on the bottom is used to designate
the assisting (boosting) battery.
1. Remove the jumper cable from
the jump starting stud.
Roadside Emergencies
287
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

2. Remove the jumper cable on the
negative (-) terminal of the booster
vehicle’s battery.
3. Remove the jumper cable from
the positive (+) terminal of the
booster vehicle’s battery.
4. Remove the jumper cable from
the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearn its idle conditions.
+–
+–
DA
B
C
4D1
2
3
Roadside Emergencies
288
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

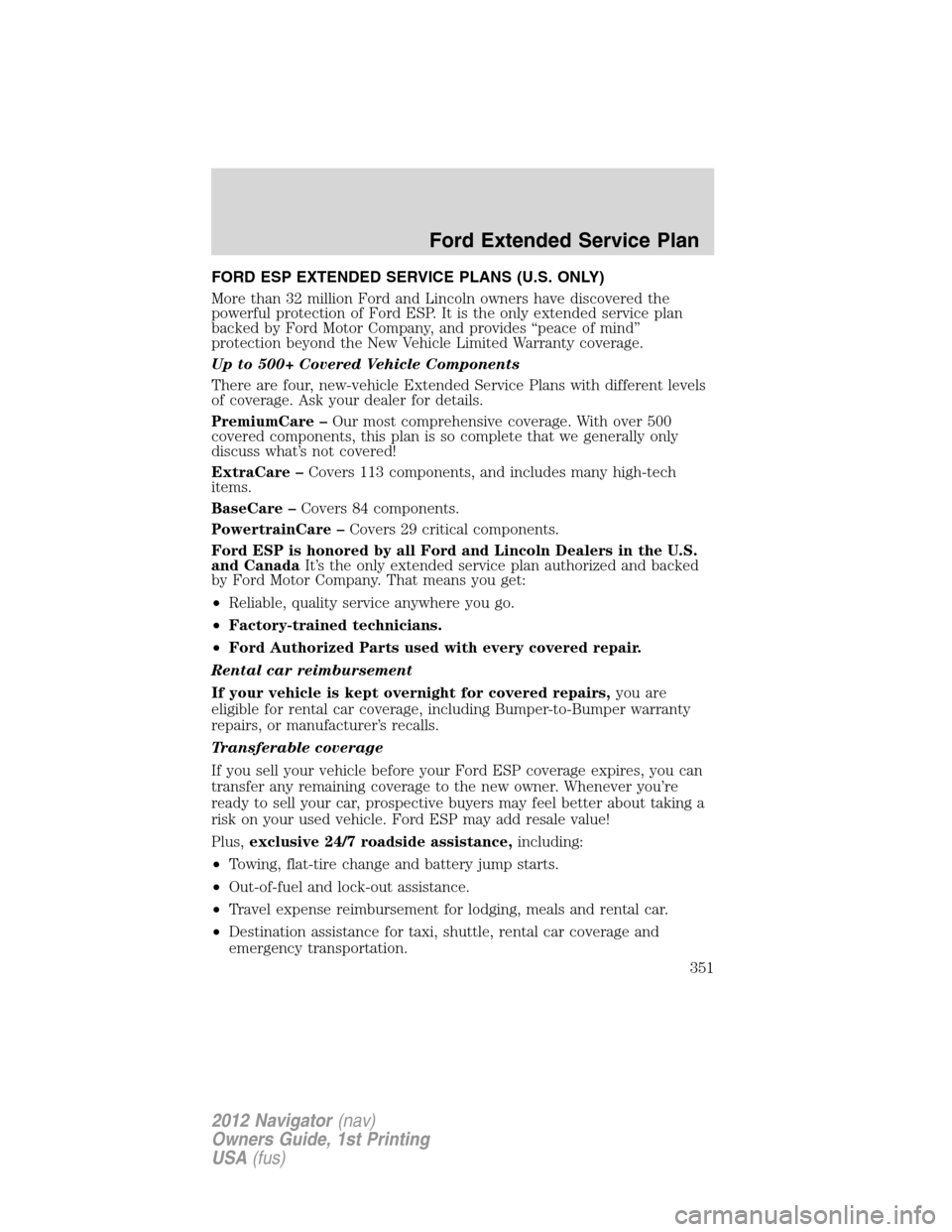

FORD ESP EXTENDED SERVICE PLANS (U.S. ONLY)
More than 32 million Ford and Lincoln owners have discovered the
powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask your dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford and Lincoln Dealers in the U.S.
and CanadaIt’s the only extended service plan authorized and backed
by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Ford Authorized Parts used with every covered repair.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
351
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

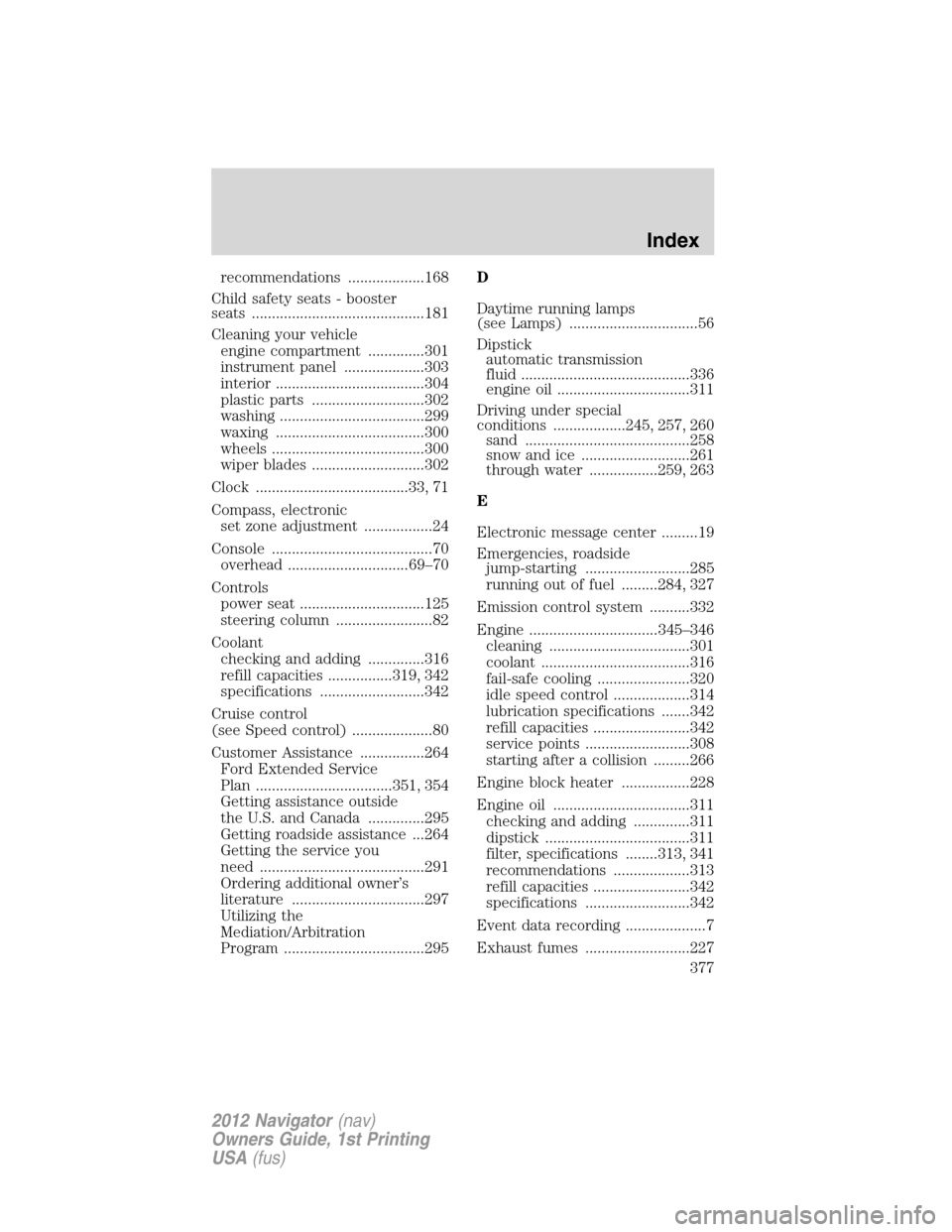

recommendations ...................168
Child safety seats - booster
seats ...........................................181
Cleaning your vehicle
engine compartment ..............301
instrument panel ....................303
interior .....................................304
plastic parts ............................302
washing ....................................299
waxing .....................................300
wheels ......................................300
wiper blades ............................302
Clock ......................................33, 71
Compass, electronic
set zone adjustment .................24
Console ........................................70
overhead ..............................69–70
Controls
power seat ...............................125
steering column ........................82
Coolant
checking and adding ..............316
refill capacities ................319, 342
specifications ..........................342
Cruise control
(see Speed control) ....................80
Customer Assistance ................264
Ford Extended Service
Plan ..................................351, 354
Getting assistance outside
the U.S. and Canada ..............295
Getting roadside assistance ...264
Getting the service you
need .........................................291
Ordering additional owner’s
literature .................................297
Utilizing the
Mediation/Arbitration
Program ...................................295D
Daytime running lamps
(see Lamps) ................................56
Dipstick
automatic transmission
fluid ..........................................336
engine oil .................................311
Driving under special
conditions ..................245, 257, 260
sand .........................................258
snow and ice ...........................261
through water .................259, 263
E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................285
running out of fuel .........284, 327
Emission control system ..........332
Engine ................................345–346
cleaning ...................................301
coolant .....................................316
fail-safe cooling .......................320
idle speed control ...................314
lubrication specifications .......342
refill capacities ........................342
service points ..........................308
starting after a collision .........266
Engine block heater .................228
Engine oil ..................................311
checking and adding ..............311
dipstick ....................................311
filter, specifications ........313, 341
recommendations ...................313
refill capacities ........................342
specifications ..........................342
Event data recording ....................7
Exhaust fumes ..........................227
Index
377
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

F
Fail safe cooling ........................320
Fleet MyKey programming ........99
Flexible Fuel Vehicle (FFV) ....322
Floor mats .............................90–91
Fluid capacities .........................342
Fog lamps ....................................55
Four-Wheel Drive vehicles .......253
control trac .............................253
description ..............................254
driving off road .......................255
indicator light .........................253
preparing to drive your
vehicle .....................................240
Fuel ............................................322
calculating fuel
economy ............................21, 329
cap ...........................................325
capacity ...................................342
choosing the right fuel ...........326
detergent in fuel .....................327
filler funnel .............................327
filling your vehicle
with fuel ..................322, 325, 329
filter, specifications ........322, 341
fuel pump shut-off switch .....266
improving fuel economy ........329
octane rating ...........326, 345–346
quality ......................................327
running out of fuel .........284, 327
safety information relating to
automotive fuels .....................322
Fuel - flex fuel vehicle
(FFV) .................................322, 326
Fuses ..................................267–268
G
Garage door opener ....................84Gas cap (see Fuel cap) ............325
Gas mileage
(see Fuel economy) .................329
Gauges .........................................18
H
Hazard flashers
.........................265
Headlamps
...................................55
aiming
........................................57
autolamp system
.......................55
bulb specifications
....................60
daytime running lights
.............56
flash to pass
..............................56
high beam
.................................56
turning on and off
....................55
Hood
..........................................307
I
Ignition
.......................223, 345–346
Illuminated visor mirror
.............68
Infant seats (see Safety seats)...170
Inspection/maintenance (I/M)
testing
........................................334
Instrument panel
cleaning
...................................303
cluster
........................................12
J
Jack
............................................275
positioning
...............................275
storage
.....................................275
Jump-starting your vehicle
......285
Index
378
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
