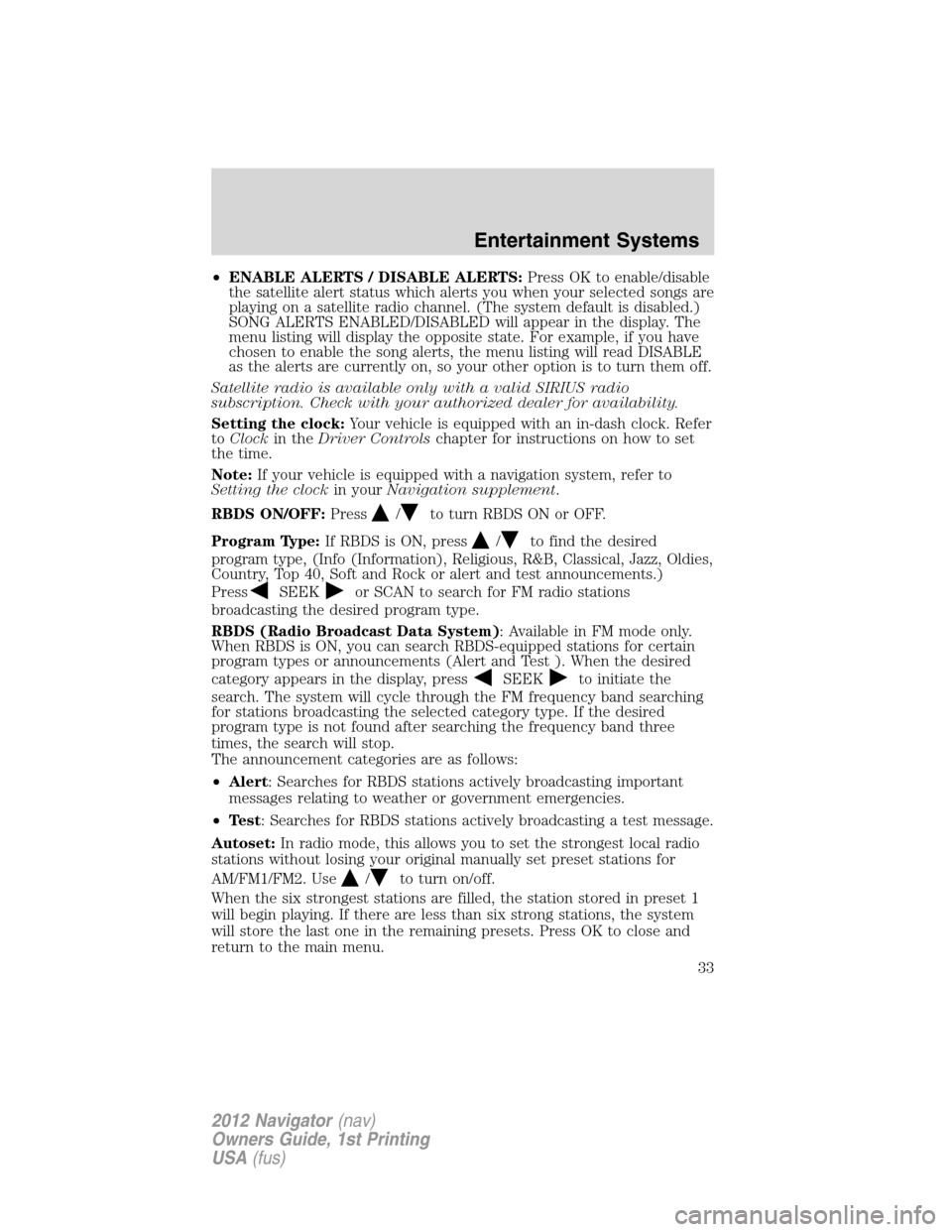

set clock LINCOLN NAVIGATOR 2012 Navigation Manual

•ENABLE ALERTS / DISABLE ALERTS:Press OK to enable/disable
the satellite alert status which alerts you when your selected songs are
playing on a satellite radio channel. (The system default is disabled.)
SONG ALERTS ENABLED/DISABLED will appear in the display. The
menu listing will display the opposite state. For example, if you have
chosen to enable the song alerts, the menu listing will read DISABLE
as the alerts are currently on, so your other option is to turn them off.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
Setting the clock:Your vehicle is equipped with an in-dash clock. Refer
toClockin theDriver Controlschapter for instructions on how to set
the time.
Note:If your vehicle is equipped with a navigation system, refer to
Setting the clockin yourNavigation supplement.
RBDS ON/OFF:Press
/to turn RBDS ON or OFF.
Program Type:If RBDS is ON, press
/to find the desired
program type, (Info (Information), Religious, R&B, Classical, Jazz, Oldies,
Country, Top 40, Soft and Rock or alert and test announcements.)
Press
SEEKor SCAN to search for FM radio stations
broadcasting the desired program type.
RBDS (Radio Broadcast Data System): Available in FM mode only.
When RBDS is ON, you can search RBDS-equipped stations for certain
program types or announcements (Alert and Test ). When the desired
category appears in the display, press
SEEKto initiate the
search. The system will cycle through the FM frequency band searching
for stations broadcasting the selected category type. If the desired
program type is not found after searching the frequency band three
times, the search will stop.
The announcement categories are as follows:
•Alert: Searches for RBDS stations actively broadcasting important
messages relating to weather or government emergencies.
•Test: Searches for RBDS stations actively broadcasting a test message.
Autoset:In radio mode, this allows you to set the strongest local radio
stations without losing your original manually set preset stations for
AM/FM1/FM2. Use
/to turn on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. Press OK to close and
return to the main menu.
Entertainment Systems
33
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to
lock mirrors in place.
Memory feature
The power side view mirror positions are saved when doing a memory
set function and can be recalled along with the vehicle personality
features when a memory position is selected through the remote entry
transmitter, keyless entry keypad or memory switch on the driver’s door.
Refer toFront seatsin theSeating and Safety Restraintschapter.
Automatic dimming feature
The driver’s side view mirror has an auto-dimming function. For more
information, refer toAutomatic dimming interior rear view mirrorin
this chapter.
Fold-away mirrors
Fold the side mirrors in carefully
before driving through a narrow
space, like an automatic car wash.
Power-fold mirrors
With power-fold mirrors, you can
fold the side mirrors using the
power mirror switch.
1. Rotate the switch to the
center/neutral position.
2. Momentarily pull the switch
rearward to auto fold in.
POWER FOLD
Driver Controls
76
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

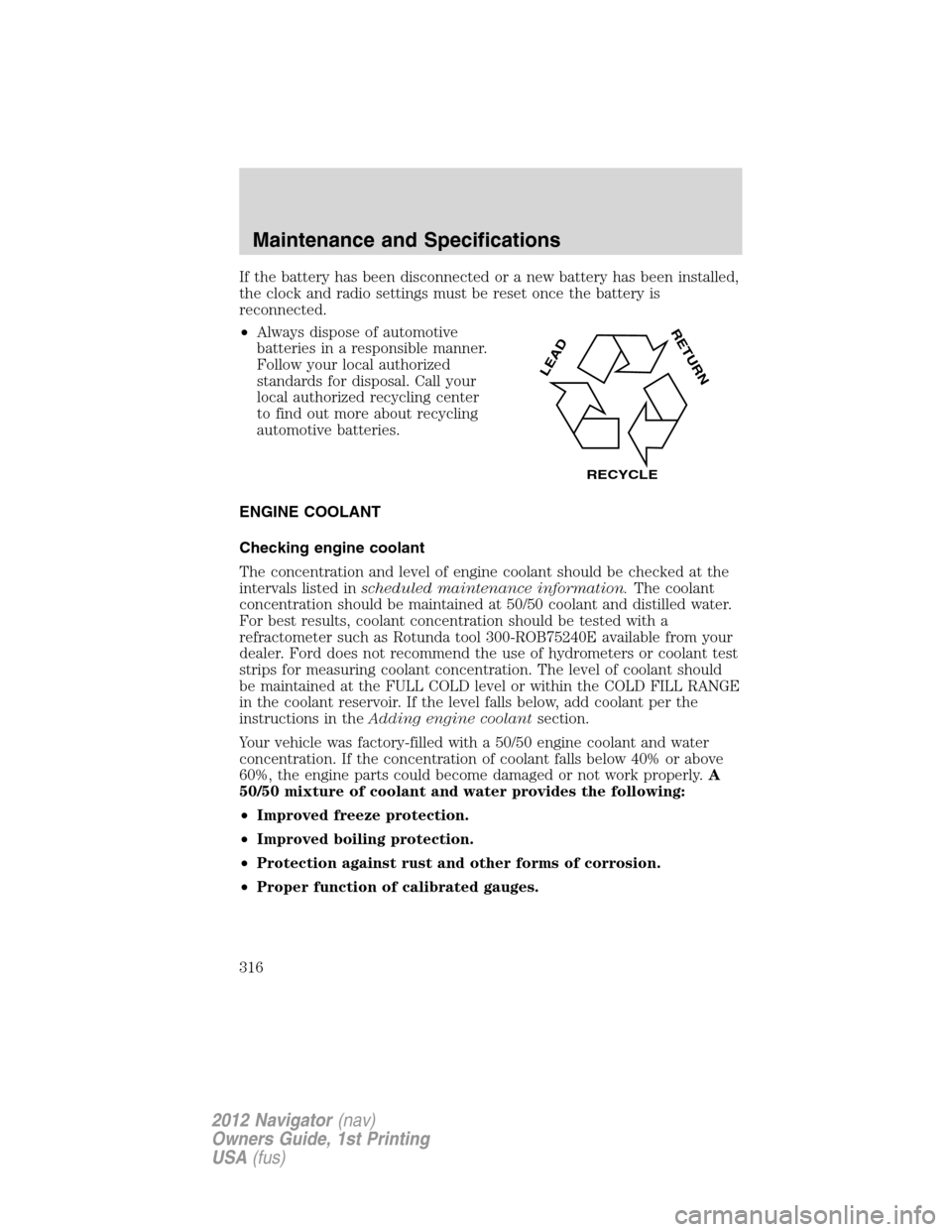

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water.
For best results, coolant concentration should be tested with a
refractometer such as Rotunda tool 300-ROB75240E available from your
dealer. Ford does not recommend the use of hydrometers or coolant test
strips for measuring coolant concentration. The level of coolant should
be maintained at the FULL COLD level or within the COLD FILL RANGE
in the coolant reservoir. If the level falls below, add coolant per the
instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Improved freeze protection.
•Improved boiling protection.
•Protection against rust and other forms of corrosion.
•Proper function of calibrated gauges.
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
316
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

recommendations ...................168
Child safety seats - booster
seats ...........................................181
Cleaning your vehicle
engine compartment ..............301
instrument panel ....................303
interior .....................................304
plastic parts ............................302
washing ....................................299
waxing .....................................300
wheels ......................................300
wiper blades ............................302
Clock ......................................33, 71
Compass, electronic
set zone adjustment .................24
Console ........................................70
overhead ..............................69–70
Controls
power seat ...............................125
steering column ........................82
Coolant
checking and adding ..............316
refill capacities ................319, 342
specifications ..........................342
Cruise control
(see Speed control) ....................80
Customer Assistance ................264
Ford Extended Service
Plan ..................................351, 354
Getting assistance outside
the U.S. and Canada ..............295
Getting roadside assistance ...264
Getting the service you
need .........................................291
Ordering additional owner’s
literature .................................297
Utilizing the
Mediation/Arbitration
Program ...................................295D
Daytime running lamps
(see Lamps) ................................56
Dipstick
automatic transmission
fluid ..........................................336
engine oil .................................311
Driving under special
conditions ..................245, 257, 260
sand .........................................258
snow and ice ...........................261
through water .................259, 263
E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................285
running out of fuel .........284, 327
Emission control system ..........332
Engine ................................345–346
cleaning ...................................301
coolant .....................................316
fail-safe cooling .......................320
idle speed control ...................314
lubrication specifications .......342
refill capacities ........................342
service points ..........................308
starting after a collision .........266
Engine block heater .................228
Engine oil ..................................311
checking and adding ..............311
dipstick ....................................311
filter, specifications ........313, 341
recommendations ...................313
refill capacities ........................342
specifications ..........................342
Event data recording ....................7
Exhaust fumes ..........................227
Index
377
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Power mirrors .............................76
Power point .................................71
Power steering ..........................239
fluid, checking and adding ....335
fluid, refill capacity ................342
fluid, specifications .................342
Power Windows ...........................73
Preparing to drive your
vehicle ........................................240
R
Radio ............................................30
Rear heated seats .....................139
Rear-view camera system .........249
Recommendations for
attaching safety restraints for
children ......................................168
Relays ........................................267
Remote entry system .......108–109
illuminated entry ....................113
locking/unlocking doors...109–110
opening the trunk ...................110
panic alarm .............................111
replacement/additional
transmitters .............................113
replacing the batteries ...........112
Reverse sensing system ...........246
Roadside assistance ..................264
Roll stability control .................233
S
Safety belts (see Safety
restraints) ..................146–147, 149
Safety Canopy ...........................162
Safety defects, reporting ..........298Safety restraints ........146–147, 149
Belt-Minder...........................151
Belt-Minder,
deactivating/activating ...........154
extension assembly ................151
for adults .........................146–147
for children .............................166
warning light and chime ........151
Safety restraints - LATCH
anchors ......................................174
Safety seats for children ..........170
Safety Compliance
Certification Label ....................346
Satellite Radio Information ........45
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............360
Seats ..........................................122
child safety seats ....................170
climate control ........................129
heated ......................................139
memory seat ...................111, 127
SecuriCode keyless entry
system ........................................114
SecuriLock passive anti-theft
system ........................................116
Servicing your vehicle ..............306
Setting the clock .........................33
Snowplowing .................................6
SOS Post Crash Alert ...............165
Spark plugs,
specifications .............341, 345–346
Special notice
utility-type vehicles ....................6
Specification chart, lubricants...342
Speed control ..............................80
Stability system .........................233
Index
380
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
