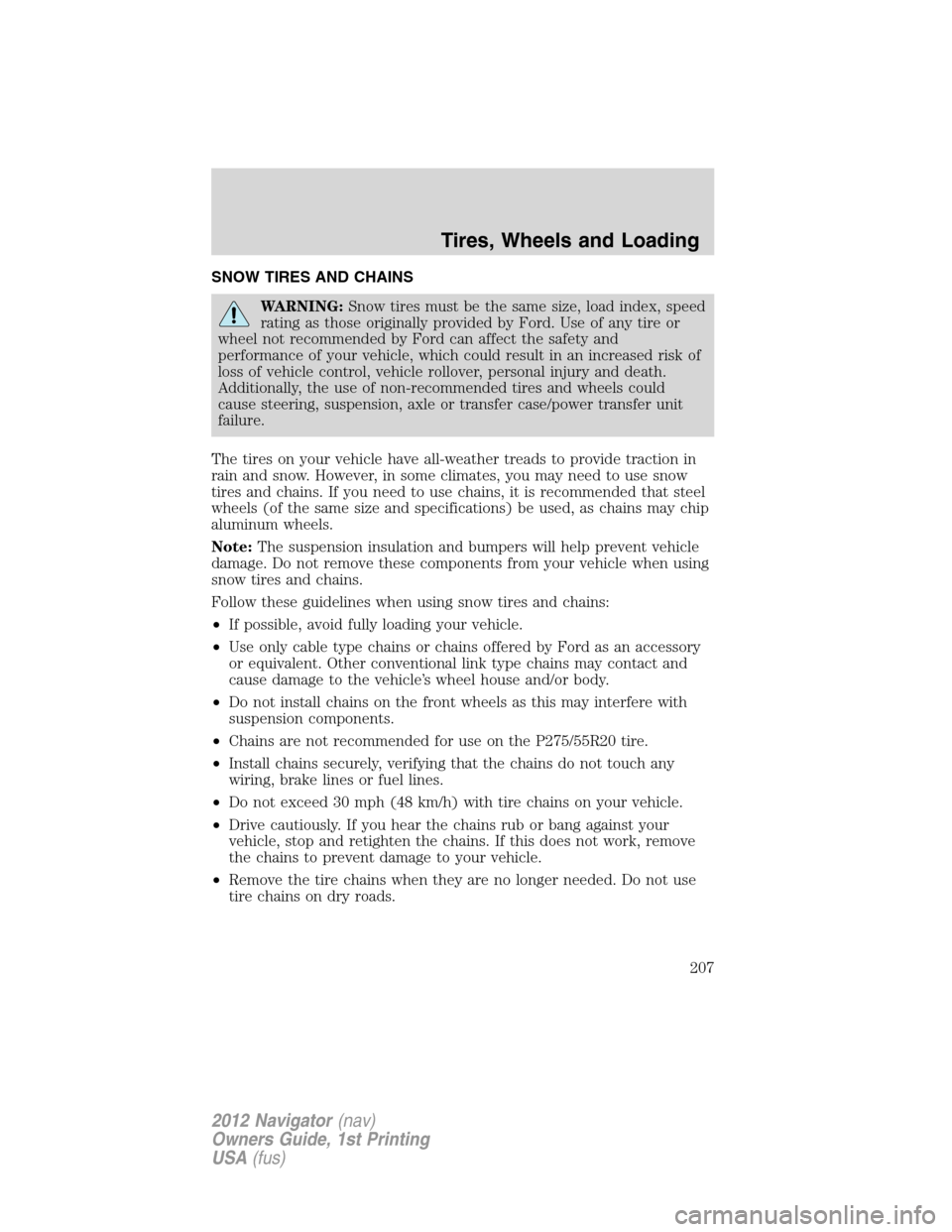

SNOW TIRES AND CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety and
performance of your vehicle, which could result in an increased risk of
loss of vehicle control, vehicle rollover, personal injury and death.
Additionally, the use of non-recommended tires and wheels could
cause steering, suspension, axle or transfer case/power transfer unit
failure.
The tires on your vehicle have all-weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that steel
wheels (of the same size and specifications) be used, as chains may chip
aluminum wheels.
Note:The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when using
snow tires and chains.
Follow these guidelines when using snow tires and chains:
•If possible, avoid fully loading your vehicle.
•Use only cable type chains or chains offered by Ford as an accessory
or equivalent. Other conventional link type chains may contact and
cause damage to the vehicle’s wheel house and/or body.
•Do not install chains on the front wheels as this may interfere with
suspension components.
•Chains are not recommended for use on the P275/55R20 tire.
•Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
•Do not exceed 30 mph (48 km/h) with tire chains on your vehicle.
•Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and retighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
•Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
Tires, Wheels and Loading
207
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-wheel driving capability (if applicable)
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
Roadside Emergencies
276
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Starting a flex fuel vehicle .......226
Starting your
vehicle ........................223–224, 226
jump starting ..........................285
Steering wheel
controls ......................................82
tilting .........................................67
SYNC..........................................47
T
Third-row power fold seat .......141
Tire Pressure Monitoring
System (TPMS)
Driving .....................................258
Tires, Wheels and Loading ....203
Warning Displays ................12, 25
Tires ...........................188–189, 275
alignment ................................197
care ..........................................192
changing ..........................275, 279
checking the pressure ............192
inflating ...................................190
label .........................................202
replacing ..................................194
rotating ....................................197
safety practices .......................196
sidewall information ...............198
snow tires and chains ............207
spare tire .................................275
terminology .............................189
tire grades ...............................189
treadwear ........................188, 193
Towing .......................................215
recreational towing .................222
trailer towing ..........................215
wrecker ....................................289Transmission .............................242
brake-shift interlock (BSI) ....241
fluid, checking and adding
(automatic) .............................336
fluid, refill capacities ..............342
lubricant specifications ..........342
Turn signal ..................................58
U
Universal garage door opener ....84
USB port ......................................39
V
Vehicle Identification Number
(VIN) ..........................................347
Vehicle loading ..........................208
Ventilating your vehicle ...........227
W
Warning lights (see Lights) .......12
Washer fluid ..............................309
Water, Driving through .............263
Windows
power .........................................73
rear wiper/washer .....................66
Windshield washer fluid and
wipers ..........................................65
checking and adding fluid .....309
liftgate reservoir .....................309
replacing wiper blades ...........310
Wrecker towing .........................289
Index
381
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)
