spark plugs LINCOLN NAVIGATOR 2012 Navigation Manual

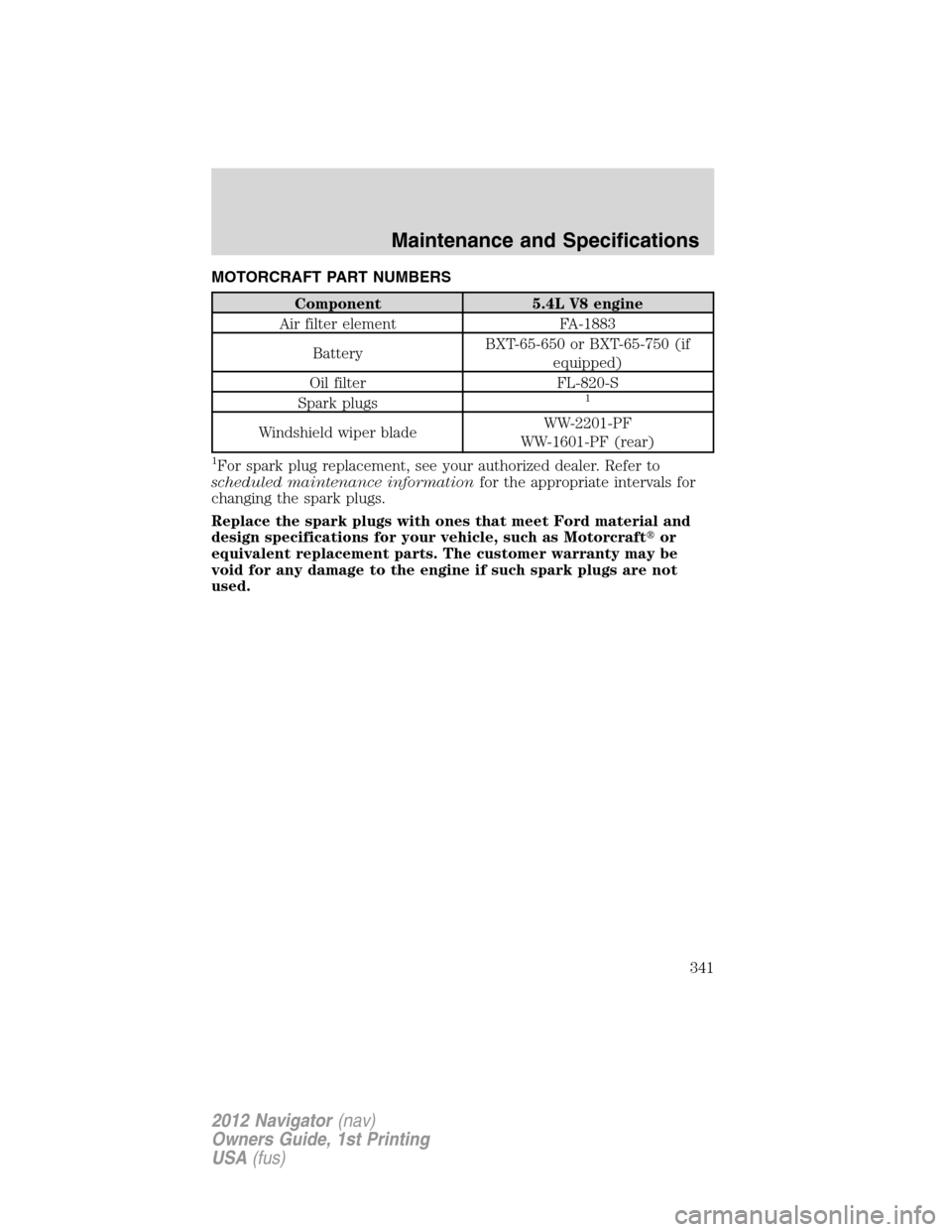

MOTORCRAFT PART NUMBERS
Component 5.4L V8 engine
Air filter element FA-1883
BatteryBXT-65-650 or BXT-65-750 (if
equipped)
Oil filter FL-820-S
Spark plugs
1
Windshield wiper bladeWW-2201-PF
WW-1601-PF (rear)
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
341
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford or Lincoln dealership today so they can
customize a Ford Extended Service Plan that fits your driving lifestyle
and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
352
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

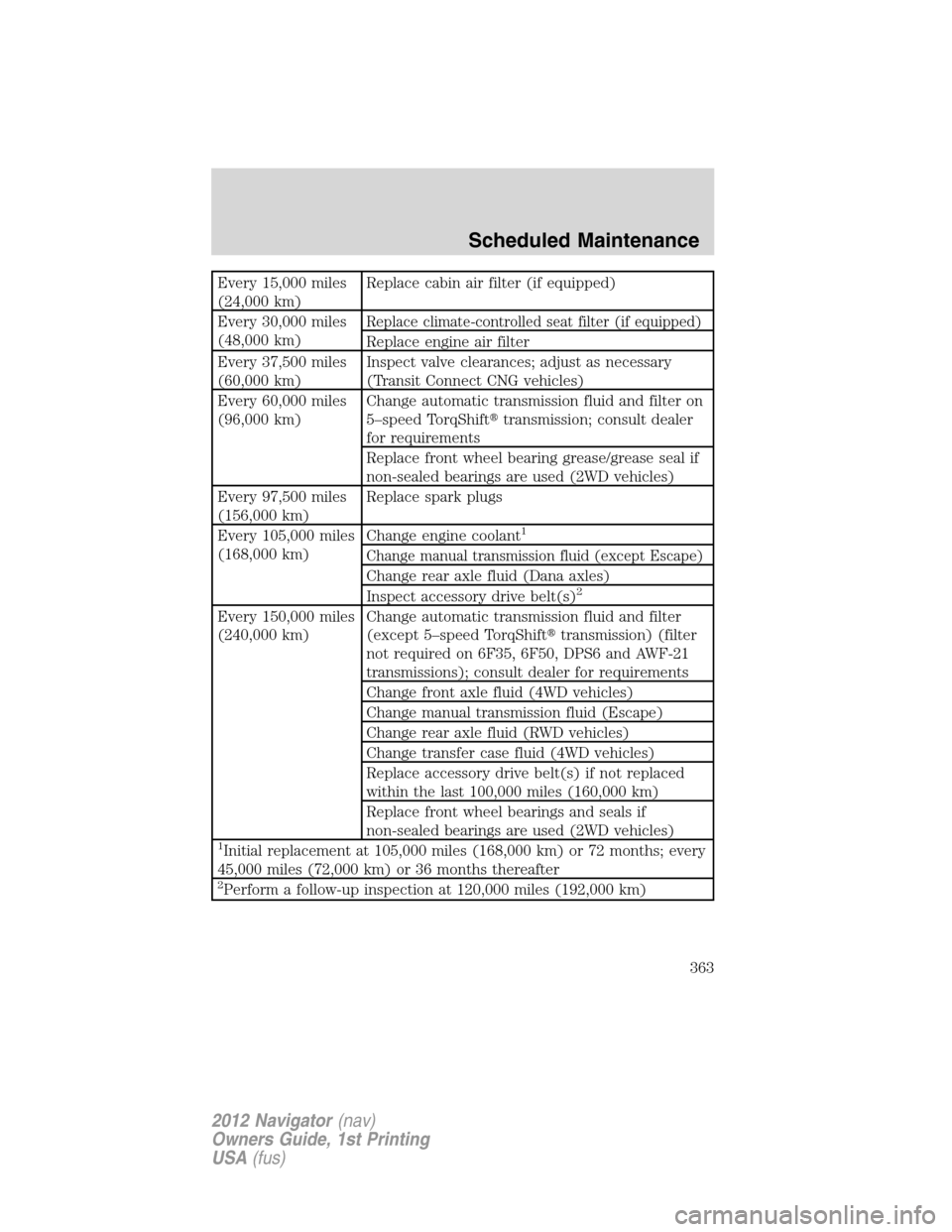

Every 15,000 miles
(24,000 km)Replace cabin air filter (if equipped)
Every 30,000 miles
(48,000 km)
Replace climate-controlled seat filter (if equipped)
Replace engine air filter
Every 37,500 miles
(60,000 km)Inspect valve clearances; adjust as necessary
(Transit Connect CNG vehicles)
Every 60,000 miles
(96,000 km)Change automatic transmission fluid and filter on
5–speed TorqShifttransmission; consult dealer
for requirements
Replace front wheel bearing grease/grease seal if
non-sealed bearings are used (2WD vehicles)
Every 97,500 miles
(156,000 km)Replace spark plugs
Every 105,000 miles
(168,000 km)Change engine coolant
1
Change manual transmission fluid (except Escape)
Change rear axle fluid (Dana axles)
Inspect accessory drive belt(s)2
Every 150,000 miles
(240,000 km)Change automatic transmission fluid and filter
(except 5–speed TorqShifttransmission) (filter
not required on 6F35, 6F50, DPS6 and AWF-21
transmissions); consult dealer for requirements
Change front axle fluid (4WD vehicles)
Change manual transmission fluid (Escape)
Change rear axle fluid (RWD vehicles)
Change transfer case fluid (4WD vehicles)
Replace accessory drive belt(s) if not replaced
within the last 100,000 miles (160,000 km)
Replace front wheel bearings and seals if
non-sealed bearings are used (2WD vehicles)
1Initial replacement at 105,000 miles (168,000 km) or 72 months; every
45,000 miles (72,000 km) or 36 months thereafter
2Perform a follow-up inspection at 120,000 miles (192,000 km)
Scheduled Maintenance
363
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

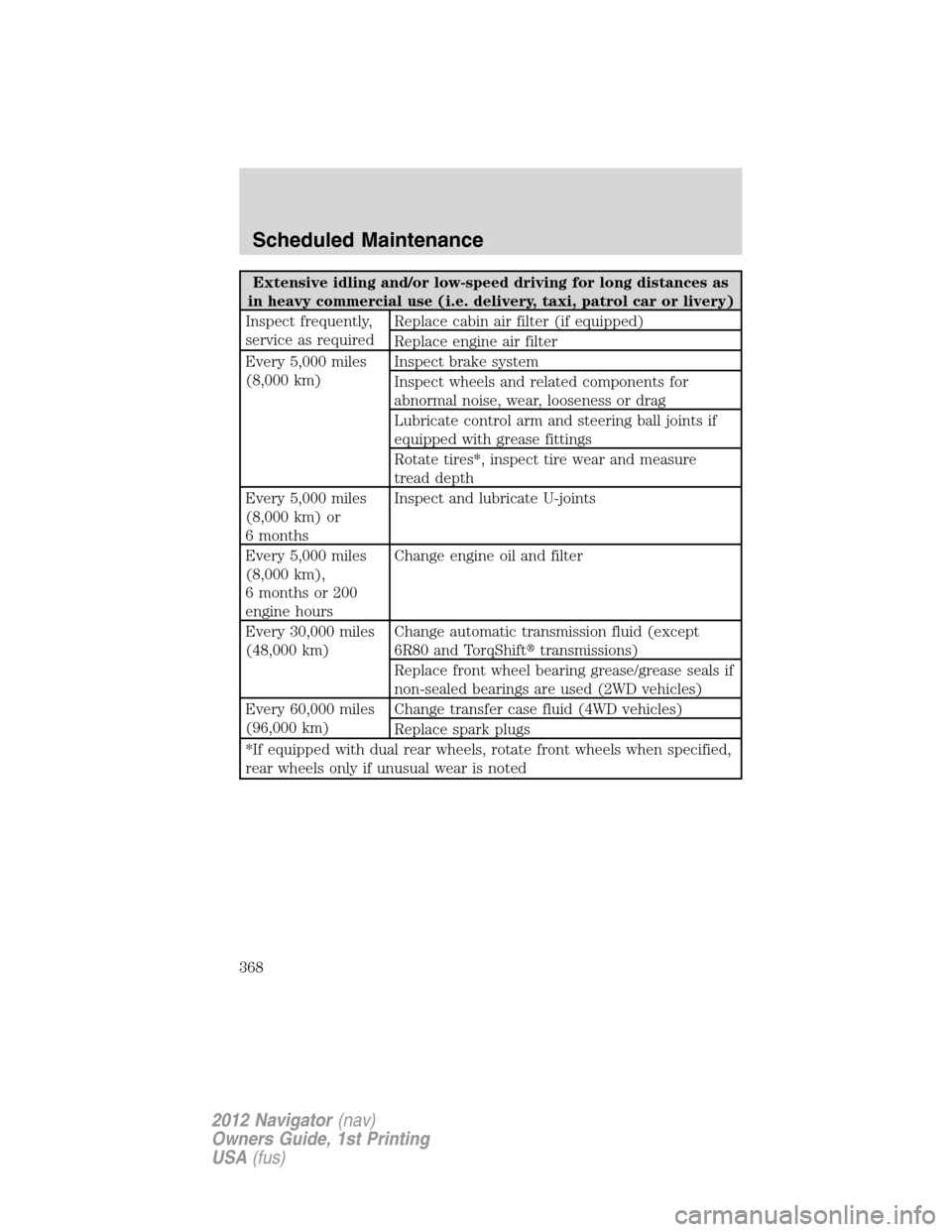

Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter
Every 5,000 miles
(8,000 km)Inspect brake system
Inspect wheels and related components for
abnormal noise, wear, looseness or drag
Lubricate control arm and steering ball joints if
equipped with grease fittings
Rotate tires*, inspect tire wear and measure
tread depth
Every 5,000 miles
(8,000 km) or
6 monthsInspect and lubricate U-joints
Every 5,000 miles
(8,000 km),
6 months or 200
engine hoursChange engine oil and filter
Every 30,000 miles
(48,000 km)Change automatic transmission fluid (except
6R80 and TorqShifttransmissions)
Replace front wheel bearing grease/grease seals if
non-sealed bearings are used (2WD vehicles)
Every 60,000 miles
(96,000 km)Change transfer case fluid (4WD vehicles)
Replace spark plugs
*If equipped with dual rear wheels, rotate front wheels when specified,
rear wheels only if unusual wear is noted
Scheduled Maintenance
368
2012 Navigator(nav)
Owners Guide, 1st Printing
USA(fus)

Power mirrors .............................76
Power point .................................71
Power steering ..........................239
fluid, checking and adding ....335
fluid, refill capacity ................342
fluid, specifications .................342
Power Windows ...........................73
Preparing to drive your
vehicle ........................................240
R
Radio ............................................30
Rear heated seats .....................139
Rear-view camera system .........249
Recommendations for
attaching safety restraints for
children ......................................168
Relays ........................................267
Remote entry system .......108–109
illuminated entry ....................113
locking/unlocking doors...109–110
opening the trunk ...................110
panic alarm .............................111
replacement/additional
transmitters .............................113
replacing the batteries ...........112
Reverse sensing system ...........246
Roadside assistance ..................264
Roll stability control .................233
S
Safety belts (see Safety
restraints) ..................146–147, 149
Safety Canopy ...........................162
Safety defects, reporting ..........298Safety restraints ........146–147, 149
Belt-Minder...........................151
Belt-Minder,
deactivating/activating ...........154
extension assembly ................151
for adults .........................146–147
for children .............................166
warning light and chime ........151
Safety restraints - LATCH
anchors ......................................174
Safety seats for children ..........170
Safety Compliance
Certification Label ....................346
Satellite Radio Information ........45
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............360
Seats ..........................................122
child safety seats ....................170
climate control ........................129
heated ......................................139
memory seat ...................111, 127
SecuriCode keyless entry
system ........................................114
SecuriLock passive anti-theft
system ........................................116
Servicing your vehicle ..............306
Setting the clock .........................33
Snowplowing .................................6
SOS Post Crash Alert ...............165
Spark plugs,
specifications .............341, 345–346
Special notice
utility-type vehicles ....................6
Specification chart, lubricants...342
Speed control ..............................80
Stability system .........................233
