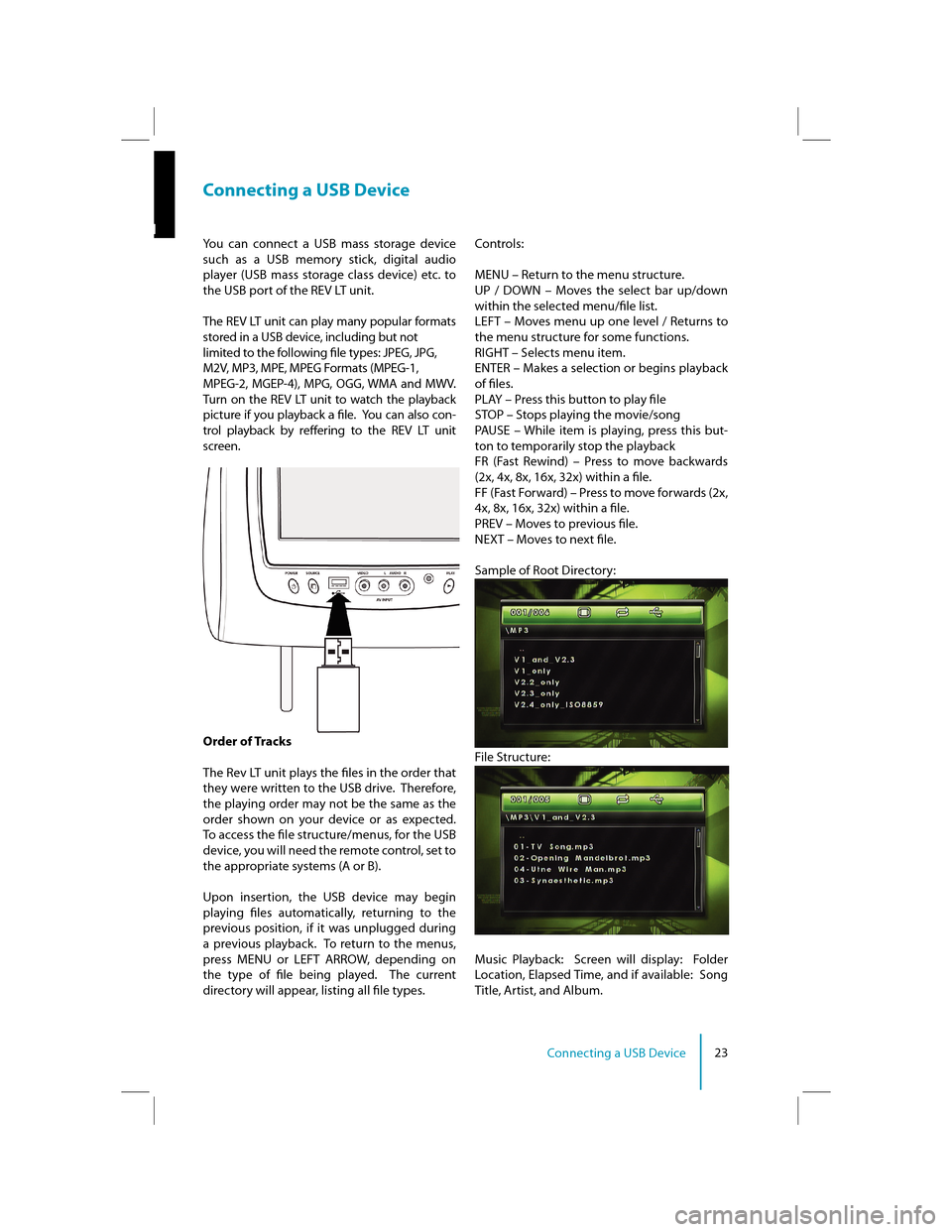

23Connecting a USB Device
You can connect a USB mass storage device
such as a USB memory stick, digital audio
player (USB mass storage class device) etc. to
the USB port of the REV LT unit.
The REV LT unit can play many popular formats
stored in a USB device, including but not
limited to the following fle types: JPEG, JPG,
M2V, MP3, MPE, MPEG Formats (MPEG-1,
MPEG-2, MGEP-4), MPG, OGG, WMA and MWV.
Turn on the REV LT unit to watch the playback
picture if you playback a fle. You can also con-
trol playback by refering to the REV LT unit
screen.
Order of Tracks
The Rev LT unit plays the fles in the order that
they were written to the USB drive. Therefore,
the playing order may not be the same as the
order shown on your device or as expected.
To access the fle structure/menus, for the USB
device, you will need the remote control, set to
the appropriate systems (A or B).
Upon insertion, the USB device may begin
playing fles automatically, returning to the
previous position, if it was unplugged during
a previous playback. To return to the menus,
press MENU or LEFT ARROW, depending on
the type of fle being played. The current
directory will appear, listing all fle types. Controls:
MENU – Return to the menu structure.
UP / DOWN – Moves the select bar up/down
within the selected menu/fle list.
LEFT – Moves menu up one level / Returns to
the menu structure for some functions.
RIGHT – Selects menu item.
ENTER – Makes a selection or begins playback
of fles.
PLAY – Press this button to play fle
STOP – Stops playing the movie/song
PAUSE – While item is playing, press this but-
ton to temporarily stop the playback
FR (Fast Rewind) – Press to move backwards
(2x, 4x, 8x, 16x, 32x) within a fle.
FF (Fast Forward) – Press to move forwards (2x,
4x, 8x, 16x, 32x) within a fle.
PREV – Moves to previous fle.
NEXT – Moves to next fle.
Sample of Root Directory:
File Structure:

Music Playback: Screen will display: Folder
Location, Elapsed Time, and if available: Song
Title, Artist, and Album.
EN
Connecting a USB Device

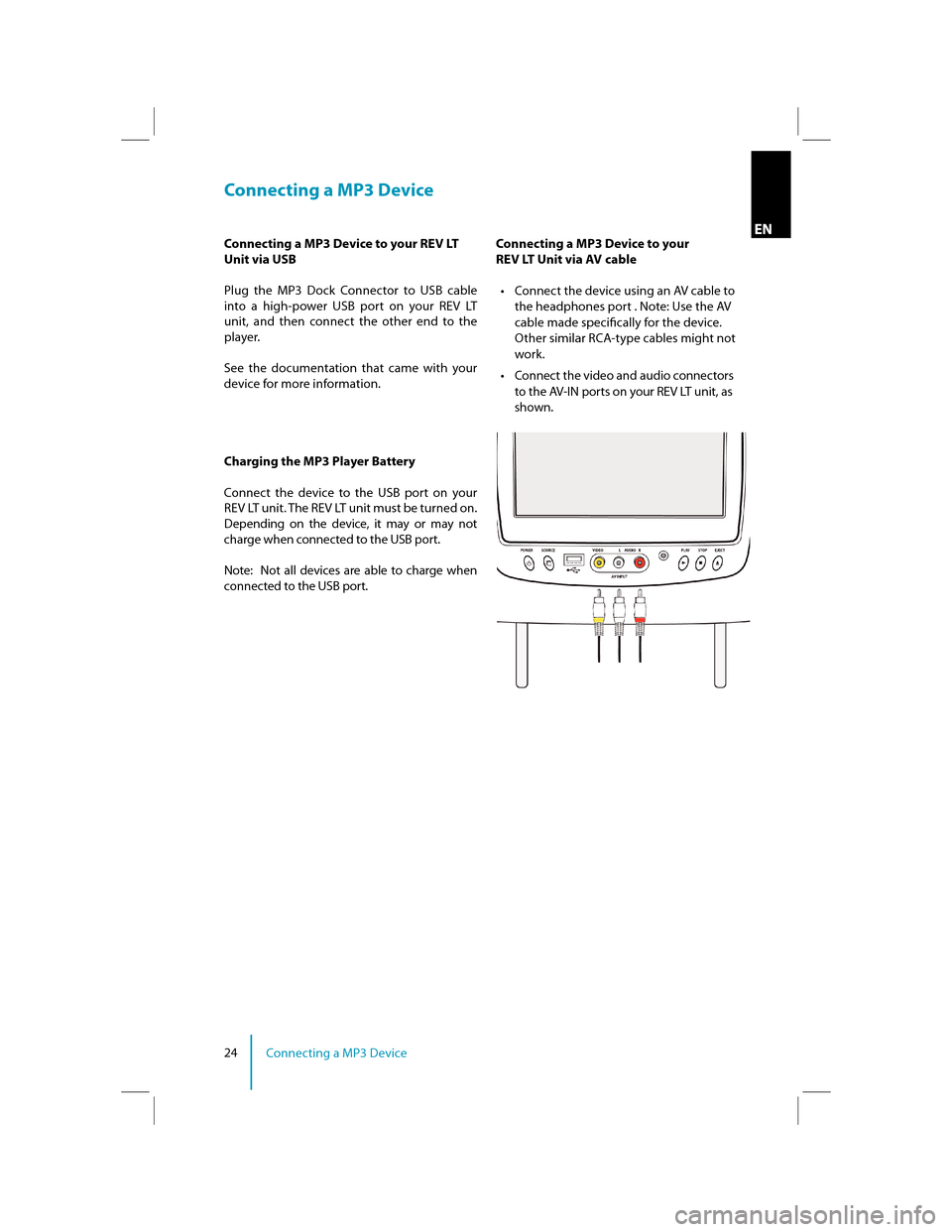

24Connecting a MP3 Device
Connecting a MP3 Device
Connecting a MP3 Device to your REV LT
Unit via USB
Plug the MP3 Dock Connector to USB cable
into a high-power USB port on your REV LT
unit, and then connect the other end to the
player.
See the documentation that came with your
device for more information.
Charging the MP3 Player Battery
Connect the device to the USB port on your
REV LT unit. The REV LT unit must be turned on.
Depending on the device, it may or may not
charge when connected to the USB port.
Note: Not all devices are able to charge when
connected to the USB port.
Connecting a MP3 Device to your
REV LT Unit via AV cable
t
Connect the device using an AV cable to
the headphones port . Note: Use the AV
cable made specifcally for the device.
Other similar RCA-type cables might not
work.
t
Connect the video and audio connectors
to the AV-IN ports on your REV LT unit, as
shown. EN

25Troubleshooting
EN
Troubleshooting
Symptom Remedy
Device does not power “ON”t

Is ignition turned “ON”?
t
Are batteries installed in remote control?
IR sensor inoperative t

Verify that the batteries in the remote control are good.
t
Verify that the remote sensor eye is not obstructed.
t
Verify that the infrared transmitter is afxed over the
sensor eye of the component to be controlled.
Disc won’t play t

Insert a disc with label side rear of the vehicle.
t
Check if the disc is defective by trying another disc.
t
Check the type of disc you put into DVD compartment
slot. This DVD player only plays DVDs, audio CDs, and
MP3s.
t
Both the device and the disc are coded by region.
If the regional codes don’t match, the disc can’t be
played. This DVD player us set to region number 1.
Disc plays, but then stops
immediately t

The disc is dirty and needs cleaning.
t
Condensation has formed. Allow player to dry out.
No picture t

Check that the signal source is connected.
t
The setting may be in the wrong status. Match your
monitor mode with the source correctly.
Distorted picture t

Check the disc for fngerprints and clean with a soft
cloth, wiping from center to edge.
t
Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
Cannot advance through a
movie t

You cannot advance through the opening credits and
warning information that appears at the beginning of
movies because the disc is programmed to prohibit
that action.
No sound or distorted sound t

Make sure that the DVD player is connected properly,
and all cables are securely inserted into the appropri-
ate jacks.
t
If you are using the IR headphones, make sure you
turn on the IR power.
t
Is volume turned “UP” on headphones?
t
Is anything blocking signal between monitor and
headphones?
Device feels warm t

When the device is in use for a long period of time, the
surface will be warm. This is normal.
Player does not respond to all
commands during playback t

Operations are not permitted by the disc.
t
Refer to the instructions in the disc inlay.
