dimensions LINCOLN NAVIGATOR 2012 Rear Seat Entertainment System Supplement Manual

26Specifcations
EN

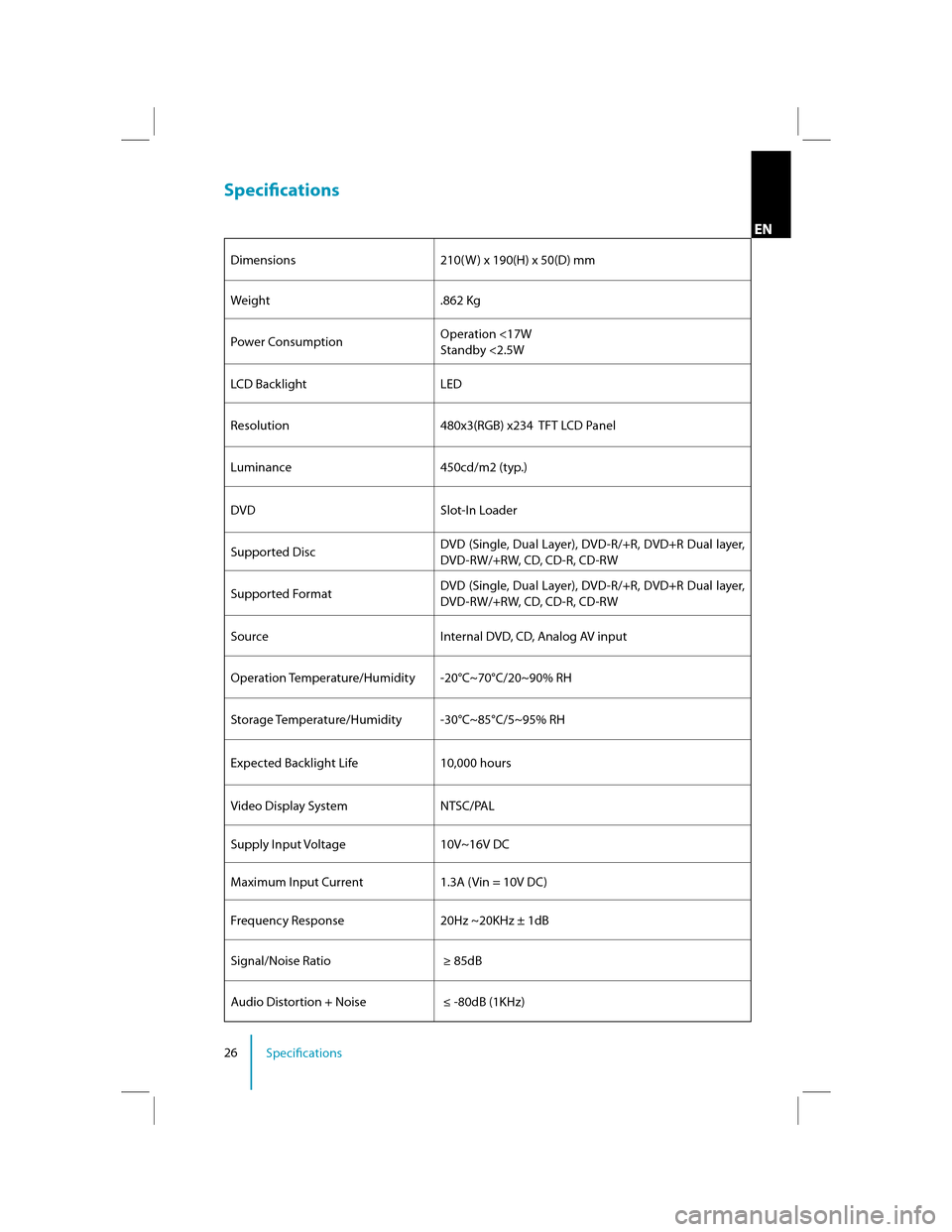

Specifcations
Dimensions 210(W ) x 190(H) x 50(D) mm
Weight .862 Kg
Power ConsumptionOperation <17W
Standby <2.5W
LCD Backlight LED
Resolution 480x3(RGB) x234 TFT LCD Panel
Luminance 450cd/m2 (typ.)
DVD Slot-In Loader
Supported Disc DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer,
DVD-RW/+RW, CD, CD-R, CD-RW
Supported Format DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer,
DVD-RW/+RW, CD, CD-R, CD-RW
Source Internal DVD, CD, Analog AV input
Operation Temperature/Humidity -20°C~70°C/20~90% RH
Storage Temperature/Humidity -30°C~85°C/5~95% RH
Expected Backlight Life 10,000 hours
Video Display System NTSC/PAL
Supply Input Voltage 10V~16V DC
Maximum Input Current 1.3A (Vin = 10V DC)
Frequency Response 20Hz ~20KHz ± 1dB
Signal/Noise Ratio 85dB
Audio Distortion + Noise -80dB (1KHz)
