6Welcome
Welcome
Thank you for purchasing this REVOLUTION
headrest video monitor with built-in DVD player.
Before operating this system, read this manual
thoroughly and retain it for future reference.
Important Notice
It is unlawful in most jurisdictions for a person
to drive a motor vehicle which is equipped with
a television viewer or screen that is located in
the motor vehicle at any point forward of the
back of the driver’s seat, or that is visible, dire
ct-
ly or indirectly, to the driver while operating the
vehicle. In the interest of safety, the unit should
never be installed where it will be visible, direct -
ly or indirectly, by the operator of the motor
vehicle. If your vehicle is equipped with a wire-
less rear seat audio system or any other wireless
IR device, power system of in order to operate
the DVD headrest system. If system is powered
on, the two systems may interfere with each
other canceling out or creating undesirable
audio through the wireless headphones.
Safety Precaution
For safety reasons, when changing video disc
it is recommended that the vehicle not be in
motion, and that you do not allow children
to unfasten safety belts to change disc or
make any adjustments to the system. System
adjustments can be accomplished using the
remote control unit, while safety belts remain
fastened. Enjoy your entertainment system
but remember that safety of all passengers
remains the number one priority.
Product Features
t
7-inch Color TFT-LCD Panel
(480x234) with 16:9 aspect
t
Built-in Top-Loading Slot load DVD Player
t
Infrared Transmitters for IR Wireless Head-
phones
t
Audio/Video Source Input- 3 RCA Jacks
t
USB 2.0 (optional)
t
1/8-inch Stereo Headphone Jack
t
Forward Remote Sensor on the Front Panel t

Full Function Remote Control
t
5 Control Buttons on the Front Panel-
POWER, SOURCE, STOP, PLAY, EJECT
t
OSD (On Screen Display) Control
t
12V DC Power Input
t
FM Transmitter (may be optional)
Caution:
t
Do not touch the inner pins of the jacks on
the front panel. Electrostatic discharge may
cause permanent damage to the device.
t
Be sure to run the vehicle engine while us-
ing the device. Using this device without
running the engine can result in battery
drainage. To avoid the risk of battery
drainage, please remember to turn of the
device when the vehicle is not in use for
long periods of time.

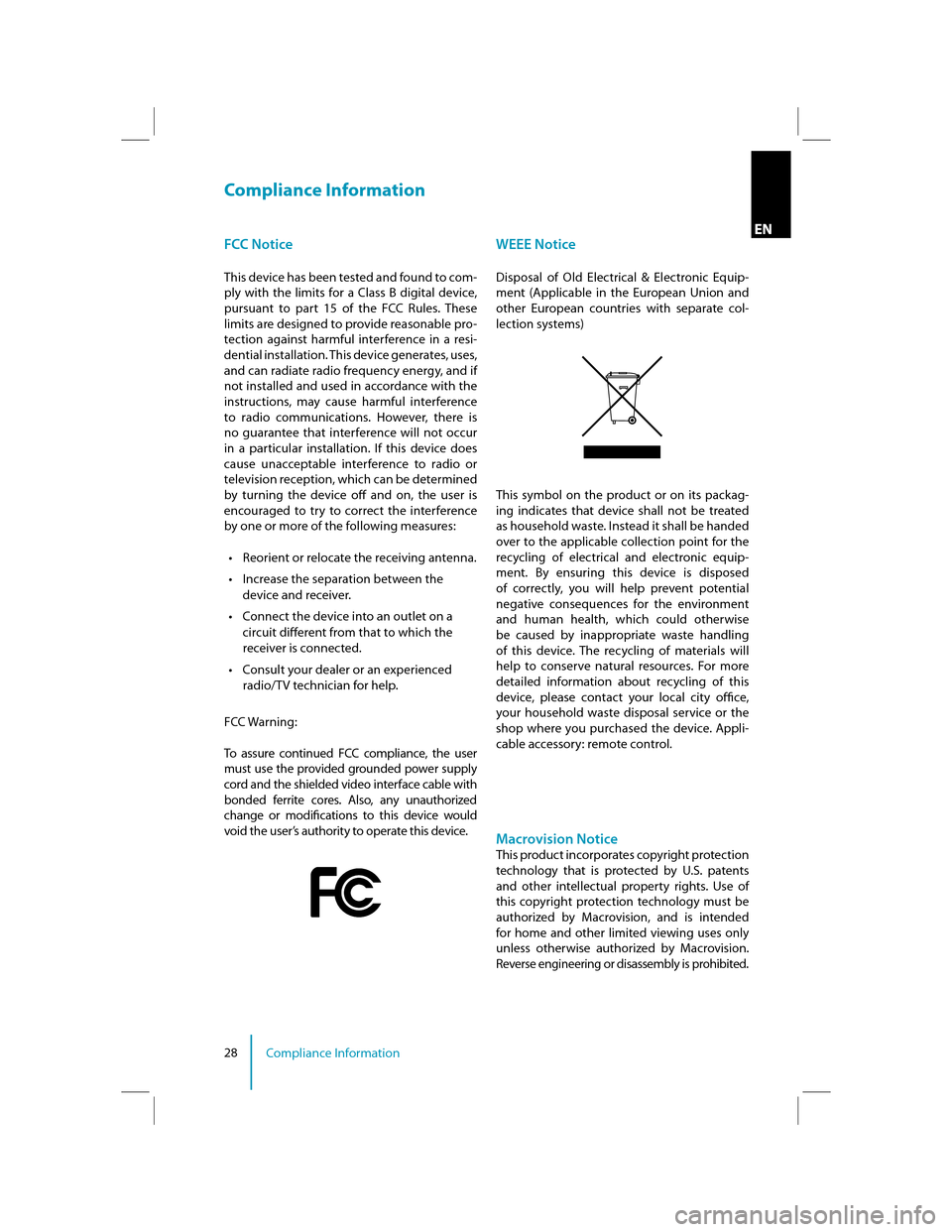

28Compliance Information
EN
Compliance Information
FCC Notice
This device has been tested and found to com-
ply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable pro-
tection against harmful interference in a resi-
dential installation. This device generates, uses,
and can radiate radio frequency energy, and if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this device does
cause unacceptable interference to radio or
television reception, which can be determined
by turning the device of and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:t
Reorient or relocate the receiving antenna.
t
Increase the separation between the
device and receiver.
t
Connect the device into an outlet on a
circuit diferent from that to which the
receiver is connected.
t
Consult your dealer or an experienced
radio/TV technician for help.
FCC Warning:
To assure continued FCC compliance, the user
must use the provided grounded power supply
cord and the shielded video interface cable with
bonded ferrite cores. Also, any unauthorized
change or modifcations to this device would
void the user’s authority to operate this device.
WEEE Notice
Disposal of Old Electrical Electronic Equip-
ment (Applicable in the European Union and
other European countries with separate col-
lection systems)
This symbol on the product or on its packag-
ing indicates that device shall not be treated
as household waste. Instead it shall be handed
over to the applicable collection point for the
recycling of electrical and electronic equip-
ment. By ensuring this device is disposed
of correctly, you will help prevent potential
negative consequences for the environment
and human health, which could otherwise
be caused by inappropriate waste handling
of this device. The recycling of materials will
help to conserve natural resources. For more
detailed information about recycling of this
device, please contact your local city ofce,
your household waste disposal service or the
shop where you purchased the device. Appli-
cable accessory: remote control.
Macrovision NoticeThis product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Macrovision, and is intended
for home and other limited viewing uses only
unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.
