REVOLUTION LT Owner’s Manual
© 2010 INVISION Automotive Systems, Inc. All rights reserved.
This manual, or any portion thereof, may not be reproduced
without the express written permission of INVISION Automotive Systems, Inc.

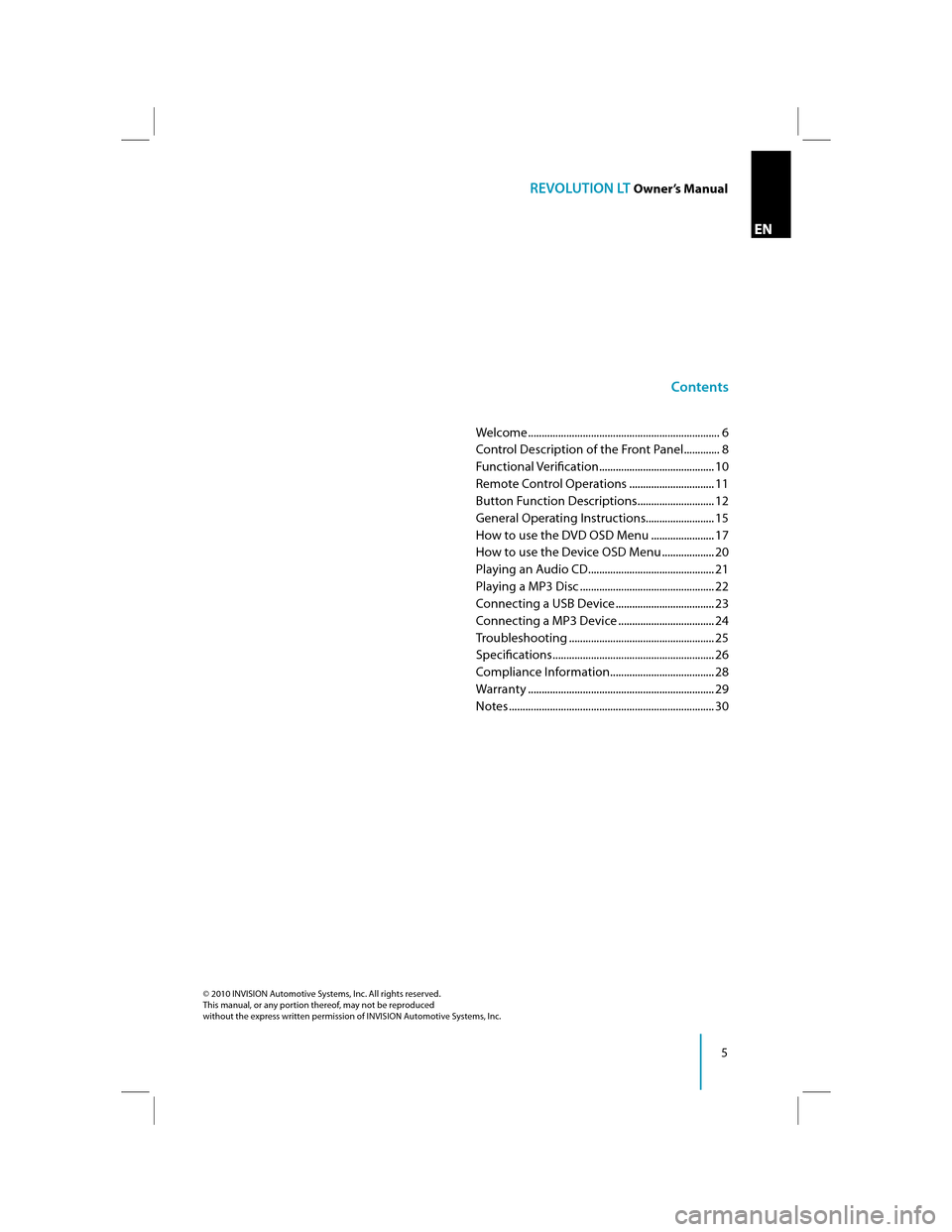

Contents
Welcome ...................................................................... 6
Control Description of the Front Panel ............. 8
Functional Verifcation .......................................... 10
Remote Control Operations ............................... 11
Button Function Descriptions ............................ 12
General Operating Instructions......................... 15
How to use the DVD OSD Menu ....................... 17
How to use the Device OSD Menu ................... 20
Playing an Audio CD .............................................. 21
Playing a MP3 Disc ................................................. 22
Connecting a USB Device .................................... 23
Connecting a MP3 Device ................................... 24
Troubleshooting ..................................................... 25
Specifcations ........................................................... 26
Compliance Information ...................................... 28
Warranty .................................................................... 29
Notes ........................................................................... 30

6Welcome
Welcome
Thank you for purchasing this REVOLUTION
headrest video monitor with built-in DVD player.
Before operating this system, read this manual
thoroughly and retain it for future reference.
Important Notice
It is unlawful in most jurisdictions for a person
to drive a motor vehicle which is equipped with
a television viewer or screen that is located in
the motor vehicle at any point forward of the
back of the driver’s seat, or that is visible, dire
ct-
ly or indirectly, to the driver while operating the
vehicle. In the interest of safety, the unit should
never be installed where it will be visible, direct -
ly or indirectly, by the operator of the motor
vehicle. If your vehicle is equipped with a wire-
less rear seat audio system or any other wireless
IR device, power system of in order to operate
the DVD headrest system. If system is powered
on, the two systems may interfere with each
other canceling out or creating undesirable
audio through the wireless headphones.
Safety Precaution
For safety reasons, when changing video disc
it is recommended that the vehicle not be in
motion, and that you do not allow children
to unfasten safety belts to change disc or
make any adjustments to the system. System
adjustments can be accomplished using the
remote control unit, while safety belts remain
fastened. Enjoy your entertainment system
but remember that safety of all passengers
remains the number one priority.
Product Features
t
7-inch Color TFT-LCD Panel
(480x234) with 16:9 aspect
t
Built-in Top-Loading Slot load DVD Player
t
Infrared Transmitters for IR Wireless Head-
phones
t
Audio/Video Source Input- 3 RCA Jacks
t
USB 2.0 (optional)
t
1/8-inch Stereo Headphone Jack
t
Forward Remote Sensor on the Front Panel t

Full Function Remote Control
t
5 Control Buttons on the Front Panel-
POWER, SOURCE, STOP, PLAY, EJECT
t
OSD (On Screen Display) Control
t
12V DC Power Input
t
FM Transmitter (may be optional)
Caution:
t
Do not touch the inner pins of the jacks on
the front panel. Electrostatic discharge may
cause permanent damage to the device.
t
Be sure to run the vehicle engine while us-
ing the device. Using this device without
running the engine can result in battery
drainage. To avoid the risk of battery
drainage, please remember to turn of the
device when the vehicle is not in use for
long periods of time.

7Welcome
ENWireless Headphones
This unit includes a built-in dual channel infra-
red transmitter for use with a wireless head-
phone. The volume can then be adjusted with
the controls on each headset. The wireless
headphone must be used within a line of sight
from the transmitter as infrared transmission,
like visible light, travels only in a straight line.
Wired Headphones
There is a 1/8-inch headphone jack on the de-
vice that can be used with any standard stereo
headphone. Remove and save the protective
plastic cover to access the jacks. Remember
to replace the cover when the jacks are not in
use.
AV Input
An external AV device such as a DVD player,
video game device, or other audio/video
device may be connected to the unit by using
the “AV INPUT” port consisting of 3 RCA jacks
(Yellow: Video, Red: Audio-R, White: Audio-L).
To display and listen to the video/audio sig-
nal of this external source, connect the video
source RCA cables to the AV inputs on the
monitor. The video source will overide any
other video source for that monitor.
Wireless FM Transmitter
Your device may be equipped with an external
FM transmitter, which allows you to listen to
the audio signal by tuning your vehicle’s FM
radio to the selected frequency and turning
SOUND AROUND on with the remote. When-
ever the SOUND AROUND is on, broadcast
radio reception may be poor. Performance will
vary based on geographic location. Turning
SOUND AROUND of will allow normal radio
reception.
How to use the FM Transmitter
Power up your system and place a disc in
monitor “A”. While pointing your remote at
the monitor press the “DVD A” button directly under the red “POWER” button on your remote
control. Next press the “Sound Around ON/
OFF” button to turn FM transmission on or of
as desired. Three buttons to right is the “Sound
Around SELECT” button which will cycle
through 6 possible stations (88.3, 88.7, 89.1,
89.5, 89.9, and 90.3MHz) for broadcasting au-
dio to your radio. Once you’ve selected a fre-
quency, you must then tune your radio to the
corresponding frequency. Try each station fre-
quency until you achieve a clear audio signal.

9Control Description of the Front Panel
1. DVD Compartment Slot
(models with DVD Player)
2. Infrared Transmitters
These are used to transmit audio to the
wireless headphones.
3. IR Sensor - Forward Sensor Eye
Allow the remote control to navigate the
OSD (On Screen Display) on the device.
4. Level Lock & Release Latch
Allows the user to adjust the viewing angle
of the LCD panel or lock the panel into the
secure position.
5. TFT LCD Panel
7-inch TFT LCD Panel
6. POWER Button
Press this button to turn the system on or off.
7. SOURCE Button
Press this button to select between Moni-
tor A, Monitor B, AUX/TV (if available), and
AUX 2 (if available).
8. USB Port (Optional)
You can play music and images stored on a
USB Device such as a USB memory stick or
memory card reader.
9. Video Input Jack (Yellow)
Connect using a cable (RCA connector).
10. Audio Input Jack (White)
Connect using a cable (RCA connector).
11. Audio Input Jack (Red)
Connect using a cable (RCA connector).
12. 1/8-inch Headphone Jack
Allow plug-in of wired headphones with
1/8-inch stereo connector plug for moni-
toring the audio from the program.
13. PLAY Button
(models with DVD Player)
Press this button to play the DVD/CD. 14.
STOP Button
(models with DVD Player)
Press this button to stop playing the DVD/
CD.
15. EJECT Button
(models with DVD Player)
Press this button to eject the disc from the
DVD compartment.

Warnings t
Do not use any solvents or cleaning mate-
rials when cleaning the video device.
t
Do not use any abrasive cleaners, that
may scratch the screen. Use only a lightly
dampened lint free cloth to wipe the
screen if it is dirty.
t
Lock the LCD screen in the fully closed
position when not in use.
t
Do not put pressure on the screen.
t
Caution children to avoid touching or
scratching the screen, as it may become
dirty or damaged.EN

10Functional Verifcation
Function Checks: Look for:
Turn vehicle ignition to ON, depress power
button on each headrest monitor.Monitor should power on and start up
screen should appear on screen.
Insert disc into DVD player, press ENTER
button on the remote control or front panel. Disc should begin playing.
Listen with wireless headphones (be sure
to set to channel “A” to listen to Monitor A
and channel “B” to listen to Monitor B. Audio should be heard through wireless
headphones.
Press SOURCE button on Monitor B until it
reads Monitor A. DVD in Monitor A should be displayed on
Monitor B also.
Press SOURCE button on Monitor A until it
reads Monitor B. DVD in Monitor B should be displayed on
Monitor A also.
Depress eject button on the remote con-
trol or front panel. Disc should eject.
Turn on vehicle radio and set station to the
frequency set on FM transmitter
(if available). Only audio from Monitor A should be
heard through vehicle speakers.
Functional Verifcation

11Remote Control Operations
EN

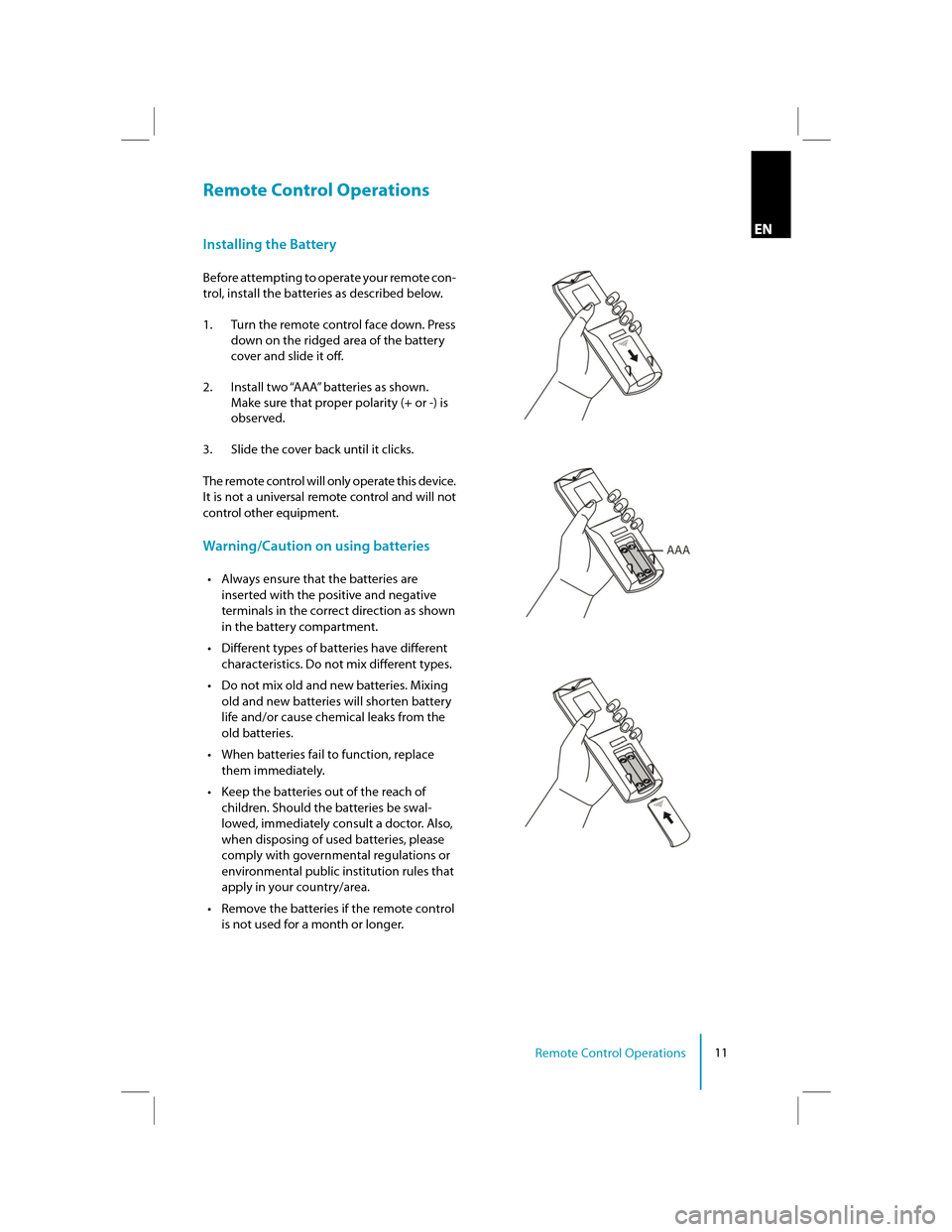

Remote Control Operations
Installing the Battery
Before attempting to operate your remote con-
trol, install the batteries as described below.
1. Turn the remote control face down. Press down on the ridged area of the battery
cover and slide it of.
2. Install two “AAA” batteries as shown. Make sure that proper polarity (+ or -) is
observed.
3. Slide the cover back until it clicks.
The remote control will only operate this device.
It is not a universal remote control and will not
control other equipment.
Warning/Caution on using batteries
t
Always ensure that the batteries are
inserted with the positive and negative
terminals in the correct direction as shown
in the battery compartment.
t
Diferent types of batteries have diferent
characteristics. Do not mix diferent types.
t
Do not mix old and new batteries. Mixing
old and new batteries will shorten battery
life and/or cause chemical leaks from the
old batteries.
t
When batteries fail to function, replace
them immediately.
t
Keep the batteries out of the reach of
children. Should the batteries be swal-
lowed, immediately consult a doctor. Also,
when disposing of used batteries, please
comply with governmental regulations or
environmental public institution rules that
apply in your country/area.
t
Remove the batteries if the remote control
is not used for a month or longer.

14Button Function Descriptions
21. EJECT
Eject the disc from the disc compartment
or load the disc into the disc compartment.
22. TV-Monitor B (If available)
Transmit IR codes for TV mode of Monitor B.
23. 24. DVD-Monitor B
Transmit IR codes for DVD mode of Monitor B.
24. SOUND AROUND SELECT (If available)
Select a FM transmitter channel.
25. PIX (Picture Selection)
Each time the button is pressed, the picture
adjustment OSD, cycles through bars for
BRIGHTNESS, CONTRAST, SATURATION,
HUE, SHARPNESS, IR HEADPHONE, and
RESET. Once the desired adjustment bar
is displayed, use the UP/DOWN button
to adjust the setting. The bar display will
automatically disappear, if no adjustments
are made within 6 seconds or if any button
is pressed.
26. REPEAT
Press this button to switch the repeat mode
by ALL, TITLE, CHAPTER and cancel the repeat
mode while playing DVD-video. Other disc
types such as VCD, CD, and SVCD that only
have two repeat modes that can be selected:
TRACK and ALL
Note: Both repeat functions of VCD and SVCD
need the PBC status set to ON when available.
27. AUDIO
Press this button if the current disc has
different language options.
Press this button repeatedly until you have
reached your desired language option.
28. ANGLE
View with a different camera angle (the
button takes effect only on the DVD that
supports frames with multiple angles).
Press this button repeatedly until you have
reached your desired viewing angle. 29.
DISPLAY
Show information on the screen including
title, chapter/track, time elapsed, and time
remaining, or turn off the display.
30. RANDOM
Play titles randomly.
31. INT (Intro/Scan)
Press this button to play each audio file for
10 seconds to scan/review the files. This
button acts as a toggle for this feature.
32. NEXT
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press the button briefly during play to
select the next Chapter for DVD-video or
Track/File for VCD, SVCD, MP3, CD, etc.
33. PREV
When a disc has more than one Chapter,
Track, or File, you can move to another
Chapter/Track/File.
Press this button briefly during play to step
back to the previous Chapter for DVD-video
or Track/File for VCD, SVCD, MP3, CD, etc.
Note:
The remote control incorporates an infrared
sensor that relays signals from the remote
control to be controlled simply by pointing its
remote control at the remote sensor eye. This
provides control of auxiliary equipment such
as a video DVD player. The infrared sensor can-
not relay signals from any other manufacturer’s
remote control to its respective component
connected to the AUX input, such as a DVD
player. In this case, you must use the remote
control supplied with the device.

15General Operating Instructions
General Operating Instructions
Turning the Device ON or OFF
1. Pivot the screen downward until a com-
fortable viewing angle is reached.
2. Press the POWER button on the lower-left corner of the front panel or the remote
control to turn the device on or of. When
in use, the controls will be lit.
3. After the device has been turned on and is displaying a picture, adjust the
viewing angle by pivoting the screen to
optimize the picture quality.
4. Remember to turn the device of and pivot the LCD panel to the locked posi-
tion when not in use.
DVD Basic
To get the most use out of each DVD, make
sure you read this section completely.
Regional Coding
Both the DVD player and disc are coded by
region. These regional codes must match in
order for the disc to play. If the codes do not
match, the disc will not play by default. The
system is preset to the region code desig-
nated for your area by the DVD Copy Control
Association. Other regions may not be played
in this system.
Type of Discs your DVD will play
DVD-Video: DVD contains video.
DVD +/- R: DVD contains video.
CD-DA: CD contains musical or sound content
only.
CD-Video: CD contains movie only.
CD-R/RW: A disc that contains audio fles (for
example, a CD-R with downloaded MP3 fles),
MPEG, or JPEG fles. Loading and Playing Discs
Before you load a disc, make sure that it is com-
patible with the player. Note that the following
discs
CANNOT be used with this player:
Optical disc- CD-1, CD-ROM, and DVD-ROM
Mini disc- CDG (audio only, not graphics)
To Load and Play a Disc
When you press the POWER button the sys-
tem turns on in DVD mode. Place the disc
about halfway into the disc compartment slot,
with the disc’s label facing the rear of the
vehcle. player, do NOT insert the disc at an
angle. The disc must be inserted straight into
the player.
The disc will load automatically and begin to
play. (Some discs may start at the root menu,
where play must be selected to start movie.)
Depending on the disk and playback location
on the disc, the icon may be displayed in the
upper-left corner of the screen indicating that
still playback is not possible.

17How to use the DVD OSD Menu
EN
How to use the DVD OSD Menu
This section describes how to set and adjust
settings using the on-screen setup pages
included in the On-screen Display (OSD)
Menu. You can use the OSD menu screen to
adjust all the settings on your screen. Follow
the steps outlined below to select the func-
tion you desire, and refer to the pages indi-
cated for more information.
General Setup Menu
Press the SETUP button on the remote con-
trol, use the and the or buttons
to navigate the Setup Page. Press ENTER to
select and then the to return to the sub-
menu.
(Accessible when no disc is loaded)
To cancel using the Setup Display : Press the
SETUP button on the remote
OSD Language Menu
(Accessible when no disc is loaded) The OSD Lang sub-menu allows the user to
select the language for the on-screen display.
Press the right (forward)button and then use
the up and down buttons on the remote
control to select the desired language. The
user can select English, Simple / Traditional
Chinese, French, German, Italian, Spanish,
Portuguese or Korean for the OSD language.
Press ENTER to select and then the left (back)
button to return to the sub-menu.
Angle Mark Menu
(Accessible when no disc is loaded)
The angle mark is an option for diferent
viewing angles on the DVD.
Press the
or button to turn the angle
mark setting on or of. Press ENTER to select
and then the button to return to the sub-
menu.

20How to use the Device OSD Menu
EN
How to use the Device OSD Menu
Preference Setup Menu(Accessible when no disc is loaded)
Press the SETUP button on the remote con-
trol, use the and the or buttons
to navigate the Setup Page. Press ENTER to
select and then the to return to the sub-
menu.
Setting for Audio
This section of the Setup Menu allows the
user to control the audio stream in the
selected language for playback automati-
cally.
Settings for Subtitle
This section of the Setup Menu allows the
user to turn the subtitles ON or OFF in the
selected language for playback automati-
cally.
Settings for Disc Menu
This section of the Setup Menu allows the
user to control the DVD disc menu in the
selected language.
Settings for Parental
This section of the Setup Menu allows user to
control the content of movie playback from
G to ADULT. The parental control function
allows you to limit viewing to your
preference. The rating levels are from 1 to 8
and are country dependant. After navigating to the Parental sub- menu
under the Preference Page, use the
and
the buttons on the remote control to
select: KID SAFE (Children); G; PG; PG 13; PGR;
R; NC 17; ADULT. NOTE: The lower the value,
the more strict the limitation.
Setting the Parental Control
Password
1. Press the SETUP button and navigate to the
Password submenu under the Password Set-
up Page. The menu appears and allows you to
change the parental control password.
2. Press the button and then press the
ENTER button on the remote control to enter
the sub-menu.
t
0ME
1BTTXPSE
*OQVU
UIF
PME
QBTTXPSE
PS

the default pass- word (6 digits).
t
/FX
1BTTXPSE
*OQVU
B
OFX
QBTTXPSE


digits) using numeric buttons.
t
$POöSN
1BTTXPSE
$POöSN
UIF
OFX

password by entering the same new pass-
word again.
3. Scroll to the OK button and press the
ENTER button on the remote control. Your
password has been changed.
(Note: The default password is 136900)
Default Setting
Press the SETUP button on the remote con-
trol, navigate to the default sub-menu under
the Preference page using the and the


-
