Page 331 of 481

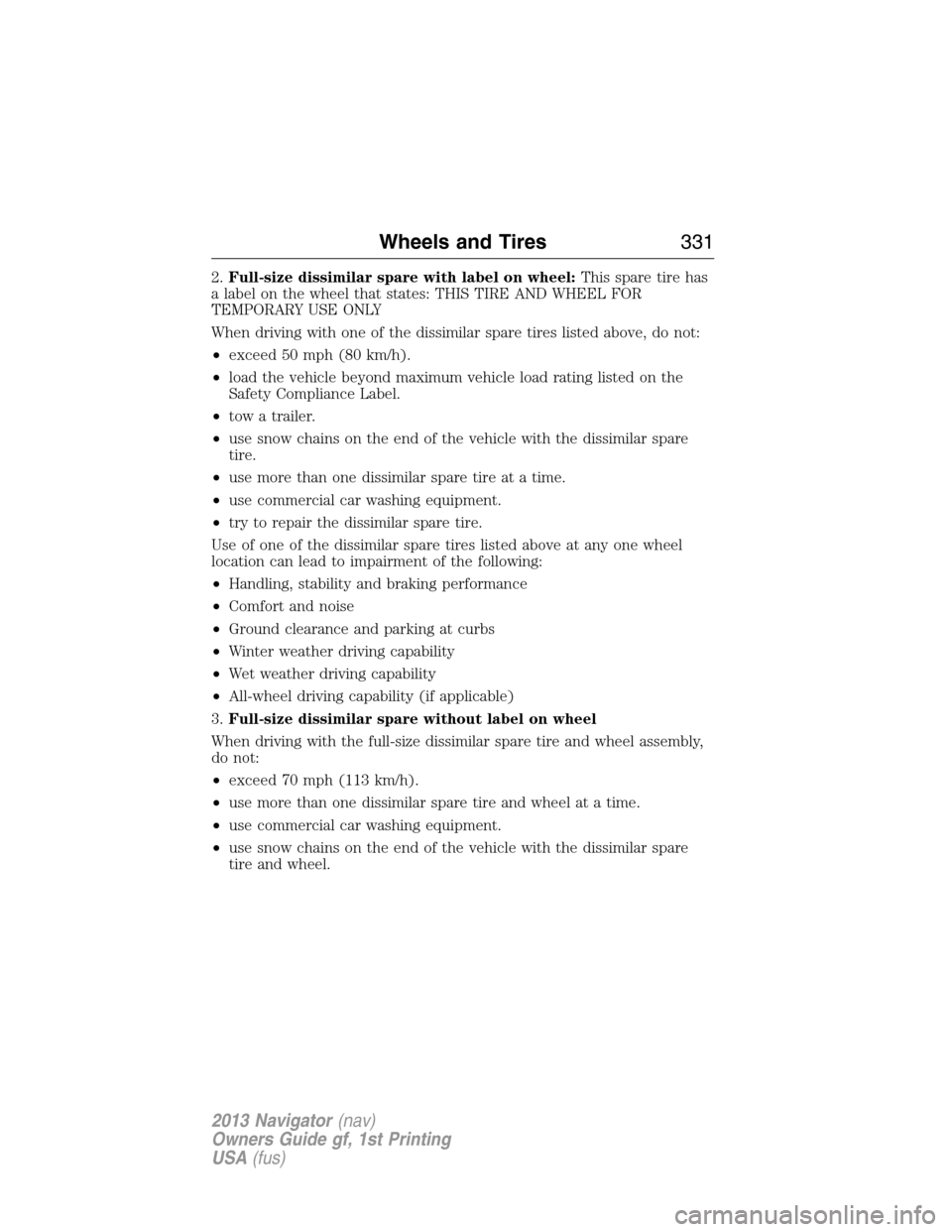

LINCOLN NAVIGATOR 2013  Owners Manual 2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY
When driving with one of the dissimilar spare tires li

Page 332 of 481

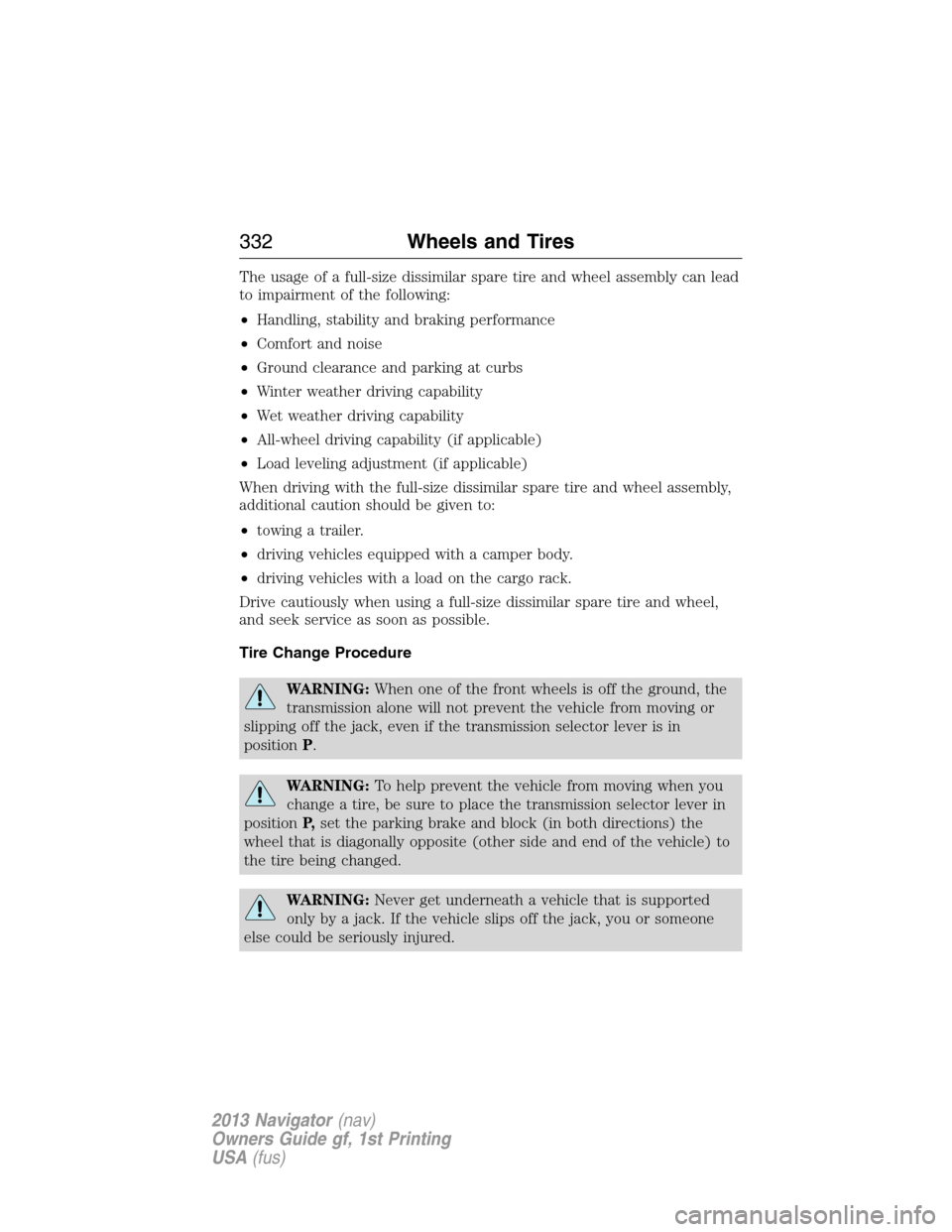

LINCOLN NAVIGATOR 2013  Owners Manual The usage of a full-size dissimilar spare tire and wheel assembly can lead
to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and p

Page 333 of 481

LINCOLN NAVIGATOR 2013  Owners Manual WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.

Page 334 of 481

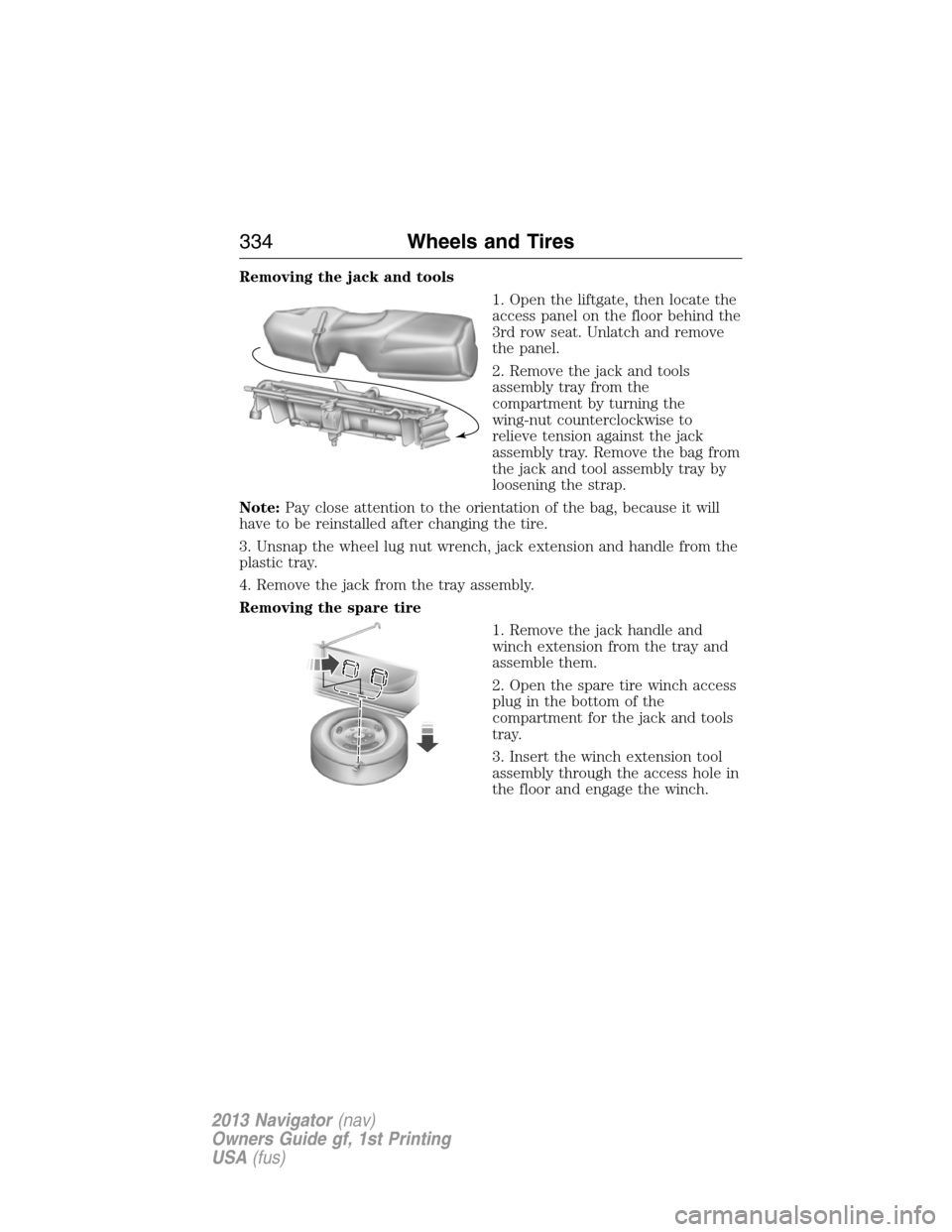

LINCOLN NAVIGATOR 2013  Owners Manual Removing the jack and tools
1. Open the liftgate, then locate the
access panel on the floor behind the
3rd row seat. Unlatch and remove
the panel.
2. Remove the jack and tools
assembly tray from the
c

Page 335 of 481

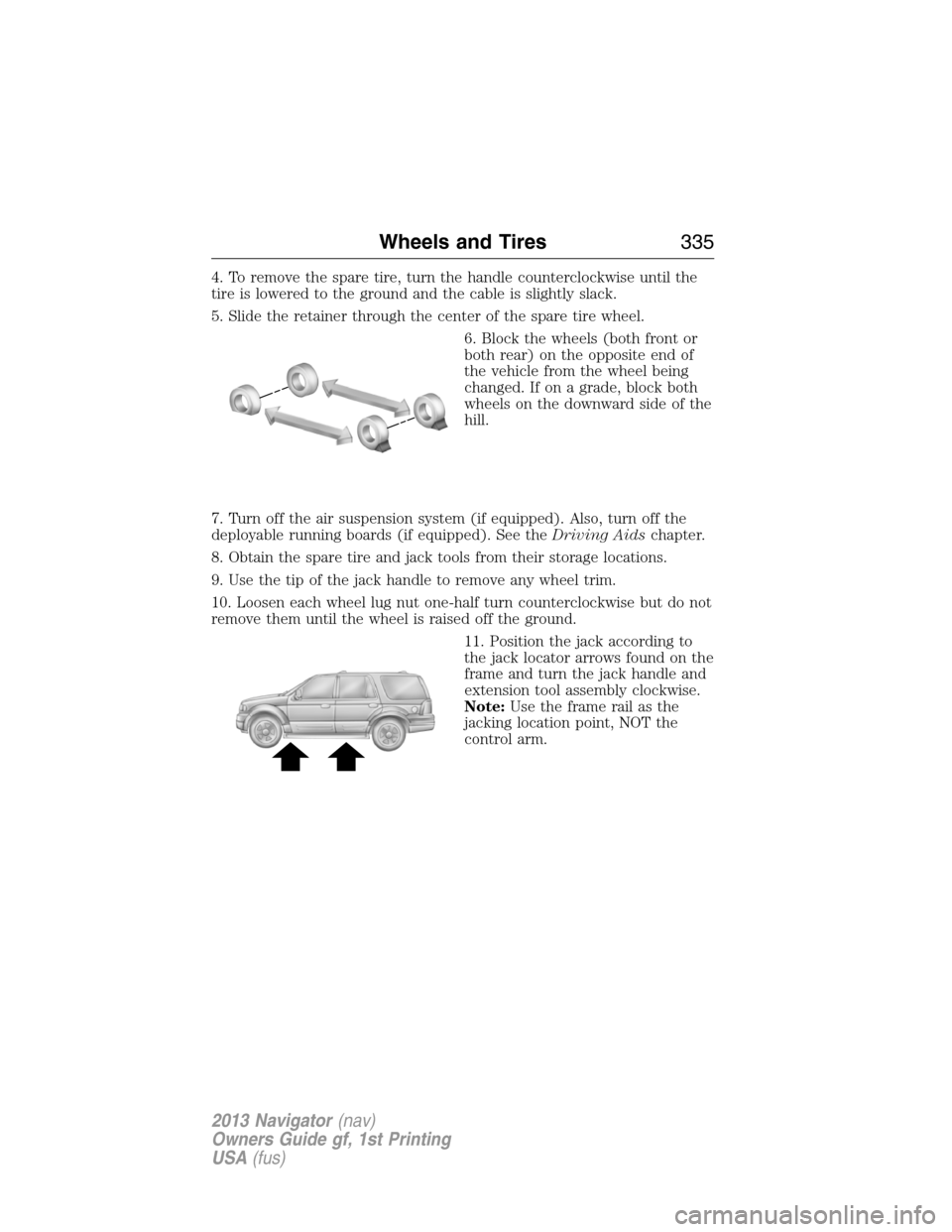

LINCOLN NAVIGATOR 2013  Owners Manual 4. To remove the spare tire, turn the handle counterclockwise until the
tire is lowered to the ground and the cable is slightly slack.
5. Slide the retainer through the center of the spare tire wheel.

Page 336 of 481

LINCOLN NAVIGATOR 2013  Owners Manual 12. Raise the vehicle to provide sufficient ground clearance when
installing the spare tire; approximately 1/4 inch (6 mm).
•Front
•Rear
•Jack at the specified locations to avoid damage to the v

Page 337 of 481

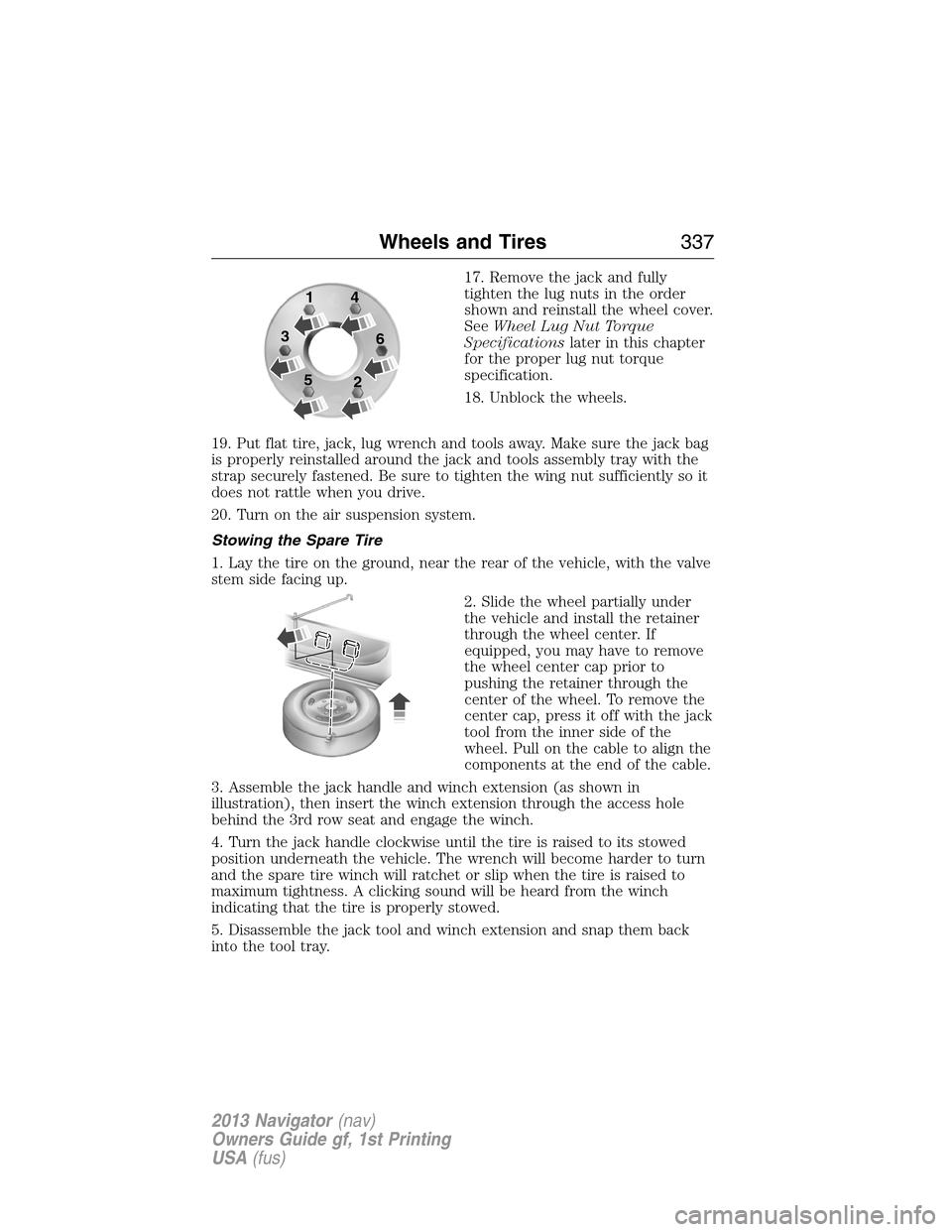

LINCOLN NAVIGATOR 2013  Owners Manual 17. Remove the jack and fully
tighten the lug nuts in the order
shown and reinstall the wheel cover.
SeeWheel Lug Nut Torque
Specificationslater in this chapter
for the proper lug nut torque
specifica

Page 338 of 481

LINCOLN NAVIGATOR 2013  Owners Manual 6. Reinstall the jack bag properly around the jack and tool assembly tray,
making sure the strap is securely fastened.
7. Close the access hole with the rubber plug.
8. Reinstall the tray into the veh

Page 339 of 481

LINCOLN NAVIGATOR 2013  Owners Manual ENGINE SPECIFICATIONS
Engine 5.4L V8 Engine
Cubic inches 330
Fuel Minimum 87 octane or (E-85)
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap 0.039–0.043 inch (1.05 +/–
0.

Page 340 of 481

LINCOLN NAVIGATOR 2013  Owners Manual TECHNICAL SPECIFICATIONS
Item Capacity Ford part nameFord part number / Ford
specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraftHigh Performance
DOT 3 Motor Vehicle Brake
FluidPM-1-C
