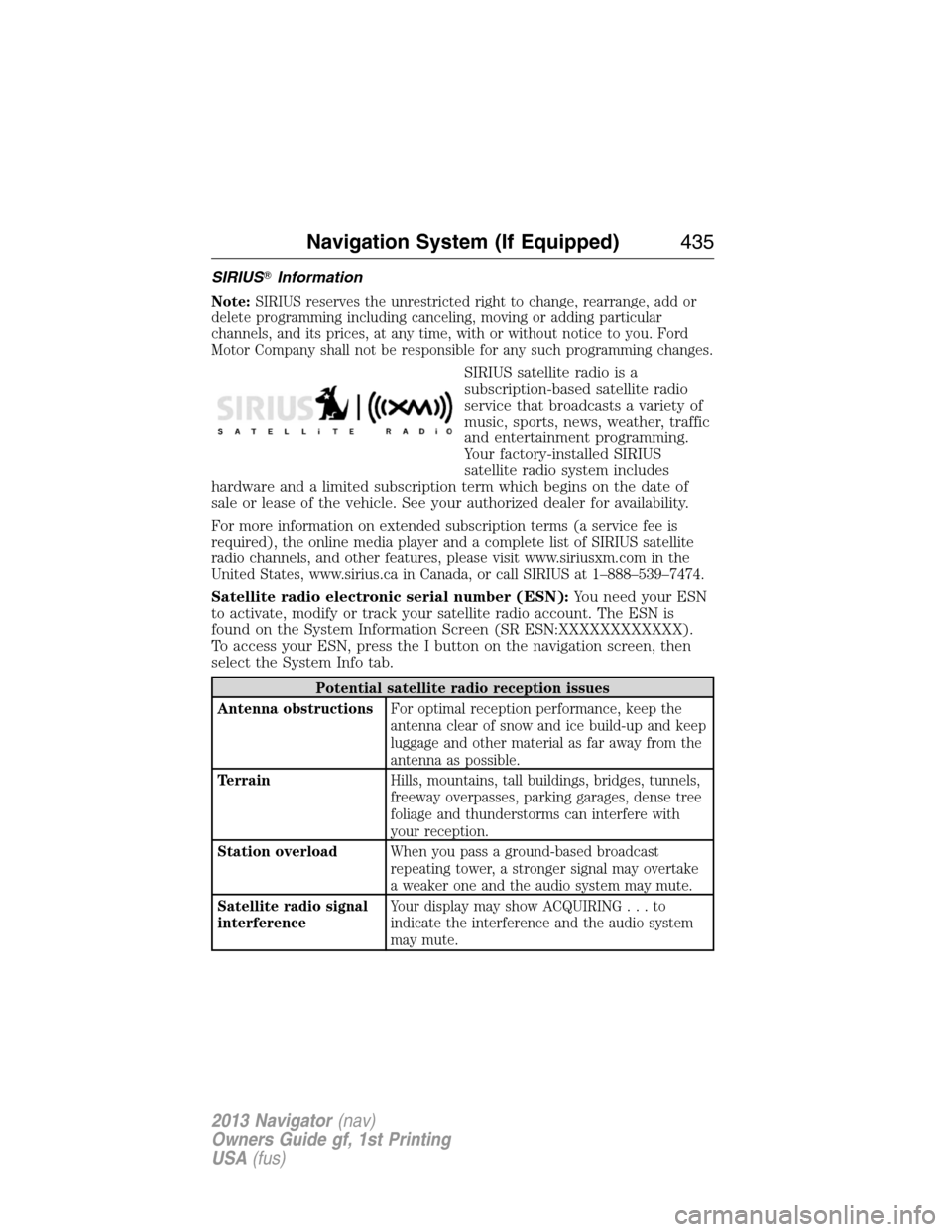

SIRIUSInformation
Note:SIRIUS reserves the unrestricted right to change, rearrange, add or
delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming changes.
SIRIUS satellite radio is a
subscription-based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory-installed SIRIUS
satellite radio system includes
hardware and a limited subscription term which begins on the date of
sale or lease of the vehicle. See your authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS satellite
radio channels, and other features, please visit www.siriusxm.com in the
United States, www.sirius.ca in Canada, or call SIRIUS at 1–888–539–7474.
Satellite radio electronic serial number (ESN):You need your ESN
to activate, modify or track your satellite radio account. The ESN is
found on the System Information Screen (SR ESN:XXXXXXXXXXXX).
To access your ESN, press the I button on the navigation screen, then
select the System Info tab.
Potential satellite radio reception issues
Antenna obstructionsFor optimal reception performance, keep the
antenna clear of snow and ice build-up and keep
luggage and other material as far away from the
antenna as possible.
TerrainHills, mountains, tall buildings, bridges, tunnels,
freeway overpasses, parking garages, dense tree
foliage and thunderstorms can interfere with
your reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may overtake
a weaker one and the audio system may mute.
Satellite radio signal
interferenceYour display may show ACQUIRING...to
indicate the interference and the audio system
may mute.
Navigation System (If Equipped)435
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

SIRIUS troubleshooting tips
Radio Display Condition Possible Action
Acquiring Radio requires more than
two seconds to produce
audio for the selected
channel.None. This message
should disappear shortly.
Sat Fault/SIRIUS
system failureInternal module or
system failure present.If this message does not
clear shortly, or with an
ignition key cycle, your
receiver may have a
fault. See your
authorized dealer for
service.
Invalid Channel Channel no longer
available.Tune to another channel
or choose another
preset.
Unsubscribed
ChannelSubscription not
available for this channel.Contact SIRIUS at
1–888–539–7474 to
subscribe to the channel,
or tune to another
channel.
No Signal Loss of signal from the
SIRIUS satellite or
SIRIUS tower to the
vehicle antenna.The signal is currently
being blocked. When you
move into an open area,
the signal should return.
Updating Update of channel
programming in progress.None. The process may
take up to three minutes.
Call SIRIUS
1–888–539–7474Satellite service has been
deactivated by SIRIUS
Satellite Radio.Call SIRIUS at
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels
AvailableAll the channels in the
selected category are
locked or skipped.Unlock or unskip the
channels using the
channel guide.
Subscription Updated SIRIUS has updated the
channels available for
your vehicle.None.
436Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

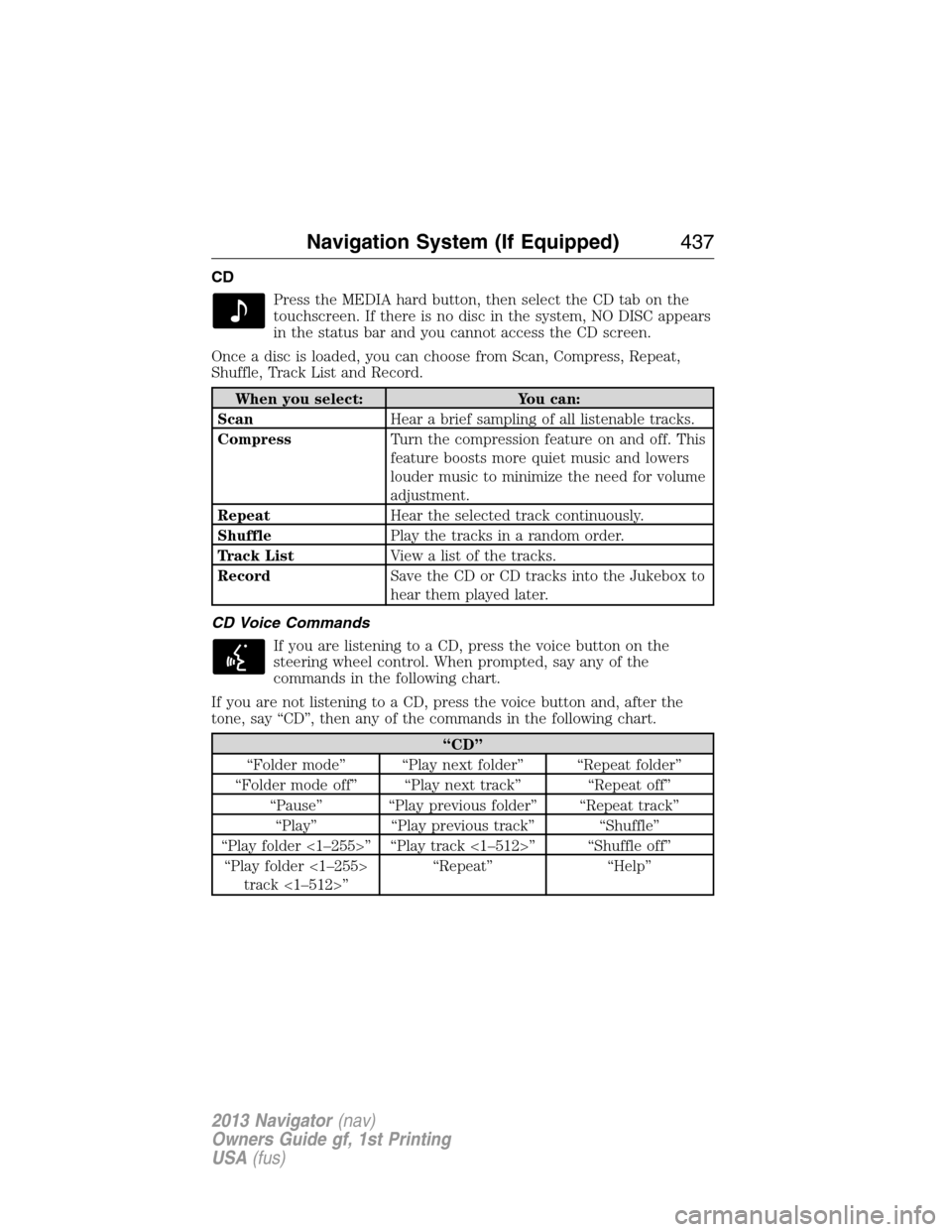

CD
Press the MEDIA hard button, then select the CD tab on the
touchscreen. If there is no disc in the system, NO DISC appears
in the status bar and you cannot access the CD screen.
Once a disc is loaded, you can choose from Scan, Compress, Repeat,
Shuffle, Track List and Record.
When you select: You can:
ScanHear a brief sampling of all listenable tracks.
CompressTurn the compression feature on and off. This
feature boosts more quiet music and lowers
louder music to minimize the need for volume
adjustment.
RepeatHear the selected track continuously.
ShufflePlay the tracks in a random order.
Track ListView a list of the tracks.
RecordSave the CD or CD tracks into the Jukebox to
hear them played later.
CD Voice Commands
If you are listening to a CD, press the voice button on the
steering wheel control. When prompted, say any of the
commands in the following chart.
If you are not listening to a CD, press the voice button and, after the
tone, say “CD”, then any of the commands in the following chart.
“CD”
“Folder mode” “Play next folder” “Repeat folder”
“Folder mode off” “Play next track” “Repeat off”
“Pause” “Play previous folder” “Repeat track”
“Play” “Play previous track” “Shuffle”
“Play folder <1–255>” “Play track <1–512>” “Shuffle off”
“Play folder <1–255>
track <1–512>”“Repeat” “Help”
Navigation System (If Equipped)437
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

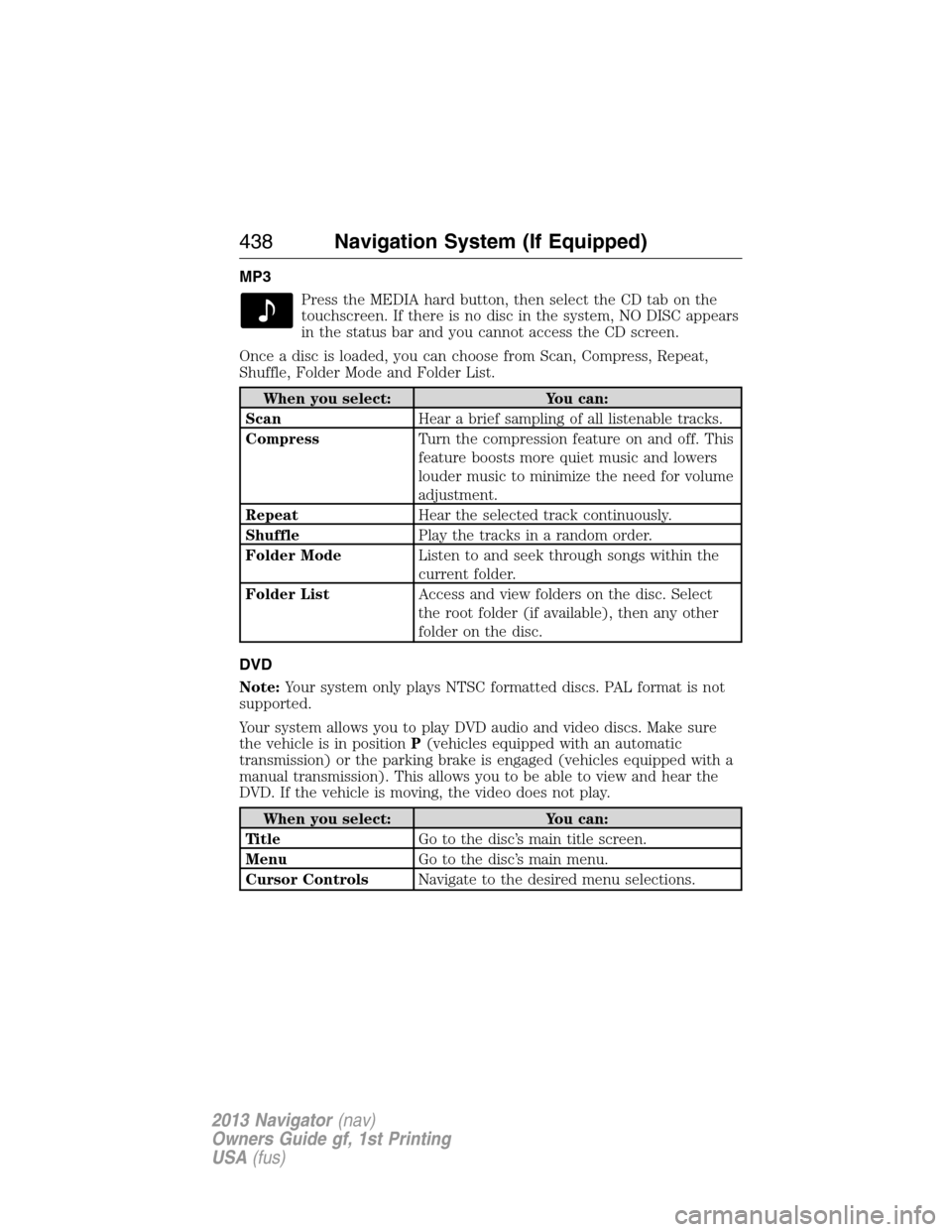

MP3
Press the MEDIA hard button, then select the CD tab on the
touchscreen. If there is no disc in the system, NO DISC appears
in the status bar and you cannot access the CD screen.
Once a disc is loaded, you can choose from Scan, Compress, Repeat,
Shuffle, Folder Mode and Folder List.
When you select: You can:
ScanHear a brief sampling of all listenable tracks.
CompressTurn the compression feature on and off. This
feature boosts more quiet music and lowers
louder music to minimize the need for volume
adjustment.
RepeatHear the selected track continuously.
ShufflePlay the tracks in a random order.
Folder ModeListen to and seek through songs within the
current folder.
Folder ListAccess and view folders on the disc. Select
the root folder (if available), then any other
folder on the disc.
DVD
Note:Your system only plays NTSC formatted discs. PAL format is not
supported.
Your system allows you to play DVD audio and video discs. Make sure
the vehicle is in positionP(vehicles equipped with an automatic
transmission) or the parking brake is engaged (vehicles equipped with a
manual transmission). This allows you to be able to view and hear the
DVD. If the vehicle is moving, the video does not play.
When you select: You can:
Ti t l eGo to the disc’s main title screen.
MenuGo to the disc’s main menu.
Cursor ControlsNavigate to the desired menu selections.
438Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

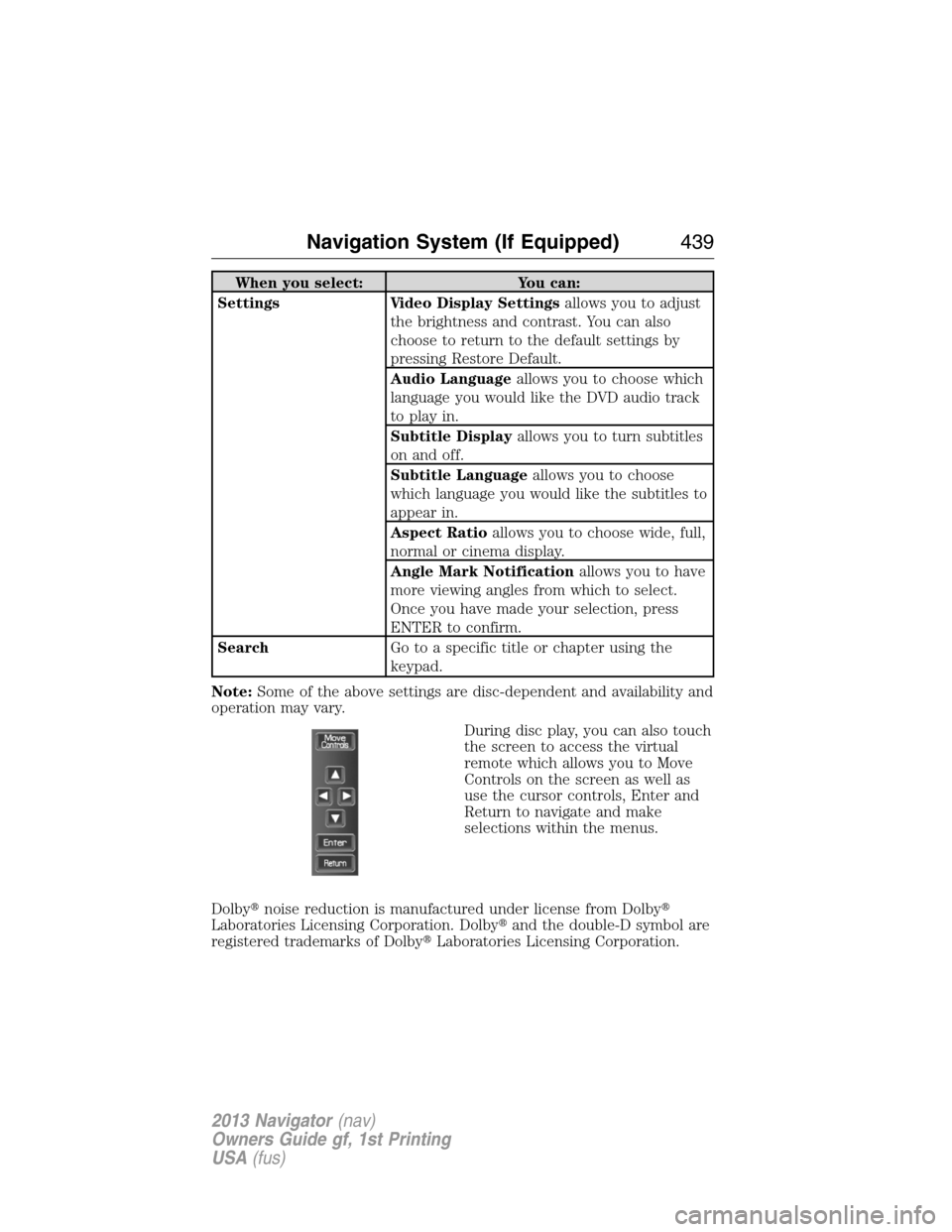

When you select: You can:
Settings Video Display Settingsallows you to adjust
the brightness and contrast. You can also
choose to return to the default settings by
pressing Restore Default.
Audio Languageallows you to choose which
language you would like the DVD audio track
to play in.
Subtitle Displayallows you to turn subtitles
on and off.
Subtitle Languageallows you to choose
which language you would like the subtitles to
appear in.
Aspect Ratioallows you to choose wide, full,
normal or cinema display.
Angle Mark Notificationallows you to have
more viewing angles from which to select.
Once you have made your selection, press
ENTER to confirm.
SearchGo to a specific title or chapter using the
keypad.
Note:Some of the above settings are disc-dependent and availability and
operation may vary.
During disc play, you can also touch
the screen to access the virtual
remote which allows you to Move
Controls on the screen as well as
use the cursor controls, Enter and
Return to navigate and make
selections within the menus.
Dolbynoise reduction is manufactured under license from Dolby
Laboratories Licensing Corporation. Dolbyand the double-D symbol are
registered trademarks of DolbyLaboratories Licensing Corporation.
Navigation System (If Equipped)439
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

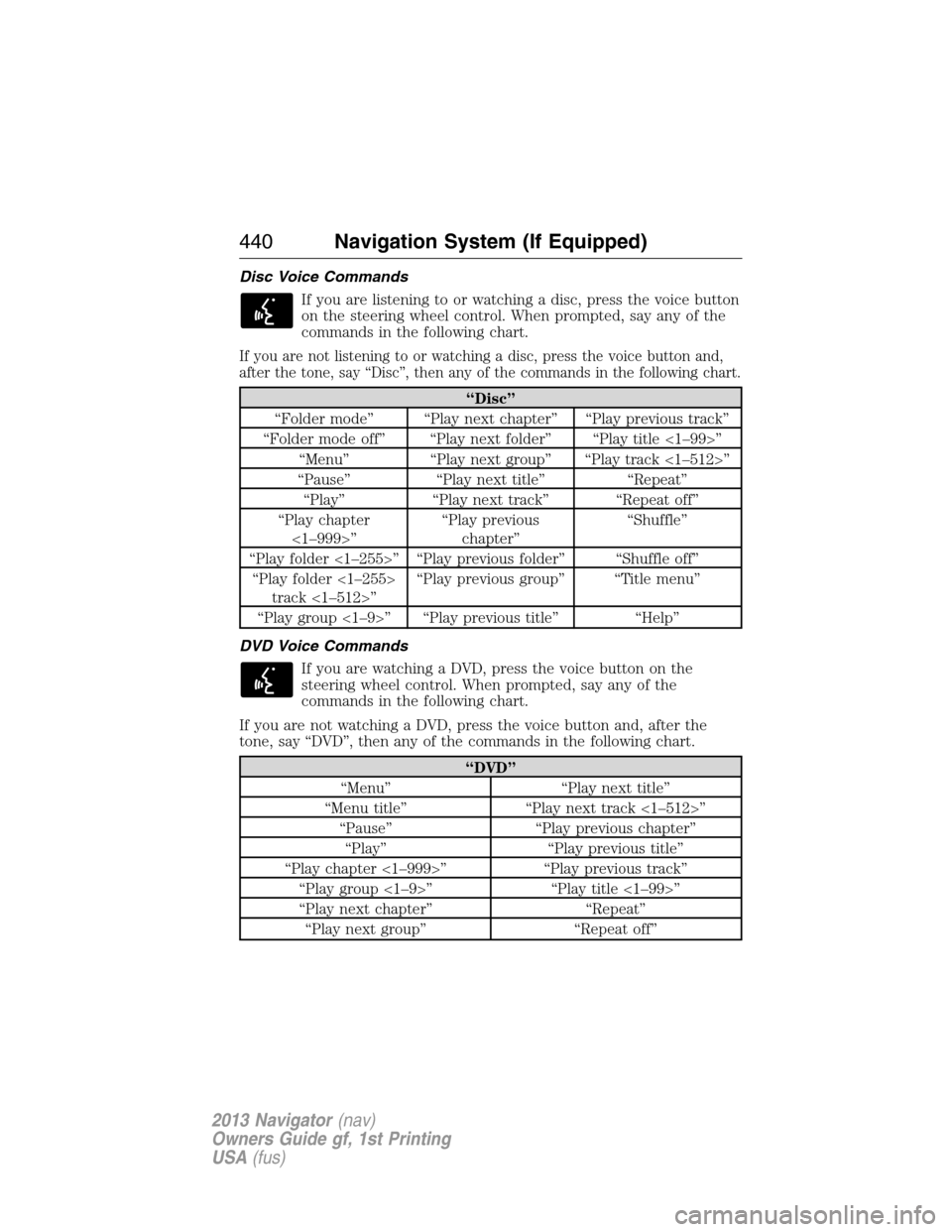

Disc Voice Commands
If you are listening to or watching a disc, press the voice button
on the steering wheel control. When prompted, say any of the
commands in the following chart.
If you are not listening to or watching a disc, press the voice button and,
after the tone, say “Disc”, then any of the commands in the following chart.
“Disc”
“Folder mode” “Play next chapter” “Play previous track”
“Folder mode off” “Play next folder” “Play title <1–99>”
“Menu” “Play next group” “Play track <1–512>”
“Pause” “Play next title” “Repeat”
“Play” “Play next track” “Repeat off”
“Play chapter
<1–999>”“Play previous
chapter”“Shuffle”
“Play folder <1–255>” “Play previous folder” “Shuffle off”
“Play folder <1–255>
track <1–512>”“Play previous group” “Title menu”
“Play group <1–9>” “Play previous title” “Help”
DVD Voice Commands
If you are watching a DVD, press the voice button on the
steering wheel control. When prompted, say any of the
commands in the following chart.
If you are not watching a DVD, press the voice button and, after the
tone, say “DVD”, then any of the commands in the following chart.
“DVD”
“Menu” “Play next title”
“Menu title” “Play next track <1–512>”
“Pause” “Play previous chapter”
“Play” “Play previous title”
“Play chapter <1–999>” “Play previous track”
“Play group <1–9>” “Play title <1–99>”
“Play next chapter” “Repeat”
“Play next group” “Repeat off”
440Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

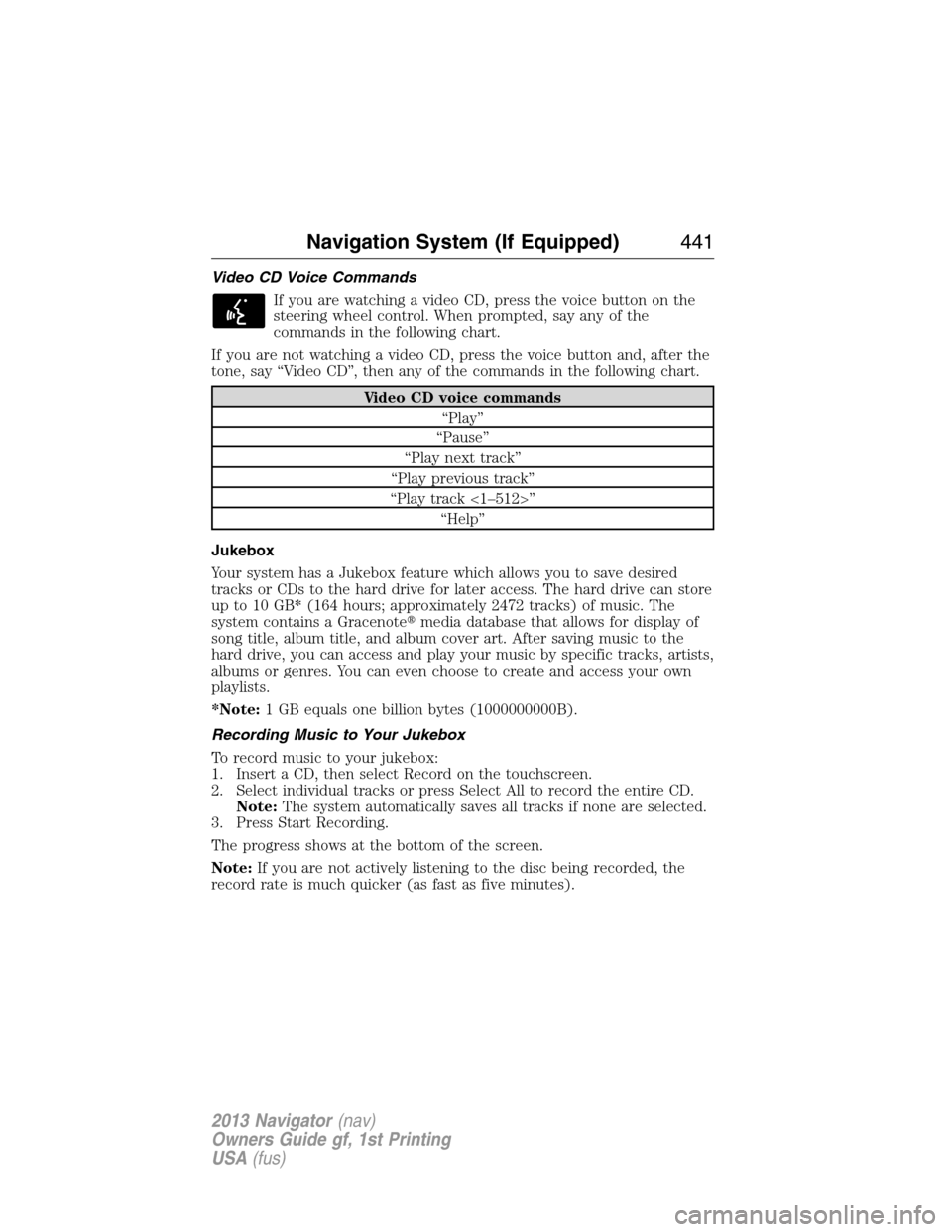

Video CD Voice Commands
If you are watching a video CD, press the voice button on the
steering wheel control. When prompted, say any of the
commands in the following chart.
If you are not watching a video CD, press the voice button and, after the
tone, say “Video CD”, then any of the commands in the following chart.
Video CD voice commands
“Play”
“Pause”
“Play next track”
“Play previous track”
“Play track <1–512>”
“Help”
Jukebox
Your system has a Jukebox feature which allows you to save desired
tracks or CDs to the hard drive for later access. The hard drive can store
up to 10 GB* (164 hours; approximately 2472 tracks) of music. The
system contains a Gracenotemedia database that allows for display of
song title, album title, and album cover art. After saving music to the
hard drive, you can access and play your music by specific tracks, artists,
albums or genres. You can even choose to create and access your own
playlists.
*Note:1 GB equals one billion bytes (1000000000B).
Recording Music to Your Jukebox
To record music to your jukebox:
1. Insert a CD, then select Record on the touchscreen.
2. Select individual tracks or press Select All to record the entire CD.
Note:The system automatically saves all tracks if none are selected.
3. Press Start Recording.
The progress shows at the bottom of the screen.
Note:If you are not actively listening to the disc being recorded, the
record rate is much quicker (as fast as five minutes).
Navigation System (If Equipped)441
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

Accessing the Music in Your Jukebox
Once you have saved music to your jukebox, you can then choose
different ways to play the music.
1. Press the MEDIA hard button on the navigation system.
2. Select the Jukebox tab on the touchscreen. You can then select from
the following options:
When you select: You can:
ScanHear a brief sampling of all listenable tracks.
RepeatHear the selected track continuously.
ShufflePlay the tracks in a random order.
Music libraryAccess all of your saved music. You can choose to
view or play the material in the following ways:
Play All Tracksallows you to play all tracks saved
in the jukebox.
Playlistallows you to play your own playlist.
Play genreallows you to have the system play
only music from a specific genre.
Play artistallows you to have the system play
only music by a specific artist.
Play albumallows you to have the system play
only music from a specific album.
Options Edit Playlistsallows you to edit your playlists.
Edit Music Library Contentsallows you to make
changes to the content in your music library.
Update Album Information from CD Database
allows you to update the residing album
information from the Gracenotedatabase if a
recent software update was performed.
Hard Disk Drive Informationallows you to
access the system’s hard drive disc information,
such as used space, free space and total capacity.
CD Database Informationallows you to access
the CD database information.
442Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

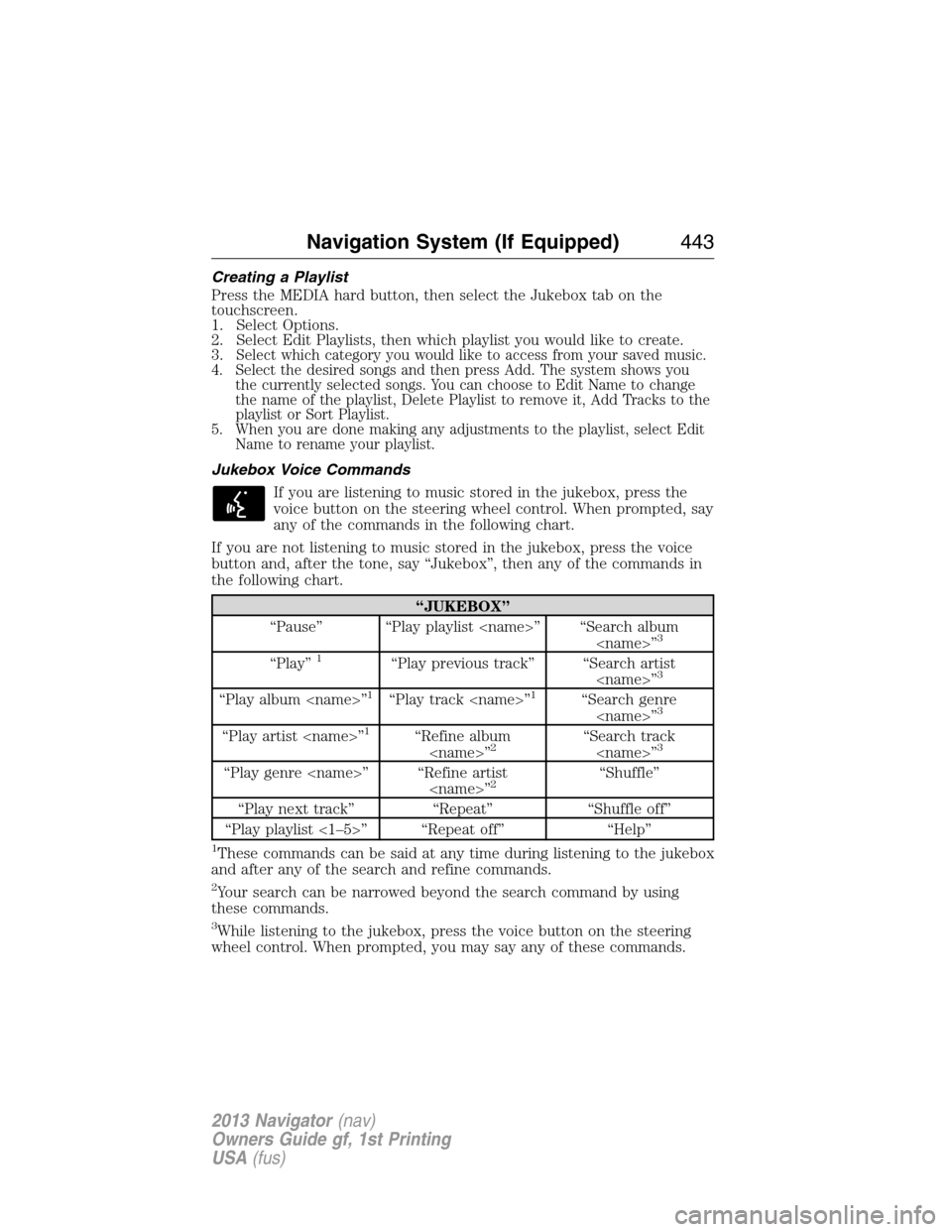

Creating a Playlist
Press the MEDIA hard button, then select the Jukebox tab on the
touchscreen.
1. Select Options.
2. Select Edit Playlists, then which playlist you would like to create.
3.
Select which category you would like to access from your saved music.
4. Select the desired songs and then press Add. The system shows you
the currently selected songs. You can choose to Edit Name to change
the name of the playlist, Delete Playlist to remove it, Add Tracks to the
playlist or Sort Playlist.
5. When you are done making any adjustments to the playlist, select Edit
Name to rename your playlist.
Jukebox Voice Commands
If you are listening to music stored in the jukebox, press the
voice button on the steering wheel control. When prompted, say
any of the commands in the following chart.
If you are not listening to music stored in the jukebox, press the voice
button and, after the tone, say “Jukebox”, then any of the commands in
the following chart.
“JUKEBOX”
“Pause” “Play playlist ” “Search album
”
3
“Play”1“Play previous track” “Search artist
”3
“Play album ”1“Play track ”1“Search genre
”3
“Play artist ”1“Refine album
”2“Search track
”3
“Play genre ” “Refine artist
”2“Shuffle”
“Play next track” “Repeat” “Shuffle off”
“Play playlist <1–5>” “Repeat off” “Help”
1These commands can be said at any time during listening to the jukebox
and after any of the search and refine commands.
2Your search can be narrowed beyond the search command by using
these commands.
3While listening to the jukebox, press the voice button on the steering
wheel control. When prompted, you may say any of these commands.
Navigation System (If Equipped)443
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)

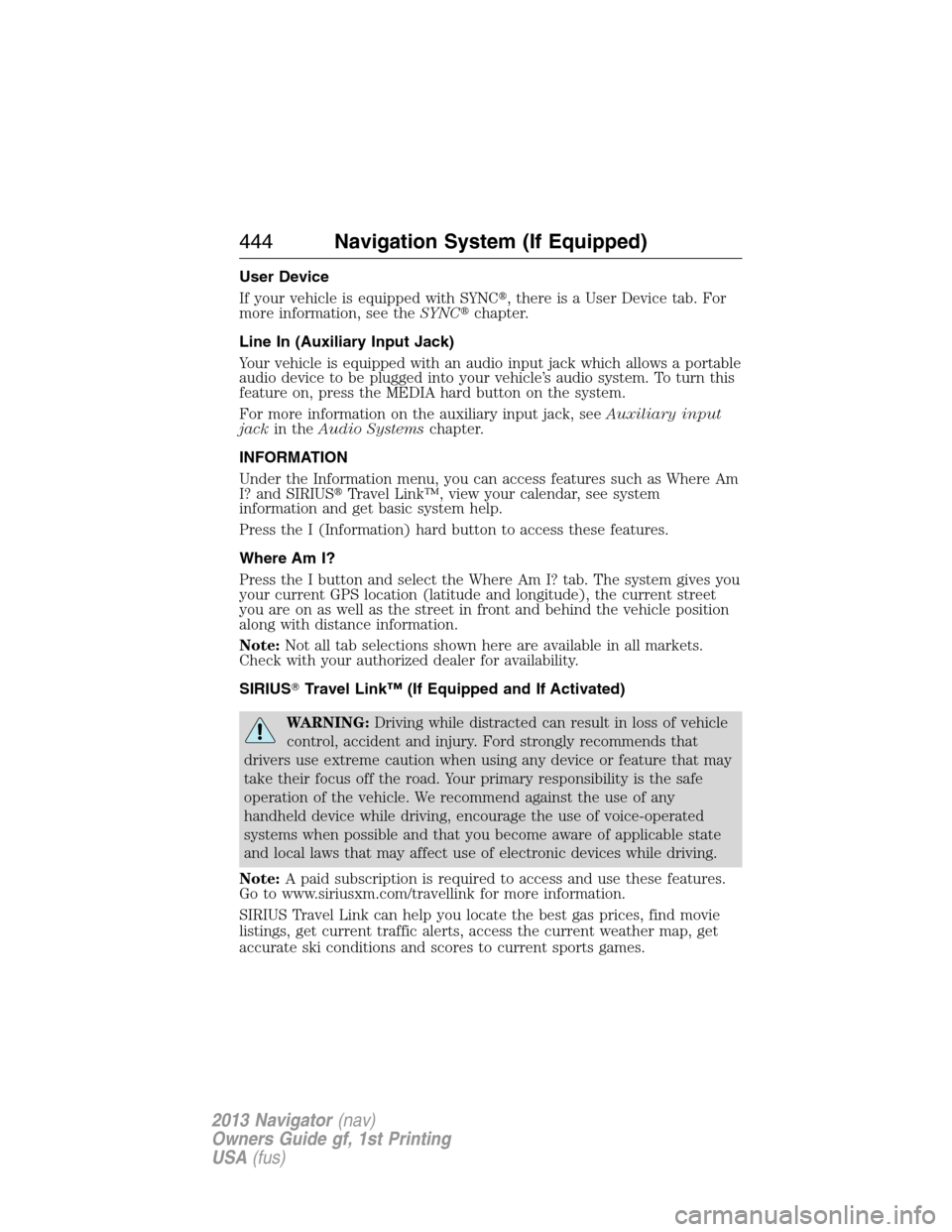

User Device
If your vehicle is equipped with SYNC, there is a User Device tab. For
more information, see theSYNCchapter.
Line In (Auxiliary Input Jack)
Your vehicle is equipped with an audio input jack which allows a portable
audio device to be plugged into your vehicle’s audio system. To turn this
feature on, press the MEDIA hard button on the system.
For more information on the auxiliary input jack, seeAuxiliary input
jackin theAudio Systemschapter.
INFORMATION
Under the Information menu, you can access features such as Where Am
I? and SIRIUSTravel Link™, view your calendar, see system
information and get basic system help.
Press the I (Information) hard button to access these features.
Where Am I?
Press the I button and select the Where Am I? tab. The system gives you
your current GPS location (latitude and longitude), the current street
you are on as well as the street in front and behind the vehicle position
along with distance information.
Note:Not all tab selections shown here are available in all markets.
Check with your authorized dealer for availability.
SIRIUSTravel Link™ (If Equipped and If Activated)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Note:A paid subscription is required to access and use these features.
Go to www.siriusxm.com/travellink for more information.
SIRIUS Travel Link can help you locate the best gas prices, find movie
listings, get current traffic alerts, access the current weather map, get
accurate ski conditions and scores to current sports games.
444Navigation System (If Equipped)
2013 Navigator(nav)
Owners Guide gf, 1st Printing
USA(fus)
