headlamp LINCOLN NAVIGATOR 2016 User Guide

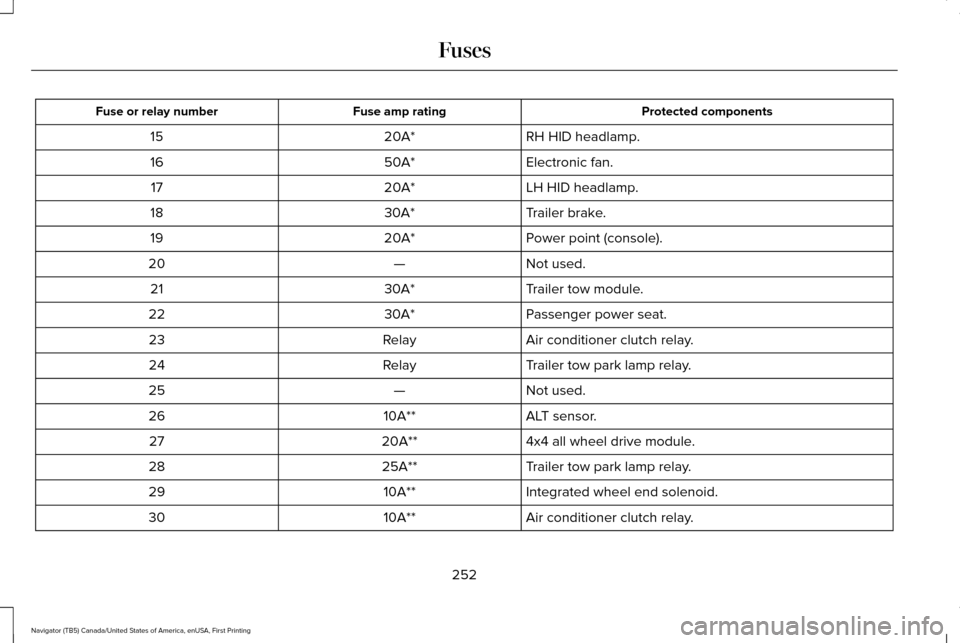

Protected components
Fuse amp rating
Fuse or relay number
RH HID headlamp.
20A*
15
Electronic fan.
50A*
16
LH HID headlamp.
20A*
17
Trailer brake.
30A*
18
Power point (console).
20A*
19
Not used.
—
20
Trailer tow module.
30A*
21
Passenger power seat.
30A*
22
Air conditioner clutch relay.
Relay
23
Trailer tow park lamp relay.
Relay
24
Not used.
—
25
ALT sensor.
10A**
26
4x4 all wheel drive module.
20A**
27
Trailer tow park lamp relay.
25A**
28
Integrated wheel end solenoid.
10A**
29
Air conditioner clutch relay.
10A**
30
252
Navigator (TB5) Canada/United States of America, enUSA, First Printing Fuses

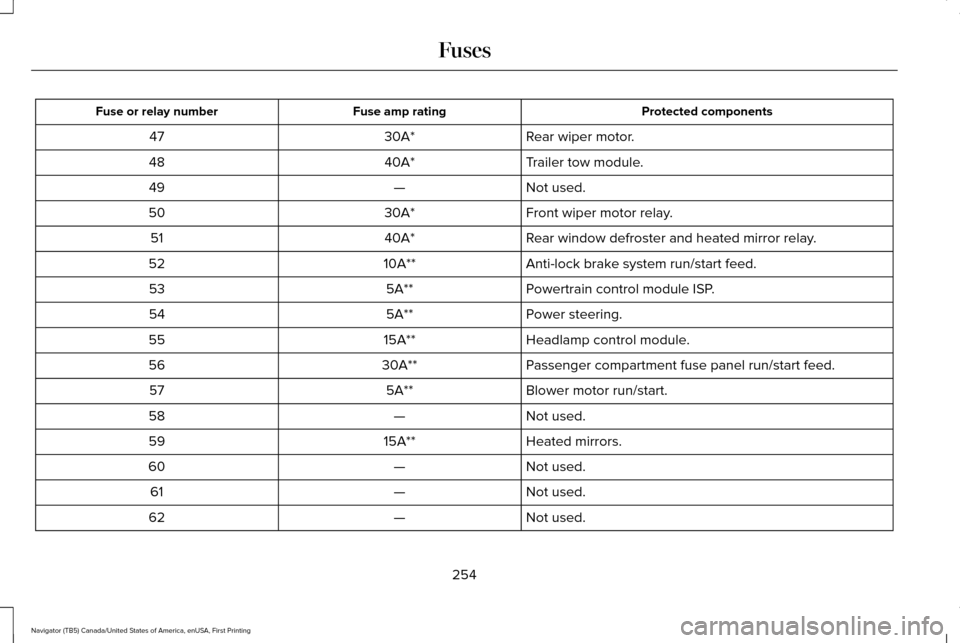

Protected components
Fuse amp rating
Fuse or relay number
Rear wiper motor.
30A*
47
Trailer tow module.
40A*
48
Not used.
—
49
Front wiper motor relay.
30A*
50
Rear window defroster and heated mirror relay.
40A*
51
Anti-lock brake system run/start feed.
10A**
52
Powertrain control module ISP.
5A**
53
Power steering.
5A**
54
Headlamp control module.
15A**
55
Passenger compartment fuse panel run/start feed.
30A**
56
Blower motor run/start.
5A**
57
Not used.
—
58
Heated mirrors.
15A**
59
Not used.
—
60
Not used.
—
61
Not used.
—
62
254
Navigator (TB5) Canada/United States of America, enUSA, First Printing Fuses

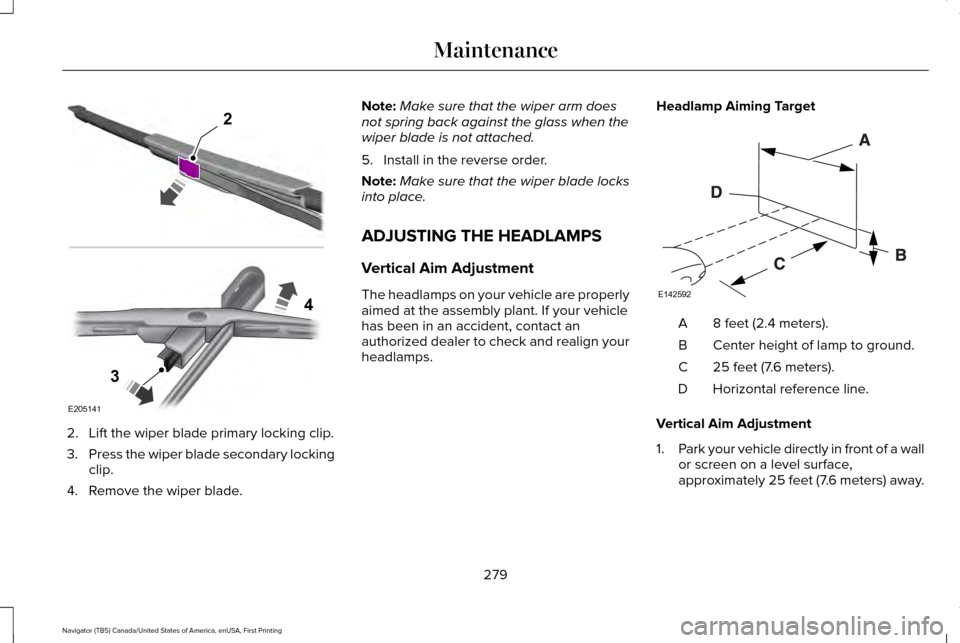

2. Lift the wiper blade primary locking clip.
3.
Press the wiper blade secondary locking
clip.
4. Remove the wiper blade. Note:
Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.
5. Install in the reverse order.
Note: Make sure that the wiper blade locks
into place.
ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
The headlamps on your vehicle are properly
aimed at the assembly plant. If your vehicle
has been in an accident, contact an
authorized dealer to check and realign your
headlamps. Headlamp Aiming Target 8 feet (2.4 meters).
A
Center height of lamp to ground.
B
25 feet (7.6 meters).
C
Horizontal reference line.
D
Vertical Aim Adjustment
1. Park your vehicle directly in front of a wall
or screen on a level surface,
approximately 25 feet (7.6 meters) away.
279
Navigator (TB5) Canada/United States of America, enUSA, First Printing MaintenanceE205141
2
3
4 E142592

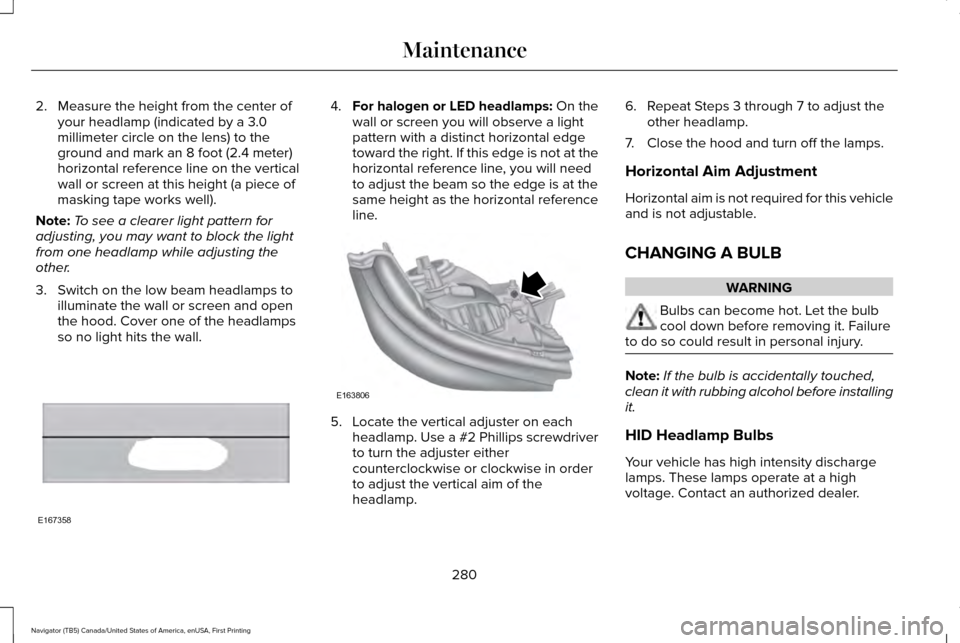

2. Measure the height from the center of
your headlamp (indicated by a 3.0
millimeter circle on the lens) to the
ground and mark an 8 foot (2.4 meter)
horizontal reference line on the vertical
wall or screen at this height (a piece of
masking tape works well).
Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.
3. Switch on the low beam headlamps to illuminate the wall or screen and open
the hood. Cover one of the headlamps
so no light hits the wall. 4.
For halogen or LED headlamps: On the
wall or screen you will observe a light
pattern with a distinct horizontal edge
toward the right. If this edge is not at the
horizontal reference line, you will need
to adjust the beam so the edge is at the
same height as the horizontal reference
line. 5. Locate the vertical adjuster on each
headlamp. Use a #2 Phillips screwdriver
to turn the adjuster either
counterclockwise or clockwise in order
to adjust the vertical aim of the
headlamp. 6. Repeat Steps 3 through 7 to adjust the
other headlamp.
7. Close the hood and turn off the lamps.
Horizontal Aim Adjustment
Horizontal aim is not required for this vehicle
and is not adjustable.
CHANGING A BULB WARNING
Bulbs can become hot. Let the bulb
cool down before removing it. Failure
to do so could result in personal injury. Note:
If the bulb is accidentally touched,
clean it with rubbing alcohol before installing
it.
HID Headlamp Bulbs
Your vehicle has high intensity discharge
lamps. These lamps operate at a high
voltage. Contact an authorized dealer.
280
Navigator (TB5) Canada/United States of America, enUSA, First Printing MaintenanceE167358 E163806

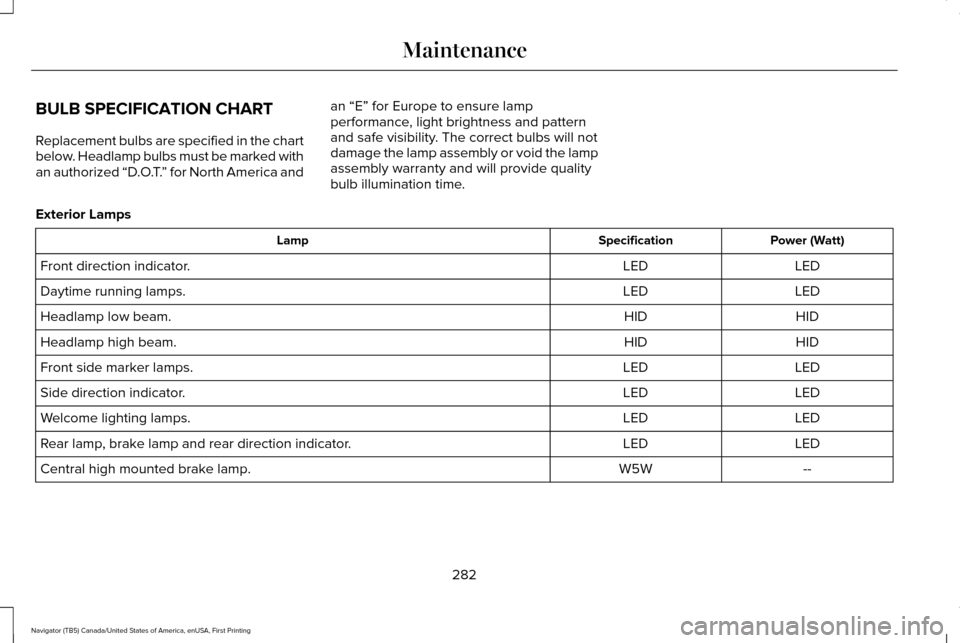

BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart
below. Headlamp bulbs must be marked with
an authorized “D.O.T.
” for North America and an “E” for Europe to ensure lamp
performance, light brightness and pattern
and safe visibility. The correct bulbs will not
damage the lamp assembly or void the lamp
assembly warranty and will provide quality
bulb illumination time.
Exterior Lamps Power (Watt)
Specification
Lamp
LED
LED
Front direction indicator.
LED
LED
Daytime running lamps.
HID
HID
Headlamp low beam.
HID
HID
Headlamp high beam.
LED
LED
Front side marker lamps.
LED
LED
Side direction indicator.
LED
LED
Welcome lighting lamps.
LED
LED
Rear lamp, brake lamp and rear direction indicator.
--
W5W
Central high mounted brake lamp.
282
Navigator (TB5) Canada/United States of America, enUSA, First Printing Maintenance

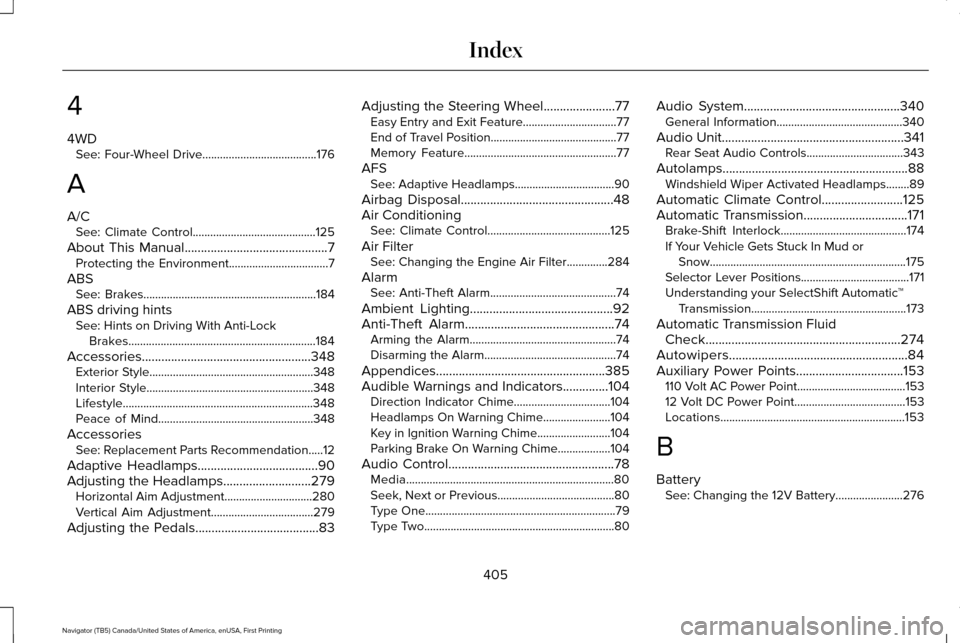

4
4WD
See: Four-Wheel Drive.......................................176
A
A/C See: Climate Control..........................................125
About This Manual............................................7
Protecting the Environment..................................7
ABS See: Brakes...........................................................184
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................184
Accessories....................................................348 Exterior Style........................................................348
Interior Style.........................................................348
Lifestyle.................................................................348
Peace of Mind.....................................................348
Accessories See: Replacement Parts Recommendation.....12
Adaptive Headlamps
.....................................90
Adjusting the Headlamps...........................279 Horizontal Aim Adjustment..............................280
Vertical Aim Adjustment...................................279
Adjusting the Pedals
......................................83 Adjusting the Steering Wheel......................77
Easy Entry and Exit Feature................................77
End of Travel Position...........................................77
Memory Feature....................................................77
AFS See: Adaptive Headlamps..................................90
Airbag Disposal...............................................48
Air Conditioning See: Climate Control..........................................125
Air Filter See: Changing the Engine Air Filter..............284
Alarm See: Anti-Theft Alarm...........................................74
Ambient Lighting
............................................92
Anti-Theft Alarm..............................................74 Arming the Alarm..................................................74
Disarming the Alarm.............................................74
Appendices....................................................385
Audible Warnings and Indicators
..............104
Direction Indicator Chime.................................104
Headlamps On Warning Chime.......................104
Key in Ignition Warning Chime.........................104
Parking Brake On Warning Chime..................104
Audio Control
...................................................78
Media.......................................................................80
Seek, Next or Previous........................................80
Type One.................................................................79
Type Two.................................................................80 Audio System................................................340
General Information...........................................340
Audio Unit........................................................341 Rear Seat Audio Controls.................................343
Autolamps.........................................................88 Windshield Wiper Activated Headlamps........89
Automatic Climate Control
.........................125
Automatic Transmission................................171 Brake-Shift Interlock...........................................174
If Your Vehicle Gets Stuck In Mud or
Snow...................................................................175
Selector Lever Positions.....................................171
Understanding your SelectShift Automatic ™
Transmission.....................................................173
Automatic Transmission Fluid Check............................................................274
Autowipers.......................................................84
Auxiliary Power Points.................................153 110 Volt AC Power Point.....................................153
12 Volt DC Power Point......................................153
Locations...............................................................153
B
Battery See: Changing the 12V Battery.......................276
405
Navigator (TB5) Canada/United States of America, enUSA, First Printing Index

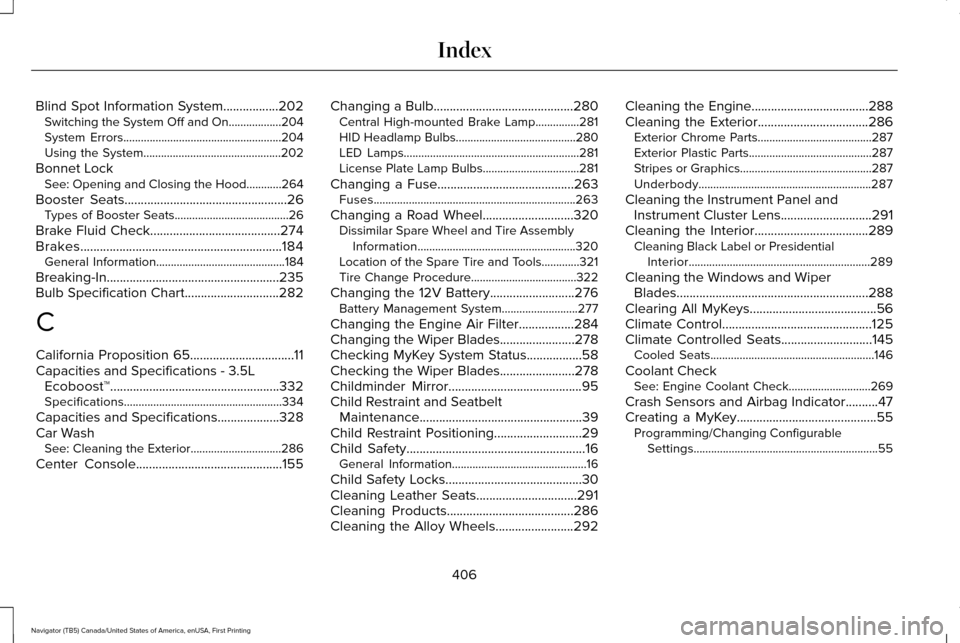

Blind Spot Information System.................202
Switching the System Off and On..................204
System Errors......................................................204
Using the System...............................................202
Bonnet Lock See: Opening and Closing the Hood............264
Booster Seats..................................................26
Types of Booster Seats.......................................26
Brake Fluid Check........................................274
Brakes..............................................................184 General Information............................................184
Breaking-In.....................................................235
Bulb Specification Chart
.............................282
C
California Proposition 65................................11
Capacities and Specifications - 3.5L Ecoboost™....................................................332
Specifications......................................................334
Capacities and Specifications...................328
Car Wash See: Cleaning the Exterior...............................286
Center Console.............................................155 Changing a Bulb...........................................280
Central High-mounted Brake Lamp...............
281
HID Headlamp Bulbs.........................................280
LED Lamps............................................................281
License Plate Lamp Bulbs.................................281
Changing a Fuse..........................................263 Fuses.....................................................................263
Changing a Road Wheel............................320 Dissimilar Spare Wheel and Tire Assembly
Information......................................................320
Location of the Spare Tire and Tools.............321
Tire Change Procedure....................................
322
Changing the 12V Battery..........................276 Battery Management System..........................277
Changing the Engine Air Filter.................284
Changing the Wiper Blades.......................278
Checking MyKey System Status.................58
Checking the Wiper Blades.......................278
Childminder Mirror
.........................................95
Child Restraint and Seatbelt Maintenance..................................................39
Child Restraint Positioning
...........................29
Child Safety.......................................................16
General Information..............................................16
Child Safety Locks..........................................30
Cleaning Leather Seats...............................291
Cleaning Products.......................................286
Cleaning the Alloy Wheels........................292 Cleaning the Engine....................................288
Cleaning the Exterior..................................286
Exterior Chrome Parts.......................................287
Exterior Plastic Parts..........................................287
Stripes or Graphics.............................................287
Underbody...........................................................287
Cleaning the Instrument Panel and Instrument Cluster Lens............................291
Cleaning the Interior...................................289 Cleaning Black Label or Presidential
Interior..............................................................289
Cleaning the Windows and Wiper Blades...........................................................288
Clearing All MyKeys.......................................56
Climate Control
..............................................125
Climate Controlled Seats............................145
Cooled Seats........................................................146
Coolant Check See: Engine Coolant Check............................269
Crash Sensors and Airbag Indicator..........47
Creating a MyKey...........................................55 Programming/Changing Configurable
Settings...............................................................55
406
Navigator (TB5) Canada/United States of America, enUSA, First Printing Index

Event Data Recording
See: Data Recording..............................................9
Export Unique Options...................................14
Extended Service Plan (ESP).....................350 SERVICE PLANS (CANADA ONLY)..................351
SERVICE PLANS (U.S. Only)............................350
Exterior Mirrors................................................94
Auto-Dimming Feature........................................95
Blind Spot Monitor................................................95
Fold-Away Exterior Mirrors.................................94
Heated Exterior Mirrors.......................................
95
Memory Mirrors.....................................................95
Power Exterior Mirrors.........................................94
Power-Folding Mirrors.........................................94
Signal Indicator Mirrors.......................................95
F
Fastening the Seatbelts
................................33
Safety Belt Extension Assembly.......................35
Safety Belt Locking Modes.................................34
Using Safety Belts During Pregnancy.............33
Floor Mats
......................................................236
Foot Pedals See: Adjusting the Pedals...................................83
Four-Wheel Drive..........................................176
Front Parking Aid..........................................196
Fuel and Refueling........................................162 Fuel Consumption
.........................................167
Calculating Fuel Economy................................167
Filling the Tank.....................................................167
Fuel Filler Funnel Location.........................164
Fuel Filter........................................................276
Fuel Quality
.....................................................163
Choosing the Right Fuel....................................163
Fuel Shutoff
...................................................239
Fuses...............................................................250
Fuse Specification Chart............................250 Passenger Compartment Fuse Panel...........256
Power Distribution Box.....................................250
G
Garage Door Opener See: Universal Garage Door Opener.............
148
Gauges..............................................................99
General Information on Radio Frequencies...................................................49
Intelligent Access..................................................49
General Maintenance Information...........353 Multi-Point Inspection........................................356
Owner Checks and Services...........................355
Protecting Your Investment.............................353
Why Maintain Your Vehicle?............................353
Why Maintain Your Vehicle at Your
Dealership?......................................................353 Getting Assistance Outside the U.S. and
Canada.........................................................246
Getting the Services You Need................243 Away From Home...............................................243
H
Handbrake See: Parking Brake.............................................185
Hazard Warning Flashers...........................239
HDC See: Using Hill Descent Control......................193
Headlamp Adjusting See: Adjusting the Headlamps.......................279
Head Restraints.............................................132 Adjusting the Head Restraint...........................133
Heated Seats..................................................144
Front Seats............................................................144
Rear Seats.............................................................144
Heated Steering Wheel
................................82
Heated Windows and Mirrors....................130 Heated Exterior Mirror.......................................130
Heated Rear Window.........................................130
Heating See: Climate Control..........................................125
Hill Start Assist...............................................185 Switching the System On and Off...................186
Using Hill Start Assist.........................................186
408
Navigator (TB5) Canada/United States of America, enUSA, First Printing Index

K
Keyless Entry....................................................70
SECURICODE™ KEYLESS ENTRY
KEYPAD...............................................................70
Unlocking and Locking the Doors.....................71
Keyless Starting.............................................156 Ignition Modes.....................................................156
Keys and Remote Controls...........................49
L
Lighting Control
...............................................87
Headlamp Flasher................................................88
High Beams............................................................88
Lighting
..............................................................87
General Information..............................................87
Limited Slip Differential
................................183
Lincoln Automotive Financial Services.......11
Load Carriers See: Roof Racks and Load Carriers................213
Load Carrying.................................................212
Load Limit
........................................................214
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles.............................................................221
Vehicle Loading - with and without a Trailer.................................................................214 Locking and Unlocking
.................................63
Activating Intelligent Access..............................64
Autolock..................................................................65
Auto Relock............................................................65
Autounlock.............................................................65
Battery Saver.........................................................66
Illuminated Entry...................................................66
Illuminated Exit......................................................66
Power Door Locks................................................63
Remote Control.....................................................63
Smart Unlocks for Intelligent Access
Keys.....................................................................64
Locks..................................................................63
Lug Nuts See: Changing a Road Wheel.........................320
M
Maintenance..................................................264 General Information...........................................264
Media Hub
......................................................347
Memory Function..........................................135
Easy Entry and Exit Feature..............................137
Saving a PreSet Position...................................136
Message Center See: Information Displays.................................105 Mirrors
See: Heated Windows and Mirrors.................130
See: Windows and Mirrors.................................93
Mobile Communications Equipment...........13
Moonroof...........................................................97 Bounce-Back..........................................................98
Opening and Closing the Moonroof................97
Venting the Moonroof.........................................98
Motorcraft Parts
............................................329
MyKey Troubleshooting................................60
MyKey™..............................................................54 Principle of Operation..........................................54
N
Normal Scheduled Maintenance..............357 Intelligent Oil-Life Monitor................................
357
Normal Maintenance Intervals........................359
O
Oil Change Indicator Reset.......................269
Oil Check See: Engine Oil Check......................................268
Opening and Closing the Hood
...............264
Ordering Additional Owner's Literature
.....................................................248
Obtaining a French Owner’ s Manual............248
410
Navigator (TB5) Canada/United States of America, enUSA, First Printing Index
