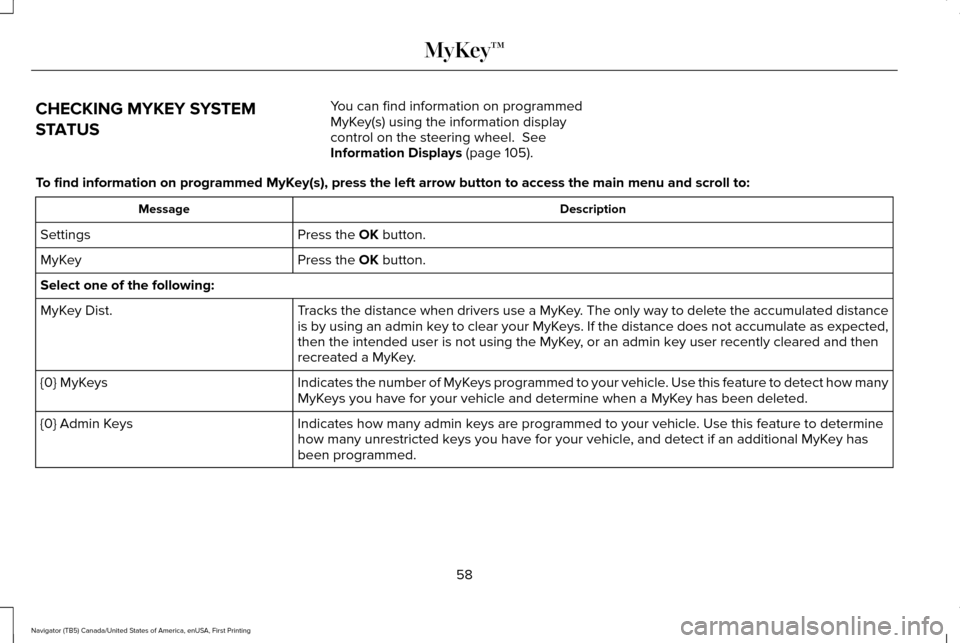

CHECKING MYKEY SYSTEM
STATUS
You can find information on programmed
MyKey(s) using the information display
control on the steering wheel. See
Information Displays (page 105).
To find information on programmed MyKey(s), press the left arrow button to access the main menu and scroll \
to: Description
Message
Press the
OK button.
Settings
Press the
OK button.
MyKey
Select one of the following:
Tracks the distance when drivers use a MyKey. The only way to delete the accumulated distance
is by using an admin key to clear your MyKeys. If the distance does not accumulate as expected,
then the intended user is not using the MyKey, or an admin key user recently cleared and then
recreated a MyKey.
MyKey Dist.
Indicates the number of MyKeys programmed to your vehicle. Use this feature to detect how many
MyKeys you have for your vehicle and determine when a MyKey has been deleted.
{0} MyKeys
Indicates how many admin keys are programmed to your vehicle. Use this feature to determine
how many unrestricted keys you have for your vehicle, and detect if an additional MyKey has
been programmed.
{0} Admin Keys
58
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™

USING MYKEY WITH REMOTE
START SYSTEMS
Vehicles With Ford-Approved
Aftermarket Remote Start Systems
When using a Ford-approved aftermarket
remote start system, the vehicle recognizes
the remote start system transmitter as an
additional admin key. It is the vehicle
’s
default setting.
When you start your vehicle with a
Ford-approved aftermarket remote start
system transmitter, the system shuts the
vehicle off after you open the door or shift
your vehicle into gear. This is intentional.
When you restart your vehicle, it reads the
vehicle key fob status instead of the remote
start system transmitter status. With a Ford-approved aftermarket remote
start system, it is possible to program all key
fobs as MyKeys unintentionally. If this
happens, then the remote start system
transmitter is the admin key. If you want to
have only one key fob as a MyKey, or do not
want to have any MyKeys, then you need to
use your remote start system transmitter to
clear all MyKeys. In that case, follow these
steps:
1. Enter your vehicle and close all doors.
2.
Start your vehicle using your remote start
system transmitter.
3. See Clearing All MyKeys (page 56).
Follow Steps 1-3.
After clearing your MyKeys, you can create
a new MyKey. See Creating a MyKey (page
55
).
Note: With push-button start, you cannot
program the remote start system transmitter
as a MyKey. Always treat the remote start
system transmitter as you would any other
admin key. Vehicles With Non-Ford-Approved
Aftermarket Remote Start Systems
MyKey is not compatible with
non-Ford-approved aftermarket remote start
systems. If you choose to install a remote
start system, see an authorized dealer for a
Ford-approved remote start system.
The following information may help if you
choose to install a non-Ford-approved
remote start system. The actions provided
below do not make MyKey compatible with
non-Ford-approved remote start systems,
but may help you retain some MyKey
functions.
When using a non-Ford-approved remote
start system, the vehicle may recognize the
remote start system as an additional admin
key with its associated privileges. If you
restart the vehicle by powering it off and
waiting a few seconds, and then powering
the vehicle back on, you may retain some
MyKey functions. This action forces your
vehicle to read the vehicle key fob instead
of the remote start system transmitter and
then uses the MyKey associated privileges.
59
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™

Note:
The MyKey system status menu
display may include the remote start system
as an additional key in the total count of
programmed keys. See Checking MyKey
System Status (page 58). With a non-Ford-approved aftermarket
remote start system, it is possible to program
all key vehicle key fobs as MyKeys
unintentionally. If this happens, then the
remote start system transmitter is the admin
key. If you want to have only one vehicle key
fob as a MyKey, or do not want to have any
MyKeys, then you need to use your remote
start system transmitter to clear all MyKeys.
In that case, follow these steps:
1. Enter your vehicle and close all doors. 2. Start your vehicle using your
non-Ford-approved remote start system
transmitter.
3. See Clearing All MyKeys (page 56).
Follow Steps 1-3.
After clearing your MyKeys, you can create
a new MyKey. See Creating a MyKey (page
55
).
Note: With push-button start, you cannot
program the remote start system transmitter
as a MyKey. Always treat the remote start
system transmitter as you would any other
admin key.
MYKEY TROUBLESHOOTING Potential Causes
Condition
The transmitter used to start the vehicle is not an admin key.
I cannot create a MyKey.
The transmitter used to start the vehicle is the only admin key. There always has to be at least one
admin key.
The transmitter is not in its backup position.
See Starting a Gasoline Engine (page 157).
The passive anti-theft system is disabled or in unlimited mode.
60
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™

Potential Causes
Condition
The vehicle has been started using a remote start system transmitter tha\
t is not an admin key. See
Using MyKey With Remote Start Systems (page 59).
The transmitter used to start your vehicle is not an admin key.
I cannot program the configurable
settings. There are no MyKeys programmed to your vehicle.
See Creating a MyKey (page 55).
The vehicle has been started using a remote start system transmitter tha\
t is not an admin key. See
Using MyKey With Remote Start Systems
(page 59).
The transmitter used to start your vehicle is not an admin key.
I cannot clear the MyKeys.
There are no MyKeys programmed to your vehicle.
See Creating a MyKey (page 55).
The vehicle has been started using a remote start system transmitter tha\
t is not an admin key. See
Using MyKey With Remote Start Systems
(page 59).
Purchase a new transmitter from an authorized dealer.
I lost the only admin key.
Program a spare transmitter.
See Passive Anti-Theft System (page 73).
I lost a key.
The vehicle has a remote start system transmitter that is recognized as \
an admin key. Clear all
MyKeys by using the remote start transmitter. See Using MyKey With Remote Start Systems
(page
59).
I accidentally programmed all keys as
MyKeys.
The vehicle's system does not recognize any programmed MyKeys. See Creating a MyKey (page
55).
An unknown transmitter has been created as a MyKey.
MyKey total includes one additional
key. The vehicle has a remote start system.
See Using MyKey With Remote Start Systems (page 59).
An unknown transmitter has been programmed to the vehicle as an admin key.
Admin key total includes one additional
key.
61
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™

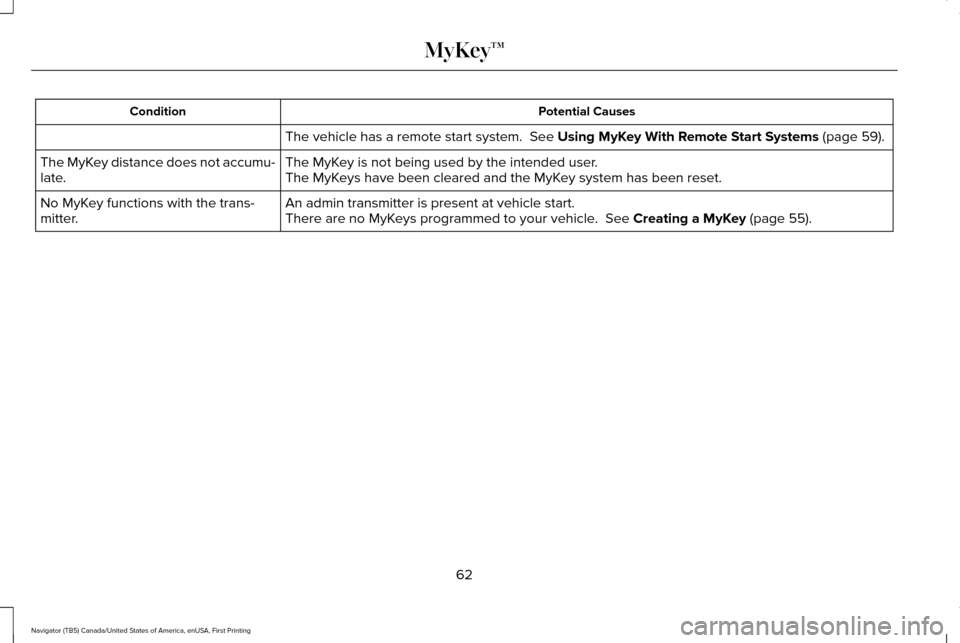

Potential Causes
Condition
The vehicle has a remote start system. See Using MyKey With Remote Start Systems (page 59).
The MyKey is not being used by the intended user.
The MyKey distance does not accumu-
late. The MyKeys have been cleared and the MyKey system has been reset.
An admin transmitter is present at vehicle start.
No MyKey functions with the trans-
mitter. There are no MyKeys programmed to your vehicle.
See Creating a MyKey (page 55).
62
Navigator (TB5) Canada/United States of America, enUSA, First Printing MyKey™

LOCKING AND UNLOCKING
You can use the power door lock control or
the remote control to lock and unlock your
vehicle.
Power Door Locks
The power door lock control is on the driver
and front passenger door panels.
Unlock.
A
Lock.B Door Lock Switch Inhibitor
When you electronically lock your vehicle,
the power door lock switch no longer
operates after 20 seconds. You must unlock
your vehicle with the remote control or
keyless keypad, or switch the ignition on, to
restore function to these switches. You can
switch this feature on or off in the information
display. See Information Displays (page 105).
Rear Door Unlocking and Opening
Pull the interior door handle twice to unlock
and open a rear door. The first pull unlocks
the door and the second pull opens the door.
Remote Control
You can use the remote control at any time.
The liftgate release button only operates
when your vehicle's speed is less than 5 mph
(8 km/h).
Unlocking the Doors (Two-Stage Unlock) Press the button to unlock the
driver door.Press the button again within three seconds
to unlock all doors. The direction indicators
will flash.
Note:
If the system does not function, use
the key blade to lock and unlock your
vehicle.
Press and hold both the lock and unlock
buttons on the remote control for three
seconds to change between driver door or
all doors unlock mode. The direction
indicators flash twice to indicate a change
to the unlocking mode. Driver door unlock
mode only unlocks the driver door when you
press the unlock button once. All door unlock
mode unlocks all doors when you press the
unlock button once. The unlocking mode
applies to the remote control, keyless entry
keypad and intelligent access. You can also
change between the unlocking modes using
the information display. See Information
Displays (page 105).
Reprogramming the Unlocking Function
Note: When you press the unlock button,
either all the doors are unlocked or only the
driver door is unlocked. Pressing the unlock
button again unlocks all the doors.
63
Navigator (TB5) Canada/United States of America, enUSA, First Printing LocksABE163049 E138629

Press and hold the unlock and lock buttons
on the remote control simultaneously for at
least four seconds with the ignition off. The
direction indicators flash twice to confirm the
change.
To return to the original unlocking function,
repeat the process.
Locking the Doors
Press the button to lock all doors.
The direction indicators will flash.
Press the button again within three seconds
to confirm that all the doors are closed. The
doors will lock again, the horn will sound and
the direction indicators will flash if all the
doors and the liftgate are closed.
Note: If the system does not function, use
the key blade to lock and unlock your
vehicle. Mislock
If any door or the liftgate is open, or if the
hood is open on vehicles with an anti-theft
alarm or remote start, the horn sounds twice
and the direction indicators do not flash. You
can switch this feature on or off in the
information display. See Information
Displays (page 105).
Opening the Liftgate Press twice within three seconds
to open the liftgate.
Activating Intelligent Access
The intelligent access key must be within 3 ft
(1 m)
of the driver door or liftgate.
At a Door
You can use the keyless entry keypad to lock
and unlock the doors.
See Keyless Entry
(page 70). At the Liftgate
The liftgate unlocks and opens automatically
when you press the liftgate release button.
See
Power Liftgate (page 66).
Smart Unlocks for Intelligent Access
Keys
This helps to prevent you from locking your
key inside the passenger compartment or
rear cargo area.
When you electronically lock your vehicle
with any door open, the transmission is in
park (P) and the ignition is off, the system
searches for an intelligent access key inside
your vehicle after you close the last door. If
the system finds a key, all of the doors will
immediately unlock and the horn will sound
twice, indicating that a key is inside.
You can override the smart unlock feature
and intentionally lock the intelligent access
key inside your vehicle.
64
Navigator (TB5) Canada/United States of America, enUSA, First Printing LocksE138623 E138630

To do this, lock your vehicle after you have
closed all the doors by:
•
Using the keyless entry keypad.
• Pressing the lock button on another
intelligent access key.
When you open one of the front doors and
lock your vehicle using the power door lock
control, all doors will lock then unlock if:
• The ignition is on.
• The ignition is off and the transmission
is not in park (P).
Auto Relock
If you press the unlock button on the remote
control and do not open a door within 45
seconds, your vehicle will lock and the alarm
will arm. You can switch this feature on or off
in the information display. See Information
Displays (page 105).
Autolock
Autolock locks all the doors when all of the
following occur:
• All doors are closed.
• The ignition is on. •
You shift into any gear putting your
vehicle in motion.
• Your vehicle's speed is greater than
12 mph (20 km/h)
.
Autolock repeats when:
• You open then close any door while the
ignition is on and your vehicle's speed is
less than
9 mph (15 km/h).
• Your vehicle's speed is greater than
12 mph (20 km/h)
.
Enabling or Disabling
To enable or disable the autolock feature,
contact an authorized dealer. Autounlock
Autounlock unlocks all the doors when all of
the following occur:
•
The ignition is on, all the doors are
closed, and your vehicle has been
moving at a speed greater than
12 mph
(20 km/h).
• You stop your vehicle and switch the
ignition off or to accessory.
• You open the driver door within 10
minutes of switching the ignition off or to
accessory.
Note: The doors do not autounlock if you
electronically lock your vehicle after you
switch the ignition off and before you open
the driver door.
Enabling or Disabling
You can enable or disable the autounlock
feature in the information display or an
authorized dealer can do it for you.
See
General Information (page 105).
65
Navigator (TB5) Canada/United States of America, enUSA, First Printing Locks

Illuminated Entry
The interior lamps and some exterior lamps
illuminate when you unlock the doors with
the remote control.
The lamps turn off if:
•
The ignition is on.
• You press the remote control lock button.
• 25 seconds have elapsed.
The lamps do not turn off if:
• You turn them on with the lamp control.
• Any door is open.
Illuminated Exit
The interior lamps and some exterior lamps
illuminate when all doors are closed and you
switch the ignition off.
The lamps will turn off if all the doors remain
closed and:
• 25 seconds have elapsed.
• You press the push button ignition
switch. Battery Saver
If you leave the courtesy lamps, interior
lamps or headlamps on, the battery saver
shuts them off 10 minutes after you switch
the ignition off.
Battery Saver for Intelligent Access Keys
If you leave the ignition switched on, it shuts
off when it detects a certain amount of
battery drain, or after 45 minutes.
POWER LIFTGATE
WARNINGS
It is extremely dangerous to ride in a
cargo area, inside or outside of a
vehicle. In a crash, people riding in these
areas are more likely to be seriously injured
or killed. Do not allow people to ride in any
area of your vehicle that is not equipped with
seats and safety belts. Make sure everyone
in your vehicle is in a seat and properly using
a safety belt. Failure to follow this warning
could result in serious personal injury or
death. WARNINGS
Make sure to close and latch the
liftgate to prevent drawing exhaust
fumes into your vehicle. This will also prevent
passengers and cargo from falling out. If you
must drive with the liftgate open, keep the
vents or windows open so outside air comes
into your vehicle. Failure to follow this
warning could result in serious personal
injury. Keep keys out of reach of children. Do
not allow children to operate or play
near an open or moving power liftgate. You
should supervise the operation of the power
liftgate at all times. Note:
Make sure that you close the liftgate
before operating or moving your vehicle,
especially in an enclosure, like a garage or
a parking structure. This could damage the
liftgate and its components.
Note: Do not hang anything, for example a
bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.
66
Navigator (TB5) Canada/United States of America, enUSA, First Printing Locks

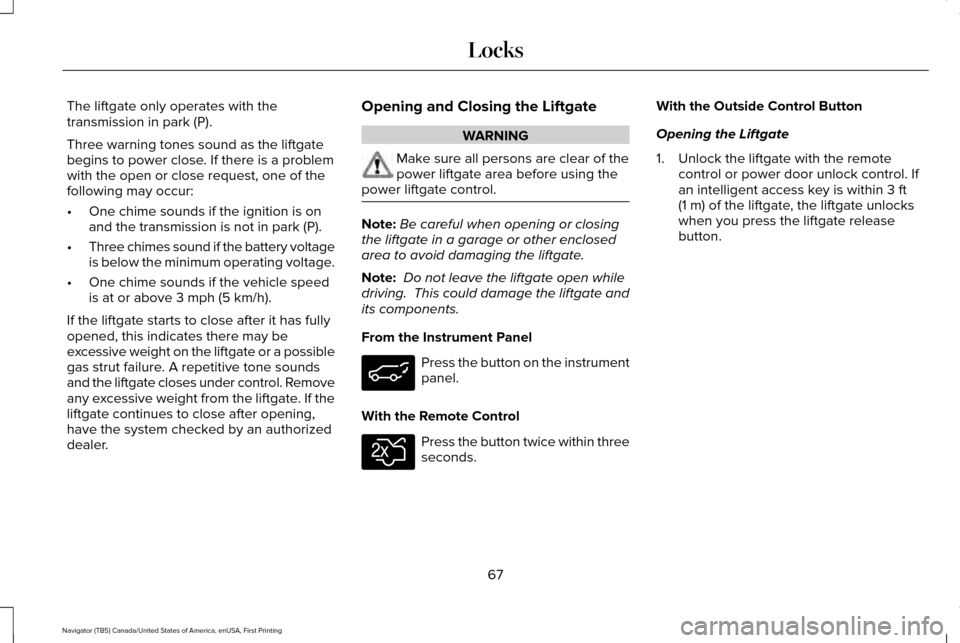

The liftgate only operates with the
transmission in park (P).
Three warning tones sound as the liftgate
begins to power close. If there is a problem
with the open or close request, one of the
following may occur:
•
One chime sounds if the ignition is on
and the transmission is not in park (P).
• Three chimes sound if the battery voltage
is below the minimum operating voltage.
• One chime sounds if the vehicle speed
is at or above 3 mph (5 km/h).
If the liftgate starts to close after it has fully
opened, this indicates there may be
excessive weight on the liftgate or a possible
gas strut failure. A repetitive tone sounds
and the liftgate closes under control. Remove
any excessive weight from the liftgate. If the
liftgate continues to close after opening,
have the system checked by an authorized
dealer. Opening and Closing the Liftgate WARNING
Make sure all persons are clear of the
power liftgate area before using the
power liftgate control. Note:
Be careful when opening or closing
the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.
Note: Do not leave the liftgate open while
driving. This could damage the liftgate and
its components.
From the Instrument Panel Press the button on the instrument
panel.
With the Remote Control Press the button twice within three
seconds.With the Outside Control Button
Opening the Liftgate
1. Unlock the liftgate with the remote
control or power door unlock control. If
an intelligent access key is within
3 ft
(1 m) of the liftgate, the liftgate unlocks
when you press the liftgate release
button.
67
Navigator (TB5) Canada/United States of America, enUSA, First Printing Locks E138630
