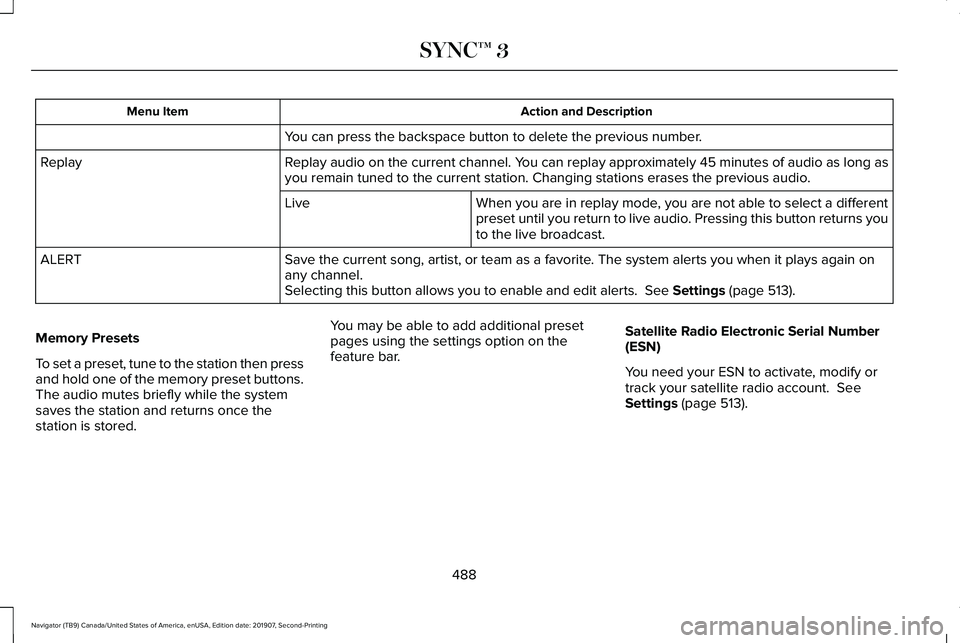

Action and Description
Menu Item
You can press the backspace button to delete the previous number.
Replay audio on the current channel. You can replay approximately 45 minutes of audio as long as
you remain tuned to the current station. Changing stations erases the pr\
evious audio.
Replay
When you are in replay mode, you are not able to select a different
preset until you return to live audio. Pressing this button returns you
to the live broadcast.
Live
Save the current song, artist, or team as a favorite. The system alerts you when it plays again on
any channel.
ALERT
Selecting this button allows you to enable and edit alerts. See Settings (page 513).
Memory Presets
To set a preset, tune to the station then press
and hold one of the memory preset buttons.
The audio mutes briefly while the system
saves the station and returns once the
station is stored. You may be able to add additional preset
pages using the settings option on the
feature bar.
Satellite Radio Electronic Serial Number
(ESN)
You need your ESN to activate, modify or
track your satellite radio account.
See
Settings (page 513).
488
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing SYNC™ 3

SiriusXM Satellite Radio Reception Factors and Troubleshooting
Potential Reception Issues
For optimal reception performance, keep the antenna clear of snow and ice build-up and keep
luggage and other materials as far away from the antenna as possible.
Antenna obstructions
Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, \
parking garages, dense tree
foliage and thunderstorms can interfere with your reception.
Terrain
When you pass a ground-based broadcast-repeating tower, a stronger signal may overtake a
weaker one and the audio system may mute.
Station overload
Your display may show ACQUIRING... to indicate the interference and the a\
udio system may mute.
Satellite radio signal interference Troubleshooting Tips
Action
Cause
Message
No action required. This message should disap-
pear shortly.
Radio requires more than two seconds to produce
audio for the selected channel.
Acquiring Signal
If this message does not clear shortly, or with an
ignition key cycle, your receiver may have a fault.
See an authorized dealer for service.
There is an internal module or system failure
present.
Satellite antenna fault
SIRIUS system failure
Tune to another channel or choose another preset.
The channel is no longer available.
Invalid Channel
489
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing SYNC™ 3

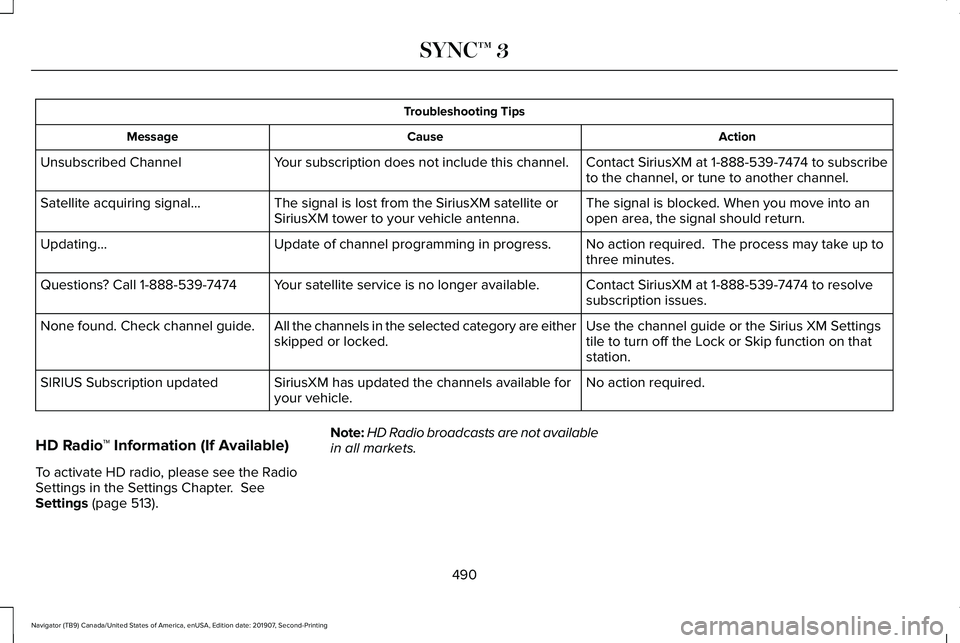

Troubleshooting Tips
Action
Cause
Message
Contact SiriusXM at 1-888-539-7474 to subscribe
to the channel, or tune to another channel.
Your subscription does not include this channel.
Unsubscribed Channel
The signal is blocked. When you move into an
open area, the signal should return.
The signal is lost from the SiriusXM satellite or
SiriusXM tower to your vehicle antenna.
Satellite acquiring signal…
No action required. The process may take up to
three minutes.
Update of channel programming in progress.
Updating…
Contact SiriusXM at 1-888-539-7474 to resolve
subscription issues.
Your satellite service is no longer available.
Questions? Call 1-888-539-7474
Use the channel guide or the Sirius XM Settings
tile to turn off the Lock or Skip function on that
station.
All the channels in the selected category are either
skipped or locked.
None found. Check channel guide.
No action required.
SiriusXM has updated the channels available for
your vehicle.
SIRIUS Subscription updated
HD Radio ™ Information (If Available)
To activate HD radio, please see the Radio
Settings in the Settings Chapter. See
Settings (page 513). Note:
HD Radio broadcasts are not available
in all markets.
490
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing SYNC™ 3

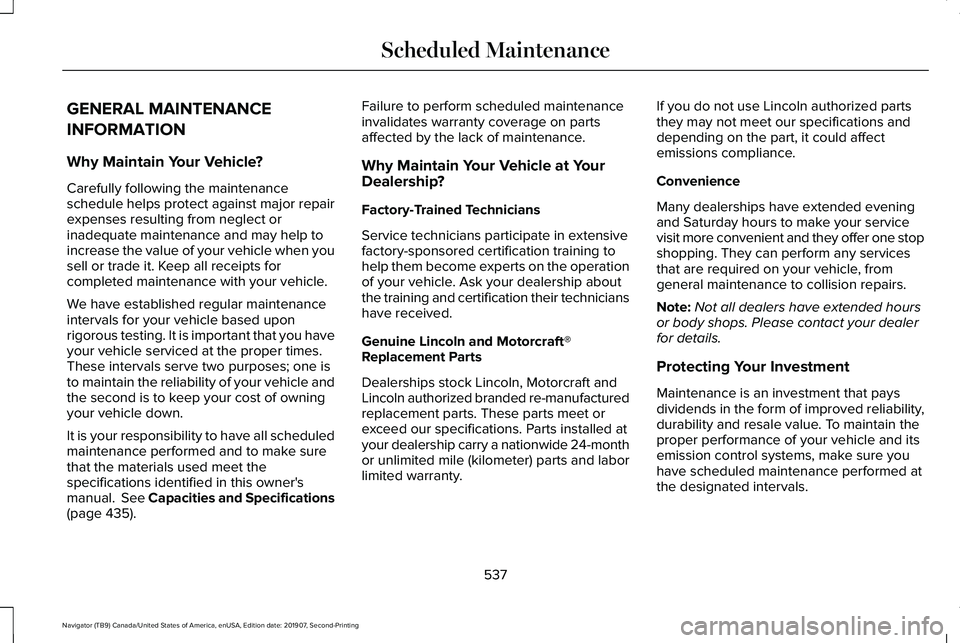

GENERAL MAINTENANCE
INFORMATION
Why Maintain Your Vehicle?
Carefully following the maintenance
schedule helps protect against major repair
expenses resulting from neglect or
inadequate maintenance and may help to
increase the value of your vehicle when you
sell or trade it. Keep all receipts for
completed maintenance with your vehicle.
We have established regular maintenance
intervals for your vehicle based upon
rigorous testing. It is important that you have
your vehicle serviced at the proper times.
These intervals serve two purposes; one is
to maintain the reliability of your vehicle and
the second is to keep your cost of owning
your vehicle down.
It is your responsibility to have all scheduled
maintenance performed and to make sure
that the materials used meet the
specifications identified in this owner's
manual. See Capacities and Specifications
(page 435).
Failure to perform scheduled maintenance
invalidates warranty coverage on parts
affected by the lack of maintenance.
Why Maintain Your Vehicle at Your
Dealership?
Factory-Trained Technicians
Service technicians participate in extensive
factory-sponsored certification training to
help them become experts on the operation
of your vehicle. Ask your dealership about
the training and certification their technicians
have received.
Genuine Lincoln and Motorcraft®
Replacement Parts
Dealerships stock Lincoln, Motorcraft and
Lincoln authorized branded re-manufactured
replacement parts. These parts meet or
exceed our specifications. Parts installed at
your dealership carry a nationwide 24-month
or unlimited mile (kilometer) parts and labor
limited warranty.
If you do not use Lincoln authorized parts
they may not meet our specifications and
depending on the part, it could affect
emissions compliance.
Convenience
Many dealerships have extended evening
and Saturday hours to make your service
visit more convenient and they offer one stop
shopping. They can perform any services
that are required on your vehicle, from
general maintenance to collision repairs.
Note:
Not all dealers have extended hours
or body shops. Please contact your dealer
for details.
Protecting Your Investment
Maintenance is an investment that pays
dividends in the form of improved reliability,
durability and resale value. To maintain the
proper performance of your vehicle and its
emission control systems, make sure you
have scheduled maintenance performed at
the designated intervals.
537
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Scheduled Maintenance

ELECTROMAGNETIC
COMPATIBILITY
WARNING: Do not place objects or
mount equipment on or near the airbag
cover, on the side of the front or rear
seatbacks, or in areas that may come into
contact with a deploying airbag. Failure to
follow these instructions may increase the
risk of personal injury in the event of a
crash. WARNING:
Do not fasten antenna
cables to vehicle wiring, fuel pipes and
brake pipes. WARNING: Keep antenna and power
cables at least
4 in (10 cm) from any
electronic modules and airbags.
Note: We test and certify your vehicle to
meet electromagnetic compatibility
legislation. It is your responsibility to make
sure that any equipment an authorized
dealer installs on your vehicle complies with
applicable local legislation and other
requirements. Installation of some
aftermarket electronic devices could
degrade the performance of vehicle
functions, which use radio frequency signals
such as broadcast radio receiver, tire
pressure monitoring system, push button
start, Bluetooth connectivity or satellite
navigation. Note:
Any radio frequency transmitter
equipment in your vehicle (such as cellular
telephones and amateur radio transmitters)
must keep to the parameters in the following
illustrations and table. We do not provide
any other special provisions or conditions
for installations or use.
569
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Appendices

•

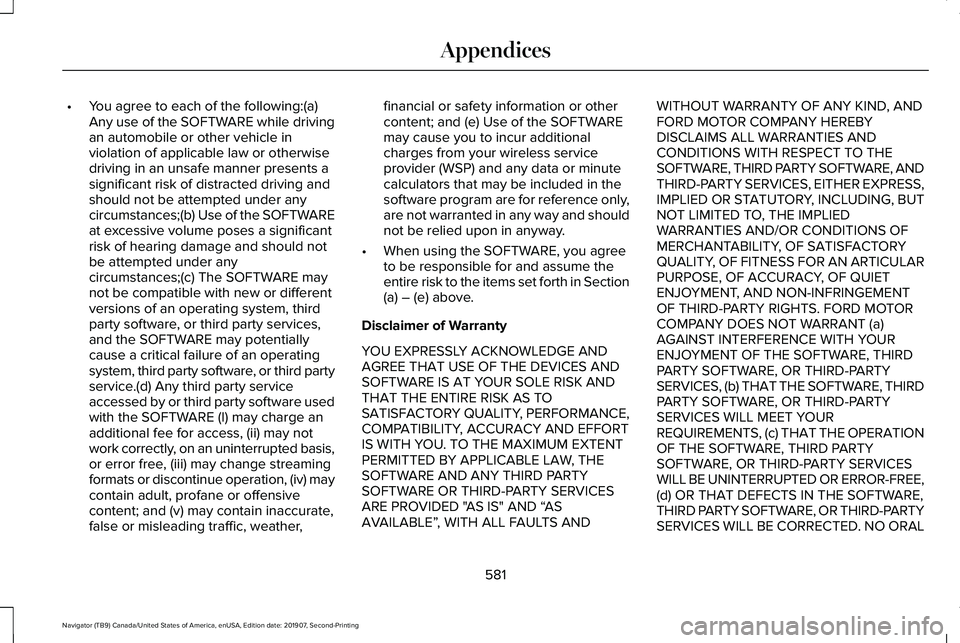

You agree to each of the following:(a)
Any use of the SOFTWARE while driving
an automobile or other vehicle in
violation of applicable law or otherwise
driving in an unsafe manner presents a
significant risk of distracted driving and
should not be attempted under any
circumstances;(b) Use of the SOFTWARE
at excessive volume poses a significant
risk of hearing damage and should not
be attempted under any
circumstances;(c) The SOFTWARE may
not be compatible with new or different
versions of an operating system, third
party software, or third party services,
and the SOFTWARE may potentially
cause a critical failure of an operating
system, third party software, or third party
service.(d) Any third party service
accessed by or third party software used
with the SOFTWARE (I) may charge an
additional fee for access, (ii) may not
work correctly, on an uninterrupted basis,
or error free, (iii) may change streaming
formats or discontinue operation, (iv) may
contain adult, profane or offensive
content; and (v) may contain inaccurate,
false or misleading traffic, weather, financial or safety information or other
content; and (e) Use of the SOFTWARE
may cause you to incur additional
charges from your wireless service
provider (WSP) and any data or minute
calculators that may be included in the
software program are for reference only,
are not warranted in any way and should
not be relied upon in anyway.
• When using the SOFTWARE, you agree
to be responsible for and assume the
entire risk to the items set forth in Section
(a) – (e) above.
Disclaimer of Warranty
YOU EXPRESSLY ACKNOWLEDGE AND
AGREE THAT USE OF THE DEVICES AND
SOFTWARE IS AT YOUR SOLE RISK AND
THAT THE ENTIRE RISK AS TO
SATISFACTORY QUALITY, PERFORMANCE,
COMPATIBILITY, ACCURACY AND EFFORT
IS WITH YOU. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, THE
SOFTWARE AND ANY THIRD PARTY
SOFTWARE OR THIRD-PARTY SERVICES
ARE PROVIDED "AS IS" AND “ AS
AVAILABLE” , WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, AND
FORD MOTOR COMPANY HEREBY
DISCLAIMS ALL WARRANTIES AND
CONDITIONS WITH RESPECT TO THE
SOFTWARE, THIRD PARTY SOFTWARE, AND
THIRD-PARTY SERVICES, EITHER EXPRESS,
IMPLIED OR STATUTORY, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES AND/OR CONDITIONS OF
MERCHANTABILITY, OF SATISFACTORY
QUALITY, OF FITNESS FOR AN ARTICULAR
PURPOSE, OF ACCURACY, OF QUIET
ENJOYMENT, AND NON-INFRINGEMENT
OF THIRD-PARTY RIGHTS. FORD MOTOR
COMPANY DOES NOT WARRANT (a)
AGAINST INTERFERENCE WITH YOUR
ENJOYMENT OF THE SOFTWARE, THIRD
PARTY SOFTWARE, OR THIRD-PARTY
SERVICES, (b) THAT THE SOFTWARE, THIRD
PARTY SOFTWARE, OR THIRD-PARTY
SERVICES WILL MEET YOUR
REQUIREMENTS, (c) THAT THE OPERATION
OF THE SOFTWARE, THIRD PARTY
SOFTWARE, OR THIRD-PARTY SERVICES
WILL BE UNINTERRUPTED OR ERROR-FREE,
(d) OR THAT DEFECTS IN THE SOFTWARE,
THIRD PARTY SOFTWARE, OR THIRD-PARTY
SERVICES WILL BE CORRECTED. NO ORAL
581
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Appendices

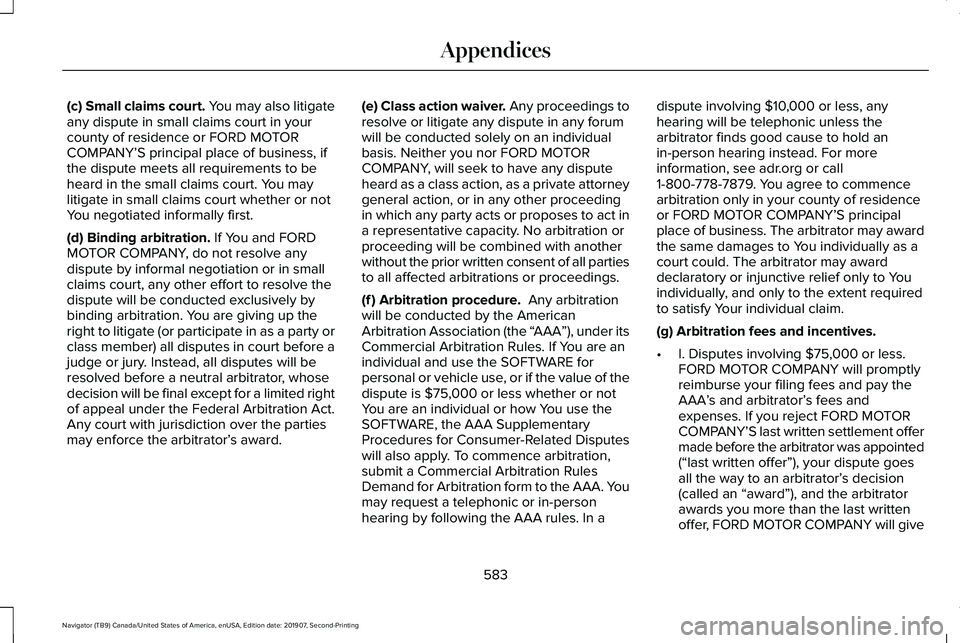

(c) Small claims court. You may also litigate
any dispute in small claims court in your
county of residence or FORD MOTOR
COMPANY’S principal place of business, if
the dispute meets all requirements to be
heard in the small claims court. You may
litigate in small claims court whether or not
You negotiated informally first.
(d) Binding arbitration. If You and FORD
MOTOR COMPANY, do not resolve any
dispute by informal negotiation or in small
claims court, any other effort to resolve the
dispute will be conducted exclusively by
binding arbitration. You are giving up the
right to litigate (or participate in as a party or
class member) all disputes in court before a
judge or jury. Instead, all disputes will be
resolved before a neutral arbitrator, whose
decision will be final except for a limited right
of appeal under the Federal Arbitration Act.
Any court with jurisdiction over the parties
may enforce the arbitrator’ s award.(e) Class action waiver.
Any proceedings to
resolve or litigate any dispute in any forum
will be conducted solely on an individual
basis. Neither you nor FORD MOTOR
COMPANY, will seek to have any dispute
heard as a class action, as a private attorney
general action, or in any other proceeding
in which any party acts or proposes to act in
a representative capacity. No arbitration or
proceeding will be combined with another
without the prior written consent of all parties
to all affected arbitrations or proceedings.
(f ) Arbitration procedure.
Any arbitration
will be conducted by the American
Arbitration Association (the “ AAA”), under its
Commercial Arbitration Rules. If You are an
individual and use the SOFTWARE for
personal or vehicle use, or if the value of the
dispute is $75,000 or less whether or not
You are an individual or how You use the
SOFTWARE, the AAA Supplementary
Procedures for Consumer-Related Disputes
will also apply. To commence arbitration,
submit a Commercial Arbitration Rules
Demand for Arbitration form to the AAA. You
may request a telephonic or in-person
hearing by following the AAA rules. In a dispute involving $10,000 or less, any
hearing will be telephonic unless the
arbitrator finds good cause to hold an
in-person hearing instead. For more
information, see adr.org or call
1-800-778-7879. You agree to commence
arbitration only in your county of residence
or FORD MOTOR COMPANY’S principal
place of business. The arbitrator may award
the same damages to You individually as a
court could. The arbitrator may award
declaratory or injunctive relief only to You
individually, and only to the extent required
to satisfy Your individual claim.
(g) Arbitration fees and incentives.
•
I. Disputes involving $75,000 or less.
FORD MOTOR COMPANY will promptly
reimburse your filing fees and pay the
AAA’ s and arbitrator’ s fees and
expenses. If you reject FORD MOTOR
COMPANY’S last written settlement offer
made before the arbitrator was appointed
(“last written offer”), your dispute goes
all the way to an arbitrator’ s decision
(called an “award”), and the arbitrator
awards you more than the last written
offer, FORD MOTOR COMPANY will give
583
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Appendices

Services That We Provide....................................14
Vehicles With a Modem.......................................15
Vehicles With an Emergency Call System.......16
Vehicles With SYNC..............................................15
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps..............................................................111
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL).................111
Declaration of Conformity..........................604
Digital Radio...................................................464
HD Radio Reception and Station
Troubleshooting.............................................465
Direction Indicators........................................113 Lane Change.........................................................113
Doors and Locks.............................................83
Drive Mode Control.....................................299 Lincoln Drive Modes.........................................299
Driver Alert
.....................................................277
Using Driver Alert...............................................278
Driver and Passenger Airbags....................58 Children and Airbags...........................................59
Proper Driver and Front Passenger Seating
Adjustment.........................................................59
Driving Aids
....................................................277
Driving Hints..................................................337
Driving Through Water................................338 DRL
See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running Lamps.......111
See: Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)......................111
E
Economical Driving......................................337
Electric Parking Brake.................................238 Applying the Electric Parking Brake..............238
Automatically Releasing the Electric Parking
Brake.................................................................239
Manually Releasing the Electric Parking Brake.................................................................239
Releasing the Electric Parking Brake if the Vehicle Battery is Running Out of
Charge..............................................................239
Electromagnetic Compatibility.................569
Emergency Call Limitations.........................68
Emergency Call Requirements
....................67
Emission Law..................................................218 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance.............219
Tampering With a Noise Control System...............................................................218 End User License Agreement...................574
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ....................................574
Engine Block Heater
...................................206
Using the Engine Block Heater......................207
Engine Coolant Check................................380 Adding Coolant...................................................380
Coolant Change..................................................382
Engine Coolant Temperature
Management...................................................384
Fail-Safe Cooling................................................382
Recycled Coolant...............................................382
Severe Climates.................................................382
Engine Emission Control.............................218
Engine Immobilizer See: Passive Anti-Theft System........................94
Engine Oil Check
..........................................377
Adding Engine Oil...............................................377
Engine Oil Dipstick
.......................................377
Engine Specifications..................................435
Drivebelt Routing................................................435
Entertainment................................................485 AM/FM Radio.......................................................486
Apps.......................................................................497
Bluetooth Stereo or USB..................................495
CD (If equipped)..................................................494
HD Radio ™ Information (If Available)..............490
SiriusXM® Satellite Radio (If Activated).........487
609
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Index

Folding the Second Row Outermost Seats
........................................................................\
.....185
Reclining the Second Row Outermost Seat Backrest.............................................................187
Rear Under Floor Storage...........................301 Advanced System: Forward Divider, Cargo
Shelf and Rear Barrier (Bulkhead
Position)............................................................302
Cargo Management System.............................301
Rear View Camera........................................261 Camera Guidelines............................................263
Manual Zoom......................................................264
Obstacle Distance Indicator............................264
Rear Camera Delay............................................264
Using the Rear View Camera System...........262
Rear View Camera See: Rear View Camera.....................................261
Rear Window Wiper and Washers............107 Rear Window Washer.........................................108
Rear Window Wiper............................................107
Recommended Towing Weights...............323
Reduced Engine Performance
..................337
Refueling..........................................................214
Refueling System Overview.............................214
Refueling System Warning................................216
Refueling Your Vehicle.......................................215
Remote Control
...............................................69
Car Finder...............................................................72 Intelligent Access Key.........................................69
Memory Feature....................................................74
Remote Start...........................................................73
Replacing the Battery............................................71
Sounding the Panic Alarm..................................72
Using the Key Blade.............................................70
Remote Start
....................................................171
Automatic Settings...............................................171
Heated and Cooled Features............................171
Last Settings...........................................................171
Repairing Minor Paint Damage................400
Replacement Parts Recommendation
........17
Collision Repairs.....................................................17
Scheduled Maintenance and Mechanical
Repairs..................................................................17
Warranty on Replacement Parts.........................17
Replacing a Lost Key or Remote Control.............................................................74
Reporting Safety Defects (Canada Only)..............................................................354
Reporting Safety Defects (U.S. Only)
.......354
Resuming the Set Speed...........................269
Roadside Assistance...................................340 Vehicles Sold in Canada: Getting Roadside
Assistance.........................................................341
Vehicles sold in the United States: Getting Roadside Assistance.....................................
340 Vehicles Sold in the United States: Using
Roadside Assistance.....................................
340
Roadside Emergencies
...............................340
Roof Racks and Load Carriers..................304 Adjusting the Crossbar.....................................
305
Maximum Recommended Load Amounts...........................................................305
Running-In See: Breaking-In.................................................338
Running Out of Fuel.....................................213 Adding Fuel From a Portable Fuel
Container..........................................................213
Filling a Portable Fuel Container.....................213
S
Safety Canopy™...............................................63
Safety Precautions.........................................211
Satellite Radio
................................................467
Satellite Radio Electronic Serial Number
(ESN)..................................................................468
Satellite Radio Reception Factors..................467
SiriusXM Satellite Radio Service....................468
Troubleshooting..................................................469
Scheduled Maintenance Record..............549
Scheduled Maintenance.............................537
Seatbelt Extensions
.......................................55
Seatbelt Height Adjustment.........................51
615
Navigator (TB9) Canada/United States of America, enUSA, Edition date: 201907, Second-Printing Index
