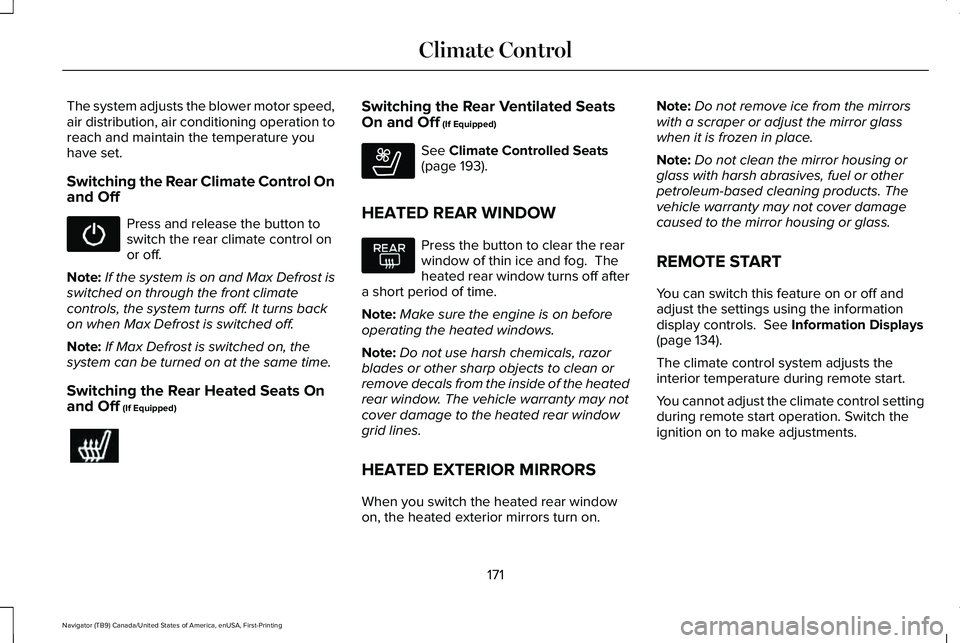

The system adjusts the blower motor speed,
air distribution, air conditioning operation to
reach and maintain the temperature you
have set.
Switching the Rear Climate Control On
and Off
Press and release the button to
switch the rear climate control on
or off.
Note: If the system is on and Max Defrost is
switched on through the front climate
controls, the system turns off. It turns back
on when Max Defrost is switched off.
Note: If Max Defrost is switched on, the
system can be turned on at the same time.
Switching the Rear Heated Seats On
and Off (If Equipped) Switching the Rear Ventilated Seats
On and Off
(If Equipped)
See
Climate Controlled Seats
(page 193).
HEATED REAR WINDOW Press the button to clear the rear
window of thin ice and fog. The
heated rear window turns off after
a short period of time.
Note: Make sure the engine is on before
operating the heated windows.
Note: Do not use harsh chemicals, razor
blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window. The vehicle warranty may not
cover damage to the heated rear window
grid lines.
HEATED EXTERIOR MIRRORS
When you switch the heated rear window
on, the heated exterior mirrors turn on. Note:
Do not remove ice from the mirrors
with a scraper or adjust the mirror glass
when it is frozen in place.
Note: Do not clean the mirror housing or
glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.
REMOTE START
You can switch this feature on or off and
adjust the settings using the information
display controls.
See Information Displays
(page 134).
The climate control system adjusts the
interior temperature during remote start.
You cannot adjust the climate control setting
during remote start operation. Switch the
ignition on to make adjustments.
171
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Climate Control E268558

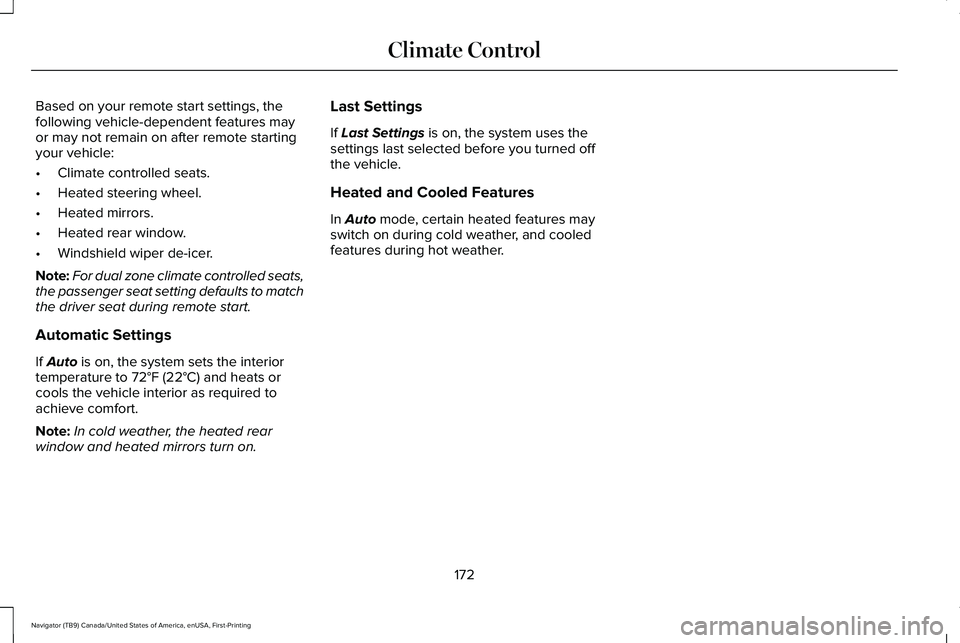

Based on your remote start settings, the
following vehicle-dependent features may
or may not remain on after remote starting
your vehicle:
•
Climate controlled seats.
• Heated steering wheel.
• Heated mirrors.
• Heated rear window.
• Windshield wiper de-icer.
Note: For dual zone climate controlled seats,
the passenger seat setting defaults to match
the driver seat during remote start.
Automatic Settings
If Auto is on, the system sets the interior
temperature to 72°F (22°C) and heats or
cools the vehicle interior as required to
achieve comfort.
Note: In cold weather, the heated rear
window and heated mirrors turn on. Last Settings
If
Last Settings is on, the system uses the
settings last selected before you turned off
the vehicle.
Heated and Cooled Features
In
Auto mode, certain heated features may
switch on during cold weather, and cooled
features during hot weather.
172
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Climate Control

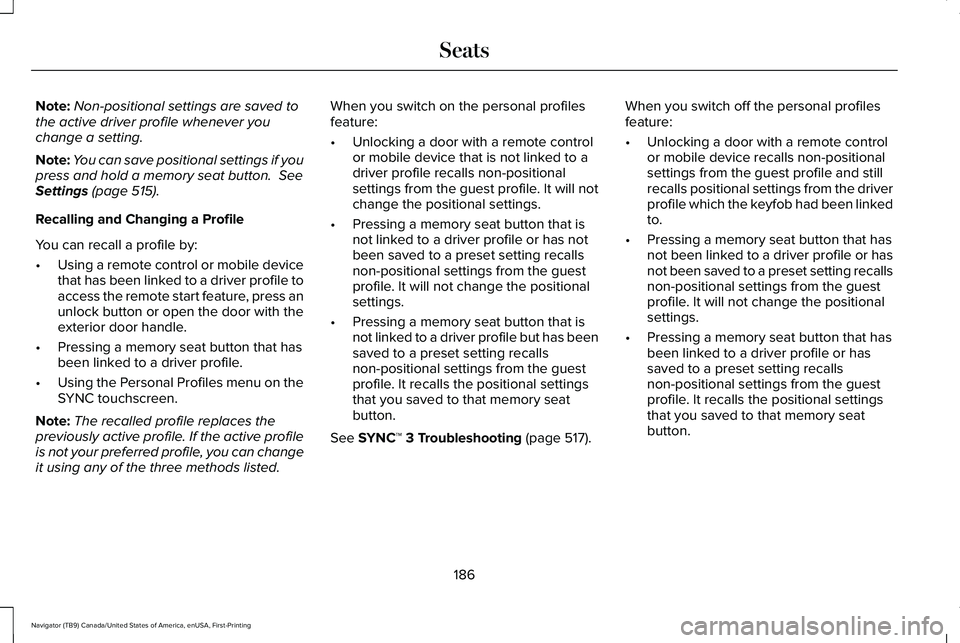

Note:
Non-positional settings are saved to
the active driver profile whenever you
change a setting.
Note: You can save positional settings if you
press and hold a memory seat button. See
Settings (page 515).
Recalling and Changing a Profile
You can recall a profile by:
• Using a remote control or mobile device
that has been linked to a driver profile to
access the remote start feature, press an
unlock button or open the door with the
exterior door handle.
• Pressing a memory seat button that has
been linked to a driver profile.
• Using the Personal Profiles menu on the
SYNC touchscreen.
Note: The recalled profile replaces the
previously active profile. If the active profile
is not your preferred profile, you can change
it using any of the three methods listed. When you switch on the personal profiles
feature:
•
Unlocking a door with a remote control
or mobile device that is not linked to a
driver profile recalls non-positional
settings from the guest profile. It will not
change the positional settings.
• Pressing a memory seat button that is
not linked to a driver profile or has not
been saved to a preset setting recalls
non-positional settings from the guest
profile. It will not change the positional
settings.
• Pressing a memory seat button that is
not linked to a driver profile but has been
saved to a preset setting recalls
non-positional settings from the guest
profile. It recalls the positional settings
that you saved to that memory seat
button.
See
SYNC™ 3 Troubleshooting (page 517). When you switch off the personal profiles
feature:
•
Unlocking a door with a remote control
or mobile device recalls non-positional
settings from the guest profile and still
recalls positional settings from the driver
profile which the keyfob had been linked
to.
• Pressing a memory seat button that has
not been linked to a driver profile or has
not been saved to a preset setting recalls
non-positional settings from the guest
profile. It will not change the positional
settings.
• Pressing a memory seat button that has
been linked to a driver profile or has
saved to a preset setting recalls
non-positional settings from the guest
profile. It recalls the positional settings
that you saved to that memory seat
button.
186
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Seats

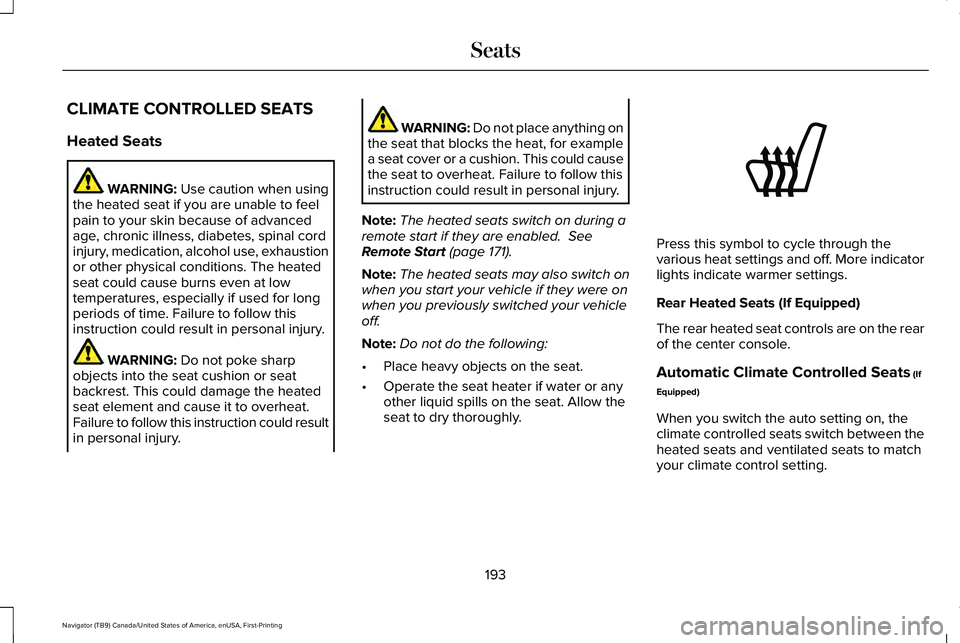

CLIMATE CONTROLLED SEATS
Heated Seats
WARNING: Use caution when using
the heated seat if you are unable to feel
pain to your skin because of advanced
age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion
or other physical conditions. The heated
seat could cause burns even at low
temperatures, especially if used for long
periods of time. Failure to follow this
instruction could result in personal injury. WARNING:
Do not poke sharp
objects into the seat cushion or seat
backrest. This could damage the heated
seat element and cause it to overheat.
Failure to follow this instruction could result
in personal injury. WARNING:
Do not place anything on
the seat that blocks the heat, for example
a seat cover or a cushion. This could cause
the seat to overheat. Failure to follow this
instruction could result in personal injury.
Note: The heated seats switch on during a
remote start if they are enabled.
See
Remote Start (page 171).
Note: The heated seats may also switch on
when you start your vehicle if they were on
when you previously switched your vehicle
off.
Note: Do not do the following:
• Place heavy objects on the seat.
• Operate the seat heater if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly. Press this symbol to cycle through the
various heat settings and off. More indicator
lights indicate warmer settings.
Rear Heated Seats (If Equipped)
The rear heated seat controls are on the rear
of the center console.
Automatic Climate Controlled Seats
(If
Equipped)
When you switch the auto setting on, the
climate controlled seats switch between the
heated seats and ventilated seats to match
your climate control setting.
193
Navigator (TB9) Canada/United States of America, enUSA, First-Printing SeatsE146322

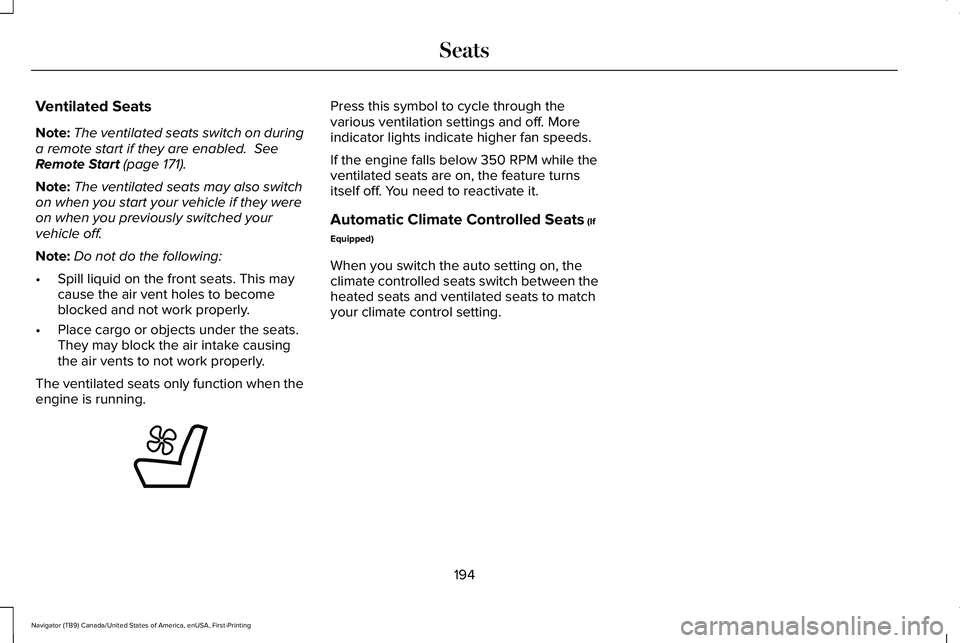

Ventilated Seats
Note:
The ventilated seats switch on during
a remote start if they are enabled. See
Remote Start (page 171).
Note: The ventilated seats may also switch
on when you start your vehicle if they were
on when you previously switched your
vehicle off.
Note: Do not do the following:
• Spill liquid on the front seats. This may
cause the air vent holes to become
blocked and not work properly.
• Place cargo or objects under the seats.
They may block the air intake causing
the air vents to not work properly.
The ventilated seats only function when the
engine is running. Press this symbol to cycle through the
various ventilation settings and off. More
indicator lights indicate higher fan speeds.
If the engine falls below 350 RPM while the
ventilated seats are on, the feature turns
itself off. You need to reactivate it.
Automatic Climate Controlled Seats
(If
Equipped)
When you switch the auto setting on, the
climate controlled seats switch between the
heated seats and ventilated seats to match
your climate control setting.
194
Navigator (TB9) Canada/United States of America, enUSA, First-Printing SeatsE224689

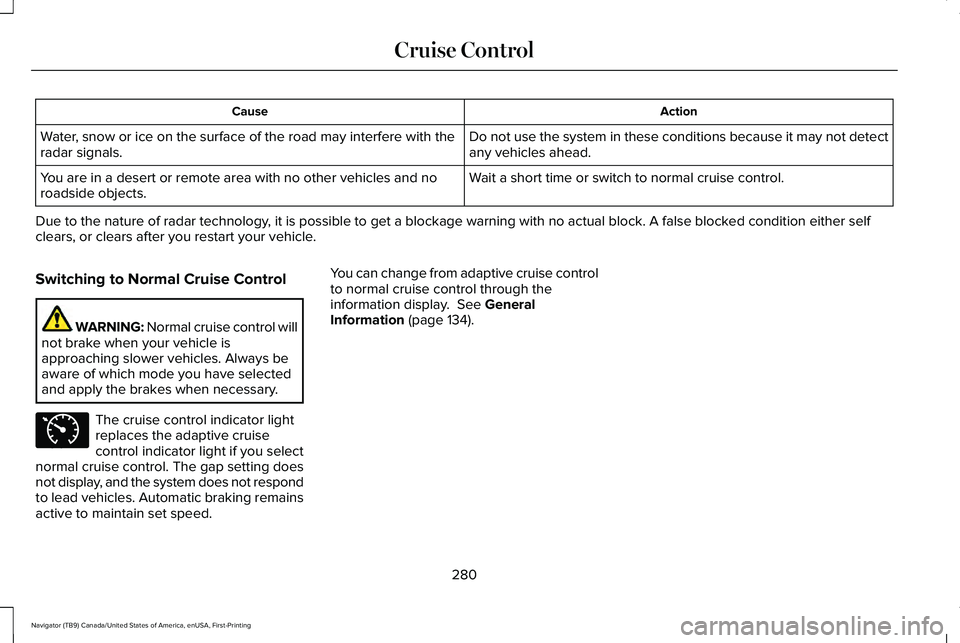

Action
Cause
Do not use the system in these conditions because it may not detect
any vehicles ahead.
Water, snow or ice on the surface of the road may interfere with the
radar signals.
Wait a short time or switch to normal cruise control.
You are in a desert or remote area with no other vehicles and no
roadside objects.
Due to the nature of radar technology, it is possible to get a blockage warning with no actual block. A false\
blocked condition either self
clears, or clears after you restart your vehicle.
Switching to Normal Cruise Control WARNING: Normal cruise control will
not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary. The cruise control indicator light
replaces the adaptive cruise
control indicator light if you select
normal cruise control. The gap setting does
not display, and the system does not respond
to lead vehicles. Automatic braking remains
active to maintain set speed. You can change from adaptive cruise control
to normal cruise control through the
information display.
See General
Information (page 134).
280
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Cruise ControlE71340

•
Make sure that you have the correct
tire and wheel size.
• Lubricate the tire bead and wheel
bead seat area again.
• Stand at a minimum of 12 ft (3.66 m)
away from the wheel and tire
assembly.
• Use both eye and ear protection. WARNING:
For a mounting
pressure more than 20 psi (1.38 bar)
greater than the maximum pressure,
a Ford dealer or other tire service
professional should do the mounting. WARNING:
Always inflate steel
carcass tires with a remote air fill with
the person inflating standing at a
minimum of
12 ft (3.66 m) away from
the wheel and tire assembly.
Important:
Remember to replace the
wheel valve stems when the road tires
are replaced on your vehicle. The two front tires or two rear tires
should generally be replaced as a pair,
except if the vehicle is equipped with
four wheel drive. Vehicles equipped with
four wheel drive should have all four
tires replaced simultaneously. Unevenly
worn tires, mismatched makes, models
or brands can be different in size,
resulting in potential damage to the four
wheel drive system.
The tire pressure sensors mounted in
the wheels are not designed to be used
in aftermarket wheels.
The use of wheels or tires not
recommended by us may affect the
operation of your tire pressure
monitoring system.
If the tire pressure monitoring system
indicator is flashing, the system is
malfunctioning. Your replacement tire
might be incompatible with your tire
pressure monitoring system, or some
component of the system may be
damaged.
Safety Practices WARNING:
If your vehicle is
stuck in snow, mud or sand, do not
rapidly spin the tires; spinning the tires
can tear the tire and cause an
explosion. A tire can explode in as little
as three to five seconds. WARNING:
Do not spin the
wheels at over 34 mph (55 km/h). The
tires may fail and injure a passenger
or bystander.
Driving habits have a great deal to do
with your tire mileage and safety.
*Observe posted speed limits
*Avoid fast starts, stops and turns
*Avoid potholes and objects on the road
*Do not run over curbs or hit the tire
against a curb when parking
421
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Wheels and Tires

Possible Cause and Solution
Symptom
You did not create a personal profile.
My profile will not recall. Personal Profiles is turned off.
The profile you requested is already active.
You did not link the memory button you are using to a profile.
You did not link the remote control you are using to a profile.
You are using the wrong remote control.
You are pressing a button other than the unlock or remote start on a link\
ed remote control.
You deleted the personal profile.
You switched the personal profiles off.
My preset positions recall, but my profile does
not.
The vehicle is in motion.
My profile recalls but my preset positions do
not. The preset positions are the same as the guest or previously active prof\
ile.
Unlink and relink your remote control in the Personal Profiles menu. You may need to see
your authorized dealer.
I lost a remote control.
You erased and reprogrammed the remote controls. This could happen if you\
let a dealership
add a new remote control to replace a lost one.
I lost all profiles.
Someone performed a master reset without your knowledge.
532
Navigator (TB9) Canada/United States of America, enUSA, First-Printing SYNC™ 3

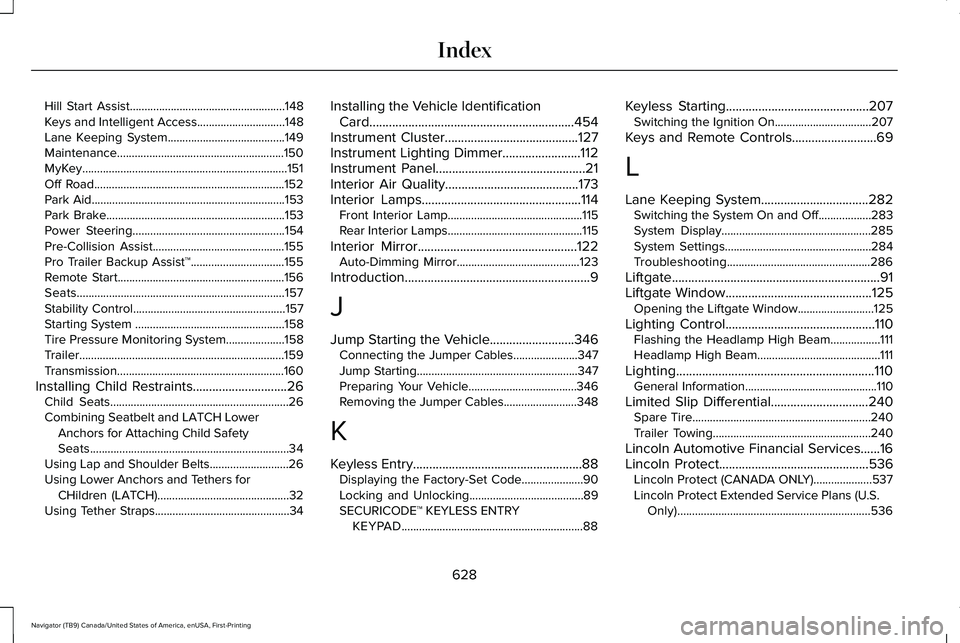

Hill Start Assist.....................................................148
Keys and Intelligent Access..............................148
Lane Keeping System........................................149
Maintenance.........................................................150
MyKey......................................................................151
Off Road.................................................................152
Park Aid..................................................................153
Park Brake.............................................................153
Power Steering....................................................154
Pre-Collision Assist.............................................155
Pro Trailer Backup Assist™................................155
Remote Start.........................................................156
Seats.......................................................................157
Stability Control....................................................157
Starting System ...................................................158
Tire Pressure Monitoring System....................158
Trailer......................................................................159
Transmission.........................................................160
Installing Child Restraints.............................26 Child Seats.............................................................26
Combining Seatbelt and LATCH Lower
Anchors for Attaching Child Safety
Seats....................................................................34
Using Lap and Shoulder Belts...........................26
Using Lower Anchors and Tethers for CHildren (LATCH).............................................32
Using Tether Straps..............................................34 Installing the Vehicle Identification
Card...............................................................454
Instrument Cluster.........................................127
Instrument Lighting Dimmer........................112
Instrument Panel
..............................................21
Interior Air Quality.........................................173
Interior Lamps
.................................................114
Front Interior Lamp..............................................115
Rear Interior Lamps..............................................115
Interior Mirror
.................................................122
Auto-Dimming Mirror..........................................123
Introduction.........................................................9
J
Jump Starting the Vehicle..........................346 Connecting the Jumper Cables......................347
Jump Starting.......................................................347
Preparing Your Vehicle.....................................346
Removing the Jumper Cables.........................348
K
Keyless Entry
....................................................88
Displaying the Factory-Set Code.....................90
Locking and Unlocking.......................................89
SECURICODE™ KEYLESS ENTRY
KEYPAD..............................................................88 Keyless Starting............................................207
Switching the Ignition On.................................207
Keys and Remote Controls
..........................69
L
Lane Keeping System.................................282 Switching the System On and Off..................283
System Display...................................................285
System Settings..................................................284
Troubleshooting.................................................286
Liftgate................................................................91
Liftgate Window
.............................................125
Opening the Liftgate Window..........................125
Lighting Control..............................................110 Flashing the Headlamp High Beam.................111
Headlamp High Beam..........................................111
Lighting.............................................................110 General Information.............................................110
Limited Slip Differential..............................240 Spare Tire.............................................................240
Trailer Towing......................................................240
Lincoln Automotive Financial Services......16
Lincoln Protect..............................................536 Lincoln Protect (CANADA ONLY)....................537
Lincoln Protect Extended Service Plans (U.S.
Only)..................................................................536
628
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Index

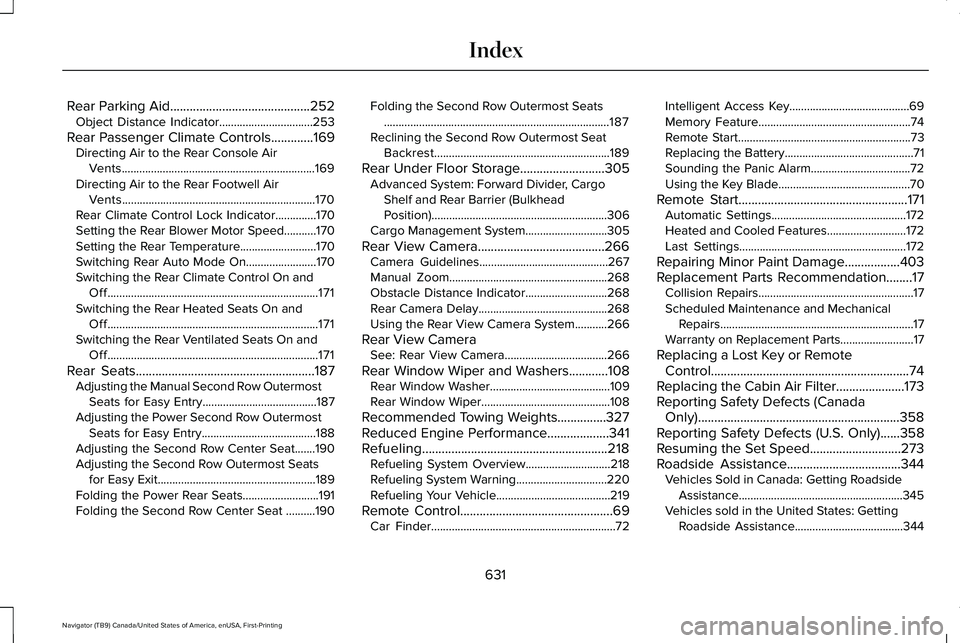

Rear Parking Aid...........................................252
Object Distance Indicator................................253
Rear Passenger Climate Controls.............169 Directing Air to the Rear Console Air
Vents..................................................................169
Directing Air to the Rear Footwell Air Vents..................................................................170
Rear Climate Control Lock Indicator..............170
Setting the Rear Blower Motor Speed...........170
Setting the Rear Temperature..........................170
Switching Rear Auto Mode On........................
170
Switching the Rear Climate Control On and Off........................................................................\
171
Switching the Rear Heated Seats On and Off........................................................................\
171
Switching the Rear Ventilated Seats On and Off........................................................................\
171
Rear Seats
.......................................................187
Adjusting the Manual Second Row Outermost
Seats for Easy Entry.......................................187
Adjusting the Power Second Row Outermost Seats for Easy Entry.......................................188
Adjusting the Second Row Center Seat.......190
Adjusting the Second Row Outermost Seats for Easy Exit......................................................189
Folding the Power Rear Seats..........................191
Folding the Second Row Center Seat ..........190 Folding the Second Row Outermost Seats
........................................................................\
.....187
Reclining the Second Row Outermost Seat Backrest............................................................189
Rear Under Floor Storage..........................305 Advanced System: Forward Divider, Cargo
Shelf and Rear Barrier (Bulkhead
Position)............................................................306
Cargo Management System............................305
Rear View Camera.......................................266 Camera Guidelines............................................267
Manual Zoom......................................................268
Obstacle Distance Indicator............................
268
Rear Camera Delay............................................268
Using the Rear View Camera System...........
266
Rear View Camera See: Rear View Camera...................................266
Rear Window Wiper and Washers............108 Rear Window Washer.........................................109
Rear Window Wiper............................................108
Recommended Towing Weights...............327
Reduced Engine Performance
...................341
Refueling.........................................................218 Refueling System Overview.............................218
Refueling System Warning...............................220
Refueling Your Vehicle.......................................219
Remote Control
...............................................69
Car Finder...............................................................72 Intelligent Access Key.........................................69
Memory Feature....................................................74
Remote Start...........................................................73
Replacing the Battery............................................71
Sounding the Panic Alarm..................................72
Using the Key Blade.............................................70
Remote Start
....................................................171
Automatic Settings..............................................172
Heated and Cooled Features...........................172
Last Settings.........................................................172
Repairing Minor Paint Damage.................403
Replacement Parts Recommendation
........17
Collision Repairs.....................................................17
Scheduled Maintenance and Mechanical
Repairs..................................................................17
Warranty on Replacement Parts.........................17
Replacing a Lost Key or Remote Control.............................................................74
Replacing the Cabin Air Filter.....................173
Reporting Safety Defects (Canada Only)..............................................................358
Reporting Safety Defects (U.S. Only)......358
Resuming the Set Speed
............................273
Roadside Assistance...................................344
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................345
Vehicles sold in the United States: Getting Roadside Assistance.....................................344
631
Navigator (TB9) Canada/United States of America, enUSA, First-Printing Index
