LINCOLN TOWN CAR 2004 Owners Manual
Manufacturer: LINCOLN, Model Year: 2004, Model line: TOWN CAR, Model: LINCOLN TOWN CAR 2004Pages: 304, PDF Size: 2.87 MB
Page 291 of 304
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)

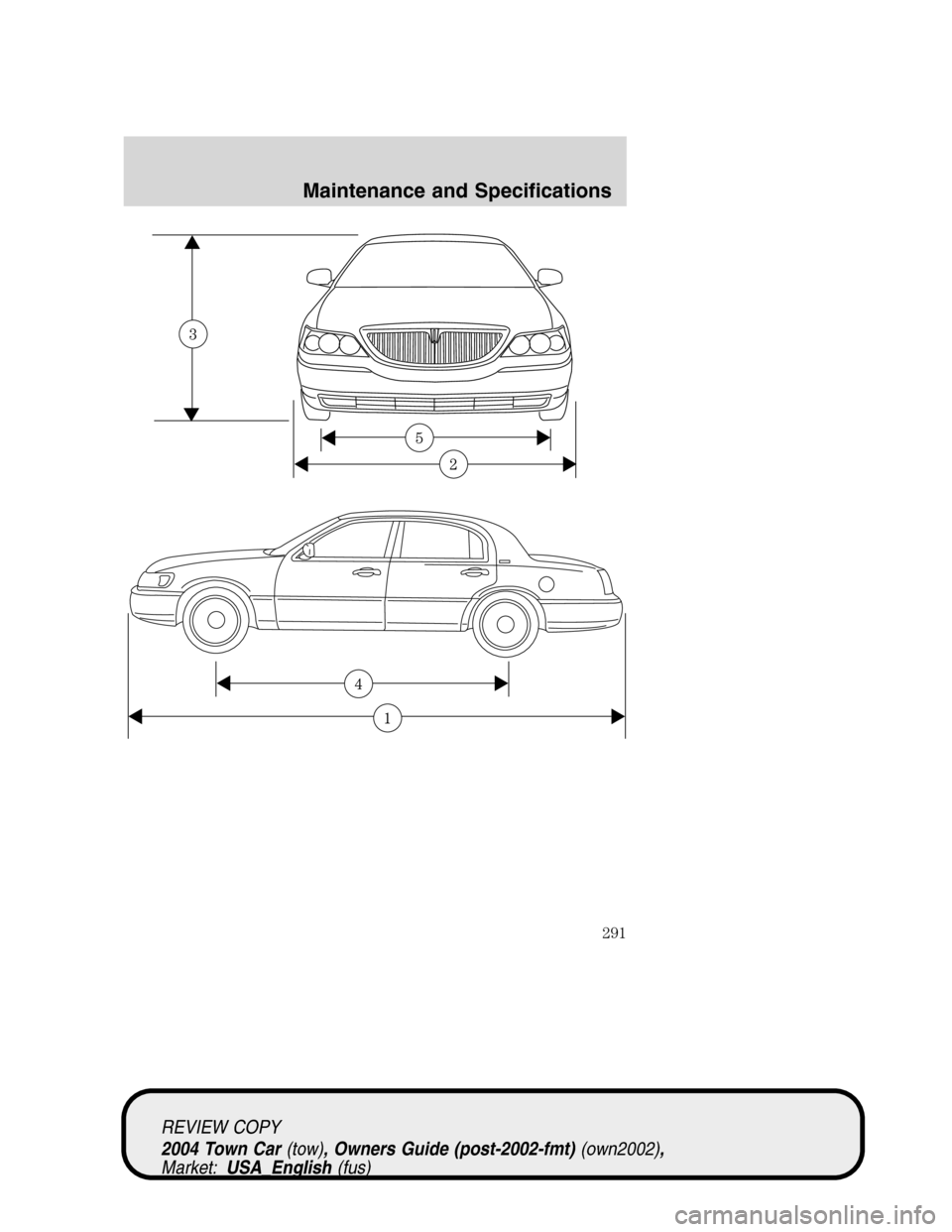

Maintenance and Specifications
291
Page 292 of 304
IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the structure by the trailing edge of
the driver’s door or the edge of the
driver’s door.
1
4
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
292
Page 293 of 304

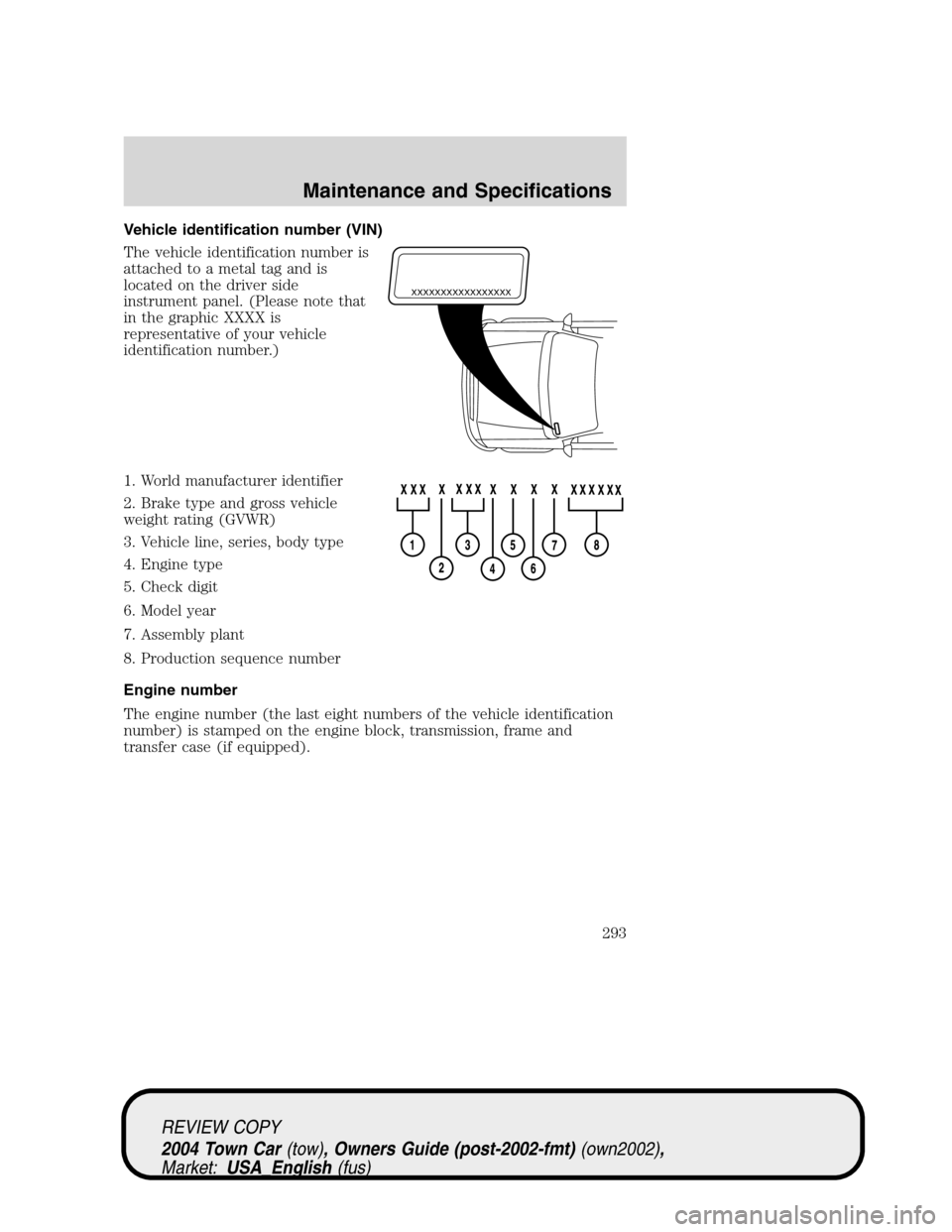

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
293
Page 294 of 304

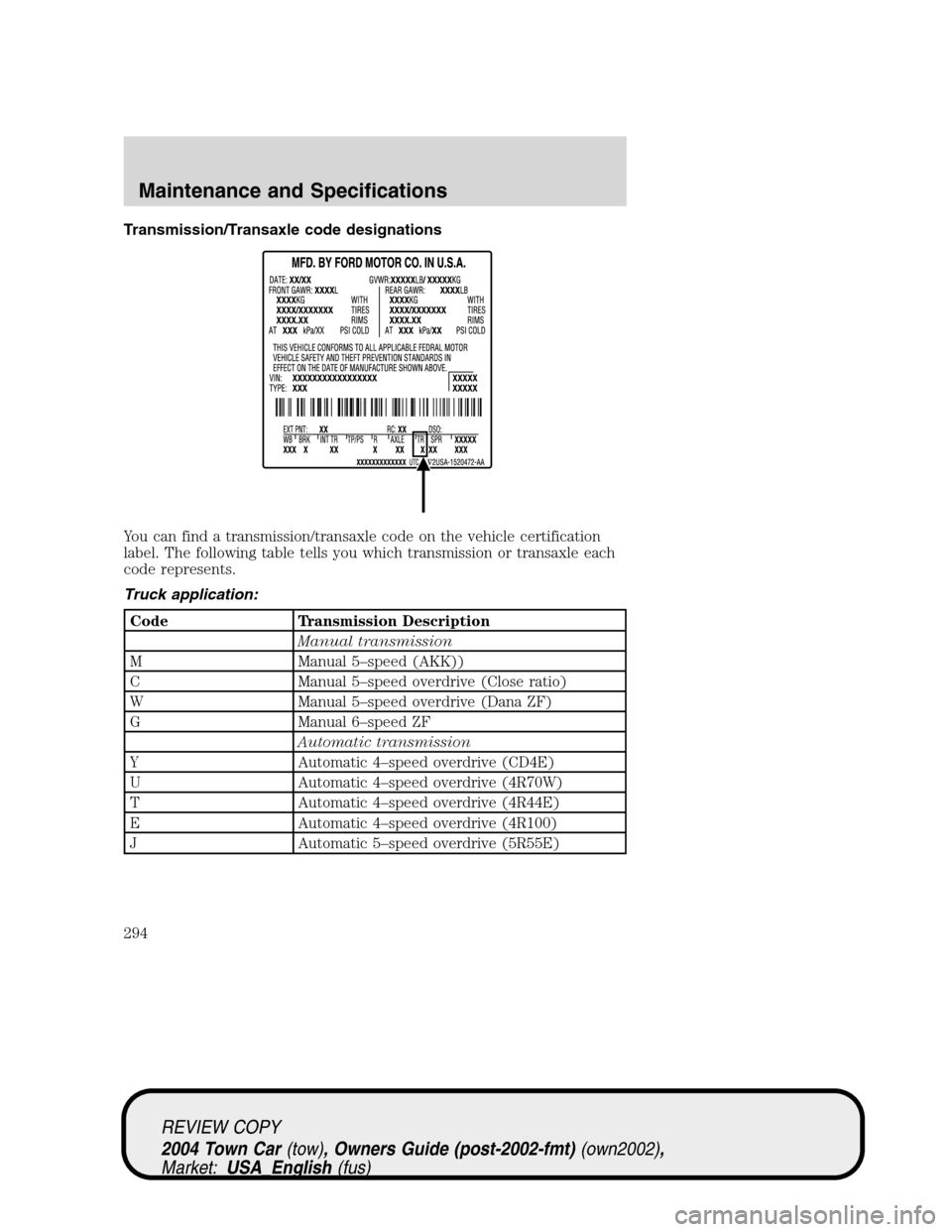

Transmission/Transaxle code designations
You can find a transmission/transaxle code on the vehicle certification
label. The following table tells you which transmission or transaxle each
code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed (AKK))
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
Y Automatic 4–speed overdrive (CD4E)
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
294
Page 295 of 304

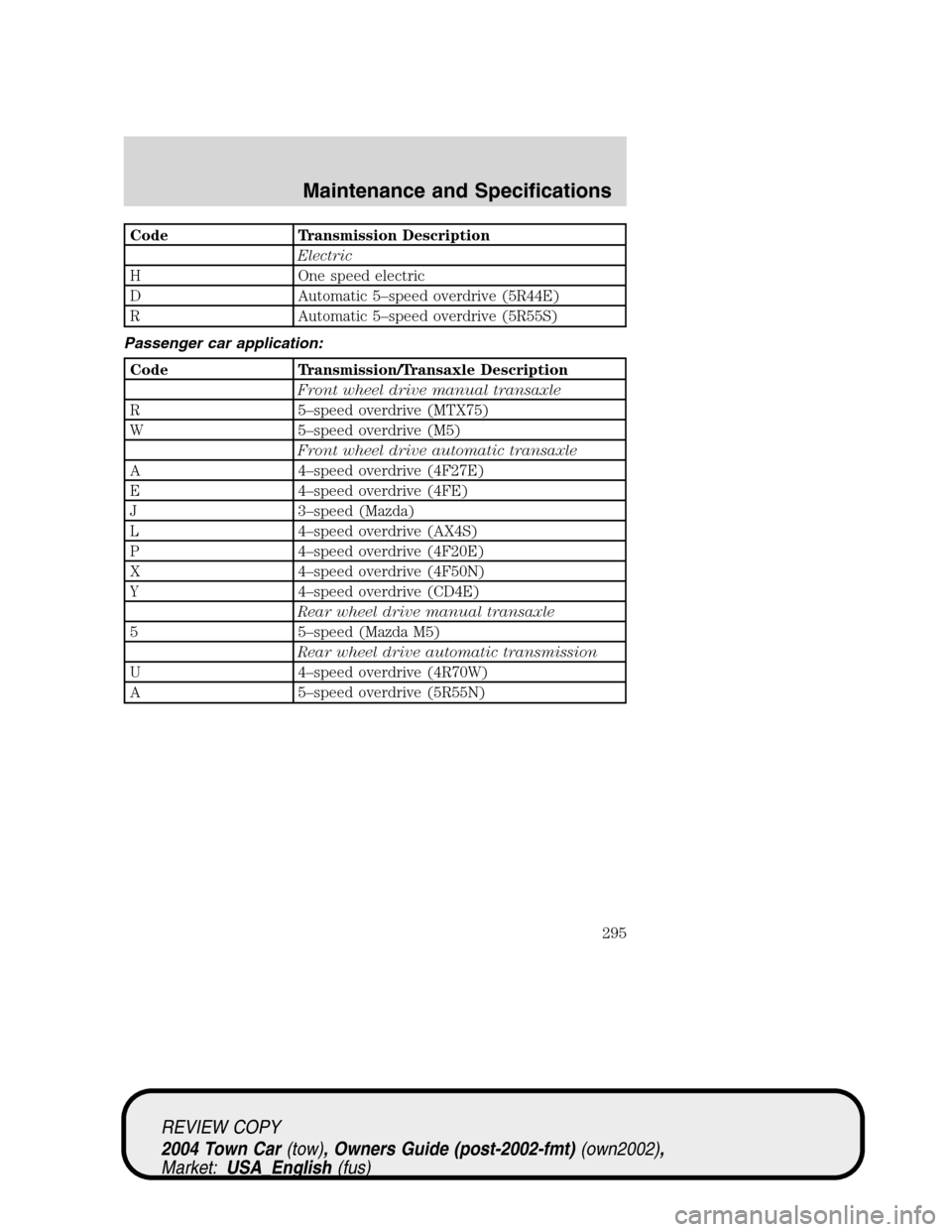

Code Transmission Description
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55S)
Passenger car application:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
A4–speed overdrive (4F27E)
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
295
Page 296 of 304

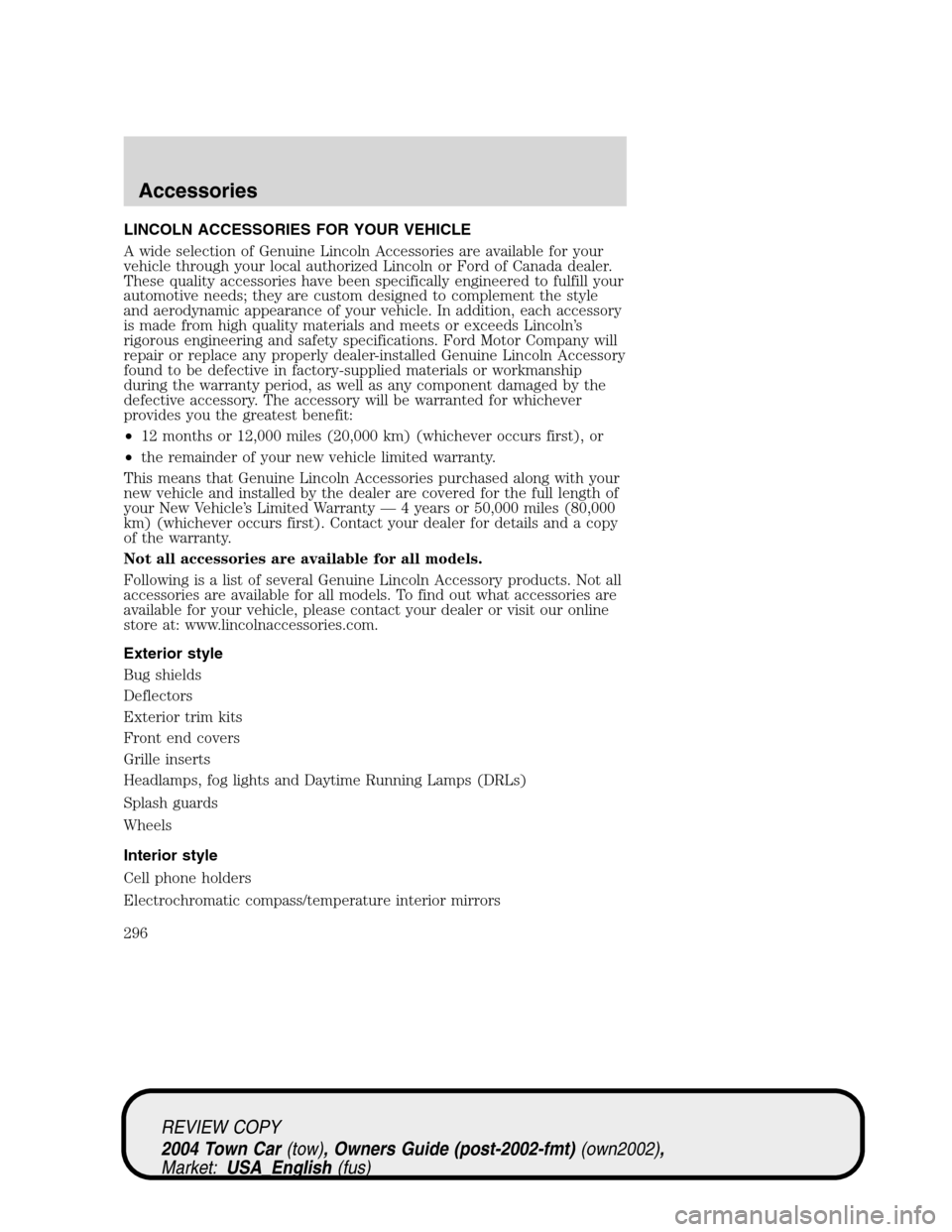

LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local authorized Lincoln or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln Accessory
found to be defective in factory-supplied materials or workmanship
during the warranty period, as well as any component damaged by the
defective accessory. The accessory will be warranted for whichever
provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Lincoln Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—4 years or 50,000 miles (80,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
Following is a list of several Genuine Lincoln Accessory products. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Accessories
Accessories
296
Page 297 of 304

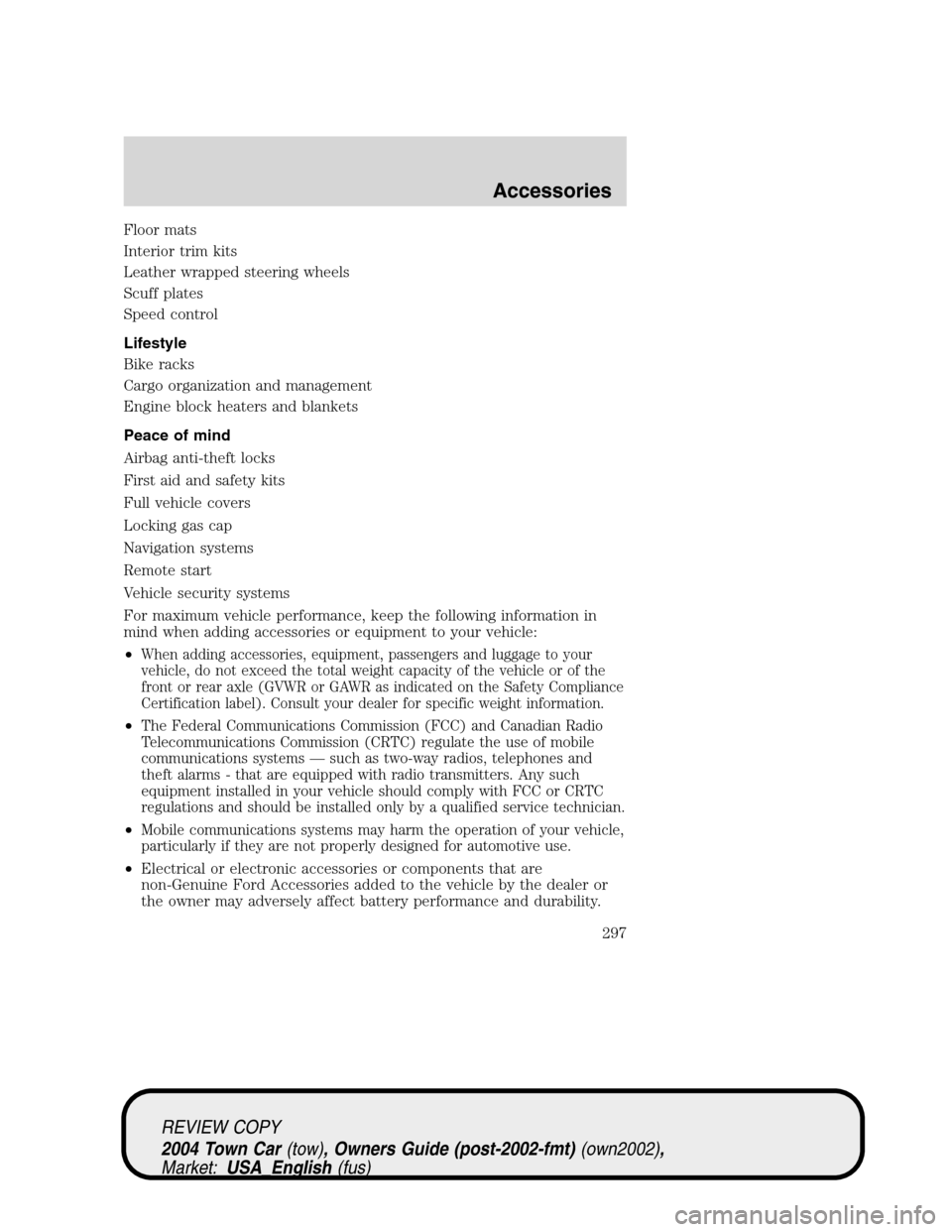

Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•
When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of the
front or rear axle (GVWR or GAWR as indicated on the Safety Compliance
Certification label). Consult your dealer for specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems—such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service technician.
•Mobile communications systems may harm the operation of your vehicle,
particularly if they are not properly designed for automotive use.
•Electrical or electronic accessories or components that are
non-Genuine Ford Accessories added to the vehicle by the dealer or
the owner may adversely affect battery performance and durability.
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Accessories
297
Page 298 of 304
A
Accessory delay ........................114
Air bag supplemental restraint
system ................................165, 169
and child safety seats ............167
description ......................165, 169
disposal ....................................172
driver air bag ..................167, 170
indicator light .................169, 171
operation .........................167, 170
passenger air bag ...........167, 170
side air bag ..............................169
Air cleaner filter .......271–272, 286
Air suspension ...........................192
description ..............................192
Antifreeze
(see Engine coolant) ................252
Anti-lock brake system
(see Brakes) ..............................188
Anti-theft system ......................144
Audio system (see Radio) .........17
Automatic transmission
driving an automatic
overdrive .................................193
fluid, adding ............................269
fluid, checking ........................269
fluid, refill capacities ..............287
fluid, specification ..................290
Auxiliary power point ...............113
Axle
lubricant specifications ..288, 290
refill capacities ........................287
traction lok ..............................196
B
Battery .......................................250
acid, treating emergencies .....250jumping a disabled battery ....222
maintenance-free ....................250
replacement, specifications ...286
servicing ..................................250
BeltMinder .................................160
Brakes ........................................188
anti-lock ...................................188
anti-lock brake system (ABS)
warning light ...........................188
fluid, checking and adding ....268
fluid, refill capacities ..............287
fluid, specifications .........288, 290
lubricant specifications ..288, 290
shift interlock ..........................192
Bulbs ............................................96
C
Capacities for refilling fluids ....287
CD changer .................................21
CD-single premium .....................17
Cell phone use ..........................122
Certification Label ....................292
Changing a tire .........................216
Child safety restraints ..............172
child safety belts ....................172
Child safety seats ......................175
attaching with tether straps ..179
in front seat ............................176
in rear seat ..............................176
Cleaning your vehicle
engine compartment ..............238
instrument panel ....................240
interior .....................................240
plastic parts ............................239
washing ....................................237
waxing .....................................237
wheels ......................................238
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
Index
298
Page 299 of 304

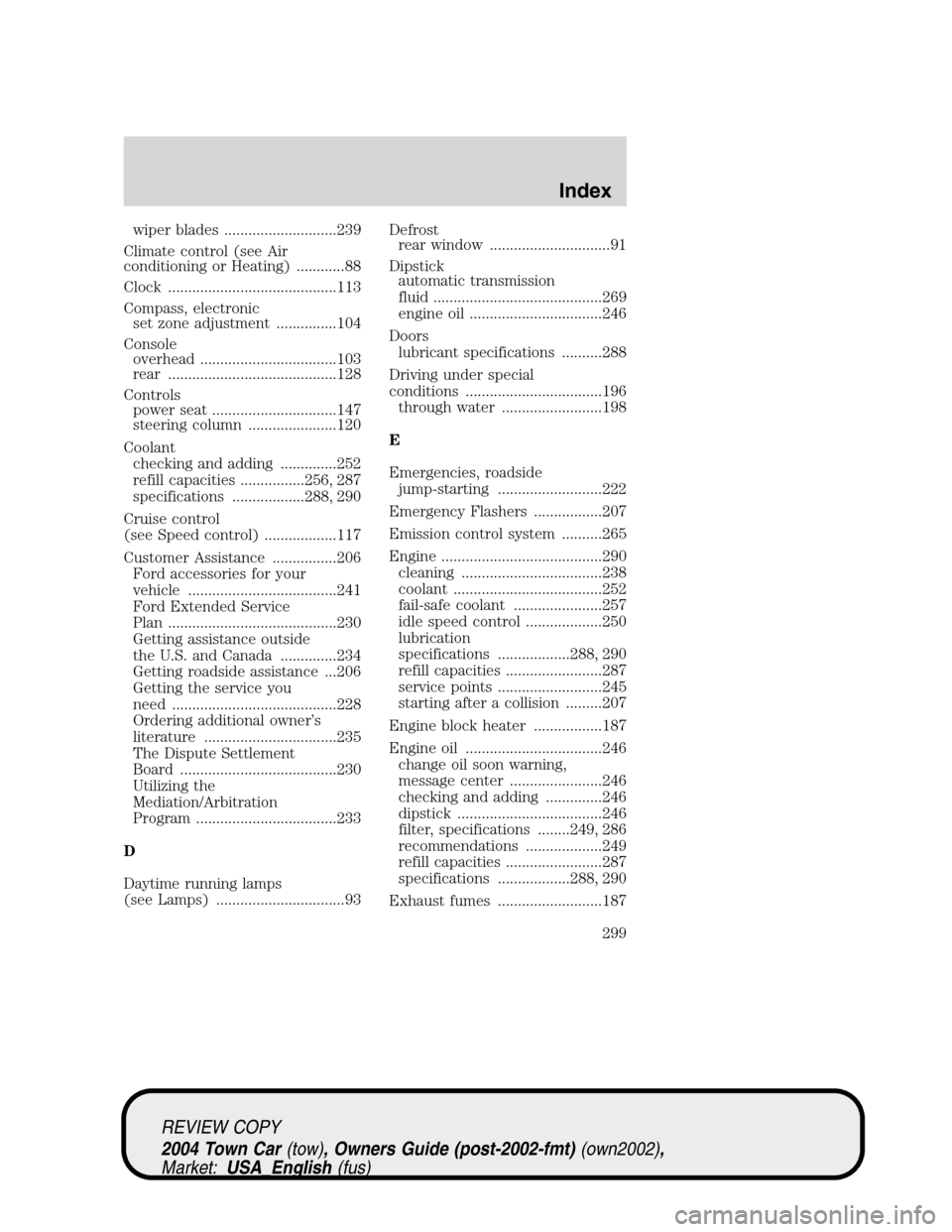

wiper blades ............................239
Climate control (see Air
conditioning or Heating) ............88
Clock ..........................................113
Compass, electronic
set zone adjustment ...............104
Console
overhead ..................................103
rear ..........................................128
Controls
power seat ...............................147
steering column ......................120
Coolant
checking and adding ..............252
refill capacities ................256, 287
specifications ..................288, 290
Cruise control
(see Speed control) ..................117
Customer Assistance ................206
Ford accessories for your
vehicle .....................................241
Ford Extended Service
Plan ..........................................230
Getting assistance outside
the U.S. and Canada ..............234
Getting roadside assistance ...206
Getting the service you
need .........................................228
Ordering additional owner’s
literature .................................235
The Dispute Settlement
Board .......................................230
Utilizing the
Mediation/Arbitration
Program ...................................233
D
Daytime running lamps
(see Lamps) ................................93Defrost
rear window ..............................91
Dipstick
automatic transmission
fluid ..........................................269
engine oil .................................246
Doors
lubricant specifications ..........288
Driving under special
conditions ..................................196
through water .........................198
E
Emergencies, roadside
jump-starting ..........................222
Emergency Flashers .................207
Emission control system ..........265
Engine ........................................290
cleaning ...................................238
coolant .....................................252
fail-safe coolant ......................257
idle speed control ...................250
lubrication
specifications ..................288, 290
refill capacities ........................287
service points ..........................245
starting after a collision .........207
Engine block heater .................187
Engine oil ..................................246
change oil soon warning,
message center .......................246
checking and adding ..............246
dipstick ....................................246
filter, specifications ........249, 286
recommendations ...................249
refill capacities ........................287
specifications ..................288, 290
Exhaust fumes ..........................187
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
299

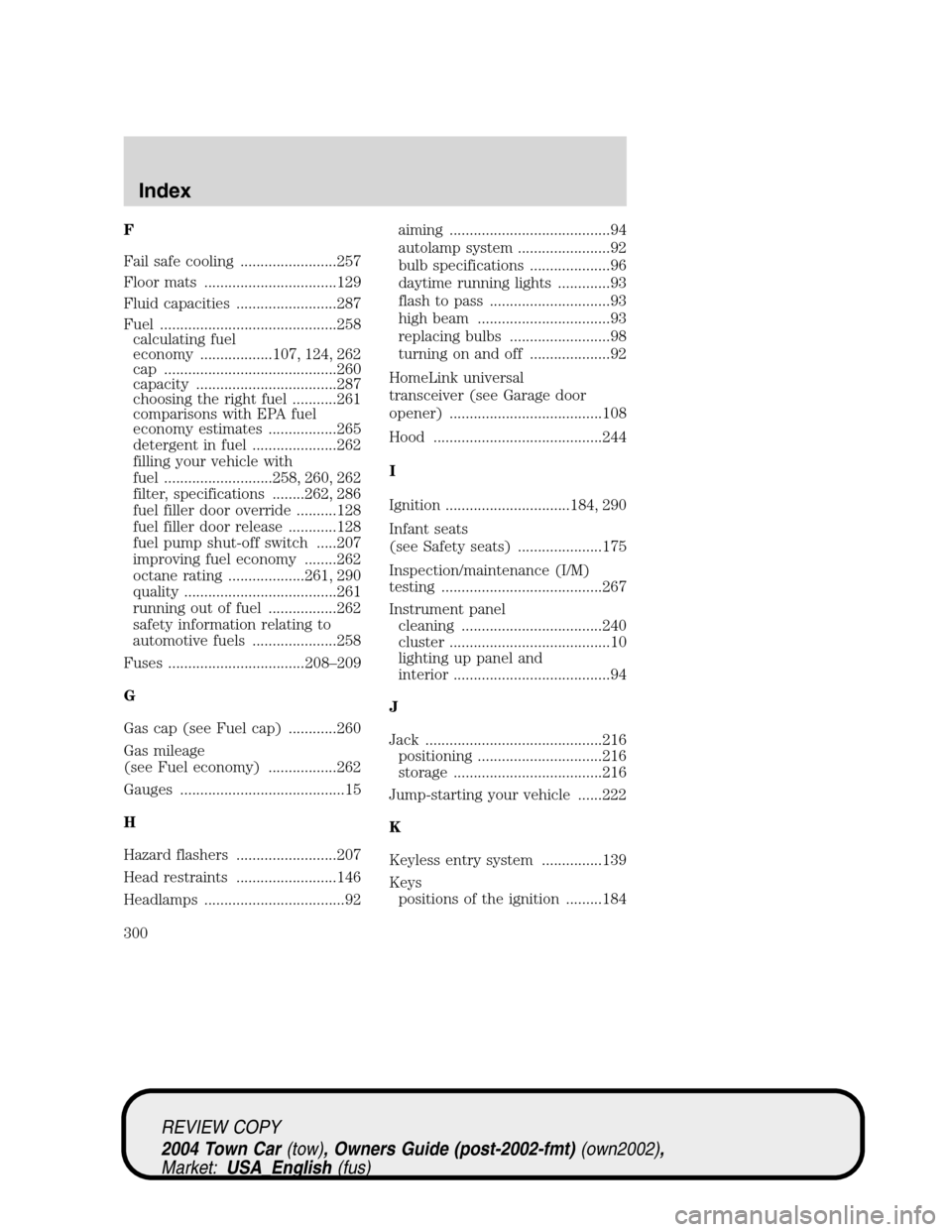

Page 300 of 304
F
Fail safe cooling ........................257
Floor mats .................................129
Fluid capacities .........................287
Fuel ............................................258
calculating fuel
economy ..................107, 124, 262
cap ...........................................260
capacity ...................................287
choosing the right fuel ...........261
comparisons with EPA fuel
economy estimates .................265
detergent in fuel .....................262
filling your vehicle with
fuel ...........................258, 260, 262
filter, specifications ........262, 286
fuel filler door override ..........128
fuel filler door release ............128
fuel pump shut-off switch .....207
improving fuel economy ........262
octane rating ...................261, 290
quality ......................................261
running out of fuel .................262
safety information relating to
automotive fuels .....................258
Fuses ..................................208–209
G
Gas cap (see Fuel cap) ............260
Gas mileage
(see Fuel economy) .................262
Gauges .........................................15
H
Hazard flashers .........................207
Head restraints .........................146
Headlamps ...................................92aiming ........................................94
autolamp system .......................92
bulb specifications ....................96
daytime running lights .............93
flash to pass ..............................93
high beam .................................93
replacing bulbs .........................98
turning on and off ....................92
HomeLink universal
transceiver (see Garage door
opener) ......................................108
Hood ..........................................244
I
Ignition ...............................184, 290
Infant seats
(see Safety seats) .....................175
Inspection/maintenance (I/M)
testing ........................................267
Instrument panel
cleaning ...................................240
cluster ........................................10
lighting up panel and
interior .......................................94
J
Jack ............................................216
positioning ...............................216
storage .....................................216
Jump-starting your vehicle ......222
K
Keyless entry system ...............139
Keys
positions of the ignition .........184
REVIEW COPY
2004 Town Car(tow), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
300
