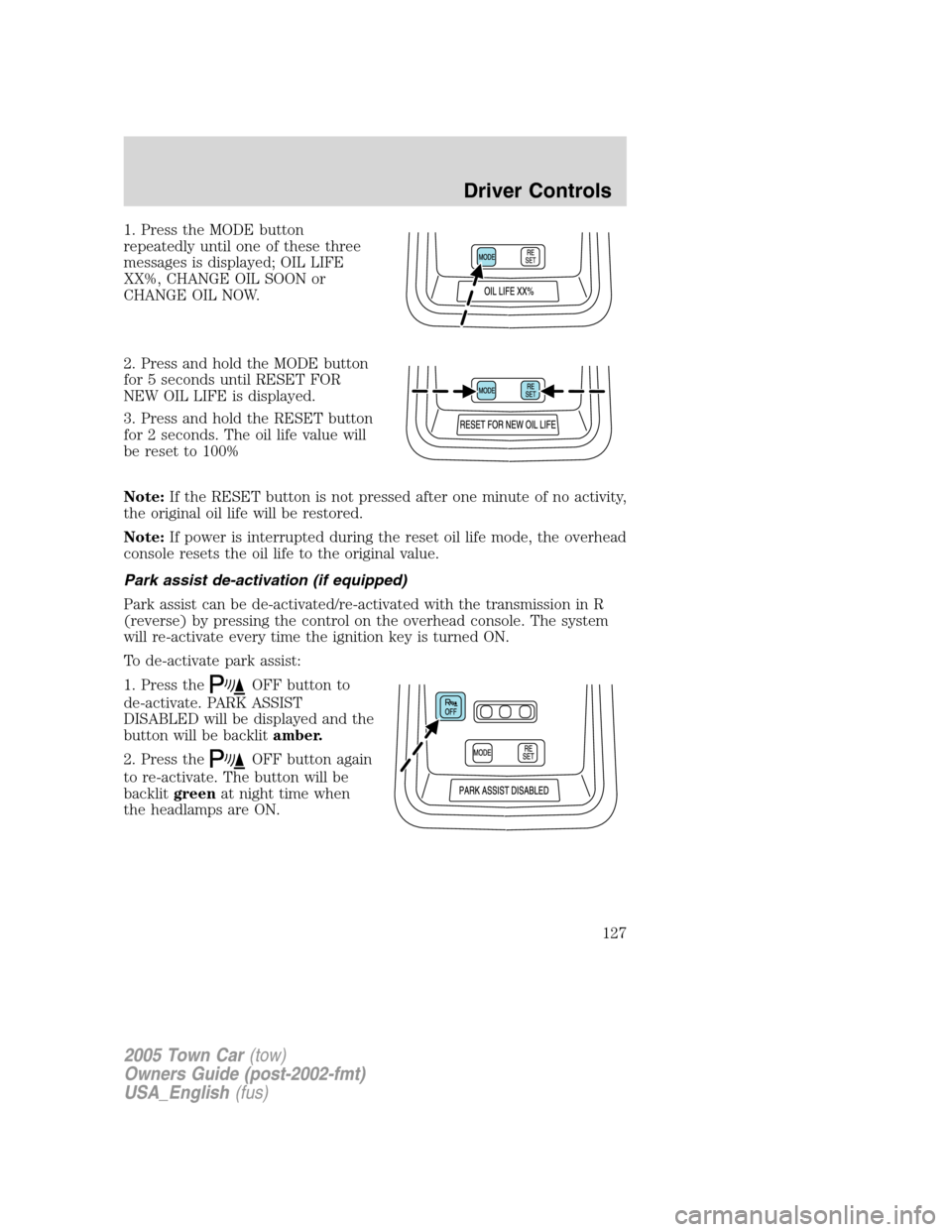

1. Press the MODE button
repeatedly until one of these three
messages is displayed; OIL LIFE
XX%, CHANGE OIL SOON or
CHANGE OIL NOW.
2. Press and hold the MODE button
for 5 seconds until RESET FOR
NEW OIL LIFE is displayed.
3. Press and hold the RESET button
for 2 seconds. The oil life value will
be reset to 100%
Note:If the RESET button is not pressed after one minute of no activity,
the original oil life will be restored.
Note:If power is interrupted during the reset oil life mode, the overhead
console resets the oil life to the original value.
Park assist de-activation (if equipped)
Park assist can be de-activated/re-activated with the transmission in R
(reverse) by pressing the control on the overhead console. The system
will re-activate every time the ignition key is turned ON.
To de-activate park assist:
1. Press the
OFF button to
de-activate. PARK ASSIST
DISABLED will be displayed and the
button will be backlitamber.
2. Press the
OFF button again
to re-activate. The button will be
backlitgreenat night time when
the headlamps are ON.
2005 Town Car(tow)
Owners Guide (post-2002-fmt)
USA_English(fus)
Driver Controls
127

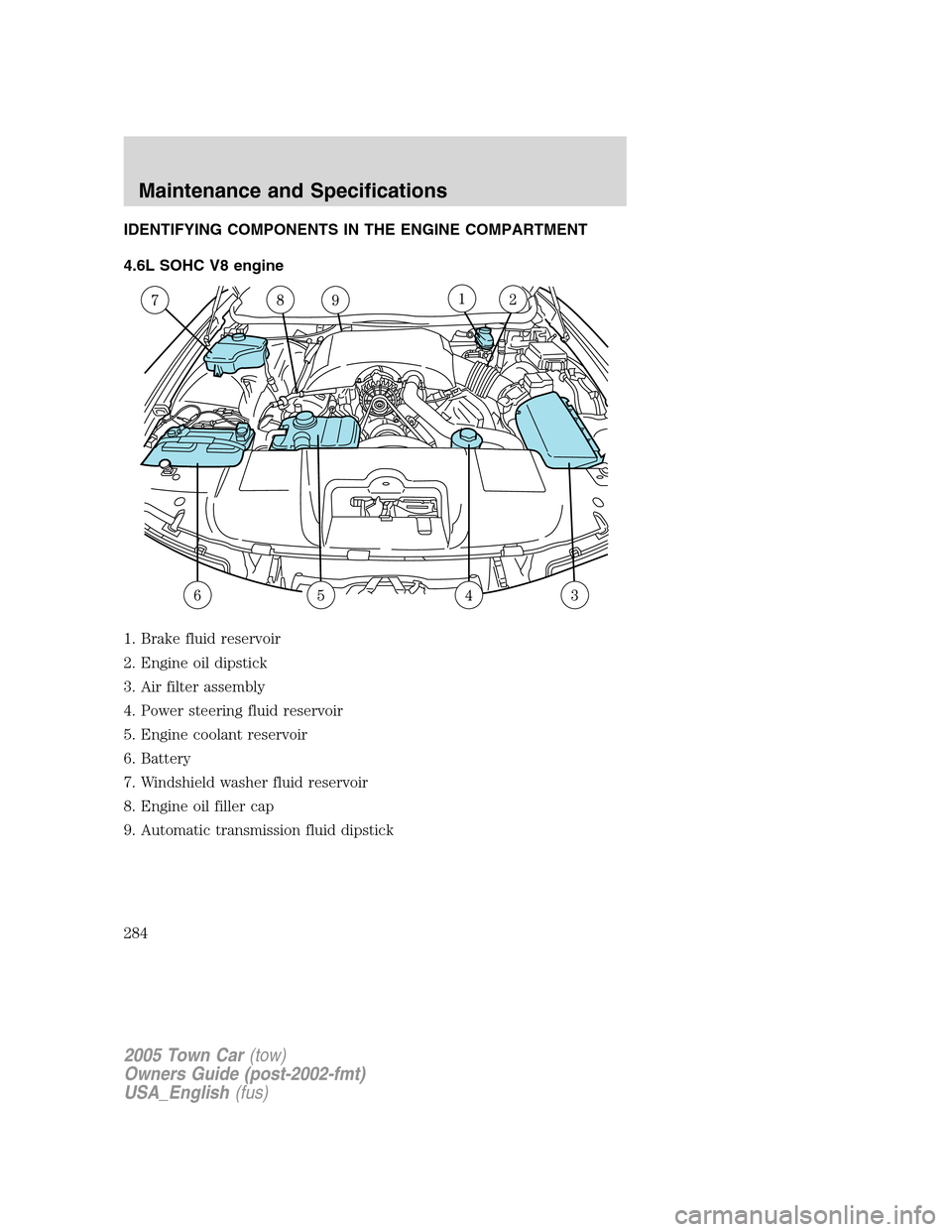

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
4.6L SOHC V8 engine
1. Brake fluid reservoir
2. Engine oil dipstick
3. Air filter assembly
4. Power steering fluid reservoir
5. Engine coolant reservoir
6. Battery
7. Windshield washer fluid reservoir
8. Engine oil filler cap
9. Automatic transmission fluid dipstick
2005 Town Car(tow)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
284

•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between third and fourth gear occurs.
Unnecessary shifting of this type could result in reduced fuel
economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toLubricant specificationsin
this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
2005 Town Car(tow)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
304

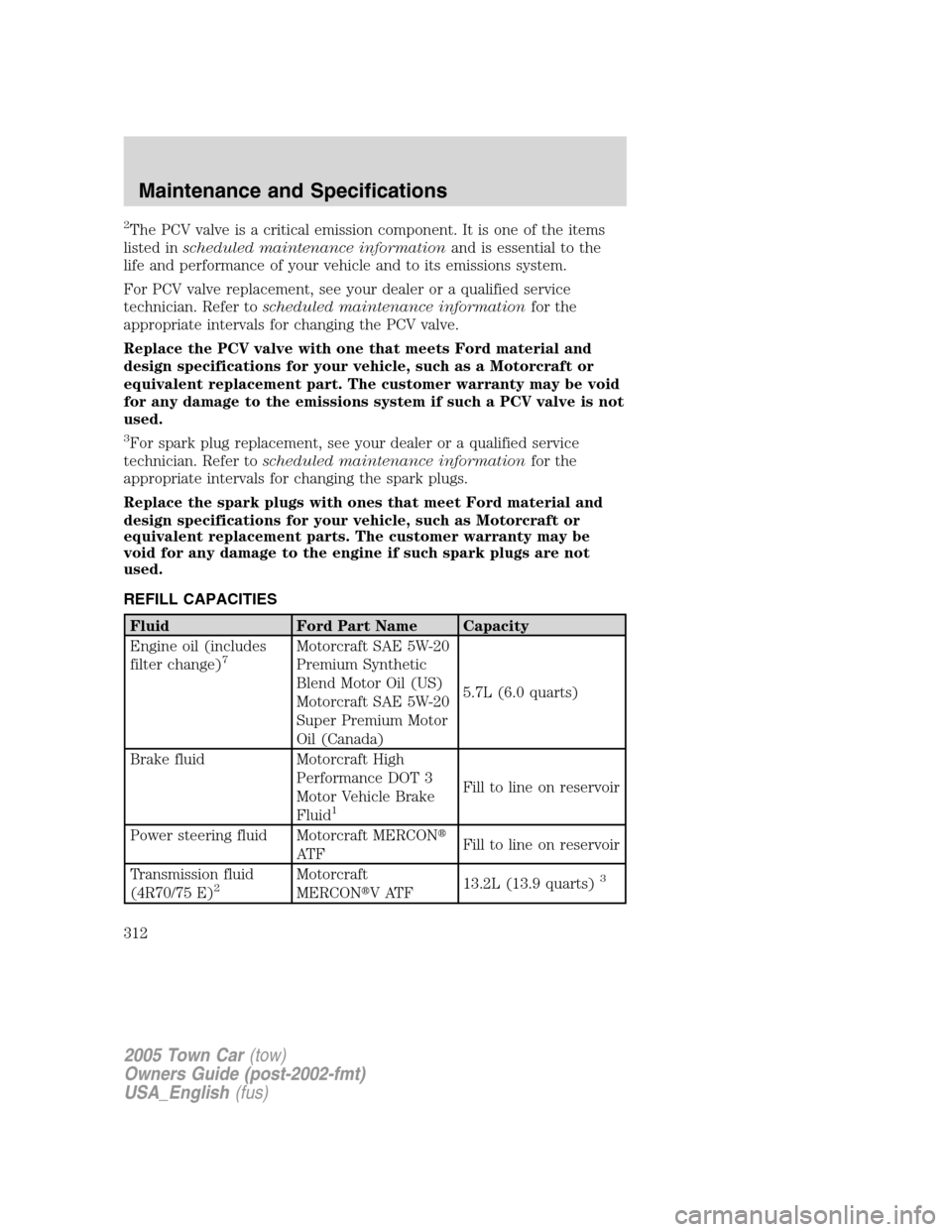

2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
REFILL CAPACITIES
Fluid Ford Part Name Capacity
Engine oil (includes
filter change)
7Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)5.7L (6.0 quarts)
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
Fluid
1
Fill to line on reservoir
Power steering fluid Motorcraft MERCON
AT FFill to line on reservoir
Transmission fluid
(4R70/75 E)
2Motorcraft
MERCONVATF13.2L (13.9 quarts)3
2005 Town Car(tow)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
312

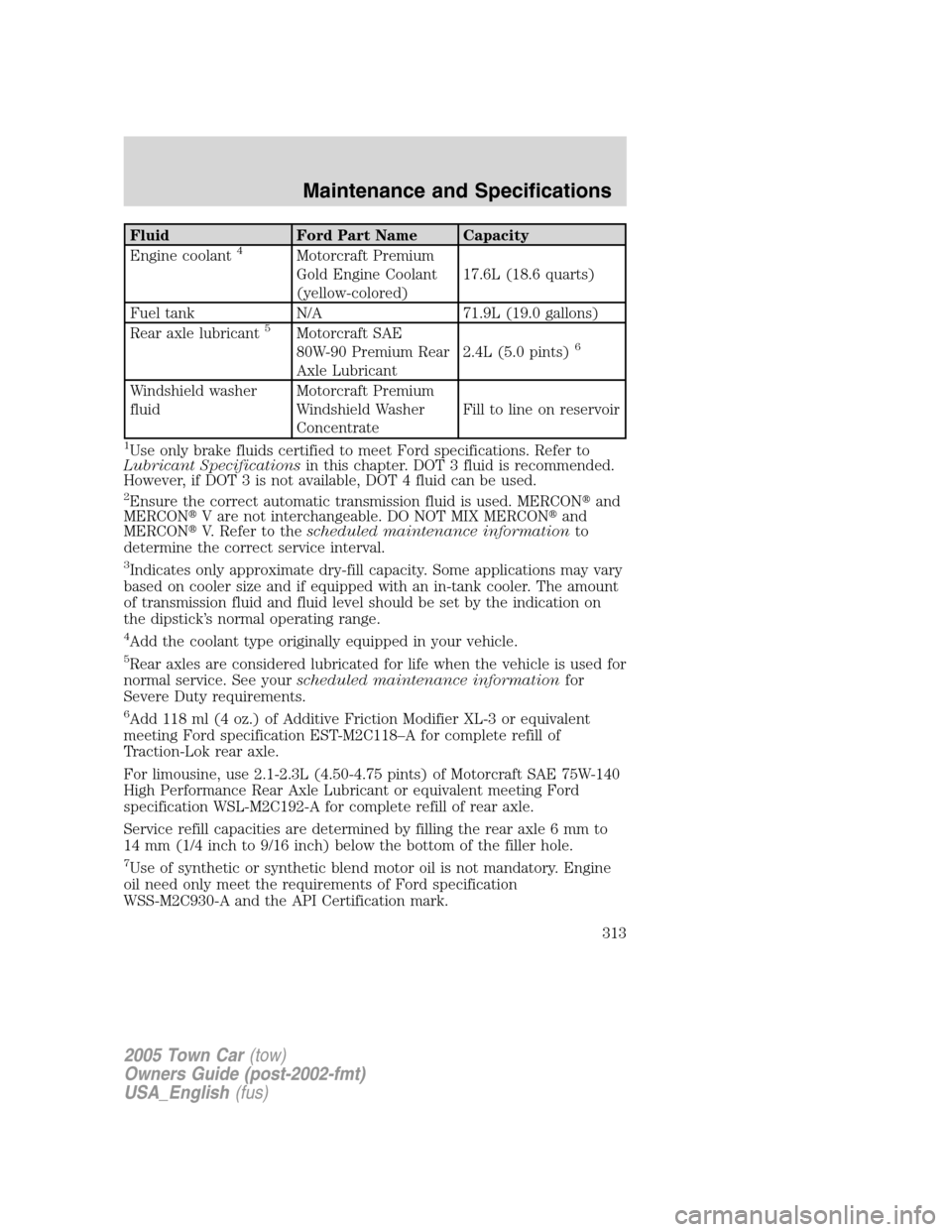

Fluid Ford Part Name Capacity
Engine coolant4Motorcraft Premium
Gold Engine Coolant
(yellow-colored)17.6L (18.6 quarts)
Fuel tank N/A 71.9L (19.0 gallons)
Rear axle lubricant
5Motorcraft SAE
80W-90 Premium Rear
Axle Lubricant2.4L (5.0 pints)6
Windshield washer
fluidMotorcraft Premium
Windshield Washer
ConcentrateFill to line on reservoir
1Use only brake fluids certified to meet Ford specifications. Refer to
Lubricant Specificationsin this chapter. DOT 3 fluid is recommended.
However, if DOT 3 is not available, DOT 4 fluid can be used.
2Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT MIX MERCONand
MERCONV. Refer to thescheduled maintenance informationto
determine the correct service interval.
3Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
4Add the coolant type originally equipped in your vehicle.
5Rear axles are considered lubricated for life when the vehicle is used for
normal service. See yourscheduled maintenance informationfor
Severe Duty requirements.
6Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118–A for complete refill of
Traction-Lok rear axle.
For limousine, use 2.1-2.3L (4.50-4.75 pints) of Motorcraft SAE 75W-140
High Performance Rear Axle Lubricant or equivalent meeting Ford
specification WSL-M2C192-A for complete refill of rear axle.
Service refill capacities are determined by filling the rear axle 6 mm to
14 mm (1/4 inch to 9/16 inch) below the bottom of the filler hole.
7Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
2005 Town Car(tow)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
313

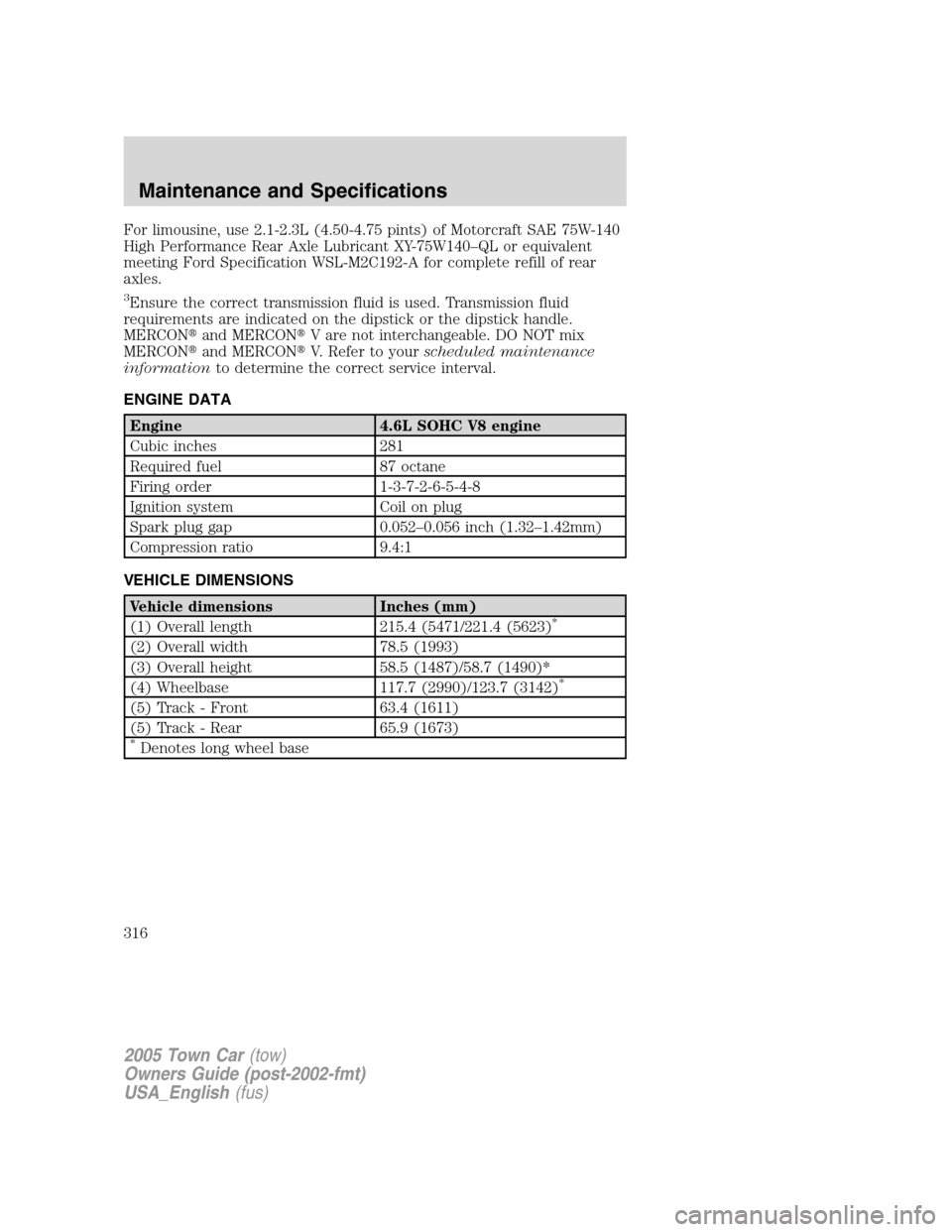

For limousine, use 2.1-2.3L (4.50-4.75 pints) of Motorcraft SAE 75W-140
High Performance Rear Axle Lubricant XY-75W140–QL or equivalent
meeting Ford Specification WSL-M2C192-A for complete refill of rear
axles.
3Ensure the correct transmission fluid is used. Transmission fluid
requirements are indicated on the dipstick or the dipstick handle.
MERCONand MERCONV are not interchangeable. DO NOT mix
MERCONand MERCONV. Refer to yourscheduled maintenance
informationto determine the correct service interval.
ENGINE DATA
Engine 4.6L SOHC V8 engine
Cubic inches 281
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap 0.052–0.056 inch (1.32–1.42mm)
Compression ratio 9.4:1
VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 215.4 (5471/221.4 (5623)*
(2) Overall width 78.5 (1993)
(3) Overall height 58.5 (1487)/58.7 (1490)*
(4) Wheelbase 117.7 (2990)/123.7 (3142)
*
(5) Track - Front 63.4 (1611)
(5) Track - Rear 65.9 (1673)
*Denotes long wheel base
2005 Town Car(tow)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
316

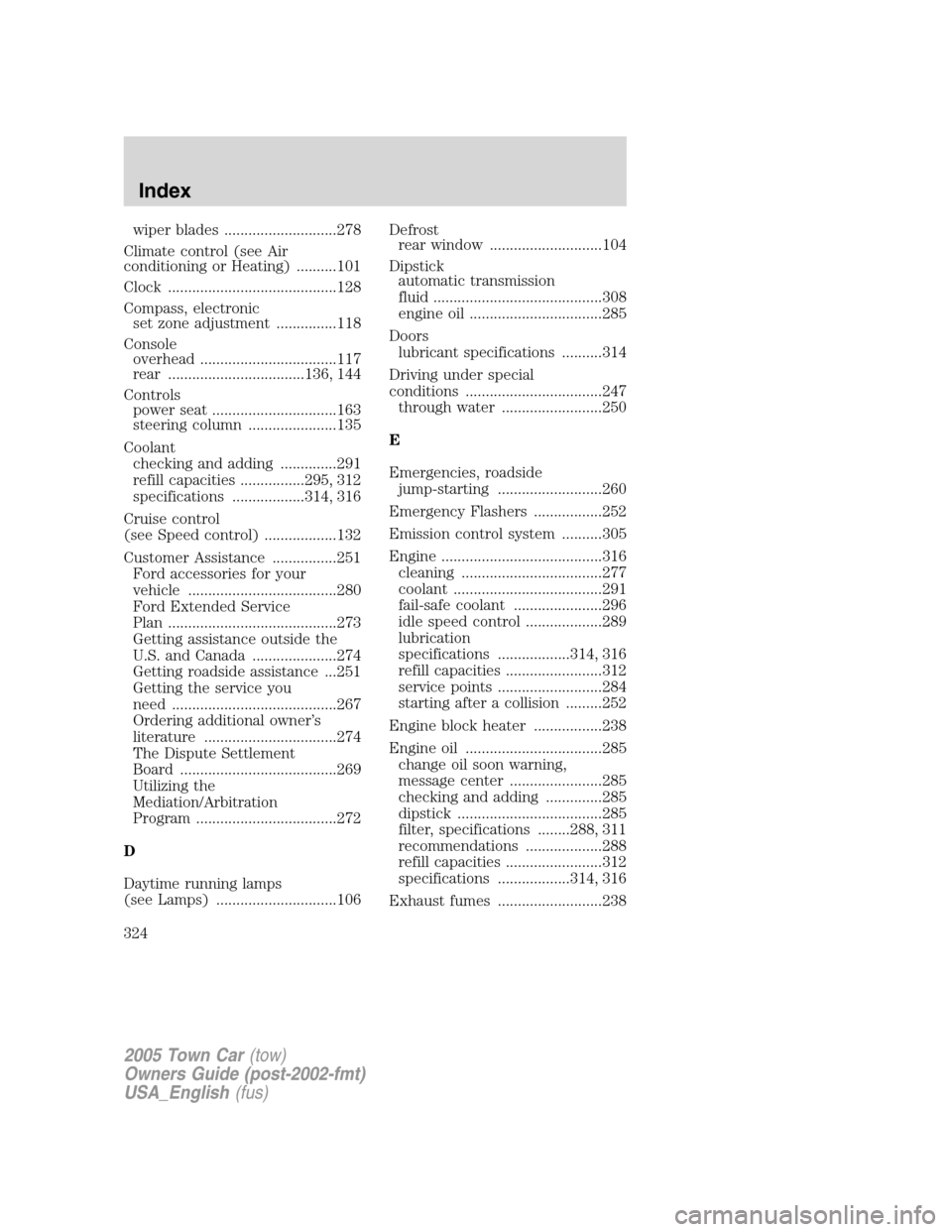

wiper blades ............................278
Climate control (see Air
conditioning or Heating) ..........101
Clock ..........................................128
Compass, electronic
set zone adjustment ...............118
Console
overhead ..................................117
rear ..................................136, 144
Controls
power seat ...............................163
steering column ......................135
Coolant
checking and adding ..............291
refill capacities ................295, 312
specifications ..................314, 316
Cruise control
(see Speed control) ..................132
Customer Assistance ................251
Ford accessories for your
vehicle .....................................280
Ford Extended Service
Plan ..........................................273
Getting assistance outside the
U.S. and Canada .....................274
Getting roadside assistance ...251
Getting the service you
need .........................................267
Ordering additional owner’s
literature .................................274
The Dispute Settlement
Board .......................................269
Utilizing the
Mediation/Arbitration
Program ...................................272
D
Daytime running lamps
(see Lamps) ..............................106Defrost
rear window ............................104
Dipstick
automatic transmission
fluid ..........................................308
engine oil .................................285
Doors
lubricant specifications ..........314
Driving under special
conditions ..................................247
through water .........................250
E
Emergencies, roadside
jump-starting ..........................260
Emergency Flashers .................252
Emission control system ..........305
Engine ........................................316
cleaning ...................................277
coolant .....................................291
fail-safe coolant ......................296
idle speed control ...................289
lubrication
specifications ..................314, 316
refill capacities ........................312
service points ..........................284
starting after a collision .........252
Engine block heater .................238
Engine oil ..................................285
change oil soon warning,
message center .......................285
checking and adding ..............285
dipstick ....................................285
filter, specifications ........288, 311
recommendations ...................288
refill capacities ........................312
specifications ..................314, 316
Exhaust fumes ..........................238
2005 Town Car(tow)
Owners Guide (post-2002-fmt)
USA_English(fus)
Index
324
