LINCOLN TOWN CAR 2006 Owners Manual
Manufacturer: LINCOLN, Model Year: 2006, Model line: TOWN CAR, Model: LINCOLN TOWN CAR 2006Pages: 328, PDF Size: 4.56 MB
Page 311 of 328
1Use only brake fluids certified to meet Ford specifications. DOT 3 fluid
is recommended. However, if DOT 3 is not available, DOT 4 fluid can be
used.
2Add 4 oz. (118 ml) of Additive Friction Modifier XL–3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of
Traction-Lok rear axles.
3Ensure the correct transmission fluid is used. Transmission fluid
requirements are indicated on the dipstick or the dipstick handle.
MERCONand MERCONV are not interchangeable. DO NOT mix
MERCONand MERCONV. Refer to yourscheduled maintenance
informationto determine the correct service interval.

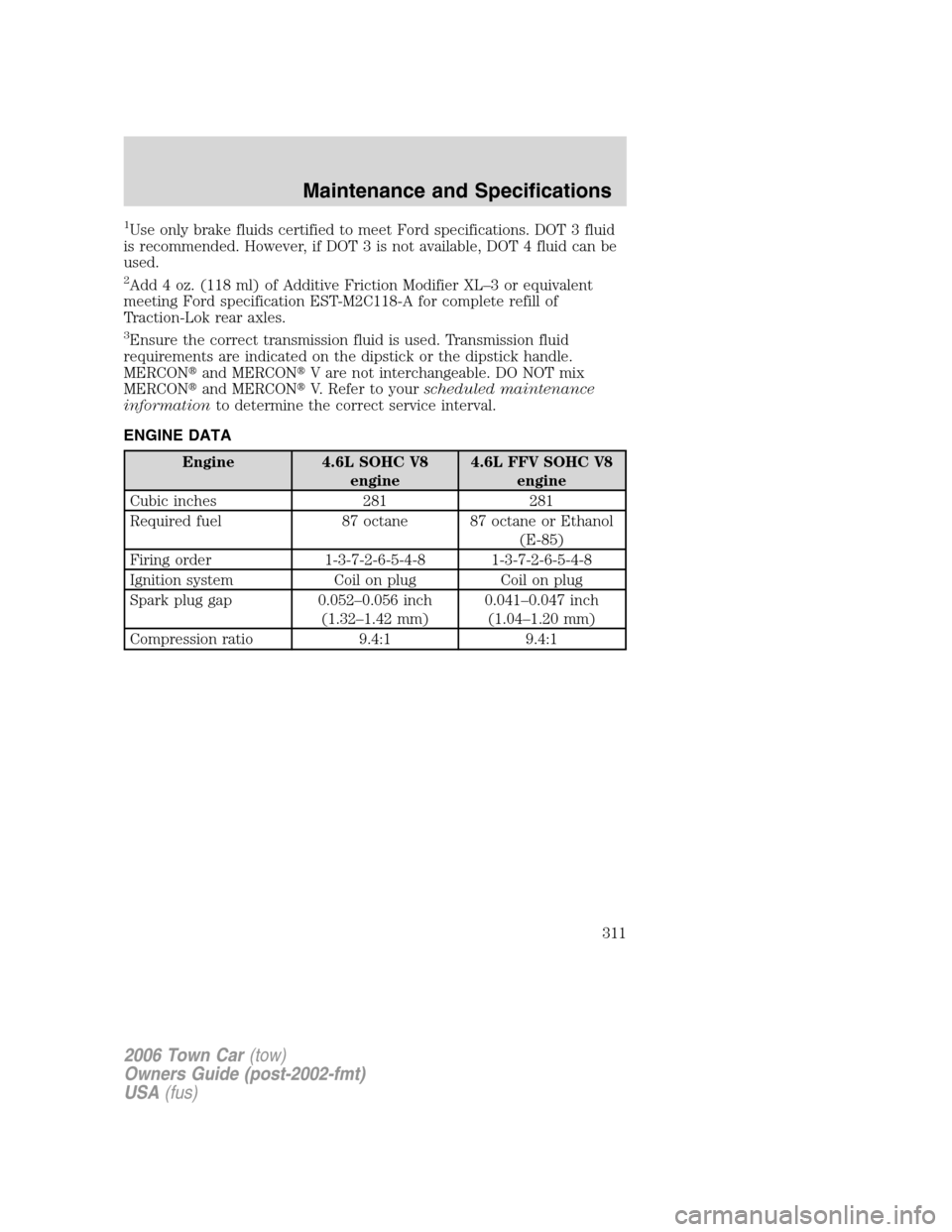

ENGINE DATA
Engine 4.6L SOHC V8
engine4.6L FFV SOHC V8
engine
Cubic inches 281 281
Required fuel 87 octane 87 octane or Ethanol
(E-85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.041–0.047 inch
(1.04–1.20 mm)
Compression ratio 9.4:1 9.4:1
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
311
Page 312 of 328

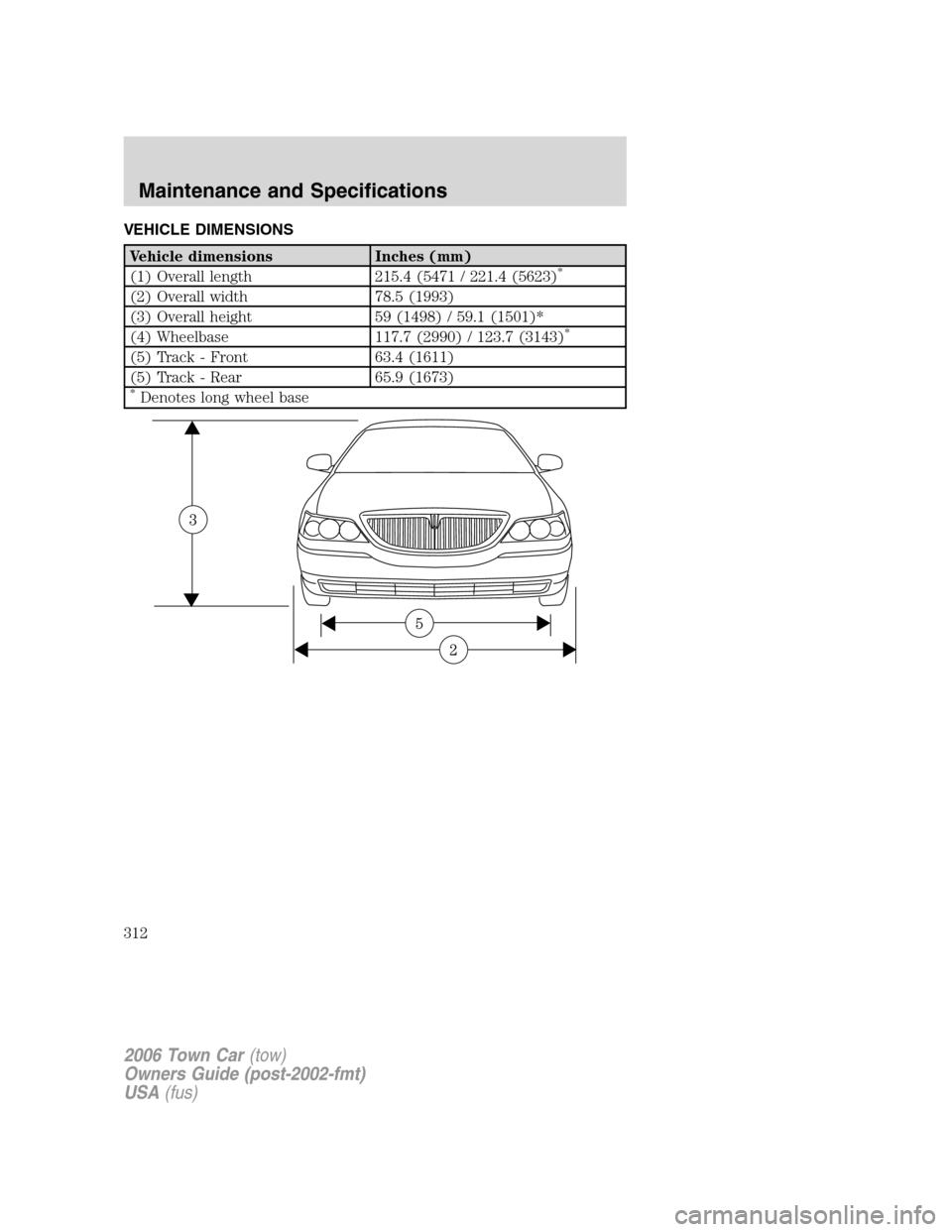

VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 215.4 (5471 / 221.4 (5623)*
(2) Overall width 78.5 (1993)
(3) Overall height 59 (1498) / 59.1 (1501)*
(4) Wheelbase 117.7 (2990) / 123.7 (3143)
*
(5) Track - Front 63.4 (1611)
(5) Track - Rear 65.9 (1673)
*Denotes long wheel base
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
312
Page 313 of 328
1
4
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
313
Page 314 of 328

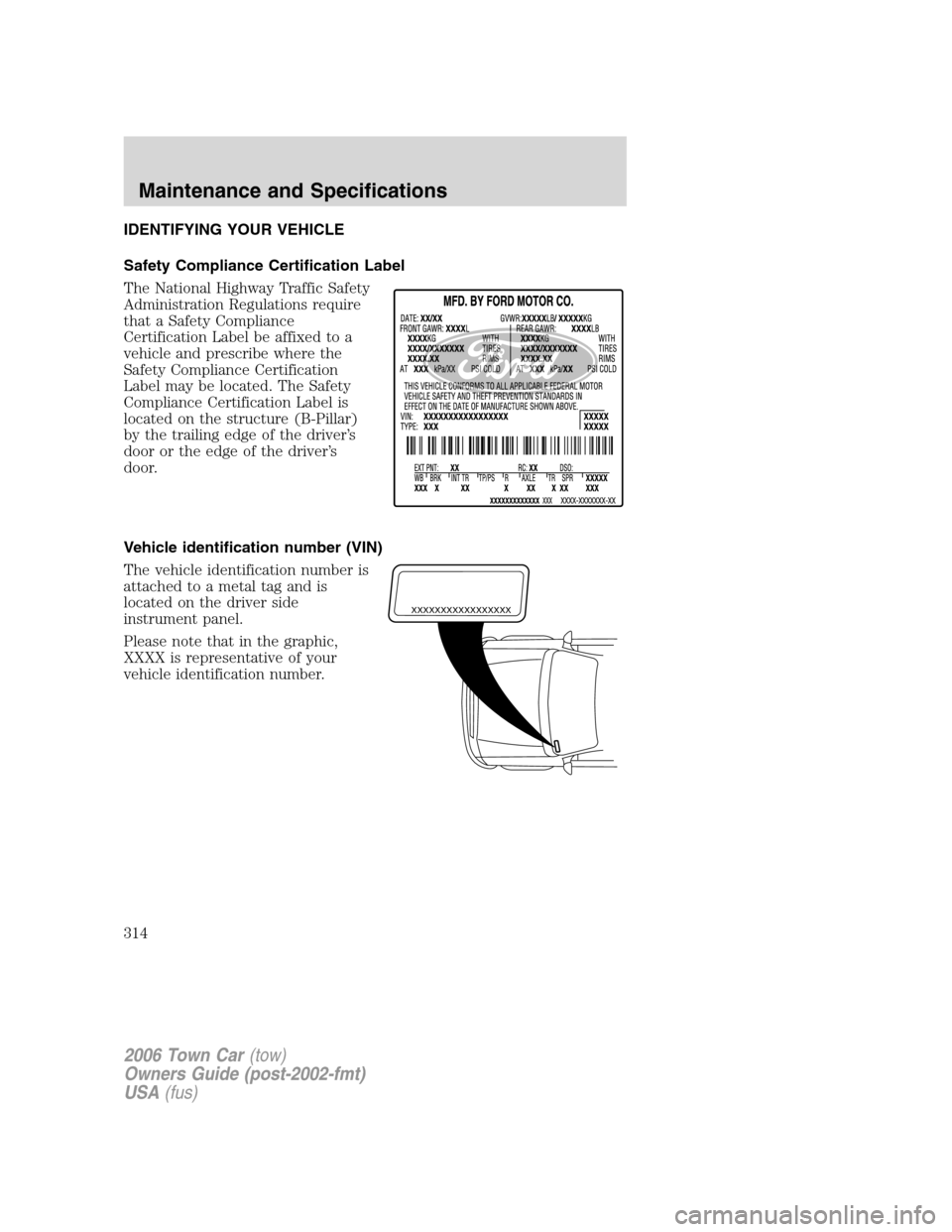

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
314
Page 315 of 328

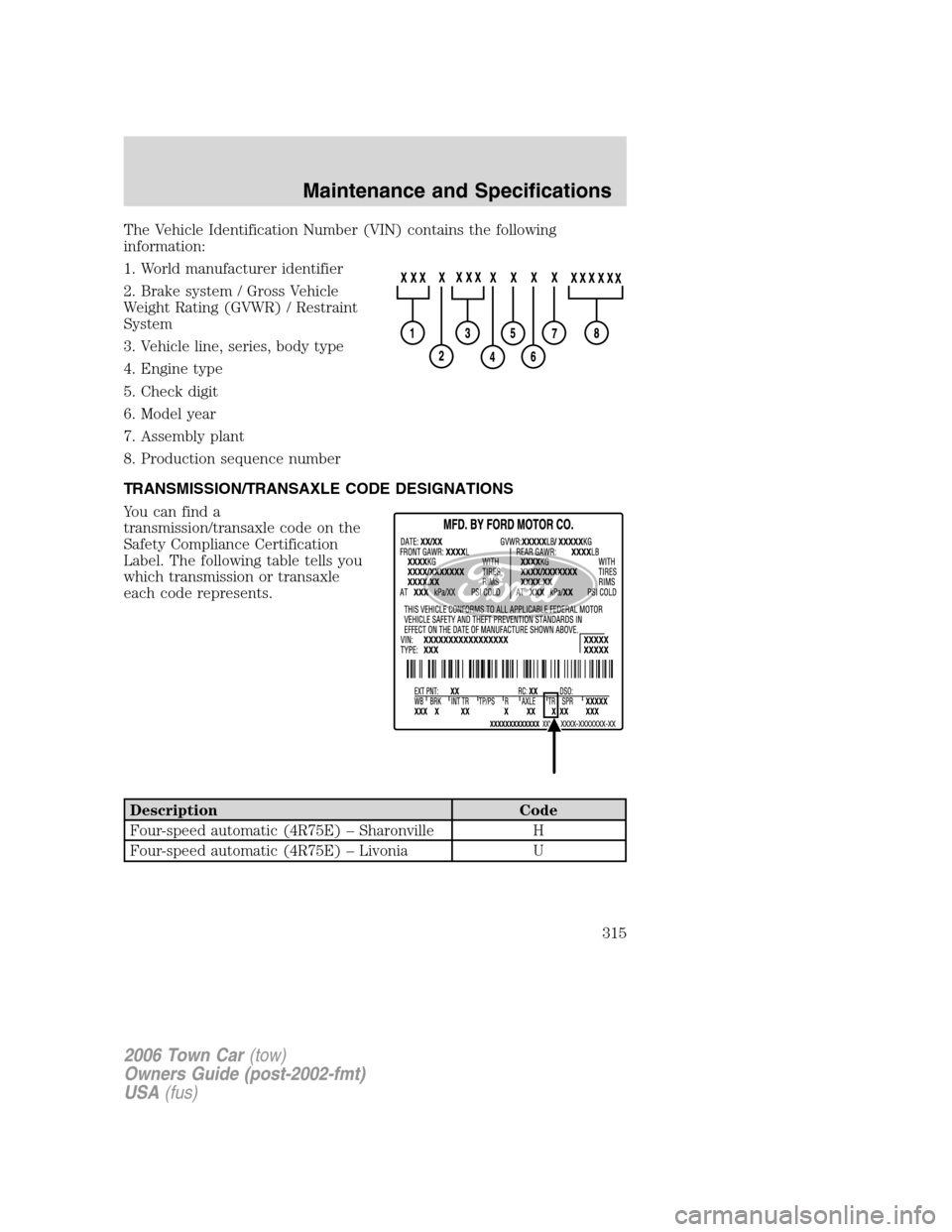

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Four-speed automatic (4R75E) – Sharonville H
Four-speed automatic (4R75E) – Livonia U
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
315
Page 316 of 328

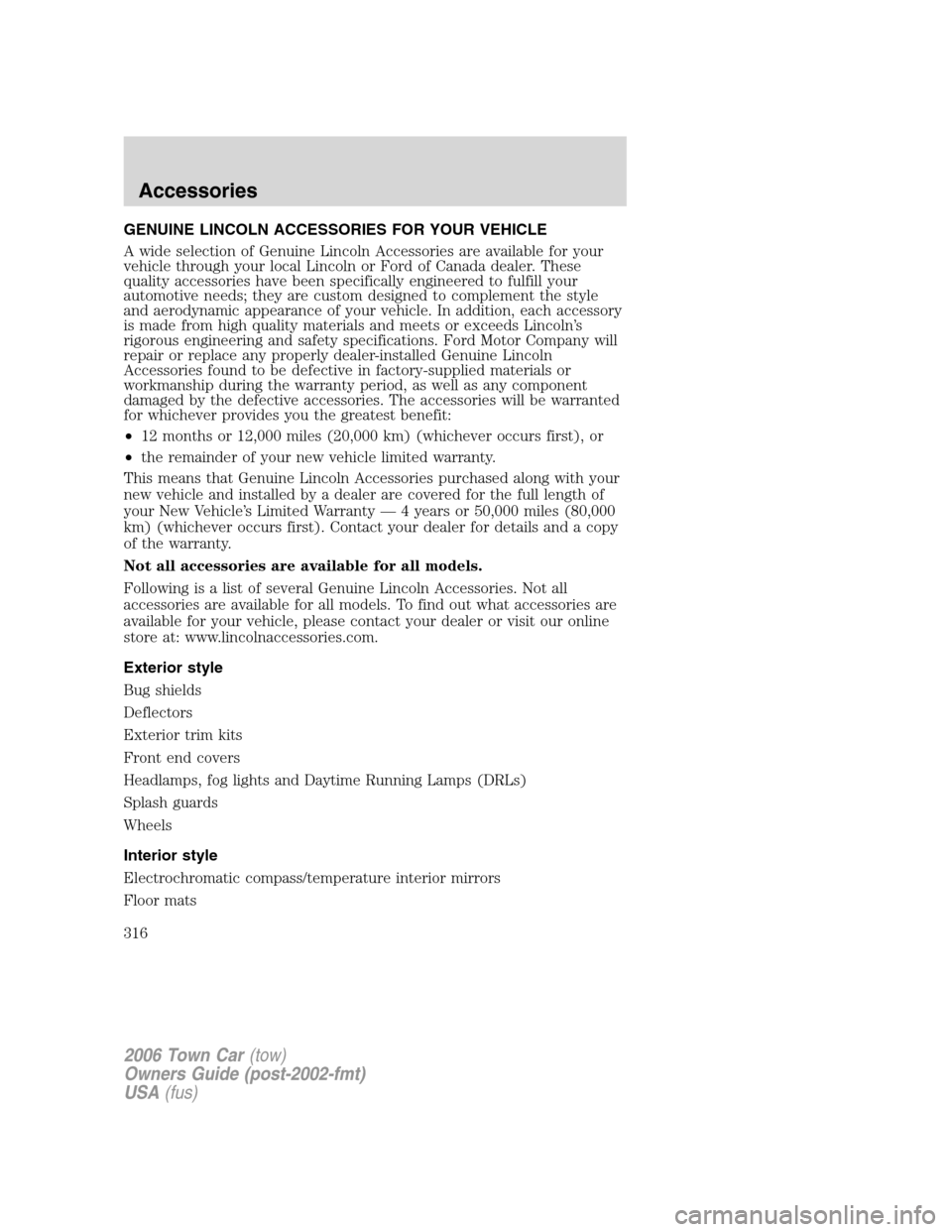

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Lincoln Accessories purchased along with your
new vehicle and installed by a dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 4 years or 50,000 miles (80,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Wheels
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
316
Page 317 of 328

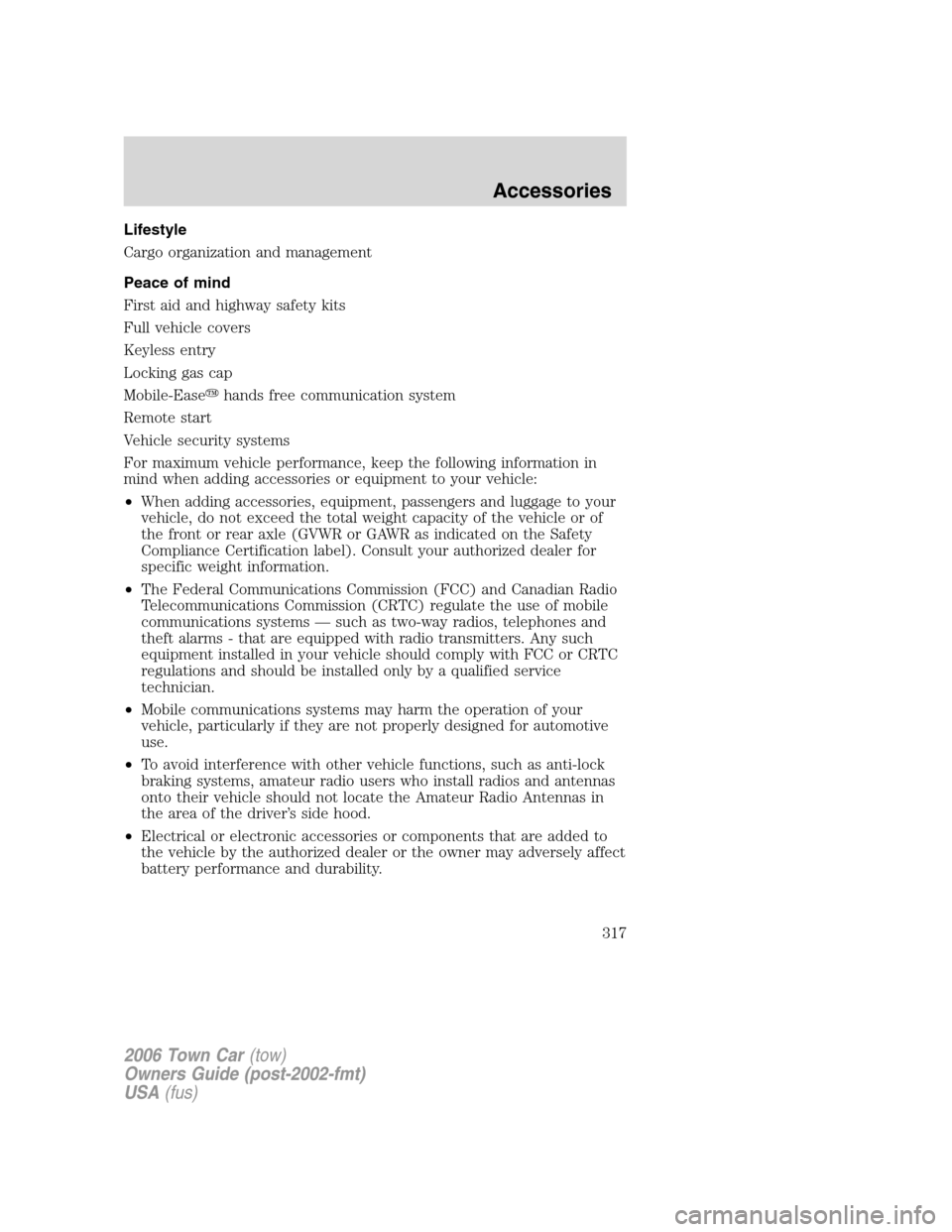

Lifestyle
Cargo organization and management
Peace of mind
First aid and highway safety kits
Full vehicle covers
Keyless entry
Locking gas cap
Mobile-Easehands free communication system
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
317
Page 318 of 328
A
Accessory delay ........................111
Air cleaner filter ...............305–306
Air suspension ...........................231
description ..............................231
Airbag supplemental restraint
system ........................173–174, 183
and child safety seats ............176
description ......................174, 183
disposal ....................................185
driver airbag ....................176, 184
indicator light .................183, 185
operation .........................176, 184
passenger airbag .............176, 184
side airbag ...............................183
Antifreeze
(see Engine coolant) ................284
Anti-lock brake system
(see Brakes) ..............................227
Anti-theft system ..............148, 152
arming the system ..................152
disarming a triggered
system .....................................152
Audio system
(see Radio) ......................15, 18, 24
Automatic transmission
driving an automatic
overdrive .................................233
fluid, adding ............................303
fluid, checking ........................303
fluid, refill capacities ..............307
fluid, specification ..................311
Auxiliary power point ...............109
Axle
lubricant specifications ..309, 311
refill capacities ........................307
traction lok ..............................231
B
Battery .......................................282acid, treating emergencies .....282
jumping a disabled battery ....255
maintenance-free ....................282
replacement, specifications ...306
servicing ..................................282
BeltMinder .................................168
Brakes ........................................227
anti-lock ...................................227
anti-lock brake system (ABS)
warning light ...........................227
fluid, checking and adding ....303
fluid, refill capacities ..............307
fluid, specifications .........309, 311
lubricant specifications ..309, 311
shift interlock ..........................231
Bulbs ..........................................101
C
Capacities for refilling fluids ....307
Cell phone use ..............................7
Changing a tire .........................249
Child safety restraints ..............186
child safety belts ....................186
Child safety seats ......................190
attaching with tether straps ..194
in front seat ............................191
in rear seat ..............................191
Cleaning your vehicle
engine compartment ..............270
instrument panel ....................271
interior .....................................272
plastic parts ............................270
washing ....................................268
waxing .....................................269
wheels ......................................269
wiper blades ............................271
Climate control (see Air
conditioning or Heating) ............93
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Index
318
Page 319 of 328
Clock ..........................................108
Compass, electronic
set zone adjustment ...............128
Console
rear ..................................109, 117
Controls
power seat ...............................154
steering column ......................116
Coolant
checking and adding ..............284
refill capacities ................288, 307
specifications ..................309, 311
Cruise control
(see Speed control) ..................113
Customer Assistance ................239
Ford Extended Service
Plan ..........................................265
Getting assistance outside the
U.S. and Canada .....................266
Getting roadside assistance ...239
Getting the service you
need .........................................261
Ordering additional owner’s
literature .................................266
Utilizing the
Mediation/Arbitration
Program ...................................264
D
Daytime running lamps
(see Lamps) ................................98
Defrost
rear window ..............................96
Dipstick
automatic transmission
fluid ..........................................303
engine oil .................................279Doors
lubricant specifications ..........309
Driving under special
conditions ..................................235
through water .........................238
E
Electronic message center .......123
Emergencies, roadside
jump-starting ..........................255
Emergency Flashers .................241
Emission control system ..........299
Engine ................................311–312
cleaning ...................................270
coolant .....................................284
fail-safe cooling .......................289
idle speed control ...................282
lubrication specifications ......309,
311
refill capacities ........................307
service points ..........................277
starting after a collision .........241
Engine block heater .................226
Engine oil ..................................279
change oil soon warning,
message center .......................279
checking and adding ..............279
dipstick ....................................279
filter, specifications ........281, 306
recommendations ...................281
refill capacities ........................307
specifications ..................309, 311
Exhaust fumes ..........................226
F
Fail safe cooling ........................289
Flexible Fuel Vehicle (FFV) ....290
Floor mats .................................133
Fluid capacities .........................307
Foglamps .....................................99
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Index
319
Page 320 of 328
Fuel ............................................290
calculating fuel economy ......125,
296
cap ...........................................293
capacity ...................................307
choosing the right fuel ...........294
comparisons with EPA fuel
economy estimates .................299
detergent in fuel .....................294
filling your vehicle with
fuel ...........................290, 293, 296
filter, specifications ........290, 306
fuel filler door override ..........135
fuel filler door release ............134
fuel pump shut-off switch .....241
improving fuel economy ........296
octane rating ...........295, 311–312
quality ......................................295
running out of fuel .................296
safety information relating to
automotive fuels .....................290
Fuel - flex fuel vehicle
(FFV) .........................290, 294–295
Fuses ..................................242–243
G
Gas cap (see Fuel cap) ............293
Gas mileage (see Fuel
economy) ...................................296
Gauges .........................................13
H
Hazard flashers .........................241
Head restraints .........................153
Headlamps ...................................97
aiming ........................................99
autolamp system .......................97
bulb specifications ..................102daytime running lights .............98
flash to pass ..............................98
high beam .................................98
replacing bulbs .......................103
turning on and off ....................97
Homelink wireless control
system ........................................119
Hood ..........................................276
I
Ignition .......................223, 311–312
Illuminated visor mirror ...........108
Infant seats
(see Safety seats) .....................190
Inspection/maintenance (I/M)
testing ........................................301
Instrument panel
cleaning ...................................271
cluster ........................................10
lighting up panel and interior .99
J
Jack ............................................249
positioning ...............................249
storage .....................................249
Jump-starting your vehicle ......255
K
Keyless entry system ...............145
keypad .....................................146
locking and unlocking doors ..147
programming entry code .......146
Keys ...................................136, 150
positions of the ignition .........223
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Index
320
