Page 9 of 328
Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
9

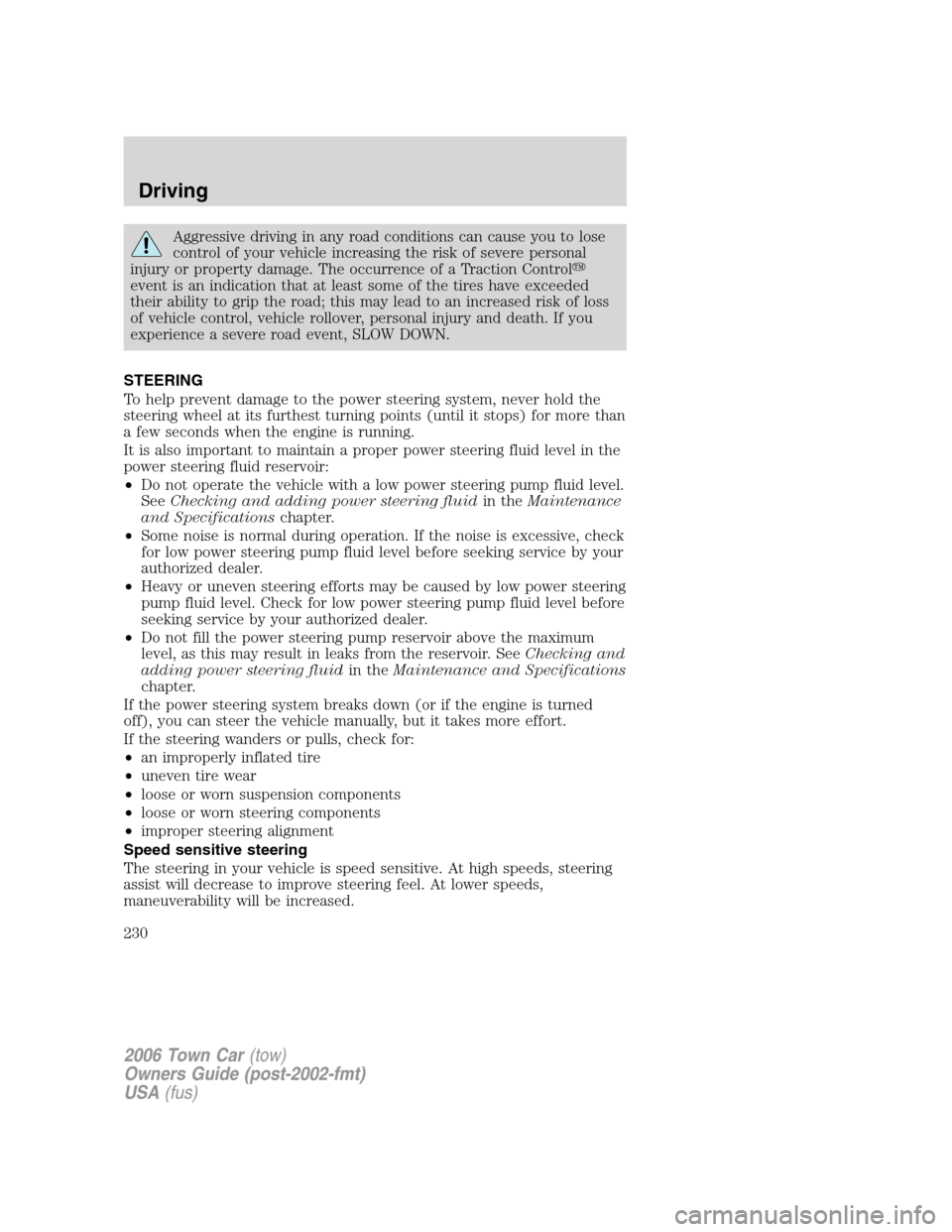

Page 230 of 328
Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of a Traction Control
event is an indication that at least some of the tires have exceeded
their ability to grip the road; this may lead to an increased risk of loss
of vehicle control, vehicle rollover, personal injury and death. If you
experience a severe road event, SLOW DOWN.
STEERING
To help prevent damage to the power steering system, never hold the
steering wheel at its furthest turning points (until it stops) for more than
a few seconds when the engine is running.
It is also important to maintain a proper power steering fluid level in the
power steering fluid reservoir:
•Do not operate the vehicle with a low power steering pump fluid level.
SeeChecking and adding power steering fluidin theMaintenance
and Specificationschapter.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the maximum
level, as this may result in leaks from the reservoir. SeeChecking and
adding power steering fluidin theMaintenance and Specifications
chapter.
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
Speed sensitive steering
The steering in your vehicle is speed sensitive. At high speeds, steering
assist will decrease to improve steering feel. At lower speeds,
maneuverability will be increased.
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
230

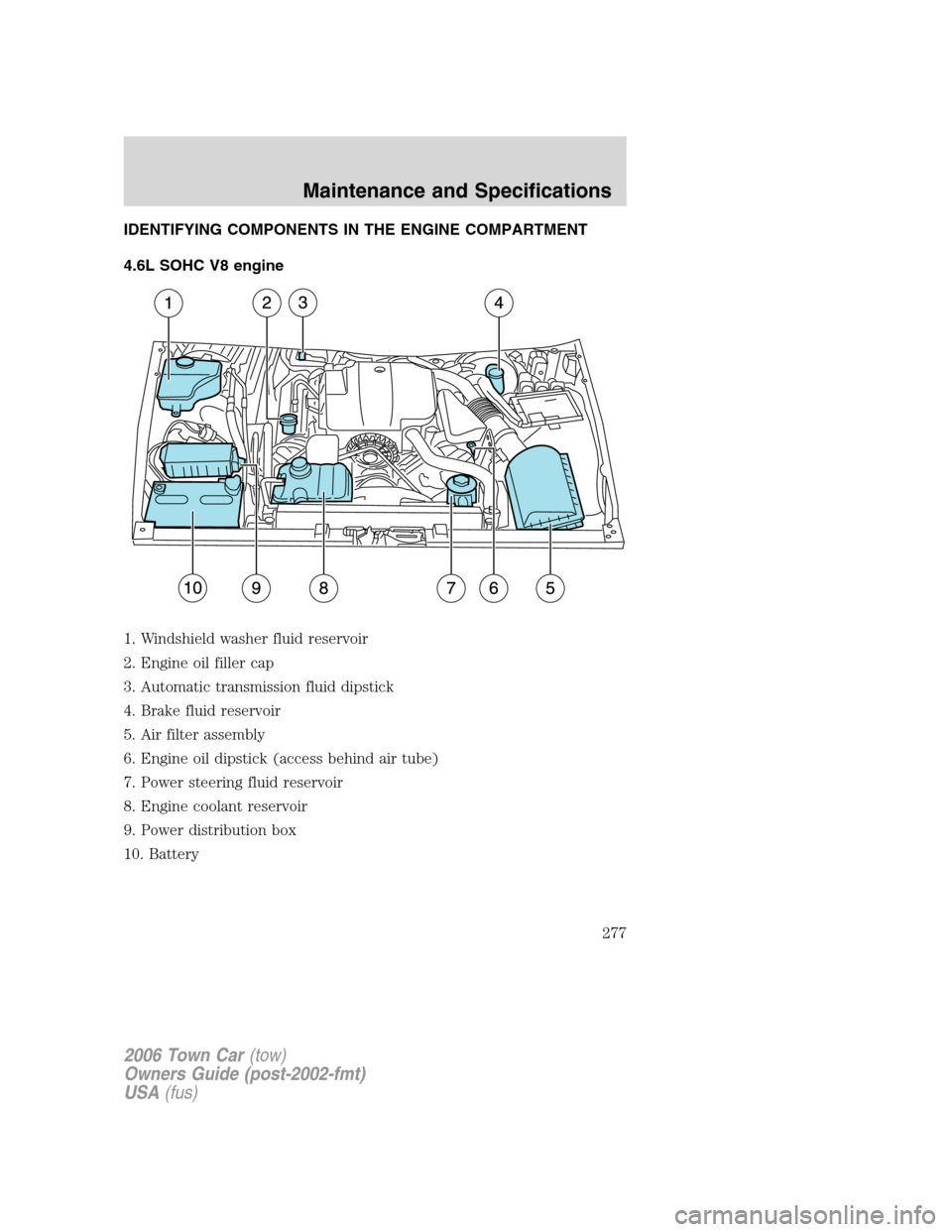

Page 277 of 328
IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
4.6L SOHC V8 engine
1. Windshield washer fluid reservoir
2. Engine oil filler cap
3. Automatic transmission fluid dipstick
4. Brake fluid reservoir
5. Air filter assembly
6. Engine oil dipstick (access behind air tube)
7. Power steering fluid reservoir
8. Engine coolant reservoir
9. Power distribution box
10. Battery
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
277

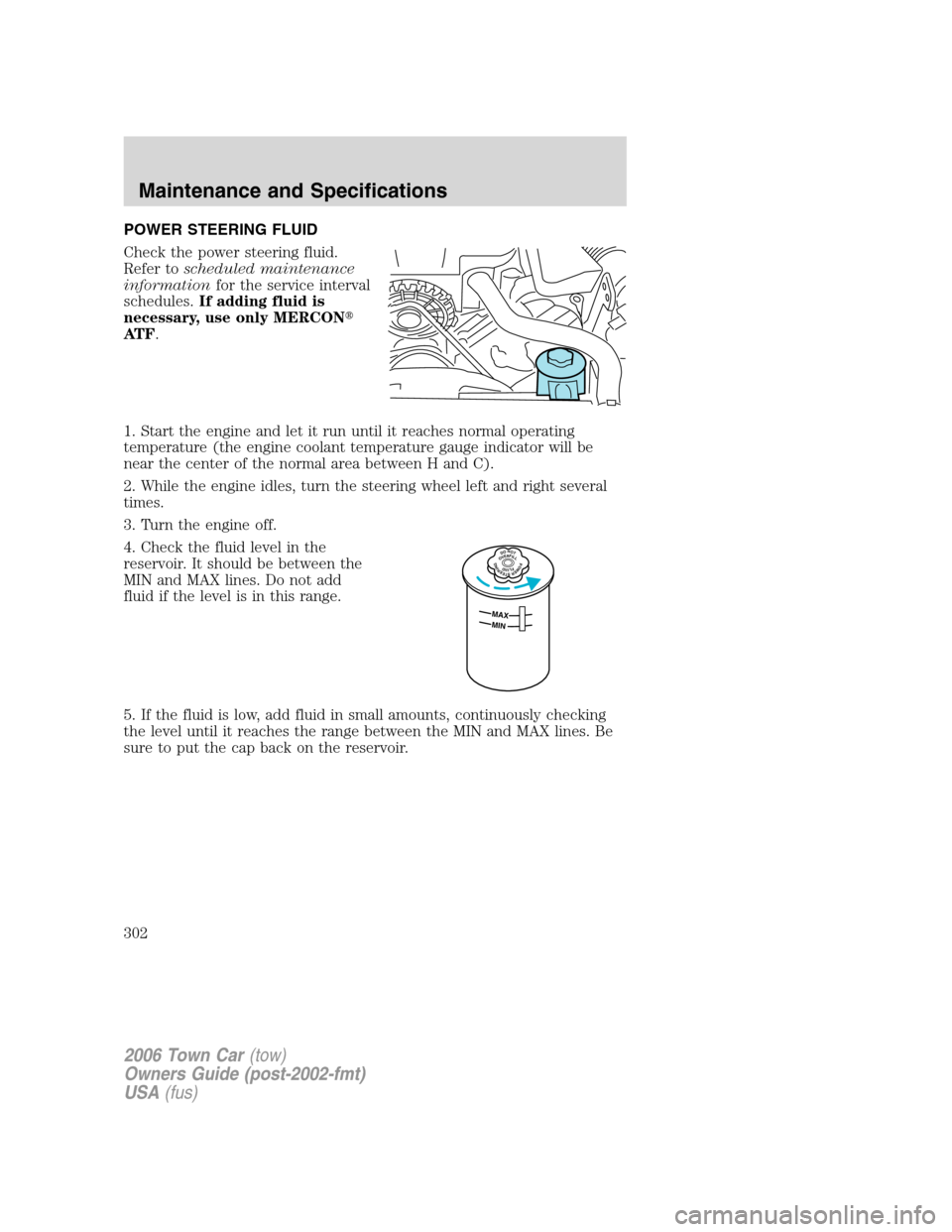

Page 302 of 328
POWER STEERING FLUID
Check the power steering fluid.
Refer toscheduled maintenance
informationfor the service interval
schedules.If adding fluid is
necessary, use only MERCON
AT F.
1. Start the engine and let it run until it reaches normal operating
temperature (the engine coolant temperature gauge indicator will be
near the center of the normal area between H and C).
2. While the engine idles, turn the steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir.
DONOTOVERFILLPOWERSTEERINGFLUID
MAX
MIN
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
302

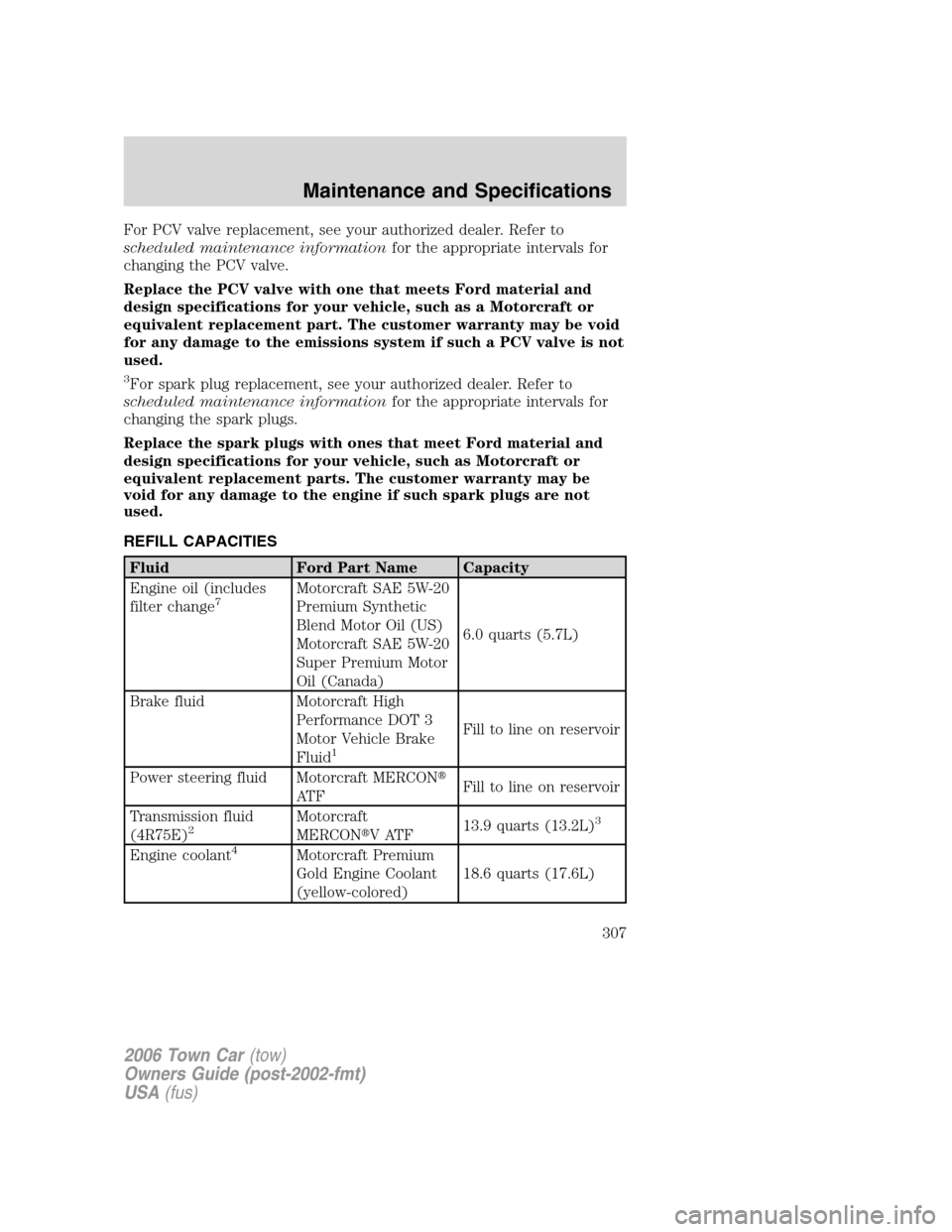

Page 307 of 328
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
REFILL CAPACITIES
Fluid Ford Part Name Capacity
Engine oil (includes
filter change
7Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)6.0 quarts (5.7L)
Brake fluid Motorcraft High
Performance DOT 3
Motor Vehicle Brake
Fluid
1
Fill to line on reservoir
Power steering fluid Motorcraft MERCON
AT FFill to line on reservoir
Transmission fluid
(4R75E)
2Motorcraft
MERCONVATF13.9 quarts (13.2L)3
Engine coolant4Motorcraft Premium
Gold Engine Coolant
(yellow-colored)18.6 quarts (17.6L)
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
307

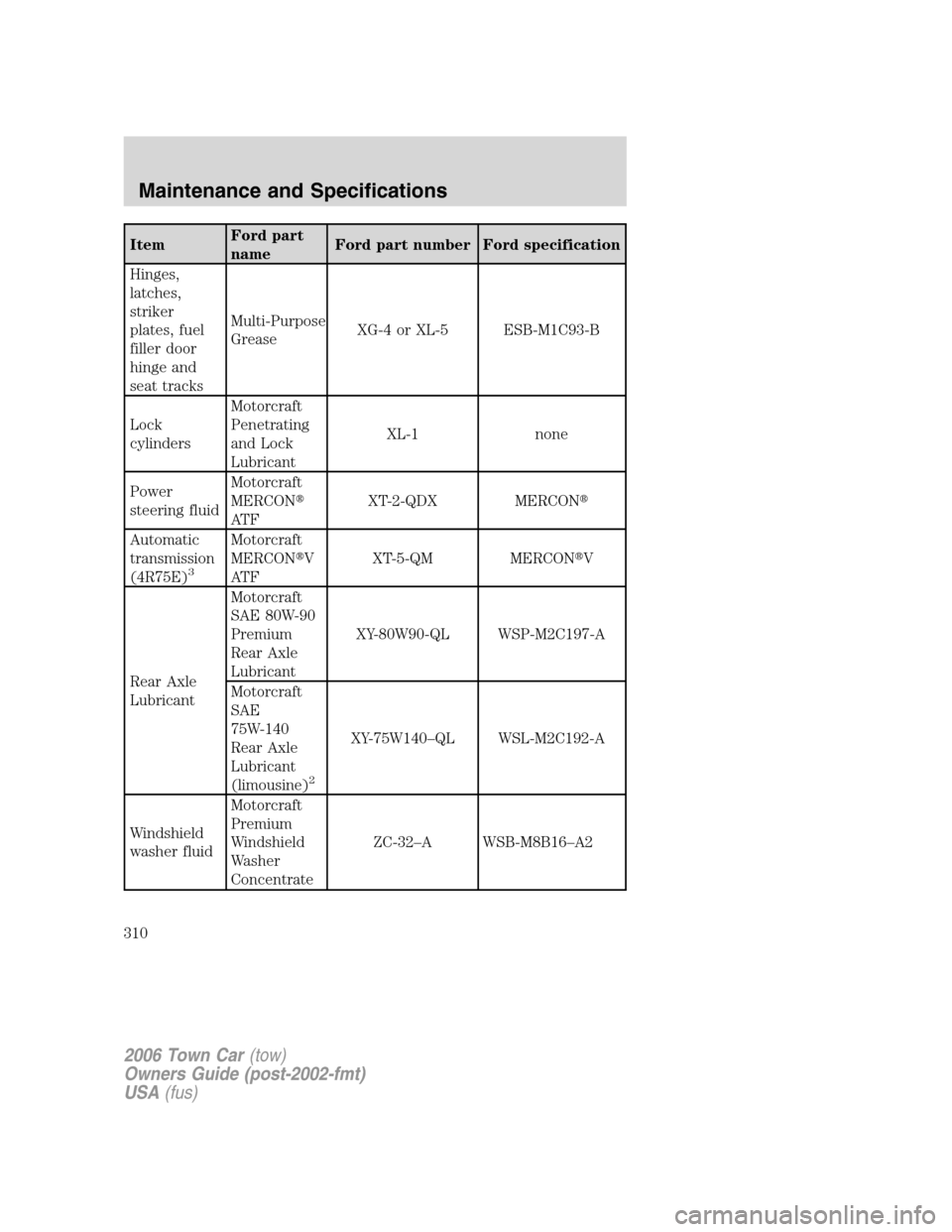

Page 310 of 328
ItemFord part
nameFord part number Ford specification
Hinges,
latches,
striker
plates, fuel
filler door
hinge and
seat tracksMulti-Purpose
GreaseXG-4 or XL-5 ESB-M1C93-B
Lock
cylindersMotorcraft
Penetrating
and Lock
LubricantXL-1 none
Power
steering fluidMotorcraft
MERCON
AT FXT-2-QDX MERCON
Automatic
transmission
(4R75E)
3
Motorcraft
MERCONV
AT FXT-5-QM MERCONV
Rear Axle
LubricantMotorcraft
SAE 80W-90
Premium
Rear Axle
LubricantXY-80W90-QL WSP-M2C197-A
Motorcraft
SAE
75W-140
Rear Axle
Lubricant
(limousine)
2
XY-75W140–QL WSL-M2C192-A
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
310

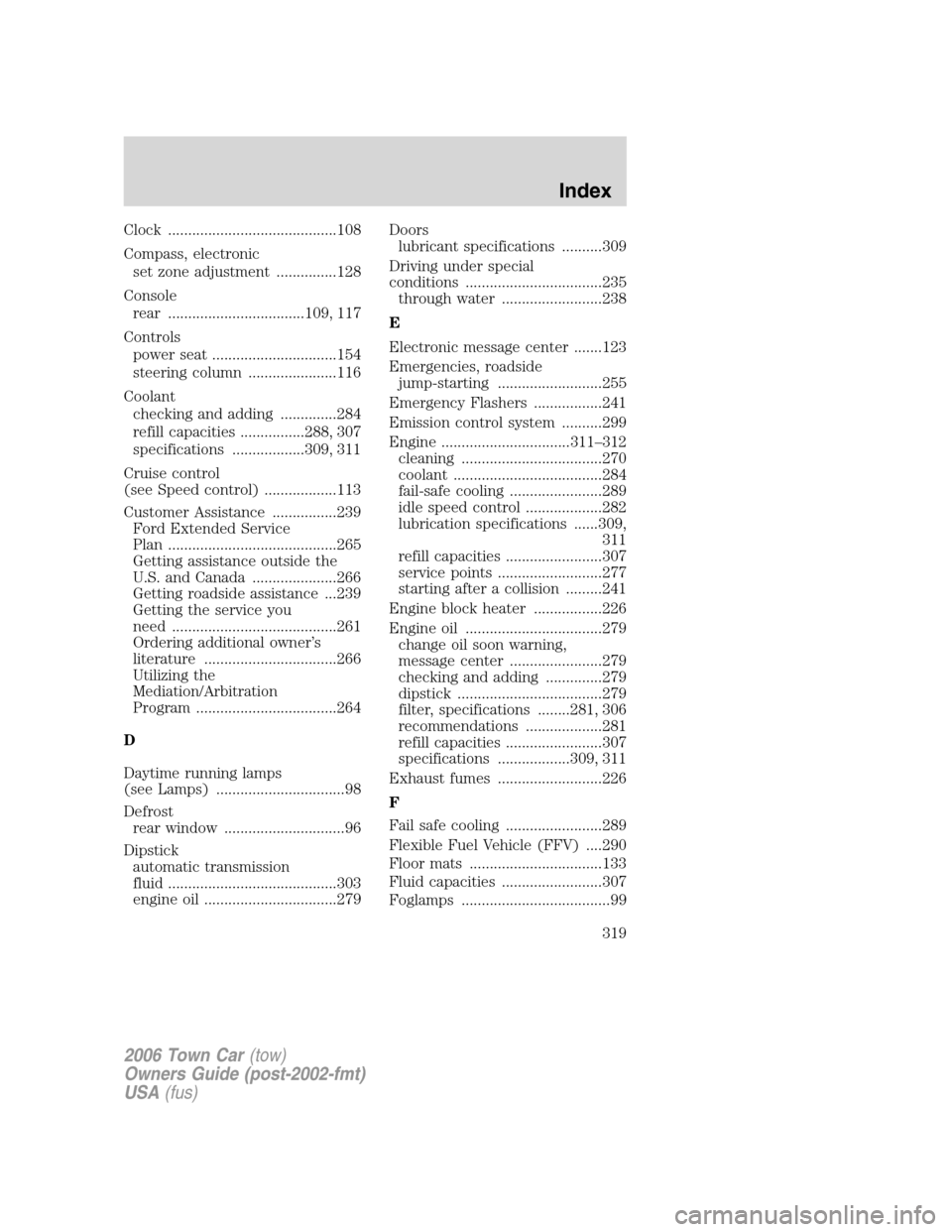

Page 319 of 328
Clock ..........................................108
Compass, electronic
set zone adjustment ...............128
Console
rear ..................................109, 117
Controls
power seat ...............................154
steering column ......................116
Coolant
checking and adding ..............284
refill capacities ................288, 307
specifications ..................309, 311
Cruise control
(see Speed control) ..................113
Customer Assistance ................239
Ford Extended Service
Plan ..........................................265
Getting assistance outside the
U.S. and Canada .....................266
Getting roadside assistance ...239
Getting the service you
need .........................................261
Ordering additional owner’s
literature .................................266
Utilizing the
Mediation/Arbitration
Program ...................................264
D
Daytime running lamps
(see Lamps) ................................98
Defrost
rear window ..............................96
Dipstick
automatic transmission
fluid ..........................................303
engine oil .................................279Doors
lubricant specifications ..........309
Driving under special
conditions ..................................235
through water .........................238
E
Electronic message center .......123
Emergencies, roadside
jump-starting ..........................255
Emergency Flashers .................241
Emission control system ..........299
Engine ................................311–312
cleaning ...................................270
coolant .....................................284
fail-safe cooling .......................289
idle speed control ...................282
lubrication specifications ......309,
311
refill capacities ........................307
service points ..........................277
starting after a collision .........241
Engine block heater .................226
Engine oil ..................................279
change oil soon warning,
message center .......................279
checking and adding ..............279
dipstick ....................................279
filter, specifications ........281, 306
recommendations ...................281
refill capacities ........................307
specifications ..................309, 311
Exhaust fumes ..........................226
F
Fail safe cooling ........................289
Flexible Fuel Vehicle (FFV) ....290
Floor mats .................................133
Fluid capacities .........................307
Foglamps .....................................99
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Index
319
Page 321 of 328
L
Lamps
autolamp system .......................97
bulb replacement
specifications chart ................102
daytime running light ...............98
fog lamps ...................................99
headlamps .................................97
headlamps, flash to pass ..........98
instrument panel, dimming .....99
interior lamps .................101–103
replacing bulbs .......................103
Lane change indicator
(see Turn signal) ......................101
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........227
Load limits .................................212
Locks
childproof ................................137
doors ........................................136
Lubricant specifications ...309, 311
Lug nuts ....................................255
Lumbar support, seats .............154
M
Message center .........................123
english/metric button .............127
system check button ..............126
warning messages ...................130
Mirrors .......................................112
automatic dimming rearview
mirror ......................................112
fold away .................................113
heated ......................................113
programmable memory ..........141
side view mirrors (power) .....112
Moon roof ..................................118Motorcraft parts ........273, 290, 306
N
Navigation system .......................30
cd functions ..............................47
destination mode ......................71
DVD location .............................91
map mode .................................51
quick start .................................32
radio functions ..........................39
O
Octane rating ............................295
Oil (see Engine oil) ..................279
P
Parking brake ............................228
Parts (see Motorcraft parts) ....306
Passenger Occupant
Classification Sensor .................160
Pedals (see Power adjustable
foot pedals) ...............................113
Power adjustable foot pedals ...113
Power distribution box
(see Fuses) ...............................245
Power door locks ......................136
Power mirrors ...........................112
Power point ...............................109
Power steering ..........................230
fluid, checking and adding ....302
fluid, refill capacity ................307
fluid, specifications .................309
Power trunk ......................133–134
Power Windows .........................110
R
Radio ................................15, 18, 24
2006 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Index
321
