LINCOLN TOWN CAR 2008 Owners Manual

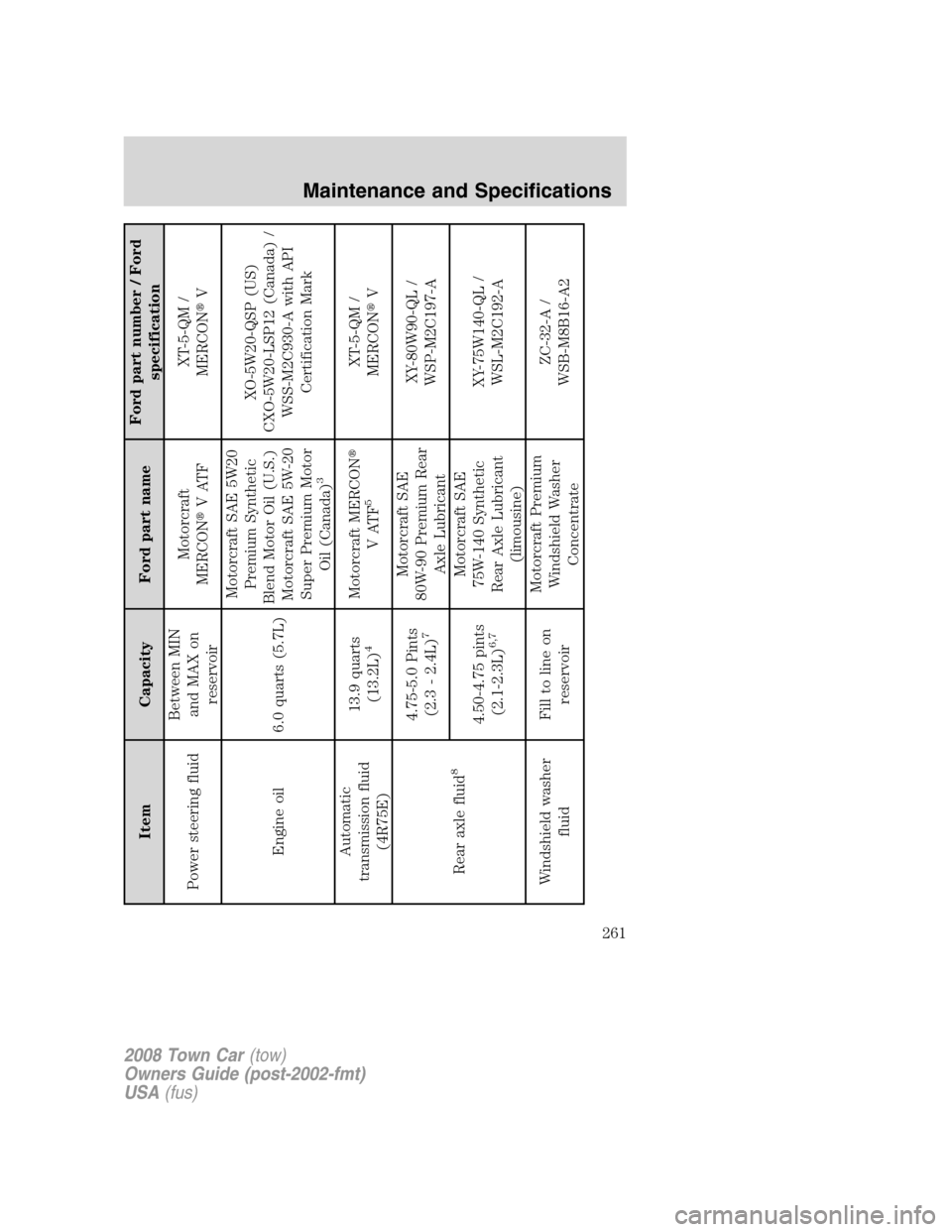

Item Capacity Ford part nameFord part number / Ford
specification
Power steering fluidBetween MIN
and MAX on
reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Engine oil 6.0 quarts (5.7L)Motorcraft SAE 5W20
Premium Synthetic
Blend Motor Oil (U.S.)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
3
XO-5W20-QSP (US)
CXO-5W20-LSP12 (Canada) /
WSS-M2C930-A with API
Certification Mark
Automatic
transmission fluid
(4R75E)13.9 quarts
(13.2L)
4
Motorcraft MERCON
VATF
5
XT-5-QM /
MERCONV
Rear axle fluid
8
4.75-5.0 Pints
(2.3 - 2.4L)
7
Motorcraft SAE
80W-90 Premium Rear
Axle LubricantXY-80W90-QL /
WSP-M2C197-A
4.50-4.75 pints
(2.1-2.3L)
6,7
Motorcraft SAE
75W-140 Synthetic
Rear Axle Lubricant
(limousine)XY-75W140-QL /
WSL-M2C192-A
Windshield washer
fluidFill to line on
reservoirMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
261

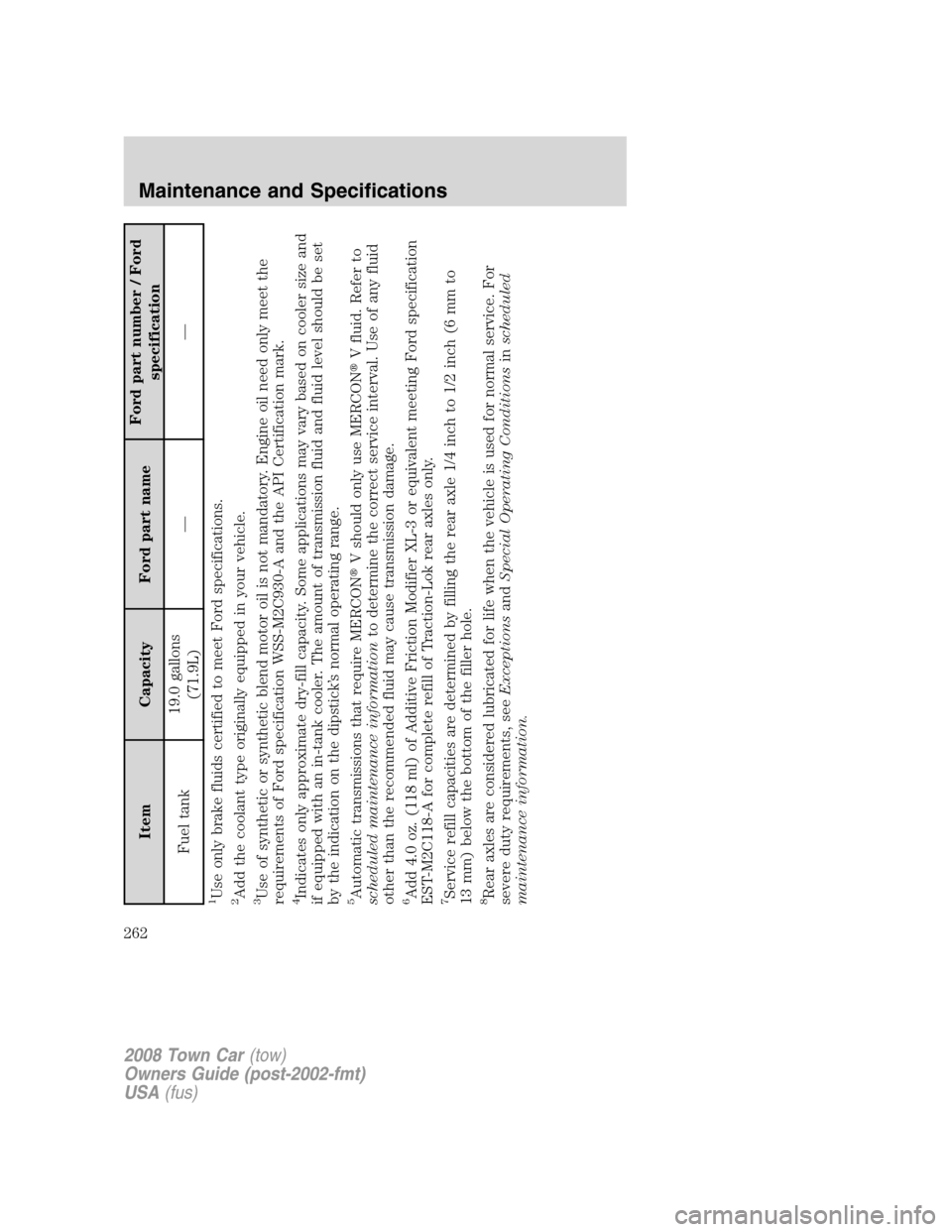

Item Capacity Ford part nameFord part number / Ford
specification
Fuel tank19.0 gallons
(71.9L)——
1Use only brake fluids certified to meet Ford specifications.2Add the coolant type originally equipped in your vehicle.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.5Automatic transmissions that require MERCONV should only use MERCONV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.6Add 4.0 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118-A for complete refill of Traction-Lok rear axles only.7Service refill capacities are determined by filling the rear axle 1/4 inch to 1/2 inch (6 mm to
13 mm) below the bottom of the filler hole.8Rear axles are considered lubricated for life when the vehicle is used for normal service. For
severe duty requirements, seeExceptionsandSpecial Operating Conditionsinscheduled
maintenance information.
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
262

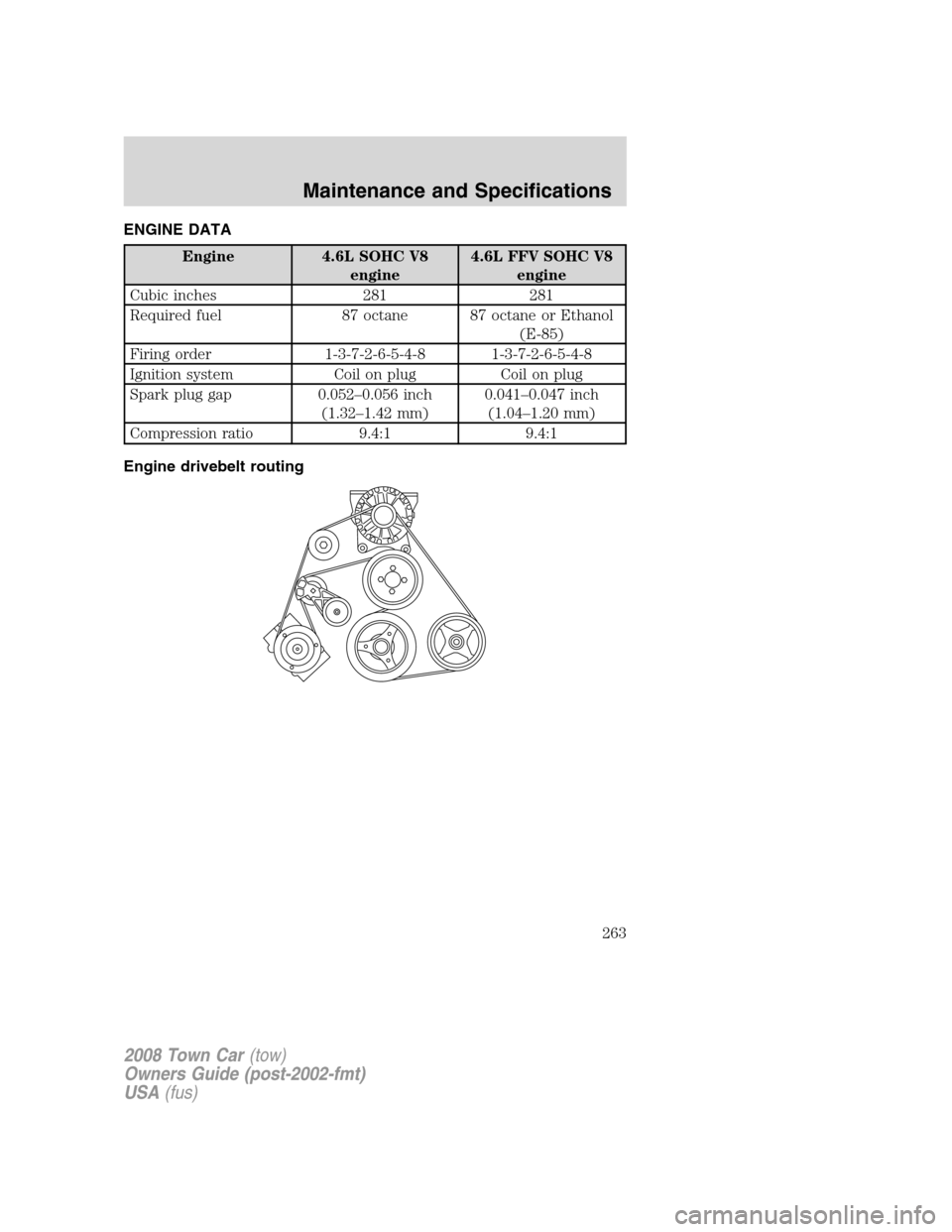

ENGINE DATA
Engine 4.6L SOHC V8
engine4.6L FFV SOHC V8
engine
Cubic inches 281 281
Required fuel 87 octane 87 octane or Ethanol
(E-85)
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Ignition system Coil on plug Coil on plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.041–0.047 inch
(1.04–1.20 mm)
Compression ratio 9.4:1 9.4:1
Engine drivebelt routing
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
263

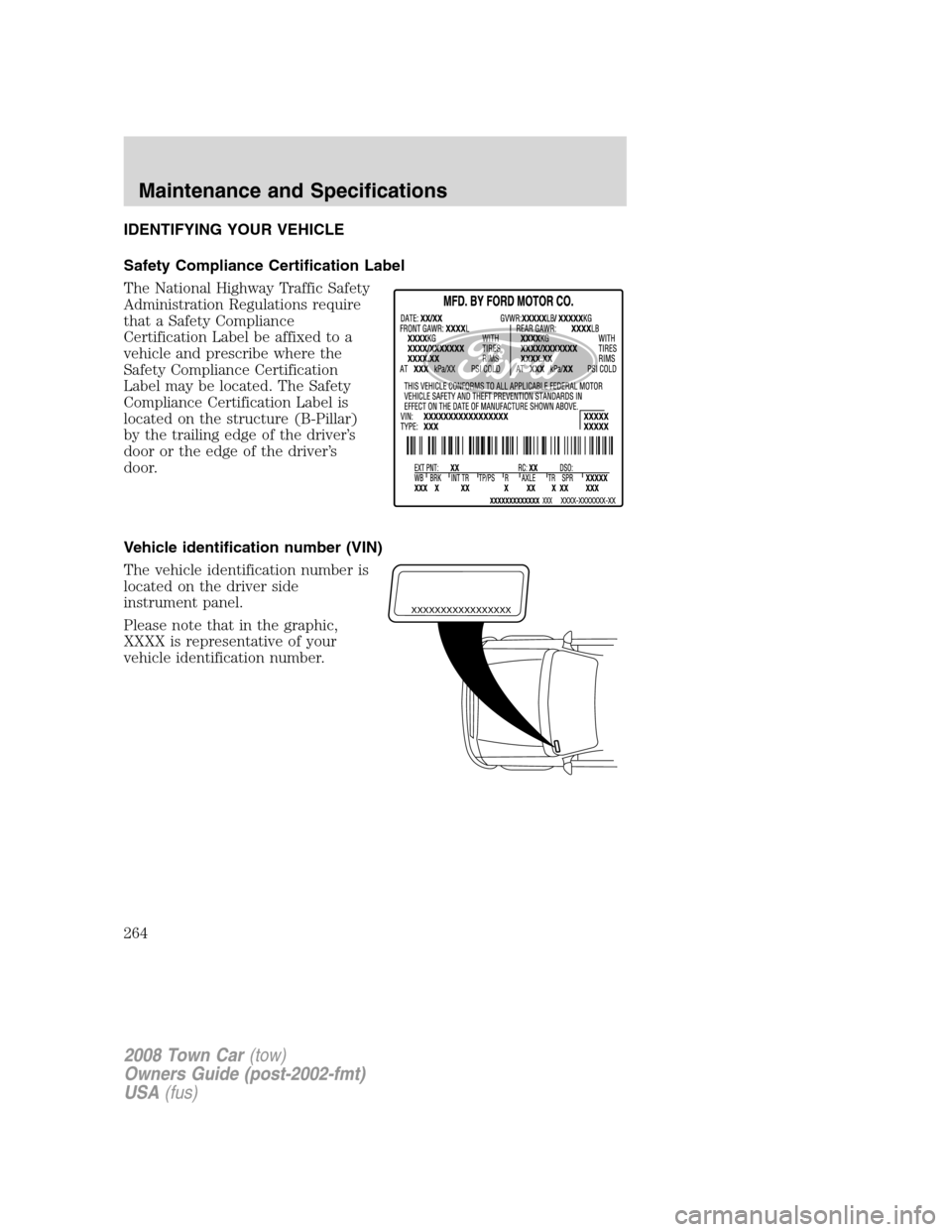

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
264

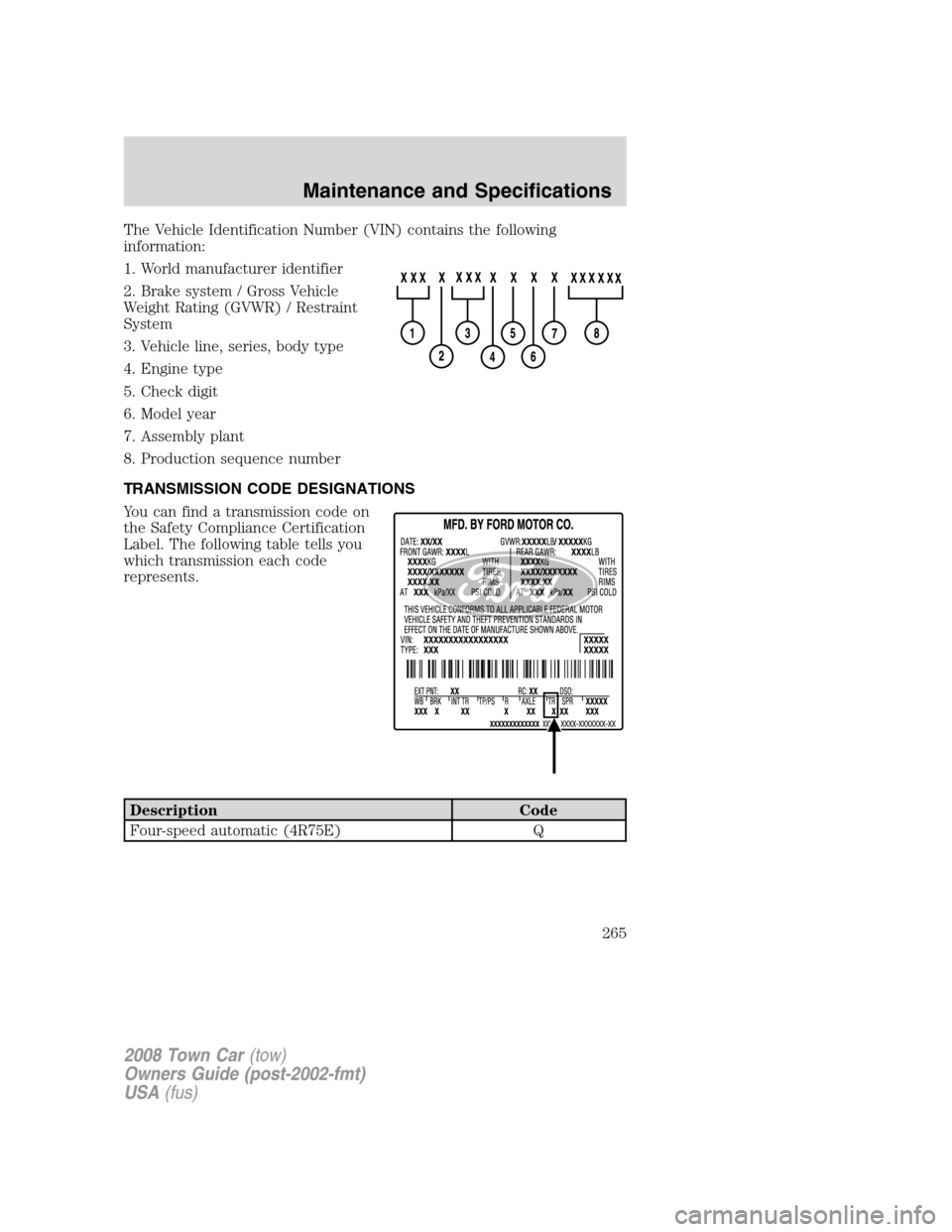

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Four-speed automatic (4R75E) Q
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
265

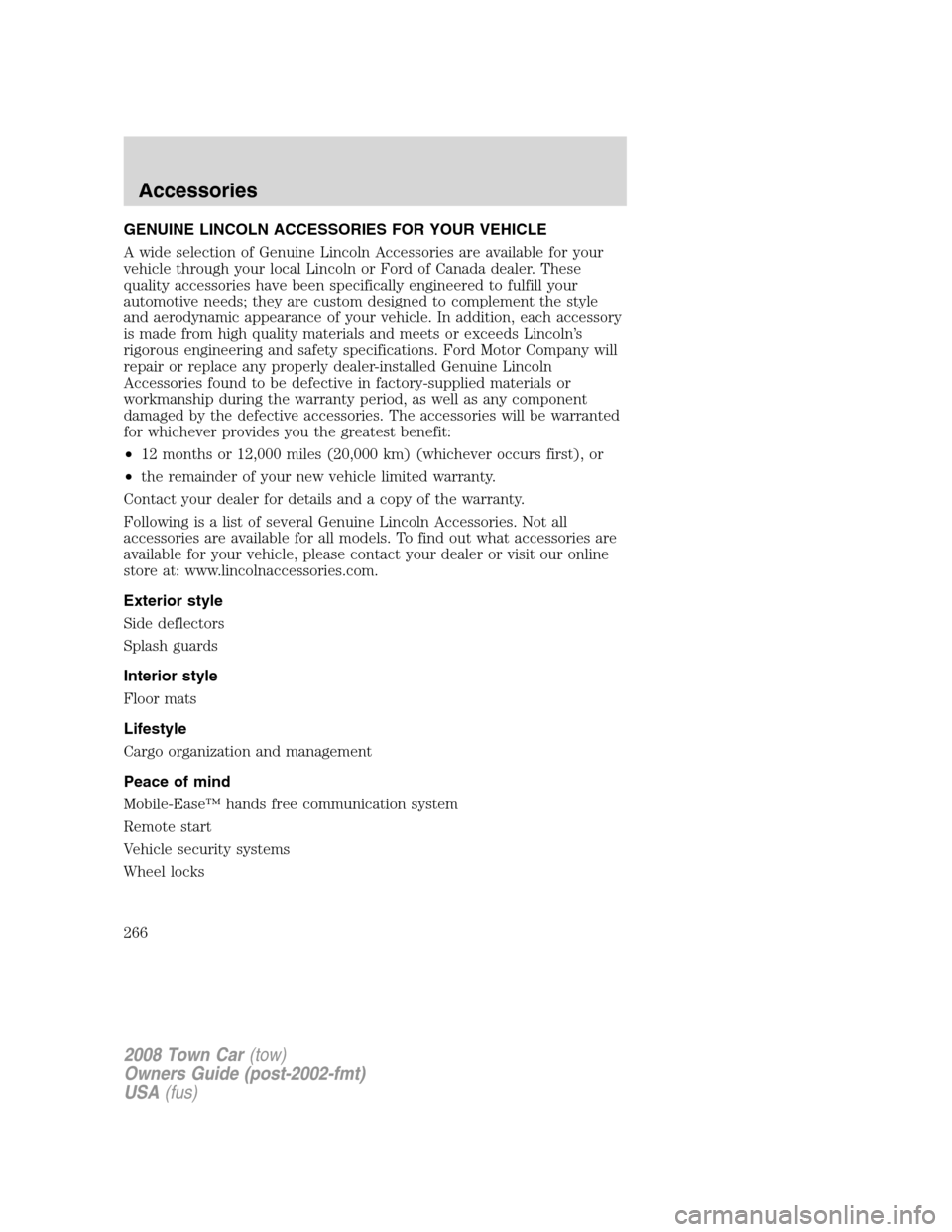

GENUINE LINCOLN ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Lincoln Accessories are available for your
vehicle through your local Lincoln or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Lincoln’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Lincoln
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Lincoln Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.lincolnaccessories.com.
Exterior style
Side deflectors
Splash guards
Interior style
Floor mats
Lifestyle
Cargo organization and management
Peace of mind
Mobile-Ease™ hands free communication system
Remote start
Vehicle security systems
Wheel locks
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
266

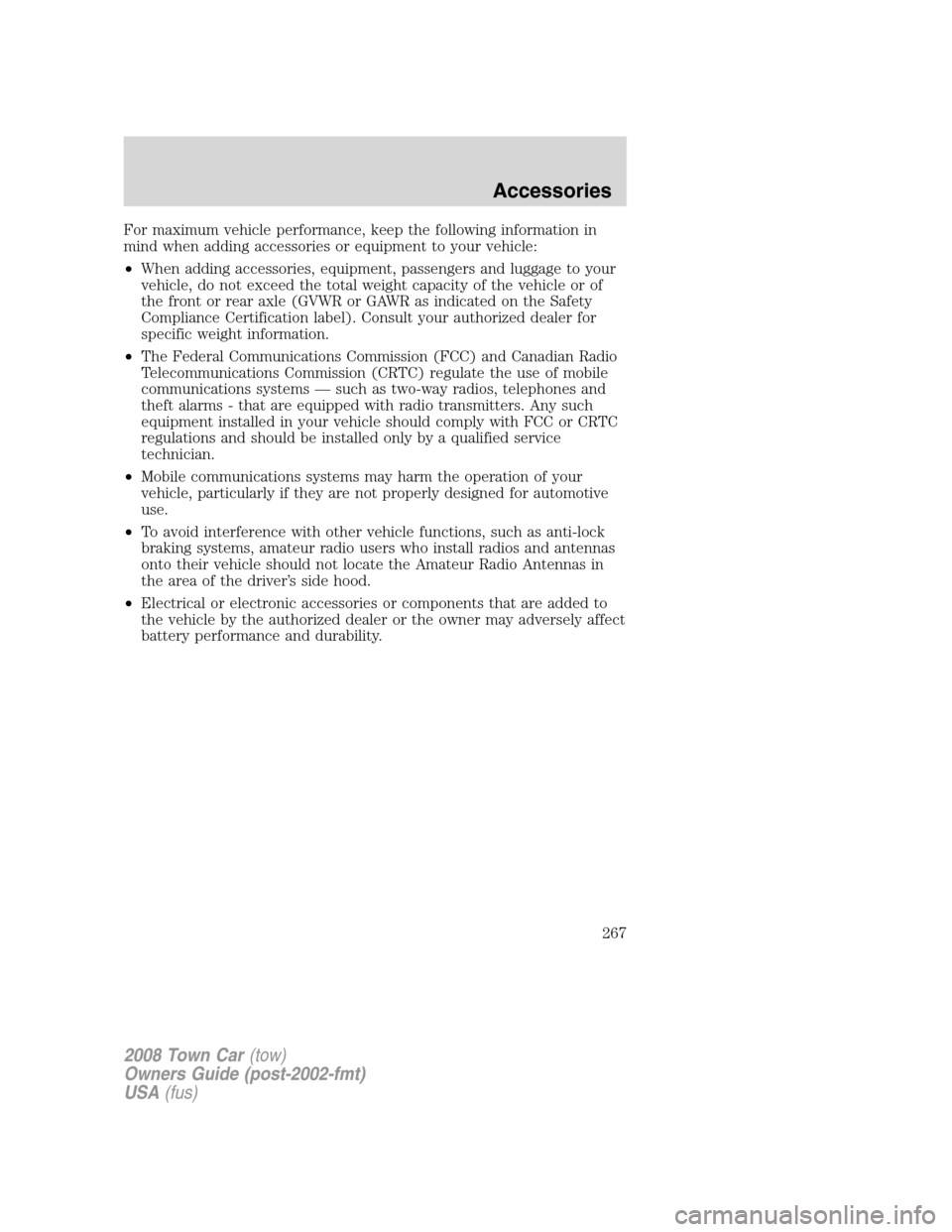

For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
267

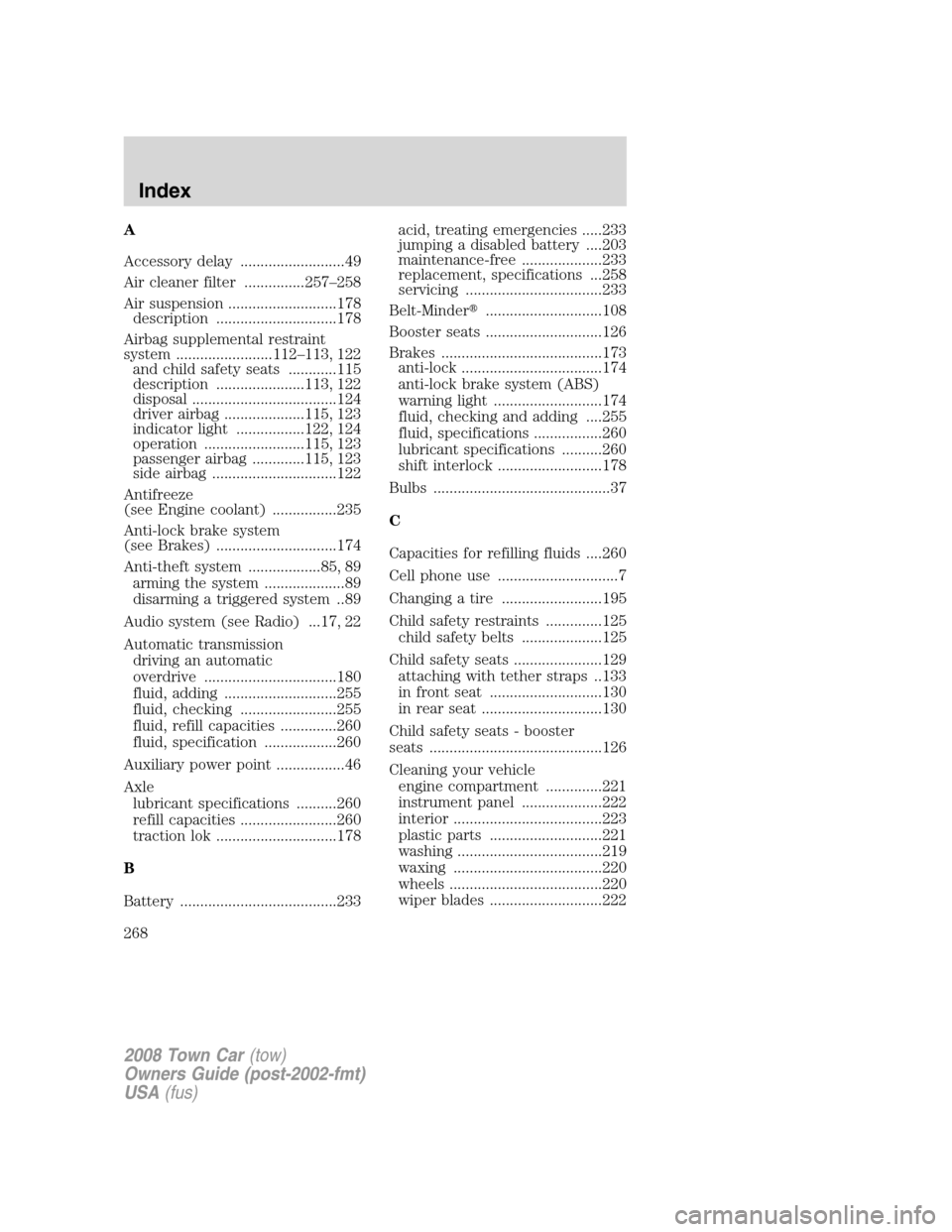

A
Accessory delay ..........................49
Air cleaner filter ...............257–258
Air suspension ...........................178
description ..............................178
Airbag supplemental restraint
system ........................112–113, 122
and child safety seats ............115
description ......................113, 122
disposal ....................................124
driver airbag ....................115, 123
indicator light .................122, 124
operation .........................115, 123
passenger airbag .............115, 123
side airbag ...............................122
Antifreeze
(see Engine coolant) ................235
Anti-lock brake system
(see Brakes) ..............................174
Anti-theft system ..................85, 89
arming the system ....................89
disarming a triggered system ..89
Audio system (see Radio) ...17, 22
Automatic transmission
driving an automatic
overdrive .................................180
fluid, adding ............................255
fluid, checking ........................255
fluid, refill capacities ..............260
fluid, specification ..................260
Auxiliary power point .................46
Axle
lubricant specifications ..........260
refill capacities ........................260
traction lok ..............................178
B
Battery .......................................233acid, treating emergencies .....233
jumping a disabled battery ....203
maintenance-free ....................233
replacement, specifications ...258
servicing ..................................233
Belt-Minder.............................108
Booster seats .............................126
Brakes ........................................173
anti-lock ...................................174
anti-lock brake system (ABS)
warning light ...........................174
fluid, checking and adding ....255
fluid, specifications .................260
lubricant specifications ..........260
shift interlock ..........................178
Bulbs ............................................37
C
Capacities for refilling fluids ....260
Cell phone use ..............................7
Changing a tire .........................195
Child safety restraints ..............125
child safety belts ....................125
Child safety seats ......................129
attaching with tether straps ..133
in front seat ............................130
in rear seat ..............................130
Child safety seats - booster
seats ...........................................126
Cleaning your vehicle
engine compartment ..............221
instrument panel ....................222
interior .....................................223
plastic parts ............................221
washing ....................................219
waxing .....................................220
wheels ......................................220
wiper blades ............................222
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Index
268

Climate control (see Air
conditioning or Heating) ............29
Clock ............................................46
Compass, electronic
set zone adjustment .................65
Console
rear ......................................47–48
Controls
power seat .................................93
steering column ........................54
Coolant
checking and adding ..............235
refill capacities ................239, 260
specifications ..........................260
Cruise control
(see Speed control) ....................52
Customer Assistance ................186
Ford Extended Service
Plan ..........................................215
Getting assistance outside
the U.S. and Canada ..............216
Getting roadside assistance ...186
Getting the service you
need .........................................211
Ordering additional owner’s
literature .................................217
Utilizing the
Mediation/Arbitration
Program ...................................215
D
Daytime running lamps
(see Lamps) ................................34
Defrost
rear window ..............................32
Dipstick
automatic transmission
fluid ..........................................255engine oil .................................230
Driving under special
conditions ..................................182
through water .........................185
E
Electronic message center .........59
Emergencies, roadside
jump-starting ..........................203
Emergency Flashers .................187
Emission control system ..........251
Engine ........................................263
cleaning ...................................221
coolant .....................................235
fail-safe cooling .......................240
idle speed control ...................233
lubrication specifications .......260
refill capacities ........................260
service points ..................228–229
starting after a collision .........188
Engine block heater .................172
Engine oil ..................................230
change oil soon warning,
message center .......................230
checking and adding ..............230
dipstick ....................................230
filter, specifications ........232, 258
recommendations ...................232
refill capacities ........................260
specifications ..........................260
Event data recording ....................6
Exhaust fumes ..........................171
F
Fail safe cooling ........................240
Flexible Fuel Vehicle (FFV) ....241
Floor mats ...................................70
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Index
269

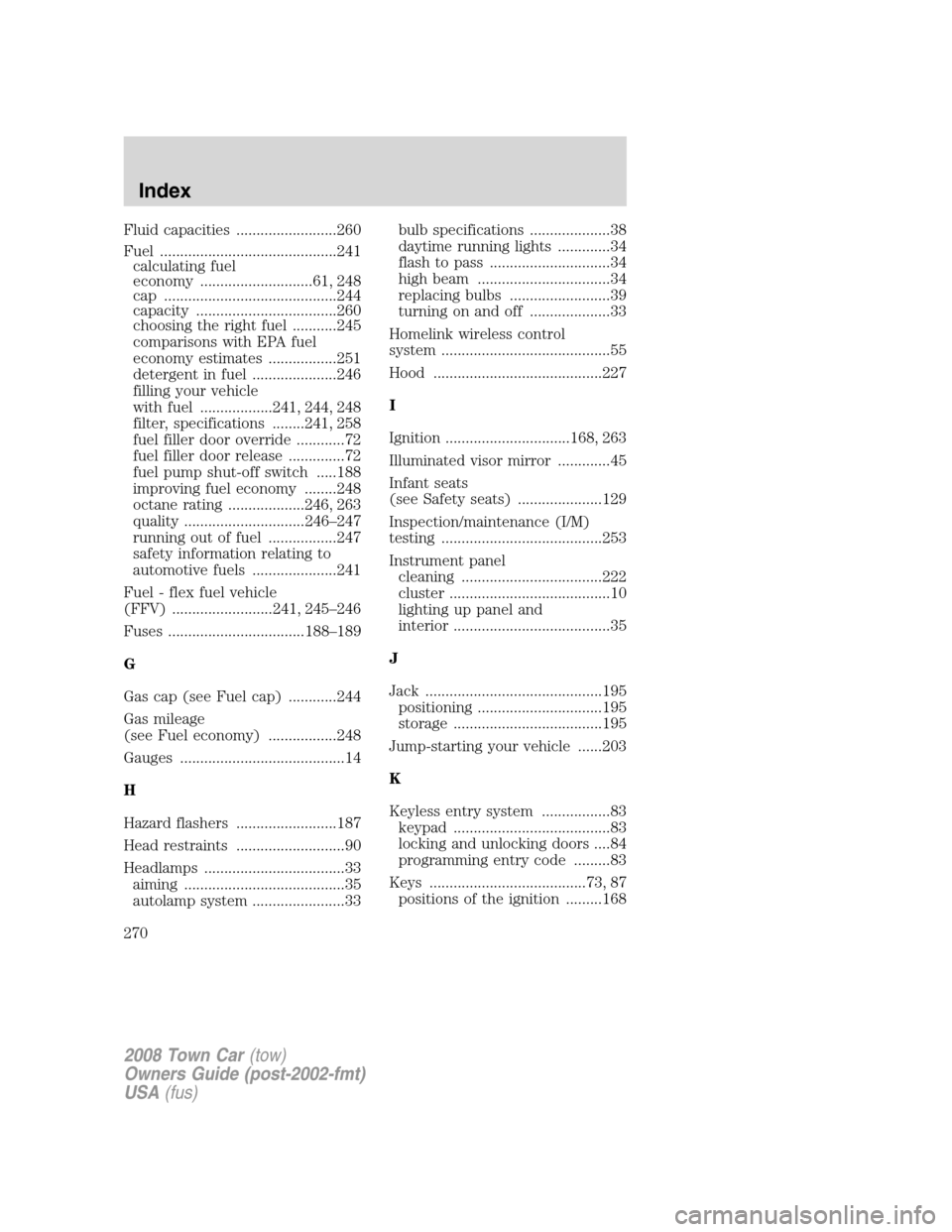

Fluid capacities .........................260
Fuel ............................................241
calculating fuel
economy ............................61, 248
cap ...........................................244
capacity ...................................260
choosing the right fuel ...........245
comparisons with EPA fuel
economy estimates .................251
detergent in fuel .....................246
filling your vehicle
with fuel ..................241, 244, 248
filter, specifications ........241, 258
fuel filler door override ............72
fuel filler door release ..............72
fuel pump shut-off switch .....188
improving fuel economy ........248
octane rating ...................246, 263
quality ..............................246–247
running out of fuel .................247
safety information relating to
automotive fuels .....................241
Fuel - flex fuel vehicle
(FFV) .........................241, 245–246
Fuses ..................................188–189
G
Gas cap (see Fuel cap) ............244
Gas mileage
(see Fuel economy) .................248
Gauges .........................................14
H
Hazard flashers .........................187
Head restraints ...........................90
Headlamps ...................................33
aiming ........................................35
autolamp system .......................33bulb specifications ....................38
daytime running lights .............34
flash to pass ..............................34
high beam .................................34
replacing bulbs .........................39
turning on and off ....................33
Homelink wireless control
system ..........................................55
Hood ..........................................227
I
Ignition ...............................168, 263
Illuminated visor mirror .............45
Infant seats
(see Safety seats) .....................129
Inspection/maintenance (I/M)
testing ........................................253
Instrument panel
cleaning ...................................222
cluster ........................................10
lighting up panel and
interior .......................................35
J
Jack ............................................195
positioning ...............................195
storage .....................................195
Jump-starting your vehicle ......203
K
Keyless entry system .................83
keypad .......................................83
locking and unlocking doors ....84
programming entry code .........83
Keys .......................................73, 87
positions of the ignition .........168
2008 Town Car(tow)
Owners Guide (post-2002-fmt)
USA(fus)
Index
270
