Page 31 of 280

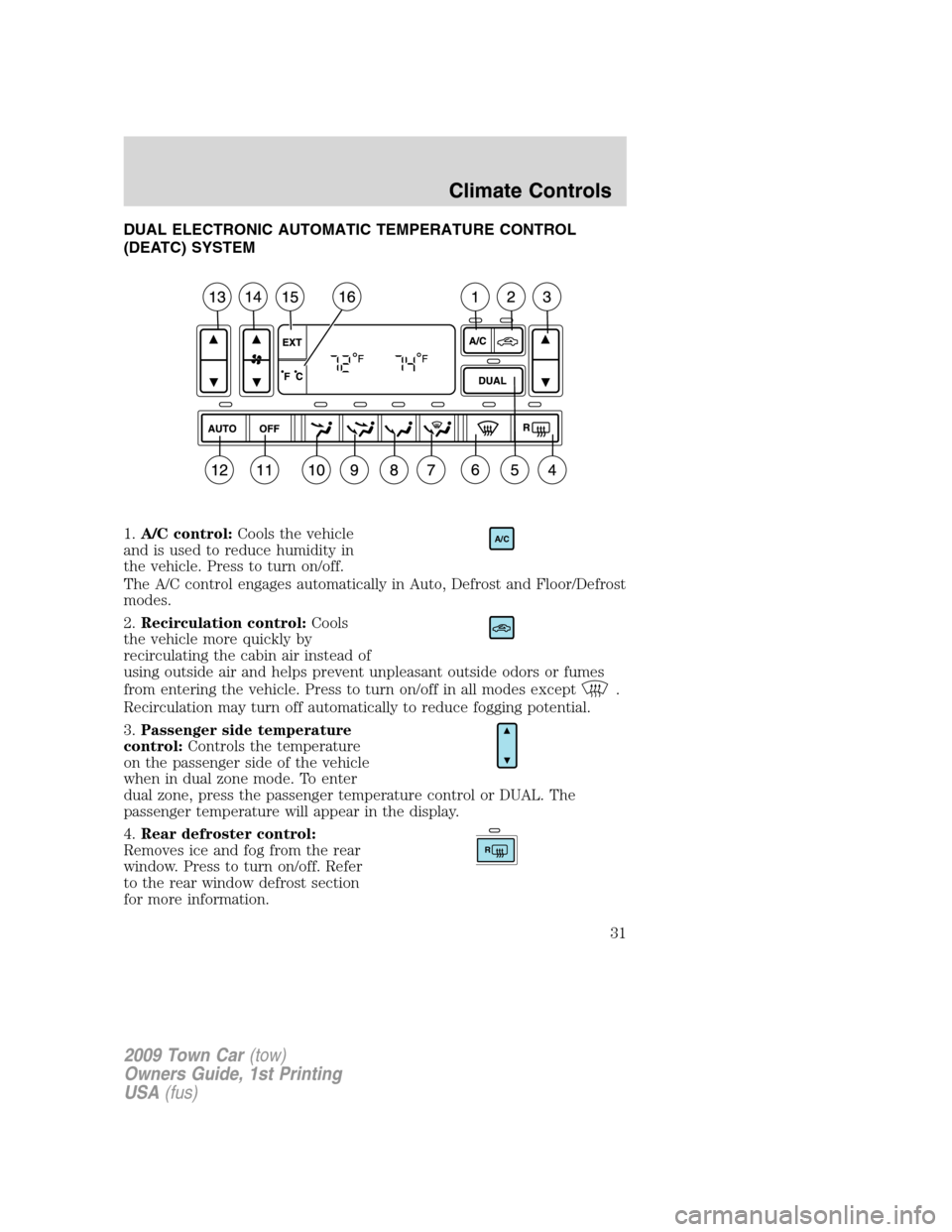

LINCOLN TOWN CAR 2009 Owners Guide DUAL ELECTRONIC AUTOMATIC TEMPERATURE CONTROL
(DEATC) SYSTEM
1.A/C control:Cools the vehicle
and is used to reduce humidity in
the vehicle. Press to turn on/off.
The A/C control engages automatically

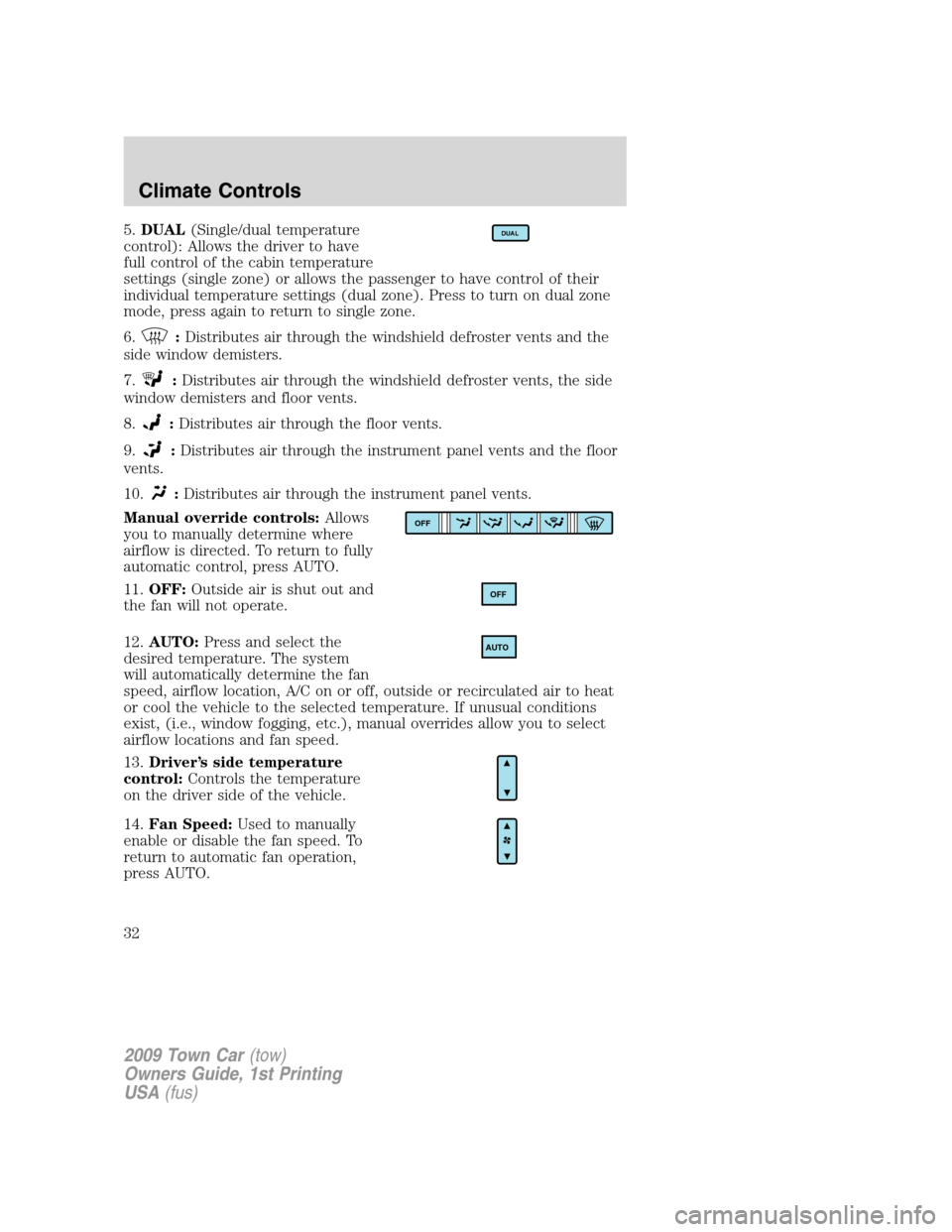

Page 32 of 280

LINCOLN TOWN CAR 2009 Owners Guide 5.DUAL(Single/dual temperature
control): Allows the driver to have
full control of the cabin temperature
settings (single zone) or allows the passenger to have control of their
individual temperature

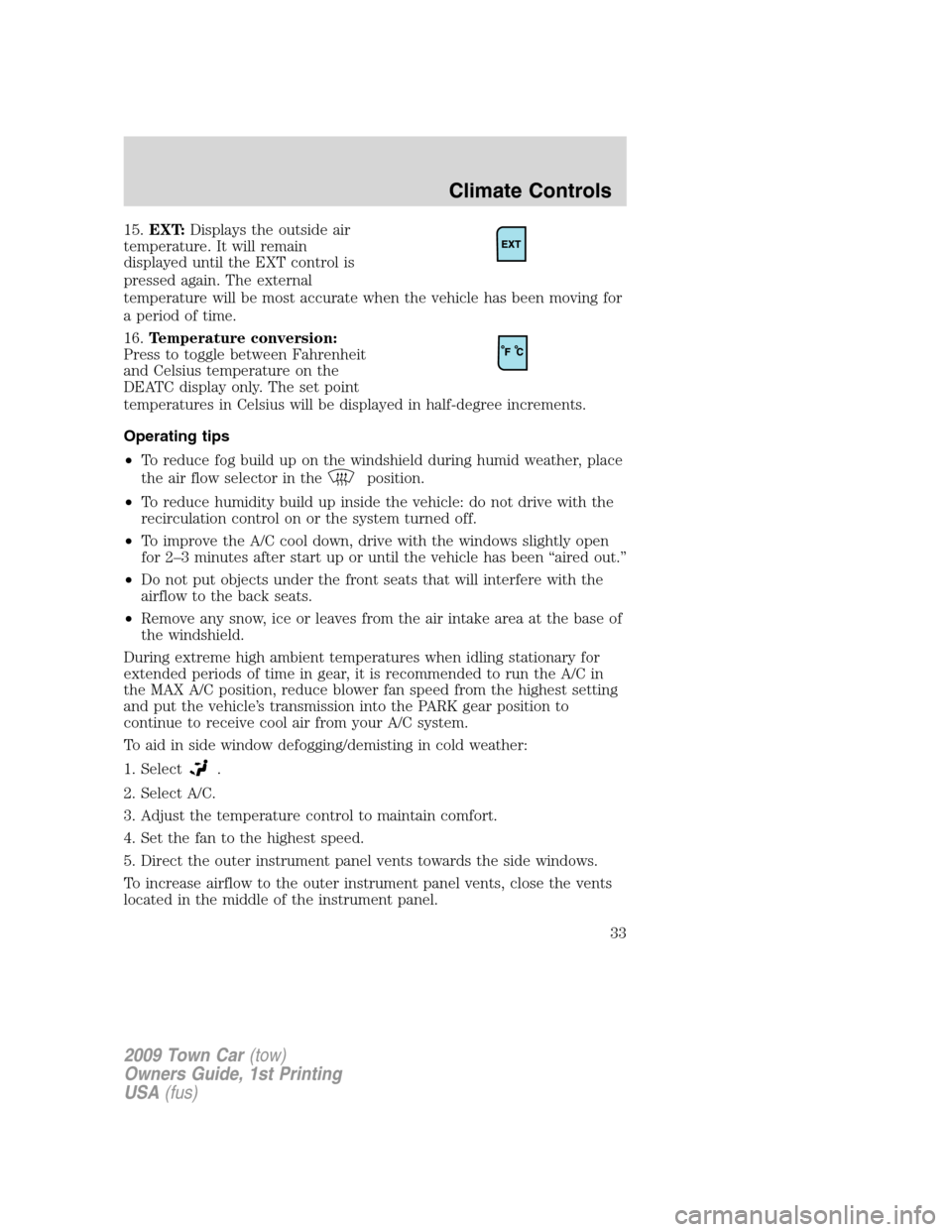

Page 33 of 280

LINCOLN TOWN CAR 2009 Owners Guide 15.EXT:Displays the outside air
temperature. It will remain
displayed until the EXT control is
pressed again. The external
temperature will be most accurate when the vehicle has been moving for
a peri

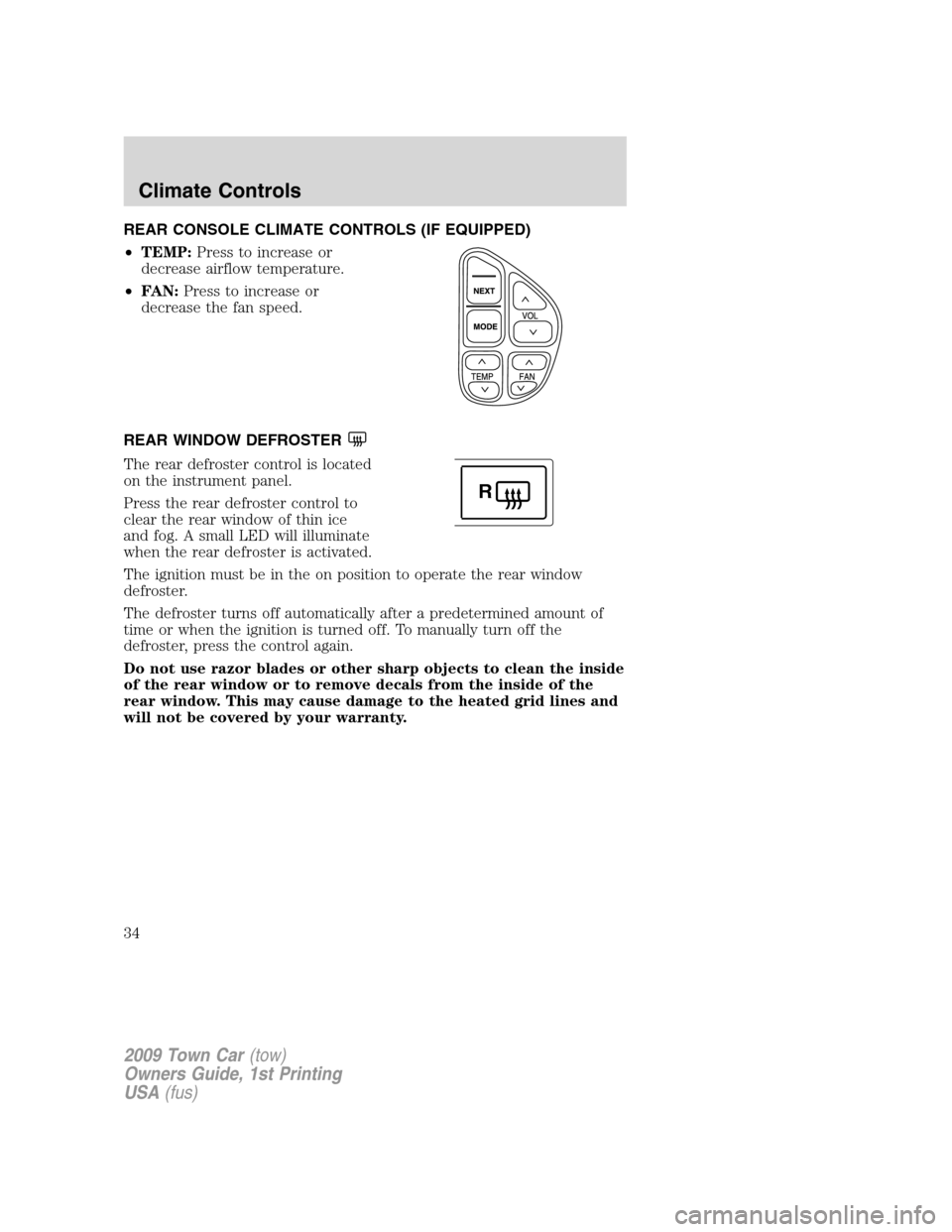

Page 34 of 280

LINCOLN TOWN CAR 2009 Owners Guide REAR CONSOLE CLIMATE CONTROLS (IF EQUIPPED)
•TEMP:Press to increase or
decrease airflow temperature.
•FAN:Press to increase or
decrease the fan speed.
REAR WINDOW DEFROSTER
The rear defroster cont

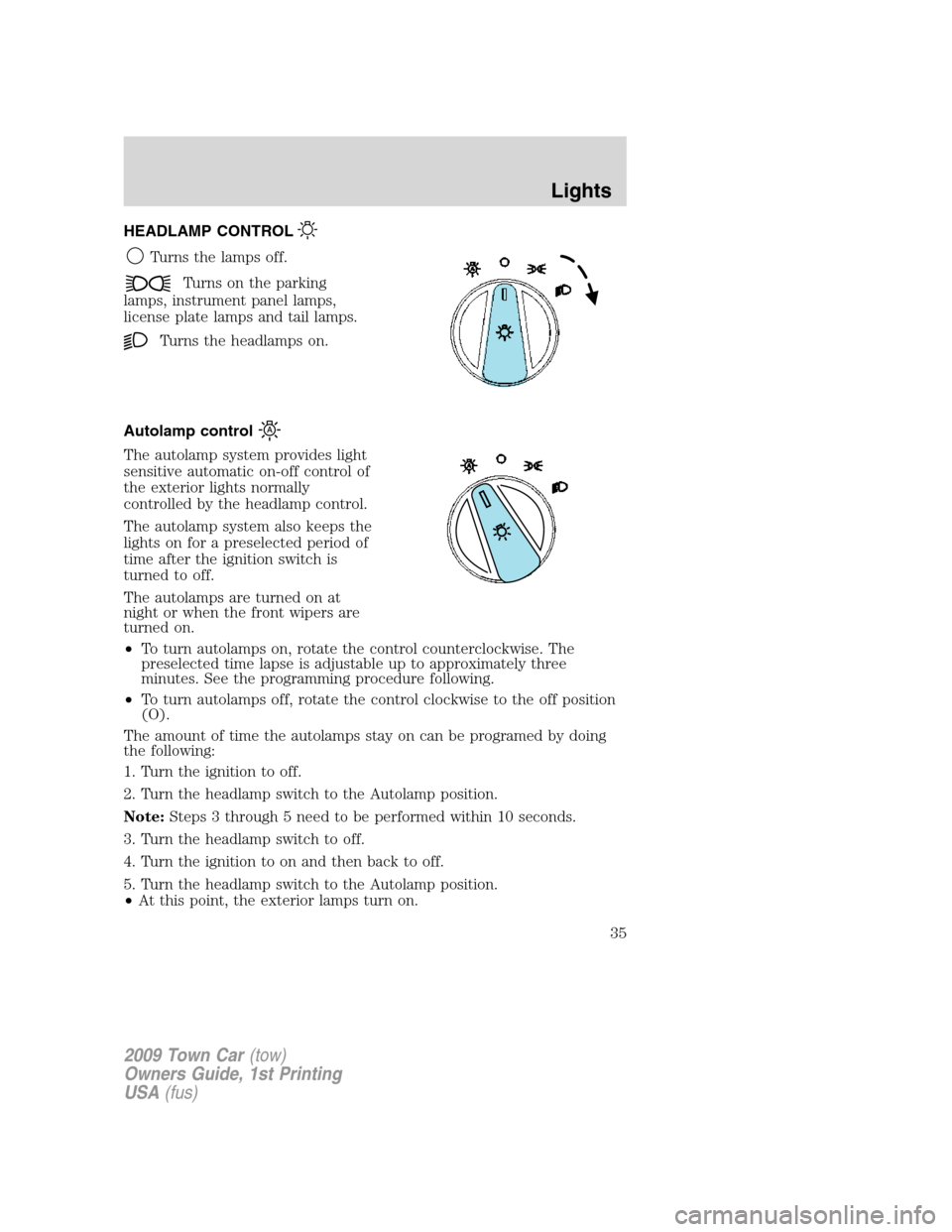

Page 35 of 280

LINCOLN TOWN CAR 2009 Owners Guide HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking
lamps, instrument panel lamps,
license plate lamps and tail lamps.
Turns the headlamps on.
Autolamp control
The autolamp system provides ligh

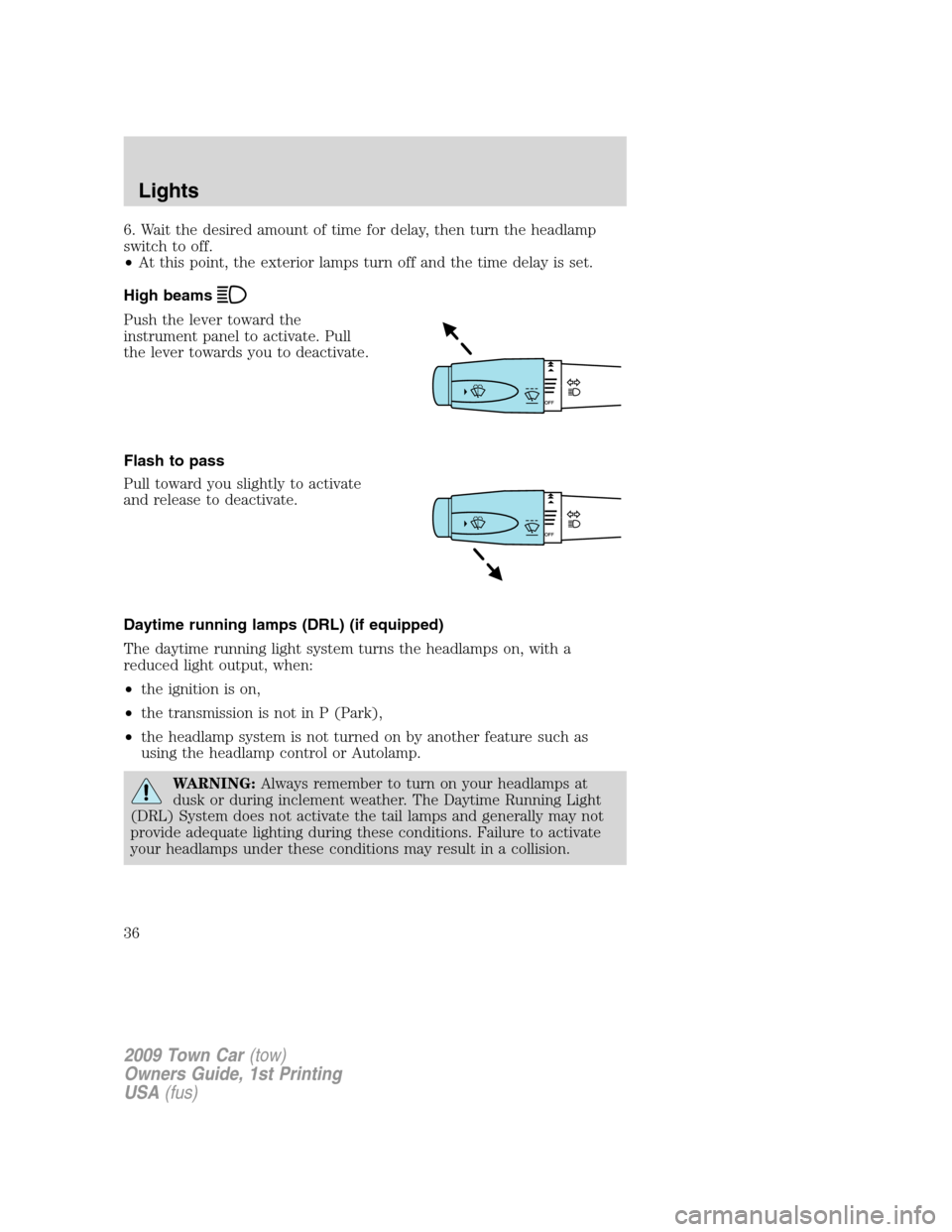

Page 36 of 280

LINCOLN TOWN CAR 2009 Owners Guide 6. Wait the desired amount of time for delay, then turn the headlamp
switch to off.
•At this point, the exterior lamps turn off and the time delay is set.
High beams
Push the lever toward the
instru

Page 37 of 280

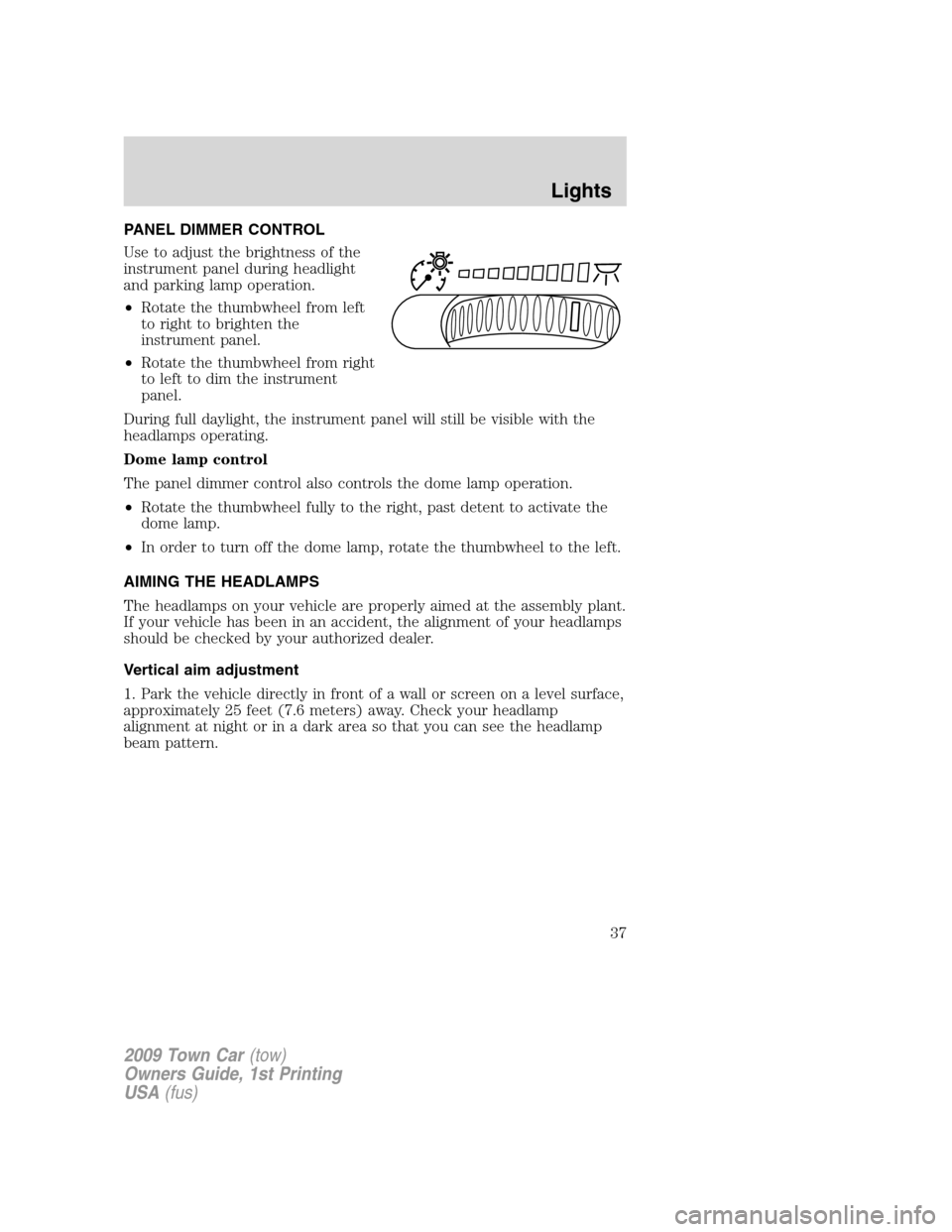

LINCOLN TOWN CAR 2009 Owners Guide PANEL DIMMER CONTROL
Use to adjust the brightness of the
instrument panel during headlight
and parking lamp operation.
•Rotate the thumbwheel from left
to right to brighten the
instrument panel.
•

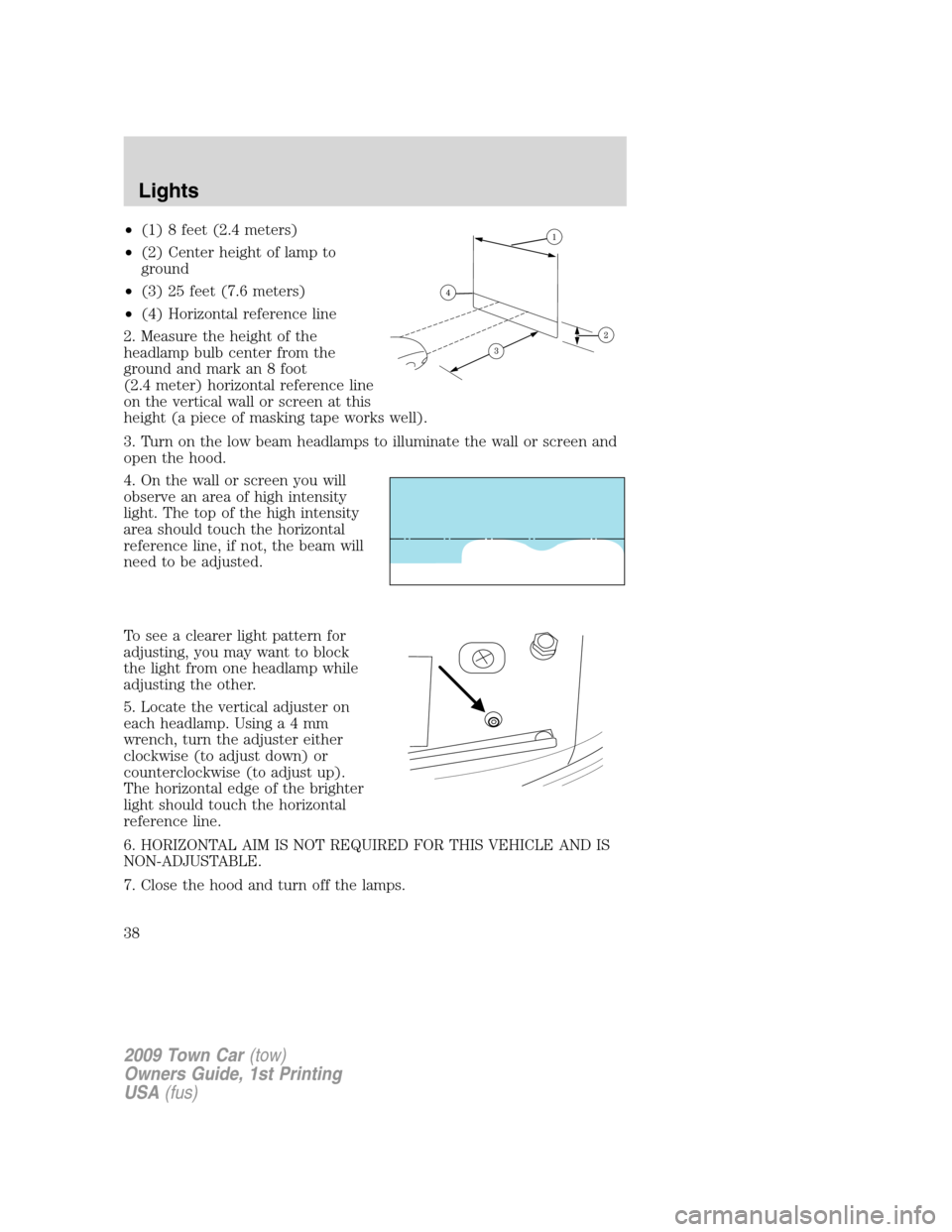

Page 38 of 280

LINCOLN TOWN CAR 2009 Owners Guide •(1) 8 feet (2.4 meters)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 meters)
•(4) Horizontal reference line
2. Measure the height of the
headlamp bulb center from the
ground and mar

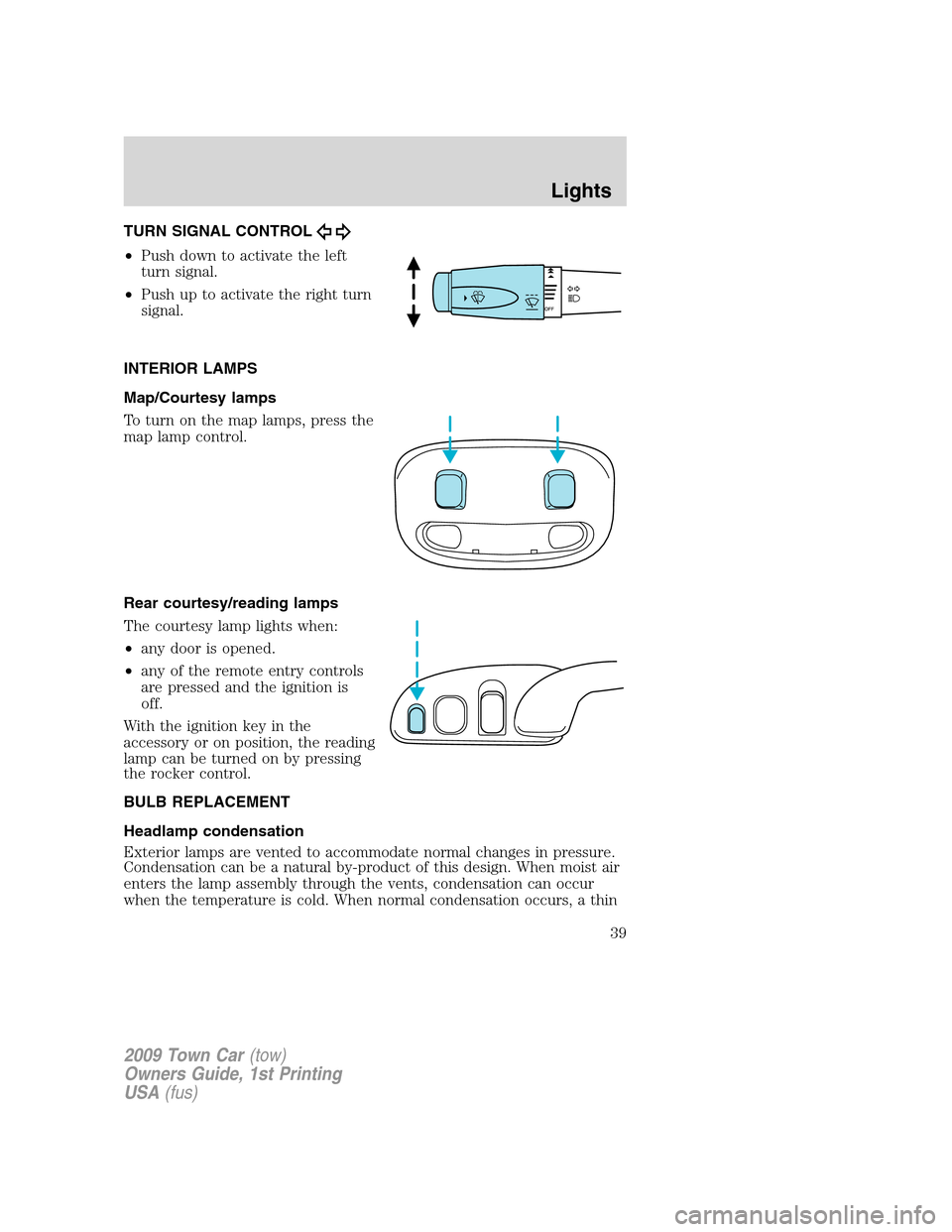

Page 39 of 280

LINCOLN TOWN CAR 2009 Owners Guide TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Map/Courtesy lamps
To turn on the map lamps, press the
map lamp control.

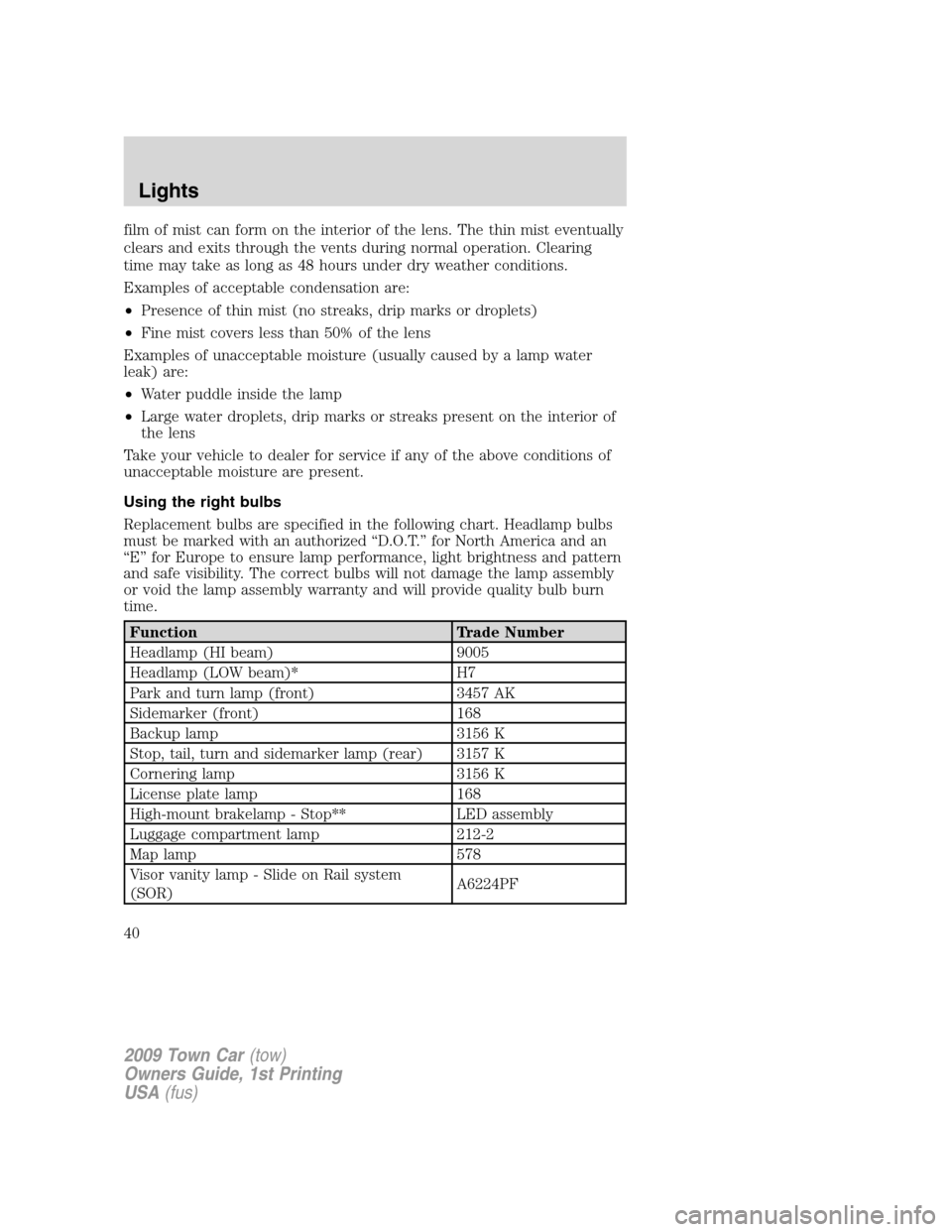

Page 40 of 280

LINCOLN TOWN CAR 2009 Owners Guide film of mist can form on the interior of the lens. The thin mist eventually
clears and exits through the vents during normal operation. Clearing
time may take as long as 48 hours under dry weather con
