LINCOLN TOWN CAR 2010 Owners Manual

Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Anti-theft indicator
The anti-theft indicator is located on top of the instrument panel.
•When the ignition is in the off position, the indicator will flash once
every two seconds to indicate the SecuriLocksystem is functioning
as a theft deterrent.
•When the ignition is in the on position, the indicator will glow for
three seconds to indicate normal system functionality.
If a problem occurs with the SecuriLocksystem, the indicator will flash
rapidly or glow steadily when the ignition is in the on position. If this
occurs, turn the ignition off then back to on to make sure there was no
electronic interference with the programmed key. If the vehicle doesn’t
start, try to start it with the 2nd programmed key and if successful
contact your authorized dealership for key replacement. If the indicator
still flashes rapidly or glows steadily, the vehicle will not start, contact
your authorized dealer as soon as possible for service.
Automatic arming
The vehicle is armed immediately after switching the ignition to the off
position.
The theft indicator will flash every two seconds when the vehicle is
armed.
Locks and Security
91
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

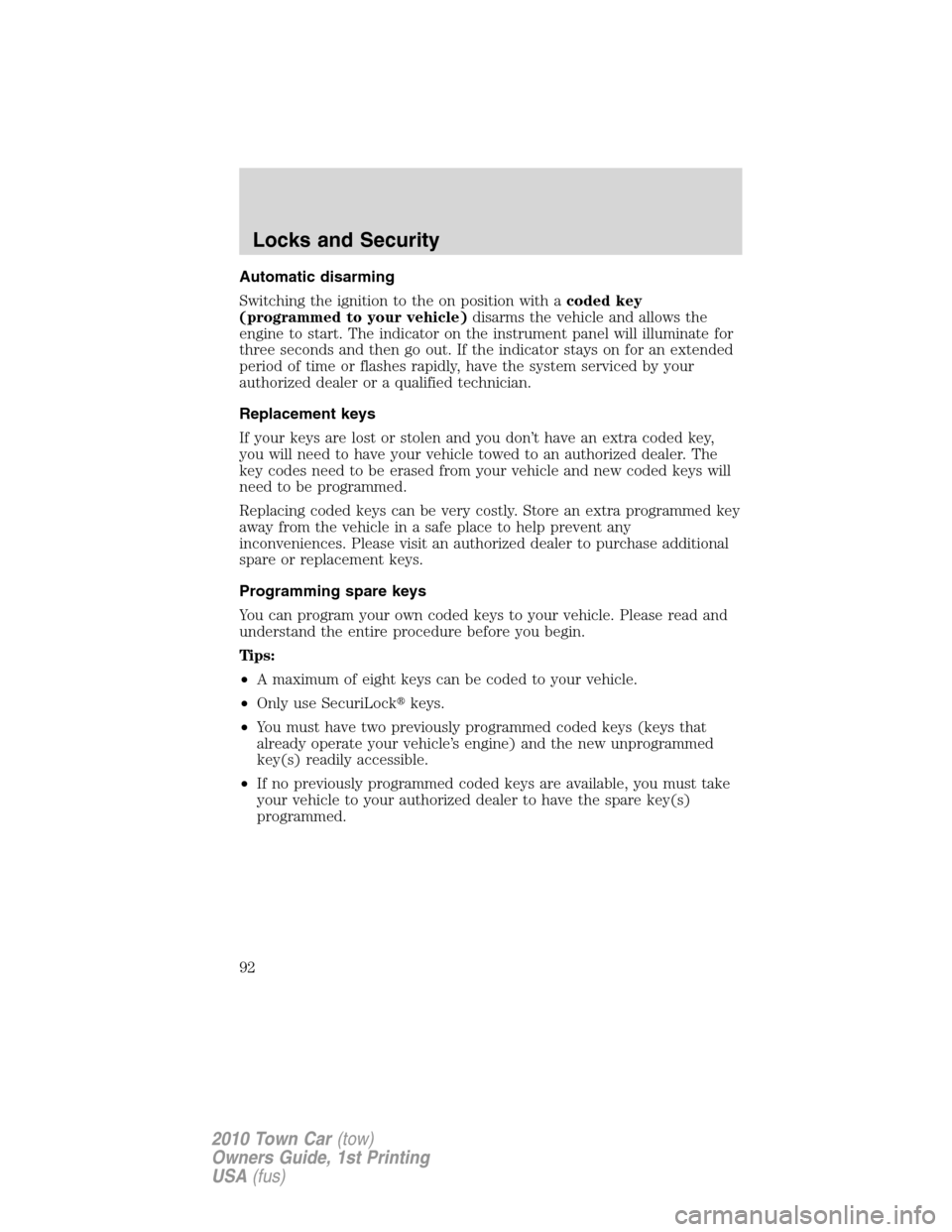

Automatic disarming
Switching the ignition to the on position with acoded key
(programmed to your vehicle)disarms the vehicle and allows the
engine to start. The indicator on the instrument panel will illuminate for
three seconds and then go out. If the indicator stays on for an extended
period of time or flashes rapidly, have the system serviced by your
authorized dealer or a qualified technician.
Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
You can program your own coded keys to your vehicle. Please read and
understand the entire procedure before you begin.
Tips:
•A maximum of eight keys can be coded to your vehicle.
•Only use SecuriLockkeys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If no previously programmed coded keys are available, you must take
your vehicle to your authorized dealer to have the spare key(s)
programmed.
Locks and Security
92
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

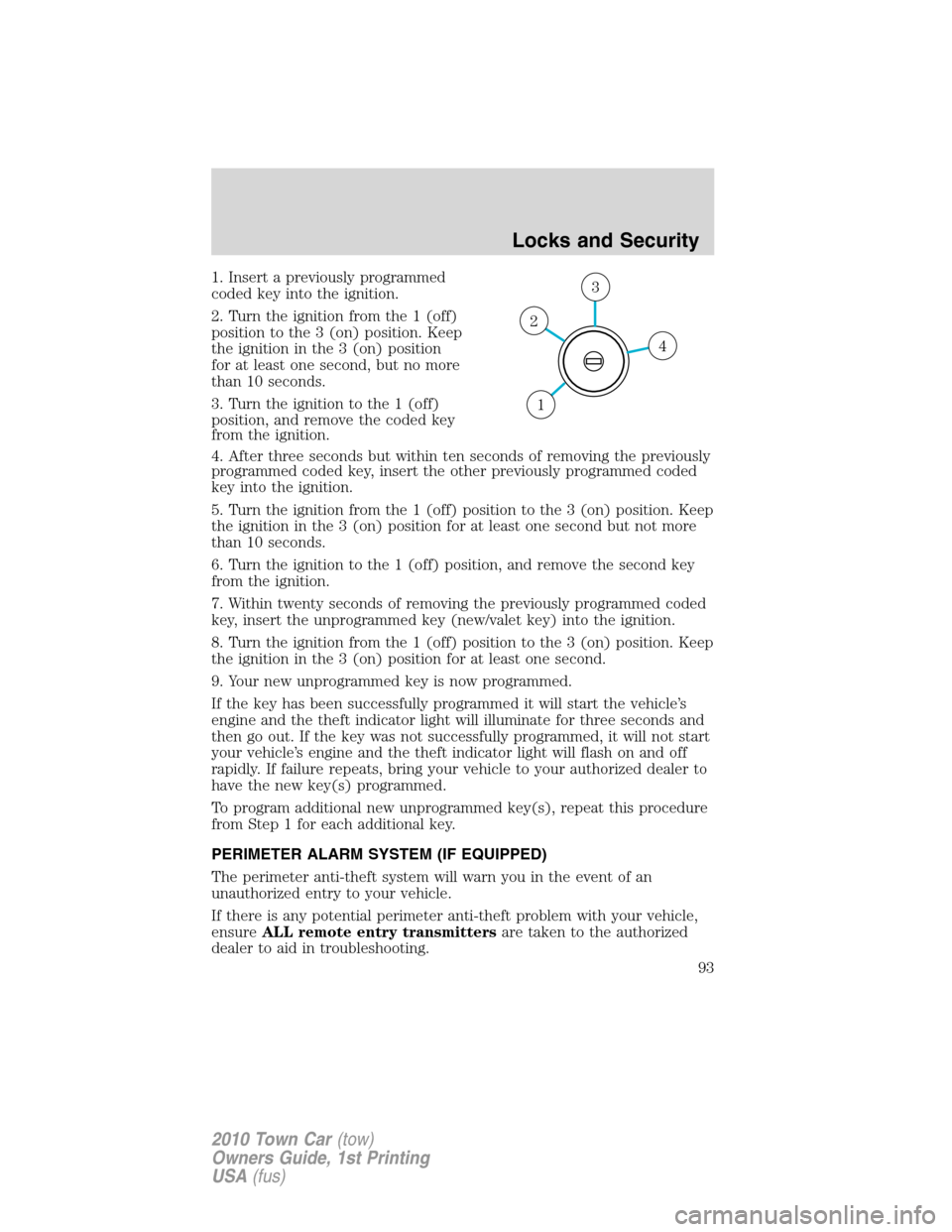

1. Insert a previously programmed
coded key into the ignition.
2. Turn the ignition from the 1 (off)
position to the 3 (on) position. Keep
the ignition in the 3 (on) position
for at least one second, but no more
than 10 seconds.
3. Turn the ignition to the 1 (off)
position, and remove the coded key
from the ignition.
4. After three seconds but within ten seconds of removing the previously
programmed coded key, insert the other previously programmed coded
key into the ignition.
5. Turn the ignition from the 1 (off) position to the 3 (on) position. Keep
the ignition in the 3 (on) position for at least one second but not more
than 10 seconds.
6. Turn the ignition to the 1 (off) position, and remove the second key
from the ignition.
7. Within twenty seconds of removing the previously programmed coded
key, insert the unprogrammed key (new/valet key) into the ignition.
8. Turn the ignition from the 1 (off) position to the 3 (on) position. Keep
the ignition in the 3 (on) position for at least one second.
9. Your new unprogrammed key is now programmed.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out. If the key was not successfully programmed, it will not start
your vehicle’s engine and the theft indicator light will flash on and off
rapidly. If failure repeats, bring your vehicle to your authorized dealer to
have the new key(s) programmed.
To program additional new unprogrammed key(s), repeat this procedure
from Step 1 for each additional key.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
4
3
2
1
Locks and Security
93
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

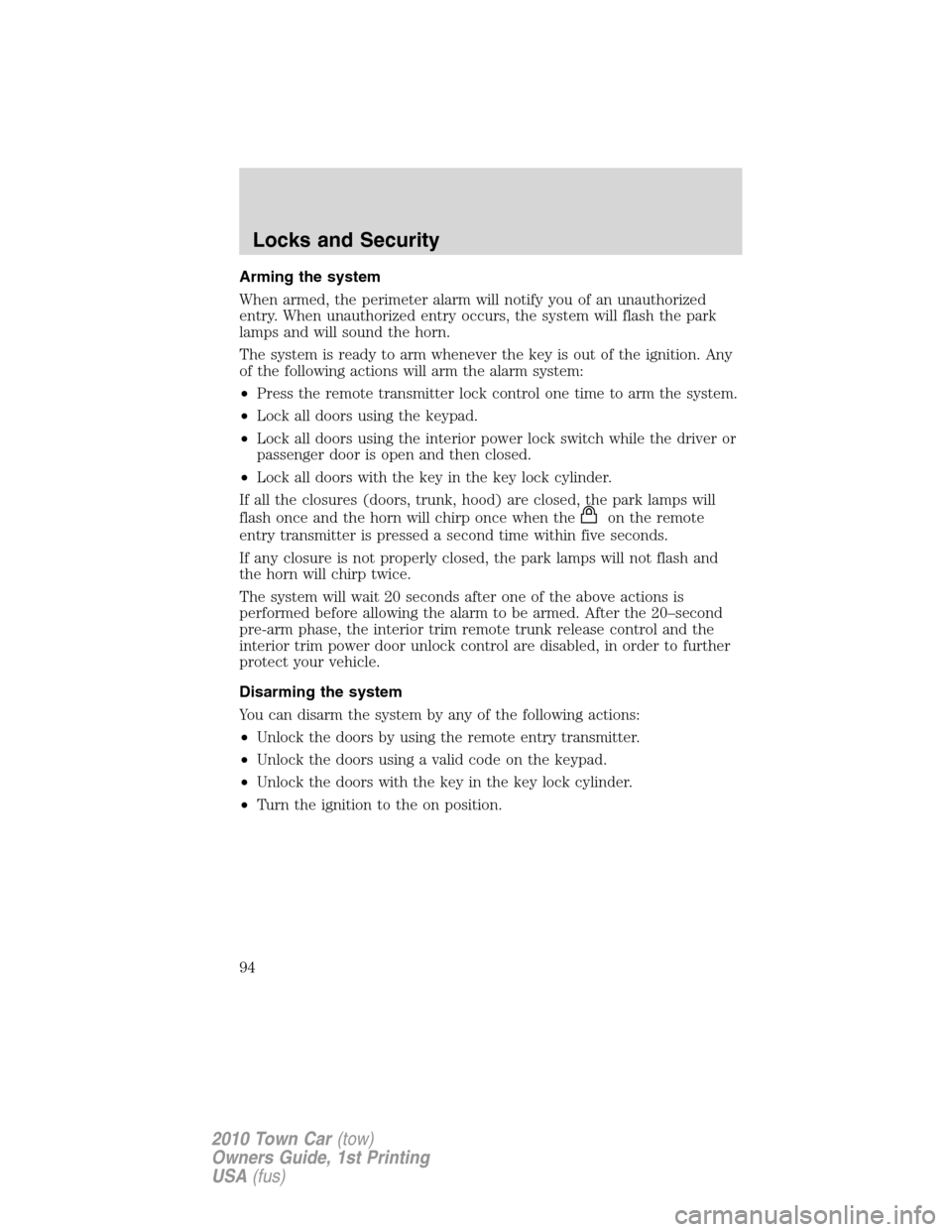

Arming the system
When armed, the perimeter alarm will notify you of an unauthorized
entry. When unauthorized entry occurs, the system will flash the park
lamps and will sound the horn.
The system is ready to arm whenever the key is out of the ignition. Any
of the following actions will arm the alarm system:
•Press the remote transmitter lock control one time to arm the system.
•Lock all doors using the keypad.
•Lock all doors using the interior power lock switch while the driver or
passenger door is open and then closed.
•Lock all doors with the key in the key lock cylinder.
If all the closures (doors, trunk, hood) are closed, the park lamps will
flash once and the horn will chirp once when the
on the remote
entry transmitter is pressed a second time within five seconds.
If any closure is not properly closed, the park lamps will not flash and
the horn will chirp twice.
The system will wait 20 seconds after one of the above actions is
performed before allowing the alarm to be armed. After the 20–second
pre-arm phase, the interior trim remote trunk release control and the
interior trim power door unlock control are disabled, in order to further
protect your vehicle.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by using the remote entry transmitter.
•Unlock the doors using a valid code on the keypad.
•Unlock the doors with the key in the key lock cylinder.
•Turn the ignition to the on position.
Locks and Security
94
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

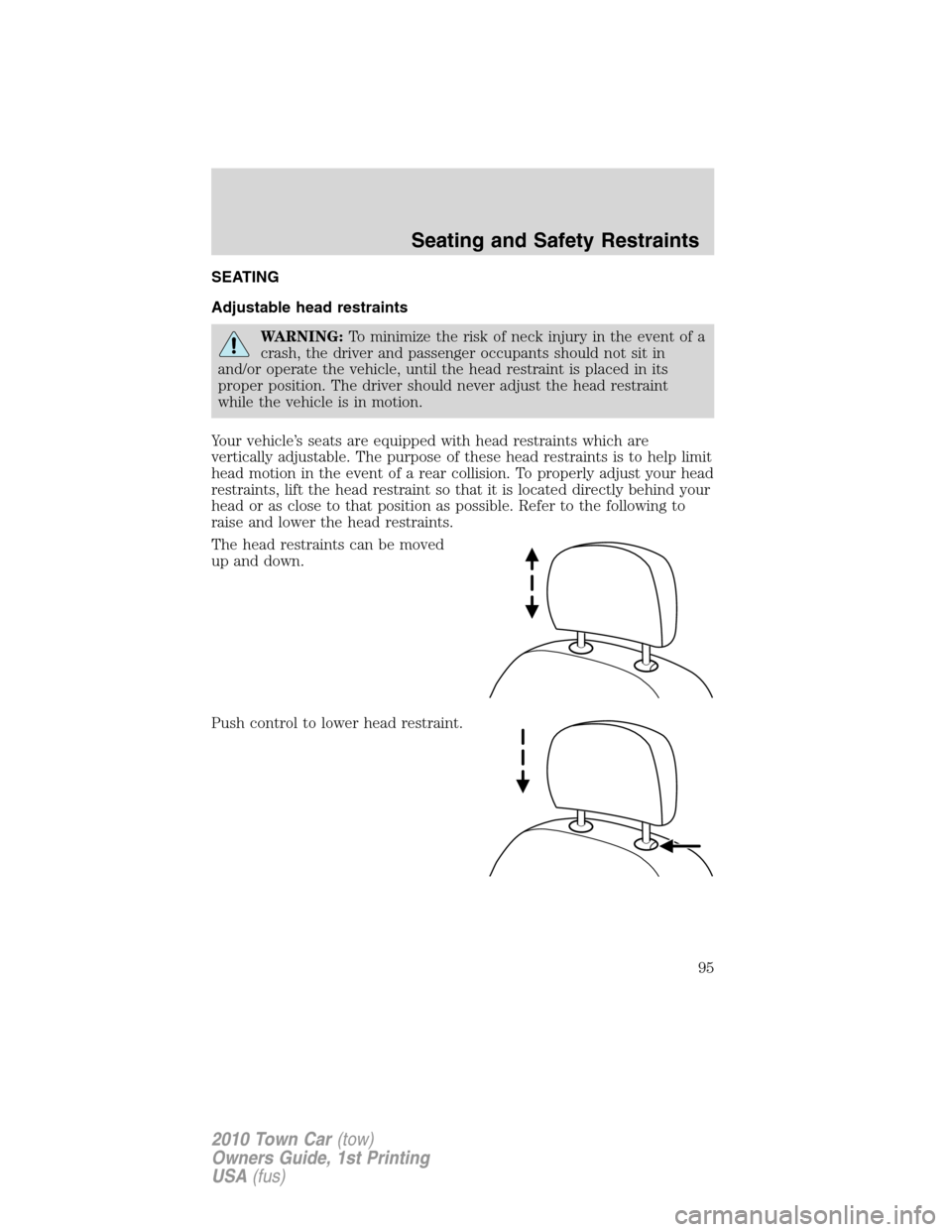

SEATING
Adjustable head restraints
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
Your vehicle’s seats are equipped with head restraints which are
vertically adjustable. The purpose of these head restraints is to help limit
head motion in the event of a rear collision. To properly adjust your head
restraints, lift the head restraint so that it is located directly behind your
head or as close to that position as possible. Refer to the following to
raise and lower the head restraints.
The head restraints can be moved
up and down.
Push control to lower head restraint.
Seating and Safety Restraints
95
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

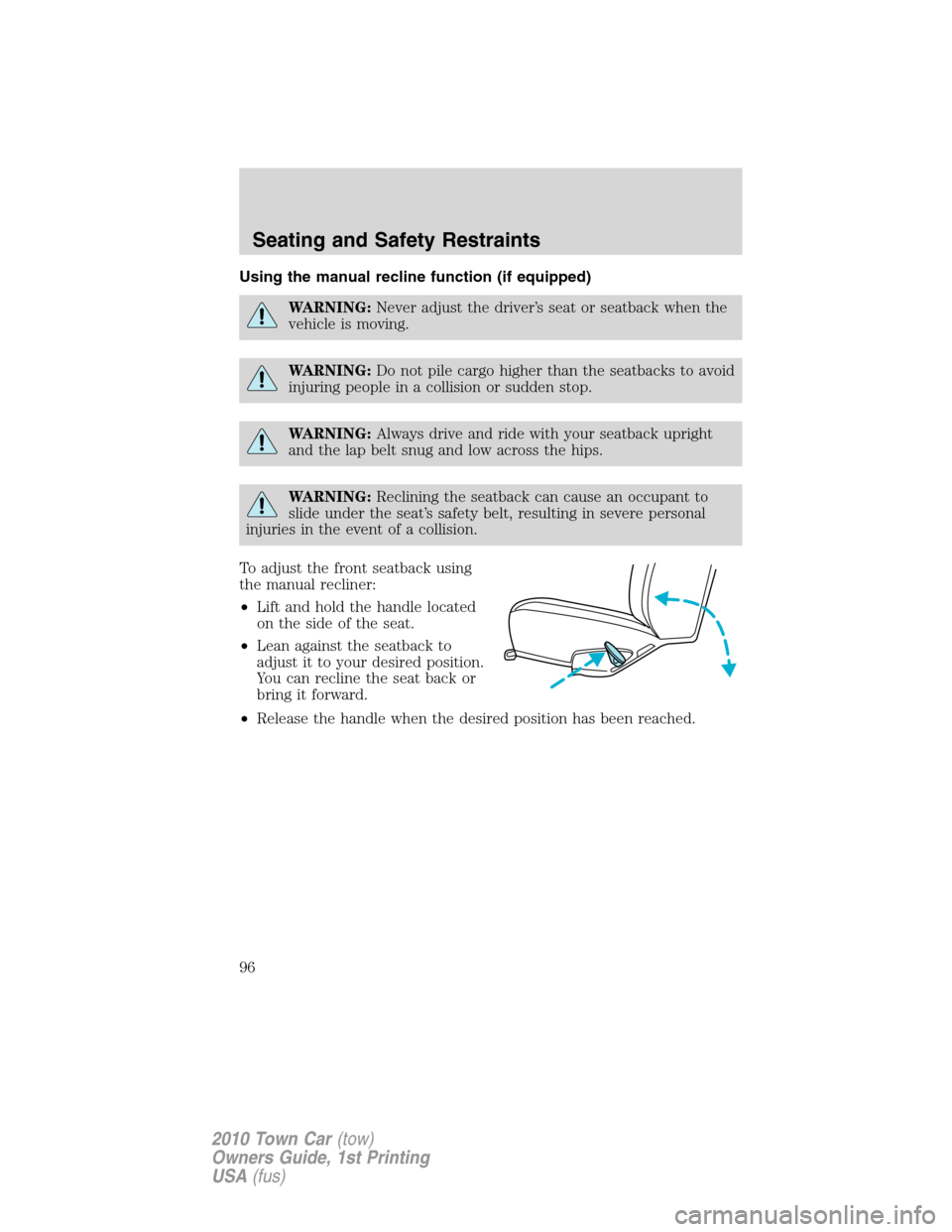

Using the manual recline function (if equipped)
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING:Do not pile cargo higher than the seatbacks to avoid
injuring people in a collision or sudden stop.
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
To adjust the front seatback using
the manual recliner:
•Lift and hold the handle located
on the side of the seat.
•Lean against the seatback to
adjust it to your desired position.
You can recline the seat back or
bring it forward.
•Release the handle when the desired position has been reached.
Seating and Safety Restraints
96
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

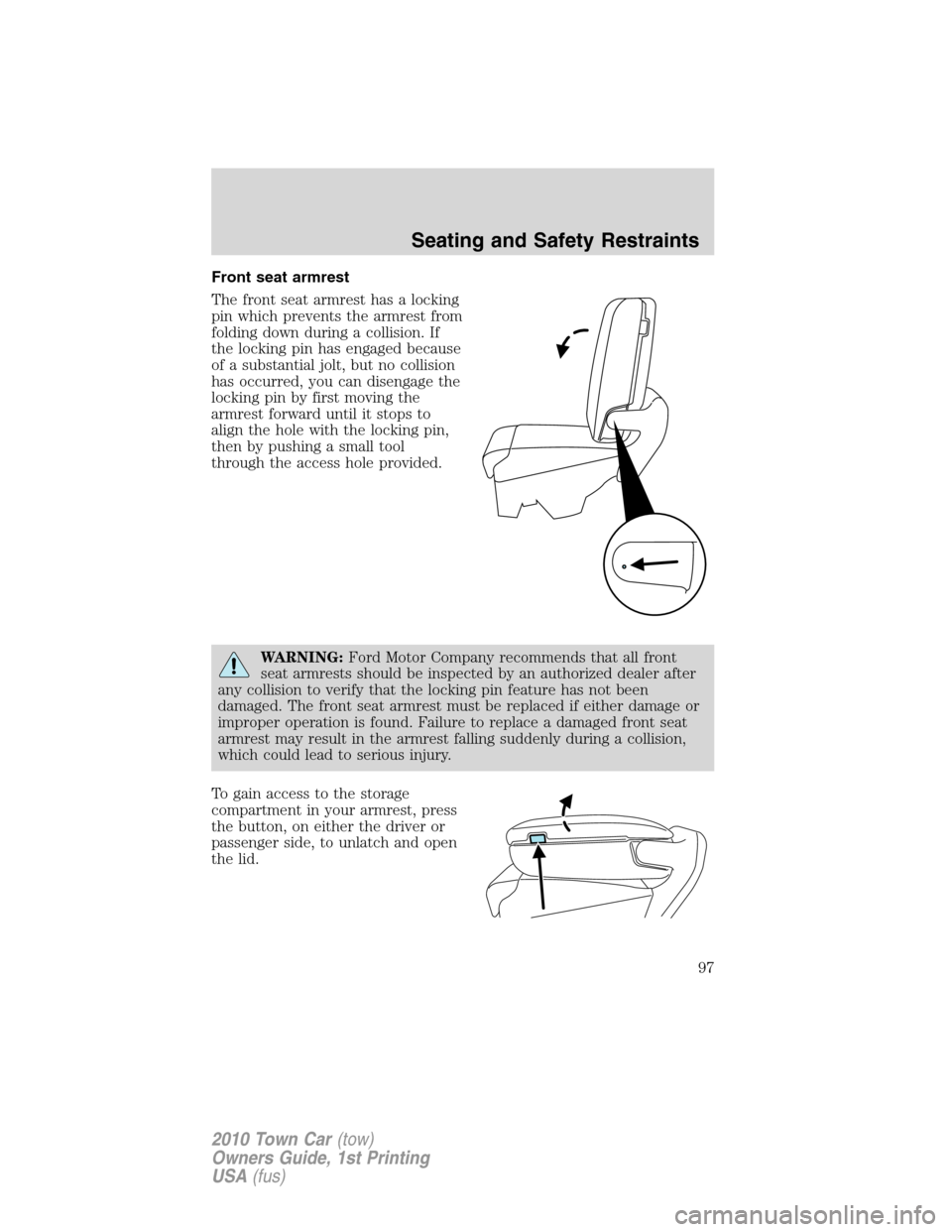

Front seat armrest
The front seat armrest has a locking
pin which prevents the armrest from
folding down during a collision. If
the locking pin has engaged because
of a substantial jolt, but no collision
has occurred, you can disengage the
locking pin by first moving the
armrest forward until it stops to
align the hole with the locking pin,
then by pushing a small tool
through the access hole provided.
WARNING:Ford Motor Company recommends that all front
seat armrests should be inspected by an authorized dealer after
any collision to verify that the locking pin feature has not been
damaged. The front seat armrest must be replaced if either damage or
improper operation is found. Failure to replace a damaged front seat
armrest may result in the armrest falling suddenly during a collision,
which could lead to serious injury.
To gain access to the storage
compartment in your armrest, press
the button, on either the driver or
passenger side, to unlatch and open
the lid.
Seating and Safety Restraints
97
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

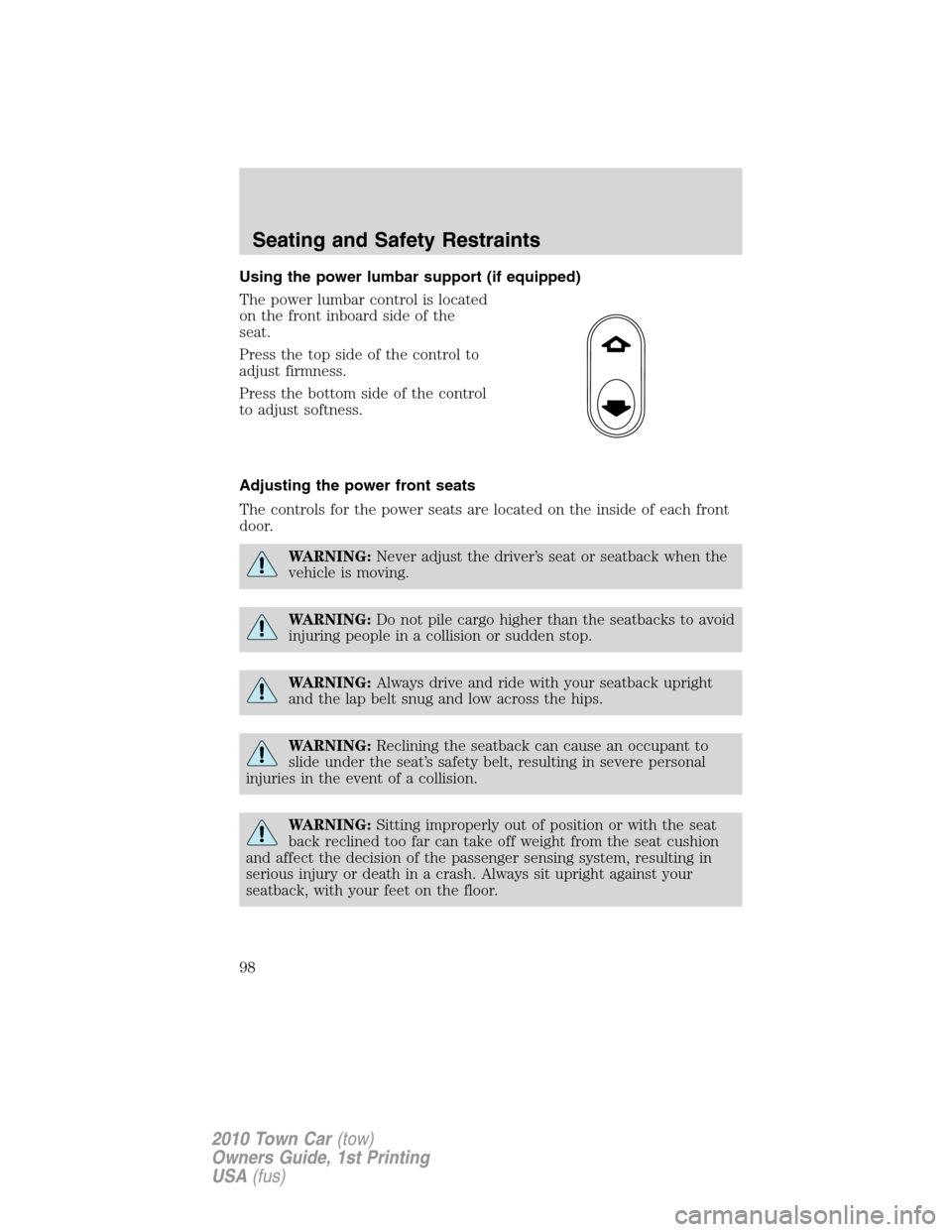

Using the power lumbar support (if equipped)
The power lumbar control is located
on the front inboard side of the
seat.
Press the top side of the control to
adjust firmness.
Press the bottom side of the control
to adjust softness.
Adjusting the power front seats
The controls for the power seats are located on the inside of each front
door.
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING: Do not pile cargo higher than the seatbacks to avoid
injuring people in a collision or sudden stop.
WARNING: Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING: Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING: Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the passenger sensing system, resulting in
serious injury or death in a crash. Always sit upright against your
seatback, with your feet on the floor.
Seating and Safety Restraints
98
2010 Town Car (tow)
Owners Guide, 1st Printing
USA (fus)

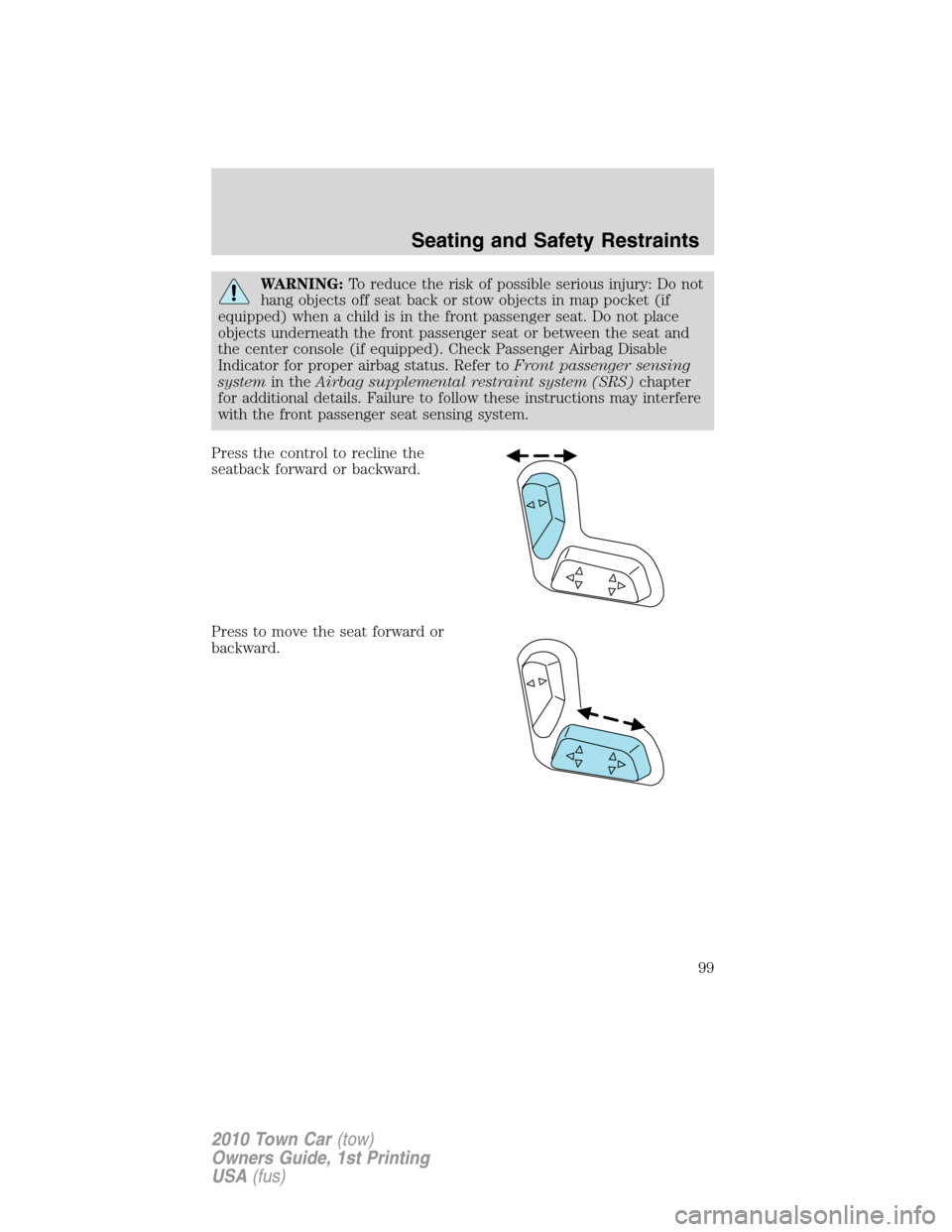

WARNING:To reduce the risk of possible serious injury: Do not
hang objects off seat back or stow objects in map pocket (if
equipped) when a child is in the front passenger seat. Do not place
objects underneath the front passenger seat or between the seat and
the center console (if equipped). Check Passenger Airbag Disable
Indicator for proper airbag status. Refer toFront passenger sensing
systemin theAirbag supplemental restraint system (SRS)chapter
for additional details. Failure to follow these instructions may interfere
with the front passenger seat sensing system.
Press the control to recline the
seatback forward or backward.
Press to move the seat forward or
backward.
Seating and Safety Restraints
99
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)

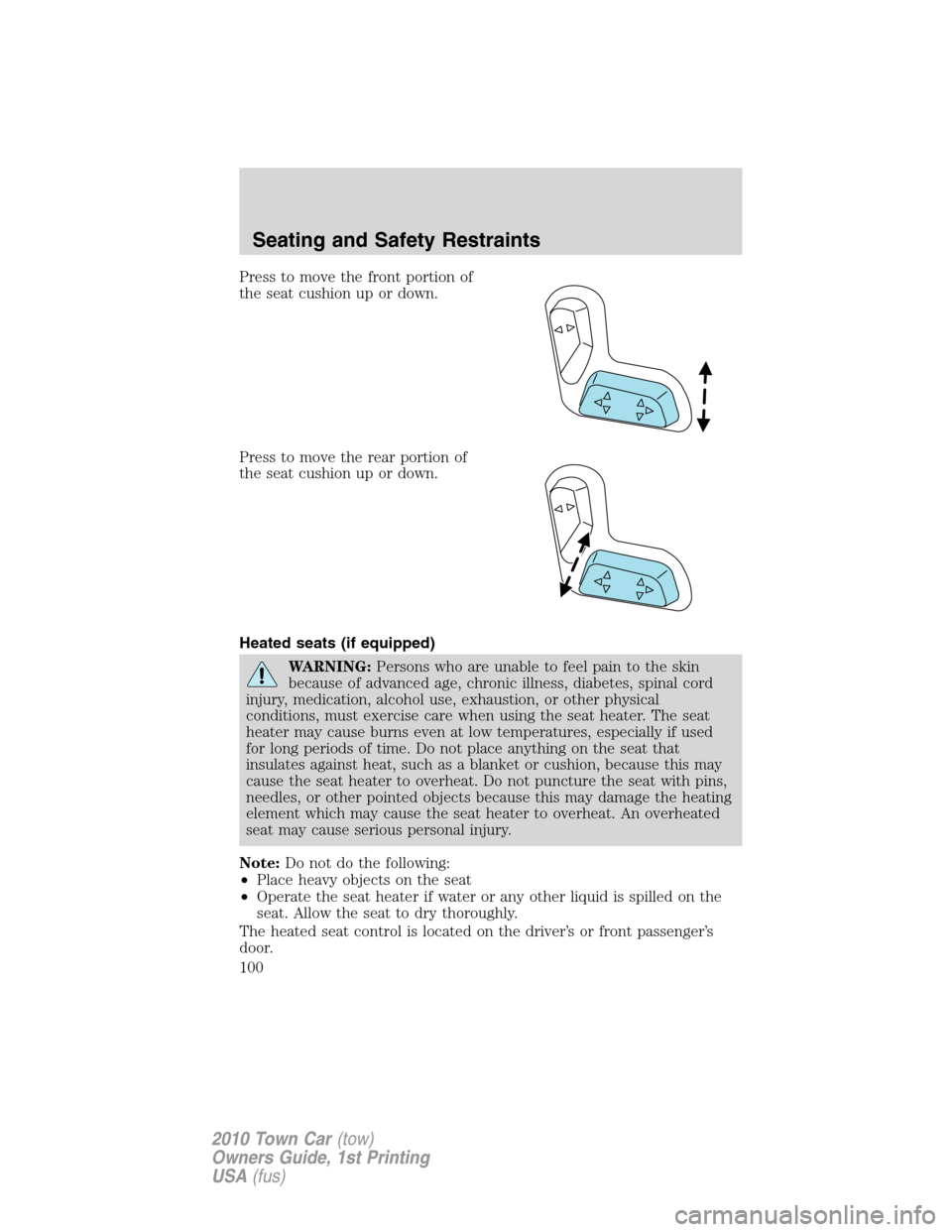

Press to move the front portion of
the seat cushion up or down.
Press to move the rear portion of
the seat cushion up or down.
Heated seats (if equipped)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical
conditions, must exercise care when using the seat heater. The seat
heater may cause burns even at low temperatures, especially if used
for long periods of time. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion, because this may
cause the seat heater to overheat. Do not puncture the seat with pins,
needles, or other pointed objects because this may damage the heating
element which may cause the seat heater to overheat. An overheated
seat may cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The heated seat control is located on the driver’s or front passenger’s
door.
Seating and Safety Restraints
100
2010 Town Car(tow)
Owners Guide, 1st Printing
USA(fus)
