engine oil capacity LINCOLN ZEPHYR 2006 Owners Manual

equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.

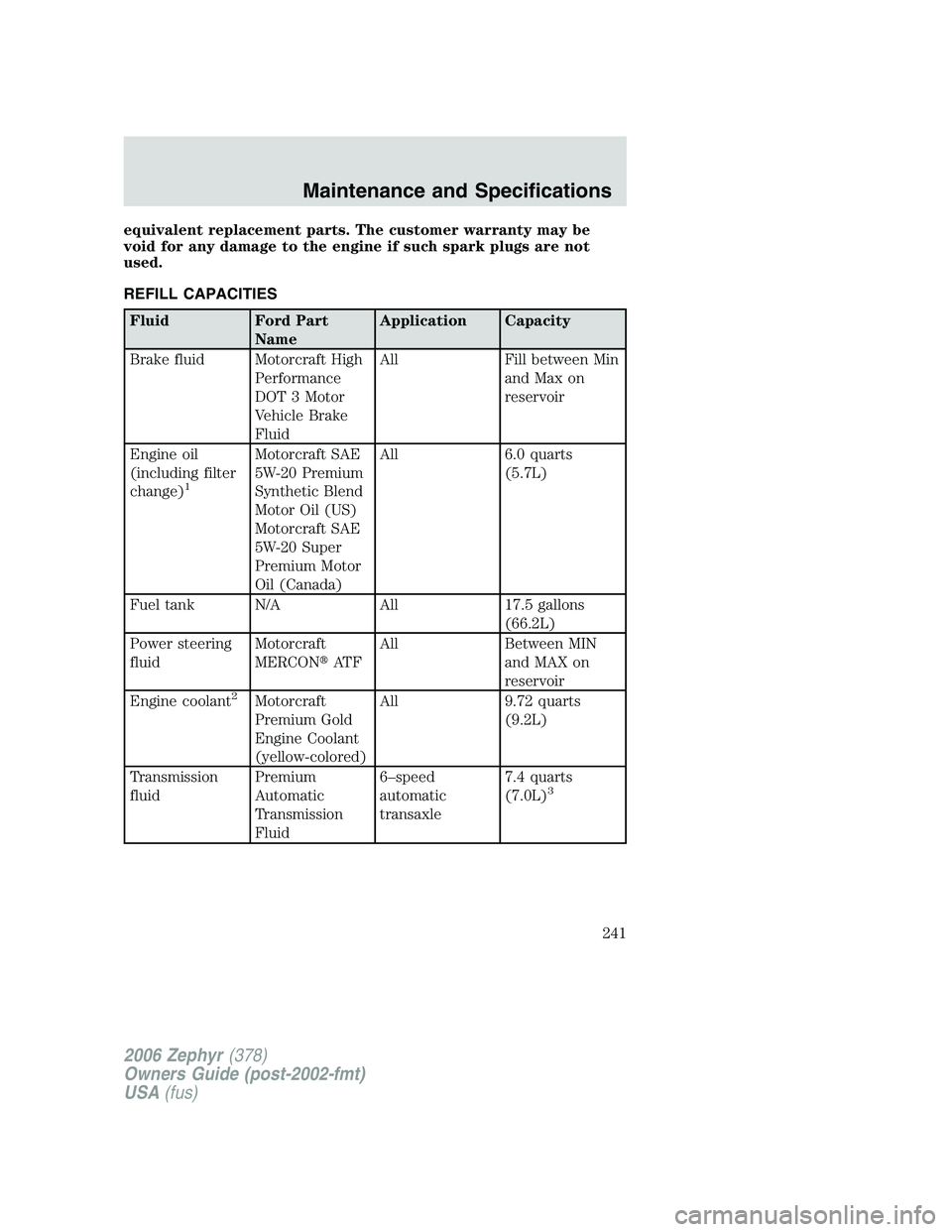

REFILL CAPACITIES
Fluid Ford Part
Name Application Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid All Fill between Min
and Max on
reservoir
Engine oil
(including filter
change) 1
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada) All 6.0 quarts
(5.7L)
Fuel tank N/A All 17.5 gallons
(66.2L)
Power steering
fluid Motorcraft
MERCON
AT F All Between MIN
and MAX on
reservoir
Engine coolant 2
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored) All 9.72 quarts
(9.2L)
Transmission
fluid Premium
Automatic
Transmission
Fluid 6–speed
automatic
transaxle 7.4 quarts
(7.0L) 3
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus) Maintenance and Specifications
241

Fluid Ford Part
Name Application Capacity
Windshield
washer fluid Motorcraft
Premium
Windshield
Washer
Concentrate All 4.75 quarts
(4.5L)1
Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark. 2
Add the coolant type originally equipped in your vehicle. 3
Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
LUBRICANT SPECIFICATIONS
Item Ford part
name Ford part
number Ford
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid PM-1 or PM-1-C ESA-M6C25-A
or
WSS-M6C62-A
Door
weatherstrips Silicone Spray
Lubricant XL-6 ESR-M13P4-A
Door latch, hood
latch, auxiliary
hood latch, door
hinges, striker
plates, seat
tracks and fuel
filler door hinge Multi-Purpose
Grease XG-4 or XL-5 ESB-M1C93–B
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Maintenance and Specifications
242

Clock ............................................48
Compass, electronic
set zone adjustment .................65
Console
overhead ....................................48
Controls
power seat .................................96
steering column ........................56
Coolant
checking and adding ..............220
refill capacities ................224, 241
specifications ..................242, 244
Cruise control
(see Speed control) ....................53
Cupholder(s) .............................102
Customer Assistance ................175
Ford Extended Service Plan ...200
Getting assistance outside
the U.S. and Canada ..............201
Getting roadside assistance ...175
Getting the service you need ..196
Ordering additional owner’s
literature .................................201
Utilizing the
Mediation/Arbitration
Program ...................................199
D
Daytime running lamps (see
Lamps) .........................................30
Dipstick
automatic transmission fluid .237
engine oil .................................214
Doors
lubricant specifications ..........242
Driving under special
conditions ..................................174
through water .........................174 E
Electronic message center .........63
Emergencies, roadside
jump-starting ..........................190
Emission control system ..........234
Engine ........................................244
cleaning ...................................205
coolant .....................................220
fail-safe cooling .......................225
idle speed control ...................218
lubrication specifications ......242,
244
refill capacities ........................241
service points ..........................212
starting after a collision .........177
Engine block heater .................167
Engine oil ..................................214
change oil soon warning,
message center .......................214
checking and adding ..............214
dipstick ....................................214
filter, specifications ........217, 240
recommendations ...................217
refill capacities ........................241
specifications ..................242, 244
Exhaust fumes ..........................167
F
Fail safe cooling ........................225
Fluid capacities .........................241
Foglamps .....................................30
Fuel ............................................226
calculating fuel economy ..64, 231
cap ...........................................228
capacity ...................................241
choosing the right fuel ...........229
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Index
252

daytime running light ...............30
fog lamps ...................................30
headlamps .................................29
headlamps, flash to pass ..........31
instrument panel, dimming .....31
interior lamps ...........................33
replacing bulbs .........................35
Lane change indicator
(see Turn signal) ........................33
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........168
Load limits .................................157
Locks
autolock .....................................86
childproof ..................................76
doors ..........................................74
Lubricant specifications ...242, 244
Lug nuts ....................................189
Lumbar support, seats ...............98
M
Message center ...........................63
english/metric button ...............68
system check button ................67
warning messages .....................68
Mirrors .........................................52
automatic dimming rearview
mirror ........................................52
heated ........................................53
programmable memory ............80
side view mirrors (power) .......52
Moon roof ..............................57, 79
Motorcraft parts ........208, 226, 240
N
Navigation system .......................21
O
Octane rating ............................230 Oil (see Engine oil) ..................214
P
Parking brake ............................169
Parts (see Motorcraft parts) ....240
Passenger Occupant
Classification Sensor .................104
Power distribution box
(see Fuses) ...............................181
Power door locks ........................74
Power mirrors .............................52
Power point .................................49
Power steering ..........................171
fluid, checking and adding ....236
fluid, refill capacity ................241
fluid, specifications .........242, 244
Power Windows ...........................50
R
Relays ........................................177
Remote entry system ...........77, 79
illuminated entry ................82–83
locking/unlocking doors ...........79
opening the trunk .....................80
panic alarm ...............................80
replacement/additional
transmitters ...............................82
replacing the batteries .............81
Roadside assistance ..................175
S
Safety Belt Maintenance ..........115
Safety belts (see Safety
restraints) ..................102, 106–110
Safety Canopy ...........................125
2006 Zephyr (378)
Owners Guide (post-2002-fmt)
USA (fus)Index
254
