MASERATI GRANTURISMO 2019 Owners Manual

Parts to be refilled Quantity Product specifications
Engine cooling circuit 3.43 US gal/13 liters Mixture of water and coolant, proportionally 50/50%.
Coolant: protective, antifreeze action and ethylene
glycol-based with organic inhibitors compatible with
regulations:
• ASTM D 3306, ASTM D 2570
• ASTM D 4340, ASTM D 2809
• SAE J 1034
• CUNA NC 956/16.
Recommended fluid: SHELL GlycoShell or GlycoShell Long
Life.
Hydraulic power steering 0.26 US gal/1,0 liters +/-4% Oil: ATF Typ eA-MB 236.2.
Recommended oil: SHELL Donax TM.
Automatic transmission 2.65 US gal/10,03 liters Recommended oil: SHELL M1375.4 DEXTRON III.
Differential 2.4 lb/1,1 kg Recomended oil: SHELL Spirax S 75W140.
Braking system 0.29 US gal/1,1 liters +/-4% Synthetic fluid: FMVSS 116-DOT 4, ISO 4925 Class 4, ENSAYOS
INTA-UNE 26-109-88, SAE J1703, SAE J1704, CUNA NC 956-01.
Recommended fluid: PETRONAS Tutela TOP 5 FF.
CAUTION!
For each oil refilling and/or replacement, please contact an Authorized Maserati Dealer .
Air conditioning system 1.32 lb +/-0.045 lb
600 g +/-20 g Coolant: R134a.
Air Conditioning
compressor 0.053 US gal+/-0.0026 US gal
200 ml +/-10 ml Oil Type: Ucon RL 897. Features and Specifications
8
267

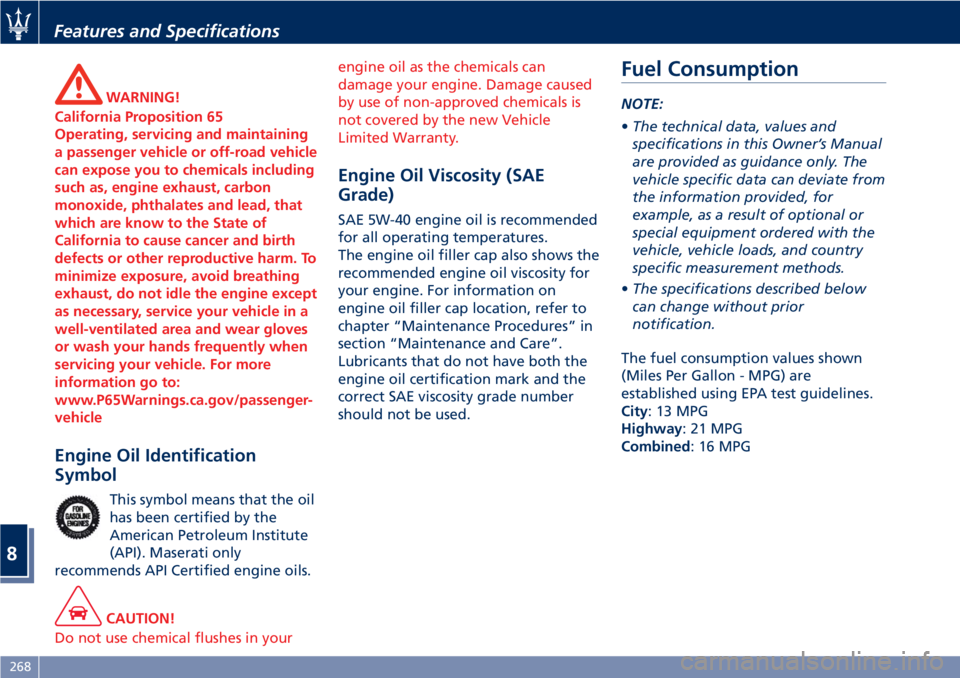

WARNING!
California Proposition 65
Operating, servicing and maintaining
a passenger vehicle or off-road vehicle
can expose you to chemicals including
such as, engine exhaust, carbon
monoxide, phthalates and lead, that
which are know to the State of
California to cause cancer and birth
defects or other reproductive harm. To
minimize exposure, avoid breathing
exhaust, do not idle the engine except
as necessary, service your vehicle in a
well-ventilated area and wear gloves
or wash your hands frequently when
servicing your vehicle. For more
information go to:
www.P65Warnings.ca.gov/passenger-
vehicle
Engine Oil Identification
Symbol This symbol means that the oil
has been certified by the
American Petroleum Institute
(API). Maserati only
recommends API Certified engine oils.
CAUTION!
Do not use chemical flushes in your engine oil as the chemicals can
damage your engine. Damage caused
by use of non-approved chemicals is
not covered by the new Vehicle
Limited Warranty.
Engine Oil Viscosity (SAE
Grade) SAE 5W-40 engine oil is recommended
for all operating temperatures.
The engine oil filler cap also shows the
recommended engine oil viscosity for
your engine. For information on
engine oil filler cap location, refer to
chapter “Maintenance Procedures” in
section “Maintenance and Care”.
Lubricants that do not have both the
engine oil certification mark and the
correct SAE viscosity grade number
should not be used. Fuel Consumption NOTE:
• The technical data, values and
specifications in this Owner’s Manual
are provided as guidance only. The
vehicle specific data can deviate from
the information provided, for
example, as a result of optional or
special equipment ordered with the
vehicle, vehicle loads, and country
specific measurement methods.
• The specifications described below
can change without prior
notification.
The fuel consumption values shown
(Miles Per Gallon - MPG) are
established using EPA test guidelines.
City :13MPG
Highway :21MPG
Combined :16MPGFeatures and Specifications
8
268

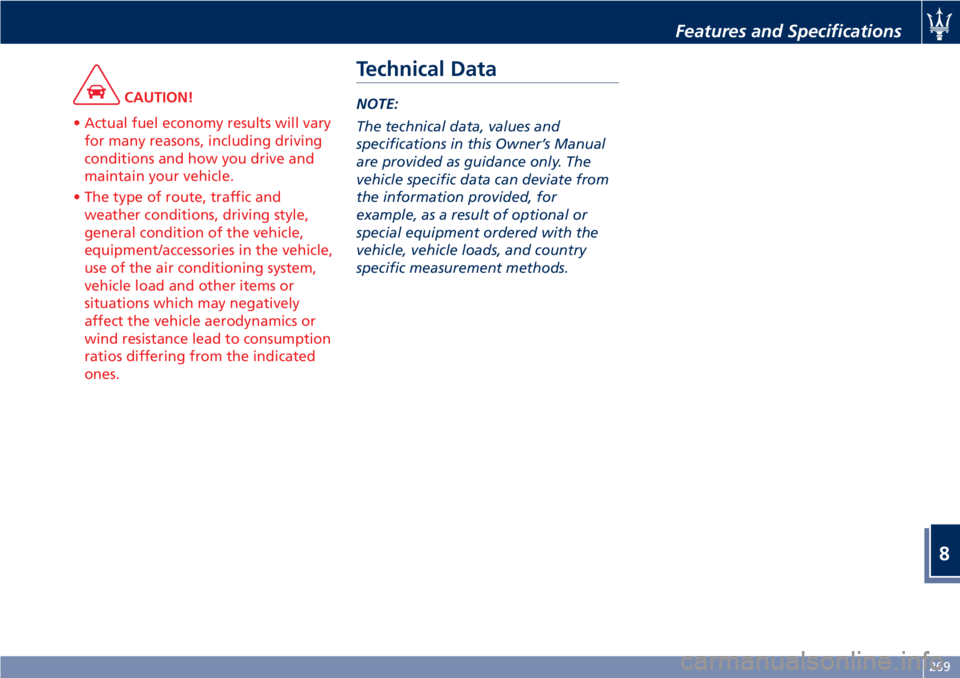

CAUTION!
• Actual fuel economy results will vary
for many reasons, including driving
conditions and how you drive and
maintain your vehicle.
• The type of route, traffic and
weather conditions, driving style,
general condition of the vehicle,
equipment/accessories in the vehicle,
use of the air conditioning system,
vehicle load and other items or
situations which may negatively
affect the vehicle aerodynamics or
wind resistance lead to consumption
ratios differing from the indicated
ones. Technical Data NOTE:
The technical data, values and
specifications in this Owner’s Manual
are provided as guidance only. The
vehicle specific data can deviate from
the information provided, for
example, as a result of optional or
special equipment ordered with the
vehicle, vehicle loads, and country
specific measurement methods. Features and Specifications
8
269

Engine Data Cylinder number and position 8 - 90° V
Number of valves per cylinder 4
Bore x stroke 94 x 84,5 mm
Total displacement 4691 cu.cm
Compression ratio 11.2 +/- 0.2 : 1
Maximum power output (EC) (*) 338 kW – 460 CV
- corresponding rpm 7000 rpm
Maximum torque (EC) 520 Nm – 53 kgm
- corresponding rpm 4750 rpm
(*) Values obtained in SPORT drive mode with 98 R.O.N.
Timing System The timing system uses two overhead camshafts. The
camshafts are equipped with timing variator. The timing
control is done by two chains.
Lubrication
System The lubrication system is controlled by the wet sump system
through an oil pump and the relative suction screen,
incorporated in the crankcase.
Cooling System Engine cooling is ensured by an anti-freeze mixture
circulating inside a circuit equipped with radiator,
centrifugal pump and expansion tank.
Injection –
Ignition System High-pressure direct fuel injection system. Static ignition
with digital electronic control system included and
controlled by a single microprocessor ECU.Features and Specifications
8
270

Brakes Self-ventilating disc brakes on the four
wheels.
• Front disc diameter: 14.1 in (360
mm).
• Rear disc diameter: 13 in (330 mm).
• 6-piston front brake caliper
(Dual-cast technology).
• 4-piston rear brake caliper.
The Electric Parking Brake (EPB) acts
on the rear wheels.
Transmission Electro-hydraulically controlled
automatic transmission with 6 gears
(plus reverse), torque converter,
lock-up clutch and anti-slip function.
TRANSAXLE-type transmission.
Traction system equipped with rear
self-locking differential.
Suspension Front and rear articulated
quadrilateral suspensions.
Skyhook adjustable damping
suspension (optional on MC version)
that allows the driver to choose two
settings for the shock absorbers,
depending on the road surface
conditions, speed and comfort. Steering Hydraulic speed-sensitive steering with
cooling exchanger system.
Steering diameter = 11.7 yd (10,7 m).
No. of steering wheel turns = 1.5 (to
the left and right).
Wheels NOTE:
In order to maintain high performance
and safety level, Maserati
recommends to use tires equivalent to
the original size.
WARNING!
• The maximum speed reachable with
the tires (including winter tires) is
indicated by the tire manufacturer.
Always comply with the regulations
in force in the Country you are
driving in.
• Never exceed the maximum speed
indicated for the tires (including
winter tires): failure to respect the
max. speed may damage these tires.
Danger: risk of accident! CAUTION!
• While respecting the specified sizes,
for the safe operation of the vehicle
it is also essential that it is equipped
with the same brand and type of
tires on all wheels.
• Do not use an inner tube with
Tubeless tires.
Standard Wheel Dimension
Light alloy rims 20” x 8.5J
(front)
20” x 10.5J
(rear)
- Front tires 245/35 ZR 20
- Rear tires 285/35 ZR 20
- Front winter tires 245/35 ZR 20
- Rear winter tires 285/35 ZR 20
Light alloy spare rim
(optional) 18”x6J
- Spare tire 175/55 R 18
Performance
NOTE:
• The specifications described can
change without prior modification.
(Continued)Features and Specifications
8
271

(Continued)
• The values are obtained in SPORT
drive mode with 98 R.O.N. unleaded
gasoline.
Weights NOTE:
The specifications described can
change without prior modification. Sport Version MC Version
Maximum speed 186 mph (299 km/h) 187 mph (301 km/h)
Accelerations from 0 to
100 km/h 4.8 seconds 4.7 seconds
Unladen vehicle weight (with tank and reservoirs
filled, tools and accessories) 4160 lb / 1890 kg (*)
Weight with full load (4 persons plus luggage) 4820 lb / 2190 kg
(*) Base configuration without options.Features and Specifications
8
272

Dimensions Sport Version MC Version
Wheel base 115.82 in (2942 mm) 115.82 in (2942 mm)
Total length 193.30 in (4910 mm) 193.70 in (4920 mm)
Width without mirrors 75.39 in (1915 mm) 75.39 in (1915 mm)
Front track 62.44 in (1586 mm) 62.44 in (1586 mm)
Rear track 62.59 in (1590 mm) 62.59 in (1590 mm)
Front overhang 35.59 in (904 mm) 35.98 in (914 mm)
Rear overhang 41.88 in (1064 mm) 41.88 in (1064 mm)
Height 53.27 in (1353 mm) 53.27 in (1353 mm)
Trunk compartment volume 68.7 US gal (260 l) 68.7 US gal (260 l) Features and Specifications
8
273

Tire Inflation Pressure Tire Pressure
Front and rear 220 kPa - 2,2 bar
-32psi
Spare wheel
(optional) 350 kPa - 3,5 bar
-51psi
NOTE:
• For more information about the
pressure check methods, see “Tires –
General Information” in section
“Driving”.
• The tire inflation pressure value are
also indicated on the driver's side at
the base of the rear door pillar.
WARNING!
• Improperly inflated tires are
dangerous and can cause collisions.
• Under-inflation increases tire flexing
and can result in tire overheating
and failure.
• Over-inflation reduces a tire's ability
to cushion shock. Objects on the
road and potholes can cause damage
that result in tire failure.
• Over-inflated or under-inflated tires can affect vehicle handling and can
fail suddenly, resulting in loss of
vehicle control.
• Unequal tire pressures can cause
steering problems. You could lose
control of your vehicle.
• Unequal tire pressures from one side
of the vehicle to the other can cause
the vehicle to drift to the right or
left.
• Always drive with each tire inflated
to the recommended cold tire
inflation pressure.Features and Specifications
8
274

9 – Index
275

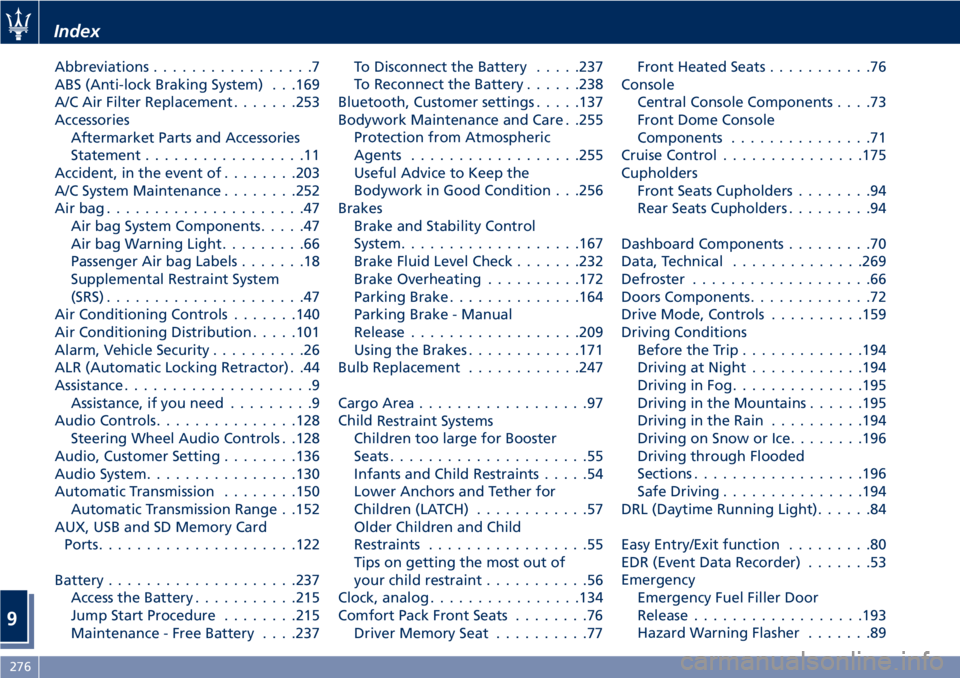

Abbreviations .................7
ABS (Anti-lock Braking System) . . .169
A/C Air Filter Replacement ...... .253
Accessories
Aftermarket Parts and Accessories
Statement .................11
Accident, in the event of ....... .203
A/C System Maintenance ....... .252
Airbag.....................47
Air bag System Components .....47
Air bag Warning Light .........66
Passenger Air bag Labels .......18
Supplemental Restraint System
(SRS) .....................47
Air Conditioning Controls ...... .140
Air Conditioning Distribution .... .101
Alarm, Vehicle Security ..........26
ALR (Automatic Locking Retractor) . .44
Assistance ....................9
Assistance, if you need .........9
Audio Controls .............. .128
Steering Wheel Audio Controls . .128
Audio, Customer Setting ....... .136
Audio System ............... .130
Automatic Transmission ....... .150
Automatic Transmission Range . .152
AUX, USB and SD Memory Card
Ports .................... .122
Battery ................... .237
Access the Battery .......... .215
Jump Start Procedure ....... .215
Maintenance - Free Battery . . . .237 To Disconnect the Battery .... .237
To Reconnect the Battery ..... .238
Bluetooth, Customer settings .... .137
Bodywork Maintenance and Care . .255
Protection from Atmospheric
Agents ................. .255
Useful Advice to Keep the
Bodywork in Good Condition . . .256
Brakes
Brake and Stability Control
System .................. .167
Brake Fluid Level Check ...... .232
Brake Overheating ......... .172
Parking Brake ............. .164
Parking Brake - Manual
Release ................. .209
Using the Brakes ........... .171
Bulb Replacement ........... .247
Cargo Area
..................97
Child
Restraint Systems
Children too large for Booster
Seats .....................55
Infants and Child Restraints .....54
Lower Anchors and Tether for
Children (LATCH) ............57
Older Children and Child
Restraints .................55
Tips on getting the most out of
your child restraint ...........56
Clock, analog ............... .134
Comfort Pack Front Seats ........76
Driver Memory Seat ..........77 Front Heated Seats ...........76
Console
Central Console Components ....73
Front Dome Console
Components ...............71
Cruise Control .............. .175
Cupholders
Front Seats Cupholders ........94
Rear Seats Cupholders .........94
Dashboard Components .........70
Data, Technical ............. .269
Defroster ...................66
Doors Components .............72
Drive Mode, Controls ......... .159
Driving Conditions
Before the Trip ............ .194
Driving at Night ........... .194
Driving in Fog ............. .195
Driving in the Mountains ..... .195
Driving in the Rain ......... .194
Driving on Snow or Ice ....... .196
Driving through Flooded
Sections ................. .196
Safe Driving .............. .194
DRL (Daytime Running Light) ......84
Easy Entry/Exit function .........80
EDR (Event Data Recorder) .......53
Emergency
Emergency Fuel Filler Door
Release ................. .193
Hazard Warning Flasher .......89Index
9
276
