MASERATI GRANTURISMO 2019 Owner's Guide

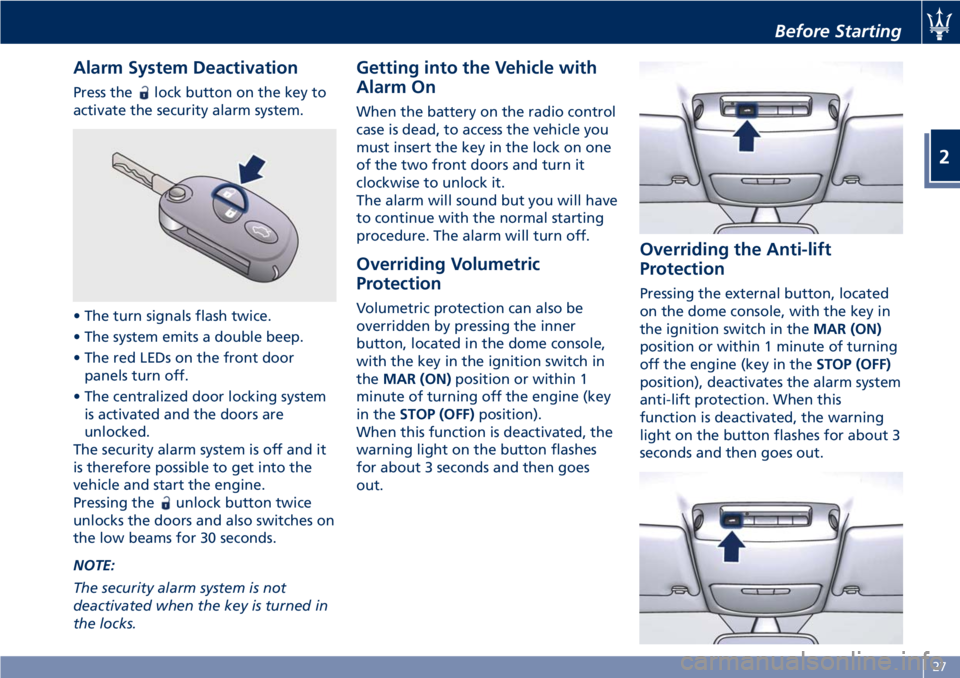

Alarm System Deactivation Press the lock button on the key to
activate the security alarm system.
• The turn signals flash twice.
• The system emits a double beep.
• The red LEDs on the front door
panels turn off.
• The centralized door locking system
is activated and the doors are
unlocked.
The security alarm system is off and it
is therefore possible to get into the
vehicle and start the engine.
Pressing the
unlock button twice
unlocks the doors and also switches on
the low beams for 30 seconds.
NOTE:
The security alarm system is not
deactivated when the key is turned in
the locks. Getting into the Vehicle with
Alarm On When the battery on the radio control
case is dead, to access the vehicle you
must insert the key in the lock on one
of the two front doors and turn it
clockwise to unlock it.
The alarm will sound but you will have
to continue with the normal starting
procedure. The alarm will turn off.
Overriding Volumetric
Protection Volumetric protection can also be
overridden by pressing the inner
button, located in the dome console,
with the key in the ignition switch in
the MAR (ON) position or within 1
minute of turning off the engine (key
in the STOP (OFF) position).
When this function is deactivated, the
warning light on the button flashes
for about 3 seconds and then goes
out. Overriding the Anti-lift
Protection Pressing the external button, located
on the dome console, with the key in
the ignition switch in the MAR (ON)
position or within 1 minute of turning
off the engine (key in the STOP (OFF)
position), deactivates the alarm system
anti-lift protection. When this
function is deactivated, the warning
light on the button flashes for about 3
seconds and then goes out.Before Starting
2
27

CAUTION!
Volumetric and anti-lift protection
override is memorized until the alarm
is next activated; therefore, if this
protection is overridden but the alarm
is not activated immediately, the
override will remain memorized until
the next time it is activated, regardless
of turning the vehicle on/off.
Security Alarm Memory If the CODE warning light appears
on the display when the vehicle is
started, accompanied by the message
“Break-in attempt detected” this
means that an intrusion has been
attempted during your absence.
The security alarm system memory is
reset when you turn the ignition key. Requiring and Setting
Additional Key In order to purchase additional keys
with radio control you need to bring
with you at the Authorized Maserati
Dealer :
• all keys with radio control in your
possession;
• the Maserati CODE card;
• a personal ID;
• the identification and registration
documents proving ownership of the
vehicle.
Setting new keys with radio control or
re-setting the original ones may only
be performed at the Authorized
Maserati Dealer .
NOTE:
The codes of any key with radio
control that are not available when
the new setting procedure is carried
out will be deleted from the memory
to prevent any lost or stolen key with
radio control being used to disarm the
electronic alarm system. Radio Control Battery
Replacement If you press one of the three buttons
and this does not activate the
corresponding function, before
replacing the batteries, check for
correct operation of the security alarm
system functions using the other
remote control.
The recommended replaced battery
type is a: CR2032.
To replace the battery proceed as
follows:
• Extract the key by pushing the
indicated button.
WARNING!
California Proposition 65
Operating, servicing and maintaining
a passenger vehicle or off-road vehicleBefore Starting
2
28

can expose you to chemicals including
such as, engine exhaust, carbon
monoxide, phthalates and lead, that
which are know to the State of
California to cause cancer and birth
defects or other reproductive harm. To
minimize exposure, avoid breathing
exhaust, do not idle the engine except
as necessary, service your vehicle in a
well-ventilated area and wear gloves
or wash your hands frequently when
servicing your vehicle. For more
information go to:
www.P65Warnings.ca.gov/passenger-
vehicle

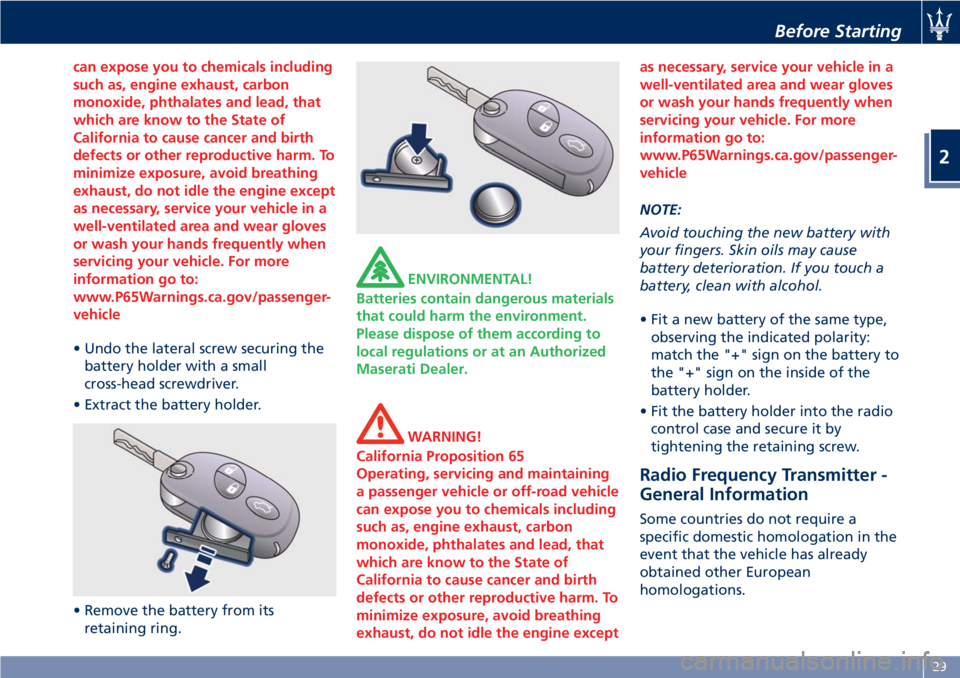

• Undo the lateral screw securing the
battery
holder with a small
cross-head screwdriver.
• Extract the battery holder.
• Remove the battery from its
retaining ring. ENVIRONMENTAL!
Batteries contain dangerous materials
that could harm the environment.
Please dispose of them according to
local regulations or at an Authorized
Maserati Dealer.
WARNING!
California Proposition 65
Operating, servicing and maintaining
a passenger vehicle or off-road vehicle
can expose you to chemicals including
such as, engine exhaust, carbon
monoxide, phthalates and lead, that
which are know to the State of
California to cause cancer and birth
defects or other reproductive harm. To
minimize exposure, avoid breathing
exhaust, do not idle the engine except as necessary, service your vehicle in a
well-ventilated area and wear gloves
or wash your hands frequently when
servicing your vehicle. For more
information go to:
www.P65Warnings.ca.gov/passenger-
vehicle
NOTE:
A
void touching the new battery with
your fingers. Skin oils may cause
battery deterioration. If you touch a
battery, clean with alcohol.
• Fit a new battery of the same type,
observing the indicated polarity:
match the "+" sign on the battery to
the "+" sign on the inside of the
battery holder.
• Fit the battery holder into the radio
control case and secure it by
tightening the retaining screw.
Radio Frequency Transmitter -
General Information Some countries do not require a
specific domestic homologation in the
event that the vehicle has already
obtained other European
homologations.Before Starting
2
29

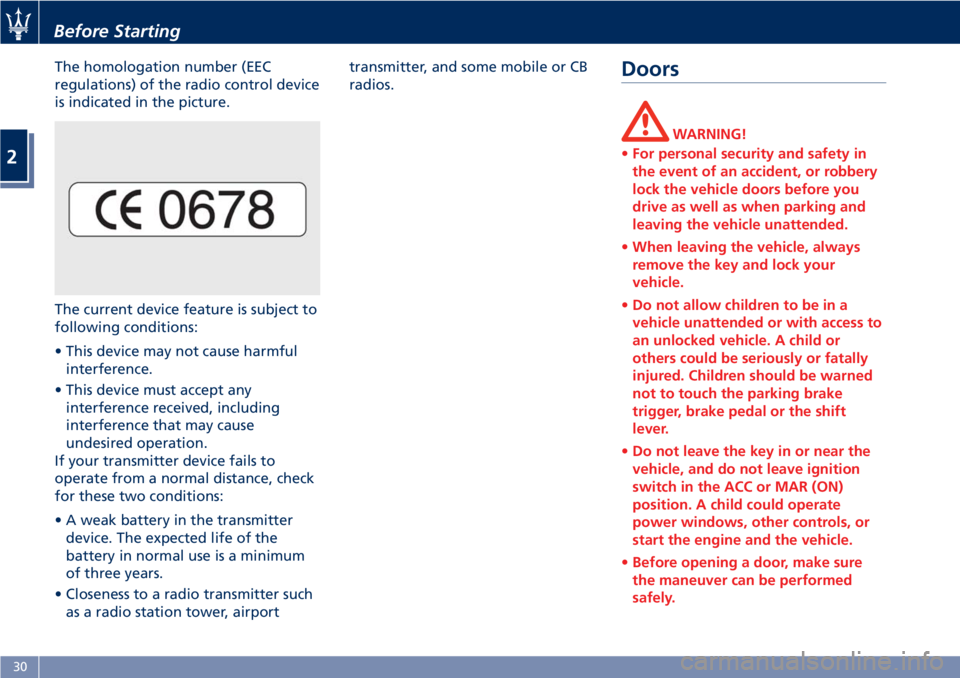

The homologation number (EEC
regulations) of the radio control device
is indicated in the picture.
The current device feature is subject to
following conditions:
• This device may not cause harmful
interference.
• This device must accept any
interference received, including
interference that may cause
undesired operation.
If your transmitter device fails to
operate from a normal distance, check
for these two conditions:
• A weak battery in the transmitter
device. The expected life of the
battery in normal use is a minimum
of three years.
• Closeness to a radio transmitter such
as a radio station tower, airport transmitter, and some mobile or CB
radios.
Doors WARNING!
• For personal security and safety in
the event of an accident, or robbery
lock the vehicle doors before you
drive as well as when parking and
leaving the vehicle unattended.
• When leaving the vehicle, always
remove the key and lock your
vehicle.
• Do not allow children to be in a
vehicle unattended or with access to
an unlocked vehicle. A child or
others could be seriously or fatally
injured. Children should be warned
not to touch the parking brake
trigger, brake pedal or the shift
lever.
• Do not leave the key in or near the
vehicle, and do not leave ignition
switch in the ACC or MAR (ON)
position. A child could operate
power windows, other controls, or
start the engine and the vehicle.
• Before opening a door, make sure
the maneuver can be performed
safely.Before Starting
2
30

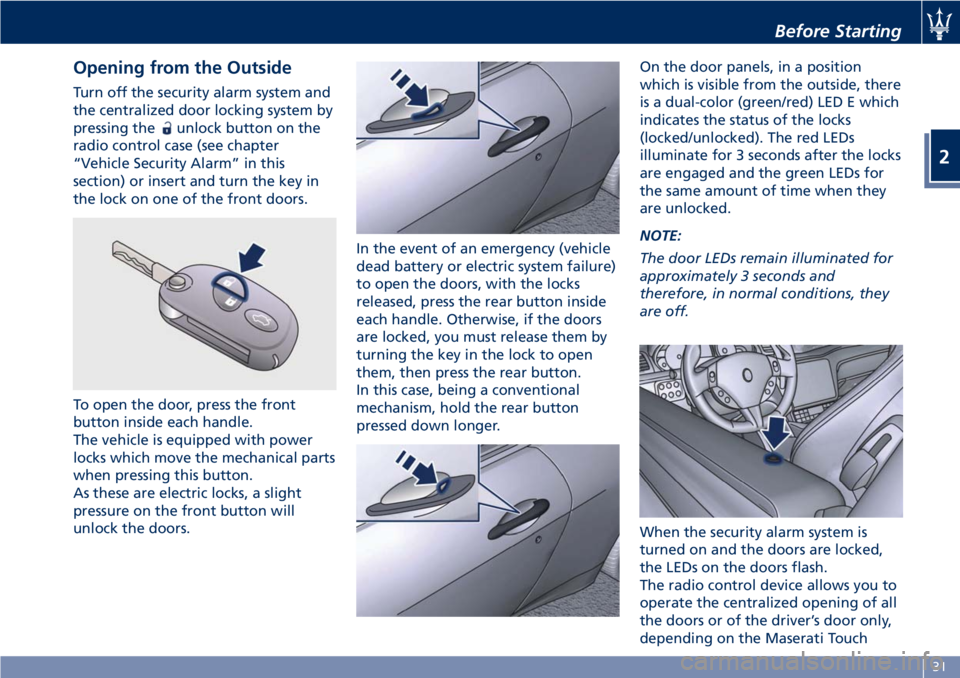

Opening from the Outside Turn off the security alarm system and
the centralized door locking system by
pressing the
unlock button on the
radio control case (see chapter
“Vehicle Security Alarm” in this
section) or insert and turn the key in
the lock on one of the front doors.
To open the door, press the front
button inside each handle.
The vehicle is equipped with power
locks which move the mechanical parts
when pressing this button.
As these are electric locks, a slight
pressure on the front button will
unlock the doors. In the event of an emergency (vehicle
dead battery or electric system failure)
to open the doors, with the locks
released, press the rear button inside
each handle. Otherwise, if the doors
are locked, you must release them by
turning the key in the lock to open
them, then press the rear button.
In this case, being a conventional
mechanism, hold the rear button
pressed down longer. On the door panels, in a position
which is visible from the outside, there
is a dual-color (green/red) LED E which
indicates the status of the locks
(locked/unlocked). The red LEDs
illuminate for 3 seconds after the locks
are engaged and the green LEDs for
the same amount of time when they
are unlocked.
NOTE:
The door LEDs remain illuminated for
approximately 3 seconds and
therefore, in normal conditions, they
are off.
When the security alarm system is
turned on and the doors are locked,
the LEDs on the doors flash.
The radio control device allows you to
operate the centralized opening of all
the doors or of the driver’s door only,
depending on the Maserati TouchBefore Starting
2
31

Control Plus (MTC+) settings (see
"MTC+ Settings" in section
"Dashboard Instrument and
Controls").
If one or more doors are not properly
closed when locking the doors from
the outside, they will not be locked,
while if the trunk compartment is not
properly closed, the doors will in any
case be locked.
In both cases, the malfunction will be
indicated by the turn signals flashing
for a few seconds.
NOTE:
• The interior door locking/unlocking,
trunk compartment lid opening and
fuel tank door opening buttons are
disabled when the doors are locked
from the outside.
• In the event that the inertia switch
activates, the doors are electrically
unlocked and the vehicle can be
accessed by pressing the rear button
inside each handle.
Opening from the Inside To open the door, even if the lock is
engaged, pull the internal handle. There are two buttons in front of the
transmission lever which operate the
door locking and unlocking functions:
: door locking;
: door unlocking. NOTE:
By pulling the internal handle on the
driver’s door, all the locks can be
released at the same time or just the
driver’s door, depending on the MTC+
settings (see "MTC+ Settings" in
section "Dashboard Instrument and
Controls").
Door Open Warning Lights If the doors and the engine/luggage
compartment lids are not closed
properly, this is signaled by the
illumination of relative symbols on the
instrument panel display, accompanied
by the messages “Door open” or
“Doors open” shown in the picture.
Door Lock ECU Initialization
Every time the battery is connected or
a fuse replaced, you must perform the
system initialization procedure toBefore Starting
2
32

ensure proper system operation. To
perform this procedure, lock and then
unlock the doors using the buttons
and on the radio control device.
For more details, see "Maintenance-
Free Battery" in section "Maintenance
and Care".
Door Open Indicator Light Each door is provided with a reflector
fitted on the rear side of the door
panel that makes it visible when
illuminated by the headlights of a
vehicle.
Signal Upon exceeding a speed of 3 mph
(5 km/h), if one or more doors/lid are
open or not properly closed, a
warning signal will be activated.
Door Courtesy Light Each door panel is fitted with a
courtesy light, on the lower part of
the door framework, to illuminate the
area where passengers enter/exit the
vehicle. WARNING!
Gearshifting is always active and may
be performed even when one or more
doors, the engine compartment lid or
the trunk lid are open. Therefore, in
these conditions, take great care to
avoid moving the transmission shift
lever and so accidentally engage
gears. Power Windows The power windows can only be
activated when the key in the ignition
switch is in the MAR (ON) position.
The controls for all power windows
are located in the armrest of the door
on the driver’s side. The external
switch commands the power window
driver’s side; the inner switch
commands the power window
passenger’s side.
The door on the passenger side only
has control for the window on the
passenger side.Before Starting
2
33

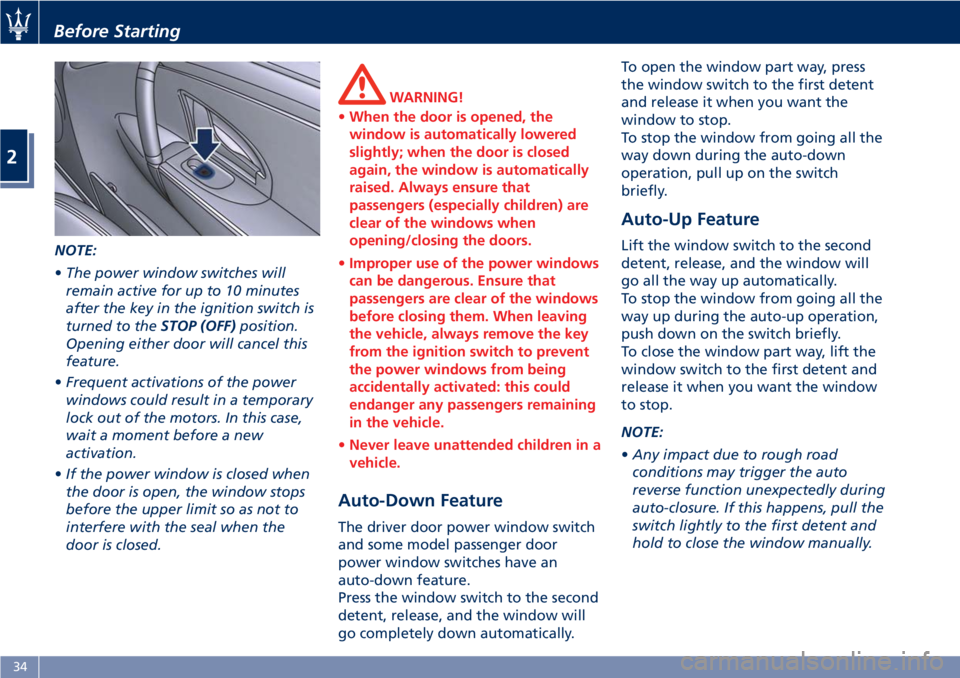

NOTE:
• The power window switches will
remain active for up to 10 minutes
after the key in the ignition switch is
turned to the STOP (OFF) position.
Opening either door will cancel this
feature.
• Frequent activations of the power
windows could result in a temporary
lock out of the motors. In this case,
wait a moment before a new
activation.
• If the power window is closed when
the door is open, the window stops
before the upper limit so as not to
interfere with the seal when the
door is closed. WARNING!
• When the door is opened, the
window is automatically lowered
slightly; when the door is closed
again, the window is automatically
raised. Always ensure that
passengers (especially children) are
clear of the windows when
opening/closing the doors.
• Improper use of the power windows
can be dangerous. Ensure that
passengers are clear of the windows
before closing them. When leaving
the vehicle, always remove the key
from the ignition switch to prevent
the power windows from being
accidentally activated: this could
endanger any passengers remaining
in the vehicle.
• Never leave unattended children in a
vehicle.
Auto-Down Feature The driver door power window switch
and some model passenger door
power window switches have an
auto-down feature.
Press the window switch to the second
detent, release, and the window will
go completely down automatically. To open the window part way, press
the window switch to the first detent
and release it when you want the
window to stop.
To stop the window from going all the
way down during the auto-down
operation, pull up on the switch
briefly.
Auto-Up Feature Lift the window switch to the second
detent, release, and the window will
go all the way up automatically.
To stop the window from going all the
way up during the auto-up operation,
push down on the switch briefly.
To close the window part way, lift the
window switch to the first detent and
release it when you want the window
to stop.
NOTE:
• Any impact due to rough road
conditions may trigger the auto
reverse function unexpectedly during
auto-closure. If this happens, pull the
switch lightly to the first detent and
hold to close the window manually.Before Starting
2
34

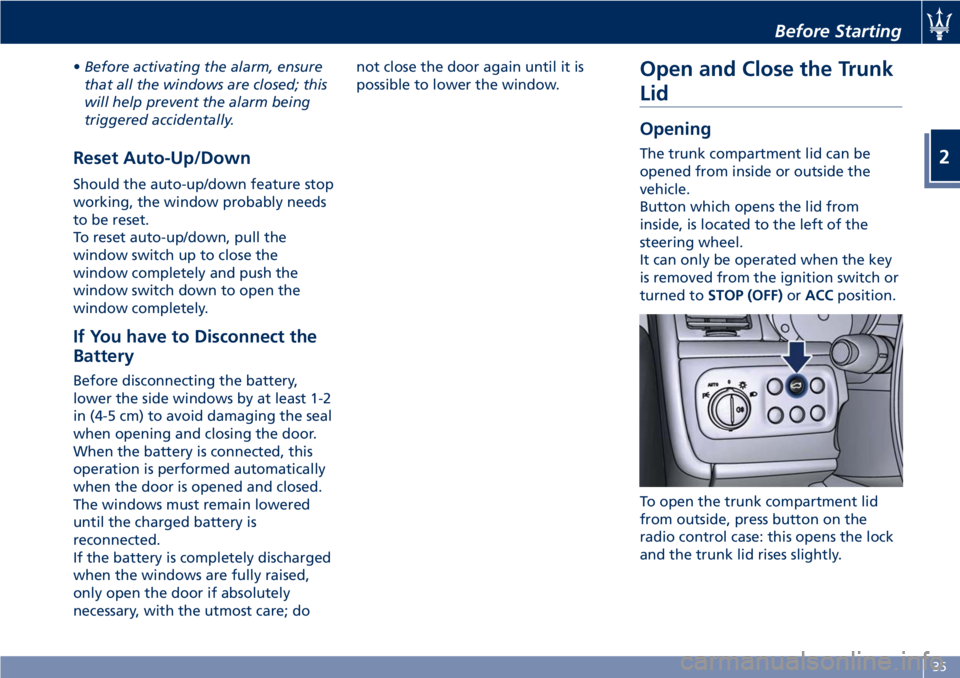

• Before activating the alarm, ensure
that all the windows are closed; this
will help prevent the alarm being
triggered accidentally.
Reset Auto-Up/Down Should the auto-up/down feature stop
working, the window probably needs
to be reset.
To reset auto-up/down, pull the
window switch up to close the
window completely and push the
window switch down to open the
window completely.
If You have to Disconnect the
Battery Before disconnecting the battery,
lower the side windows by at least 1-2
in (4-5 cm) to avoid damaging the seal
when opening and closing the door.
When the battery is connected, this
operation is performed automatically
when the door is opened and closed.
The windows must remain lowered
until the charged battery is
reconnected.
If the battery is completely discharged
when the windows are fully raised,
only open the door if absolutely
necessary, with the utmost care; do not close the door again until it is
possible to lower the window.
Open and Close the Trunk
Lid Opening The trunk compartment lid can be
opened from inside or outside the
vehicle.
Button which opens the lid from
inside, is located to the left of the
steering wheel.
It can only be operated when the key
is removed from the ignition switch or
turned to STOP (OFF) or ACC position.
To open the trunk compartment lid
from outside, press button on the
radio control case: this opens the lock
and the trunk lid rises slightly.Before Starting
2
35

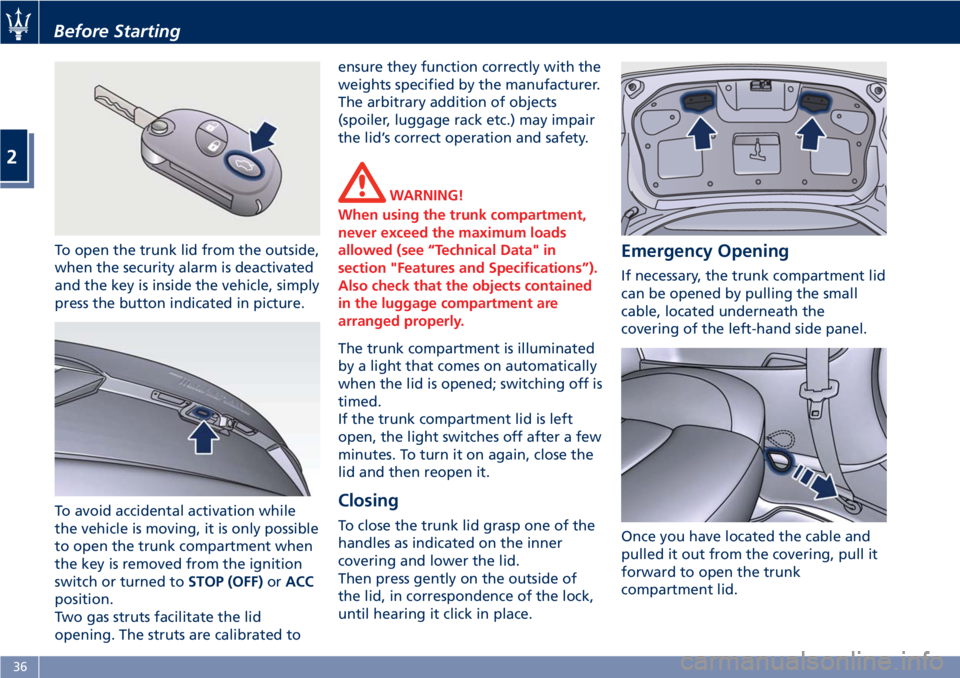

To open the trunk lid from the outside,
when the security alarm is deactivated
and the key is inside the vehicle, simply
press the button indicated in picture.
To avoid accidental activation while
the vehicle is moving, it is only possible
to open the trunk compartment when
the key is removed from the ignition
switch or turned to STOP (OFF) or ACC
position.
Two gas struts facilitate the lid
opening. The struts are calibrated to ensure they function correctly with the
weights specified by the manufacturer.
The arbitrary addition of objects
(spoiler, luggage rack etc.) may impair
the lid’s correct operation and safety.
WARNING!
When using the trunk compartment,
never exceed the maximum loads
allowed (see “Technical Data" in
section "Features and Specifications”).
Also check that the objects contained
in the luggage compartment are
arranged properly.
The trunk compartment is illuminated
by
a light that comes on automatically
when the lid is opened; switching off is
timed.
If the trunk compartment lid is left
open, the light switches off after a few
minutes. To turn it on again, close the
lid and then reopen it.
Closing To close the trunk lid grasp one of the
handles as indicated on the inner
covering and lower the lid.
Then press gently on the outside of
the lid, in correspondence of the lock,
until hearing it click in place. Emergency Opening If necessary, the trunk compartment lid
can be opened by pulling the small
cable, located underneath the
covering of the left-hand side panel.
Once you have located the cable and
pulled it out from the covering, pull it
forward to open the trunk
compartment lid.Before Starting
2
36
