length MAZDA 232 1990 Workshop Manual Suplement

GI IDENTIFICATION NUMBER LOCATIONSIUNITSIABBREVlATlONS
IDENTIFICATCON NUMBER LOCATIONS
I
VEHKZLE IDENTIFICATION NUMBER @‘IN) AUTOMATIC TRANSAXLE MODEL AND NUM8ER
ENGINE MODEL AND NUMBER
UNlTS
N-m (m-kg or cm-kg,
ft-lb or in-lb) . . . . . .._.......... Torque
rpm ._._..._.. . . . . . . .._.._.._. . .._. Revolutions per minute
A . . .._._._...__.._.._.._. .__...._. . . Ampere(s)
v .._.... .* .*... ..__.._...*. ..*. .*. ,. Volt(s)
0 I.._._............**..-.-*..-....... Ohm(s) (resistance)
Wa (kg/cm2, psi) . . . . . . . . . . Pressure
(usually positive)
mmlig (inHg) . . . . . . .._.._... Pressure
(usually negative)
w . . . ..*.....e*.-..-..-.....*.e..... Watt
liters (US qt, imp qt) .._. Volume
mm (in) ,_._.._._..._.,_. .~. . ..__ Length
89UOGX-006
ABBREVIATIONS
AB.DC ........................... After bottom dead
center
A/C _ .............................. Air conditioner
ACC ............................. Accessories
ATX ............................. Automatic transaxte
ATDC ......................... Afier top dead center
ATF .............................. Automatic transmission
ftuid
BAC ........................... Bypass air control
BBDC.. ......................... Before bottom dead
center
BTDC ........................... Before top dead center
CPU ............................. Central processing unit t EC-AT ........................... Ekctronically-controlled
automatic transmission
ECU ............................. Engine control unit
EGI ............................... Electronic gasotine
injection
EL ................................ Electricaf toad
EX ................................ Exhaust
IC ................................. Integrated circuit
IGN ............................... Ignition
IN ................................. Intake
tNT ............................... Intermittent
ISC ............................. Idle speed control
LH ................................ Left hand
M .................................. Motor
MIL ............................... Malfunction indicator
lamp
tb4TX. ............................. Manual transaxle
OD. ............................... Overdrive
OFF .............................. Switch off
ON ................................ Switch on PCV .............................. Positive crankcase
ventilation
PRC.. ............................ Pressure regulator
control
P/S ................................ Power steering
P/W .............................. Power wtndow
RH.. .............................. Right hand
SST ............................... Special service tool
ST .................................
Start
SW . . .............................. Switch
TDC. ............................. Top dead center
4VVD ............................. 4-wheel drive

OUTLINE G
L
i i-
OUTLINE
OUTLINE OF CONSTRUCTION
The engine electrical system of the new 323 4WD is as same as that of the new 323 ZWD.
93GOGX-703
SPECIFICATIONS
Item
Battery t
Voltaae EnginelTransaxle
v
Type and capacity
120-hour rate) BP TURBO
MTX BP SOHC
MTX ATX 12
55D23L (60AH)
I
Dark current” mA 1 Max. 20.0
Alternator
Output V-A 12-65
Regulator type Transistorized (built-in iC regulator)
1 I Regulated voltage v
74.1---14.7
Brush length Standard 21.5 (0.846)
mm (in)
Minrmum 8.0 (0.315)
Drive belt deflection
New
98 N (10 kg, 22 lb) 8-9 (0.31-0.35)
mm (in) Used 9-l 0 (0.35-0.39)
Type Direct ] Coaxicat reductron Starter Output V-W
12-U-85 12-0.95 32-l .4
8rush length Standard 17 (0.67) 17.5 (0.69)
mm [in) Minimum 11.5 (0.4531 10.0 (0.39) Distributor
Ignition timing
BTDC
FEN termrnal of diagnosis connector grounded) Electronic spark advance (photo
diode)
10 * I0 5 f lo
Ignition coil Resistance
(at 20°C [68OFj)
I
Primary
coil windinq
I
Spark plug Type I
Secondary 1
f coil windina 1
NGK
Nippon
Denso 10-76 kS-l
8KR5Ell +2 BKR5E”3
BKRGEI 1 l * BKRGE *3
KIGPR-Ull *2 KfGPR-I-Y3
K20PR-Ul l ** K20PR-U
l 3 0.81 ---o-999
pw am
Firrng order
I mm (in) 1.0-I .l (0.039-0.043)“2 0.7-0.8 (0.028-0.03i)*3
l-3-4-2
93GOGX-704
*I Dark current is the constant flow of current while the ignition switch is OFF. (i.e., engine control unit, EC-AT control unit, audro, etc.)
+’ With catalytic converter.
*3 Without catalytic converter.
G-3

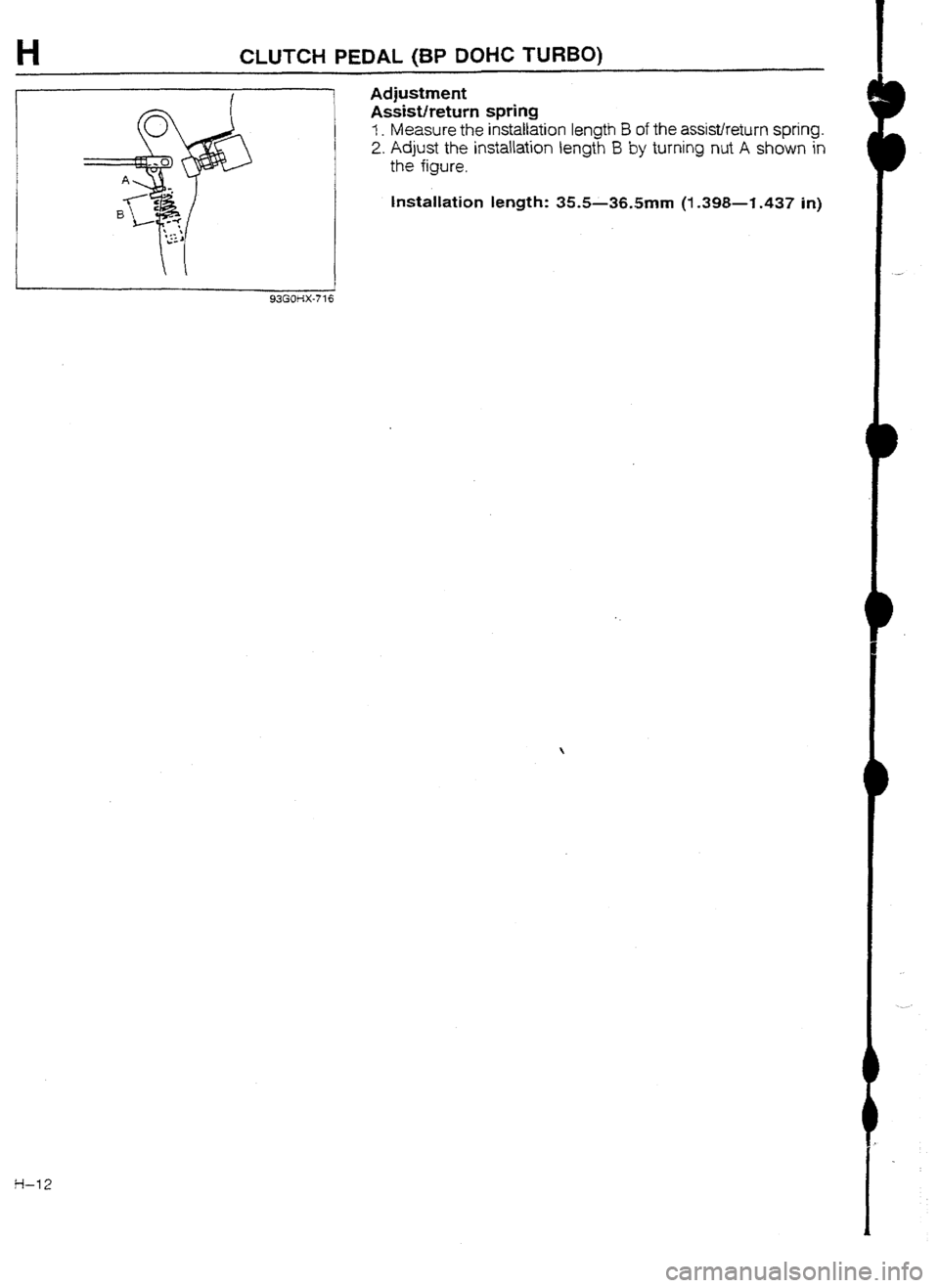

H CLUTCH PEDAL (BP DOt-iC TURBO)
93GOHX-716
w-12
1 Adjustment
Assist/return spri rtg
I. Measure the installation length B of the assistlreturn spring.
2. Adjust the installation length B by turning nut A shown in
the figure.
Installation length: 35.5-36.5mm (1.398-I .437 in)
