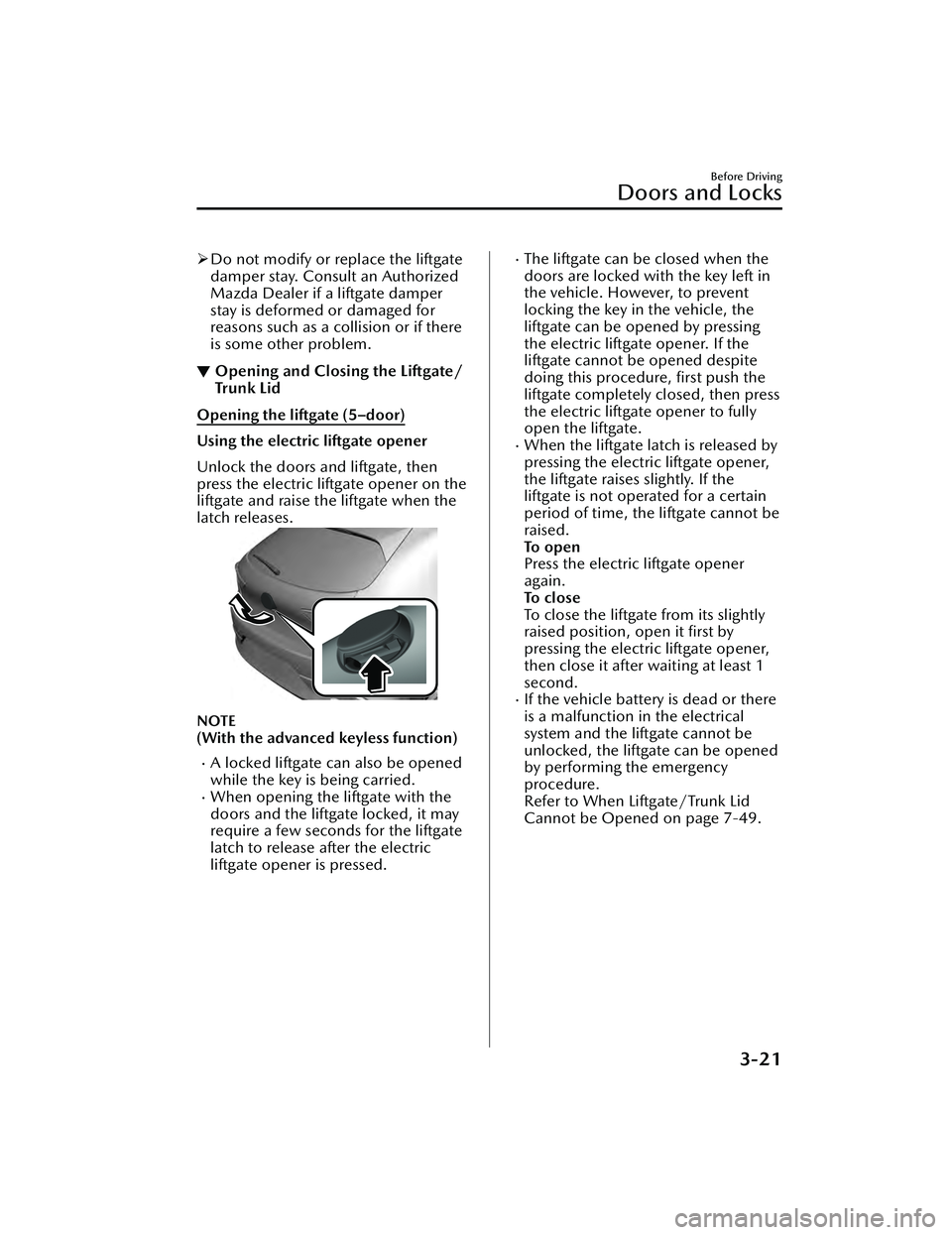

Do not modify or replace the liftgate
damper stay. Consult an Authorized
Mazda Dealer if a liftgate damper
stay is deformed or damaged for
reasons such as a collision or if there
is some other problem.
▼ Opening and Closing the Liftgate/
Trunk Lid
Opening the liftgate (5–door)
Using the electric liftgate opener
Unlock the doors and liftgate, then
press the electric liftgate opener on the
liftgate and raise the liftgate when the
latch releases.
NOTE
(With the advanced keyless function)
A locked liftgate can also be opened
while the key is being carried.
When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric
liftgate opener is pressed.
The liftgate can be closed when the
doors are locked with the key left in
the vehicle. However, to prevent
locking the key in the vehicle, the
liftgate can be opened by pressing
the electric liftgate opener. If the
liftgate cannot be opened despite
doing this procedure, first push the
liftgate completely closed, then press
the electric liftgate opener to fully
open the liftgate.
When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the
liftgate is not operated for a certain
period of time, the liftgate cannot be
raised.
To o p e n
Press the electric liftgate opener
again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by
pressing the electric liftgate opener,
then close it after waiting at least 1
second.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the liftgate cannot be
unlocked, the liftgate can be opened
by performing the emergency
procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-49.
Before Driving
Doors and Locks
3-21
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

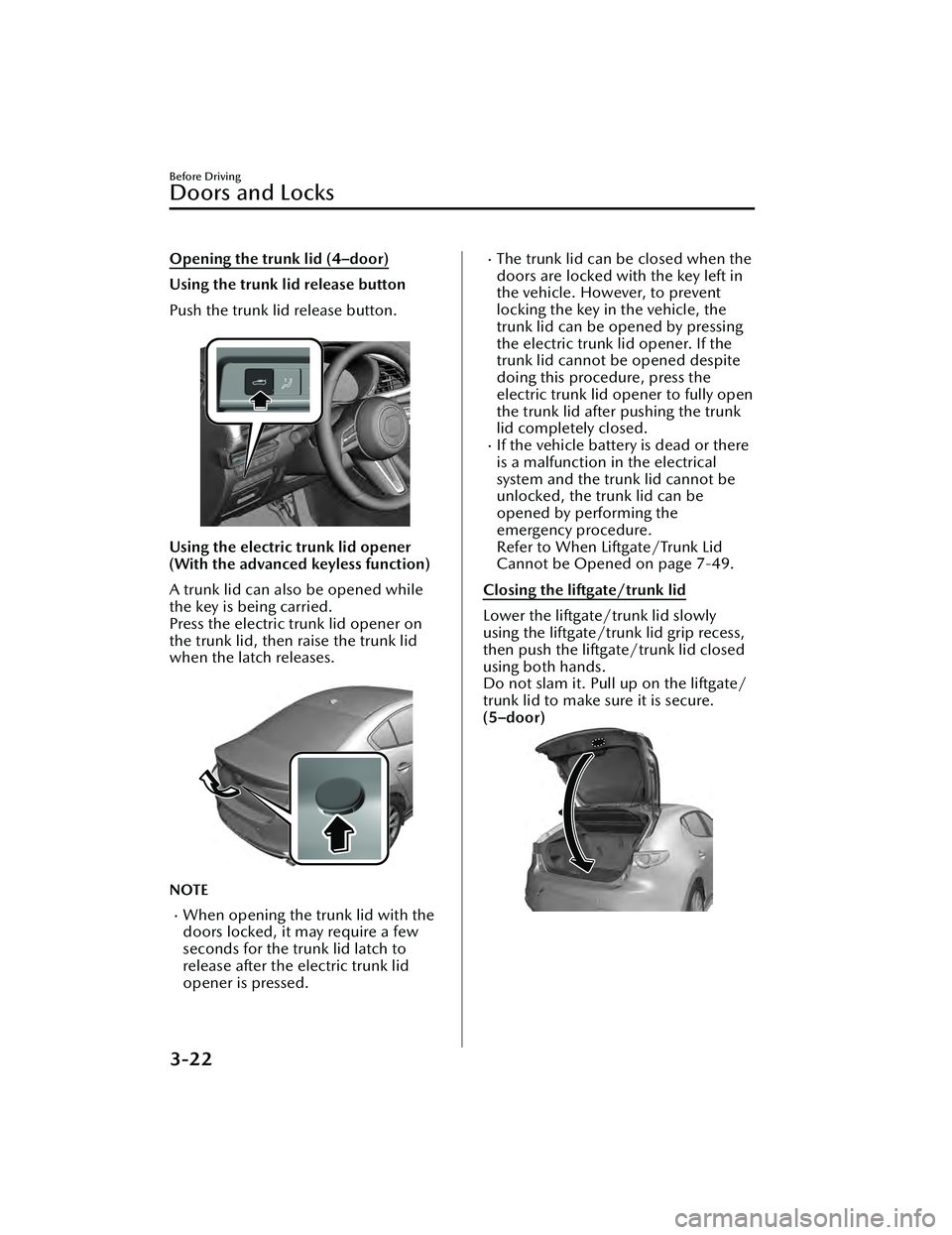

Opening the trunk lid (4–door)
Using the trunk lid release button
Push the trunk lid release button.

Using the electric trunk lid opener
(With the advanced keyless function)
A trunk lid can also be opened while
the key is being carried.
Press the electric trunk lid opener on
the trunk lid, then raise the trunk lid
when the latch releases.

NOTE
When opening the trunk lid with the
doors locked, it may require a few
seconds for the trunk lid latch to
release after the electric trunk lid
opener is pressed.
The trunk lid can be closed when the
doors are locked with the key left in
the vehicle. However, to prevent
locking the key in the vehicle, the
trunk lid can be opened by pressing
the electric trunk lid opener. If the
trunk lid cannot be opened despite
doing this procedure, press the
electric trunk lid opener to fully open
the trunk lid after pushing the trunk
lid completely closed.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the trunk lid cannot be
unlocked, the trunk lid can be
opened by performing the
emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-49.
Closing the liftgate/trunk lid
Lower the liftgate/trunk lid slowly
using the liftgate/trunk lid grip recess,
then push the liftgate/trunk lid closed
using both hands.
Do not slam it. Pull up on the liftgate/
trunk lid to make sure it is secure.
(5–door)
Before Driving
Doors and Locks
3-22
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

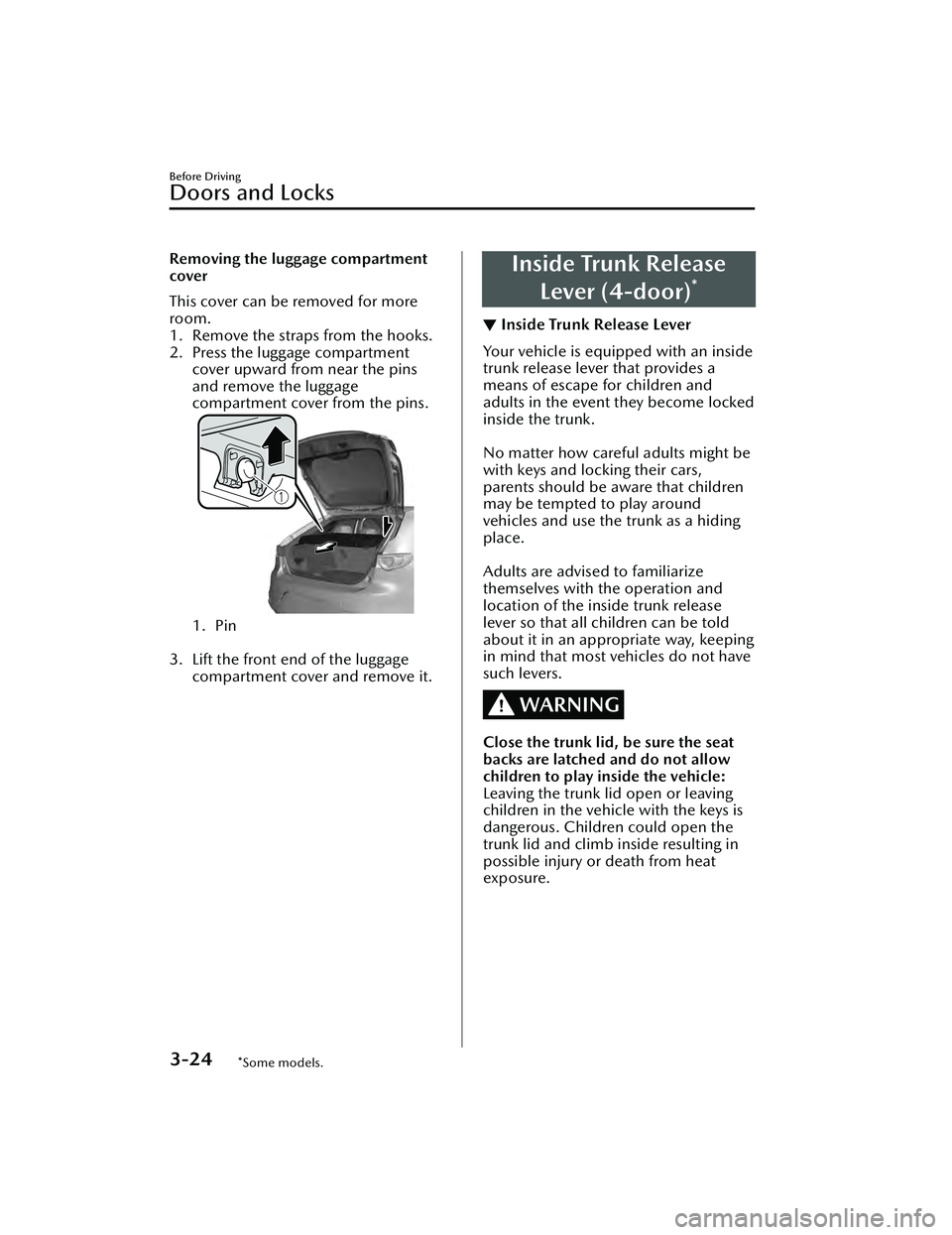

Removing the luggage compartment
cover
This cover can be removed for more
room.
1. Remove the straps from the hooks.
2. Press the luggage compartmentcover upward from near the pins
and remove the luggage
compartment cover from the pins.
1. Pin

3. Lift the front end of the luggage compartment cover and remove it.
Inside Trunk Release
Lever (4-door)
*
▼Inside Trunk Release Lever
Your vehicle is equipped with an inside
trunk release lever that provides a
means of escape for children and
adults in the event they become locked
inside the trunk.

No matter how careful adults might be
with keys and locking their cars,
parents should be aware that children
may be tempted to play around
vehicles and use the trunk as a hiding
place.

Adults are advised to familiarize
themselves with the operation and
location of the inside trunk release
lever so that all children can be told
about it in an appropriate way, keeping
in mind that most vehicles do not have
such levers.
WARNING
Close the trunk lid, be sure the seat
backs are latched and do not allow
children to play inside the vehicle:
Leaving the trunk lid open or leaving
children in the vehicle with the keys is
dangerous. Children could open the
trunk lid and climb inside resulting in
possible injury or death from heat
exposure.
Before Driving
Doors and Locks
3-24*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

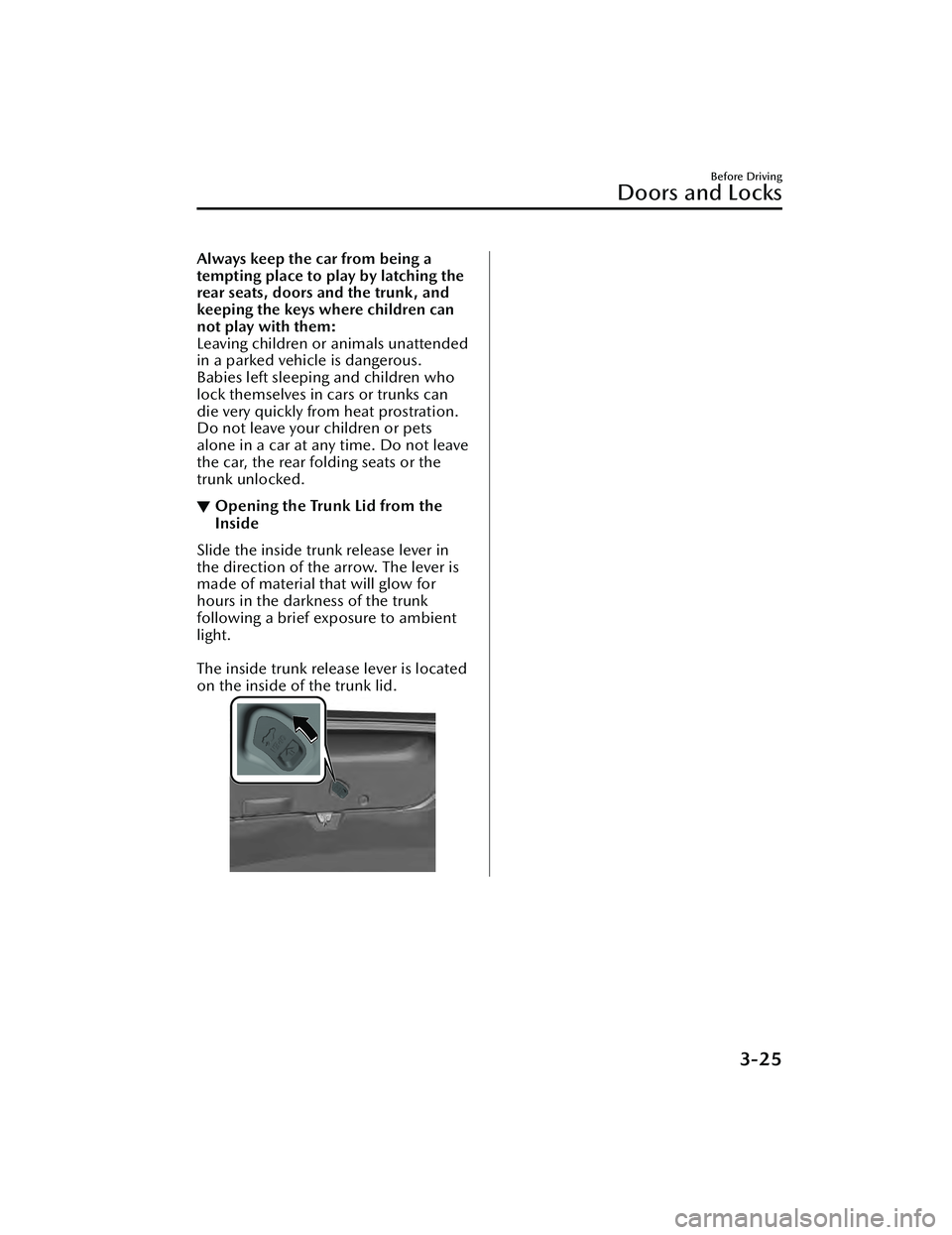

Always keep the car from being a
tempting place to play by latching the
rear seats, doors and the trunk, and
keeping the keys where children can
not play with them:
Leaving children or animals unattended
in a parked vehicle is dangerous.
Babies left sleeping and children who
lock themselves in cars or trunks can
die very quickly from heat prostration.
Do not leave your children or pets
alone in a car at any time. Do not leave
the car, the rear folding seats or the
trunk unlocked.
▼Opening the Trunk Lid from the
Inside
Slide the inside trunk release lever in
the direction of the arrow. The lever is
made of material that will glow for
hours in the darkness of the trunk
following a brief exposure to ambient
light.

The inside trunk release lever is located
on the inside of the trunk lid.
Before Driving
Doors and Locks
3-25
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

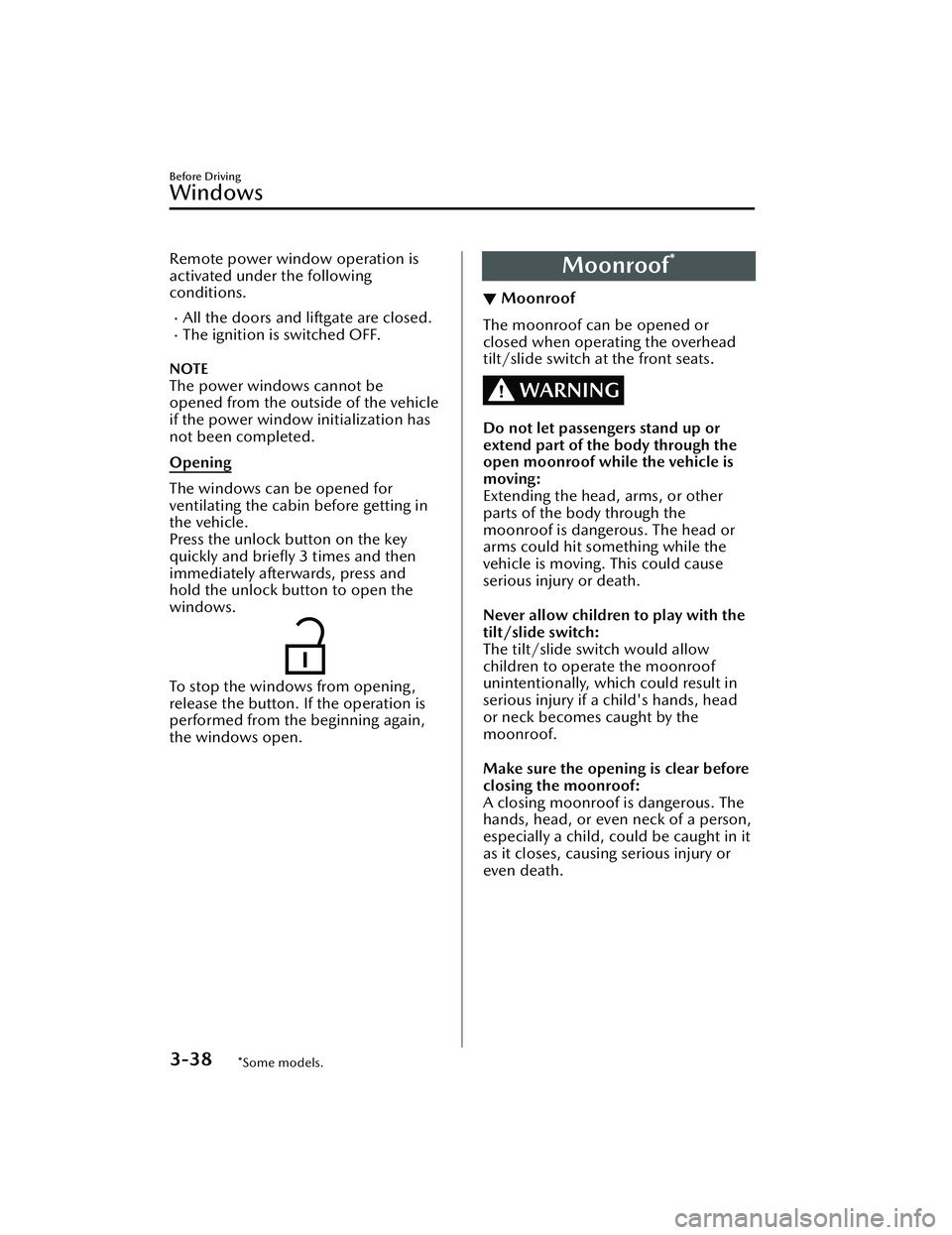

Remote power window operation is
activated under the following
conditions.
All the doors and liftgate are closed.The ignition is switched OFF.
NOTE
The power windows cannot be
opened from the outside of the vehicle
if the power window initialization has
not been completed.
Opening
The windows can be opened for
ventilating the cabin before getting in
the vehicle.
Press the unlock button on the key
quickly and briefly 3 times and then
immediately afterwards, press and
hold the unlock button to open the
windows.
To stop the windows from opening,
release the button. If the operation is
performed from the beginning again,
the windows open.
Moonroof*
▼Moonroof
The moonroof can be opened or
closed when operating the overhead
tilt/slide switch at the front seats.
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Never allow children to play with the
tilt/slide switch:
The tilt/slide switch would allow
children to operate the moonroof
unintentionally, which could result in
serious injury if a child's hands, head
or neck becomes caught by the
moonroof.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in it
as it closes, causing serious injury or
even death.
Before Driving
Windows
3-38*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Modification and
Add-On Equipment
▼ Modification
and Add-On
Equipment
Mazda cannot guarantee the
immobilizer and the theft-deterrent
system's operation if the system has
been modified or if any add-on
equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
▼ Immobilizer System
The immobilizer system allows the
engine to start only with a key the
system recognizes.

If someone attempts to start the
engine with an unrecognized key, the
engine will not start, thereby helping to
prevent vehicle theft.
If you have a problem with the
immobilizer system or the key, consult
an Authorized Mazda Dealer.
CAUTION

Radio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
 To avoid damage to the key, do not:
 Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as the
dashboard, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing ,
the system may have a malfunction.
Consult an Authorized Mazda
Dealer.
Before Driving
Security System
3-42
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

NOTE
The keys carry a unique electronic
code. For this reason, and to assure
your safety, obtaining a replacement
key requires security validation, this
will add some delays in supplying a
replacement key. They are only
available through an Authorized
Mazda Dealer.
Always keep a spare key in case one
is lost. If a key is lost, consult an
Authorized Mazda Dealer as soon as
possible.
If you lose a key, an Authorized
Mazda Dealer will reset the
electronic codes of your remaining
keys and immobilizer system. Bring
all the remaining keys to an
Authorized Mazda Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.
▼Operation
NOTE
The engine may not start and security
indicator light may illuminate or flash
if the key is placed in an area where
it is difficult for the system to detect
the signal, such as on the dashboard
or in the glove compartment. Move
the key to a location within the signal
range, switch the ignition
off, and
then restart the engine.
Signals from a TV or radio station, or
from a transceiver or mobile
telephone could interfere with your
immobilizer system. If you are using
the proper key and the engine fails to
start, check the security indicator
light.
Arming
The system is armed when the ignition
is switched from ON to off.
The security indicator light in the
instrument cluster flashes every 2
seconds until the system is disarmed.

Disarming
The system is disarmed when the
ignition is switched ON with the
correct programmed key. The security
indicator light illu minates for about 3
seconds and then turns off.
If the engine does not start with the
correct key, and the security indicator
light remains illuminated or flashing,
try the following:
Make sure the key is within the
operational range for signal
transmission. Switch the ignition off,
and then restart the engine. If the
engine does not start after 3 or more
tries, contact an Authorized Mazda
Dealer.
Before Driving
Security System
3-43
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Theft-Deterrent System*
▼Theft-Deterrent System
If the theft-deterrent system detects an
inappropriate entry into the vehicle,
which could result in the vehicle or its
contents being stolen, the alarm alerts
the surrounding area of an abnormality
by sounding the horn and flashing the
hazard warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
▼Operation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about
30 seconds when the system is
triggered by any one of the following:
Unlocking a door with the auxiliary
key, door lock switch, or an inside
door-lock knob.
Forcing open a door, the hood or the
liftgate/trunk lid.
Opening the hood by operating the
hood release handle.
Switching the ignition ON without
using the push button start.
If the system is triggered again, the
lights and horn will activate until the
driver's door or the liftgate/trunk lid is
unlocked with the transmitter.
(With the advanced keyless function)
The lights and horn can also be
deactivated by touching the sensing
area of the door release touch sensor.
NOTE
If the battery goes dead while the
theft-deterrent system is armed, the
horn will activate and the hazard
warning lights will flash when the
battery is charged or replaced.
▼ How to Arm the System
1. Close the windows and the
moonroof* securely.
2. Switch the ignition OFF.
3. Make sure the hood, the doors, and the liftgate/trunk lid are
closed.
4. Press the lock button on the transmitter.
The hazard warning lights will flash
once.
The following method will also arm
the theft-deterrent system:
Press the door-lock switch “
”
while any door is open and then
close all of the doors.
(With the advanced keyless
function)
Touch the sensing area of the door
lock touch sensor.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.
5. After 20 seconds, the system is fully armed.
NOTE
The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors,
the liftgate/trunk lid and the hood
closed.
Refer to Transmitter on page 3-5.
Before Driving
Security System
3-44*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

The system will disarm if one of the
following operations takes place
within 20 seconds after pressing the
lock button:
Unlocking any door.Opening any door.Opening the hood.Switching the ignition ON.
To rearm the system, do the arming
procedure again.
When the doors are locked by
pressing the lock button on the
transmitter while the theft-deterrent
system is armed, the hazard warning
lights will flash once to indicate that
the system is armed.
▼ To Tu r n
Off an Armed System
An armed system can be turned off
using any one of the following
methods:
Pressing the unlock button on the
transmitter.
Starting the engine with the push
button start.
(With the advanced keyless
function)
Touching the sensing area of the
door release touch sensor.
The hazard warning lights will flash
twice.
NOTE
When the doors are unlocked by
pressing the unlock button on the
transmitter while the theft-deterrent
system is turned off, the hazard
warning lights will flash twice to
indicate that the system is turned off.
▼ To S t o p t h e A l a r m
A triggered alarm can be turned off
using any one of the following
methods:
Pressing the unlock button or the
trunk button (4–door) on the
transmitter.
Starting the engine with the push
button start.
(With the advanced keyless
function)
Touching the sensing area of the
door release touch sensor.
Pressing the electric liftgate/trunk
lid opener while the key is being
carried.
The hazard warning lights will flash
twice.
Before Driving
Security System
3-45
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Ignition Switch
▼Push Button Start Positions
The system operates only when the key
is within operational range.
Each time the push button start is
pressed, the ignition switches in the
order of
off, ACC, and ON. Pressing
the push button start again from ON
switches the ignition off.
1. Indicator light
2. Push button start
NOTE
The engine starts by pressing the
push button start while depressing
the clutch pedal (manual
transmission) or the brake pedal
(automatic transmission). To switch
the ignition position, press the push
button start without depressing the
pedal.
Do not leave the ignition switched
ON while the engine is not running.
Doing so could result in the battery
going dead. If the ignition is left in
ACC (For automatic transmission,
the selector lever is in the P position,
and the ignition is in ACC), the
ignition switches off automatically
after about 25 minutes.
Off
The power supply to electrical devices
turns off and the indicator light
(amber) also turns off.
WARNING
Before leaving the driver's seat,
always switch the ignition off, set the
parking brake, and make sure the
selector lever is in P (automatic
transmission) position or in 1st gear
or R (manual transmission):
Leaving the driver's seat without
switching the ignition off, setting the
parking brake, and shifting the selector
lever to P (automat ic transmission)
position or to 1st gear or R (manual
transmission) is dangerous.
Unexpected vehicle movement could
occur which could result in an
accident.
In addition, if your intention is to leave
the vehicle for even a short period, it is
important to switch the ignition off, as
leaving it in another position will
disable some of the vehicle's security
systems and run the battery down.
ACC (Accessory)
Some electrical accessories will
operate and the indicator light (amber)
illuminates.
NOTE
The keyless entry system does not
function while the push button start
has been pressed to ACC, and the
doors will not lock/unlock even if they
have been locked manually.
When Driving
Start/Stop Engine
4-4
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
