If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a
warning beep sounds continuously. If
the seat belt remains unfastened, the
beep sound stops once and then
continues for about 90 seconds. The
beep stops after the driver or front
passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep
sound will not stop even if the vehicle
speed falls below 20 km/h (12 mph).
NOTE
Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning
function to operate depending on
the weight of the item.
To allow the front passenger seat
weight sensor to function properly,
do not place and sit on an additional
seat cushion on the front passenger's
seat. The sensor may not function
properly because the additional seat
cushion could cause sensor
interference.
If a small child is seated on the front
passenger's seat, the warning beep
may not operate.
Rear seat
The warning beep only sounds if a seat
belt is unfastened after being fastened.
▼ Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has
not been switched OFF (STOP). Under
this condition, the keyless entry system
will not operate, the vehicle cannot be
locked, and the battery voltage will be
depleted.
▼Key Removed from Vehicle
Warning Beep
Vehicles with advanced keyless
function
If the key is taken out of the vehicle
while the ignition is switched to ACC
or ON, and all the doors are closed, a
sound is activated 6 times outside of
the vehicle and a sound is activated 1
time in the vehicle.
Vehicles without advanced keyless
function
If the key is taken out of the vehicle
while the ignition is switched to ACC
or ON, and all the doors are closed, a
sound is activated 1 time in the
vehicle.
NOTE
Make sure that you leave the vehicle
while carrying the key, or switch the
ignition OFF.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-44
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

▼Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)
A warning beep is activated to notify
the driver that the doors are not locked
when all of the following conditions
are met:
The ignition is switched OFF.All the doors and liftgate are not fully
closed.
The lock is operated 3 times within 5
seconds.
Check the ignition and whether the
doors and liftgate are open or closed,
and then operate the lock again.
▼ Liftgate Door-lock Switch
Inoperable Warning Beep*
When the door-lock switch on the
liftgate is pressed under any of the
following conditions, a warning sound
is activated.
The ignition is switched to a position
other than OFF.
Any door is open.
Make sure that none of the above
conditions are present, and then press
the door-lock switch again.
▼ Key Left-in-luggage
Compartment/Trunk Warning
Beep (With the advanced keyless
function)
If the key is left in the luggage
compartment/trunk with all the doors
locked and the liftgate/trunk lid
closed, a beep will be heard outside
for about 10 second
s to notify the
driver that the key is in the luggage
compartment/trunk. In this case, take
out the key by pressing the electric
liftgate/trunk lid opener and opening
the liftgate/trunk lid. The key taken out
of the luggage compartment/trunk
may not operate because its functions
have been temporarily stopped. To
restore the key's functions, perform
the applicable procedure (page 3-8).
▼ Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage
compartment/trunk are locked using
another key while the key is left in the
cabin, the beep which sounds outside
of the vehicle will be heard for about
10 seconds to notify the driver that the
key is in the cabin. In this case, take
out the key by opening the door. A key
taken out of the vehicle using this
method may not operate because its
functions have been temporarily
stopped. To restore the key's functions,
perform the applicable procedure
(page 3-8).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-45
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

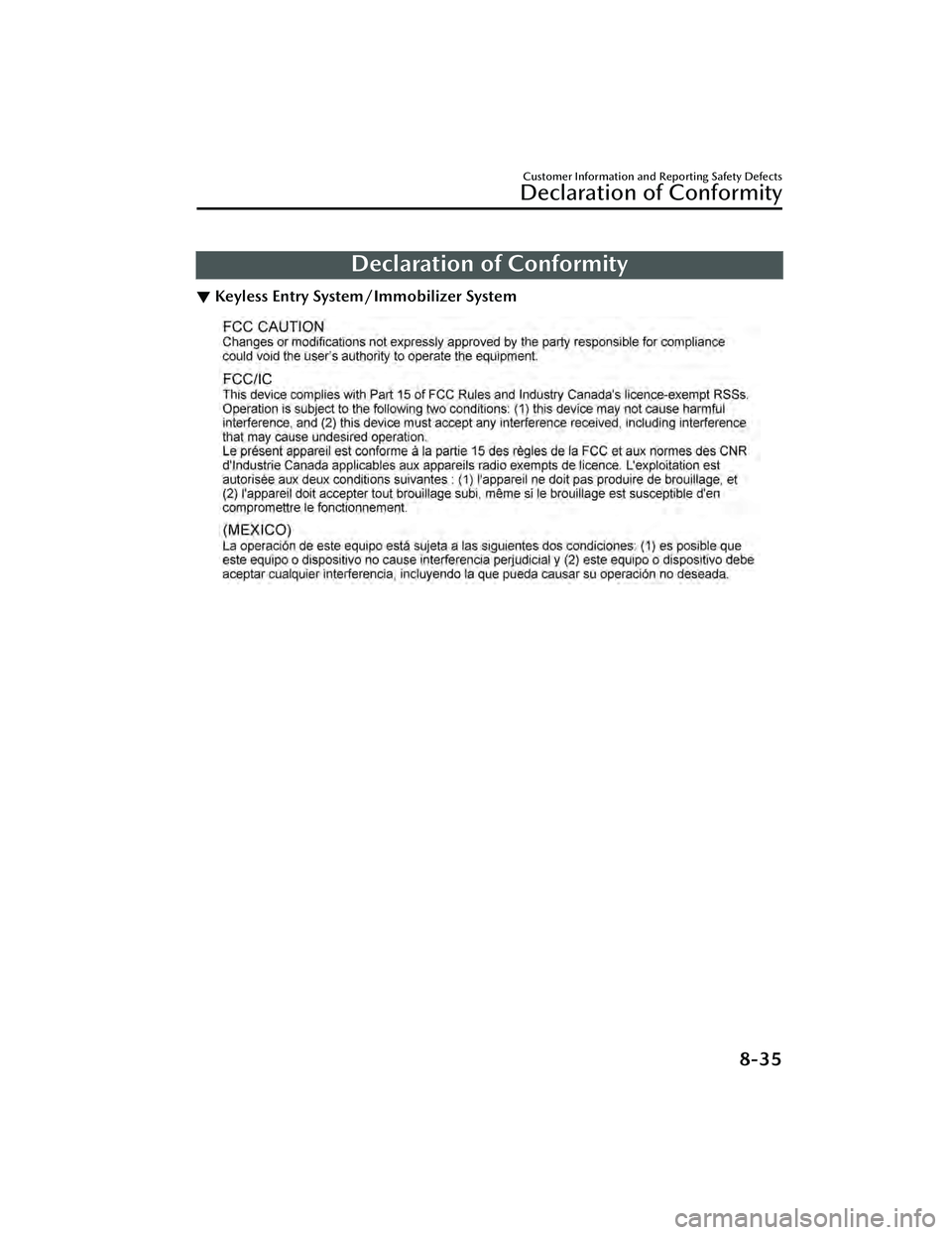

Declaration of Conformity
▼Keyless Entry System/Immobilizer System
Customer Information and Reporting Safety Defects
Declaration of Conformity
8-35
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Index
A
Accessory Socket....................... 5-42
Active Driving Display................4-36
Adaptive Front Lighting System
(AFS)...................................... 4-101
Add-On Non-Genuine Parts and
Accessories............................... 8-17
Advanced KeyAdvanced keyless entry
system................................... 3-9
Operational range................ 3-10
Advanced Keyless Entry System..... 3-9
Antilock Brake System (ABS).......4-88
Assist Grips............................... 5-45
AUTOHOLD.............................. 4-82
AUTOHOLD Warning Beep........ 7-46
Automatic Transmission Active Adaptive Shift (AAS)... 4-44
Automatic transmission
controls................................4-41
Direct mode.........................4-51
Driving tips.......................... 4-52
Manual shift mode............... 4-45
Shift-lock system...................4-42
Transmission ranges.............. 4-43
B
Battery...................................... 6-28Maintenance........................ 6-30
Replacement........................ 6-30
Specifications......................... 9-4
Battery Runs Out....................... 7-17
Jump-starting....................... 7-17
Blind Spot Monitoring (BSM)....4-107 Canceling operation of Blind Spot
Monitoring (BSM)...............4-111
Blind Spot Monitoring (BSM) Warning
Beep.........................................7-47
Body Lubrication....................... 6-22
Bottle Holder............................ 5-45
Brakes Brake assist.......................... 4-81
Brake override system........... 4-81
Electric Parking Brake (EPB)....4-77
Foot brake............................4-76
Pad wear indicator................4-80
Parking brake....................... 4-77
Warning light........................4-80
Brake Override System............... 4-81
Brake Override Warning Beep.....7-46
Brake System Warning Beep....... 7-46
Break-In Period......................... 3-46
C
Capacities...................................9-5
Cell Phones.............................. 8-18
Center Console......................... 5-47
Child Restraint Categories of child-restraint
systems................................ 2-36
Child-restraint precautions.... 2-31
Child-restraint system
installation........................... 2-36
Child-restraint system suitability
for various seat positions
table.................................... 2-38
Installing child-restraint
systems................................ 2-41
ISOFIX child-restraint systems
(Mexico).............................. 2-49
LATCH child-restraint systems
(Except Mexico)................... 2-49
Climate Control System Fully automatic type..............5-10
Manual type...........................5-5
Operating tips........................ 5-2
Vent operation....................... 5-3
Collision warning...................... 7-48
Coming Home Light.................. 4-61
10-2
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Index
Tra ffi c Sign Recognition
System (TSR)...................... 4-112
Ultrasonic sensor................ 4-221
360° view monitor............. 4-177
i-ACTIV AWD Operation........... 4-94
i-stop....................................... 4-11 Indicator light (Green).......... 4-16
i-stop OFF switch................. 4-14
Vehicle roll prevention
function............................... 4-15
Warning light (Amber).......... 4-16
i-stop warning beep.................. 7-46
J
Jack............................................ 7-3
Jump-Starting............................ 7-17
K
Keyless Entry System.................... 3-4
Keys........................................... 3-2 Key suspend function..............3-8
Transmitter............................. 3-5
Key Left-in-luggage Compartment/
Trunk Warning Beep (With the
advanced keyless function)........ 7-45
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)...................................7-45
Key Removed from Vehicle Warning
Beep.........................................7-44
Key Suspend Function................. 3-8
L
Label Information Chassis number...................... 9-2
Engine number....................... 9-3
Motor vehicle safety standard
label...................................... 9-2
Tire pressure label.................. 9-2
Vehicle emission control
information label.................... 9-2
Vehicle identification
number..................................9-2
Lane Departure Warning sound.. 7-47
Lane Departure Warning System
(LDWS)...................................4-103
Lane-change Signals.................. 4-63
Lane-keep Assist System (LAS) ...........
.............................................. 4-164
Leaving Home Light................... 4-61
Liftgate..................................... 3-20 Luggage compartment.......... 3-23
When liftgate/trunk lid cannot be
opened................................ 7-49
Liftgate Door-lock Switch Inoperable
Warning Beep........................... 7-45
Lights-on Reminder................... 7-43
Light Bulbs Replacement........................ 6-36
Specifications......................... 9-9
Low Fuel Warning Beep............. 7-46
Lubricant Quality......................... 9-5
Luggage Compartment.............. 5-48
Luggage Compartment Light...... 5-40
M
Maintenance Information............................ 6-2
Scheduled (Canada)............... 6-6
Scheduled (Mexico)................6-8
Scheduled (U.S.A. and Puerto
Rico)......................................6-4
Manual Transmission Shift
Pattern...................................... 4-38
Map Lights................................ 5-40
Mazda Connect........................ 5-15 Appendix............................. 5-29
Connected Service................5-37
10-6
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Index
Sunshade.................................. 3-41
Sunvisors.................................. 5-39
T
Theft-Deterrent System.............. 3-44
Three-flash Turn Signal...............4-63
Tiedown Hook.......................... 7-24
Tires......................................... 6-32Replacing a tire.................... 6-34
Replacing a wheel................ 6-36
Snow tires............................ 3-49
Specifications....................... 9-10
Temporary spare tire............. 6-35
Tire chains............................3-50
Tire inflation pressure............6-33
Tire rotation......................... 6-33
Uniform tire quality grading
system (UTQGS)................... 8-21
Tire Information Location of the tire label
(placard).............................. 8-27
Steps for determining the correct
load limit............................. 8-34
Tire labeling......................... 8-23
Tire maintenance.................. 8-29
Vehicle loading.....................8-31
Tire Pressure Monitoring
System.................................... 4-228
Touch Sensor Inoperable Warning
Beep (With the advanced keyless
function)...................................7-45
To w i n g Recreational towing.............. 3-53
Trailer towing....................... 3-53
Towing Description................... 7-23
Traction Control System (TCS).... 4-89 TCS/DSC indicator light........4-89
Traffic Jam Assist (TJA).............. 4-150 Close proximity warning...... 4-155
Display indication............... 4-154
Setting the system...............4-156
Shift-up/shift-down request
display............................... 4-163
Stop hold control............... 4-163
Tra ffi c Sign Recognition System
(TSR)...................................... 4-112
Trouble Battery runs out.................... 7-17
Emergency starting................7-20
Flat tire.................................. 7-7
Overheating......................... 7-21
Parking in an emergency......... 7-2
When liftgate/trunk lid cannot be
opened................................ 7-49
Trunk Lid...................................3-20 Inside trunk release lever....... 3-24
When liftgate/trunk lid cannot be
opened................................ 7-49
Trunk Light................................ 5-40
Turn and Lane-Change Signals.... 4-63
Turn Signals.............................. 4-63
U
Ultrasonic Sensor.................... 4-221
V
Vehicle Information Labels Chassis number...................... 9-2
Engine number....................... 9-3
Motor vehicle safety standard
label...................................... 9-2
Tire pressure label.................. 9-2
Vehicle emission control
information label.................... 9-2
Ve h i c l e identification
number..................................9-2
Vehicle Problem Warning Beep...7-47
W
Warning Sound is Activated........7-48
10-9
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Index
AUTOHOLD warning beep.... 7-46
Battery Saving Mode Warning
Sound.................................. 7-48
Blind Spot Monitoring (BSM)
warning beep....................... 7-47
Brake override warning
beep.................................... 7-46
Brake system warning beep....7-46
Collision warning..................7-48
Door-ajar warning beep........ 7-48
Electric Parking Brake (EPB)
warning beep....................... 7-46
Excessive speed warning........7-48
Front Cross Tra ffi c Alert (FCTA)
Warning Beep...................... 7-47
Ignition not switched off (STOP)
warning beep....................... 7-44
i-stop warning beep............. 7-46
Key left-in-luggage compartment/
trunk warning beep (With the
advanced keyless function).... 7-45
Key left-in-vehicle warning beep
(With the advanced keyless
function).............................. 7-45
Key removed from vehicle warning
beep.................................... 7-44
Lane departure warning
sound.................................. 7-47
Liftgate Door-lock Switch
Inoperable Warning Beep...... 7-45
Lights-on reminder............... 7-43
Low fuel warning beep..........7-46
Mazda Radar Crui se Control with
Stop & Go function (MRCC with
Stop & Go function) system
warnings.............................. 7-48
Mazda Radar Cruise Control
(MRCC) system warnings...... 7-47
Rear Cross Traffic Alert (RCTA)
Warning Beep...................... 7-47Seat belt warning beep......... 7-43
Selector Lever Not In P or N
Reminder Warning Beep....... 7-46
Shift position warning beep... 7-46
Touch sensor inoperable warning
beep (With the advanced keyless
function).............................. 7-45
Vehicle problem warning
beep.................................... 7-47
Warranty................................... 8-15
Weights...................................... 9-7
Windows Power windows.................... 3-35
Windshield Washer................... 4-67
Windshield Wipers.................... 4-64
Windshield Wipers Operate at High
Speed....................................... 7-52
Windshield Wiper De-icer..........4-69
Winter Driving...........................3-49
Wiper Replacing Rear Window Wiper
Blade (5-Door).....................6-27
Replacing windshield wiper
blades..................................6-24
0-9
360° View Monitor................. 4-177How to use the system........ 4-186
Margin of error between road
surface on screen and actual road
surface............................... 4-205
Side view........................... 4-195
Top view/front view............4-190
Top view/front wide view.... 4-193
Top view/rear view............. 4-198
Top view/rear wide view..... 4-203
Types of images displayed on the
screen................................ 4-181
10-10
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10
