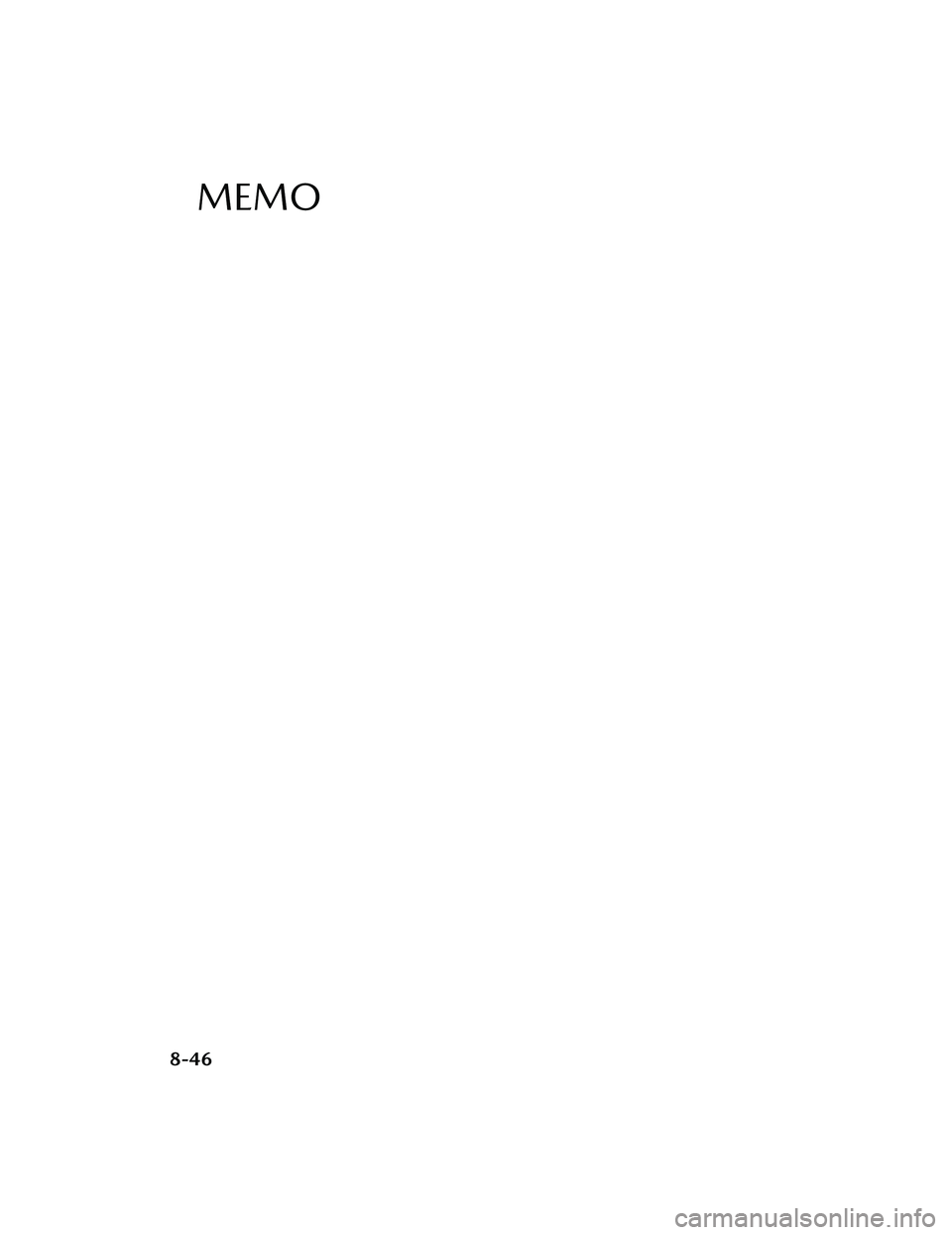

MEMO
8-46
Mazda3_8LC2-EA-22G_Edition1_new2022-5-20 11:26:10

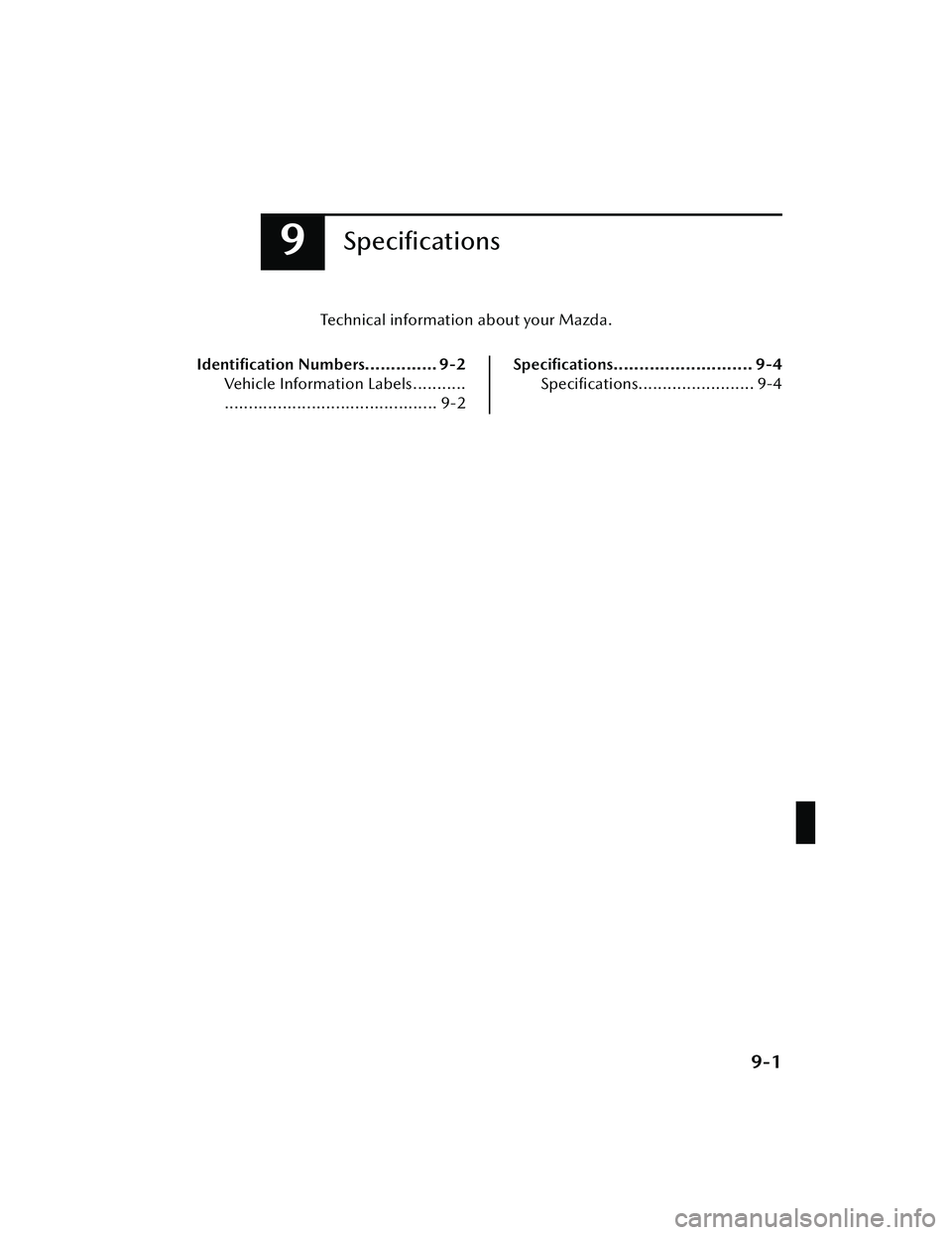

9Specifications
Technical information about your Mazda.
Identification Numbers.............. 9-2
Vehicle Information Labels...........
............................................ 9-2
Specifications ........................... 9-4
Specifications........................ 9-4
9-1
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Vehicle InformationLabels
▼Ve h i c l e
Identification Number
The vehicle identification number
legally
identifies your vehicle. The
number is on a plate attached to the
cowl panel located on the left corner
of the dashboard. This plate can easily
be seen through the windshield.
▼ Motor Vehicle Safety Standard
Label (U.S.A. and Canada)
▼
Chassis Number
Open the cover shown in the figure to
check the chassis number.
▼Vehicle Emission Control
Information Label (U.S.A. and
Canada)
▼Tire Pressure Label
Specifications
Identification
Numbers
9-2
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

▼Engine Number
1. Forward
Specifications
Identification
Numbers
9-3
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Specifications
▼Engine
Item Specification
SKYACTIV-G 2.0 SKYACTIV-G 2.5 SKYACTIV-G 2.5T
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 ×
3.59 in) 89.0 × 100.0 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression
ratio 13.0
10.5
▼Electrical System
Classification
Specification
Battery
*1U.S.A. and Canada 12V-60Ah/20HR or 12V-65Ah/20HR
Mexico 12V-60Ah/20HR
Spark-plug
number SKYACTIV-G 2.0
Mazda Genuine spark
plug
*2PE5R-18-110–A or
PE5S-18-110
SKYACTIV-G
2.5 With Cylinder
Deactivation
Mazda Genuine spark
plug
*2P5SP-18110
Without Cylin-
der Deactiva-
tion Mazda Genuine spark
plug
*2PE5R-18-110–A or
PE5S-18-110
SKYACTIV-G 2.5T Mazda Genuine spark
plug
*2PY8V-18-110
*1 Check the battery installed on the vehicle and us
e a battery with an equal or higher performance.
However, the performance of the battery may vary even among the same battery types, consult an
Authorized Mazda Dealer for replacement.
*2 This spark plug provides the SKYACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do no t use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
Specifications
Specifications
9-4
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Lubricant Quality
Lubricant
Classification
Engine oil Refer to Recommended Oil on page 6-16.
Coolant FL-22 type
Manual transmission oil Mazda Long Life Gear Oil G7
Automatic transmission
fluid
*1
With Cylinder Deactiva-
tion Mazda Genuine ATF A7
Without Cylinder Deac-
tivation Mazda Genuine ATF FZ
Tra n s f e r c a s e o i l
*2Mazda Long Life Hypoid Gear Oil SG1
Rear differential oil
*2Mazda Long Life Hypoid Gear Oil SG1
Brake fluid SAE J1703 or FMVSS116 DOT-3
*1 Periodic replacement is unnecessary.*2 Replacement is necessary when the component is submerged in water.
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
▼Capacities
(Approximate Quantities)
Item
U.S.A. and Canada Mexico
Engine oil SKYACTIV-G
2.0
With oil filter
replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil
filter replace-
ment 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYACTIV-G
2.5 With oil filter
replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil
filter replace-
ment 4.3 L (4.5 US qt, 3.8 Imp qt)
SKYACTIV-G
2.5T With oil filter
replacement
4.8 L (5.1 US qt, 4.2 Imp qt)
Without oil
filter replace-
ment 4.6 L (4.9 US qt, 4.0 Imp qt)
Specifications
Specifications
9-5
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

ItemU.S.A. and Canada Mexico
Coolant SKYACTIV-G
2.0
Manual
transmission
5.8 L (6.1 US qt, 5.1 Imp qt)
Automatic
transmission 6.1 L (6.4 US qt, 5.4 Imp qt)
SKYACTIV-G
2.5 Manual
transmission
6.6 L (7.0 US qt, 5.8 Imp qt) 5.9 L (6.2 US qt, 5.2 Imp qt)
Automatic
transmission 6.9 L (7.3 US qt, 6.1 Imp qt) 6.1 L (6.4 US qt, 5.4 Imp qt)
SKYACTIV-G
2.5T For engine
7.9 L (8.3 US qt, 7.0 Imp qt)
For wa-
ter-cooled
charge air
cooler 1.6 L (1.7 US qt, 1.4 Imp qt)
Manual
transmission
oil SKYACTIV-G 2.0
1.70 L (1.80 US qt, 1.50 Imp qt)
SKYACTIV-G 2.5 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic
transmission
fluid SKYACTIV-G 2.0, SKYAC-
TIV-G
2.5 7.6 L (8.0 US qt, 6.7 Imp qt)
SKYACTIV-G 2.5T 8.0 L (8.5 US qt, 7.0 Imp qt)
Transfer case oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Rear differential oil 0.35 L (0.37 US qt, 0.31 Imp qt)
Fuel tank FWD
51.0 L (13.5 US gal, 11.2 Imp gal)
AWD 48.0 L (12.7 US gal, 10.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
▼Dimensions
4-Door
Item
Vehicle specification
Overall length 4,662 mm (183.5 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,445 mm (56.9 in)
Front tread 1,568 mm (61.7 in)
Rear tread FWD
1,581 mm (62.2 in)
AWD 1,580 mm (62.2 in)
Wheelbase 2,726 mm (107.3 in)
Specifications
Specifications
9-6
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

5-Door
ItemVehicle specification
Overall length 4,459 mm (175.6 in)
Overall width 1,797 mm (70.7 in)
Overall height 1,440 mm (56.7 in)
Front tread 1,568 mm (61.7 in)
Rear tread FWD
1,581 mm (62.2 in)
AWD 1,580 mm (62.2 in)
Wheelbase 2,726 mm (107.3 in)
▼We igh ts
U.S.A. and Canada
SKYACTIV-G 2.0
(4-Door)
Item Weight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight
Rating) 1,804 kg (3,977 lbs) 1,825 kg (4,023 lbs)
GAWR (Gross Axle
Weigh t Rat ing) Front 966 kg (2,130 lbs) 989 kg (2,180 lbs)
Rear 843 kg (1,858 lbs) 841 kg (1,854 lbs)
(5-Door)
Item
Weight
Manual transmission Automatic transmission
GVWR (Gross Vehicle Weight
Rating) 1,810 kg (3,990 lbs) 1,833 kg (4,041 lbs)
GAWR (Gross Axle
Weigh t Rat ing) Front 965 kg (2,127 lbs) 989 kg (2,180 lbs)
Rear 848 kg (1,870 lbs) 847 kg (1,867 lbs)
SKYACTIV-G 2.5
(4-Door)
Item
Weight
FWD AWD
GVWR (Gross Vehicle Weight
Rating) 1,850 kg (4,079 lbs) 1,923 kg (4,239 lbs)
GAWR (Gross Axle
Weigh t Rat ing) Front 1,016 kg (2,240 lbs) 1,045 kg (2,304 lbs)
Rear 839 kg (1,850 lbs) 888 kg (1,958 lbs)
Specifications
Specifications
9-7
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

(5-Door)
ItemWeight
FWD AWD
Manual transmission Automatic transmis-
sion
GVWR (Gross Vehicle Weight
Rating) 1,830 kg (4,034 lbs) 1,856 kg (4,092 lbs) 1,927 kg (4,248 lbs)
GAWR (Gross Axle
Weight Rating) Front 1,003 kg (2,211 lbs) 1,029 kg (2,269 lbs) 1,053 kg (2,321 lbs)
Rear 842 kg (1,856 lbs) 839 kg (1,850 lbs) 874 kg (1,927 lbs)
SKYACTIV-G 2.5T
(4-Door)
Item
Weight
GVWR (Gross Vehicle Weight
Rating) 1,950 kg (4,299 lbs)
GAWR (Gross Axle
Weight Rating) Front
1,066 kg (2,350 lbs)
Rear 889 kg (1,960 lbs)
(5-Door)
Item Weight
GVWR (Gross Vehicle Weight
Rating) 1,951 kg (4,301 lbs)
GAWR (Gross Axle
Weight Rating) Front
1,085 kg (2,392 lbs)
Rear 871 kg (1,920 lbs)
Mexico
SKYACTIV-G 2.0
Item Weight
GVW (Gross Vehicle Weight) 1,881 kg (4,147 lbs)
SKYACTIV-G 2.5
(4-Door)
ItemWeight
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,861 kg (4,103 lbs) 1,870 kg (4,123 lbs)
Specifications
Specifications
9-8
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

(5-Door)
ItemWeight
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,848 kg (4,074 lbs) 1,870 kg (4,123 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) 1,950 kg (4,299 lbs)
▼Light Bulbs
Exterior light
Light bulb Category
Watta ge UN-R*1 (SAE)
Headlights LED ― (― )
Daytime running lights LED― (― )
Parking lights LED type
LED― (― )
Bulb type 5WY5W (―)
Front turn signal lights LED― (― )
Front side-marker lights LED type
LED― (― )
Bulb type 5WY5W (―)
Side turn signal lights
*LED ― (― )
High-mount brake light LED― (― )
Rear turn signal lights LED― (― )
Rear side-marker lights LED― (― )
Brake lights LED― (― )
Taillights LED― (― )
Reverse lights LED― (― )
License plate lights LED― (― )
*1 UN-R stands for United Nations Regulation.
Interior light
Light bulb Category
Watta ge UN-R*1
Overhead light (Front)/Map lights LED―
Overhead light (Rear) LED―
Vanity mirror lights
*LED ―
Specifications
Specifications
*Some models.9-9
