ESP MAZDA MAZDA 2023 Owners Manual

WARNING
Use the correct size child-restraint
system:
For effective protection in vehicle
accidents and sudden stops, a child
must be properly restrained using a
seat belt or child-restraint system
depending on age and size. If not, the
child could be seriously injured or even
killed in an accident.
Follow the manufacturer's
instructions and always keep the
child-restraint system buckled down:
An unsecured child-restraint system is
dangerous. In a sudden stop or a
collision it could move causing serious
injury or death to the child or other
occupants. Make sure any
child-restraint system is properly
secured in place according to the
child-restraint system manufacturer's
instructions. When not in use, remove
it from the vehicle or fasten it with a
seat belt, or attach it to BOTH ISOFIX/
LATCH
*1 lower anchors for ISOFIX/
LATCH*1 child-restraint systems and
the corresponding tether anchor.
*1 ISOFIX (Mexico)/LATCH (Except Mexico)
Always secure a child in a proper
child-restraint system:
Holding a child in your arms while the
vehicle is moving is extremely
dangerous. No matter how strong the
person may be, he or she cannot hold
onto a child in a sudden stop or
collision and it could result in serious
injury or death to the child or other
occupants. Even in a moderate
accident, the child may be exposed to
air bag forces that could result in
serious injury or death to the child, or
the child may be slammed into an
adult, causing injury to both child and
adult.
Never use a rear-facing child-restraint
system in the front seat with an air
bag that could deploy:
Rear-facing child-restraint systems on
the front seat are particularly
dangerous even though you may feel
assured that a front passenger air bag
will not deploy based on the fact that
the front passenger air bag
deactivation indicator light illuminates.
The child-restraint system can be hit by
a deploying air bag and moved
violently backward resulting in serious
injury or death to the child.
Essential Safety Equipment
Child Restraint
2-32
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

▼Curtain Air Bags
The curtain air bags are mounted in the
front and rear window pillars, and the
roof edge along both sides.
When the air bag crash sensors detect
a side impact of greater than moderate
force, the curtain air bag inflates
quickly and helps to reduce injury
mainly to the driver and front and rear
outboard passengers' heads caused by
directly hitting interior parts such as a
door or window.
For more details about air bag
deployment, refer to "SRS Air Bag
Deployment Criteria" (page 2-66).
In a side impact:
Greater than moderate impact to one
side of the vehicle will cause the
curtain air bag on that side only to
inflate.

Only one side curtain air bag will
deploy on the side of the vehicle that
receives the force of an impact.
(With Front Passenger Occupant
Classification System)
In a roll-over:
In response to a vehicle roll-over, both
curtain air bags inflate.

Both curtain air bags will deploy after
the roll-over accident is detected.
▼Warning Light/Beep
A system malfunction or operation
conditions are indicated by a warning.
Refer to Air Bag/Seat Belt Pretensioner
System Warning Indication/Warning
Light on page 7-33.
Essential Safety Equipment
SRS Air Bags
2-65
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Keyless Entry System
▼Keyless Entry System
This system uses the key buttons to
remotely lock and unlock the doors,
liftgate, and fuel-filler lid, and opens
the trunk lid.
The system can start the engine
without having to take the key out of
your purse or pocket.
It can also help you signal for attention
or help.
Operating the theft-deterrent system is
also possible on theft-deterrent
system-equipped vehicles.

System malfunctions or warnings are
indicated by the following warning
lights or beeps.
Check the displayed message for more
information and, if necessary, have the
vehicle inspected at an Authorized
Mazda Dealer, according to the
indication.
KEY Warning Indication/Warning
Light (Red)
Refer to KEY Warning Indication/
Warning Light (Red) on page 7-34.
Ignition Not Switched Off (STOP)
Warning Beep
Refer to Ignition Not Switched
Off
(STOP) Warning Beep on page
7-44.
Key Removed from Vehicle Warning
Beep
Refer to Key Removed from Vehicle
Warning Beep on page 7-44.
If you have a problem with the key,
consult an Authorized Mazda Dealer.

If your key is lost or stolen, consult an
Authorized Mazda Dealer as soon as
possible for a replacement and to
make the lost or stolen key inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
NOTE
The keyless entry system operation
may vary due to local conditions.
The keyless entry system is fully
operational when the ignition is
switched off. The system does not
operate if the ignition is switched to
any position other than off.
If the key does not operate when
pressing a button or the operational
range becomes too small, the battery
may be weak. To install a new
battery, refer to Key Battery
Replacement (page 6-30).
Battery life is about 1 year. Replace
the battery with a new one if the
messages are displayed in the
instrument cluster. Replacing the
battery about once a year is
recommended because the KEY
warning indication may not display
depending on the rate of battery
depletion.
Additional keys can be obtained at
an Authorized Mazda Dealer. Up to
6 keys can be used with the keyless
functions per vehicle. Bring all keys
to an Authorized Mazda Dealer
when additional keys are required.
Before Driving
Keys
3-4
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Door Locks
▼Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person
with them:
Leaving a child or a pet unattended in
a parked vehicle is dangerous. In hot
weather, temperatures inside a vehicle
can become high enough to cause
brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a
place where your children will not
find or play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall out
if a door is accidentally opened and
can more easily be thrown out in an
accident.
Always close all the windows and
moonroof, lock the doors, fuel-filler
lid, and liftgate and take the key with
you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
After closing the doors and the
liftgate/trunk lid, always verify that
they are securely closed:
Doors and the liftgate/trunk lid not
securely closed are dangerous, if the
vehicle is driven with a door and the
liftgate/trunk lid not securely closed,
the door and the liftgate/trunk lid
could open unexpectedly resulting in
an accident.
Always confirm the safety around the
vehicle before opening a door and the
liftgate/trunk lid:
Suddenly opening a door and the
liftgate/trunk lid is dangerous. A
passing vehicle or a pedestrian could
be hit and cause an accident.
CAUTION

Always
confirm the conditions
around the vehicle before opening/
closing the doors and the liftgate/
trunk lid and use caution during
strong winds or when parked on an
incline. Not being aware of the
conditions around the vehicle is
dangerous because fingers could get
caught in the door and the liftgate/
trunk lid or a passing pedestrian
could be hit, resulting in an
unexpected accident or injury.
Before Driving
Doors and Locks
3-11
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

Do not modify or replace the liftgate
damper stay. Consult an Authorized
Mazda Dealer if a liftgate damper
stay is deformed or damaged for
reasons such as a collision or if there
is some other problem.
▼ Opening and Closing the Liftgate/
Trunk Lid
Opening the liftgate (5–door)
Using the electric liftgate opener
Unlock the doors and liftgate, then
press the electric liftgate opener on the
liftgate and raise the liftgate when the
latch releases.
NOTE
(With the advanced keyless function)
A locked liftgate can also be opened
while the key is being carried.
When opening the liftgate with the
doors and the liftgate locked, it may
require a few seconds for the liftgate
latch to release after the electric
liftgate opener is pressed.
The liftgate can be closed when the
doors are locked with the key left in
the vehicle. However, to prevent
locking the key in the vehicle, the
liftgate can be opened by pressing
the electric liftgate opener. If the
liftgate cannot be opened despite
doing this procedure, first push the
liftgate completely closed, then press
the electric liftgate opener to fully
open the liftgate.
When the liftgate latch is released by
pressing the electric liftgate opener,
the liftgate raises slightly. If the
liftgate is not operated for a certain
period of time, the liftgate cannot be
raised.
To o p e n
Press the electric liftgate opener
again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by
pressing the electric liftgate opener,
then close it after waiting at least 1
second.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the liftgate cannot be
unlocked, the liftgate can be opened
by performing the emergency
procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-49.
Before Driving
Doors and Locks
3-21
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Opening the trunk lid (4–door)
Using the trunk lid release button
Push the trunk lid release button.

Using the electric trunk lid opener
(With the advanced keyless function)
A trunk lid can also be opened while
the key is being carried.
Press the electric trunk lid opener on
the trunk lid, then raise the trunk lid
when the latch releases.

NOTE
When opening the trunk lid with the
doors locked, it may require a few
seconds for the trunk lid latch to
release after the electric trunk lid
opener is pressed.
The trunk lid can be closed when the
doors are locked with the key left in
the vehicle. However, to prevent
locking the key in the vehicle, the
trunk lid can be opened by pressing
the electric trunk lid opener. If the
trunk lid cannot be opened despite
doing this procedure, press the
electric trunk lid opener to fully open
the trunk lid after pushing the trunk
lid completely closed.
If the vehicle battery is dead or there
is a malfunction in the electrical
system and the trunk lid cannot be
unlocked, the trunk lid can be
opened by performing the
emergency procedure.
Refer to When Liftgate/Trunk Lid
Cannot be Opened on page 7-49.
Closing the liftgate/trunk lid
Lower the liftgate/trunk lid slowly
using the liftgate/trunk lid grip recess,
then push the liftgate/trunk lid closed
using both hands.
Do not slam it. Pull up on the liftgate/
trunk lid to make sure it is secure.
(5–door)
Before Driving
Doors and Locks
3-22
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

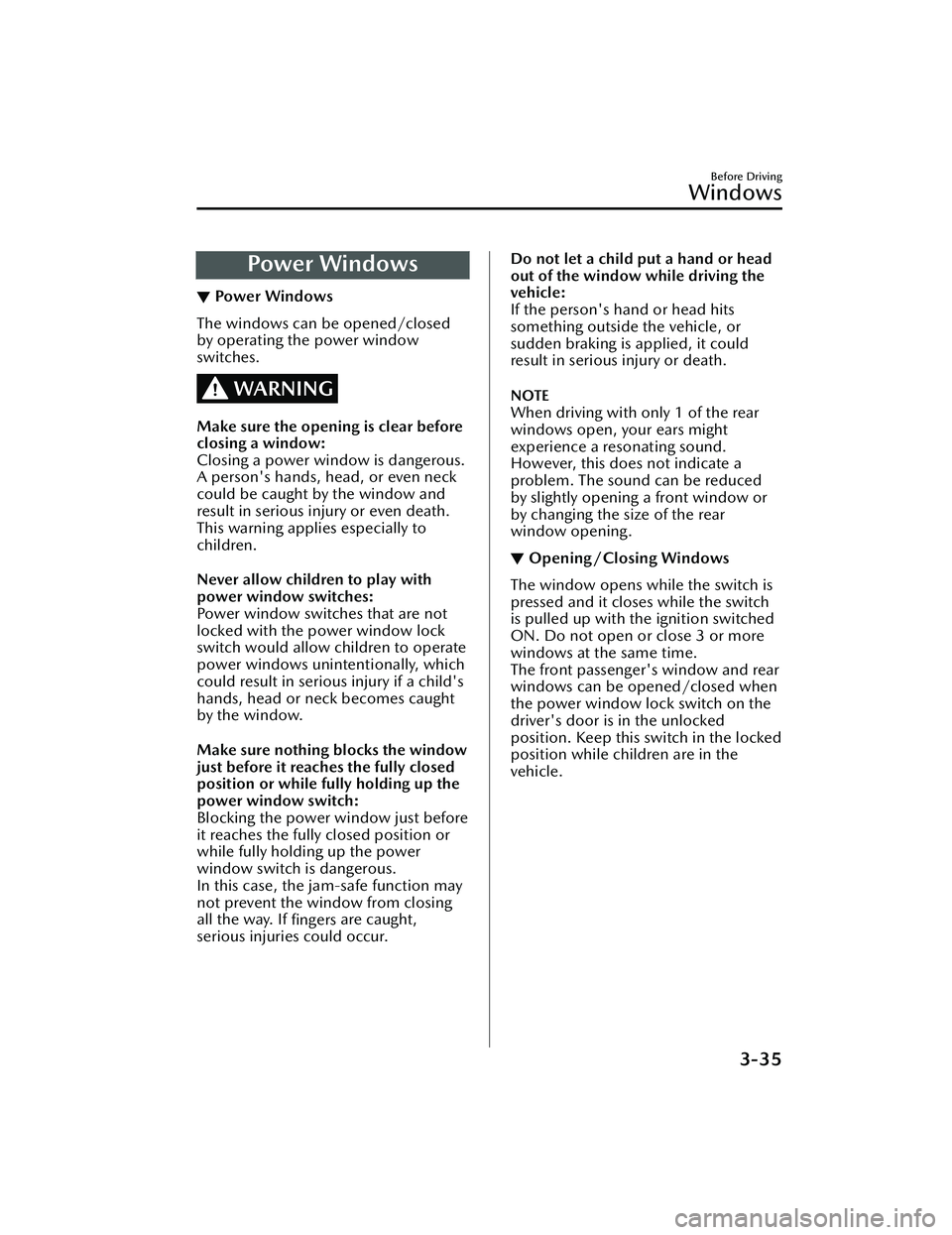

Powe r Wi n d ow s
▼Po we r Wi n d o w s
The windows can be opened/closed
by operating the power window
switches.
WARNING
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous.
A person's hands, head, or even neck
could be caught by the window and
result in serious injury or even death.
This warning applies especially to
children.
Never allow children to play with
power window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to operate
power windows unintentionally, which
could result in serious injury if a child's
hands, head or neck becomes caught
by the window.
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just before
it reaches the fully closed position or
while fully holding up the power
window switch is dangerous.
In this case, the jam-safe function may
not prevent the window from closing
all the way. If
fingers are caught,
serious injuries could occur.
Do not let a child put a hand or head
out of the window while driving the
vehicle:
If the person's hand or head hits
something outside the vehicle, or
sudden braking is applied, it could
result in serious injury or death.
NOTE
When driving with only 1 of the rear
windows open, your ears might
experience a resonating sound.
However, this does not indicate a
problem. The sound can be reduced
by slightly opening a front window or
by changing the size of the rear
window opening.
▼ Opening/Closing Windows
The window opens while the switch is
pressed and it closes while the switch
is pulled up with the ignition switched
ON. Do not open or close 3 or more
windows at the same time.
The front passenger's window and rear
windows can be opened/closed when
the power window lock switch on the
driver's door is in the unlocked
position. Keep this switch in the locked
position while children are in the
vehicle.

Before Driving
Windows
3-35
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Remote power window operation is
activated under the following
conditions.
All the doors and liftgate are closed.The ignition is switched OFF.
NOTE
The power windows cannot be
opened from the outside of the vehicle
if the power window initialization has
not been completed.
Opening
The windows can be opened for
ventilating the cabin before getting in
the vehicle.
Press the unlock button on the key
quickly and briefly 3 times and then
immediately afterwards, press and
hold the unlock button to open the
windows.
To stop the windows from opening,
release the button. If the operation is
performed from the beginning again,
the windows open.
Moonroof*
▼Moonroof
The moonroof can be opened or
closed when operating the overhead
tilt/slide switch at the front seats.
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Never allow children to play with the
tilt/slide switch:
The tilt/slide switch would allow
children to operate the moonroof
unintentionally, which could result in
serious injury if a child's hands, head
or neck becomes caught by the
moonroof.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person,
especially a child, could be caught in it
as it closes, causing serious injury or
even death.
Before Driving
Windows
3-38*Some models.
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Modification and
Add-On Equipment
▼ Modification
and Add-On
Equipment
Mazda cannot guarantee the
immobilizer and the theft-deterrent
system's operation if the system has
been modified or if any add-on
equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
▼ Immobilizer System
The immobilizer system allows the
engine to start only with a key the
system recognizes.

If someone attempts to start the
engine with an unrecognized key, the
engine will not start, thereby helping to
prevent vehicle theft.
If you have a problem with the
immobilizer system or the key, consult
an Authorized Mazda Dealer.
CAUTION

Radio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.
 To avoid damage to the key, do not:
 Drop the key.
 Get the key wet.
 Expose the key to any kind of
magnetic field.
 Expose the key to high
temperatures on places such as the
dashboard, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing ,
the system may have a malfunction.
Consult an Authorized Mazda
Dealer.
Before Driving
Security System
3-42
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

WARNING
Do not rely completely on the vehicle
roll prevention function.
The vehicle roll prevention function
is a supplementary function which
operates for a maximum of 2
seconds after releasing the brake
pedal and accelerating the vehicle
from an engine idling stop condition.
Over reliance on the system may
result in an unexpected accident if
the vehicle were to suddenly
accelerate. Before starting to drive
the vehicle, always confirm the safety
of the surroundings and operate the
selector lever, brake pedal, and
accelerator pedal appropriately.
Note that the vehicle may move
suddenly depending on the vehicle's
load or if it is towing something.
 Note that the vehicle may move
suddenly after the vehicle roll
prevention function is released while
the vehicle is under the following
conditions:
 The selector lever is in the N
position.
 If the selector lever is shifted to the
N position and the brake pedal is
released while the i-stop function
is operating, the brake force is
gradually released. To accelerate
the vehicle, release the brake pedal
after the engine restarts and shift
the selector lever to a position
other than the N position.
NOTE
When the vehicle is stopped on a
steep grade, the vehicle roll
prevention function does not
operate because engine idling is not
stopped.
The brake pedal response may
change, sound may occur from the
brakes, or the brake pedal could
vibrate from the operation of the
vehicle roll prevention function.
However, this does not indicate a
malfunction.
▼ i-stop Warning Light (Amber)/
i-stop Indicator Light (Green)
To ensure safe and comfortable use of
the vehicle, the i-stop system
constantly monitors the driver's
operations, the vehicle's interior and
exterior environment, and the
operational status of the vehicle, and
uses the i-stop warning light (amber)
and i-stop indicator light (green) to
inform the driver of various cautions
and warnings.
NOTE
On vehicles equipped with the center
display, the i-stop operation status is
displayed in the fuel efficiency monitor
display.
Refer to the Fuel Efficiency Monitor
section in the Mazda Connect
Owner's Manual.
i-stop warning light (amber)
The light turns on/flashes continuously
if the system has a problem. Have the
vehicle inspected by an Authorized
Mazda Dealer.
i-stop indicator light (green)
When Driving
Start/Stop Engine
4-16
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10
