glove box MAZDA MAZDA 2023 Owners Manual

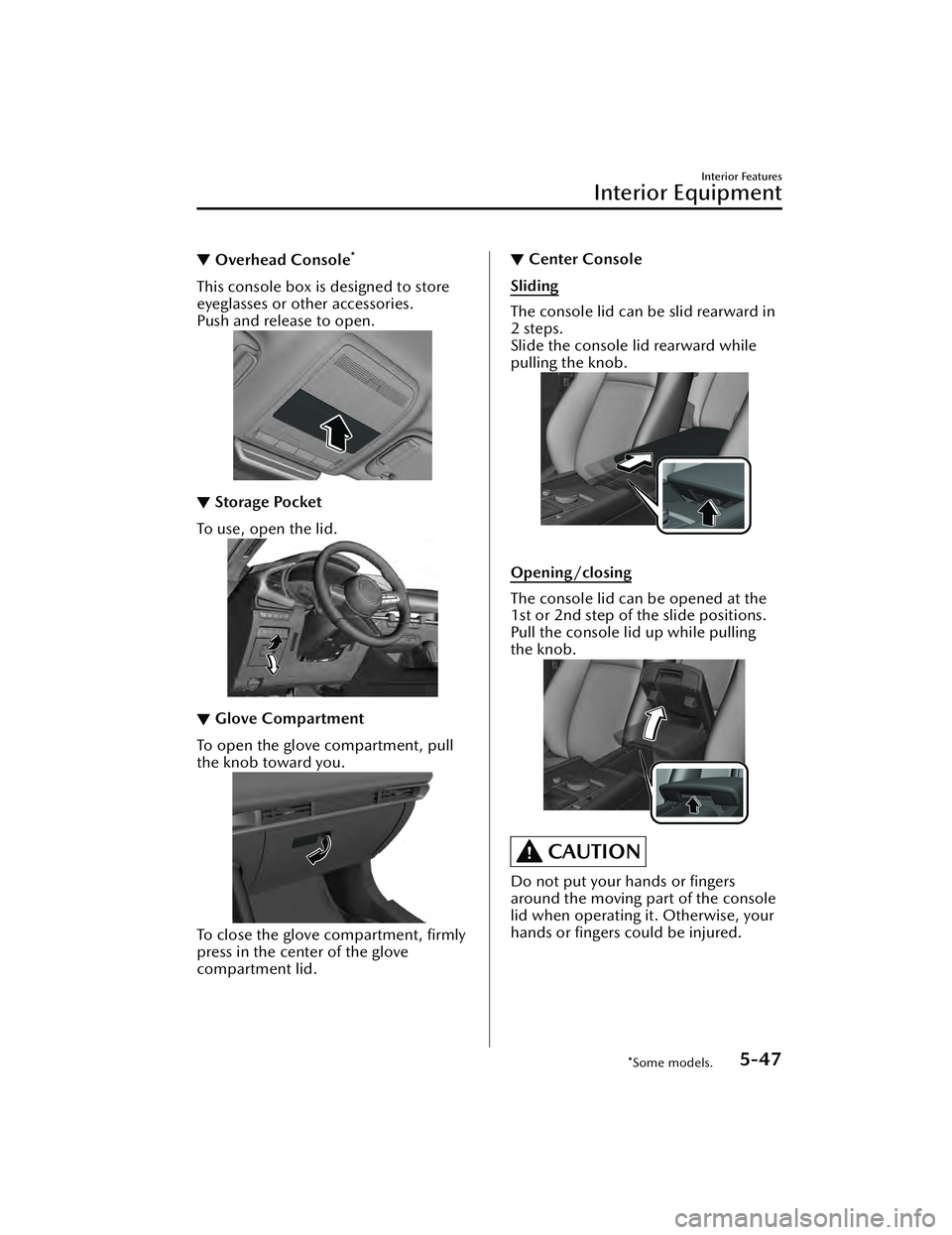

▼Overhead Console*
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
▼Storage Pocket
To use, open the lid.
▼Glove Compartment
To open the glove compartment, pull
the knob toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
▼
Center Console
Sliding
The console lid can be slid rearward in
2 steps.
Slide the console lid rearward while
pulling the knob.

Opening/closing
The console lid can be opened at the
1st or 2nd step of the slide positions.
Pull the console lid up while pulling
the knob.
CAUTION
Do not put your hands or fingers
around the moving part of the console
lid when operating it. Otherwise, your
hands or fingers could be injured.
Interior Features
Interior Equipment
*Some models.5-47
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

NOTE
When raising the jack head into the
jacking position and aligning the
groove in the jack head with the rail
under the vehicle body, the top of
the jack head contacts the vehicle's
underbody without the rail
contacting the bottom of the
groove.
7. Insert the jack lever and attach the lug wrench to tire jack.

8. Turn the jack handle clockwise andraise the vehicle high enough so
that the spare tire can be installed.
Before removing the lug nuts, make
sure your Mazda is firmly in
position and that it cannot slip or
move.

WARNING
Do not jack up the vehicle higher
than is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in
an accident.
Do not start the engine or shake
the vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
vehicle to fall off the jack resulting
in an accident.
Never go under the vehicle while it
is jacked up:
Going under the vehicle while it is
jacked up is dangerous as it could
result in death or serious injury if
the vehicle were to fall off the jack.
9. Remove the lug nuts by turning them counterclockwise; then
remove the wheel and center cap.
▼Locking Lug Nuts
If your Mazda is equipped with the
optional antitheft wheel lug nuts, a
special key must be used to unlock the
locking lug nut for each wheel. The key
is stored in the glove compartment,
center console storage, storage box, or
trunk. Register the key and lug nuts
with the lock manufacturer by filling
out the registration card and mailing it
in using the accompanying envelope. If
the key is lost, consult an Authorized
Mazda Dealer or use the lock
manufacturer’s order form to order a
new key.
If Trouble Arises
Flat Tire
7-11
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10
