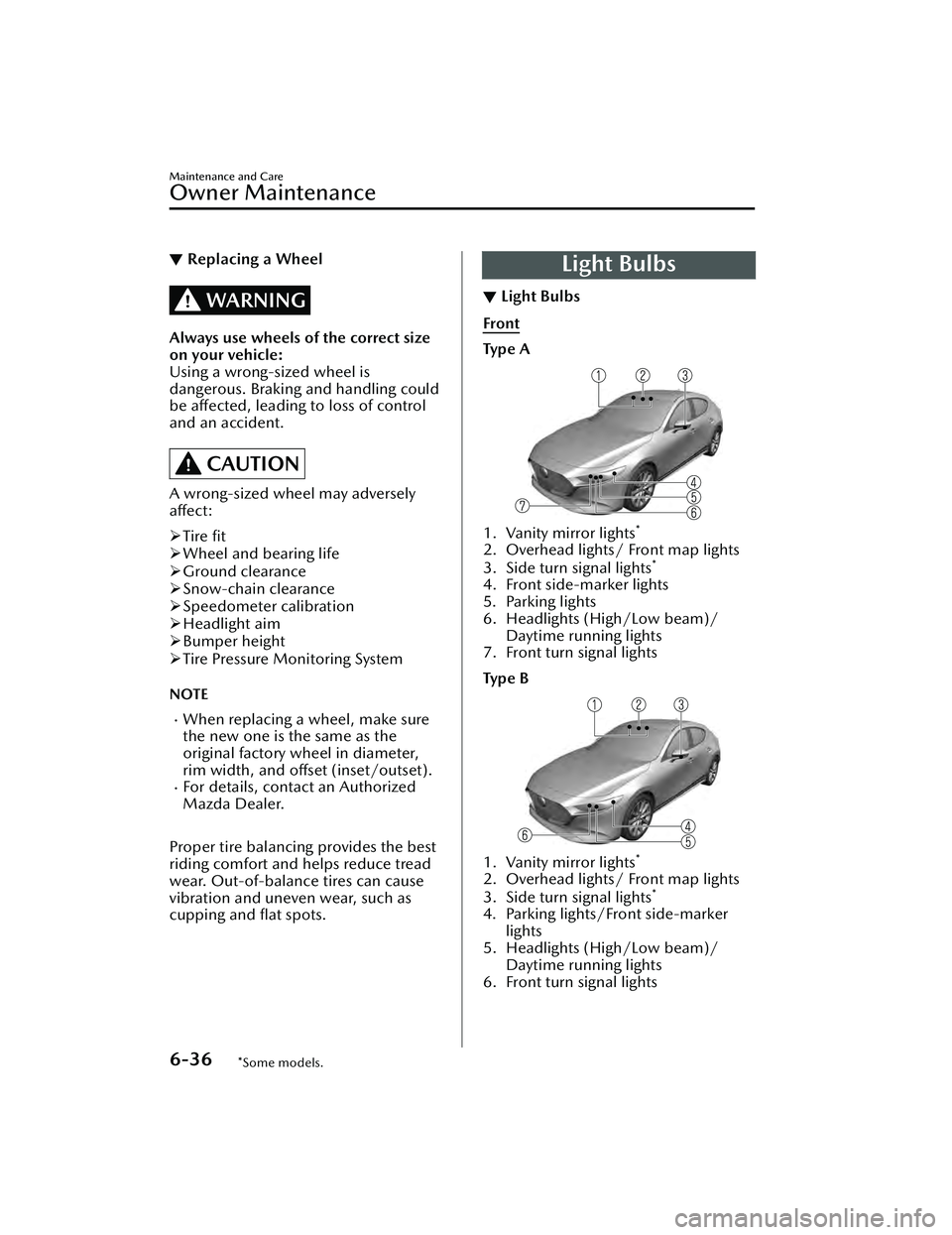

▼Replacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling could
be affected, leading to loss of control
and an accident.
CAUTION
A wrong-sized wheel may adversely
affect:

Tire fit
 Wheel and bearing life
 Ground clearance
 Snow-chain clearance
 Speedometer calibration
 Headlight aim
 Bumper height
 Tire Pressure Monitoring System
NOTE
When replacing a wheel, make sure
the new one is the same as the
original factory wheel in diameter,
rim width, and offset (inset/outset).
For details, contact an Authorized
Mazda Dealer.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Light Bulbs
▼ Light Bulbs
Front
Ty p e A
1. Vanity mirror lights*
2. Overhead lights/ Front map lights
3. Side turn signal lights*
4. Front side-marker lights
5. Parking lights
6. Headlights (High/Low beam)/
Daytime running lights
7. Front turn signal lights
Ty p e B
1. Vanity mirror lights*
2. Overhead lights/ Front map lights
3. Side turn signal lights*
4. Parking lights/Front side-marker
lights
5. Headlights (High/Low beam)/ Daytime running lights
6. Front turn signal lights
Maintenance and Care
Owner Maintenance
6-36*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

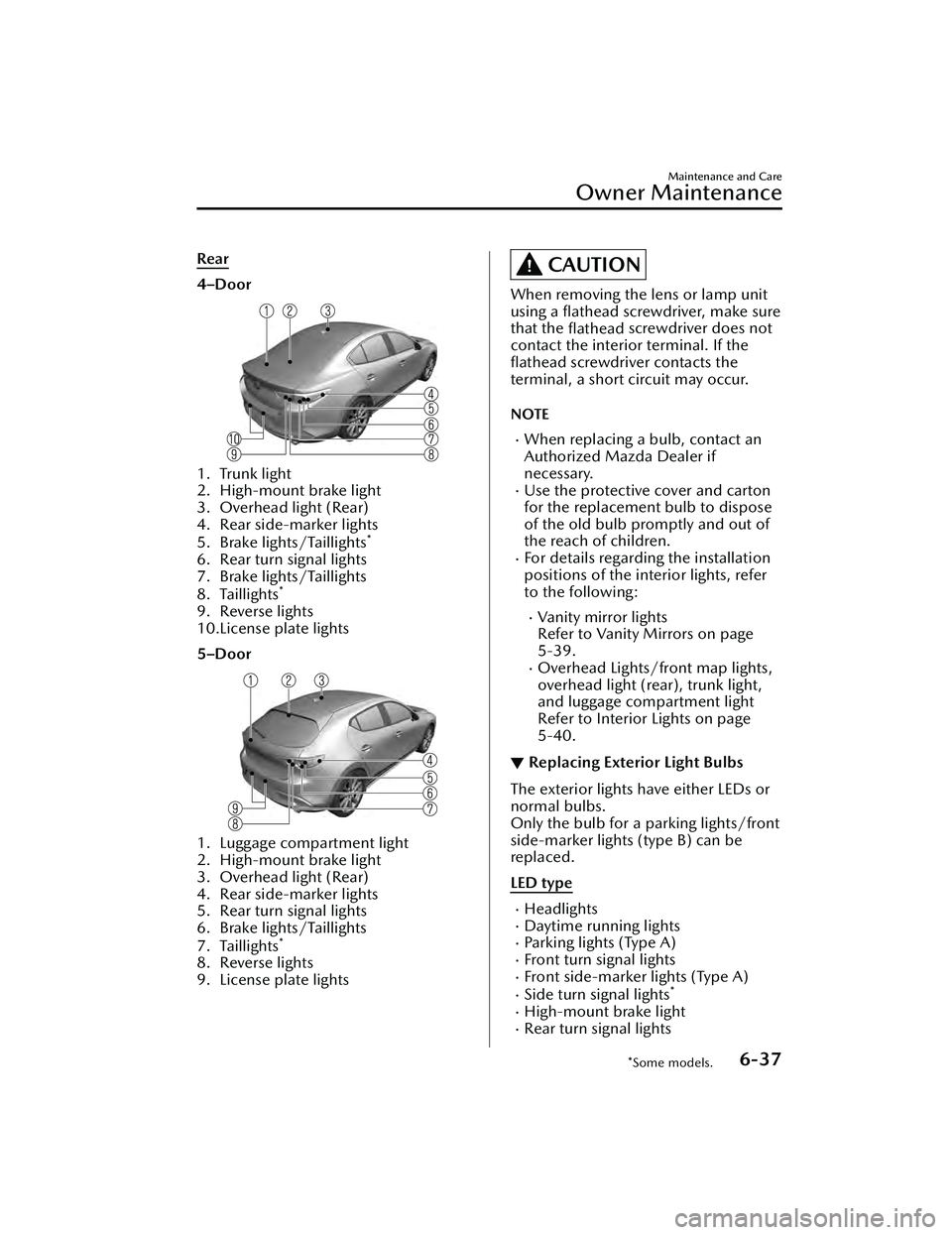

Rear
4–Door
1. Trunk light
2. High-mount brake light
3. Overhead light (Rear)
4. Rear side-marker lights
5. Brake lights/Taillights
*
6. Rear turn signal lights
7. Brake lights/Taillights
8. Taillights
*
9. Reverse lights
10.License plate lights
5–Door
1. Luggage compartment light
2. High-mount brake light
3. Overhead light (Rear)
4. Rear side-marker lights
5. Rear turn signal lights
6. Brake lights/Taillights
7. Taillights
*
8. Reverse lights
9. License plate lights
CAUTION
When removing the lens or lamp unit
using a flathead screwdriver, make sure
that the flathead screwdriver does not
contact the interior terminal. If the
flathead screwdriver contacts the
terminal, a short circuit may occur.
NOTE
When replacing a bulb, contact an
Authorized Mazda Dealer if
necessary.
Use the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
For details regarding the installation
positions of the interior lights, refer
to the following:
Vanity mirror lights
Refer to Vanity Mirrors on page
5-39.
Overhead Lights/front map lights,
overhead light (rear), trunk light,
and luggage compartment light
Refer to Interior Lights on page
5-40.
▼ Replacing Exterior Light Bulbs
The exterior lights have either LEDs or
normal bulbs.
Only the bulb for a parking lights/front
side-marker lights (type B) can be
replaced.
LED type
HeadlightsDaytime running lightsParking lights (Type A)Front turn signal lightsFront side-marker lights (Type A)Side turn signal lights*
High-mount brake lightRear turn signal lights
Maintenance and Care
Owner Maintenance
*Some models.6-37
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Rear side-marker lightsBrake lightsTaillightsReverse lightsLicense plate lights
The LED bulb cannot be replaced as a
single unit because it is an integrated
unit.
The LED bulb has to be replaced with
the unit. We recommend an
Authorized Mazda Dealer when the
replacement is necessary.
Bulb type
Parking lights/Front side-marker
lights (Type B)
1. Make sure the ignition is switched off, and the headlight switch is off.
2. If you are changing the left bulb, start the engine, turn the steering
wheel all the way to the right, and
turn off engine. If you are changing
the right bulb, turn the steering
wheel to the left.
3. Pull the center of each plastic retainer and remove the retainers.
1. Removal
2. Installation

4. Pull the center of each plasticretainer and remove the retainers.
1. Removal
2. Installation

5. Turn the screw counterclockwise and remove it, and then partially
peel back the mudguard.
6. Turn the socket and bulb assemblycounterclockwise and remove it.
7. Disconnect the bulb from thesocket.
8. Install the new bulb in the reverse order of the removal procedure.
Maintenance and Care
Owner Maintenance
6-38
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

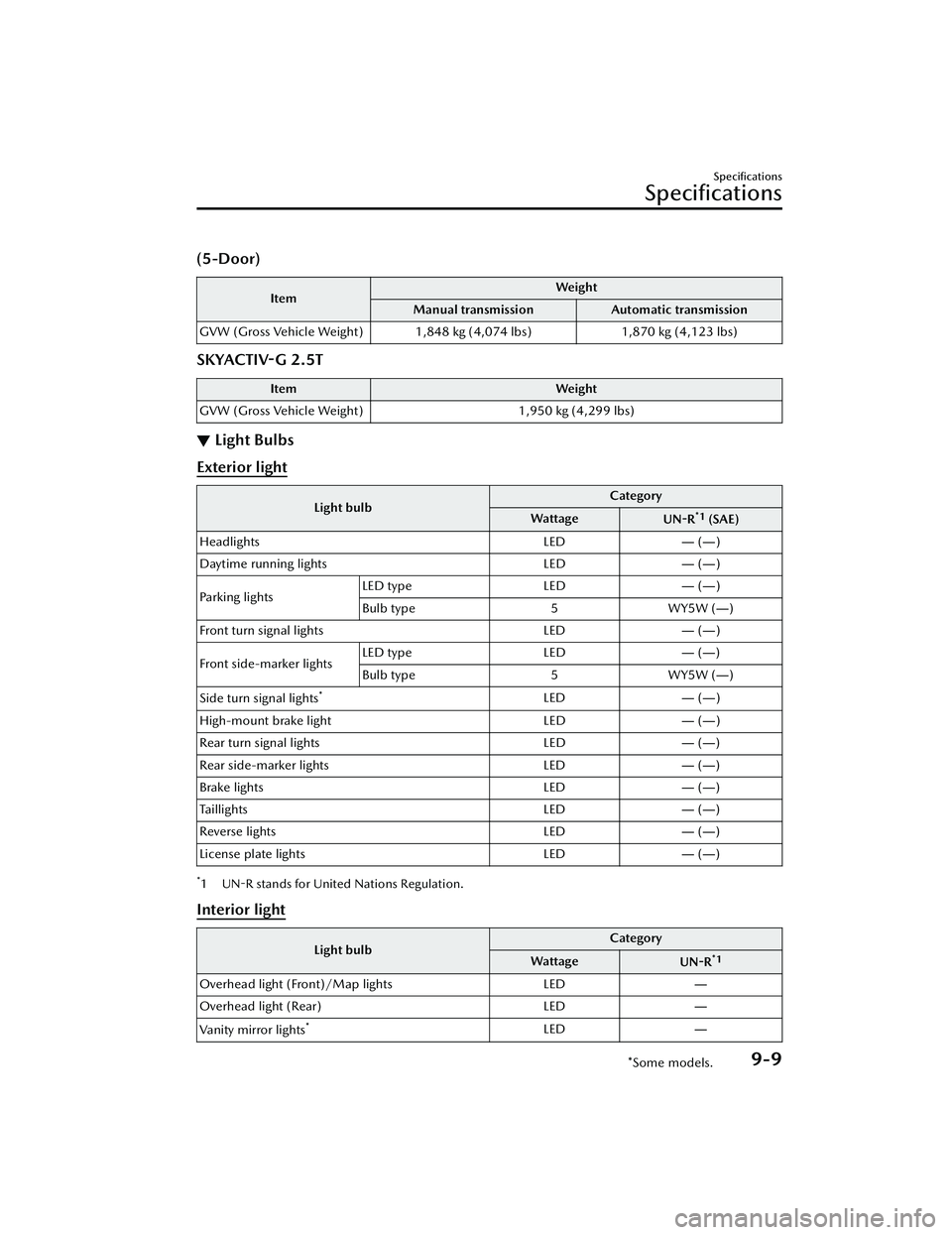

(5-Door)
ItemWeight
Manual transmission Automatic transmission
GVW (Gross Vehicle Weight) 1,848 kg (4,074 lbs) 1,870 kg (4,123 lbs)
SKYACTIV-G 2.5T
Item Weight
GVW (Gross Vehicle Weight) 1,950 kg (4,299 lbs)
▼Light Bulbs
Exterior light
Light bulb Category
Watta ge UN-R*1 (SAE)
Headlights LED ― (― )
Daytime running lights LED― (― )
Parking lights LED type
LED― (― )
Bulb type 5WY5W (―)
Front turn signal lights LED― (― )
Front side-marker lights LED type
LED― (― )
Bulb type 5WY5W (―)
Side turn signal lights
*LED ― (― )
High-mount brake light LED― (― )
Rear turn signal lights LED― (― )
Rear side-marker lights LED― (― )
Brake lights LED― (― )
Taillights LED― (― )
Reverse lights LED― (― )
License plate lights LED― (― )
*1 UN-R stands for United Nations Regulation.
Interior light
Light bulb Category
Watta ge UN-R*1
Overhead light (Front)/Map lights LED―
Overhead light (Rear) LED―
Vanity mirror lights
*LED ―
