washer fluid MAZDA MAZDA 2023 Owners Manual

SignalWarning Refer to
*AWD Warning Indication/Warning Light*17-32
Air Bag/Seat Belt Pretensioner System Warning Indication/Warning
Light*17-33
Tire Pressure Monitoring System (TPMS) Warning Indication/Warning
Light*1
Flashing
7-33
Tu r n s o n 7-37
(Red) KEY Warning Indication/Warning Light
*17-34
(Amber)
*High Beam Control System (HBC) Warning Indication/Warning
Light*17-35
i-ACTIVSENSE Warning Indication/Warning Light*17-35
Exterior Light Warning Indication/Warning Light*17-35
Low Fuel Warning Indication/Warning Light 7-35
Check Fuel Cap Warning Indication/Warning Light*17-36
Engine Oil Level Warning Indication/Warning Light*17-36
Seat Belt Warning Indication/Warning Light (Front seat) 7-36
(Red)Seat Belt Warning Light (Rear seat)
7-37
*Low Washer Fluid Level Warning Indication/Warning Light7-37
Door-Ajar Warning Indication
7-37
When Driving
Instrument Cluster and Display
4-30*Some models.
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

6Maintenance and Care
How to keep your Mazda in top condition.
Essential Information................. 6-2 Introduction.......................... 6-2
Scheduled Maintenance............ 6-4 Scheduled Maintenance......... 6-4
Owner Maintenance............... 6-11 Owner Maintenance
Precautions......................... 6-11
Hood.................................. 6-12
Engine Compartment
Overview............................ 6-14
Engine Oil........................... 6-16
Engine Coolant.................... 6-19
Brake/Clutch Fluid............... 6-20
Washer Fluid....................... 6-21
Body Lubrication.................. 6-22
Wiper Blades....................... 6-23
Battery................................ 6-28
Key Battery Replacement...... 6-30
Tires.................................... 6-32
Light Bulbs...........................6-36
Fuses.................................. 6-39
Appearance Care.................... 6-47 Exterior Care....................... 6-47
Interior Care........................ 6-53
6-1
Mazda3_8LC2-EA-22G_Edition1_new 2022-5-20 11:26:10

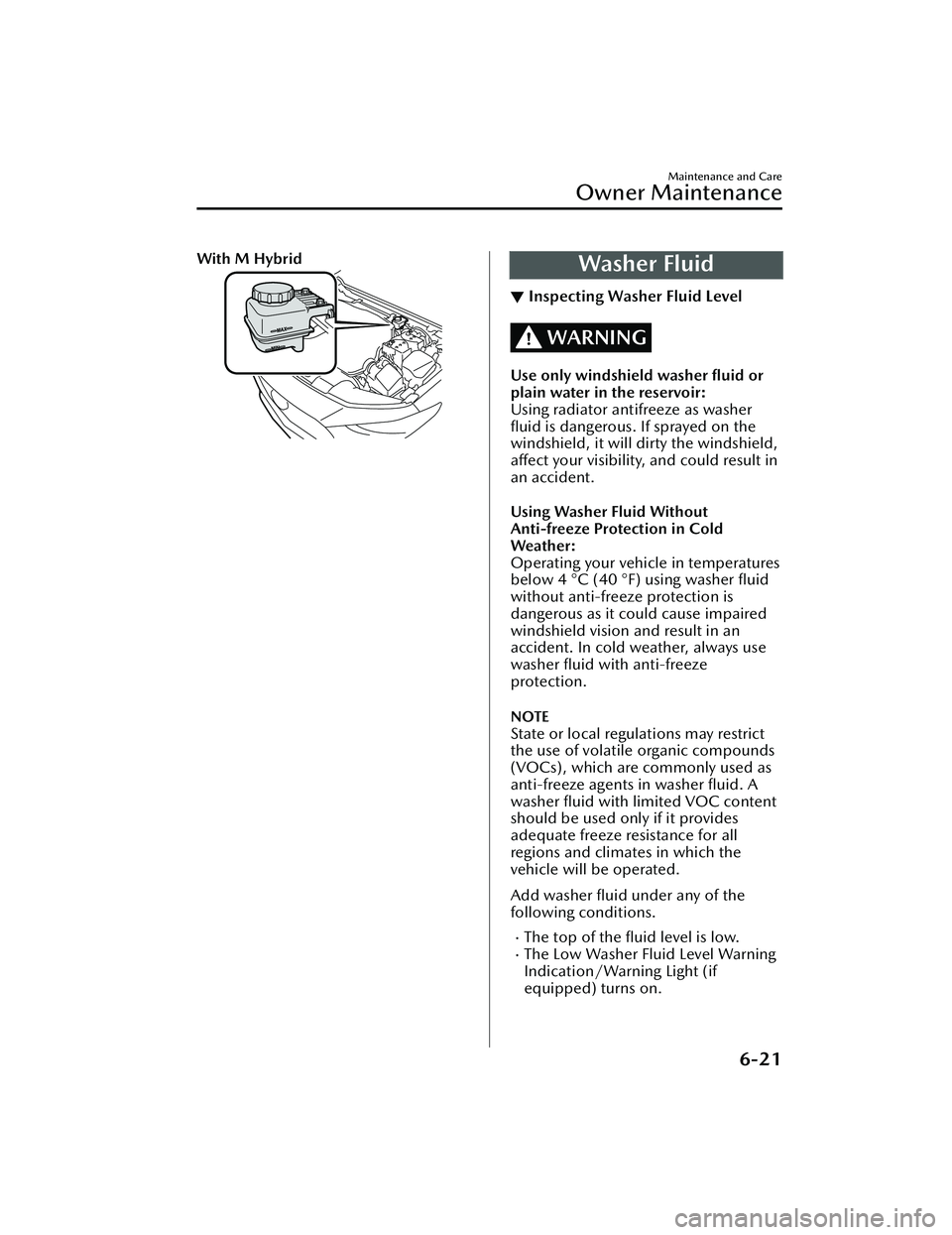

With M HybridWasher Fluid
▼Inspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result in
an accident.
Using Washer Fluid Without
Anti-freeze Protection in Cold
Weather:
Operating your vehicle in temperatures
below 4 °C (40 °F) using washer fluid
without anti-freeze protection is
dangerous as it could cause impaired
windshield vision and result in an
accident. In cold weather, always use
washer fluid with anti-freeze
protection.
NOTE
State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.
Add washer fluid under any of the
following conditions.
The top of the fluid level is low.The Low Washer Fluid Level Warning
Indication/Warning Light (if
equipped) turns on.
Maintenance and Care
Owner Maintenance
6-21
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Action to be taken
Fasten the seat belts.
▼Seat Belt Warning Light (Rear seat)
(Red)
If the rear seat belts are not fastened
while the ignition is switched ON , the
driver and the passenger are alerted by
the warning light.
The warning light operates even if there
is no passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a
certain period of time after the engine
has been started, the warning light
turns off.
Action to be taken
Fasten the seat belts.
▼
Low Washer Fluid Level Warning
Indication/Warning Light*
This warning light indicates that little
washer fluid remains.
Action to be taken
Add washer fluid (page 6-21).
▼Door-Ajar/Trunk lid-Ajar/
Liftgate-Ajar Warning Indication/
Warning Light
The light turns on if any door/trunk
lid/liftgate is not closed securely.
Action to be taken
Close the door/trunk lid/liftgate
securely.
▼Tire Pressure Monitoring System
(TPMS) Warning Indication/
Warning Light (Turns on)
If a tire pressure decreases below the
specified air pressure, the TPMS
warning light turns on.
At the same time, a message and the
tire pressure of each tire are displayed
on the multi-information display
alternately. In addition, the tire (s) with
low air pressure is displayed in yellow.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-37
Mazda3_8LC2-EA-22G_Edition1_new
2022-5-20 11:26:10

Index
F
FlasherHazard warning.................... 4-71
Headlights............................4-57
Flat Tire Changing a flat tire................. 7-7
Mounting the spare tire........ 7-12
Removing a flat tire................ 7-8
Floor Mat................................. 3-48
Fluids Brake/Clutch........................6-20
Classification.......................... 9-5
Washer................................ 6-21
Foot Brake................................ 4-76
Forward Sensing Camera (FSC) ..........
.............................................. 4-211
Front Camera/Side Cameras/Rear
Camera.................................. 4-221
Front Cross Traffic Alert (FCTA) ..........
.............................................. 4-123
Front Cross Tra ffi c Alert (FCTA)
Warning Beep........................... 7-47
Front Radar Sensor.................. 4-215
Front Side Radar Sensor........... 4-218
Fuel Filler lid and cap...................3-28
Requirements....................... 3-26
Tank capacity......................... 9-5
Fuses........................................ 6-39 Panel description.................. 6-42
Replacement........................ 6-39
G
Gauges..................................... 4-18
Glove Compartment..................5-47
H
Hazardous Driving.....................3-47
Hazard Warning Flasher............. 4-71
HeadlightsComing home light...............4-61
Flashing................................4-60
High-low beam.................... 4-60
Leaving home light............... 4-61
Leveling................................4-62
Head Restraint.......................... 2-17
High Beam Control System
(HBC)..................................... 4-101 High Beam Control System (HBC)
indicator light (green)......... 4-102
Hill Launch Assist (HLA)............. 4-87
HomeLink Wireless Control
System...................................... 4-71
Hood Release........................... 6-12
Horn........................................ 4-70
I
If a Warning Light Turns On or
Flashes......................................7-27
If the Active Driving Display Does Not
Operate.................................... 7-51
Ignition Not Switched Off (STOP)
Warning Beep........................... 7-44
Ignition Switch............................ 4-4
Illuminated Entry System............ 5-42
Immobilizer System................... 3-42
Inside Trunk Release Lever......... 3-24
Inspecting Brake/Clutch Fluid
Level.........................................6-20
Inspecting Coolan t Level............ 6-19
Inspecting Engine Oil Level.........6-18
Inspecting Washer Fluid Level..... 6-21
Instrument Cluster..................... 4-18 Average fuel economy...........4-26
Compass display.................. 4-28
Current fuel economy........... 4-27
Dashboard illumination........ 4-24
Deceleration regeneration charge
display................................. 4-27
10-4
