Average vehicle speed mode
This mode displays the average vehicle
speed by calculating the distance and the
time traveled since connecting the battery
or resetting the data.
Average vehicle speed will be calculated
and displayed every 10 seconds.
When this mode is selected, AV will be
displayed.
U.S.A.
CANADA
To clear the data being displayed, press
the INFO button for more than 1.5
seconds. After pressing the INFO button,
- - - km/h (- - - mile/h) will be displayed
for about 1 minute before the vehicle
speed is recalculated and displayed.
Driving Your Mazda
Instrument Cluster and Indicators
5-35
Mazda2_8BX2-EA-10K_Edition2 Page141
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (142,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
SignalWarning/Indicator Lights Page
Brake System Warning Light 5-38
Charging System Warning Light5-39
Engine Oil Pressure Warning Light5-40
Check Engine Light5-40
High Engine Coolant Temperature Warning Light (Red) 5-41
ABS Warning Light5-38
Air Bag/Front Seat Belt Pretensioner System Warning Light5-41
5-36
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda2_8BX2-EA-10K_Edition2 Page142
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (143,1)
SignalWarning/Indicator Lights Page
Check Fuel Cap Warning Light 5-42
Seat Belt Warning Light5-42
Door-Ajar Warning Light5-43
Low Washer Fluid Level Warning Light5-43
Tire Pressure Monitoring System Warning Light5-44
Security Indicator Light5-46
Headlight High-Beam Indicator Light5-46
O/D OFF Indicator Light5-46
Shift Position Indicator Light5-47
Low Engine Coolant Temperature Indicator Light (Blue) 5-47
TCS/DSC Indicator Light5-47
DSC OFF Indicator Light5-47
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 5-48
Power Steering Malfunction Indicator Light5-48
Turn Signal/Hazard Warning Indicator Lights5-48
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-37
Mazda2_8BX2-EA-10K_Edition2 Page143
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (144,1)
qBrake System Warning Light
This warning has the following functions:
Brake system warning
Illuminates when there is a malfunction in
the brake switch.
Parking brake warning
The light illuminates when the parking
brake is applied with the ignition switch
in the START or ON position. It turns off
when the parking brake is fully released.
Low brake fluid level warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
You may notice that the pedal is harder to
depress or that it may go closer to the
floor. In either case, it will take longer to
stop the vehicle.
1. With the engine stopped, open the
hood and check the brake fluid level
immediately, and then add fluid if
required (page 8-15).
2. After adding fluid, check the light again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer. Even if the light turns off have your brake
system inspected as soon as possible by
an Authorized Mazda Dealer.
NOTE
Having to add brake fluid is sometimes an
indicator of leakage. Consult an Authorized
Mazda Dealer as soon as possible even if the
brake light is no longer illuminated.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.
5-38
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda2_8BX2-EA-10K_Edition2 Page144
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (145,1)
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
lThe brake assist system does not operate
while the ABS warning light is illuminated.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qCharging System Warning Light
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If the warning light illuminates while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-39
Mazda2_8BX2-EA-10K_Edition2 Page145
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (146,1)

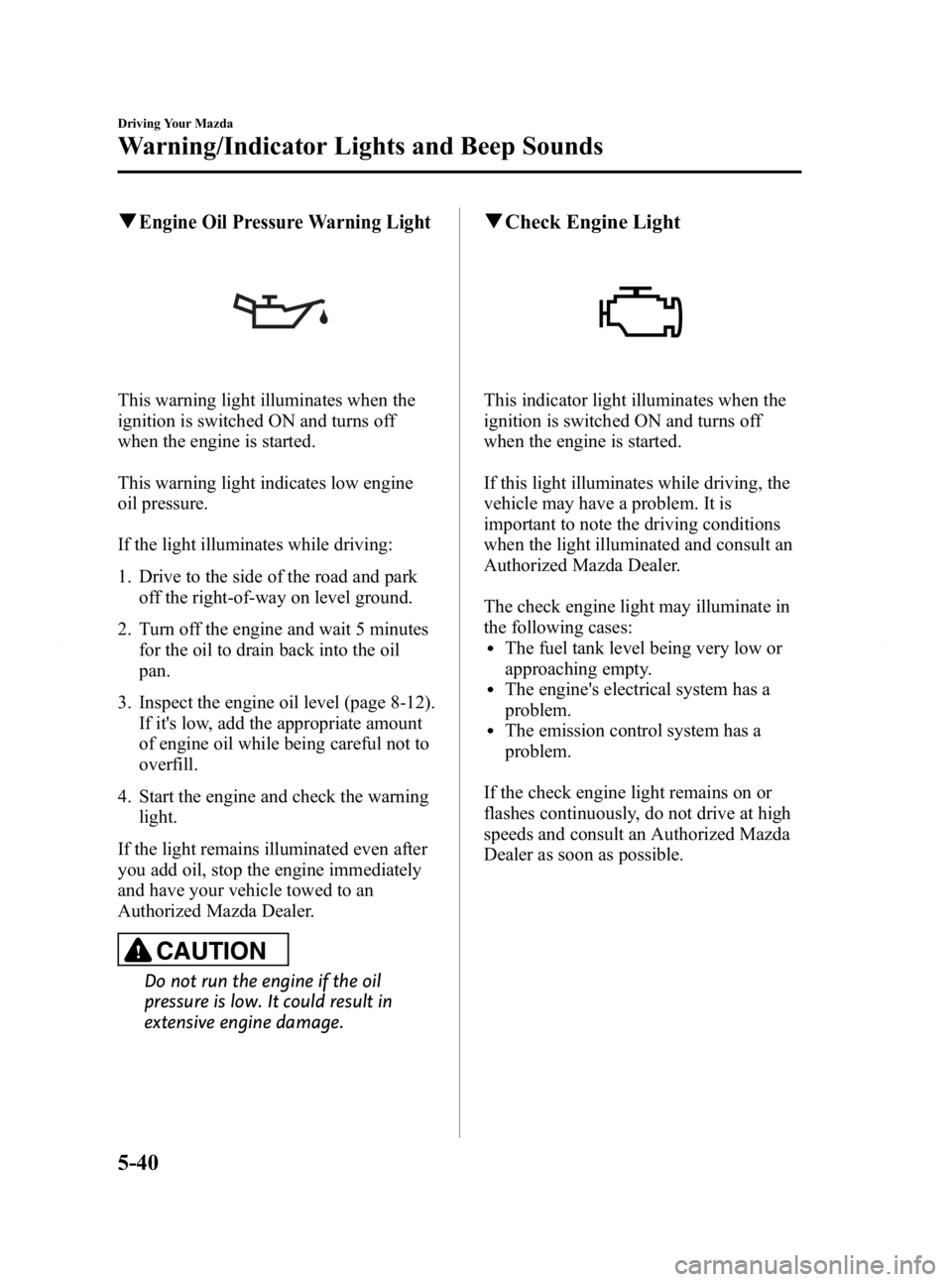

qEngine Oil Pressure Warning Light
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
This warning light indicates low engine
oil pressure.
If the light illuminates while driving:
1. Drive to the side of the road and parkoff the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 8-12). If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
4. Start the engine and check the warning light.
If the light remains illuminated even after
you add oil, stop the engine immediately
and have your vehicle towed to an
Authorized Mazda Dealer.
CAUTION
Do not run the engine if the oil
pressure is low. It could result in
extensive engine damage.
q Check Engine Light
This indicator light illuminates when the
ignition is switched ON and turns off
when the engine is started.
If this light illuminates while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light illuminated and consult an
Authorized Mazda Dealer.
The check engine light may illuminate in
the following cases:
lThe fuel tank level being very low or
approaching empty.
lThe engine's electrical system has a
problem.
lThe emission control system has a
problem.
If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.
5-40
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda2_8BX2-EA-10K_Edition2 Page146
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (147,1)
qHigh Engine Coolant Temperature
Warning Light (Red)
When the ignition is switched ON, the
light illuminates momentarily and then
turns off.
The light flashes when the engine coolant
temperature is extremely high, and
illuminates when the engine coolant
temperature increases further.
Handling Procedure
Flashing light
Drive slowly to reduce engine load.
Illuminated light
This indicates the possibility of
overheating. Park the vehicle in a safe
place immediately and take appropriate
measures.
Refer to Overheating (page 7-15).
CAUTION
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-41
Mazda2_8BX2-EA-10K_Edition2 Page147
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (148,1)

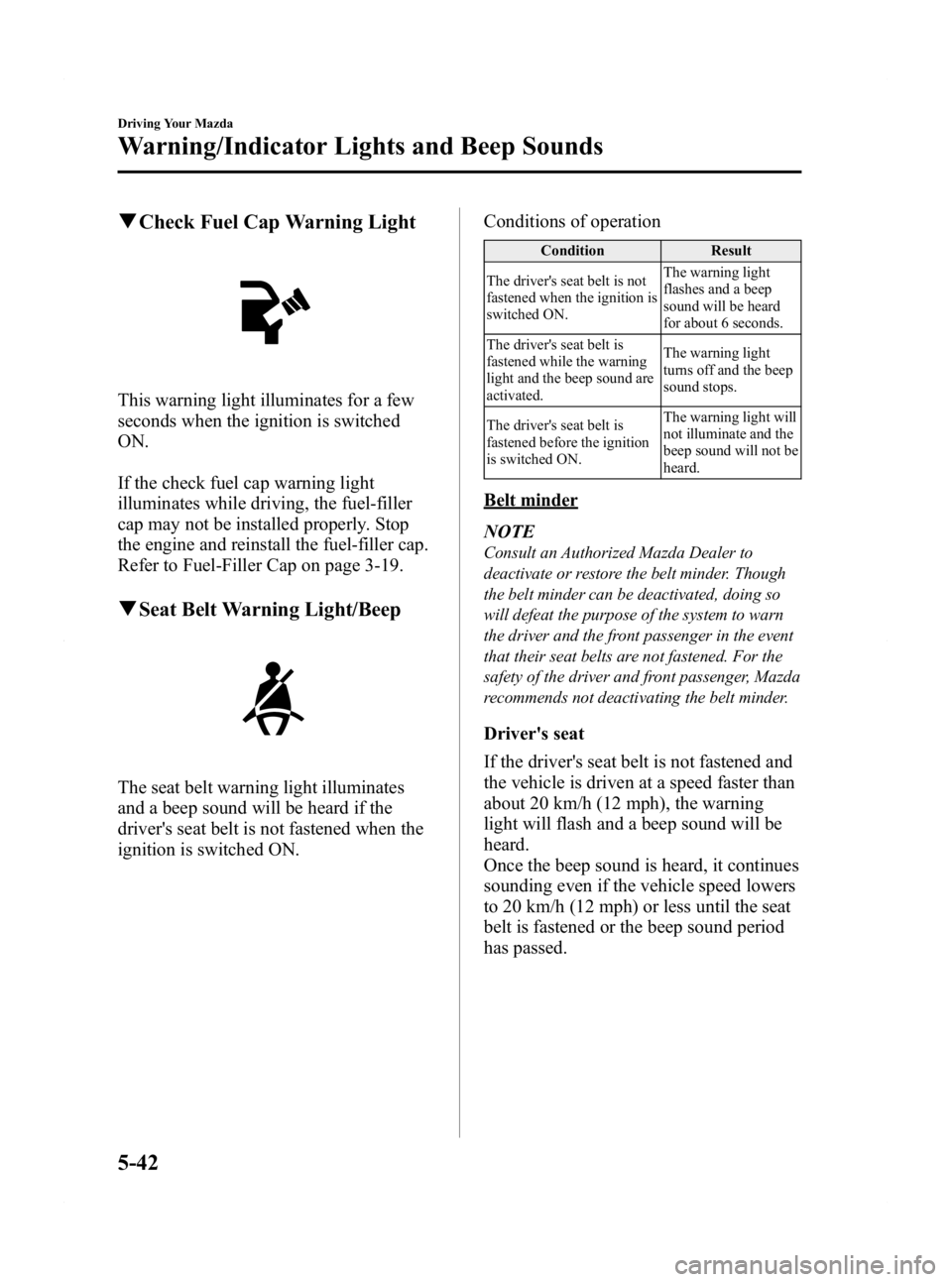

qCheck Fuel Cap Warning Light
This warning light illuminates for a few
seconds when the ignition is switched
ON.
If the check fuel cap warning light
illuminates while driving, the fuel-filler
cap may not be installed properly. Stop
the engine and reinstall the fuel-filler cap.
Refer to Fuel-Filler Cap on page 3-19.
qSeat Belt Warning Light/Beep
The seat belt warning light illuminates
and a beep sound will be heard if the
driver's seat belt is not fastened when the
ignition is switched ON. Conditions of operation
Condition
Result
The driver's seat belt is not
fastened when the ignition is
switched ON. The warning light
flashes and a beep
sound will be heard
for about 6 seconds.
The driver's seat belt is
fastened while the warning
light and the beep sound are
activated. The warning light
turns off and the beep
sound stops.
The driver's seat belt is
fastened before the ignition
is switched ON. The warning light will
not illuminate and the
beep sound will not be
heard.
Belt minder
NOTE
Consult an Authorized Mazda Dealer to
deactivate or restore the belt minder. Though
the belt minder can be deactivated, doing so
will defeat the purpose of the system to warn
the driver and the front passenger in the event
that their seat belts are not fastened. For the
safety of the driver and front passenger, Mazda
recommends not deactivating the belt minder.
Driver's seat
If the driver's seat belt is not fastened and
the vehicle is driven at a speed faster than
about 20 km/h (12 mph), the warning
light will flash and a beep sound will be
heard.
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the seat
belt is fastened or the beep sound period
has passed.
5-42
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda2_8BX2-EA-10K_Edition2 Page148
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (149,1)
Front passenger seat
If the front passenger seat belt is not
fastened while the ignition is switched
ON, the driver and the passenger will be
informed by the warning light.
If the front passenger seat belt is not
fastened and the vehicle is driven at a
speed faster than about 20 km/h (12 mph),
the warning light will flash and a beep
sound will be heard.
Placing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function to
operate depending on the weight of the
item.
Once the beep sound is heard, it continues
sounding even if the vehicle speed lowers
to 20 km/h (12 mph) or less until the seat
belt is fastened or the beep sound period
has passed.NOTE
lTo allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on the
front passenger seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
lWhen a small child sits on the front
passenger seat, it is possible that neither
the warning light nor the warning beep
operate.
q
Door-Ajar Warning Light
This warning light illuminates when any
door or liftgate is not securely closed.
Close the door or liftgate securely before
driving the vehicle.
qLow Washer Fluid Level
Warning Lightí
This warning light indicates that little
washer fluid remains. Add fluid (page
8-18).
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-43íSome models.
Mazda2_8BX2-EA-10K_Edition2 Page149
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (150,1)
qTire Pressure Monitoring System
(TPMS) Warning Lightí
This warning light illuminates for a few
seconds when the ignition is switched
ON.
Thereafter, the warning light illuminates
and a beep is heard when tire pressure is
too low in one or more tires, and flashes
when there is a system malfunction.
WARNING
If the tire pressure monitoring system
warning light illuminates or flashes, or
the tire pressure warning beep sound is
heard, decrease vehicle speed
immediately and avoid sudden
maneuvering and braking:
If the tire pressure monitoring system
warning light illuminates or flashes,
or the tire pressure warning beep
sound is heard, it is dangerous to
drive the vehicle at high speeds, or
perform sudden maneuvering or
braking. Vehicle drivability could
worsen and result in an accident.
To determine if you have a slow leak
or a flat, pull over to a safe position
where you can check the visual
condition of the tire and determine if
you have enough air to proceed to a
place where air may be added and
the system monitored again by an
Authorized Mazda Dealer or a tire
repair station.
Do not ignore the TPMS Warning Light: Ignoring the TPMS warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious
situation that could lead to tire
failure and a dangerous accident.
Warning light illuminates/Warning
beep sounds
When the warning light illuminates, and
the warning beep sound is heard (about 3
seconds), tire pressure is too low in one or
more tires.
5-44
Driving Your Mazda
íSome models.
Warning/Indicator Lights and Beep Sounds
Mazda2_8BX2-EA-10K_Edition2 Page150
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K
