If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace the tire before the
band crosses the entire tread.
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 9-21.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Maintain its pressure at 420 kPa (4.2
kgf/cm
2or bar, 60 psi).
CAUTION
Ø Do not use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
Ø The temporary spare tire has a
tread life of less than 5,000 km
(3,000 miles). The tread life may
be shorter depending on driving
conditions.
Ø The temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 8-28).
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 9-21.
Maintenance and Care
Owner Maintenance
8-29
Mazda2_8BX2-EA-10K_Edition2 Page261
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (262,1)
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring
System
Ø (With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-27.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset
(inset/outset).
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
8-30
Maintenance and Care
Owner Maintenance
Mazda2_8BX2-EA-10K_Edition2 Page262
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (263,1)
MEMO
8-31
Mazda2_8BX2-EA-10K_Edition2 Page263
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (264,1)
Light Bulbs
Headlights
Front turn signal lights Overhead light
Side turn signal lights
Parking lights/Front side-
marker lights
Fog lights
High-mount brake light
Reverse lights Luggage compartment light
Rear turn signal lights
Some models.
License plate light
Brake lights/Taillights
(Rear side-marker lights)
8-32
Maintenance and Care
Owner Maintenance
Mazda2_8BX2-EA-10K_Edition2 Page264
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (265,1)
WARNING
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children: Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Headlight bulbs
1. Make sure the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off the
engine. If you are changing the left
bulb, turn the steering wheel to the
right. 3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
Removal
Installation
4. Detach the electrical connector from the sealing cover by pulling it to the
rear.
Maintenance and Care
Owner Maintenance
8-33
Mazda2_8BX2-EA-10K_Edition2 Page265
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (266,1)
5. Detach the sealing cover from the bulb.
Sealing cover
6. Unhook the bulb retaining spring.
7. Swing the retaining spring out andaway to free the headlight bulb.
8. Carefully remove the headlight bulb
from the socket by pulling it straight
back.
9. Replace the bulb.
10. Install the new bulb in the reverse order of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
lWhen reinstalling the sealing cover, make
sure it fitted correctly.
Fog light bulbsí
1. Make sure the ignition is switched off, and the headlight switch is off.
2. Turn the screw counterclockwise and remove it, then partially peel back the
mudguard.
8-34
Maintenance and Care
íSome models.
Owner Maintenance
Mazda2_8BX2-EA-10K_Edition2 Page266
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (267,1)
3. Disconnect the electrical connectorfrom the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
4. Turn the bulb assemblycounterclockwise and remove it.
5. Install the new bulb in the reverse order
of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Front turn signal lights
1. Make sure the ignition is switched off and the headlight switch is off.
2. Lift the hood.
3. Turn the socket and bulb assembly counterclockwise and remove it.
4. Remove the bulb by pushing it in slightly and turning it
counterclockwise.
5. Install the new bulb in the reverse orderof removal.
Parking lights/Front side-marker lights
1. Make sure the headlight switch is off.
2. If you are changing the right bulb, startthe engine, turn the steering wheel all
the way to the left, and turn off the
engine. If you are changing the left
bulb, turn the steering wheel to the
right.
Maintenance and Care
Owner Maintenance
8-35
Mazda2_8BX2-EA-10K_Edition2 Page267
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (268,1)

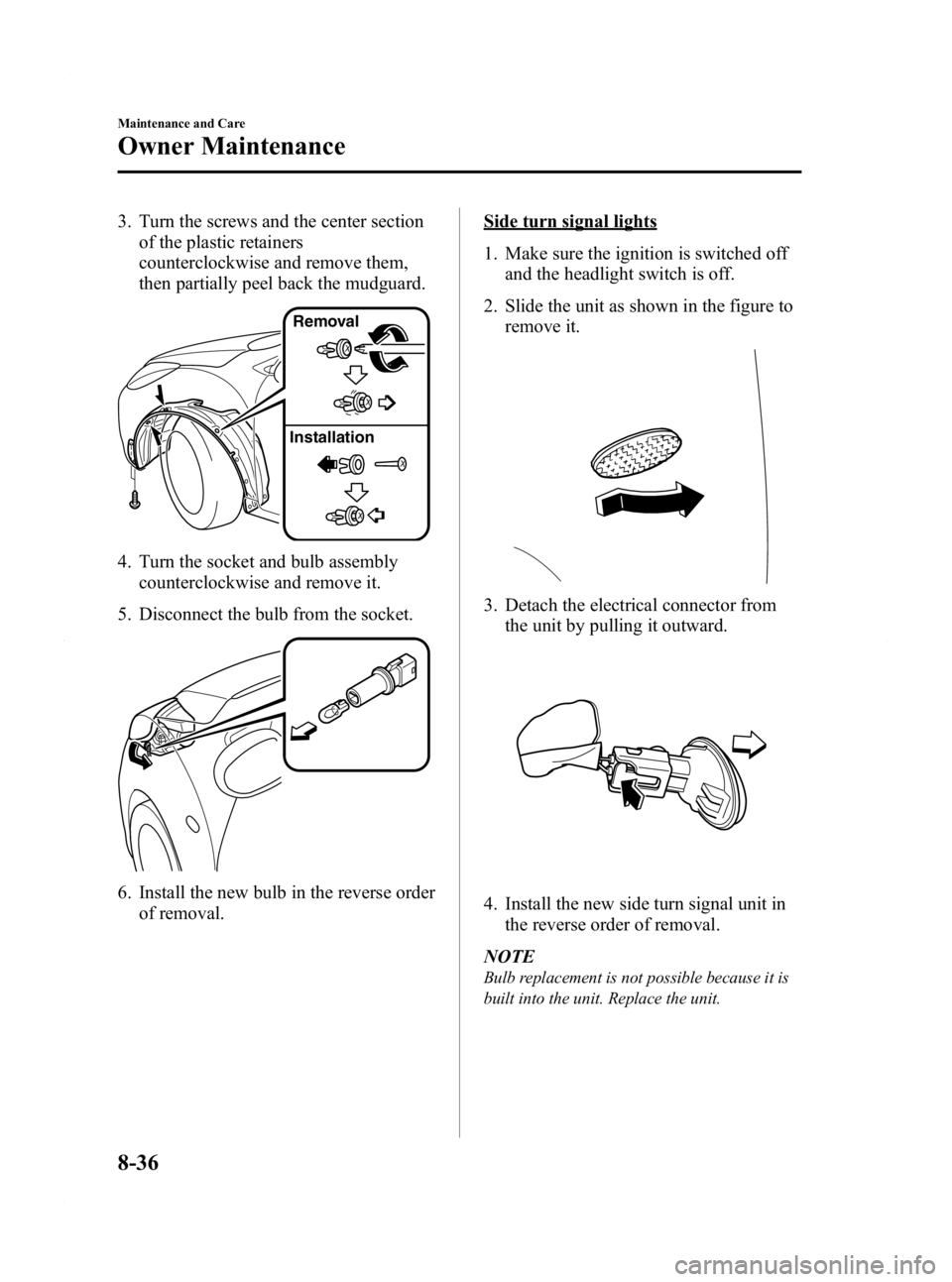

3. Turn the screws and the center sectionof the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
Removal
Installation
4. Turn the socket and bulb assembly counterclockwise and remove it.
5. Disconnect the bulb from the socket.
6. Install the new bulb in the reverse order of removal.
Side turn signal lights
1. Make sure the ignition is switched offand the headlight switch is off.
2. Slide the unit as shown in the figure to remove it.
3. Detach the electrical connector fromthe unit by pulling it outward.
4. Install the new side turn signal unit inthe reverse order of removal.
NOTE
Bulb replacement is not possible because it is
built into the unit. Replace the unit.
8-36
Maintenance and Care
Owner Maintenance
Mazda2_8BX2-EA-10K_Edition2 Page268
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (269,1)
Brake lights/Taillights (Rear side
marker lights)/Rear turn signal lights/
Reverse lights
1. Make sure the ignition is switched offand the headlight switch is off.
2. Turn the bolts counterclockwise and remove them.
3. Pull the unit rearward to remove it.
4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket. Brake lights/Taillights (Rear side
marker lights)
Rear turn signal lights
Reverse lights
6. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-37
Mazda2_8BX2-EA-10K_Edition2 Page269
Thursday, December 23 2010 4:48 PM
Form No.8BX2-EA-10K

Black plate (270,1)
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
License plate light
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with the flathead
screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order of removal.
qReplacing Interior Light Bulbs
Overhead light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order of removal.
8-38
