Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they do not have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBERPUBLICATION DESCRIPTION
9999-95-026B-12 2012 WORKSHOP MANUAL (English)
9999-95-077G-12 2012 WIRING DIAGRAM (English)
9999-95-002C-12 (U.S.A. only) 2012 OWNER'S MANUAL
9999-EC-002C-12 (Canada only) 2012 OWNER'S MANUAL
9999-PR-002C-12 (Puerto Rico only) 2012 OWNER'S MANUAL
9999-95-MODL-12 2012 SERVICE HIGHLIGHTS
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
qSERVICE HIGHLIGHTS:
Provides description and operation of the many systems of your Mazda.
Customer Information and Reporting Safety Defects
Service Publications
9-43
Mazda2_8CC7-EA-11H_Edition2 Page331
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (332,1)
9-44
Mazda2_8CC7-EA-11H_Edition2 Page332
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (333,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4 Specifications .......................................................................... 10-4
Personalization Features ............................................................ 10-7 Personalization Features .......................................................... 10-7
10-1
Mazda2_8CC7-EA-11H_Edition2 Page333
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (334,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
Open the cover shown in the figure to
check the chassis number.
qVehicle Emission Control
Information Label
10-2
Identification Numbers
Mazda2_8CC7-EA-11H_Edition2 Page334
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (335,1)
qTire Pressure Label
qEngine Number
Forward
Identification Numbers
10-3
Mazda2_8CC7-EA-11H_Edition2 Page335
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (336,1)
Specifications
qEngine
Item Specification
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 78.0 × 78.4 mm (3.07 × 3.09 in)
Displacement 1,498 ml (1,498 cc, 91.4 cu in)
Compression ratio 10.0
qElectrical System
Item Classification
Battery 12V-40AH/5HR, 12V-52AH/5HR
Spark-plug number DENSO SK16PR-E13
Spark-plug gap 1.2―1.3 mm (0.047 ―0.051 in)
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.
q Lubricant Quality
Lubricant type and classification
Engine oil Refer to Recommended Oil on page 8-12.
Manual transaxle oil API Service GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF M-V
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
q Capacities
(Approximate Quantities)
Item Capacity
Engine oil With oil filter replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
Without oil filter replacement 3.7 L (3.9 US qt, 3.3 Imp qt)
Coolant Manual transaxle 5.1 L (5.4 US qt, 4.5 Imp qt)
Automatic transaxle 5.4 L (5.7 US qt, 4.8 Imp qt)
Manual transaxle oil 2.91 L (3.07 US qt, 2.56 Imp qt)
Automatic transaxle fluid 7.0 L (7.4 US qt, 6.2 Imp qt)
Fuel tank 42.8 L (11.3 US gal, 9.41 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
10-4
Specifications
Mazda2_8CC7-EA-11H_Edition2 Page336
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (337,1)
qDimensions
Item Vehicle specification
Overall length With front license plate mount cover
3,965 mm (156.1 in)
Without front license plate mount
cover 3,955 mm (155.7 in)
Overall width 1,695 mm (66.7 in)
Overall height 1,475 mm (58.1 in)
Front tread 1,476 mm (58.1 in)
Rear tread 1,466 mm (57.7 in)
Wheelbase 2,490 mm (98 in)
qWeights
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,480 kg (3,263 lbs) 1,502 kg (3,311 lbs)
GAWR
(Gross Axle Weight Rat-
ing) Front 774 kg (1,706 lbs) 799 kg (1,761 lbs)
Rear 706 kg (1,556 lbs) 703 kg (1,550 lbs)
q
Air Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights 60/55 ―(HB2)
Front turn signal lights 21 PY21W (22.3CP)
Parking lights (Front side-marker lights) 5 W5W (4CP)
Fog lights
í55 H11 (H11)
Side turn signal lights*15 WY5W (―)
High-mount brake light LED*2― (― )
Rear turn signal lights 21 WY21W (23CP)
Brake lights/Taillights (Rear side-marker lights) 21/5 W21/5W (#7443)
Reverse lights 16 W16W (#921)
License plate light 5 W5W ( ―)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 LED is the abbreviation for Light Emitting Diode.
Specifications
10-5íSome models.
Mazda2_8CC7-EA-11H_Edition2 Page337
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (338,1)
Interior lightLight bulb Category
Wattage ECE R
Luggage compartment light 5 ―
Overhead light 10 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-26.
Standard tire
Tire size Inflation pressure
Front Rear
185/55R15 82V 220 kPa (32 psi) 210 kPa (30 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D14 88M 420 kPa (60 psi)
qFuses
Refer to Fuses on page 8-39.
10-6
Specifications
Mazda2_8CC7-EA-11H_Edition2 Page338
Monday, September 26 2011 1:55 PM
Form No.8CC7-EA-11H

Black plate (339,1)

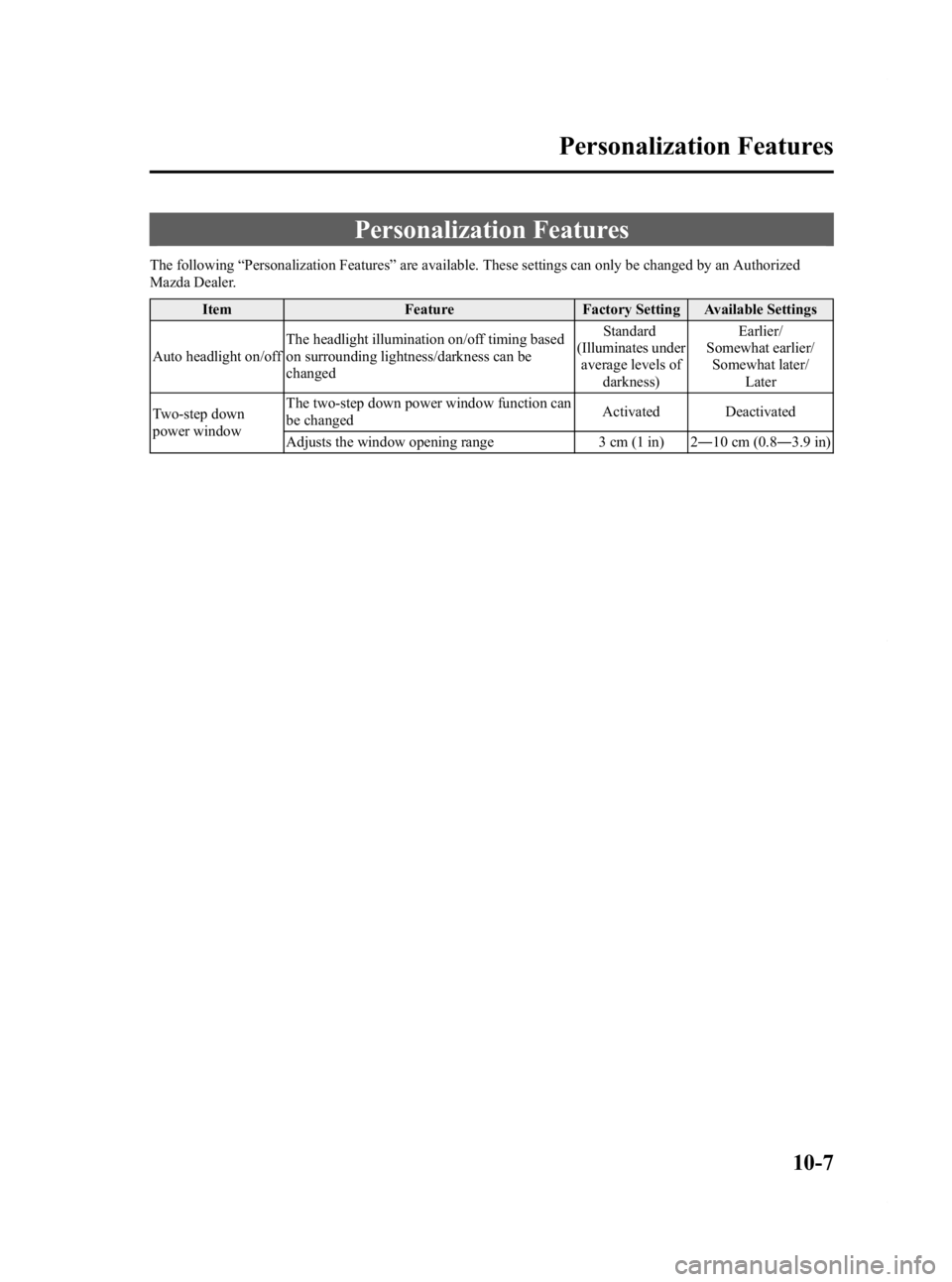

Personalization Features
