Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Never allow children to play with
power window switches: Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Driver's Side
Power Window
Normal opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Driver's window
Master control switches
Auto-opening/closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.
To stop the window partway, pull or press
the switch in the opposite direction and
then release it.
Knowing Your Mazda
Doors and Locks
3-15
Mazda2_8CL7-EA-12H_Edition3 Page83
Friday, January 11 2013 9:49 AM
Form No.8CL7-EA-12H

Black plate (137,1)
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0 ”by holding
the selector depressed for 1 second or
more. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:lThe power supply is interrupted (blown
fuse or the battery is disconnected).
lThe vehicle is driven over 999.9 km
(mile).
q Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine
damage.
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON.
We recommend keeping the tank over 1/4
full.
Driving Your Mazda
Instrument Cluster and Indicators
5-31
Mazda2_8CL7-EA-12H_Edition3 Page137
Friday, January 11 2013 9:49 AM
Form No.8CL7-EA-12H

Black plate (194,1)
qOperating the Radio
Band selector button
Tuning button Channel preset buttons
Power/Volume/Audio control dial
Display Auto memory button
Scan button
Radio ON
Press a band selector button (
)to
turn the radio on.
Band selection
Successively pressing the band selector
button (
) switches the bands as
follows: FM1 →FM2 →AM.
The selected mode will be indicated. If
FM stereo is being received, “ST ”will be
displayed.
NOTE
If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise, and the
“ ST ”indicator will go out.
Tuning
The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.
NOTE
If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be erased.
Manual tuning
Select the station by pressing the tuning
button (
,) lightly.
Seek tuning
Automatic search for radio stations starts
when the tuning button (
,) is pressed
until a beep sound is heard. The search
stops when a station is found.
6-28
Interior Comfort
Audio System
Mazda2_8CL7-EA-12H_Edition3 Page194
Friday, January 11 2013 9:49 AM
Form No.8CL7-EA-12H

Black plate (195,1)
NOTE
If you continue to press and hold the button the
frequency will continue changing without
stopping.
Scan tuning
Press the scan button (
)to
automatically sample stations with a
strong frequency. Scanning stops at each
station for about five seconds. To hold a
station, press the scan button (
)
again during this interval.
Preset channel tuning
The six preset channels can be used to
store 6 AM and 12 FM stations.
1. To set a channel first select AM, FM1, or FM2. Tune to the desired station.
2. Depress a channel preset button for about two seconds until a beep sound is
heard. The preset channel number and
station frequency will be displayed.
The station is now held in the memory.
3. Repeat this operation for the other stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.
NOTE
If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be erased.
Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels. Press and hold the auto memory button
(
) for about two seconds until a
beep sound is heard; the system will
automatically scan and temporarily store
up to six stations with the strongest
frequencies in each selected band in that
area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(
) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If no stations can be tuned after scanning
operations, “A ” will be displayed.
Interior Comfort
Audio System
6-29
Mazda2_8CL7-EA-12H_Edition3 Page195
Friday, January 11 2013 9:49 AM
Form No.8CL7-EA-12H

Black plate (245,1)

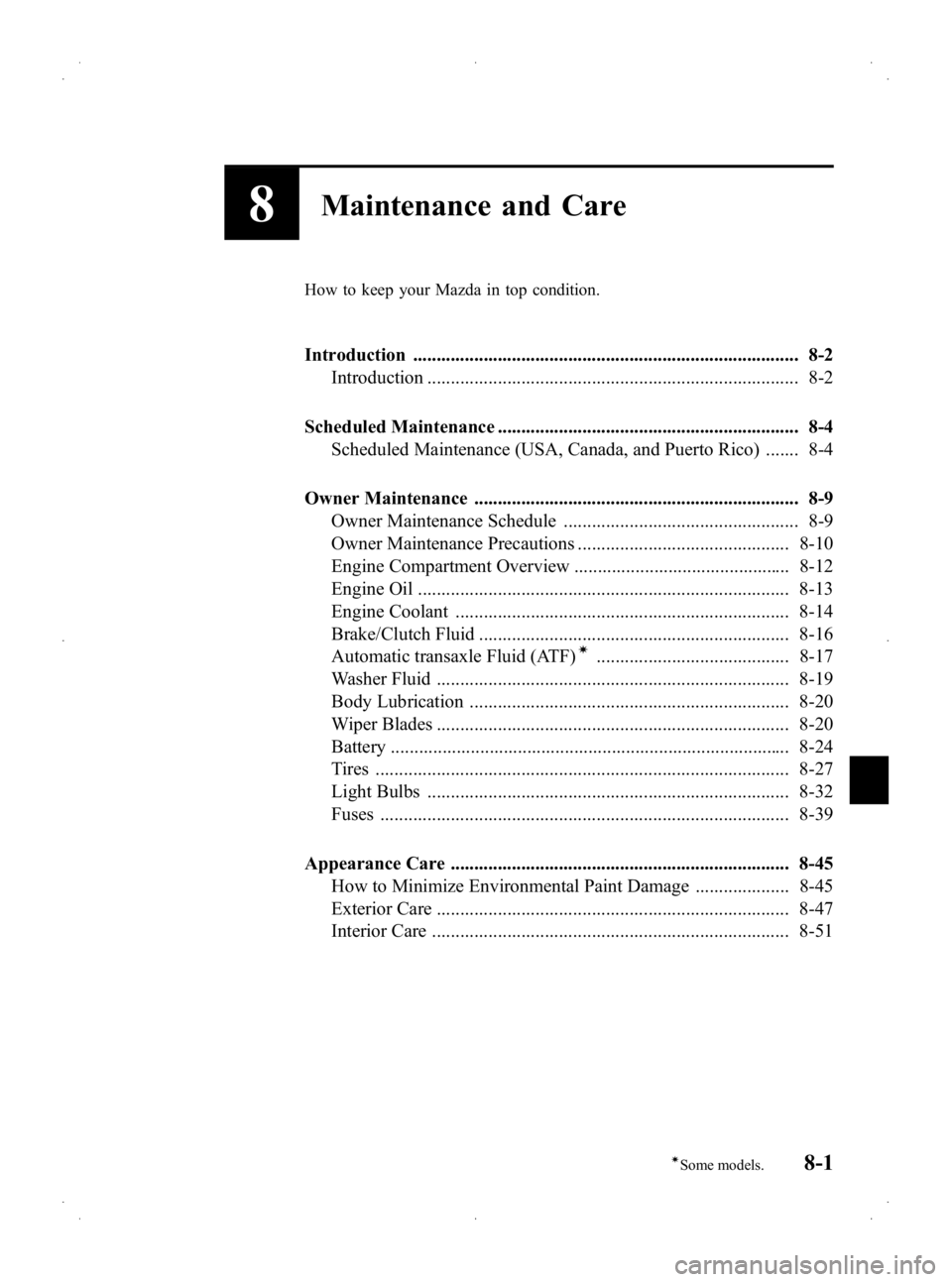

8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-4 Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-4
Owner Maintenance ..................................................................... 8-9 Owner Maintenance Schedule .................................................. 8-9
Owner Maintenance Precautions ............................................. 8-10
Engine Compartment Overview .............................................. 8-12
Engine Oil ............................................................................... 8-13
Engine Coolant ....................................................................... 8-14
Brake/Clutch Fluid .................................................................. 8-16
Automatic transaxle Fluid (ATF)
í......................................... 8-17
Washer Fluid ........................................................................... 8-19
Body Lubrication .................................................................... 8-20
Wiper Blades ........................................................................... 8-20
Battery ..................................................................................... 8-24
Tires ........................................................................................ 8-27
Light Bulbs ............................................................................. 8-32
Fuses ....................................................................................... 8-39
Appearance Care ........................................................................ 8-45 How to Minimize Environmental Paint Damage .................... 8-45
Exterior Care ........................................................................... 8-47
Interior Care ............................................................................ 8-51
8-1íSome models.
Mazda2_8CL7-EA-12H_Edition3 Page245
Friday, January 11 2013 9:50 AM
Form No.8CL7-EA-12H

Black plate (256,1)
Engine Compartment Overview
Battery Fuse block
Engine oil dipstick
Engine oil-filler cap Engine coolant reservoir
Windshield washer fluid reservoir
Automatic transaxle
fluid-level dipstick (only
for automatic transaxle)
Brake/Clutch fluid
reservoir
Cooling system cap
8-12
Maintenance and Care
Owner Maintenance
Mazda2_8CL7-EA-12H_Edition3 Page256
Friday, January 11 2013 9:50 AM
Form No.8CL7-EA-12H

Black plate (283,1)
Luggage compartment light
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of the removal procedure.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the cover.
Maintenance and Care
Owner Maintenance
8-39
Mazda2_8CL7-EA-12H_Edition3 Page283
Friday, January 11 2013 9:50 AM
Form No.8CL7-EA-12H

Black plate (284,1)
3. Pull the fuse straight out with the fusepuller provided on the inside of the
engine compartment fuse block cover.
Fuse block (Engine compartment)
4. Inspect the fuse and replace it if it'sblown.
Normal Blown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system. 6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
Normal
Blown
8-40
Maintenance and Care
Owner Maintenance
Mazda2_8CL7-EA-12H_Edition3 Page284
Friday, January 11 2013 9:50 AM
Form No.8CL7-EA-12H

Black plate (285,1)
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Main fuse
4. Reinstall the cover and make sure that
it is securely installed.
Maintenance and Care
Owner Maintenance
8-41
Mazda2_8CL7-EA-12H_Edition3 Page285
Friday, January 11 2013 9:50 AM
Form No.8CL7-EA-12H

Black plate (286,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FUEL HEAT ――
2 FUEL PUMP 15 A Fuel pump
3 F.FOG 15 A Fog lights
í
4 P/W 20 A Power windows
5 HORN 10 A Horn
6 EGI 10 A Engine control system
7 DSC-P 30 A DSC
8 DSC-V 20 A DSC
9 MAG 7.5 A Air conditioner
10 TAIL 15 A Taillights, Parking lights, License plate lights
11 STOP 10 A Brake lights
12 SWS 7.5 A Air bag
13 R.DEF 20 A Rear window defroster
14 HAZARD 10 A Hazard warning flashers, Turn signal lights
15 D/L 20 A Power door locks
16 EOP ――
17 ENG BAR 15 A Engine control system
8-42
Maintenance and Care
íSome models.
Owner Maintenance
Mazda2_8CL7-EA-12H_Edition3 Page286
Friday, January 11 2013 9:50 AM
Form No.8CL7-EA-12H
