Side turn signal lights
1. Make sure the ignition is switched off,and the turn signal switch is off.
2. Slide the unit as shown in the figure to remove it.
3. Detach the electrical connector fromthe unit by pulling it outward.
4. Install the new side turn signal unit inthe reverse order of the removal
procedure.
NOTE
Bulb replacement is not possible because it is
built into the unit. Replace the unit.
Brake lights/Taillights (Rear side
marker lights)/Rear turn signal lights/
Reverse lights
1. Make sure the ignition is switched off and the headlight switch is off.
2. Turn the bolts counterclockwise and remove them.
3. Pull the unit rearward to remove it.
4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket.
Maintenance and Care
Owner Maintenance
8-37
Mazda2_8DB2-EA-13G_Edition4 Page281
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (282,1)

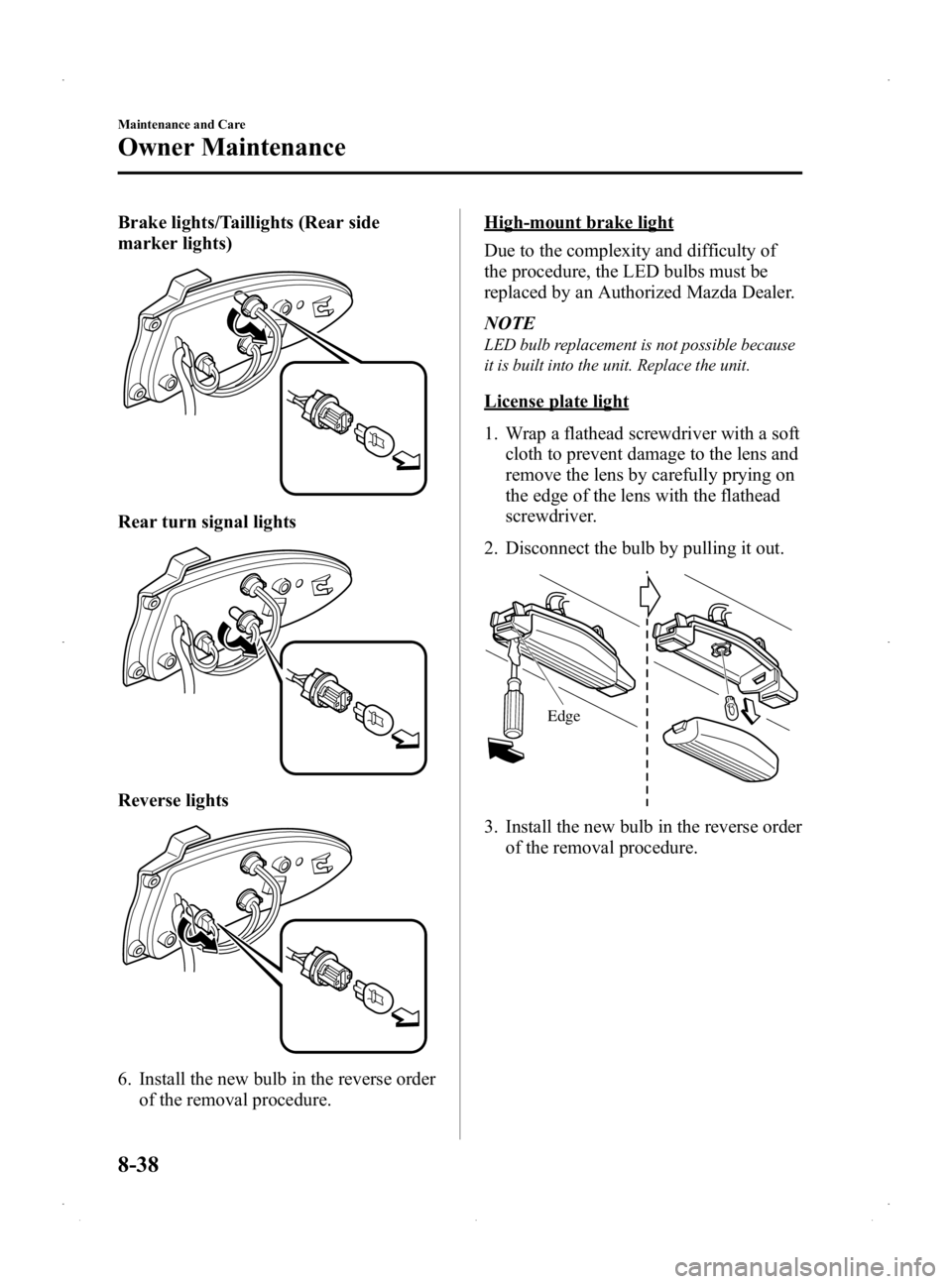

Brake lights/Taillights (Rear side
marker lights)
Rear turn signal lights
Reverse lights
6. Install the new bulb in the reverse orderof the removal procedure.
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
License plate light
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with the flathead
screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order of the removal procedure.
8-38
Maintenance and Care
Owner Maintenance
Mazda2_8DB2-EA-13G_Edition4 Page282
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (283,1)
qReplacing Interior Light Bulbs
Overhead light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Edge
3. Install the new bulb in the reverse order of the removal procedure.
Luggage compartment light
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of the removal procedure.
Maintenance and Care
Owner Maintenance
8-39
Mazda2_8DB2-EA-13G_Edition4 Page283
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (284,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work,
first inspect the fuses on the vehicle's left
side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the cover.
3. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
Fuse block (Engine compartment)
4. Inspect the fuse and replace it if it'sblown.
Normal Blown
5. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
8-40
Maintenance and Care
Owner Maintenance
Mazda2_8DB2-EA-13G_Edition4 Page284
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (285,1)
6. Reinstall the cover and make sure thatit is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Make sure the ignition is switched off,
and other switches are off.
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse is blown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Main fuse
4. Reinstall the cover and make sure that
it is securely installed.
Maintenance and Care
Owner Maintenance
8-41
Mazda2_8DB2-EA-13G_Edition4 Page285
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (286,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 FUEL HEAT ――
2 FUEL PUMP 15 A Fuel pump
3 F.FOG 15 A Fog lights
í
4 P/W 20 A Power windows
5 HORN 10 A Horn
6 EGI 10 A Engine control system
7 DSC-P 30 A DSC
8 DSC-V 20 A DSC
9 MAG 7.5 A Air conditioner
10 TAIL 15 A Taillights, Parking lights, License plate lights
11 STOP 10 A Brake lights
12 SWS 7.5 A Air bag
13 R.DEF 20 A Rear window defroster
14 HAZARD 10 A Hazard warning flashers, Turn signal lights
15 D/L 20 A Power door locks
16 EOP ――
17 ENG BAR 15 A Engine control system
8-42
Maintenance and Care
íSome models.
Owner Maintenance
Mazda2_8DB2-EA-13G_Edition4 Page286
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (287,1)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
18 ENG INJ 15 A Engine control system
19 ENG INJ2 ――
20 H/L HI RH ――
21 H/L HI LH ――
22 DCDC3 ――
23 H/L LO RH 15 A Headlight (RH)
24 H/L LO LH 15 A Headlight (LH)
25 AUDIO2 ――
26 DSC-V2 ――
27 HORN2 ――
28 METER ――
29 ROOM 15 A Overhead light
30 GLOW ――
31 EVVT ――
32 IG KEY 1 40 A For protection of various circuits
33 FAN 3 ――
34 FAN 2 30 A Cooling fan
35 FAN 1 ――
36 INJ ――
37 IG KEY 2 30 A For protection of various circuits
38
――
39 ABS
DSC-P2 ――
40 BLOWER 30 A Air conditioner
Maintenance and Care
Owner Maintenance
8-43
Mazda2_8DB2-EA-13G_Edition4 Page287
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (288,1)
Fuse block (Left side)
DESCRIPTIONFUSE
RATING PROTECTED COMPONENT
1 TCM ――
2 ILLUMI 7.5 A Dashboard illumination
3 CIGAR 15 A Accessory Socket
4 MIRROR 7.5 A Power control mirror
5 M.DEF 7.5 A Mirror defroster
í
6 S.WARM ――
7 A/C 7.5 A Air conditioner
8 F.WIP 20 A Front window wiper and washer
9 R.WIP 10 A Rear window wiper and washer
10 STARTER ――
11 METER 2 ――
12 ENG 10 A Engine control system
13 METER 10 A Instrument cluster
14 SAS 10 A Air bag
15 AUDIO 3 ――
16 P/W 30 A Power windows
8-44
Maintenance and Care
íSome models.
Owner Maintenance
Mazda2_8DB2-EA-13G_Edition4 Page288
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (289,1)

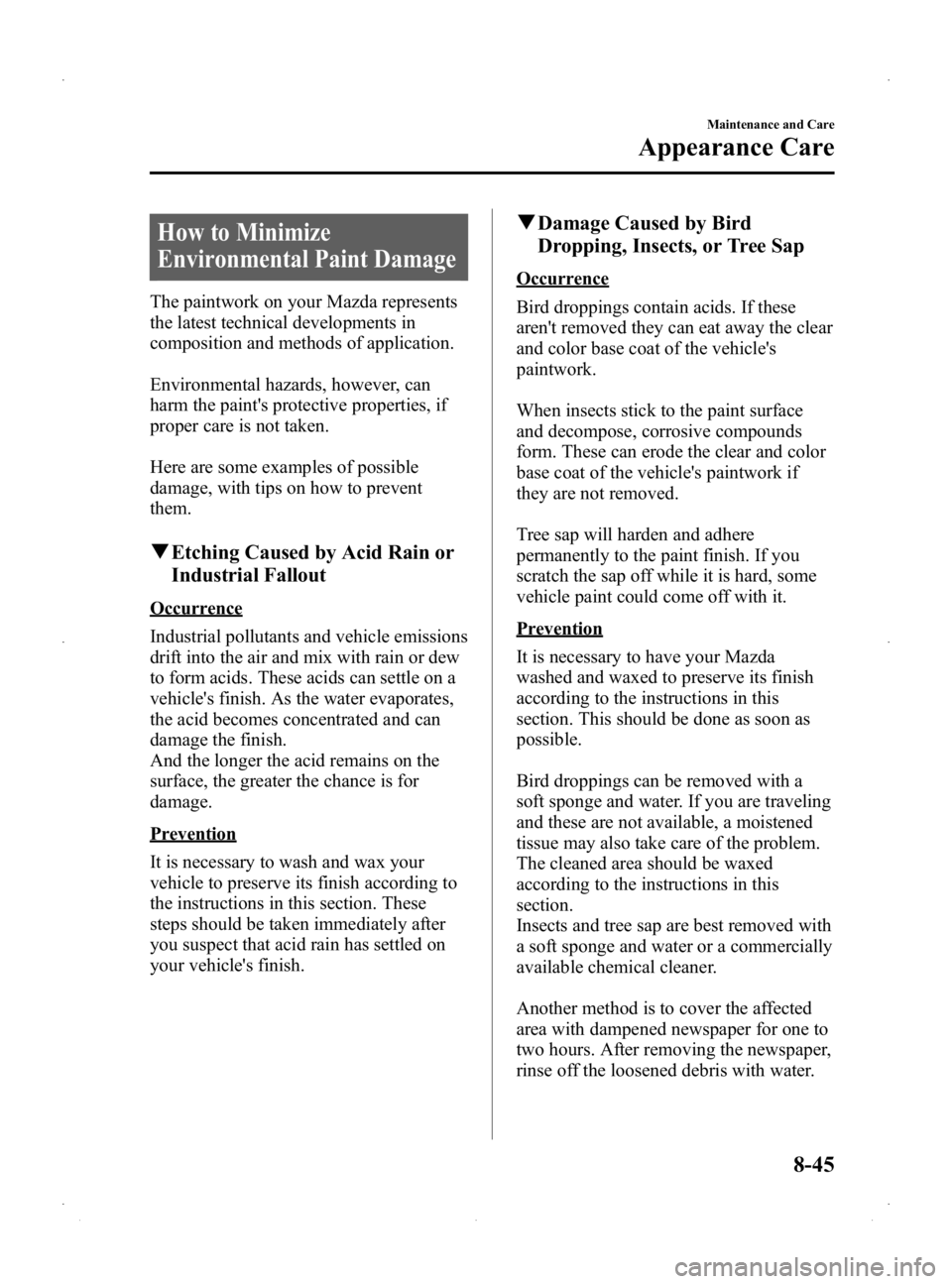

How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
Maintenance and Care
Appearance Care
8-45
Mazda2_8DB2-EA-13G_Edition4 Page289
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G

Black plate (290,1)
qWater Marks
Occurrence
Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these
minerals settles on the vehicle and
evaporates, the minerals will concentrate
and harden to form white rings. The rings
can damage your vehicle's finish.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you find water marks on your vehicle's
finish.
qPaint Chipping
Occurrence
Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.
How to avoid paint chipping
Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel. NOTE
lThe paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).
lIn low temperatures a vehicle's finish
hardens. This increases the chance of paint
chipping.
lChipped paint can lead to rust forming on
your Mazda. Before this happens, repair the
damage by using Mazda touch-up paint
according to the instructions in this section.
Failure to repair the affected area could
lead to serious rusting and expensive
repairs.
8-46
Maintenance and Care
Appearance Care
Mazda2_8DB2-EA-13G_Edition4 Page290
Thursday, May 15 2014 1:38 PM
Form No.8DB2-EA-13G
