engine MAZDA MODEL 2 2017 Owners Manual (in English)

6–42
Maintenance and Care
Owner Maintenance
The following conditions indicate that the
battery power is low:



 The KEY indicator light (green) À ashes
in the instrument cluster for about
30 seconds after the engine is turned off.



 The system does not operate and
the operation indicator light on the
transmitter does not À ash when the
buttons are pressed.



 The system's operational range is
reduced.

Replacing the battery at an Authorised
Mazda Repairer is recommended to
prevent damage to the key. If replacing the
battery by yourself, follow the instruction.
Replacing the key battery
1. Press the knob and pull out the
auxiliary key.

Knob
2. Twist a tape-wrapped À athead
screwdriver in the direction of the
arrow and open the cover slightly.

Cover

3. Insert the tape-wrapped À athead
screwdriver into the gap and slide it in
the direction of the arrow.

Cover
Gap

4. Twist the À athead screwdriver in the
direction of the arrow and remove the
cover.

Cover

6–50
Maintenance and Care
Owner Maintenance
WARNING
Never touch the glass portion of a
halogen bulb with your bare hands
and always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurised gas. If one is broken, it will
explode and serious injuries could be
caused by the À ying glass.
If the glass portion is touched with bare
hands, body oil could cause the bulb to
overheat and explode when lit.

Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
CAUTION
When removing the lens or lamp unit
using a À athead screwdriver, make
sure that the À athead screwdriver does
not contact the interior terminal. If
the À athead screwdriver contacts the
terminal, a short circuit may occur.
NOTE
  To replace the bulb, contact an
expert repairer, we recommend an
Authorised Mazda Repairer.
  If the halogen bulb is accidentally
touched, it should be cleaned with
rubbing alcohol before being used.
  Use the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
Replacing Exterior Light Bulbs
Headlights (With LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Headlights (With halogen headlights)
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the headlight switch is off.

6–52
Maintenance and Care
Owner Maintenance
*Some models.
Running lights/Position lights (With
LED headlights)
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with
the unit. We recommend an Authorised
Mazda Repairer when the replacement is
necessary.
Front direction indicator lights,
Running lights
* /Position lights (With
halogen headlights)
1. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right, and turn
off engine.
2. Make sure the headlight switch is off.
3. Pull the centre of each plastic retainer
and remove the retainers.


Removal
Installation
4. Turn the screw anticlockwise and
remove it, and then partially peel back
the mudguard.



5. Turn the socket and bulb assembly
anticlockwise and remove it.

6–61
Maintenance and Care
Owner Maintenance
Fuses
Your vehicle's electrical system is
protected by fuses.

If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.

If the same fuse blows again, avoid using
that system and consult an expert repairer,
we recommend an Authorised Mazda
Repairer as soon as possible.
Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, ¿ rst
inspect the fuses on the vehicle's left side.


1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.

3. Pull the fuse straight out with the
fuse puller provided on the fuse block
located in the engine compartment.


4. Inspect the fuse and replace it if it is
blown.

NormalBlown

5. Insert a new fuse of the same amperage
rating, and make sure it ¿ ts tightly. If
it does not ¿ t tightly, have an expert
install it. We recommend an Authorised
Mazda Repairer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6. Reinstall the cover and make sure that
it is securely installed.

6–63
Maintenance and Care
Owner Maintenance
*Some models.
Fuse Panel Description
Fuse block (Engine compartment)



DESCRIPTION FUSE
RATING PROTECTED COMPONENT
1 C/U IG1 15 A For protection of various circuits
2 ENGINE IG1 7.5 A Engine control system
3 SUNROOF 10 A —
4 INTERIOR 15 A Overhead light
5

7.5 A Engine control system
6 AUDIO2 15 A Audio system
7 METER1 10 A Instrument cluster
8 SRS1 7.5 A Air bag
9 METER2 7.5 A Instrument cluster
*
10 RADIO 7.5 A Audio system
11 ENGINE3 15 A Engine control system
12 ENGINE1 15 A Engine control system
13 ENGINE2 15 A Engine control system
14 AUDIO1 25 A Audio system
15 A/C MAG 7.5 A Air conditioner
*

6–64
Maintenance and Care
Owner Maintenance
*Some models.
DESCRIPTION FUSE
RATING PROTECTED COMPONENT
16 AT PUMP 15 A Transaxle control system
*
17 AT 15 A Transaxle control system *
18 D.LOCK 25 A Power door locks
19 H/L RH 20 A Headlight (RH)
20

7.5 A Engine control system
21 TAIL 20 A Tail lights, Number plate lights, Position lights
22 ST.HEATER 15 A —
— — —
23 ROOM 25 A Overhead light
24 FOG 15 A Front fog lights
*
25 H/CLEAN 20 A Headlight washer *
26 STOP 10 A Brake lights, Rear fog light *
27 HORN 15 A Horn
28 H/L LH 20 A Headlight (LH)
29 ABS/DSC S 30 A ABS, Dynamic stability control system
*
30 HAZARD 15 A Hazard warning À ashers, Direction indicator lights
31 FUEL PUMP 15 A Fuel system
*
32 FUEL WARM 25 A Fuel warmer *
33 WIPER 20 A Front window wiper
34

50 A For protection of various circuits
35 FAN2 30 A Cooling fan
*
36 FUEL PUMP 30 A —
37 ABS/DSC M 50 A ABS, Dynamic stability control system
*
38 EVVT 20 A Engine control system *
39 — — —
40 FAN1 30 A Cooling fan
*
41 FAN3 40 A Cooling fan *
42 ENG.MAIN 40 A Engine control system
43 EPS 60 A Power steering system
*
44 DEFOG 40 A Rear window defogger
45 IG2 30 A For protection of various circuits
46 INJECTOR 30 A Engine control system
*
47 HEATER 40 A Air conditioner
48 P.WINDOW1 30 A Power windows
49 DCDC DE 40 A For protection of various circuits
*

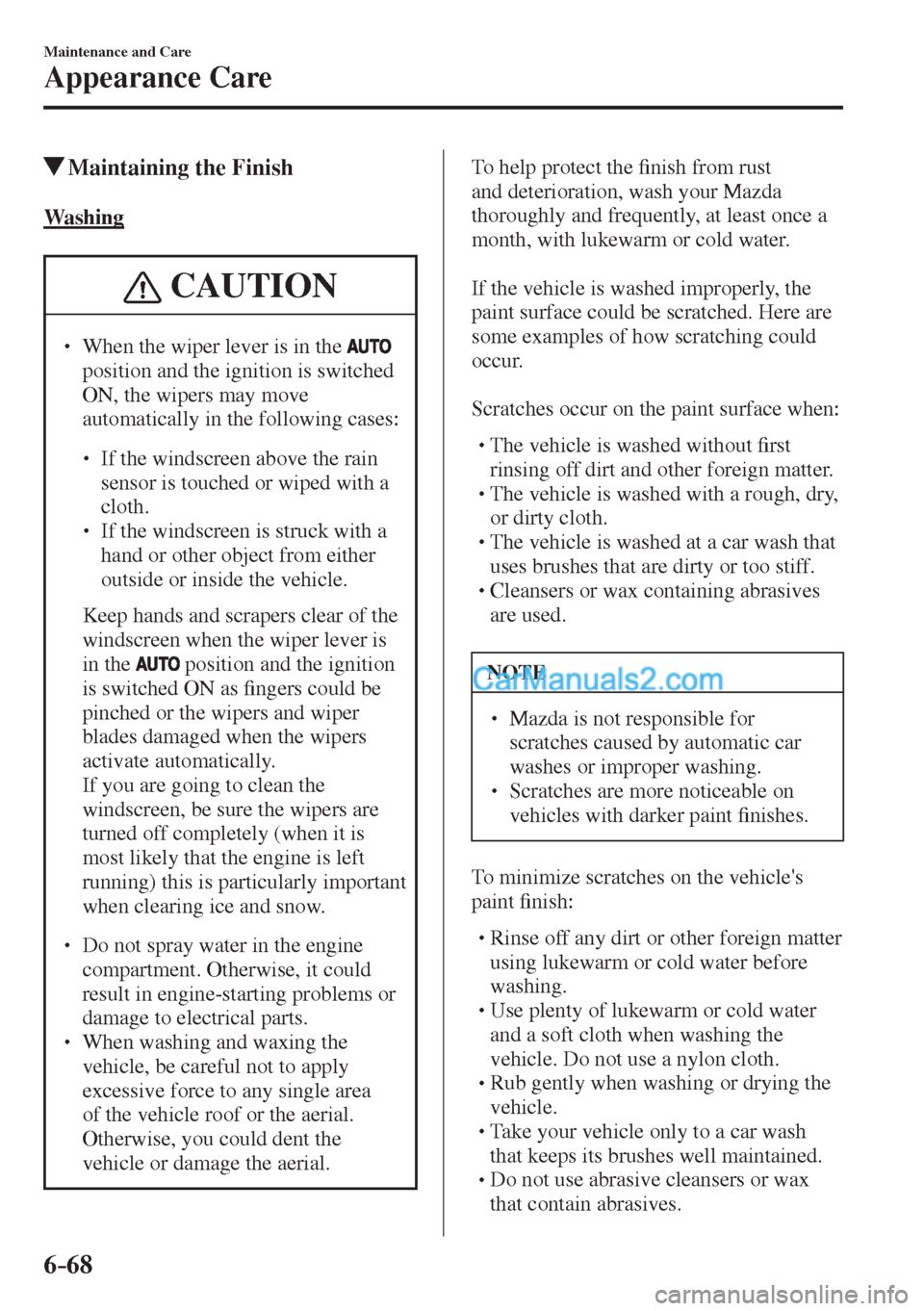

6–68
Maintenance and Care
Appearance Care
Maintaining the Finish
W a s h i n g
CAUTION
  When the wiper lever is in the
position and the ignition is switched
ON, the wipers may move
automatically in the following cases:



 If the windscreen above the rain
sensor is touched or wiped with a
cloth.



 If the windscreen is struck with a
hand or other object from either
outside or inside the vehicle.
  Keep hands and scrapers clear of the
windscreen when the wiper lever is
in the
position and the ignition
is switched ON as ¿ ngers could be
pinched or the wipers and wiper
blades damaged when the wipers
activate automatically.
 If you are going to clean the
windscreen, be sure the wipers are
turned off completely (when it is
most likely that the engine is left
running) this is particularly important
when clearing ice and snow.

 Do not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems or
damage to electrical parts.
  When washing and waxing the
vehicle, be careful not to apply
excessive force to any single area
of the vehicle roof or the aerial.
Otherwise, you could dent the
vehicle or damage the aerial. To help protect the ¿ nish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on the paint surface when:



 The vehicle is washed without ¿ rst
rinsing off dirt and other foreign matter.



 The vehicle is washed with a rough, dry,
or dirty cloth.



 The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.



 Cleansers or wax containing abrasives
are used.

NOTE
  Mazda is not responsible for
scratches caused by automatic car
washes or improper washing.
  Scratches are more noticeable on
vehicles with darker paint ¿ nishes.
To minimize scratches on the vehicle's
paint ¿ nish:




 Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.



 Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.



 Rub gently when washing or drying the
vehicle.



 Take your vehicle only to a car wash
that keeps its brushes well maintained.



 Do not use abrasive cleansers or wax
that contain abrasives.

6–72
Maintenance and Care
Appearance Care
Plastic Part Maintenance













 When cleaning the plastic lenses of
the lights, do not use petrol, paraf¿ n,
recti¿ ed spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolour or damage the
surfaces resulting in a signi¿ cant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, À ush with water
immediately.



 If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or À uids such as petrol,
oil, engine coolant, or battery À uid, it
could cause discolouration, staining,
or paint peeling. Wipe off any such
chemical agents or À uids using a soft
cloth immediately.



 High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.



 Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
 In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result
in deformation of plastic parts or paint
damage.

Interior Care
WARNING
Do not spray water into the vehicle
cabin:
Spraying water into the vehicle cabin
is dangerous as electrical devices such
as the audio and switches could get wet
resulting in a malfunction or vehicle
¿ re.
NOTE

 Do not wipe the interior using
alcohol, chlorine bleach, or organic
solvents such as thinner, benzene,
and petrol. Otherwise, it may cause
discolouration or stains.
  Rubbing hard with a stiff brush or
cloth may cause damage.
If the vehicle interior becomes soiled
by any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discolouration, stains, cracks, or peeling
of the coating, and it will make it hard to
wipe off later.



 Beverage or fragrance



 Grease or oil



 Soiling

7–1*Some models.7–1
7If Trouble Arises
Helpful information on what to do if a problem arises with the vehicle.

Parking in an Emergency ................... 7-2
Parking in an Emergency ............... 7-2
Roadside Emergency Triangle
Retaining Strap (Hatchback)
* ......... 7-2

Flat Tyre ............................................... 7-3
Spare Tyre and Tool Storage .......... 7-3
Emergency Flat Tyre Repair
Kit
* ................................................. 7-9
Changing a Flat Tyre
(With Spare Tyre) ......................... 7-16

Battery Runs Out .............................. 7-24
Jump-Starting ............................... 7-24

Emergency Starting .......................... 7-27
Starting a Flooded Engine
(SKYACTIV-G 1.3 and
SKYACTIV-G 1.5 ) ...................... 7-27
Push-Starting ................................ 7-27
Running Out of Fuel
(SKYACTIV-D 1.5) ..................... 7-28

Overheating ....................................... 7-29
Overheating .................................. 7-29

Emergency Towing ............................ 7-31
Towing Description ...................... 7-31
Towing/Tiedown Hooks ............... 7-32
Warning/Indicator Lights and Warning
Sounds ................................................ 7-35
If a Warning Light Turns On or
Flashes .......................................... 7-35
Message Indicated on Display
* .... 7-48
Warning Sound is Activated ......... 7-50

When Liftgate/Boot Lid Cannot be
Opened ............................................... 7-55
When Liftgate/Boot Lid Cannot be
Opened ......................................... 7-55

Active Driving Display Does Not
Operate ............................................... 7-57
If the Active Driving Display does not
operate .......................................... 7-57

7–11
If Trouble Arises
Flat Tyre
Using the Emergency Flat Tyre
Repair Kit
1. Park on a level surface off the right-of-
way and set the parking brake.
2. Put a vehicle with an automatic
transaxle in Park (P), a manual
transaxle in Reverse (R) or 1, and turn
off the engine.
3. Turn on the hazard warning À asher.
4. Unload passengers and luggage, and
remove the emergency À at tyre repair
kit.



5. Shake the tyre sealant well.


CAUTION
If the bottle is shaken after the injection
hose is screwed on, tyre sealant could
spray out from the injection hose. Tyre
sealant contacting clothing or other
objects may be impossible to remove.
Shake the bottle before screwing on the
injection hose.
NOTE
The tyre sealant can be used at outside
temperatures down to -30 °C (-22 °F). In
extremely cold temperatures (0 °C
(32 °F) or below), the tyre sealant
hardens easily and injection of the
sealant will be dif¿ cult. Warm the
sealant inside the vehicle before doing
the injection work.
6. Remove the cap from the bottle. Screw
on the injection hose with the bottle's
inner cap left on to break the inner cap.

Cap
Injection hose
Tyre sealant

7. Remove the valve cap from the À at
tyre. Press the back of a valve core tool
to the core of the tyre valve and bleed
all the remaining air.

Valve core tool Valve
Valve cap
